Lumex DSLSA1 User guide

DSLSA1-INS-LAB-RevB14 1
DSLSA1, DSLSA2, DSLSA3, DSLSA4; DELUXE SIT-TO-STAND
PADDED SLING: APPLICATION INSTRUCTIONS
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE USE
Info: The most current version of these instructions can be found online at www.grahamfield.com.
WARNING: Important! Read and understand these instructions before assembling or using
the Sit-to-Stand Sling. If you do not understand any part of these warnings, cautions or
instructions, contact a healthcare professional for direction in the use of this product. If the
Sit-to-Stand Sling is not properly applied, personal injury and damage to the Sit-to-Stand Sling
could result.
WARNING: If components are damaged or missing, contact your dealer immediately.
WARNING: Carefully inspect the sling weekly for wear and damage to seams, fabric, straps, and
strap loops. Torn, cut, frayed or broken slings can fail, resulting in serious personal injury to
the user. Use only slings that are in good condition. Discard and destroy old, unusable slings.
WARNING: DO NOT exceed the Sit-to-Stand Sling's maximum weight capacity.
WARNING: Notice for California Customers- California Proposition 65 WARNING: This product
contains a chemical known to the State of California to cause cancer and reproductive or
developmental harm.
WARNING: GF Health Products, Inc. assumes no
responsibility for any damage or injury caused by
improper application or use of this product.
APPLICATION
1. Check the patient's weight and the sling's
maximum weight capacity. Ensure that the
patient's weight does not exceed the sling's
maximum weight capacity.
2. Review the following procedures carefully
before attempting lift; call GF Health Products,
Inc. Technical Support at 770-447-1609 with any
questions.
3. See the Sling Loop Options table at right to
determine the appropriate position.
4. See Figure 1 for correct positioning of sling on
spreader bar.
5. Position the sling behind the seated patient, with
the two red pads under the arms, as shown in
Figure 2.
6. Cross the padded belt over the patient's chest
and stomach area and secure it with the snap
buckle belt as shown in Figure 2.
7. Loop straps A and B through black strap C as
shown in Figure 3, and hook to corresponding
mast hooks a and b as shown in Figures 1 and 4.
Sling Loop Options
Long loop reclined position
Center loop semi-reclined position
Short loop most upright position
Long loop
Center loop
Short loop
Figure 1
AB
a
b
C
Figure 2 Figure 3
Figure 4

DSLSA1-INS-LAB-RevB14 2

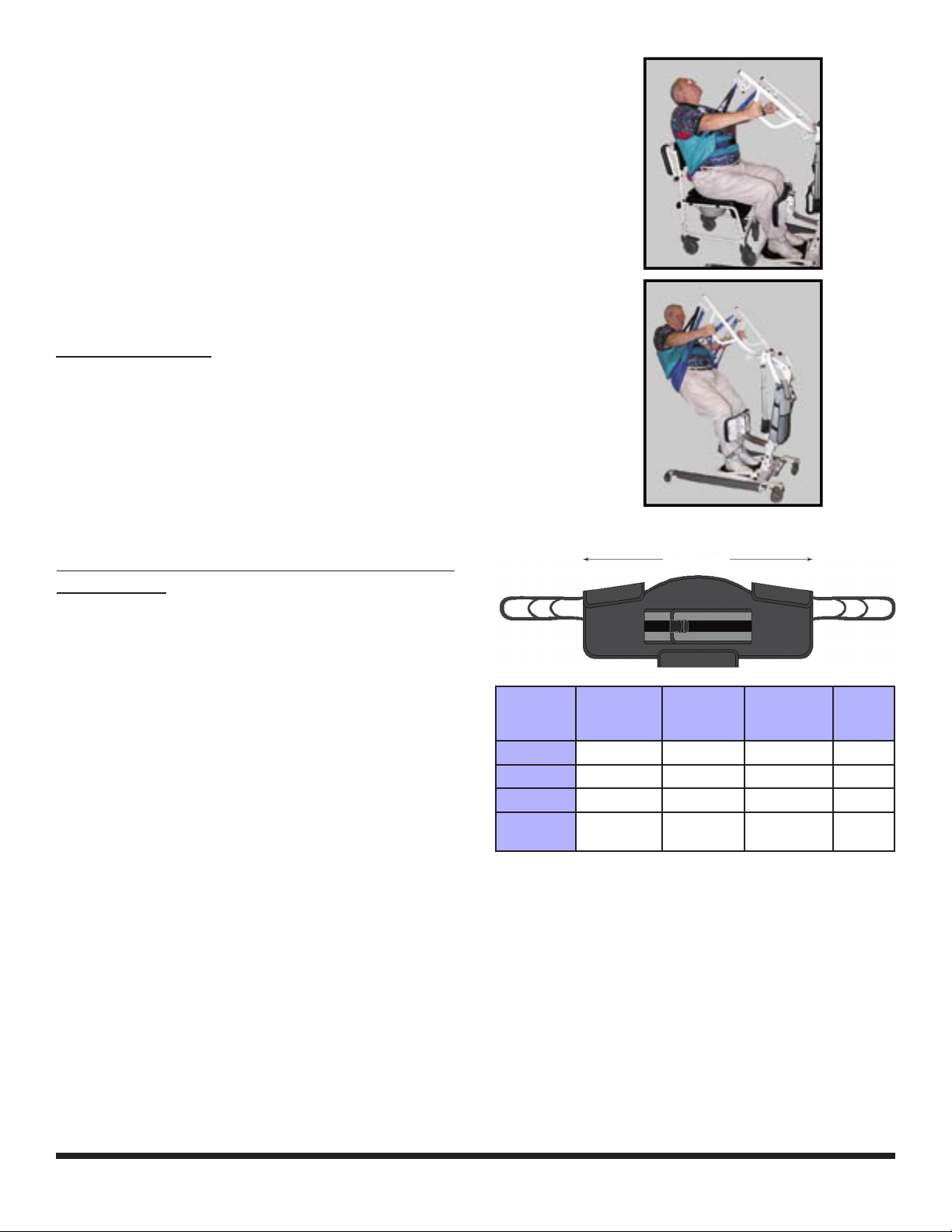

8. Have the patient grasp handle bars and place feet on lift
platform with knees against black knee pad as shown in
Figure 5.
9. Do not lock caster brakes, in order to allow the lift to
properly balance weight.
10.Have the patient keep arms outside all loops and lean head
slightly back as shown in Figure 5.
11.Proceed with lift and transfer as shown in Figure 6.
Info: Optional Sit-to-Stand Buttock Strap (DSLSA9) shown
in Figure 6 offers extra support and attaches to spreader
bar extra loops below aand b.
MAINTENANCE
To clean sling, use a mild soap and water solution and a clean
cloth. Rinse with clear water, then allow to air dry.
sNotice: Never use solvents, abrasive cleaners, or scouring
pads on any part of the sling.
Torso Girth
ITEM Size
Torso
Girth
Maximum
Weight
Capacity
Qty
DSLSA1 Small 26" - 43" 400 lb 1 ea
DSLSA2 Medium 29" - 48" 400 lb 1 ea
DSLSA3 Large 36" - 59" 400 lb 1 ea
DSLSA4 XX Large,
Bariatric
50" - 79" 600 lb 1 ea
Figure 5
Figure 6
DELUXE SIT-TO-STAND PADDED SLING
FEATURES
For use with LF2020 STS Lift. Cushioned
support panels under the arm and lumbar
areas enhance patient comfort. Unique
cross-over strap and non-slip inner pad keep
sling in place and prevent it from riding up.
Optional Sit-to-Stand Buttock Strap (DSLSA9)
is available for initial lift assistance.

DSLSA1-INS-LAB-RevB14 3
