Lumex FR566G User manual

Series FR566G Deluxe Clinical Care Recliner
Series FR566DG Deluxe Clinical Care Recliner with Drop Arm
Series FR566GH Deluxe Clinical Care Recliner
with Heat and Massage
Series FR566DGH Deluxe Clinical Care Recliner with Drop Arm
with Heat and Massage
Assembly and Operating Instructions
IMPORTANT: READ THIS MANUAL BEFORE OPERATING YOUR LUMEX
FR566G / FR566DG / FR566GH / FR566DGH DELUXE CLINICAL CARE RECLINER.
SAVE THIS MANUAL FOR FUTURE USE.
THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT
www.grahameld.com.
FR566DG-INS-LAB-RevF16

FR566DG-INS-LAB-RevF16 2
CONTENTS
INTRODUCTION.......................................................................................................................................................3
INTENDED USE .................................................................................................................................................3
IMPORTANT SAFETY PRECAUTIONS—PLEASE READ BEFORE USE ....................................................... 3
WARNINGS..................................................................................................................................................3
ASSEMBLY...............................................................................................................................................................5
UNPACKING.......................................................................................................................................................5
PRODUCT DESCRIPTION.................................................................................................................................5
FEATURES, FR566G AND FR566GH.........................................................................................................5
FEATURES, FR566DG AND FR566DGH....................................................................................................6
UPHOLSTERED BACK ASSEMBLY, ALL MODELS..................................................................................7
OPERATION .............................................................................................................................................................8
TENTE® CASTERS, ALL MODELS ..................................................................................................................8
SIDE TABLE OPERATION, ALL MODELS........................................................................................................9
TO RAISE TABLE........................................................................................................................................9
TO LOWER TABLE......................................................................................................................................9
SIDE PANEL OPERATION...............................................................................................................................10
FR566G AND FR566GH ............................................................................................................................10
FR566DG AND FR566DGH.......................................................................................................................10
RECLINER OPERATION, ALL MODELS ........................................................................................................ 11
FIRST POSITION ....................................................................................................................................... 11
SECOND POSITION .................................................................................................................................. 11
THIRD POSITION ......................................................................................................................................12
TRENDELENBURG POSITION (ALSO KNOWN AS SHOCK POSITION) ..............................................12
DROP ARM FUNCTION, FR566DG AND FR566DGH ONLY..........................................................................13
TO OPERATE THE DROP ARM FEATURE ..............................................................................................13

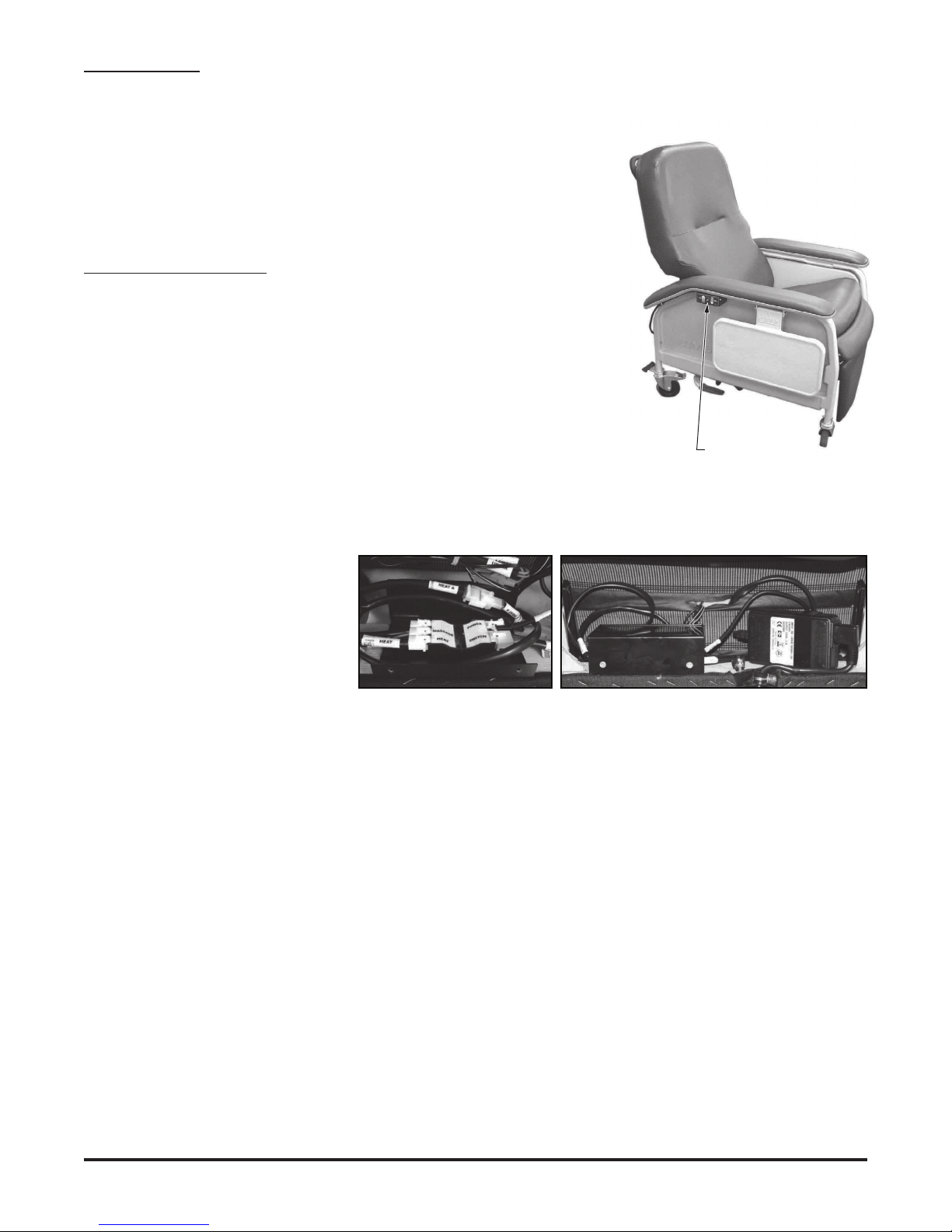

LUMEX CLINICAL CARE RECLINERS WITH HEAT AND MASSAGE FEATURE...............................................14
INSTALLATION AND OPERATING GUIDE .....................................................................................................14
DESCRIPTION ...........................................................................................................................................14
CONNECTION ...........................................................................................................................................15
MAIN COMPONENTS................................................................................................................................15
HEAT AND MASSAGE UNIT SETUP INSTRUCTIONS............................................................................16
HEAT AND MASSAGE UNIT OPERATION INSTRUCTIONS...................................................................17
HEAT AND MASSAGE UNIT TROUBLESHOOTING GUIDE...................................................................18
CARE AND MAINTENANCE ..................................................................................................................................19
EVERY THREE MONTHS ................................................................................................................................19
UPHOLSTERY MAINTENANCE AND STAIN REMOVAL ...............................................................................19
PERMABLOK3® CARE AND CLEANING GUIDE — ADVANCED VINYL PROTECTION ......................19
CDC RECOMMENDATIONS ............................................................................................................................20
CE CERTIFICATION (SERIES FR566G / FR566DG ONLY).................................................................................. 22
TECHNICAL SPECIFICATIONS.............................................................................................................................22
LIMITED WARRANTY ............................................................................................................................................23

FR566DG-INS-LAB-RevF16 3
INTRODUCTION
This manual contains assembly, operation, and maintenance instructions for Lumex Clinical
Care Recliners Series FR566G, FR566DG, FR566GH and FR566DGH. Read the entire manual
carefully before using your recliner, and refer to it during use if you have questions. If you
have further questions, please call Graham-Field / Lumex Technical Support at 770.368.4700.
INTENDED USE
Lumex Clinical Care Recliners are intended to make the care, treatment and recovery of
patients easier and more comfortable. Lumex Clinical Care Recliners are used in a wide
range of healthcare applications including Dialysis, Oncology, Drug Delivery, Same Day
Surgery and Post-Operative Recovery. Lumex Clinical Care Recliners are ideal for use in
hospitals, clinics and rehabilitation centers.
Lumex Series FR566G / FR566DG / FR566GH / FR566DGH supports patient weights up to
350 lb (158 kg), when evenly distributed.
IMPORTANT SAFETY PRECAUTIONS—PLEASE READ BEFORE USE
The safety statements presented in this chapter refer to the basic safety information that
the FR566G / FR566DG / FR566GH / FR566DGH user must pay attention to and abide by.
There are additional safety statements in other chapters or sections, which may be the
same as or similar to the following, or specic to the operations. Please note the following
special statements, used throughout this manual, and their signicance:
WARNING: Indicates a potential hazard situation or unsafe practice that, if not
avoided, could result in death or serious personal injury.
CAUTION: Indicates a potential hazard or unsafe practice that, if not avoided, could
result in minor or moderate personal injury.
sNOTICE: Indicates a potential hazard or unsafe practice that, if not avoided, could
result in product or property damage.
Info: Provides application recommendations or other useful information to
ensure that you get the most from your product.
WARNINGS
WARNING: Read this entire manual before assembly or operation.
WARNING: Periodically inspect all parts and replace as needed.
 WARNING:Donotusenearanopename,asthechaircouldbeacombustion
source,resultinginre,propertydamage,andseverephysicalinjury.
WARNING: Service and repair of the Lumex FR566G / FR566DG / FR566GH /
FR566DGH Clinical Care Recliner must be performed by a Graham-Field authorized
distributor. GF Health Products, Inc. is not responsible for any consequence
resulting from any unauthorized service or repair.
WARNING: The electronics and actuator contain no serviceable components. If
service is required, the unit must be returned to the factory for repair. DO NOT
attempt to open the electronics or actuator or obtain local service; this will void
the warranty and may result in damage to the unit. Consult your Graham-Field
authorized distributor for further information.

FR566DG-INS-LAB-RevF16 4
WARNING: This product has a maximum weight capacity of 350 lb (158 kg), EVENLY
DISTRIBUTED.
WARNING: Casters must be locked at all times, except during transport.
 WARNING:Unauthorizedmodicationofyourreclinerortheuseofnon-Lumex
replacement parts may change the structure of the recliner and could create a
hazardous condition, which may result in serious injury and will void the warranty.
WARNING: Notice for California Customers- California Proposition 65 WARNING:
This product contains a chemical known to the State of California to cause cancer
and reproductive or developmental harm.
 WARNING:GFHealthProducts,Inc.specicallydisclaimsresponsibilityforany
bodily injury or property damage which may occur during any use which does not
comply with federal, state or local laws or ordinances.

FR566DG-INS-LAB-RevF16 5
ASSEMBLY
UNPACKING
1. Check for obvious damage to the carton or its contents. If damage is evident, please
notify the carrier and your Graham-Field authorized distributor.
2. Remove all packaging materials from recliner base.
PRODUCT DESCRIPTION
Features, FR566G and FR566GH
upholstered back
upholstered armrest
upholstered seat
upholstered
legrest / skirt
upholstered
footrest
fold down side table
frame
removable side panelTrendelenburg release bar
padded push handle
total locking caster
(total of 3 on recliner; black locking tab)
rear directional (swivel) locking caster
(right rear leg only; green locking tab)
Clinical Care Recliner Series FR566G

FR566DG-INS-LAB-RevF16 6
Features, FR566DG and FR566DGH
upholstered back
upholstered armrest
upholstered seat
upholstered
legrest / skirt
upholstered
footrest
fold down side table
frame
removable side panel
padded
push handle
gas spring
actuating lever
total locking caster
(total of 3 on recliner; black locking tab)
rear directional (swivel) locking caster
(right rear leg only; green locking tab)
Clinical Care Recliner Series FR566DGH

FR566DG-INS-LAB-RevF16 7
Upholstered Back Assembly, All Models
bracket and link to be even
threaded knob through
large hole in bayonet link
kd bracket
bayonet link
threaded knobs
upholstered back
upholstered back’s kd brackets
upholstered skirt
steel tube
mechanism’s bayonet links
1. Lift the skirt on the rear of the upholstered back. To make assembly easier, hold skirt up
with a small piece of tape to fully expose the kd (knock-down) brackets that are to be
mated to the two bayonet lugs on the recliner mechanism.
2. Remove two pre-installed threaded knobs from back (one on each side).
3. Carefully guide the upholstered back onto the mechanism, inserting both bayonet links
at the same time through the two cutouts located in the bottom of the back.
4. Push down rmly on the back until the recliner mechanism bayonet links are fully
engaged into the upholstered back kd brackets. The top of bayonet link should be even
with top of kd bracket, as shown above.
5. Once the back is properly seated onto mechanism, insert the threaded knob through
bayonet link, kd bracket and steel tube (one on each side). Secure hand tight.
6. Remove tape and lower upholstery skirt. Secure back skirt with the hook and loop strips
on the skirt.

FR566DG-INS-LAB-RevF16 8
OPERATION
WARNING: Disconnection of the device: In case of emergency, always disconnect
the device by removing the power cord plug from the power outlet.
TENTE® CASTERS, ALL MODELS
WARNING: Casters must be locked at all times, except during transport.
All Lumex Clinical Care Recliners now feature
the latest design, all-plastic casters from TENTE.
Specically designed for use in healthcare
environments, the new casters are easier to clean,
easier to move, and tolerate a wide array of cleaners
and chemicals. Each caster is made from high-
grade synthetic materials and features a double-ball
bearing swivel head. The wheel center is made of
polypropylene and the tire tread of TENTEprene
(thermoplastic rubber). The gray non-marking tires
feature precision ball bearings.
Locking casters: Each Lumex Clinical Care Recliner
features three total locking casters, identied by
black actuator tabs, that lock both the wheel and the swivel. To activate the total lock,
simply press down on the BLACK actuator tab until it locks. To release the total lock, press
on the raised portion of the actuator tab until the lever is back in the normal operating
position.
Directional (swivel) caster: The fourth caster, located on the right rear position of the
recliner, is a directional (swivel) locking caster only. Identied by a green actuator tab, the
directional lock caster will lock in one of two 180-degree positions relative to the frame
(forward and backward) and allows the recliner to track straight when pushed. To activate
the directional lock, simply press down on the GREEN actuator tab until it locks — you may
need to move the recliner slightly until the caster locks in a straight line with the recliner
frame. To release the directional lock, press on the raised portion of the actuator tab until
the lever is back in the normal operating position.
green actuator tabblack actuator tab
directional (swivel)
locking caster
(right rear caster)
total
locking caster

FR566DG-INS-LAB-RevF16 9
side table
(stored position)
side table
(engaged position)
tabs engage into
slots on side table
mount bracket
side table
mount bracket
3/8" clevis pin
attachment
armrest
side table
(disengaged position)
Side Table
SIDE TABLE OPERATION, ALL MODELS
To Raise Table
Raise the side table all the
way up and slide in toward
the armrest until tabs engage
slots in mount bracket. Press
down lightly on table to ensure
locking tabs are engaged.
To Lower Table
Lift the side table up slightly
until tabs disengage slots and
pull table away from armrest.
Lower side table to self-storing
position.

FR566DG-INS-LAB-RevF16 10
SIDE PANEL OPERATION
For easy cleaning and access to the side and underside of the recliner, Lumex Clinical Care
Recliners feature easy-to-remove side panels.
FR566G and FR566GH
To Remove Side Panel: depress
the two push buttons located
on the lower sides of frame. Pull
side panel gently away and down
from frame. There are tabs on the
frame underneath the armrest
that hold the side panel in place.
To Install Side Panel: insert
side panel into recliner frame by
locating the tabs underneath the
armrest. Make sure side panel is
properly aligned and that the top
edge is behind the locking tabs.
Press side panel into frame sides.
Make sure that both push buttons
are protruding into side panel to
ensure side panel is locked into place.
FR566DG and FR566DGH
To Remove Side Panel: grasp upholstered
side panel from both sides. Pull sharply out
from recliner until locking clips release side
panel from frame.
To Install Side Panel: insert side panel into
recliner frame by lining up the side panel
clips with the tubes on frame. Push side panel
rmly into frame until side panel clips lock
into place.
push button
panel tabs
side panel
FR566G and FR566GH Removable Side Panel
side panel
FR566DG and FR566DGH Removable Side Panel

FR566DG-INS-LAB-RevF16 11
RECLINER OPERATION, ALL MODELS
The Lumex Series FR566G / FR566DG / FR566GH / FR566DGH recliners feature three
positions for patient comfort. The fourth position is a Trendelenburg (or Shock Position)
that must be activated by a caregiver. The Trendelenburg Position CANNOT be activated
by a patient while in the recliner. In addition, this recliner features a back that can be
repositioned via the Adjustment Lever located on the Push Handle on the back of the
recliner.
First Position
The rst position is the Upright Position. This position
is ideal for patient transport and can be used to initiate
patient treatment / therapy.
Second Position
The second position is the rst recline position and is also
known as TV position. This position is ideal for patient
treatment, rest and reading.
To Achieve Second Position / First Recline Position:
• Recliningbypatient:placehandsonarmrestsand
push body against recliner back to recline yourself to
desired position. To bring yourself up, place hands on
armrests and pull yourself up while leaning your body
forward, away from the recliner back, while at the
same time pushing down evenly on the footrest with
your legs.
• Recliningbyattendant:standingoneithersideofthe
recliner, grasp the armrest with one hand and push
handle with the other hand. Push back on push handle
to recline. To return, grasp push handle and pull forward to raise the recliner back.
sNOTICE: DO NOT use the footrest by itself to return the recliner to an upright
position from any recline position. Doing so may damage the recliner mechanism.
Please follow the instructions above to operate the recliner.
Upright Position
First Recline Position
(TV Position)
Second Recline Position
(Full Recline Position)
Trendelenburg Position
(Shock Position)

FR566DG-INS-LAB-RevF16 12
Third Position
The third position is the Second Recline Position and is also known as the “Full Recline”
position. This position is ideal for patient treatment, rest and reading.
To Achieve Third Position / Second Recline Position:
• Recliningbythepatient:fromtheFirstRecline
Position continue to push against the back by placing
your hands on the armrests and continue to recline
yourself to the Second Recline Position. To bring
yourself up, place hands on armrests and pull yourself
up while leaning your body forward away from the
recliner back while at the same time pushing down
evenly on the footrest with your legs.
• Recliningbyattendant:standingoneithersideoftherecliner,graspthearmrestwith
one hand and push handle with the other hand. Push back on push handle to recline. To
return, grasp push handle and pull forward to raise the recliner back.
Trendelenburg Position (Also Known as Shock Position)
Info: This position can only be achieved by a caregiver.
Standing on either side of the recliner, grasp the armrest
with one hand while holding the recliner back with the
other. With your foot, push down on the release bar
(either side of the recliner) while gently pushing down
with your hand on the recliner back until it comes to a
stop.
To bring recliner out of Trendelenburg, stand on either
side of the recliner, grasp the armrest with one hand and
push handle with the other hand and pull forward on the
push handle.
Upright Position
First Recline Position
(TV Position)
Second Recline Position
(Full Recline Position)
Trendelenburg Position
(Shock Position)
Upright Position
First Recline Position
(TV Position)
Second Recline Position
(Full Recline Position)
Trendelenburg Position
(Shock Position)

FR566DG-INS-LAB-RevF16 13
DROP ARM FUNCTION, FR566DG AND FR566DGH ONLY
The Lumex Deluxe Clinical Care Recliner with Drop Arm (Series FR566DG and FR566DGH)
features self-storing drop arms that are simple for the caregiver to actuate. By lowering the
arm, a safer and easier lateral transfer for the resident and caregiver can be achieved.
WARNING: Always lock all recliner casters before attempting to transfer a patient.
DO NOT attempt to transfer a patient if you are unsure about the physical abilities
of the patient or yourself. If you are transferring a patient between two pieces of
equipment, make sure both pieces of equipment are locked, are at the same height in
order to reduce the amount of lifting required to transfer the patient, and are as close
to one another as possible. Failure to heed these warnings could result in personal
injury to the patient and / or caregiver.
To Operate the Drop Arm Feature
To Lower Drop Arm:
1. Lift fold down side table away from
recliner to expose drop arm pull button.
2. Pull drop arm pull button outward while
gently pushing down on the center of the
armrest until arm is in the fully lowered
position.
To Raise Drop Arm:
1. Grasp armrest with one hand and pull
upward while pulling out on the drop arm
pull button. Evenly raise armrest upward
until drop arm pull button locks into
place.
2. Ensure drop arm is secure by pushing
down on center of armrest.
drop arm
pull button
FR566DGH
Right Arm Dropped

FR566DG-INS-LAB-RevF16 14
LUMEX CLINICAL CARE RECLINERS WITH HEAT AND
MASSAGE FEATURE
INSTALLATION AND OPERATING GUIDE
Series FR566GH and FR566DGH
Tools Required: 1/4” Hex Wrench, 3/8” Hex Wrench, Phillips Screwdriver, masking or packaging tape
WARNING: Important! Read and understand these instructions before assembling
or using the Specialty Healthcare Seating Heat and Massage Unit. If you do
not understand any part of these warnings, cautions or instructions, contact a
healthcare professional for direction in the use of this product. If the Heat and
Massage Unit is not properly assembled, personal injury and damage to the Heat and
Massage Unit could result.
WARNING: The recliner seat and back heating elements are wired to operate in
series only. Do not change the system wiring in any way.
WARNING: If components are damaged or missing, contact your Graham-Field
authorized distributor immediately. DO NOT use substitute parts. Use only Lumex
replacement parts. The use of non-Lumex replacement parts could cause personal
injury, property damage, and void the warranty.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or
injury caused by improper assembly or use of this product.
Description
The Lumex Specialty Healthcare Seating Heat and Massage Unit is a low-voltage (12V)
Heat and Massage Unit, controllable by the user and / or caregiver, designed to enhance
the comfort of the patient / resident during the use of Lumex Clinical Care Recliners. The
Heat and Massage Unit offers three levels of seat and back heat, as well as a gentle or rm
massage function for just lower back or both lower and upper back.

FR566DG-INS-LAB-RevF16 15
selector switch
Selector Switch (Mounted
Underneath Right Armrest)
Connection
The Heat and Massage Unit comes pre-installed
in Lumex Clinical Care Recliners with the Heat
and Massage Option (FR566GH and FR566DGH).
During recliner shipment, the Heat and Selector
Switch connections are disconnected. Several easy
connections are all that is required to make the unit
functional.
Main Components
1. The selector switch (shown at right), in the
switch box mounted on the right side of the
recliner underneath the armrest, is a single
multi-position switch that activates both the
Heat and Massage functions.
2. The control module, the
brains of the system, is
inside the junction box.
Both are shown at right.
3. The power supply, which
has an 8-foot power cord
that plugs into the wall
power outlet, is shown at
right.
Control Module (Junction
Box Cover Removed)
Junction Box Power Supply

FR566DG-INS-LAB-RevF16 16
Heat and Massage Unit Setup Instructions
1. Place the back cushion over the vertical bayonet
lugs of the recliner mechanism. Secure back on
each side with the threaded screw knobs enclosed
with the Recliner Operating Instructions, as shown
at right.
2. Raise the back skirt on the lower rear of the
back cushion and use masking or packaging tape
to temporarily secure it up and out of the way.
This will permit uninterrupted access to the
back compartment while making the nal cable
connections.
3. Use a 1/4" hex wrench to remove the two hex head
screws that secure the junction box cover (see
picture of junction box at top of page). Remove the
junction box cover to expose the control module.
4. Insert the switch box cable connector (labeled
SWITCH) and the two connectors (labeled HEAT and
HEAT A) and the cable leading from the rear of the
seat cushion into the plastic bushing in the bottom of
the back cushion and pull them through the bushing
into the back compartment, as shown at right.
5. Insert the seat cushion cable connector (labeled HEAT A) into the connector labeled
HEAT A already in the back compartment until its locking tabs snap into place.
6. Insert the connector labeled HEAT into the connector also labeled HEAT in the left side
of the control module (see picture of control module at top of page) until its locking tab
snaps into place.
7. Insert the connector labeled SWITCH into the connector also labeled SWITCH in the
right side of the control module (see picture of control module at top of page) until its
locking tab snaps into place.
8. See picture at right. Remove the lock nut from the screw
that secures the cushioned cable clamp. Remove the
clamp and place it around the switch box cable. Slide the
clamp over the cable until the holes in the clamp tabs are
in line with the screw. Then pinch them closed. Install the
clamp tabs on the screw, then reinstall the lock nut on
the screw. Hold the lock nut with a 3/8" hex wrench and
tighten the screw with a Phillips screwdriver.
9. Place the cable labeled HEAT A inside the junction box. Replace the junction box cover;
replace the two hex head screws that secure the junction box cover. Use a 1/4" hex
wrench to secure the screws.
10. Remove the tape holding the back ap. Lower the ap and seal the compartment.
11. The Heat and Massage Unit is now ready for operation. Instructions for use follow.
sNOTICE: Before rolling the recliner, ensure the power cord is unplugged from the AC
outlet.
Secure Back Cushion to
Recliner Mechanism
Knob
recliner
mechanism
knob
Insert cables through
back cushion bushing
back cushion
bushing
cables
Secure Switch Box
cable clamp
switch box cable clamp
screw
lock nut
clamp tabs

FR566DG-INS-LAB-RevF16 17
Heat and Massage Unit Operation Instructions
1. Plug the power supply cord into any
grounded outlet.
2. The Heat and Massage Unit is operated
using the single multi-position selector
switch located on the right side of the
recliner underneath the armrest. The
Heat and Massage functions can be
operated independently. The selector
switch faceplate is shown at right.
3. Press the selector switch UP to activate the HEAT FUNCTION.
4. Press the selector switch DOWN to activate the MASSAGE FUNCTION.
5. The selector switch has THREE HEAT FUNCTION SETTINGS and FOUR MASSAGE
FUNCTION SETTINGS as follows:
a. HEAT FUNCTION SETTINGS:
1) Press selector switch UP for Setting 1: High Heat, 106°F (41°C), brightest LED.
2) Press selector switch UP AGAIN for Setting 2: Medium Heat, 104°F (40°C), bright
LED.
3) Press selector switch UP AGAIN for Setting 3: Low Heat, 100°F (37°C), dim LED.
4) Press selector switch UP AGAIN: Heat function shuts off.
5) There is a small red indicator light, which illuminates only during the Heat
function, in the selector switch. The light's brightness is determined by the Heat
level being used: Brightest = High Heat; Dimmest = Low Heat.
b. MASSAGE FUNCTION SETTINGS:
1) Press selector switch DOWN for Setting 1: Gentle Lower Back Massage.
2) Press selector switch DOWN AGAIN for Setting 2: Firm Lower Back Massage.
3) Press selector switch DOWN AGAIN for Setting 3: Gentle Upper and Lower Back
Massage.
4) Press selector switch DOWN AGAIN for Setting 4: Firm Upper and Lower Back
Massage.
5) Press selector switch DOWN AGAIN: Massage function Shuts Off.
6. The Heat and Massage Unit automatically shuts off at the following times:
a. HEAT FUNCTION: After one hour of continuous use at the same level.
b. MASSAGE FUNCTION: After fteen minutes of continuous use at the same level.
c. To restart the Heat and Massage Unit, follow the instructions above.

FR566DG-INS-LAB-RevF16 18
Heat and Massage Unit Troubleshooting Guide
The cables and connections need to be validated. This will require the services of a
maintenance person and a clear working area.
1. INSPECTION: Perform the following checks. If a working recliner of the same model is
available, use it for comparison.
2. Is the AC cord properly connected to the power supply? Is the cable from the power
supply to the control module junction box in place?
3. With the power supply AC cord plugged into a live wall outlet, does the small light to the
left of the white seat symbol (located on the switch) light up when the switch is pressed
repeatedly or is there any indication of massage operation?
WARNING: Disconnect the power cord from the wall outlet before performing the
following steps!
a. Is the switch seat symbol oriented so that the back is vertical with the three arrows
pointing up? Is the switch loose in the box?
b. Is there any sign of external damage to the switch, switch box or the surrounding
area?
c. Is there any sign of external damage to the recliner?
d. Do any of the cables show any sign of damage or pinch points?
e. Are all cable connections to the control module (in the junction box) in place per the
instructions? Are the connectors fully engaged?
f. Are any of the connectors damaged?
g. Are the wires within the connectors attached to the pins? Each wire may have to be
tugged lightly to check if the wire is still crimped to the pin.
4. POST-INSPECTION:
a. If improper or loose connections are found, reconnect them rmly (unless a loose
wire has been found). Plug the power supply AC cord into a live wall socket and
operate the unit through all functions.
b. If the switch seat symbol is rotated or there is evidence of damage to the box and
cable notify Graham-Field so that a switch box and cable can be sent for replacement.
c. If damage to any other electrical cable or component, or disconnected wires are
found, please notify Graham-Field.
5. ACTIONS:
a. If full operation is restored, please advise Graham-Field of your successful outcome.
b. If the fault cannot be corrected by simple re-connection, please inform Graham-Field
of the results of your inspection in detail so that we may determine the appropriate
action to be taken.
If you have any questions about the setup and / or operation of the Heat and Massage Unit,
please call the Graham-Field Technical Support Group at 770.368.4700.

FR566DG-INS-LAB-RevF16 19
CARE AND MAINTENANCE
WARNING: Inspect all components periodically and replace as needed.
EVERY THREE MONTHS
• Checkandcleancasters.
• Tightenboltsineachlegthatsecurecastersintoframe.
• Checkbrakesoncasters.
• Checkandcleanlockreclinemechanism.
• Checkreclinermechanismforoperationinallpositions,includingTrendelenburg
Position, with assistant seated in recliner.
UPHOLSTERY MAINTENANCE AND STAIN REMOVAL
• Ordinarydirt:washwithwarmwaterandamildsoapordetergent.
• Stubborndirt:usingasoftbristlebrush,washwithwarmwaterandamildsoapor
detergent.
• Ground-indirt:scrubwithpowderedcleanserorsimilardetergent.
• Chewinggum:scrapecarefully;removewithkeroseneornaphtha.
• Nailpolishandremover:Blotimmediatelytopreventdamage.
• Ballpointpen:blotimmediatelywithawhiteclothdampenedinwaterormineraloil.
• Paint,shoepolish,heelmarks:removeimmediately!Useawhiteclothdampenedin
kerosene, naphtha or turpentine. Do not use paint remover or liquid brush cleaners.
• Tars,asphalt,creosote:removetopreventstaining.Cleanareawithkeroseneor
naphtha.
WARNING: When using kerosene or naphtha, do so in a well ventilated area and keep
itawayfromre,ame,andreclineroccupant.
• Waxingandrenishing:improveswearability.Useanyqualitypastewax.
• Adilutedsolutionof10%(orless)ofbleachorCloroxmaybeusedwhencleaningthis
recliner.
PERMABLOK3® Care and Cleaning Guide — Advanced Vinyl Protection
• Step1(eyeshadow,mascara,grease,blackfelttippen,crayon,chocolate,suntanlotion,
hair and body oils): remove excess spill with a damp cloth. Clean with a 1:1 mix of
Ivory® liquid soap and water. Next, rinse with clean water and dry.
• Step2(redlipstick):useastraightapplicationofconcentratedcleanerssuchasFormula
409® or Fantastik® spray cleaner. Wipe with a clean cloth, rinse with water, and dry.
• Step3(blood,urine,feces,oilbasepaint,tar,andasphalt):usea1:1mixofammoniaand
water, or a 1:4 mix of bleach and water. Rinse with clean water and dry.
• Step4(allothertoughstains):useastraightapplicationofnaphtha(lighteruid).Rinse
thoroughly with clean water and pat surface dry. If the stain persists, go to step 5.
• Step5:usea1:1mixofisopropylalcoholandwater.Ifthestainpersists,usestraight
alcohol. Rinse thoroughly with clean water and pat dry.
Info: For cleaning that requires step 4 or 5, use a soft cotton cloth saturated with
the cleaning material and rub the stain in circles 10 times. Pat dry with another
soft cotton cloth and check the results.

FR566DG-INS-LAB-RevF16 20
The information published in this care guide refers to the performance of PERMABLOK3®
products in specic tests conducted under laboratory conditions. Results may vary under
actual conditions.
This information is not a guarantee and does not relieve the user from the responsibility of
the proper and safe use of the product and all cleaning agents. The use of certain agents can
be harmful to the surface appearance and lifespan of vinyl. Spradling, its agents, and assigns
assume no responsibility resulting from the use of such cleaning agents to the vinyl.
Please check compatibility when using this product in combination with painted or
varnished surfaces.
PERMABLOK3 is a registered trademark of Spradling Holdings, Inc.
Ivory is a registered trademark of Procter and Gamble.
Formula 409 is a registered trademark of The Clorox Company.
Fantastik is a registered trademark of S.C. Johnson & Son, Inc.
Spradling International is not sponsored by, afliated with, or endorsed by such trademark
owners.
CDC RECOMMENDATIONS
CLEANING AND DISINFECTING STRATEGIES FOR ENVIRONMENTAL
SURFACES IN PATIENT-CARE AREAS FOR VINYL UPHOLSTERY, WALL
COVERINGS AND FLOORING
• SelectEPA-registereddisinfectants,ifavailable,andusetheminaccordancewiththe
manufacturer’s instructions.
• Donotusehigh-leveldisinfectants/liquidchemicalsterilantsfordisinfectionofeither
noncritical instruments and devices or any environmental surfaces; such use is counter
to label instructions for these toxic chemicals.
• Followmanufacturers’instructionsforcleaningandmaintainingnoncriticalmedical
equipment.
• Intheabsenceofamanufacturer’scleaninginstructions,followcertainprocedures:
• Cleannoncriticalmedicalequipmentsurfaceswithadetergent/disinfectant.
• Donotusealcoholtodisinfectlargeenvironmentalsurfaces.
• Usebarrierprotectivecoveringsasappropriatefornoncriticalsurfacesthatare:
• Touchedfrequentlywithglovedhandsduringthedeliveryofpatientcare.
• Likelytobecomecontaminatedwithbloodorbodysubstances.
• Difculttoclean(e.g.,computerkeyboards).
• Keephousekeepingsurfaces(e.g.,oors,walls,tabletops)visiblycleanonaregular
basis and clean up spills promptly.
• Useaone-stepprocessandanEPA-registeredhospitaldetergent/disinfectantdesigned
for general housekeeping purposes in patient-care areas where:
• Uncertaintyexistsastothenatureofthesoilonthesurfaces(whetheritisbloodor
body uid or just normal dust or dirt).
• Uncertaintyexistsregardingthepresenceofmultidrugresistantorganismsonsuch
surfaces.
