LUMI LIME Medusa Series User manual

______________________________________________________________________________________________________________________________________
1 / 8 Support: [email protected] Edition: 2023 Q4
System Comet Limited reser es the right to make changes to this product without prior notice.
Please consult factory for the most updated ersion.
Installation Guide
Medusa
INSTRUCTIONS MANUAL
Specifications:
Series Medusa SW Medusa RG W
Input Voltage (Constant Voltage) DC 24V DC 24 – 48V
wide oltage
Power 6W per module 6W per module
IP Rating:
IP66 IP66
Operating Temp:
-20°C to 50°C -20°C to 50°C
Max. Power Linking 20 modules 20 modules @24V
40 modules @48V
Max. run length includes power
feed and extension cables to the
end of the fixtures in the daisy
chain
15 Meters 15 Meters @24V
20 Meters @48V

______________________________________________________________________________________________________________________________________
2 / 8 Support: [email protected] Edition: 2023 Q4
System Comet Limited reser es the right to make changes to this product without prior notice.
Please consult factory for the most updated ersion.
Installation Guide
Medusa
Safety Information
This product should be installed, and connected only by a qualified professional.
Do not connect directly to high oltage power (100-277V). Use only with 24VDC (single
white) or 48VDC (RGBW) hardware or plug-in power supply.
Be certain the 24VDC source, RGBW controller and wire gauge is suffice for power load.
Recommended load for power supplies is 80%.
Ne er cut, connect or join wires while product is connected to a li e power source.
Luminaire must be earthed.
Installation / operation that has been improperly modified, adjusted, repaired or any
alternations in alidates warranty.

______________________________________________________________________________________________________________________________________
3 / 8 Support: [email protected] Edition: 2023 Q4
System Comet Limited reser es the right to make changes to this product without prior notice.
Please consult factory for the most updated ersion.
Installation Guide
Medusa
List of Accessories
1, M5 -20mm Tapping Screw (not included)
Recommended Material:
- Color-platd Zinc Carbon Stell1215
- Stanless Steel 304, 316, 316L,
Please select an appropriate mounting hardware according to the site condition.
1, Allen Key (note included)
ending Strengths
Top end Side end

______________________________________________________________________________________________________________________________________
4 / 8 Support: [email protected] Edition: 2023 Q4
System Comet Limited reser es the right to make changes to this product without prior notice.
Please consult factory for the most updated ersion.
Installation Guide
Medusa

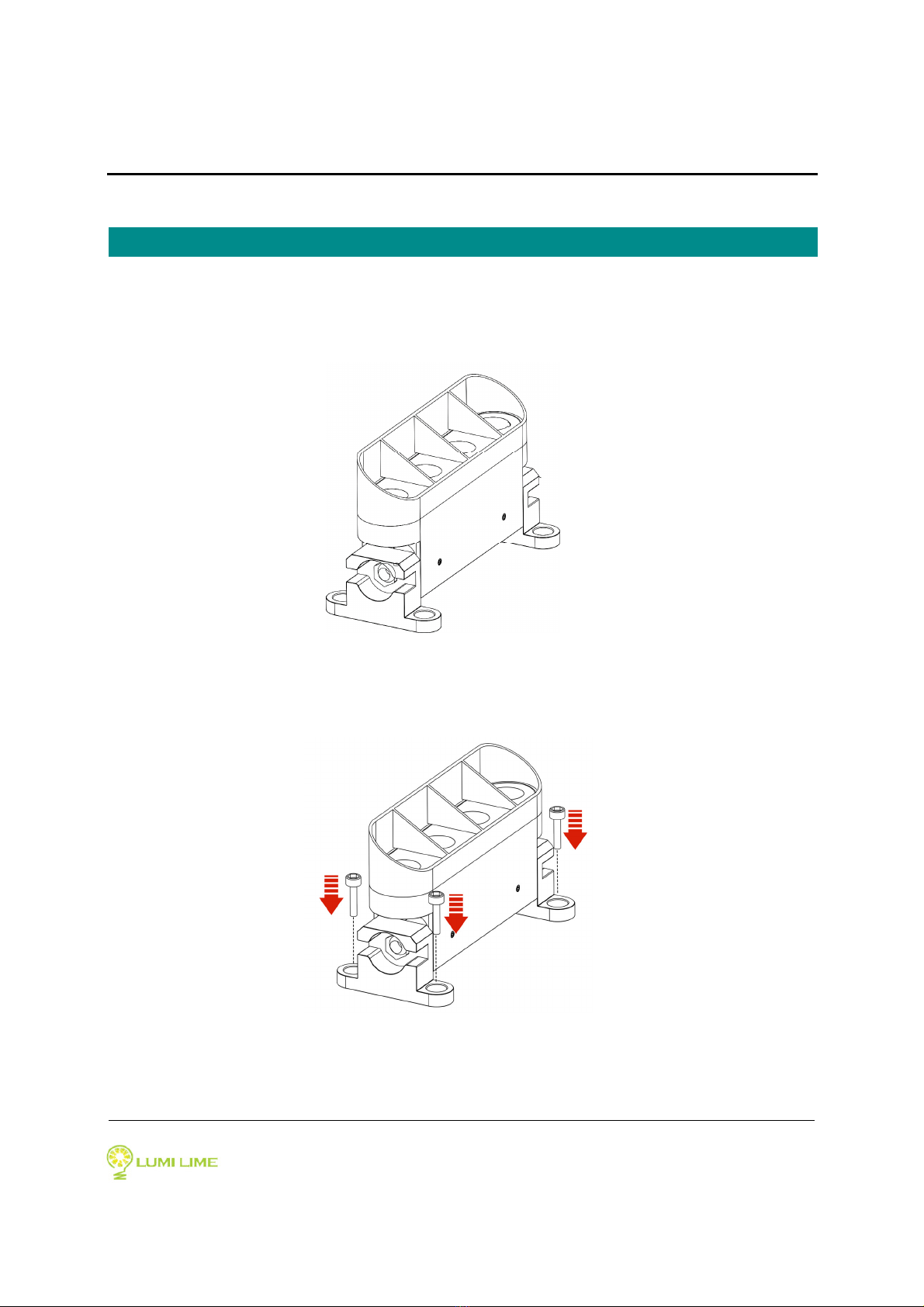

Steps
1, Luminaire will come complete and ready to install.
2, Secure the fixture to a suitable mounting surface.

______________________________________________________________________________________________________________________________________
5 / 8 Support: [email protected] Edition: 2023 Q4
System Comet Limited reser es the right to make changes to this product without prior notice.
Please consult factory for the most updated ersion.
Installation Guide
Medusa
Steps (Con’t)
3) Loosen the hex bolts at the back of luminaire.
4) Adjust the angle of the luminaire to the desire angle.

______________________________________________________________________________________________________________________________________
6 / 8 Support: [email protected] Edition: 2023 Q4
System Comet Limited reser es the right to make changes to this product without prior notice.
Please consult factory for the most updated ersion.
Installation Guide
Medusa
Steps (Con’t)
5) Retighten these bolts once at the desired angle. (optional)
6) Connect the first luminaires of the daisy chain to the leading cable(female head) with
connector of the fitting (male head). Then establish a connection with the free end of
the leading cable to the dri er (both single white and RGBW) and DMX controller
(RGBW)
Single White
RG W
Please refer to Lumilime’s wiring diagram for more reference.

______________________________________________________________________________________________________________________________________
7 / 8 Support: [email protected] Edition: 2023 Q4
System Comet Limited reser es the right to make changes to this product without prior notice.
Please consult factory for the most updated ersion.
Installation Guide
Medusa
Steps (Con’t)
6)
Connect the luminaires to the next fitting of the daisy chian with the connectors of
loop in and loop out cable.
7) Installation is now complete.

______________________________________________________________________________________________________________________________________
8 / 8 Support: [email protected] Edition: 2023 Q4
System Comet Limited reser es the right to make changes to this product without prior notice.
Please consult factory for the most updated ersion.
Installation Guide
Medusa
Statement of Limited Warranty
Disclaimer of Warranty:
Lumilime products ha e been tested and manufactured to the highest quality standards. The limited warranty offered by Lumilime co ers
defects in materials and workmanship for the period of 5 years a specified from the date of purchase (Period maybe be different for customized
item, please consult the sales representati e for final confirmation). The determination of whether the product is defecti e shall be made by
Lumilime. Lumilime will be repair replace the defecti e products at no charge if a product has been determined to be defecti e in its materials
or workmanship. Lumilime reser es the right to use similar, new, repaired, or remanufactured product or parts as part of the Limited Product
Warranty process. This warranty is expressly limited to the repair or replacement of the product. The aggregate remedy for any claim shall not
exceed the total amount of the purchase price for the defecti e product. Lumilime shall not be liable for any incidental or consequential
damages in connection with or arising out of the use of the products.
WARRANTY PERIOD:
The oluntary warranty lasts for 5 year for standard items and maybe shorter for customized products (Please refer to “remark” in the
proforma in oice). The Warranty period begins on the date of original shipment
WARRANTY PROTECTION:
This limited warranty does not apply where:
- Products that ha e been improperly modified, adjusted, repaired or any alterations.
- Products that are damaged due to improper installation or connection not in accordance with the product wiring diagram.
- Products that ha e been improperly modified, adjusted, repaired or any alterations
- Damage from any “Acts of God” includes floods, lightning, landslides, earthquakes, tornadoes, hurricanes and wildfires. Products used in an
inappropriate location or in en ironmental conditions (temperature, humidity, moisture, etc.) outside the normal specified range.
- Electrical power surges and spikes.
- Products used in connection with any components, de ices or systems other than those explicitly appro ed as compatible with company’s
product which listed in the production specification sheets.
Noted:
No distributor or supplier of Lumilime has the authority to modify or amend this Limited Warranty. This warranty may not by transferred or
assigned by the original end user.
