Luxor LLMC10 User manual

LLMC10
Modular Charging
Cabinet
Assembly Instructions
W
ORK S P A CES
www.luxorworkspaces.com
800-323-4656
Parts Key
D x 4
Thumbscrew
C x 2
Bolt,
Phillips Head
A x 1
Charging Cabinet
B x 1
Cord Wrap
Tools Required:
Phillips Head Screwdriver
1Position cord wrap on the rear of
the cabinet, over the corresponding
threaded mount holes.
B
C
A
Remove the rubber caps from
the top of the cabinet.
4
Insert each bolt into a lock washer,
then a flat washer, then use to
attach the casters to the Dolly.
2
3
Remove the drawer from the
bottom/lower cabinet by
pressing
the release lever on each side
of the drawer track.
Position a second cabinet on top,
aligning the threaded
mount holes.
5Using the thumbscrews attach the lower
Cabinet to the upper Cabinet.
6
D

Assembly Instructions
W
ORKSPACES
www.luxorworkspaces.com
800-323-4656
Parts Key
Tools Required:
Phillips Head Screwdriver
Drill
LLMCWP
Modular Charging
Cabinet –
Wall Mount Bracket
A x1
Wall Plate
Screw,
Phillips Head
B x4
Flat
Washer
C x4
D x4
Drywall
Mounts
E x4
Bolt,
Phillips Head
1Hold mounting plate in desired
position on the wall, mark the center
of the four mounting holes.
A
Pre drill holes in wall and
insert drywall mounts.
2
Tilt cabinet and hang onto
mounting bracket.
4
A
Secure cabinet to mounting bracket from the inside
of the cabinet using four screws.
5
E
3Once drywall mounts have been
inserted, attach the mounting plate
to the wall using four washers and
four screws.
B
C
D
A

Assembly Instructions
W
ORK S P A CES
www.luxorworkspaces.com
800-323-4656
Parts Key
Tools Required:
Phillips Head Screwdriver
Caster,
Locking
A x 2
Caster,
Non-Locking
B x 2
Bolt,
Phillips Head
C x16
D x16
Lock Washer
E x16
Flat
Washer
F x 8
Thumbscrew
LLMCDP
Modular Charging
Cabinet –
Double Dolly
IMPORTANT: Position the locking casters on the
end next to the power strip.
Flip the Dolly over and position the casters over the corresponding threaded
mount holes.
1
A
B
Insert each bolt into a lock washer, then a flat
washer, then use to attach the casters to the Dolly.
2C
D
E
3Using the thumbscrews, attach the Modular Charging Cabinets.
IMPORTANT: Position the Charging Cabinets so the cabinet doors face
perpendicular to the edges of the Dolly with the power strips.
F

Flip the Dolly over and position the casters over
the corresponding threaded mount holes.
IMPORTANT: Position the locking casters on the
end next to the power strip.
1
1
Insert each bolt into a
lock washer, then a flat
washer, then use to attach
the casters to the Dolly.
2
LLMCSP
Modular Charging Cabinet – Single Dolly
Assembly Instructions
WORKSPACES
www.luxorworkspaces.com
800-323-4656
Tools Required:
Phillips Head
Screwdriver
Parts Key
Caster, Locking
A x2
Caster, Non-Locking
B x2
Bolt, Phillips Head
C x16 D x16
Lock Washer
E x16
Flat Washer
F x4
Thumbscrew
DWWDFKZKHHOV
$
'(7$,/
$
6&$/(

ZKHHOKDUGZDUH
DWWDFKFDELQHWXVLQJWKXPEVFUHZV
3Using the thumbscrews, attach the Modular Charging Cabinet.
IMPORTANT: Position the Charging Cabinet so the cabinet door faces
perpendicular to the edge of the Dolly with the power strip.
B
A
C
D
E
F
F

LLMCPH
ModularCharging
Cabinet– DollyHandle
Assembly Instructions
WORK S P A C E S
www.luxorworkspaces.com
800-323-4656
Use the socket head bolts and split washers
to attach the
handle to the Dolly.
2
1Line the handle up with the corresponding
threaded mount holes on the sides of the Dolly.
NOTE: While the handle can be attached to either
end, it’s generally best to attach the handle to the
end with the power strip and caster locks.
Parts Key
HandleSplit Washer
A x 1
Bolt, Socket Head
B x 4
C x 4
A
B
C
B
C

1
W
ORKSPACES
www.luxorworkspaces.com
800-323-4656
LLMCDC
Modular Charging Cabinet
– Dolly Connection Plate
Assembly Instructions
Parts Key
Caster,
Locking
B x4
Caster,
Non-Locking
C x4
Bolt,
Phillips Head
D x32 E x32
F x32
Lock Washer
Flat
Washer
G x8
Thumbscrew
Tools Required:
Phillips Head Screwdriver
* Phillips head bolts come with the
Dolly assemblies.
** Thumbscrews come with the Modular
Charging Cabinet assemblies.
A x1
Connection Plate

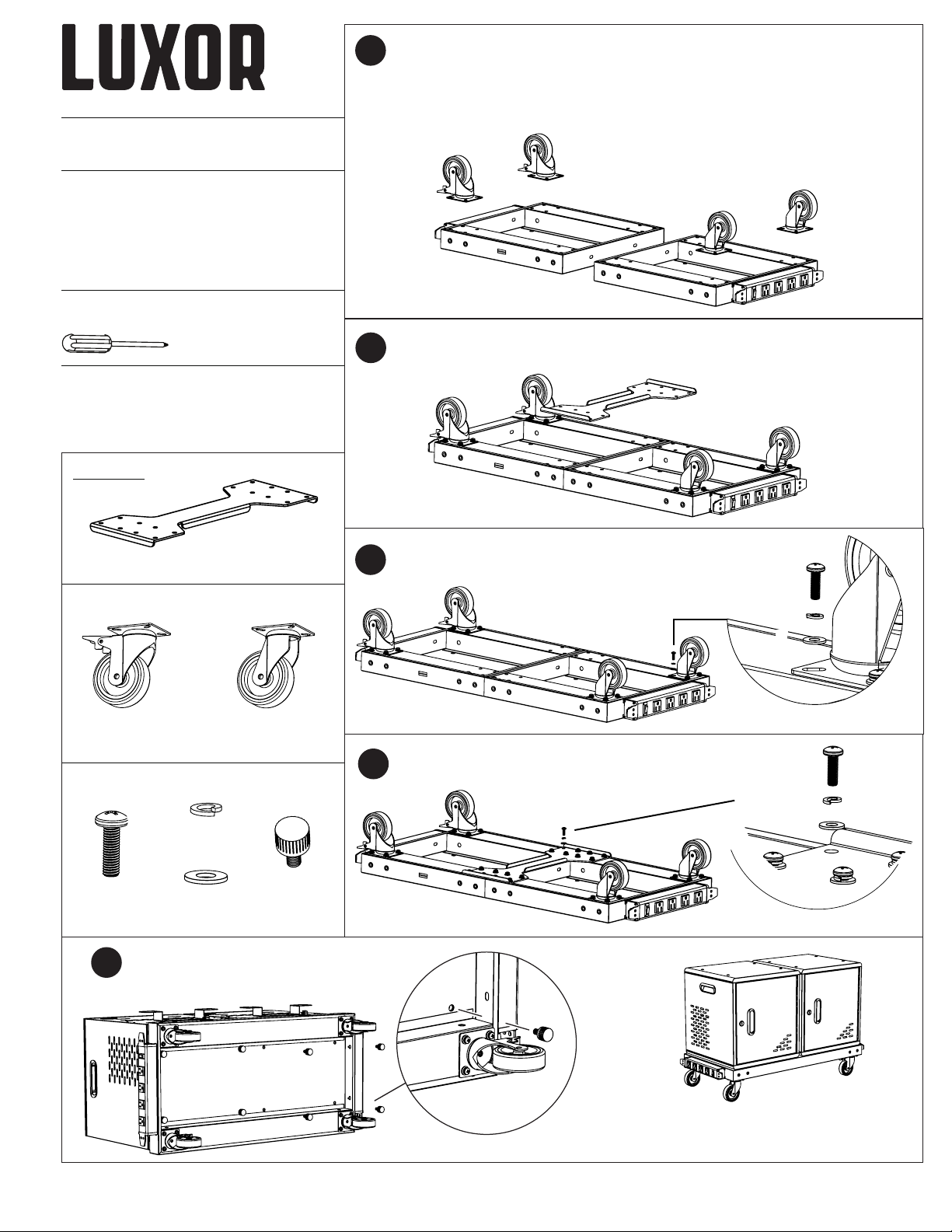

Flip the Dollies over, position them end-to-end with the power
strips facing out, and position the casters at each corner over the
corresponding threaded mount holes.
IMPORTANT: Position at least one set of locking casters on one end.
If desired, you can place a locking caster at all four corners.
2Position the Connection Plate over the corresponding
threaded mount holes where the two Dollies are joined.
Use the remaining 16 bolts to attach
Connection Plate to the Dollies.
4
Insert each bolt into a lock washer, then a flat washer,
then use 16 bolts to attach the casters to the Dollies.
3
IMPORTANT: Position the Charging Cabinets so the
cabinet doors face perpendicular to the power strips.
Using the thumbscrews, attach the
Modular Charging Cabinets.
5
DWWDFKZKHHOV
$
'(7$,/
$
6&$/(

ZKHHOKDUGZDUH
DWWDFKFDELQHWXVLQJWKXPEVFUHZV
F
F
A
B
C
D
E
F
D
E
F
