Lithium cells and custom-designed lithium battery packs

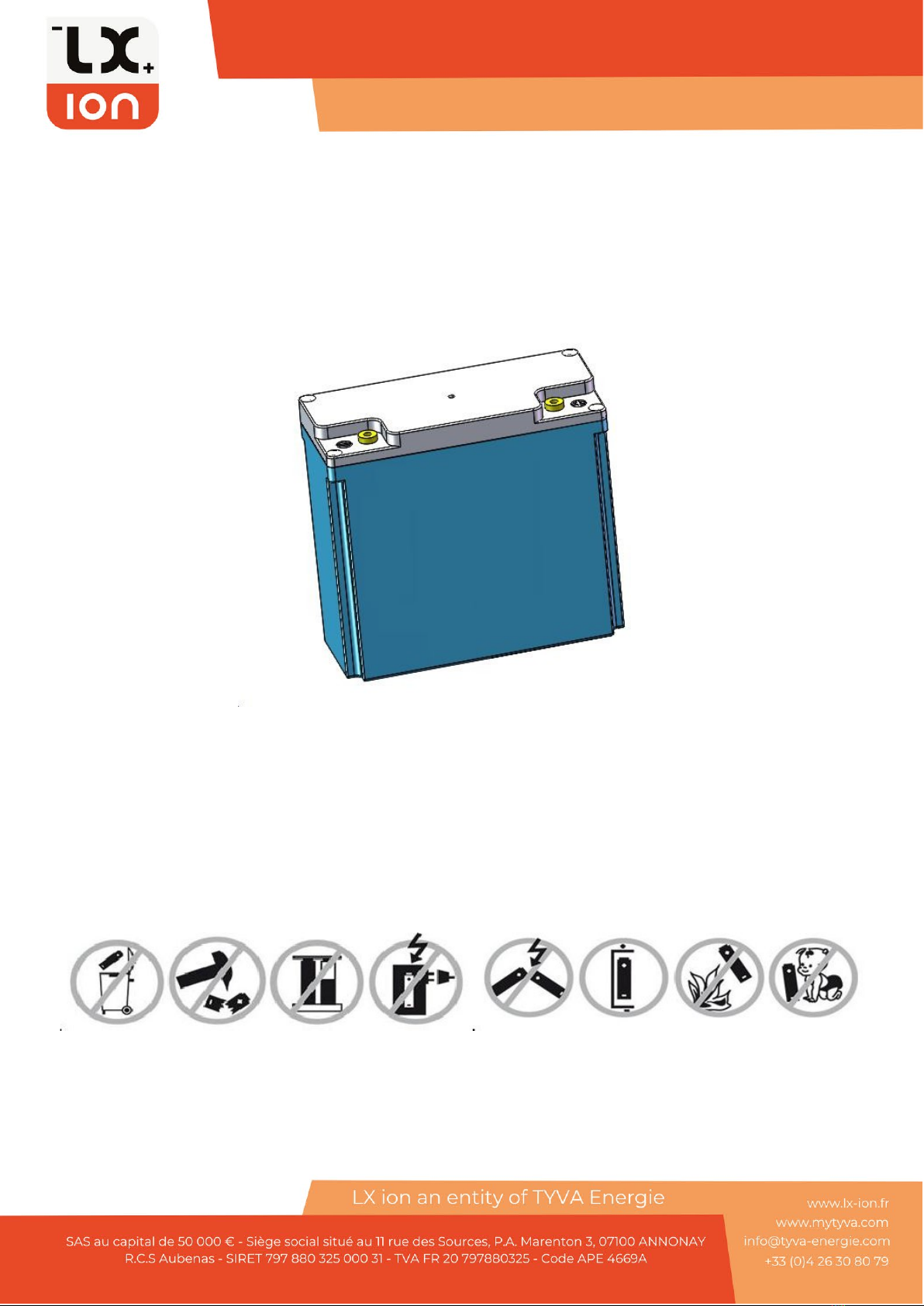

Product Manual LX12-30HE1
Product Name:
12.8 V 30.4 Ah LiFePO4 Battery Pack
Product reference:
LX12-30HE1
Revision:
1.0

Product Manual
LX12-30HE1
Page 2/13
Lithium cells and custom-designed lithium battery packs
Contents
Quality Statement............................................................................................................................3
1. Product Index .................................................................................................... 4
1.1. Product Parameter ......................................................................................................................................................4
1.2. Characteristics Curve..................................................................................................................................................5
2. Battery Usages.................................................................................................. 6
2.1. Charge.................................................................................................................................................................................. 6
2.2. Discharge .......................................................................................................................................................................... 6
3. Battery Test........................................................................................................ 6
3.1. Standard Test Requirements................................................................................................................................ 6
3.2. Standard Charge.......................................................................................................................................................... 6
3.3. Standard Discharge ................................................................................................................................................... 6
4. Battery Service Environment ....................................................................... 7
5. Special Attentions ............................................................................................................................................ 7
6. Battery Using and Maintenance ................................................................. 9
6.1. Battery Storage.............................................................................................................................................................. 9
6.2. Battery Checking Before Using......................................................................................................................... 9
6.3. Battery Installation Notes...................................................................................................................................... 9
6.4. Battery Working Requirements..................................................................................................................... 10
6.5. Battery Using and Maintenance..................................................................................................................... 10
6.6. Battery Common Troubles and Solutions.................................................................................................11
7. Other Technical Indicators ........................................................................... 13
8. Products Disclaimer ....................................................................................... 13

Product Manual
LX12-30HE1
Page 3/13
Lithium cells and custom-designed lithium battery packs
Quality Statement
Proper use and maintenance will ensure that the battery (or battery system) will
operate reliably and consistently for long periods of time.
After receiving the product, please check if the packaging is in good condition.
If the packing is broken, it may cause damage to the product. If there is any
damage, please contact our after-sales or sales staff within five working days.
Anyone who does not use or maintain the battery according to the manual shall
be deemed to give up the warranty right. Suppliers and its service station have
the right to no longer guaranteethe warranty, and will not compensate for any
losses arising from it. However, the correspondingpaid service can be provided
according to the situation.
Please reply and confirm us within seven working days after receiving your
product and specification. We will regard that you agree with the product and
the specification meets your requirements if you do not reply within seven
working days.

Product Manual
LX12-30HE1
Page 4/13
Lithium cells and custom-designed lithium battery packs
1. Product Index
1.1. Product Parameter
No.
Items Parameter
1 Product Reference LX12-30HE1
2 Normal Voltage 12.8 V
3
Rated Capacity
30.4 Ah (C5)
4 Min Capacity 29.4Ah (C5)
5 Energy About 389.12 Wh
6 Internal Resistance ≤40 mΩ
7 Size （
181±2
）
*
（
76.5±1
）
*
（
168±3）mm
8 weight 3.5±0.1 kg
9 Shell material Plastic
10 Charge Voltage 14.4±0.15 V
11
Standard Cutoff
Voltage
About 10.0 V
12 Charge Current ≤15 A
13
Charging cut-off
current
304 mA~608 mA
14 Discharge Current
Normal
Current
Normal
Current
Max
Continuous
Current
Max
Continuous
Current
15 Passive Protection
Over charge protection, Over discharge protection, Temperature
protection, Balanced function
16 Positive M5 hole
Negative M5 hole
17 Charge Retention
After charging according to standard 3.2, placing the battery for
28 days under the standard test conditions, then discharge it
under standard 3.3, and the charge retention rate is ≥80 %.
18 Cycle time
The cycle life is not less than 2000, the capacity retention rate is
≥80 %. (Charging according to 3.2 standard, leaving 0.5~1h;
discharging according to 3.3 standard, leaving 0.5~1 h, counting 1
cycle time).

Product Manual
LX12-30HE1
Page 5/13
Lithium cells and custom-designed lithium battery packs

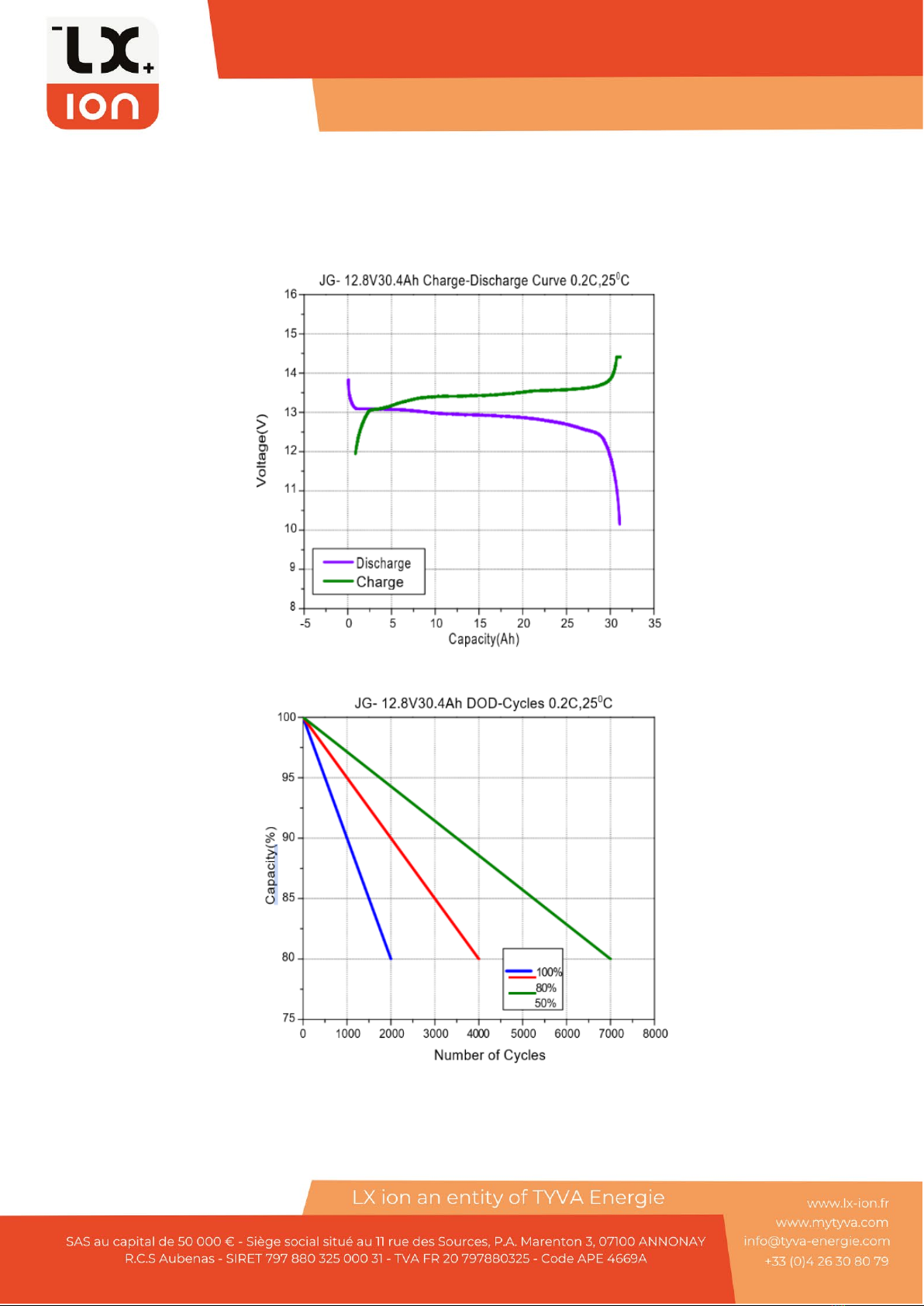

1.2. Characteristics Curve

Product Manual
LX12-30HE1
Page 6/13
Lithium cells and custom-designed lithium battery packs
2. Battery Usages
2.1. Charge
Charging terminal of battery is connected to charger appropriate with it, and then
charge. Charging voltage is 14.4±0.15 V.Do not reverse.
2.2. Discharge
Note that the positive and negative (poles are not reversed as indicated by the battery
case logo), then connect to thematching load.
3. Battery Test
Single cell and Protection board specification are only results of standard test, this is for
reference.
3.1. Standard Test Requirements
Battery tested must be done within 1 month after production. If the battery is not
tested on time due to transportation orother reasons, the battery can be recharged
and discharged for testing.
All tests in this specification should be done in standard atmospheric conditions.
(Temperature: 25± 2 ℃; relative humidity: 65+20 %).
Standard charge voltage is 14.4±0.15 V, standard discharge cut-off voltage is about
10.0 V; standard current is I5 (when I5 >
the normal work current, test according to
the normal current).
3.2. Standard Charge
Charge the battery with Lithium ion battery special test cabinet, with standard
charging voltage, standard current, constant
current and constant voltage charging
to the current dropping to 0.05 I5·
3.3. Standard Discharge
Discharge the battery with Lithium ion battery special test cabinet, discharge to
standard discharge cut-off voltage withstandard current, constant discharging or
until the battery stops.

Product Manual
LX12-30HE1
Page 7/13
Lithium cells and custom-designed lithium battery packs
4. Battery Service Environment
Battery discharge ambient temperature is -20 ℃~ + 60 ℃(When the ambient
temperature >45 ℃, please pay attention to the ventilation and heat dissipation),
Charging temperature is 0 ℃~ + 45 ℃. Ambient humidity RH is ≦85 %. Pay attention
to waterproof when ambient humidity is > 85 %, at the same time the battery surface
condensation phenomenon should be avoided.
5. Special Attentions
In order to make full use of the energy efficiency of the battery and prevent accidents
such as leakage or heat generation, please prohibit the followings;
Do not immerse the battery in the water. Once it is in the water or water enters
the battery, isolate it immediately and ask a professional to deal with it.
Do not charge at temperatures over 45 °C; Do not discharge and leave the
battery at temperatures over 55℃. Also keep away from fire, heater or corrosive
materials. Otherwise, it can cause overheat, fire, or function failure, shortened life,
or even danger happening.
Do not charge the battery at temperature below 0 ℃.
Do not reverse the positive and negative terminals. Do not short the positive and
negative of the battery.
Do not combine the battery in series or in parallel.
Do not reverse polarity charging. Do not connect the battery electrodes to an
electrical outlet.
Do not transport or store the battery together with metal objects such as
hairpins, necklaces, etc.
Do not strike, trample, throw, fall and shock the battery.
Do not directly weld the battery and pierce the battery with a nail or other sharp
objects.

Product Manual
LX12-30HE1
Page 8/13
Lithium cells and custom-designed lithium battery packs
Do not use the battery in the location where static electricity and magnetic field
is strong. Otherwise the battery protection circuit may be damaged.
Do not overload the battery.
Do not machine the circuit board, which may damage the internal circuit and
cause function failure.
Do not deform the product under pressure, which may cause electronic
components or part of the circuit damage, and make the product unstable.
Do not remove the case, in case of unnecessary damage.
Do not overcharge or over discharge the battery.
Please use special charger for charging.
Please charge the battery within 12 hours after using. If the battery is not charged
for more than 12 hours after using, please test the battery voltage before
charging. If the voltage of the battery is < 16.0 V, do not charge, need to place
isolation. Meanwhile please contact our technical staffs.
If the battery leaks and liquid splashes into the eyes or skin, do not rub, wash it
with clean water, and immediately seek medical attention.
In case of accidental fire, dry powder fire extinguisher or sand should be used.
If the battery gives off strange odour, generates heat, becomes discoloured or
deformed, or any abnormality appears during use, storage, or charging, stop
charging and using immediately, remove and isolate it from the device in the
safe way.
The electrode of the discarded battery terminal should be covered with
insulating paper to reduce the safety hazard when laying inside.
Reversing the Positive and negative charging terminal will burn the internal
circuit board, so pay attention to it.

Product Manual
LX12-30HE1
Page 9/13
Lithium cells and custom-designed lithium battery packs
6.Battery Using and Maintenance
6.1. Battery Storage
Storage temperature 0℃～40 ℃(Optimum storage temperature 15 ℃～25 ℃, dry
preservation).
Battery performance is affected by temperature, the most obvious is the change in
battery capacity, this is normal phenomenon. Avoid condensation caused by
temperature changes during storage, otherwise it will lead to the rust of batteries or
metal parts.
6.2. Battery Checking Before Using
After receiving the battery, first check the packing carefully, please ensure
there’s no shock on the battery during the handling process.
Please check the battery case and accessories if there’s any damage or leakage,
if so, please contact us immediately.
Please check the output connector is correct or not, measure whether the
positive and negative is reversed and whether the voltage is within the normal
standard. In case the battery terminals are dirty or rust, clean the terminals with
a dry cloth before use. Otherwise poor performance may occur due to the poor
connection with the instrument.
6.3. Battery Installation Notes
Please clean up the installation position of the battery to ensure no dust, metal
or other foreign materials. No smoking or fire during installation to avoid short-
circuit of battery and prevent equipment damage or personal injury.
The battery should be installed under the condition with well-ventilated and no
sunlight. Don’t put it under place with possible flooding. The using and storage
of the battery should be kept away from inflammable and explosive materials.
When fastening battery terminals, please don’t use excessive force, or the
terminals could be damaged.
After installation, please check whether the terminal fastening is in place and
whether there are sundries on the surface of the battery. Clean the surface of
battery with dry cloth, please don’t use oil or other volatile organic solvents to
clean, or it may damage it.

Product Manual
LX12-30HE1
Page 10/13
Lithium cells and custom-designed lithium battery packs
Please make sure that the positive (+) & negative (-) polarity is correctly
connected, or it may fire or damage the battery and electrical appliances.
Test to run the equipment, observe whether the equipment and battery are
abnormal.
6.4. Battery Working Requirements
Charge current shall not exceed the specified maximum charge current, which
may affect the service life of the battery or damage the internal circuit, or even
cause danger.
Discharge current shall not exceed the specified maximum discharge current,
which may affect the service life of the battery or damage the internal circuit, or
even cause danger.
When the battery is short of power, it should be charged in time, which is
beneficial to extend the battery life. If the battery is not charged in time, battery
is in the state of power shortage for a long time, battery life will be affected.
The lithium-ion battery charge and discharge shallow is beneficial to improve
the cycle life. Suggest user each discharge be put to 80% of the nominal capacity.
6.5. Battery Using and Maintenance
The battery would be possible to be at the over-discharged state by its self-
discharge characteristics in case the battery is not used for long time. In order to
prevent over-discharging, the battery shall be charged periodically to maintain
a certain voltage range: 13.32 V~13.6 V, 2 months one cycle. (for battery with
communication function, please maintain it once in 1 month) What's more, the
SOC/ capacity calibration shall be performed. The calibration method is to
charge fully with charger, then discharge to over-discharged protection state.
Don’t use organic solvents to clean the battery case.
Battery is a consumable product with limited cycle life. Please change it in time
when the capacity can’t reach the requirement to avoid any loss of the user.

Product Manual
LX12-30HE1
Page 11/13
Lithium cells and custom-designed lithium battery packs
In order to prevent the safety problem caused by the failure of the protection
board overcharge protection function, do not charge for a long time. After the
battery is fully charged, remove it. In addition, use the original charger or the one
attached to the battery and operate it according to the instructions. Otherwise,
the battery may be damaged or cause danger.
The shallow charge and discharge of the battery ensures that the battery can be
used economically. Overcharge and over discharge may cause the battery
overheat, fire or function failure, shorten life, or other dangerous.
The battery switch, battery display board and USB are consumed components,
we could offer valuable after sales service.
Waste lithium batteries should be recycled and disposed in accordance with
local laws.
6.6. Battery Common Troubles and Solutions
Battery voltage is too low after fully charged.
Battery is in long-term storage with no usage, and not maintenance in
accordance with the provisions.
Solution: Please test the battery voltage. If the battery voltage is <8.0 V, it can't be
charged and need to be isolated. Please consult the technicians. If the voltage is ≥
8.0 V, the battery can be isolated to charge, and periodically check to see if it can be
charged normally.
Battery Disconnection
Solution: remove the battery to check whether the line is broken or not, the welding
joints come off or not, nickel belt breaks or not, and then repair according to the
damage situation.
Protection Board not work
Solution: first, make sure the cable line is contact with the protection board well,
then, observe welding is off or not. If the above conditions are normal, please check
the voltage between B+/B- and P+/ P-, the protection board has been broken if the
voltage difference is very high. Then please do testing in details on protection board,
if not pass, please change another new protection board.

Product Manual
LX12-30HE1
Page 12/13
Lithium cells and custom-designed lithium battery packs
Battery suffered fierce collision, with character-external battery case damaged
or with electrolyte odour.
Solution: It’s not in the scope of maintenance generally. If needing maintenance, we
need the confirmation of the problem whether on the output line or the battery
itself.
First, open the battery case, check whether the battery P + / C + and P- / C- lines or
joints damaged or not. If damaged, it needs to be replaced. Then, instigating smell
odours method to determine the battery, if there is irritation electrolyte odour,
indicate that the battery has been leaking, and need to test the battery voltage of
each series. If the voltage of one series is quite different from others or much lower
than others, then this series needs to be replaced.
Insufficient capacity
Solution: To charge and discharge the battery with 3~5 cycles generally.
Batterie voltage instability or cannot charge or discharge normally
Faulty welding
Solution: To test the resistance with the internal resistance tester, and confirm the
internal resistance of the battery exceeding a predetermined value or not. If not, the
battery would be in faulty welding condition, the battery needs to be unpacked and
be welded again.
Protection board abnormal
Solution: replace the protection board.
Connector or terminals in poor connecting condition
Solution: Change the terminals or connectors
Battery works properly in charging but could not discharge or discharging well
but could not charge.
Solution: The protection board is damaged; need to change the protection board.

Product Manual
LX12-30HE1
Page 13/13
Lithium cells and custom-designed lithium battery packs
7.Other Technical Indicators
If battery protection parameters and other related parameters are needed, please
contact our sales or technical staff, we will provide the information as soon as possible.
Your understanding is highly appreciated.
8.Products Disclaimer
Before using the battery, please read the specifications, usage instruction and some
attentions carefully. Suppliers are not responsible for the incident caused by not
obeying the Manual. The phenomenon such as incorrect using method or wrong
circuit connection, or input power data, working index are inconsistent with the
Manual, cause damage to product, over lo ad and its accessories, we are not
responsible for it. If the product performance is not changed, Products are subject to
change without notice. Our company reserves the right to change the contents of this
manual, and the content is subject to change without notice; the final interpretation
right of this material belongs to our company.
