Lyfco Hollviken User manual

ASSEMBLY MANUAL
BRUKSANVISNING
MODEL NAME: Höllviken
Höllviken MODELLNAMN:
SKU: 166-1-55
Konsumentkontakt
Arc E-commerce AB
Box 3124
13603 Haninge
XX-YYWW
Please don’t remove the batch code sticker at back side of this product!
Any feedback please take picture of this batch code for traceablity purpose
NOTE: 50% TIGHTEN BEFORE FIXING ALL BOLTS
VIKTIGT – LÄS MONTERINGSANVISNINGARNA NOGA INNAN DU BÖRJAR
Ta inte bort ettiketten med batchnummer som finns på möbeln. Om du behöver hjälp med service eller reklamation av din möbel –
ange möblensbatchnummer till återförsäljaren, så att du kan få rätt reservdelar till just din möbel.

Attention! Please note that at first all screws should be inserted slightly by hand!
Turn 2-3 times so that the screw grips on its own and connects all elements loosely. The screws
must only be driven in tightly when all elements are connected with each other in this way.
Otherwise the setup won´t be possible. Only by driving them in tightly afterwards, small
deviations of the borehole or the welded joints, which always occur with handcrafted products,
can be compensated.
Notes on an optimized assembly:
Before you completely tighten the screws, check carefully all the screws and tighten them
(only) to the extent that the product remains (especially chairs or loungers) still under load. If
you are sure that your product can withstand load, place it on a solid, level ground and put
some weight on it, please carefully and always with cushions. The various components can then
align with each other. Then tighten completely the screws. Thus you achieve and optimal
alignment of the product and prevent wobbling. Don’t sit, find some weight.
Your new product was made by hand.
Slightly irregularities are rather seen as a
quality attribute than as a reason for
complaints.
Tip: Always fully insert the hex key inside
designated notch of screw.
If you don´t do that and slip out of the
screw, the screw will suffer damage and it
can caused the screw head to become
round inside you won´t be able to find grip
with the hex key anymore!
VIKTIGHT
Don´t use this product if parts are missing, damaged or
worn down.
Don´t use any electronic tools to set up these product.
The high energy of these electronic tools will cause
screw overghten and therefor they won’t grid.
Don´t overghten screws or bolts. Only ghten the
screws enrely aer the product is completely set up.
You shouldn’t sit or stand on it.
Don´t let your product stand in the rain. Protect it from
weather impacts. In mes of freeze and over the
winter, we suggest you to store the product in a
covered dry place.
Var uppmärksam! Sätt först i samtliga skruvar löst. Dra inte åt, för då finns risk att skruvhålen inte
passar.
Innan du drar åt skruvarna helt, gör såhär för bästa resultat:
Ställ möbeln på en helt slät yta och lägg ett tillräckligt tungt föremål (ca 10-15kg) på den, så att
alla ben nuddar marken. Skruva därefter i skruvarna helt. Obs – använd inte din kroppstyngd, då
det är för mycket vikt. Om du följer dessa råd, blir din möbel stabil.
Om du inte följer dessa instruktioner kommer möbeln att bli ostadig och ”vickig” då produkten
upplevs ojämn.
Din nya möbel är handgjord. Små avvikelser
kan därför förekomma och är ett
kvalitetsattribut snarare än ett fel.
Tips: Var noga att alltid sätta in insexnyckeln
helt ner i skuven.
Om du inte gör det finns risk att insexnyckeln
slinter, vilket skadar skruven.
Skruvenkandåbliobrukbar.
Använd inte den här produkten om delar saknas,
är skadade eller utslitna.
Använd inte elektriska skruvdragare för att
montera produkten. Den höga kraften i elektriska
verktyg kommer dra åt skruvarna för hårt vilket
kan skada gängorna.
Spänn inte skruvar eller muttrar för hårt. Dra åt
alla skruvar efter att hela möbeln monterats.
Stå eller sitt inte på bordet.
För att förlänga livslängden på möbeln, undvik
att låta den stå i regn. Under vintertid
rekommenderar vi att möbeln förvaras inomhus,
i torr miljö.
DONT’S

Component Hardware
A
B
C
D
E
F
G
H
2 pcs
2pcs
2 pcs
Right Back Frame E 1 pc
Right Back Frame F
1 pc
Round Table
1 pc
Panel Side Frame H 2 pcs
1
Bolt M6 x 40 24 pcs
6 pcs
2
Bolt M6 x15 80 pcs
3
Bolt M6 x 30 20 pcs
4
Screw 12 pcs
5
Fabric 1 pc
6
Recovery 2 pcs
Inside Frame
Outside Frame
Top Frame
Panel Side Frame D

Component Hardware
II
Left Back Frame I 1 pc
K
Left Back Frame K 1 pc
L
Frame L
M
Frame M 1 pc
N
Frame N 1 pc
O
Frame O 8 pcs
P
Frame P 3pcs
3pcs
7
Seat Cushion 8 pcs
8
Round Cushion 1 pc
9
Path 36 pcs
10
Back Pillow 3 pcs
Allen key 1 pc
11
12
Washer M8x10 mm 4 pcs

Component
Component
A2
B1
C2
A1
B2
C1
D1
Q
Q1
Q2
Q3
Inside Frame
Inside Frame
Outside Frame
Outside Frame
Top Frame
Top Frame
Lid Open Frame
Bottom Frame
Bottom Frame
Bottom Frame
Bottom Frame
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
2 pcs
1 pc
Rain Cover
Rain Cover
R
R1
1 pc
1 pc

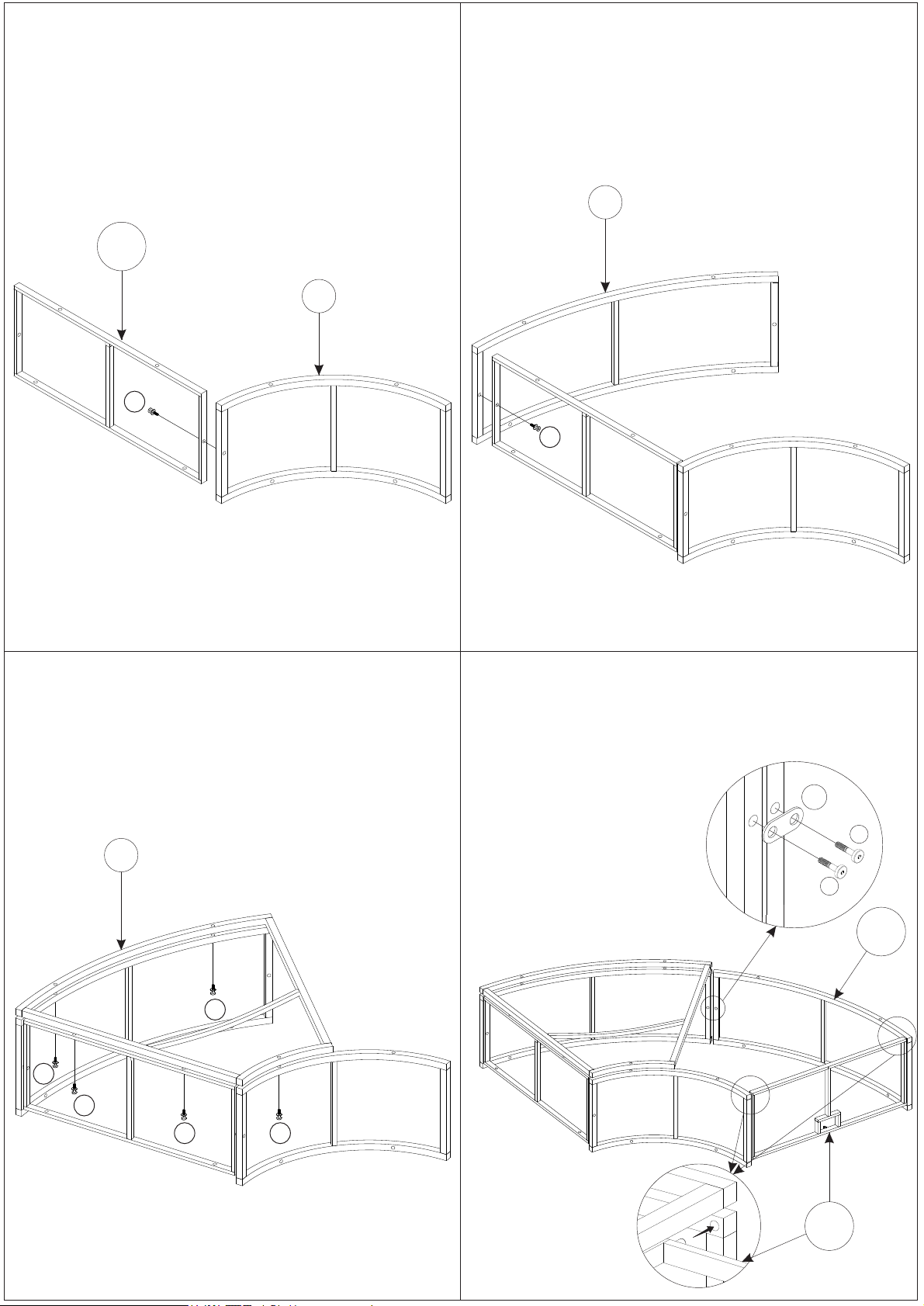

STEP 1
Connect Inside Frame (A1) & Panel Side Frame (D)
with Bolt (2)
STEP 2
Connect part from STEP 1 & Outside Frame (B)
with Bolt (2)
STEP 3
Connect part from STEP 2 & Top Frame (C) with
Bolt (1) & (2)
STEP 4
Connect part from STEP 3, Lid Open Frame (D1) &
Outside Frame (B1) with Bolt (3) & Path (9)
C
1
21
2
1
9
3
3
B1
D1
D
2
2
B
A1

Connect part from STEP 4 & Top Frame (C1) with
Bolt (1) , (3) & Path (9)
STEP 5 STEP 6
11
1
3
9
3
C1
Connect part from STEP 6 & Bottom Frame (Q),
(Q1) with Bolt (1), (3) & Path (9)
Q
1
1
1
Q1
93
3
Connect part from STEP 5 & Rain Cover (R1)
STEP 7
!
R1
R1

STEP 8

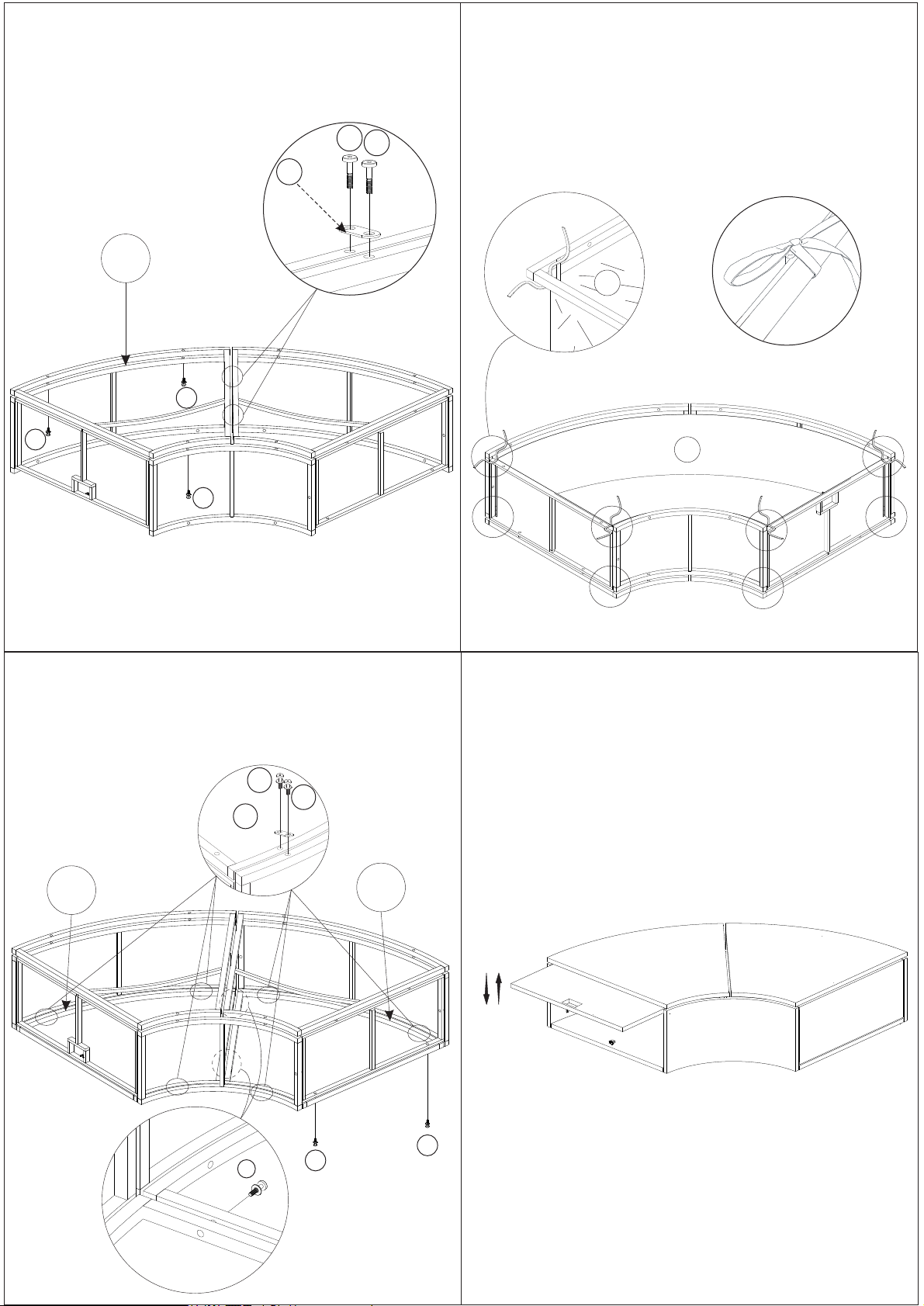

Connect Inside Frame (A2) & Panel Side
Frame D (D) with Bolt (2)
STEP 9
Connect part from STEP 8 & Outside Frame (B)
with Bolt (2)
Connect part srom STEP 9 & Top Frame (C)
with Bolt (1) & (2)
STEP 10 STEP 11
Connect part from STEP 10, Outside Frame (B2) &
Lid Open Frame (D1) with Bolt (3) & Path (9)
2
2
A2 D
B
C
1
1
1
2
2
9
3
3
D1
B2

STEP 12 STEP 13
Connect part from STEP 11 & Top Frame (C2)
with Bolt (1), (3) & Path (9)
1
1
1
C2
3
9
3
Connect part from STEP 12 & Rain Cover (R)
Connect part from STEP 13 & Bottom Frame (Q2),
(Q3) with Bolt (1), (3) & Path (9).
11
1
Q2 Q3
93
3
STEP 13’
!
R
R

STEP 13
Connect Inside Frame (A) & Panel Side Frame (H) with Bolt (2)
H
A
2
STEP 14
Connect part from STEP 3 & Right Back Frame E (E)
2
E

STEP 15
Connect part from STEP 14 & Right Back Frame F (F) with Bolt (3) & Path (9)
F
33
9
STEP 16
Connect part from STEP 15 & 2pcs Top Frame (C) with Bolt (1) & (2)
CC
1
1
2
2

STEP 17
Overturn STEP 16, Connect part from STEP 16 with Path (9) & Bolt (3)
3
3
3
3
3
3
3
3
3
3
9
9
9
9
9
STEP 18
Overturn STEP 17 to complete the corner R3
R3
3
9
3

STEP 19
Connect Inside Frame (A) & Panel Side Frame H (H) with Bolt (2)
A
H
2
STEP 20
Connect part from STEP 19 & Left Back Frame I (I) with Bolt (2)
2
I

STEP 21
Connect part from STEP 20 & Left Back Frame K (K) with Path (9) & Bolt (3)
K
3
3
9
STEP 22
Connect part from STEP 21 & 2x Top Frame C (C) with Bolt (1) & (2)
CC
2
2
11

STEP 23
Overturn STEP 18, connect part from STEP 22 with Path (9) & Bolt (3)
33
33 33 33
33
33
33
33
33
33
99
9
9
9
STEP 24
Overturn STEP 23 to complete the corner R4 R4
3
9
3

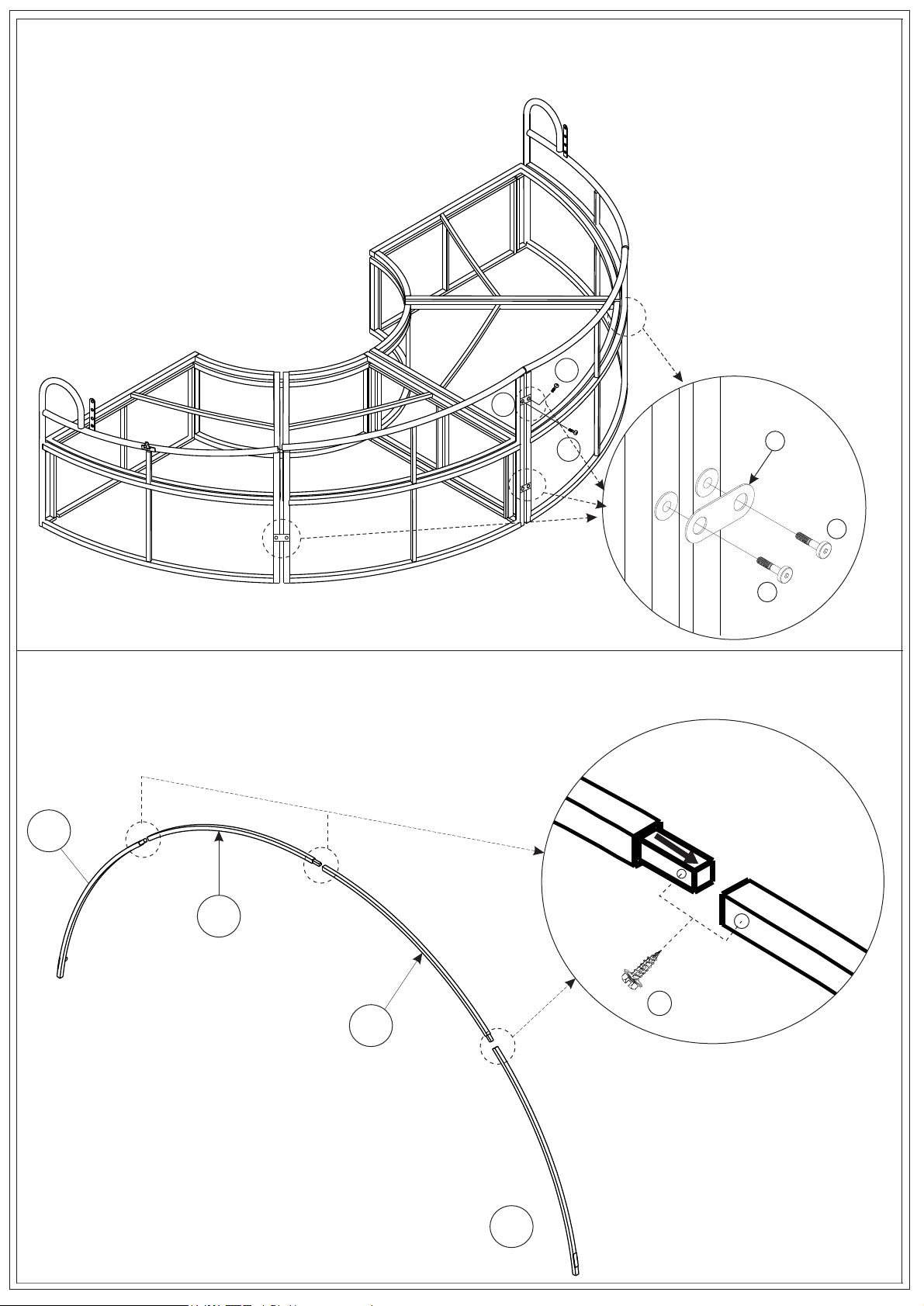

STEP 25
Connect part from STEP 18 & part from STEP 24 with Path (9) & Bolt (3)
3
3
9
3
3
9
STEP 26 ( T1 Assembly)
Connect Frame M (M), Frame N (N), 2 pcs Frame O (O) with Srcew (4)
4
N
M
O
O

STEP 27 ( T2,T3,T4 Assembly)
Connect 2xFrame O (O), Frame L (L) & Frame P (P) with Srcew (4)
STEP 28
Connect part from STEPS 26 & 27 with Fabric (5)
T1
T2
T3
T4
5
O
P
L
4
O

2
12
6
2
12
STEP 29
Connect part from STEP 28 & 25 with Bolt (3)
3
STEP 30
Connect part from STEP 29 & Gaslift (6) with Bolt (2) & Washer M8 (12)

STEP 31

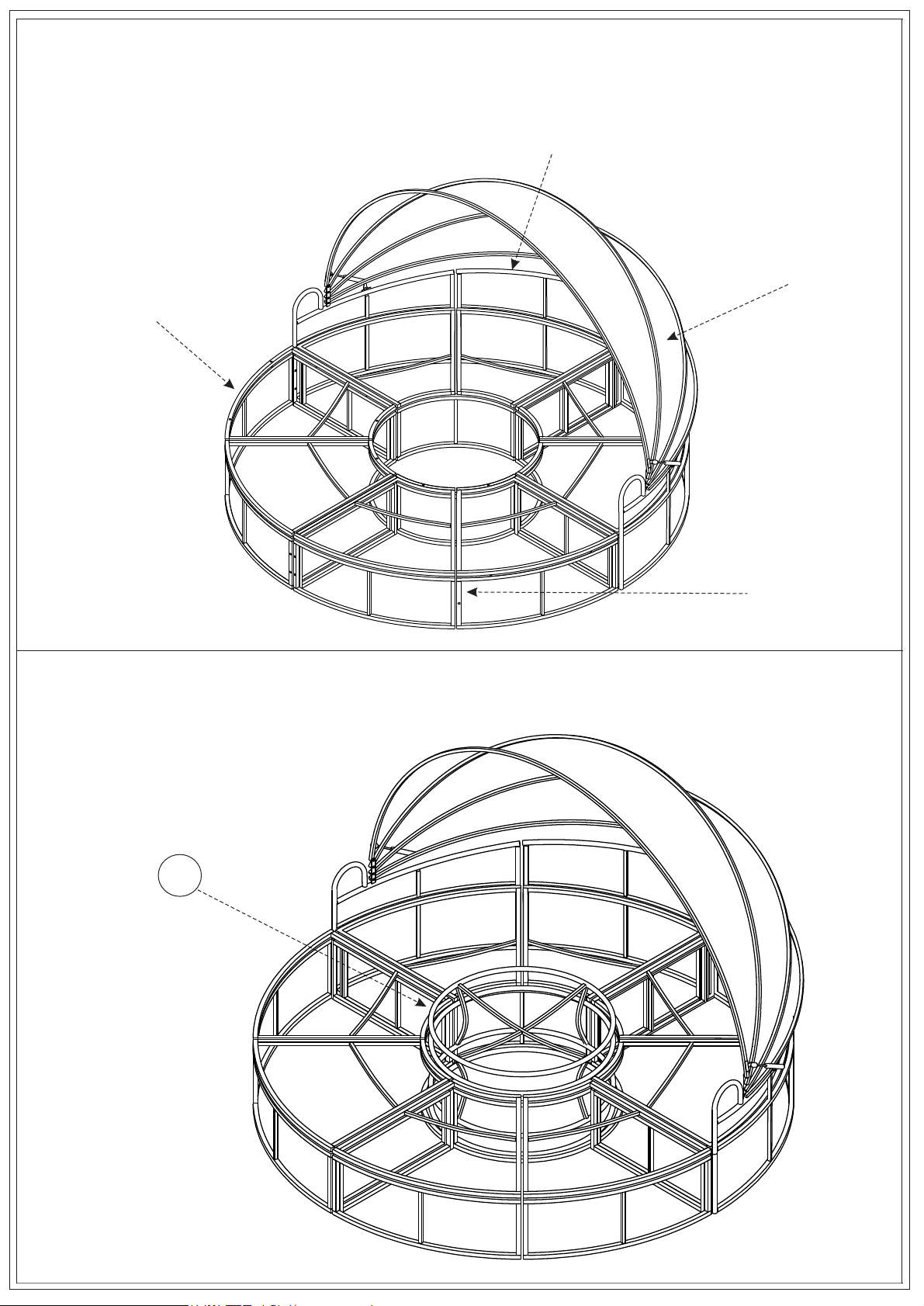

Arrange complete as below image
R1
R2
R3
R4
STEP 32
Put the Round Table (G) in the middle of the complete part from STEP 31
G

STEP 33

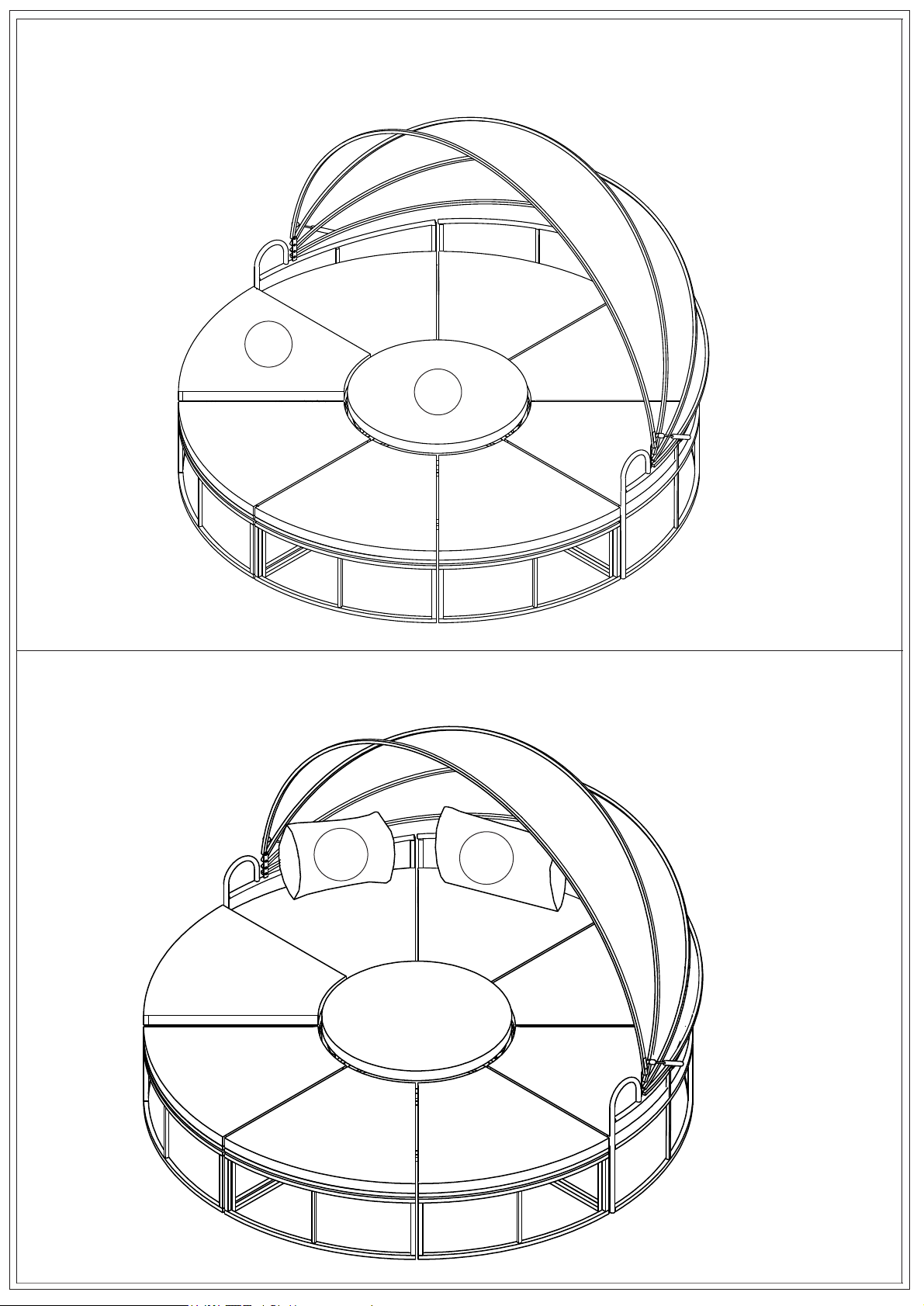

Put on 8x Seat Cushion (7) & Round Cushion (8)
7
8
STEP 34
Put on Back Pillow (10) to complete Sofa Bed
10 10
Finish
