SONARMITE MTX/BTX
v4.0
PORTABLE BLUETOOTH ECHO SOUNDER
Ohmex is a company formed to manufacture and distribute products designed by Lymtech Ltd. a company established in 1982 w
founded on technological innovation and design. The company prides itself on being the first to produce products in the field of
instrumentation and software used within the Earth Science sectors. Achievements to date include DGM ,the first digital ground
modelling software to run on a standard PC, SONARLITE, the first truly portable echo sounder, TIDALITE the first portable
Tide Gauge, EDAS, Integrated tide and weather networked software for use by ports and harbours. SONARMITE the first
portable Bluetooth echo sounder based on WinSTRUMENTATION - The integration of Instrumentation, Wireless networks and
modern portable computer equipment.

SonarMite MTX v4.01 © 2012 Lymtech LLC
Page 2
INTRODUCTION
The SonarMite Echo Sounder was the result of nearly two years research and
development to further extend the boundaries of shallow water hydrographic
surveying equipment. The introduction by Ohmex of the SonarMite, the worlds first
truly portable echo sounder system, has been a hard act to follow and it remains the
portable instrument of choice in many survey companies around the world. The
release of the SonarMite MTX instrument marks the next stage introducing a series of
equipment designed around the WinSTRUMENT concept using the latest portable
computers integrated with new measurement technologies.
Throughout the Hydrographic world the term 'Black Box' has become a euphemism
for a device that has a minimal user interface and normally requires connection to a
PC to be of any use ! In most cases these boxes are a cut down version of a more
conventional instrument without all the features of the full system. The SonarMite
extends this idea of a rugged design and minimalist interface to produce a 'Blue Box'
system where the user interface is provided by integrated software running on a
portable computer connected via a Bluetooth link. The use of wireless technology
enables the instrument to be waterproof and used in a hostile environment while the
more sensitive computer features can be located in a more user friendly environment
up to 50m away from the instrument.
The SonarMite MTX instrument uses the same 'Smart' integrated transducer
technology used in previous systems, in addition to highly reliable bottom tracking
algorithms using DSP techniques the system also outputs a quality value associated
with every depth measurement made. The popular SonarW7 software has been
updated to the latest Windows versions. Software for the 'front end' of the SonarMite
is available to run on a wide range of devices from Pocket PCs through to the full
range of desktop systems running the Windows operating system.

SonarMite MTX v4.01 © 2012 Lymtech LLC
Page 3
Typical Use of the Equipment
The SonarMite Portable Echo Sounder has been designed to provide a portable
instrument that provides the facilities of a „professional‟ sounder at the cost and
performance of a „fish finder‟ device. It is important to recognize what the differences
are between these two types of echo sounder. The „fish finder‟ or leisure craft devices
are primarily concerned with two functions, finding fish in the water column below
the boat by sensing returns from their swim bladders and providing a bottom
tracking/smoothing algorithm to detect average water depth below the boats hull.
Survey sounders are designed to provide a large number of pings with as little
processing of the raw data as possible to define the bottom in as fine detail as
possible. Of major concern in a survey sounder is a narrow beam width to prevent
averaging of the returned signal.
235KHz and 200/30KHz Transducers
The SonarMite uses Active Transducers, these are digital as opposed to analogue
components and use microprocessors to synthesize transmitted frequencies and to
interpret the return signals. The devices incorporate state of the art DSP and filtering
techniques to reduce noise and improve depth tracking. These devices are supplied
encapsulated in resin and have no serviceable parts. The connecting cable to the
transducer carries only low DC voltage and digital I/O, none of the EMC problems
associated with conventional analogue devices apply.
To improve weatherproofing and to avoid connection problems the SonarMite has
two connectors that provide all the I/O required by the device. One of the connectors
also includes a return pin to enable the system to switch on by cable connection rather
than using a switch. Cables to the device can be connected simultaneously (e.g.
Transducer on port 1 and Serial Data Cable on Port 2).

SonarMite MTX v4.01 © 2012 Lymtech LLC
Page 4
Equipment Supplied
The SonarMite BTX is supplied as standard with the following list of equipment …
SonarMite main processor unit c/w Bluetooth Antenna
Universal EU/US/UK internal battery charger
„Smart‟ P66 depth transducer c/w 5m cable and embedded processor
Serial data lead
IP68 rugged plastic Transit case
SonarW7 post process/import/export software
SonarMite BTX single beam echo sounder
The following is a short list of accessories for the SonarMite …
SonarMite Windows Mobile PDA software
SonarMite W7 software for Tablet/Portable PC
USB serial lead
Aluminium shoe to connect transducer to detail pole
„Smart‟ 200/30KHz depth transducer c/w 5m cable and embedded processor

SonarMite MTX v4.01 © 2012 Lymtech LLC
Page 5
The SonarMite MTX is supplied as standard with the following list of equipment …
SonarMite main processor unit c/w Bluetooth Antenna
„Smart‟ P66 depth transducer c/w 5m cable and embedded processor
Serial data lead
IP68 rugged plastic Transit case
SonarW7 post process/import/export software
External battery connector leads
SonarMite MTX multiple beam echo sounder
The following is a short list of accessories for the SonarMite …
SonarMite Windows Mobile PDA software
SonarMite W7 software for Tablet/Portable PC
USB serial lead
Aluminium shoe to connect transducer to detail pole
„Smart‟ 200/30KHz depth transducer c/w 5m cable and embedded processor
2 x „Smart‟ P66 depth transducer c/w 5m cable and embedded processor

SonarMite MTX v4.01 © 2012 Lymtech LLC
Page 6
The SonarMite MTX is a compact, portable, low power system for use in shallow
water hydrographic surveys, it's small size and low power requirements make the
system easy to deploy and transport to remote or inaccessible sites. The SonarMite
MTX is a development from the basic SonarMite single beam echo sounder providing
a wider range of single beam solutions for surveyors working in shallow water
hydrographic surveying. The MTX is available in two versions …
BTX - a single transducer variant
MTX - a three channel multiple transducer 'sweep' version
Both models make use of a range of interchangeable smart transducers. In its simplest
form the SonarMite BTX is a 235KHz single beam system in the same format as the
previous SonarMite BT system. This single channel system can interchange its
transducer for a dual frequency unit operating simultaneously at 200KHz and 30KHz .
As with the previous SonarMite versions every measured depth is accompanied by a
QA value which can be used for post analysis of the survey data.

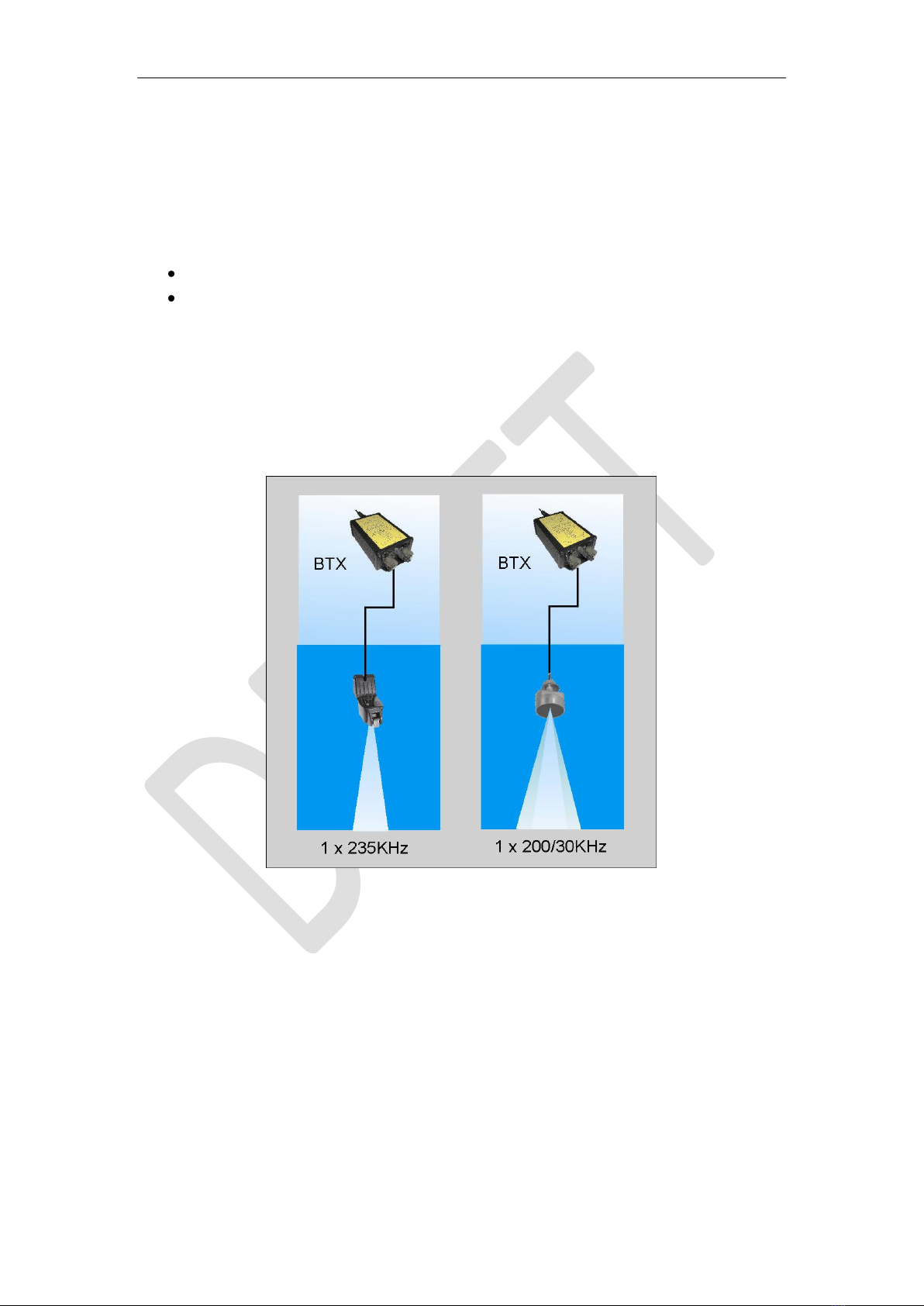

BTX Single Beam SF and DF solution
The multiple transducer 'sweep' configuration provides an intermediate stage between
swath and a single beam systems. These configurations consist of an array of single
beam echo sounders located around the vessel, normally as a boom frame mounted
over the stern but could also be around the vessel at various offset positions from the
positioning antenna, for convenience the transducers are referred to as the 'Port',
'Centre' and 'Starboard' locations. The multiple channel device can be configured in
two basic formats, a 3 x 235 KHz or a 235+200+235KHz array, the mixed frequency
array giving the option to use the transducers in closer proximity without the problem
of crosstalk between transducers operating at the same frequency.

SonarMite MTX v4.01 © 2012 Lymtech LLC
Page 7
MTX transducer array configurations
A typical acoustic sweep system consists of a linear array of evenly spaced
transducers mounted vertically around the vessel. These systems are used in critical
shallow water areas (harbours, channels, etc.). The coverage of the bottom is 100%,
depending on transducer spacing and water depth. These systems are very accurate for
IHO Special Order and Order 1 surveys where 100% coverage and high accuracy are
required. By using multiple transducers the problems associated with swath systems
such as stray side shots caused by incorrect motion adjustment or water refraction
errors are greatly reduced or eliminated. The speed of sound in water is approximately
1500 meters/second, however, this speed can vary with changes in temperature,
salinity and pressure. These variations can drastically change the path that sound
travels through water, as changes in sound speed between layers of water cause the
trajectory of sound waves to bend by refraction. With a multiple transducer system all
measurements are made vertically through the water column avoiding refraction
errors caused by non homogenous or stratified water layers of different
densities/temperatures. With a single beam sounder the forward and reverse sonar
paths pass through the same vertical column so any velocity error is an 'average' over
the entire path not a complex reflected and refracted flight route.
Swath side shot refraction errors

SonarMite MTX v4.01 © 2012 Lymtech LLC
Page 8
As with a swath system true heading is important for the accuracy of the system, the
dynamic GPS heading message is sufficient for systems that do not change direction
rapidly, rotate on a static location or travel in a rotated position. For more accurate
systems a dual antenna GPS that provides both position and heading from the true
bearing between the antennas is required.
Heading errors using ‘NMEA’ HDG message
The effects of pitch and roll do not so greatly affect a sweep system as they do a wide
beam swath system. If a dual GPS antenna system is used then the roll of the
mounting boom can also be calculated from the difference in height of the two
antennas if they are mounted along the same axis as that of the boom.
Dual GPS Antenna Heading/Roll adjustment

SonarMite MTX v4.01 © 2012 Lymtech LLC
Page 9
INSTALLATION & USE
This chapter describes how the SonarMite Portable Echo Sounder would normally be
installed and used. The typical way in which the device can be used for hydrographic
surveying applications, is as a „Dumb‟ sounder connected via a serial cable/Bluetooth
Link to a PC or PDA running data logging and display software. Another option is to
use both data streams with the serial output data for real time processing and the
parallel Bluetooth output for graphic depth display.
Switching the System On
To turn the system on the user ensures the system is fully charged then connect the
transducer to the „Txr‟connector on the front panel, the LED alongside the Bluetooth
antenna will then turn on.
Data Collection Techniques
When not used as a „Dumb‟ echo sounder in conjunction with a data logging package
the SonarMite can be used in conjunction with the following data types to create full
XYZ hydrographic data using the SonarW7 software package….
Total Station XYZ data plus Time
XYZ data from RTKGPS plus Time
XY data from DGPS plus Tide plus Time
Range and Bearing from hand held laser plus Tide plus Time
Simple event marking past known position markers
The basis on which all data correlation is achieved is internal time base, so
particularly when using the SonarMite with GPS data the clocks should be
synchronised to GPS time (UTC).
Sound Velocity Settings
The SonarMite default Speed of Sound in Water(SoS) setting is 1500m/second,
facilities to vary this have been provided in the calibration or in post processing. In
practice this velocity value can vary due to several factors …
Water Temperature
Water Salinity
Water Turbidity
All of the above factors vary the density of the water in some way and effect the „time
of flight‟ of a pulse of ultrasound in water and hence the depth calculated from this
time by the SonarMite. The user can either measure the speed of sound in water by
taking velocity profiles using a dedicated velocity measuring device or can use the

SonarMite MTX v4.01 © 2012 Lymtech LLC
Page 10
SonarMite static over a known depth to a flat, firm base and then compare the
measured value with the known depth. The difference in Sound Velocity between
warm fresh water and cold salt water is about +/-30m/Second which represents a
change of depth of +/-2%, this must be viewed in context with typical depths of the
survey, if a typical depth is 10m then the error could be about 20cm. The Sound
Velocity setting is the largest source of measurement error when care is not
taken in setting it correctly.
Internal Battery Charging
The SonarMite BTX is fitted with an internal sealed Nickel Metal Hydride battery
which provides 2.8Ahr @ 10vDC and a mains powered battery charger capable of
bulk and float charging to give the most efficient battery cycle. The user should avoid
running the SonarMite until the batteries are completely flat as there will be a high
risk of both data loss and permanent damage to the batteries. The charger will
illuminate CONSTANT RED when bulk charging and FLASHING YELLOW when
charged, the charger illustrated may change if a local mains variant is required.
DISCHARGE
CHARGE(on)
POWER(on)
READY(flashing)
CHARGE SEQUENCE
1
MEASURE BATTERY
CHARGE
POWER
READY
DISCHARGE
CHARGE(on)
POWER(on)
2
CHARGE
CHARGE
POWER
READY
DISCHARGE
POWER(on)
READY(flashing)
3
FINISHED
CHARGE
POWER
READY
DISCHARGE
POWER(on)
READY(flashing)
2
FINISHED
CHARGE
POWER
READY
DISCHARGE
DISCHARGE(on)
POWER(on)
1
DISCHARGE BATTERY
CHARGE
POWER
READY
DISCHARGE SEQUENCE
WARNING - Only the correct charger should be used with the SonarMite

SonarMite MTX v4.01 © 2012 Lymtech LLC
Page 11
Reverse Voltage Protection
The SonarMite is protected from reverse connection or direct short circuit by an
internal diode and 1 Amp thermal fuse. If the fuse is tripped then the system will need
to be disconnected for 1 minute for the fuse to cool down and reset itself.
Weatherproofing
The SonarMite has been designed to conform to the IP65 waterproofing standard, this
benchmark describes equipment which can withstand a light spray of water from a
hose for a short period of time, it does not imply the device is suitable for immersion
in any depth of water or exposed to prolonged harsh weather conditions. The
weatherproofing also assumes the connectors or cover caps are fully screwed on to
their rubber sealing rings. The weatherproofing does not apply to certain components
which are by definition not designed for outdoor use such as the mains battery charger
and D9 serial cable connectors.

SonarMite MTX v4.01 © 2012 Lymtech LLC
Page 12
DEPTH TRANSDUCER
The SonarMite system uses a „boat‟ shaped P66 transducer in a „knock off‟ fitting for
fixing to the transom of a light boat or more commonly in a temporary mounting
using a survey detail pole. The transducer includes a unique processor and is not the
same device as the commercially available transducer from Airmar.
Hydrodynamic shape provides vertical sound beam orientation on hull
deadrise angles up to 30
Reversible wedge allows mounting to transom angles from 2 to 22
Integral release bracket protects against impact damage, mounts with 3 screws,
and provides 12 mm of vertical adjustment
Chemical and impact resistant plastic housing
Designed to meet CE requirements
Shielded piezoceramic element for noise free echo sounder display
Standard minimum cable length: 5.0 m (16 feet)
Transom Mounting Transducer
Transducer Mounting
When mounting the transducers the following points should be taken into
consideration …
How near to the Metacentre of the boat is the transducer
Is any turbulence generated around or in front of the transducer when moving
Is the turbulence from the propellers in the field of view of the transducer

SonarMite MTX v4.01 © 2012 Lymtech LLC
Page 13
The only important consideration in mounting is that the transducer is always in the
water and that the transducer does not represent an obstacle when the boat is used at
higher speeds (i.e getting to the survey location). If at all possible mounting the
transducer directly below the positioning antenna reduces the calculation of X/Y
offset to zero.
Example Transducer Mountings
Typical rubber boat mounting
Avoid Stressing Transducers
The Active Transducers include piezoelectric elements which are embedded within a
resin compound. If the user has to fabricate a custom mounting for the transducer (a
very common requirement given the vast permutations of boats in which surveys are
performed) avoid using a fixing technique that causes physical stress in the transducer

SonarMite MTX v4.01 © 2012 Lymtech LLC
Page 14
body as this will change the resonant properties of the device and effect its depth
measuring accuracy.

SonarMite MTX v4.01 © 2012 Lymtech LLC
Page 15
BLUETOOTH INTERFACE
The SonarMite deck box provides a fully compliant wireless Bluetooth™ Class 1
Master and Slave function via a simple UART or RS232 interface. The Bluetooth
Wireless will provide connectivity to any device supporting either a UART or RS232
interface. The SonarMite Bluetooth Serial is compatible with all other device
supporting Bluetooth™ SPP (Serial Port Protocol).
BlueTooth ID/Password code
In some instances the local Bluetooth interface may request a password/ID to set up
pairing with the device, for MTX version devices the pin number is always set to
‘1234’ (numeric one two three four).
Typical PC Bluetooth software
Bluetooth™ Serial Port Profile
Bluetooth Serial provides either a Bluetooth™ slave or master connection fully
supporting the (SPP) Serial Port Profile …
Features
Fully Bluetooth™ Class 1 v1.1 SPP compatible
Wireless range of over 100m (330ft)
Integrates with RS232 or UART systems.
Small footprint
Platform independent
Various low power sleep modes
SMA Antenna connection for direct antenna connection or coax
The SonarMite Bluetooth Serial Terminal encapsulates all of the Bluetooth™
protocols on a single chip, providing a simple serial interface to the host, therefore

SonarMite MTX v4.01 © 2012 Lymtech LLC
Page 16
removing any need for software drivers or experience in developing wireless
technology
Bluetooth - actual range of the device.
The device uses Bluetooth class 1. The range will depend on the other Bluetooth™
device that it is connected to. It will also depend on the physical environment ie)
obstructive walls and the type of walls the signal will need to go through and on the
antenna that is fitted. Assuming it is connected to a class 1 device then the maximum
range should be between 50 and 150 meters.
Connecting to another Bluetooth™ PC/PDA
The Bluetooth Serial Terminal will connect to any Bluetooth™ enabled device
supporting SPP. This can be in MASTER mode, where the terminal initiates the
connection, or SLAVE mode, where the remote device initiates the connection. The
method of connection will vary depending on the remote device. However, generally
the other device will perform a four stage process.
The remote device will “discover” other Bluetooth devices. The Bluetooth
device will appear as “SMnnnnnn”(where nnnnnn is serial number).
The remote device will need to “Pair”with the SonarMite Bluetooth. The pin
number is then entered.
The remote device will connect to the serial port service of the SonarMite
Bluetooth Serial Terminal.
A virtual “Outgoing”communications Comm port will then generally be
created and the application can then talk over this port to any connection to the
SonarMite Bluetooth Serial Terminal.
WHEN CONNECTED THE RED LED WILL ILLUMINATE AND
FLASH CONTINUOUSLY

SonarMite MTX v4.01 © 2012 Lymtech LLC
Page 17
Typical Windows HyperTerminal settings



Hyperterminal ASCII settings


Hyperterminal Connection settings

SonarMite MTX v4.01 © 2012 Lymtech LLC
Page 18
CONNECTIONS
The only accessible connectors on the SonarMite are those on the front of the machine
referred to as the „Transducer‟ and „Computer‟ connections. There are no user
connections or serviceable parts within the SonarMite body itself.
‘Computer’ connection
This 4 way female connector is used to connect to either a PC serial connection or for
an incoming GPS connection.
‘Transducer’ connection
This 4 way male connector is used to connect to the SonarMite transducer, the same
connection is also used for the battery charger connector.
1
23
4
1
2
3
4
1
2
3
41
2
3
4
Vcc Gnd
12v Trans 12v
Gnd
Tx
Rx
TXR PC
ANT
Transducer and Computer connections

SonarMite MTX v4.01 © 2012 Lymtech LLC
Page 19
APPENDIX
SonarMite Settings
The SonarMite when connected via Bluetooth to a serial communications program
such as Hyperterminal has a basic set of simple single character commands used to set
the basic parameters of the instrument.
Flash Memory
The instrument contains an area of configuration data held within its semi-permanent
FLASH memory area. On running the instrument this data is copied into the current
working RAM area of the processor. Pressing any of the configuration command
characters will only change the current active states enabling the user to sample
output unil the „Save‟ command is used to store the current settings and make them
the new defaults when the system is rebooted.

SonarMite MTX v4.01 © 2012 Lymtech LLC
Page 20
Commands
(^H)elp
Pressing ^H (Contol H) will display the following help information as an aid memoir
to the available commands…
^Help,^Version,^Format,^Clear,^Up,^Down
(^V)ersion
Display the current firmware version number
(^C)lear
Pressing ^C (Contol C) will reset the SonarMite to its default values, these values are
saved in Flash memory and set in current working RAM memory.
General Operations
Please note that if no transducer is seen or the qa is below 5 (out of water) then the
output will appear as a string of nulls at 1 second timeouts, in normal operation the
eight numbers are reported at 0.5 second intervals.
(^F)ormat
Pressing ^F (Contol F) will toggle the output formats as below …
= SYS: mode (used for system settings)
0) Format = SonarMite MTX
Flag PortTx PortQA CenterTX CenterQA StarBoardTx StarboardQA Battery
Where …
Flag = Bit Flag 0x10=Port 0x20=Center 0x40=Starboard
PortTx = Depth in meters measured by Port Transducer
PortQA = QA value measured by Port Transducer
CenterTx = Depth in meters measured by Center Transducer
CenterQA = QA value measured by Center Transducer
StarboardTx = Depth in meters measured by StarBoard Transducer
StarboardQA = QA value measured by Starboard Transducer
Battery = Battery/Supply voltage
Example …
< 50 0.00 0 0.33 138 0.46 116 12.8
< 50 0.00 0 0.33 138 0.46 116 12.8
