Lynx yellobrik PDM 1284 D User manual

yellobrik
®
Quick
Reference
PDM 1284 D
AES Audio Embedder / De-embedder
Laser Radiation
Do not look directly into emitter
with optical instruments
WARNING
CLASS 1M LASER PRODUCT
USB Input
(for rmware upgrades)
Module Settings
Balanced AES
Input / Output
Power Input (+12V)
Video Present Audio Status
Fiber Input / Output
(Option)
SDI Input / Output
Power
+12V 0V
Video
Present
3Gbit
AES Audio
Embedder / De-embedder
LYNXTechnik AG
OFF
DEMUX
OFF
OFF
OFF
OFF
INPUTS OUTPUTS
SDI IN SDI OUT SDI IN
Embedding - ON
Audio Status LED - MUX
Auto Black (if no video) - ON
SDTV 24 Bit embedding - ON
Sample Rate Converter - ON
SDI Fiber Input (option) - ON
NOTE: in Embedder mode the De-embedder is also functional
LED Function:
Mux = Embedder Status
Demux = Deembedder Status
GREEN = 2 Channels Present
YELLOW = 1 Channel Present
RED = Embedder Conflict
OFF = Audio Not Present
GRP1
GRP2
GRP3
GRP4
NONE
GRP1
GRP2
GRP3
GRP4
NONE
1 kHz Test Tone
(All Channels)
Select Group
One Audio Group
= 2 AES Channels
Select Group
Audio
Status
AES I/O
(Balanced AES3)
AES 1 + 2 AES 3 + 4
Settings
WARNING
CLASS 1
Laser Product

Connections
All connections are clearly indicated
on the module. AES audio I/O
connections can be made two ways,
by directly wiring connections to a
suitable male 25pin SubD connector,
or by using a RBO 5025 optional
25pin SubD PCB adapter with screw
terminals.
Operation
The PDM 1284 D functions as a 4 channel embedder and de-embedder.
Simultaneous embedding and de-embedding is also possible. For
example, its possible to de-embed and output audio from a selected
audio group before overwriting it with new audio.
Rotary switches are provided for AES 1+2 and AES 3+4 audio group
selection, and a 1KHz tone can also be selected (all channels).
Note: An audio “group” is 2 x AES.
Settings
A dip switch is provided for
module conguration. Settings are
indicated on the module and self
explanatory.
The“Auto Black” function will switch in a black test signal if the input video
is lost, allowing for an uninterrupted audio connection. This mode also
allows the module to be used to transport audio signals alone if required.
Sample rate converters can be turned o to support encoded AES streams
such as DolbyE.
Optional Fiber
Optional Fiber I/O can be added at anytime by plugging in the Fiber SFP
sub module. This will provide 3Gbit SDI ber I/O capability (ber input is
selected via the dip switch).
Power
The module requires a 12V DC power input and a LED is provided to
conrm power is connected.

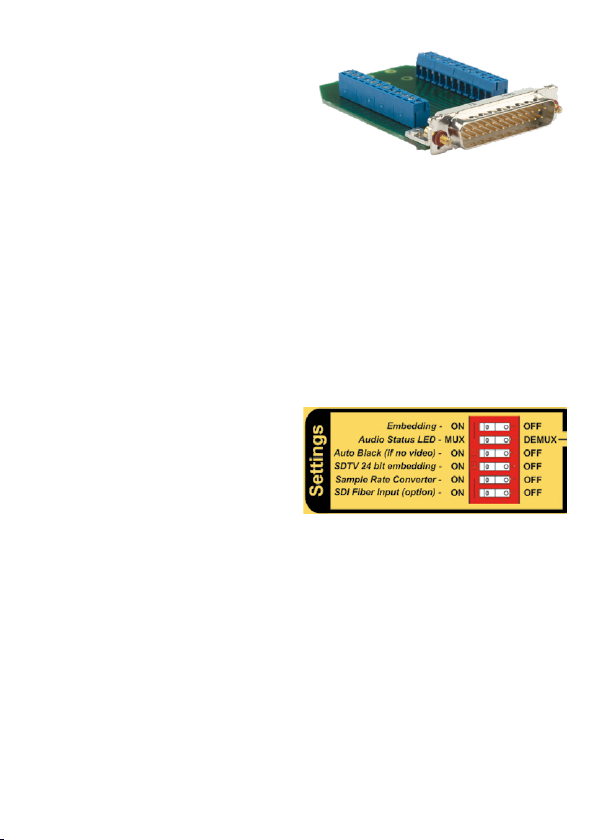

RBO 5025: 25 Pin SubD Adapter PCB with
screw terminals

Cascading Modules
If more than 2 x AES channels are required then its possible to cascade
multiple modules. Take the SDI out from one module and connect to
the input of another module and select a dierent audio group. Up to 4
modules can be cascaded to embed the full 8 x AES audio payload into a
single SDI stream.
Power Lead Strain Relief
The module has a small hole in the case located above the power con-
nection. To prevent the power lead being accidentally pulled out, use the
supplied tie-wrap and secure the lead as shown below.
Optional Mounting Bracket
The optional RFR 1001 mounting bracket can be used to permanently
mount the module on any at surface or on 19” rack rails.
Note: Another module is shown for reference. PDM 1284 D is identical in terms of
mounting and securing.

yellobrik
®
LYNX
Technik
AG
| Broadcast Television Equipment
We are constantly adding more yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
Technical Specications
SDI Input 1 x SDI video on 75 Ohm BNC connector
SMPTE 424M, SMPTE 292M, SMPTE 259M
3G Level A & B-DL & B-DS according to SMPTE ST 425-1 with image formats
1280 x 720 and 1920 x 1080
Multi-standard operation from 270Mbit/s to 3Gbit/s
SDTV (525/625)
720p and 1080p (23.98/24/25/29.97/30/50/59.94/60 Hz)
1080psf (23.98/24/25/29.97/30 Hz)
1080i (50/59.94/60 Hz)
Return Loss: > 15dB to 1.5Gbit/s and > 10dB up to 3Gbit/s
Automatic cable EQ (Belden 1694A cable)
340m @ 270Mbit/s, 150m @ 1.5Gbit/s, 120m @ 3Gbit/s
Fiber I/O
(options)
SDI Single channel Fiber Transmitter (singlemode or multimode)
SDI Single channel Fiber Receiver (singlemode or multimode)
SDI Fiber Transceiver (singlemode or multimode)
SDI Fiber Transmitter CWDM - with 18 wavelength choices 1270 to 1610nm
SDI Fiber Transceiver CWDM - with 18 wavelength choices 1270 to 1610nm
SMPTE 297M - 2006
SDI Output 1 x SDI 75 Ohm BNC - SMPTE 424M, SMPTE 292M, SMPTE 259M
AES Input 4 x AES3 balanced inputs on 25 pin SubD Connector (110 Ohm)
AES group selection provided via rotary switch
AES Output 4 x AES3 balanced outputs on 25 pin SubD Connector (110 Ohm)
AES group selection provided via rotary switch
Power +12VDC @ 4.2W nominal - ( supports 8 - 14VDC input range )
