Lynx CPS-210 User manual

USER MANUAL
Lynx Pro Audio S.L.
Valencia, Spain - www.lynxproaudio.com - [email protected]
CPS series
CPS-214
CPS-210
CPS-14
CPS-18S
V.23.12

Manufacturer
CE CERTIFICACTION, EUROPEAN PRODUCT
CPS-214
LYNX Pro Audio S.L.
Calle 1 - Pol. Ind. Picassent
E-46220 Picassent (Valencia)
This user guide is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly
prohibited. Copyright 2020. All rights reserved.
CPS-18S
CPS-210 CPS-14

CPS Series User Manual
Lynx Pro Audio S.L 3www.lynxproaudio.com
INTRODUCTION
This manual describes the recommended installation procedure for the coaxial point source CPS-214, CPS-
210 and CPS-14 in combination with the subwoofer CPS-18S.
The CPS (Coaxial Point Source) Series is our new high power, point source system.
There are three coaxial point source cabinets available: CPS-214, CPS-210 and CPS-14, together with
one sub-bass unit, CPS-18S. Extreme care has been taken to select and customize the most advanced
components on the market, including coaxial Mid/high drivers together with full electronic synergy through
the coupling of the system amplication & integrated DSP technology.
Total system control is also achieved through our 3D prediction software (Rainbow 3D) working together
with our remote system management platform (OCS). These cutting edge softwares together with the CPS
technology provides the most optimum and precise listening experience to every ear in the audience.
CONTENTS
• SAFETY PRECAUTIONS 4
• SYSTEM OVERVIEW
CPS-214 5
CPS-210 6
CPS-14 7
CPS-18S 8
BACK PANEL 9
CONNECTORS AND CONNECTIONS 10

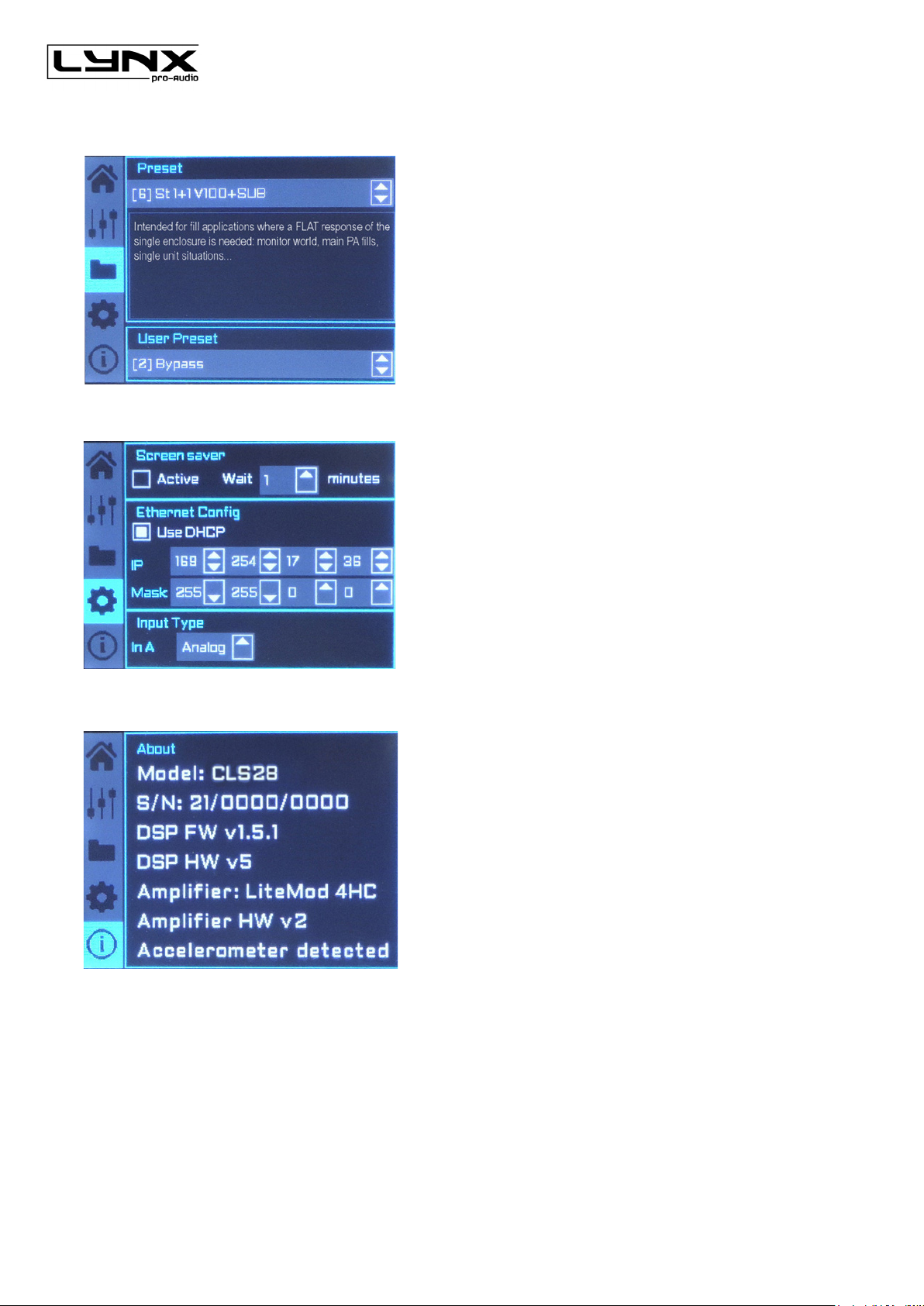

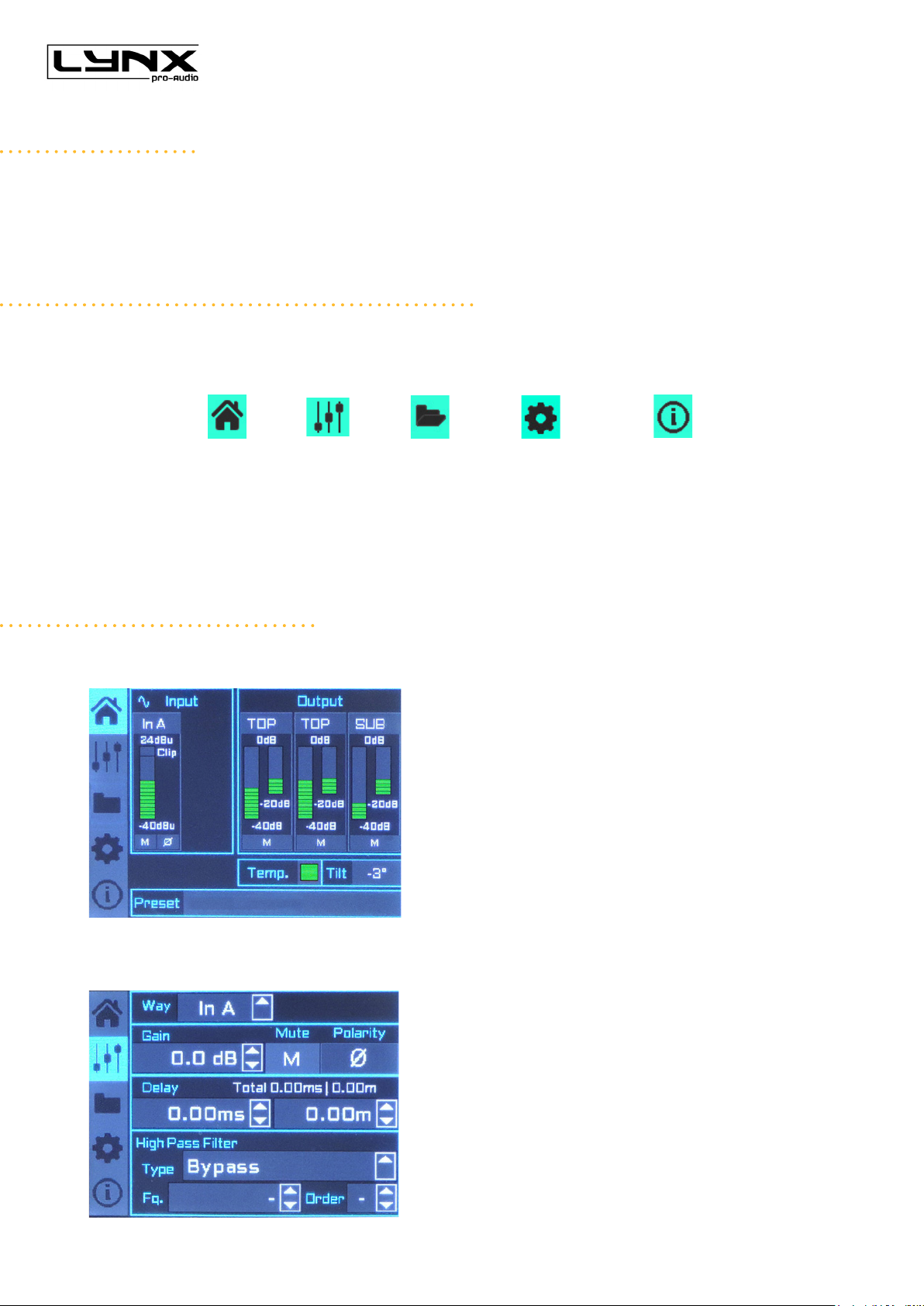

• CONFIGURING THE DIGITAL SIGNAL PROCESSOR 12

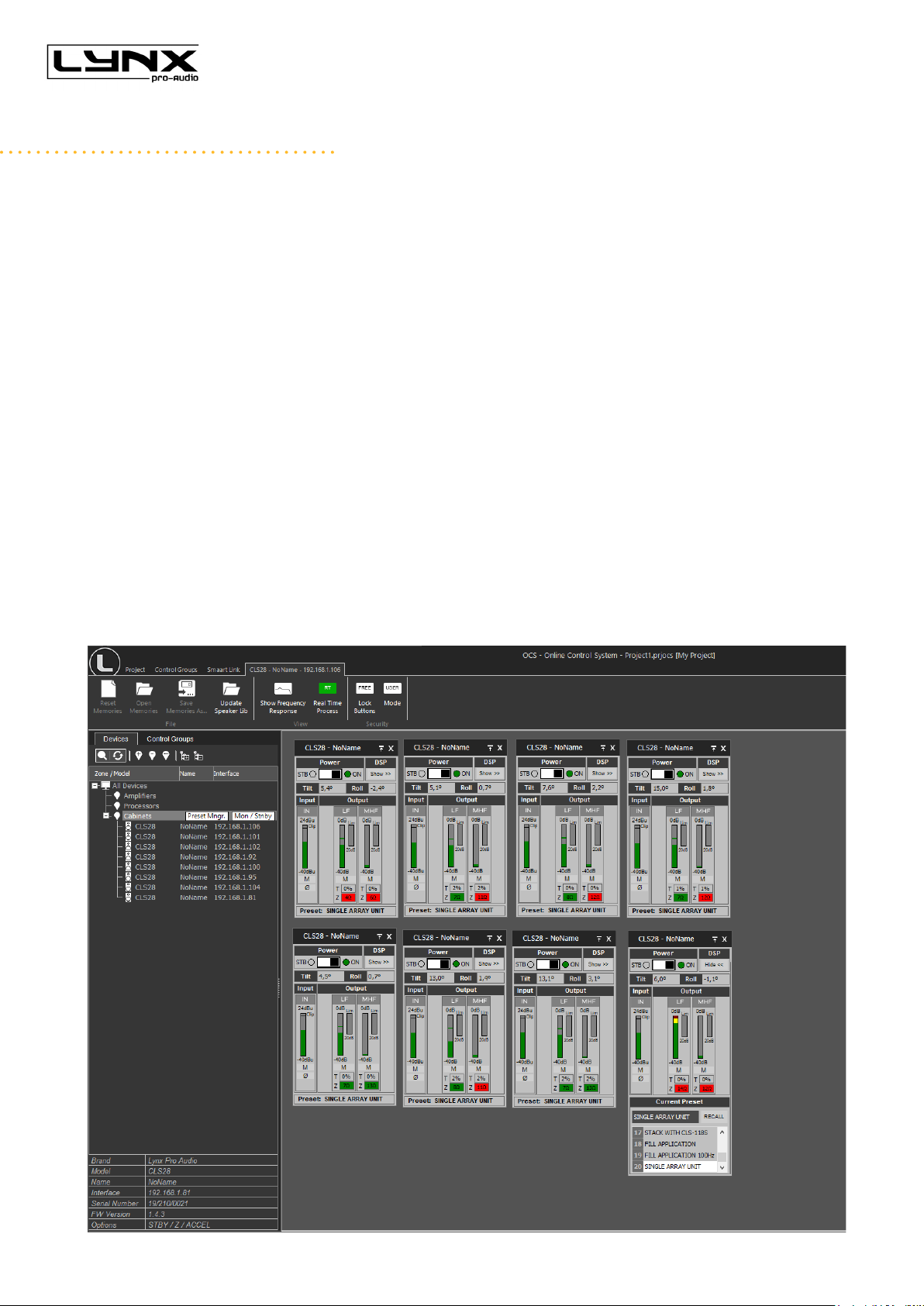

• ONLINE CONTROL SYSTEM 14

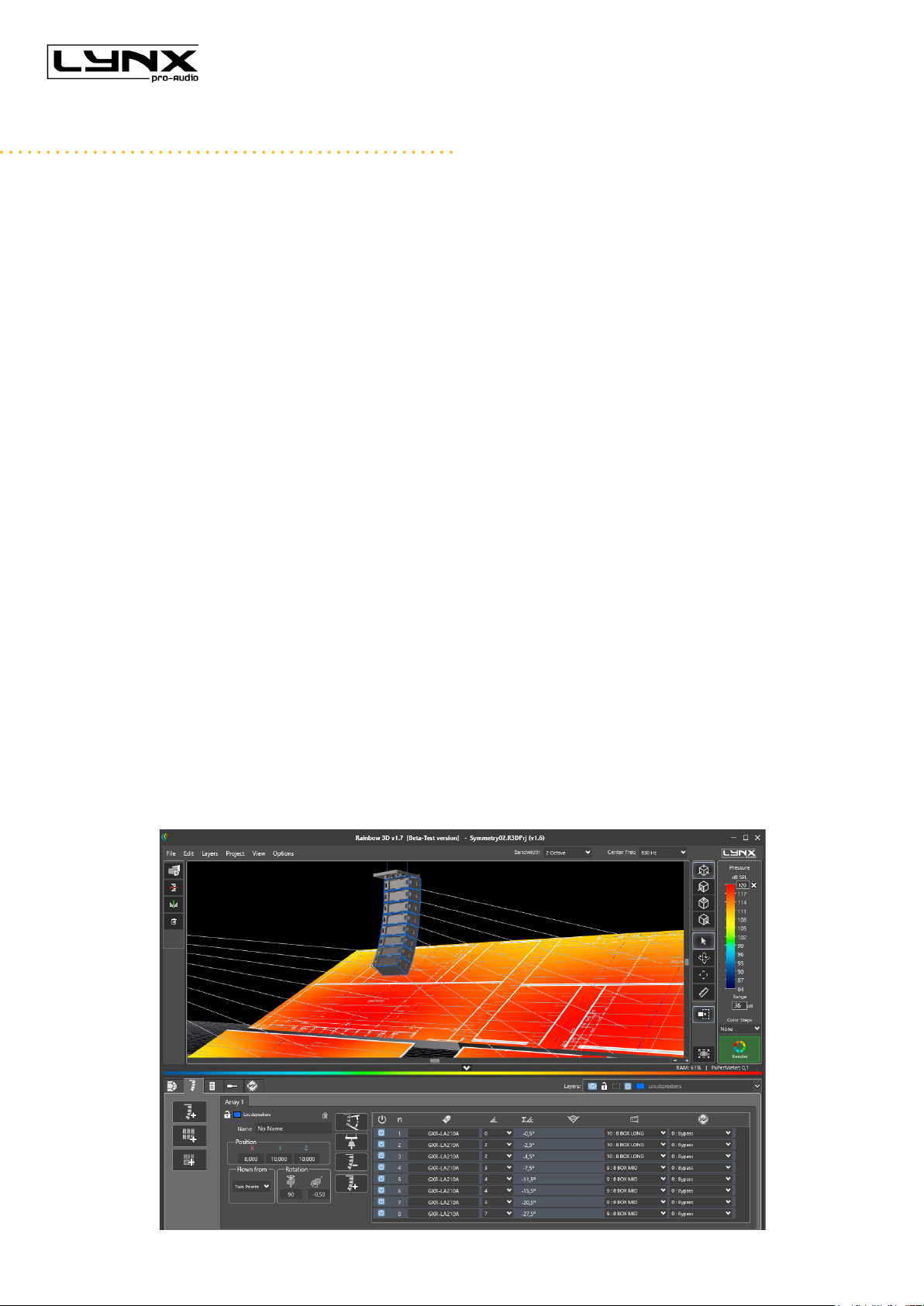

• RAINBOW 3D ACOUSTIC SIMULATION SOFTWARE 15
• HARDWARE AND ACCESSORIES 16
• CABINET INSTALLATION FOR CPS-214, CPS-210, CPS-14 17
• UBRACKET HORIZONTAL MOUNTING FOR CPS-214/210/14 19
• UBRACKET VERTICAL MOUNTING FOR CPS-214/210/14 23
• HOW TO USE THE FLYING FRAME SV-CPS ON CPS-214 26
• HOW TO USE THE TRANSPORT DOLLY ON CPS-214 29
• HOW TO USE THE TRANSPORT DOLLY ON CPS-18S 30
• APPLICATION EXAMPLES FOR CPS-214 AND CPS-18S 31
• APPLICATION EXAMPLES FOR CPS-210 AND CPS-18S 33
• APPLICATION EXAMPLES FOR CPS-14 AND CPS-18S 34
• CERTIFICATIONS AND GUARANTEE 36

CPS Series User Manual
Lynx Pro Audio S.L 4www.lynxproaudio.com
Before starting to use this device, please read this instruction manual carefully.
Keep these instructions in the place where the equipment will be used and with easy access to them.
• Electrical appliance
The exclamation mark within a triangle identies the presence of electricity. Use the system carefully without
wet hands or feet. Avoid installing the speaker in wet or excesivelly humid places. Do not place material that
contains liquid on or near the unit. Avoid dripping or splashing water or any liquid over the unit. Regularly check
the condition of the cables and make sure these are not being walked on or pinched. Connect the speaker to
bipolar, earthed mains. The mains plug must be connected to the appropriate protection (fuse or breaker).
Connection to any other type of mains could result in an electrical shock and violate local electrical codes.
CAUTION: DO NOT CONNECT OR DISCONNECT THE AC POWER CONNECTORS UNDER LOAD.
•Heavy equipment
Apply back protection when using the system. Avoid loading and unloading at heights.
•Electrical shock risk
The diagonal mark within a triangle identies the presence of dangerous voltage.
Do not open or handle the interior of the box. These parts are not to be adjusted by the user. For maintenance
and/or repair please go to an authorized service centre.In order to reduce the risk of electric shock, disconnect
from AC before plug in or unplugging Audio signal cables. Reconnect to AC only if all signal connections are
made and secured. Never manipulate the ground type plug provided.
The AC mains plugs should always remain accessible for operation.
Unplug the loudspeaker during storms or when it’s being used for a long time.
•Hearing damage risk
These systems can reproduce large quantities of sound pressure which can damage hearing. Take precautions
if you are going to be near them for extended amounts of time and do not get too close.
•Hanging / Flying
Do not hang the cabinets from the handles or from any other part other than the designated hanging point.
When ying this system please observe the technical and “Rainbow” software data carefully. Never exceed
the maximum safe working loads or ignore the instructions included within this manual. Use Only ying
accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals.
•Delicate Material
Please ensure no foreign object or water enters the speaker. Only clean the unit with dry cloths. Do not use solvents.
•Overheating / Fire risk
To reduce the risk of the speaker over heating, avoid direct contact with sunlight. Avoid placing the unit close
to heat inducing objects such as radiators. Do not cover the equipment in use and do not block any ventilation
openings. Do not put naked ame, such as lighted candles, close or on top of the unit.
•Electromagnetic and interferente emissions
Avoid placing objects which through electromagnetic waves can damage the unit, such as mobile phones, lap
tops, magnetic strip cards etc.
This system complies with normatives EN 55103-1 (1)
EN 55103-2 (2)
(1) This device may not cause harmful interferences.
(2) This device may receive interference including interferences that may cause undesired working.
•IMPORTANT NOTE
This Equipment must be used in accordance with these instructions and by trained professional personnel
only. This equipment should not be used in places with extreme tropical climates. Don’t expose this apparatus
to extreme humidity and or temperature values.

CPS Series User Manual
Lynx Pro Audio S.L 5www.lynxproaudio.com
SYSTEM OVERVIEW
• Technical Data:
Components:
• LF: 2 x 14” (4” voice coil), neodymium magnet, 2000W (AES)
• MF/HF: MF: 3.5” (90 mm) voice coil, 150W (AES)
HF: 1.5” (44,4 mm) voice coil, 80W (AES)
Frequency range: 55 Hz – 22 KHz (-6dB)
Max SPL / Peak: Low: 137 dB / 143 dB - Mid/ High: 139.5 dB / 142.6 dB
Coverage angle: Rotatable 60ºH x 40ºV
Power amplier: 6000 W Class D with switching power supply & PFC
Amp: 3000W @4 Ohm
MF/HF Amp: 3000 W @4 Ohm
Processing: 96 KHz / 64 bit double-precision, DSP with FIR lter linear phase
Crossover: Digital: FIR lter 550 Hz / Passive: 6.3 KHz
Control: User control interface with 2.8” IPS screen and multifunction joystick controller
Control connections: USB (DSP programming) / Dual Ethernet port
Input: BAL/UNBAL XLR connectors analog input
AES/EBU digital input optional
Nominal voltage: 100 – 240V AC @ 50-60 Hz
Operating voltage: 85 – 264V AC
AC Connectors: 16A Neutrik powerCON TRUE1 TOP with looping output
Finish: Polyurea coating, high grade resistant paint
Material: 15 mm Premium birch plywood
Dimensions: 900 x 420 x 515 mm (H x W x D)
Weight: 49 Kg (108 lbs)
•CPS-214
Extremely compact & powerful 3-way, self-powered (6000 W Class-D with PFC), DSP integrated
coaxial point source element. Dual high power 14” neodymium transducers and a unique 2” Exit throat
(HF 1.75” voice coil/ MF 3.5” voice coil) coaxial neodymium compression driver.

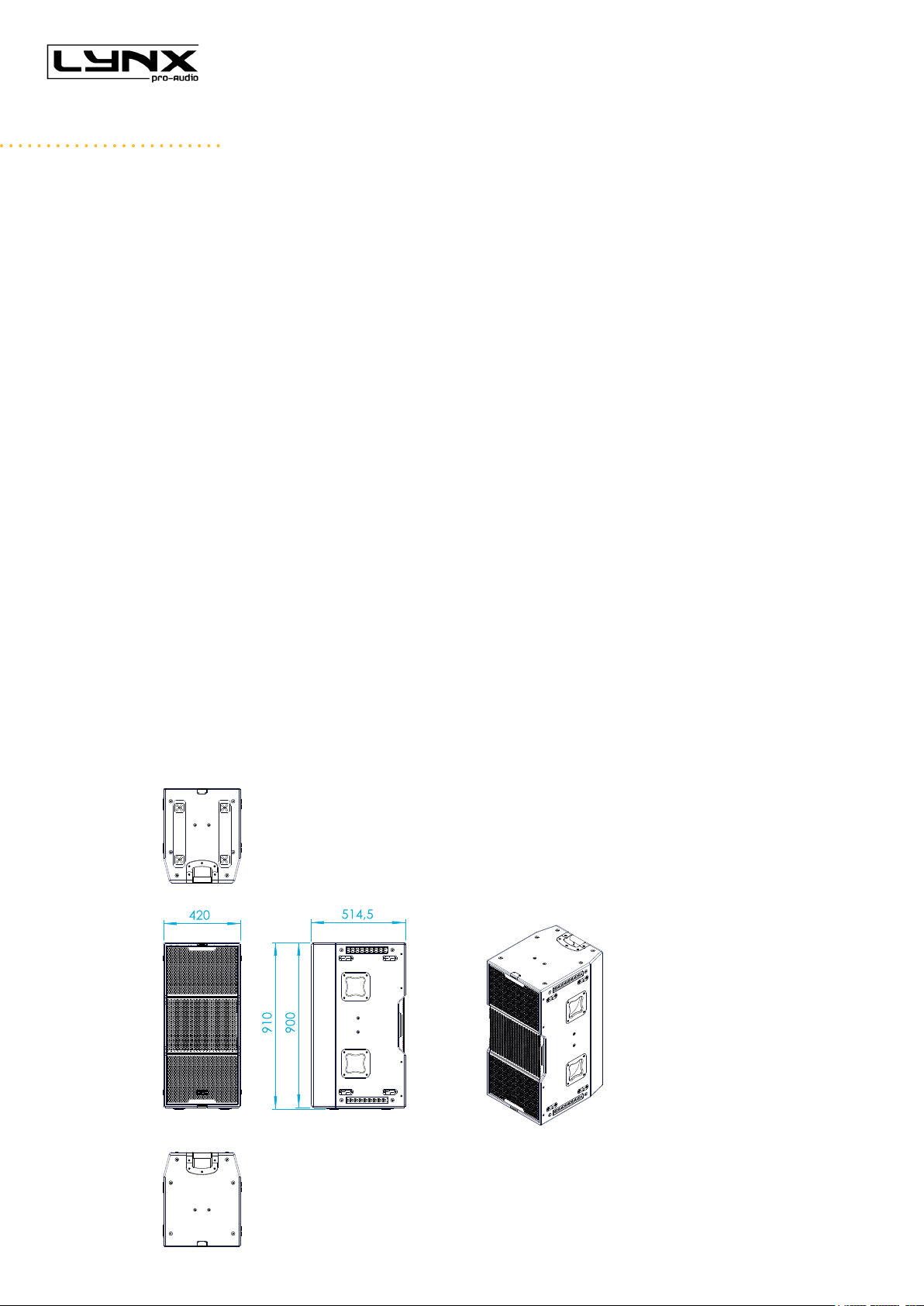

• CPS-214 measurements

CPS Series User Manual
Lynx Pro Audio S.L 6www.lynxproaudio.com
SYSTEM OVERVIEW
• Technical Data:
Components:
• LF: 2 x 10” (3” voice coil), neodymium magnet, 1400W (AES)
• MF/HF: MF: 3” (76 mm) voice coil, 90W (AES)
HF: 2” (51 mm) voice coil, 50W (AES)
Frequency range: 63 Hz – 20 KHz (-6dB)
Max SPL / Peak: Low: 130.5 dB / 136.5 dB - Mid/ High: 131 dB / 137 dB
Coverage angle: Rotatable 60ºH x 40ºV / 90ºH x 60ºV
Power amplier: 3000 W Class D with switching power supply & PFC
LF Amp: 1 x 1500 W / MF amp: 1 x 750 W / HF amp: 1 x 750 W
Processing: 96 KHz / 64 bit double-precision, DSP with FIR lter linear phase
Crossover: Digital: FIR lter 600 Hz / Passive: 4500 Hz
Control: User control interface with 2.8” IPS screen and multifunction joystick controller
Control connections: USB (DSP programming) / Dual Ethernet port
Input: BAL/UNBAL XLR connectors analog input
AES/EBU digital input optional
Nominal voltage: 100 – 240V AC @ 50-60 Hz
Operating voltage: 85 – 264V AC
AC Connectors: 16A Neutrik powerCON TRUE1 TOP with looping output
Finish: Polyurea coating, high grade resistant paint
Material: 15 mm Premium birch plywood
Dimensions: 710 x 350 x 428 mm (H x W x D)
Weight: 35 Kg (77.1 lbs)
•CPS-210
Extremely compact & powerful 3-way, tri-amplied (3000 W Class-D with PFC), DSP integrated
coaxial point source element. Dual high power 10” neodymium transducers and a unique 1.4” Exit throat
(HF 2” voice coil/ MF 3” voice coil) coaxial neodymium compression driver.

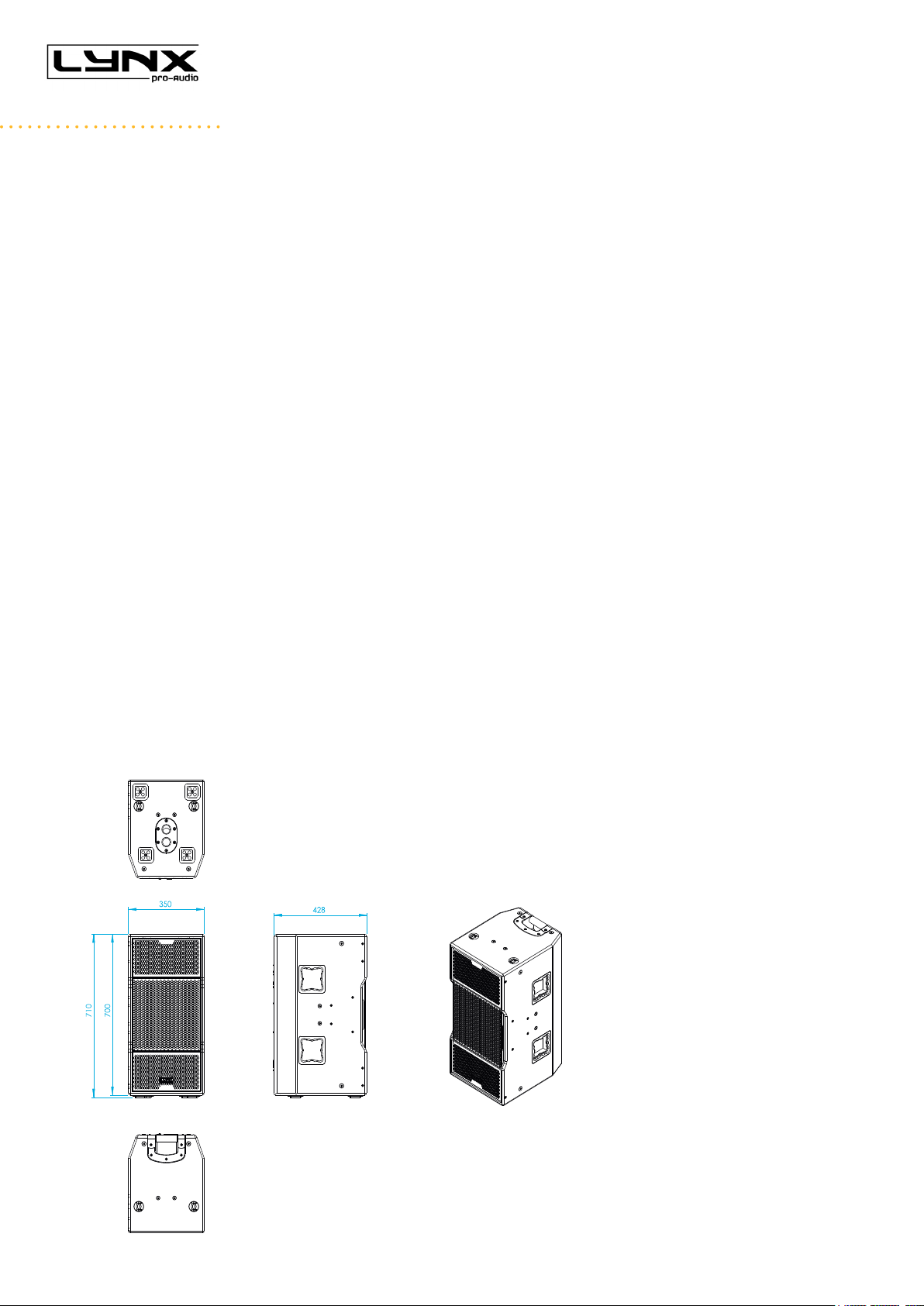

• CPS-210 measurements

CPS Series User Manual
Lynx Pro Audio S.L 7www.lynxproaudio.com
SYSTEM OVERVIEW
• Technical Data:
Components:
• LF: 1 x 14” (4” voice coil), neodymium magnet, 1000W (AES)
• MF/HF: MF: 3” (76 mm) voice coil, 90W (AES)
HF: 2” (51 mm) voice coil, 50W (AES)
Frequency range: 55 Hz – 20 KHz (-6dB)
Max SPL / Peak: Low: 130 dB / 136 dB - Mid/ High: 132 dB / 138 dB
Coverage angle: Rotatable 60ºH x 40ºV / 90ºH x 60ºV
Power amplier: 3000 W Class D with switching power supply & PFC
LF Amp: 1 x 1500 W / MF amp: 1 x 750 W / HF amp: 1 x 750 W
Processing: 96 KHz / 64 bit double-precision, DSP with FIR lter linear phase
Crossover: Digital: FIR lter 600 Hz / Passive: 4500 Hz
Control: User control interface with 2.8” IPS screen and multifunction joystick controller
Control connections: USB (DSP programming) / Dual Ethernet port
Input: BAL/UNBAL XLR connectors analog input
AES/EBU digital input optional
Nominal voltage: 100 – 240V AC @ 50-60 Hz
Operating voltage: 85 – 264V AC
AC Connectors: 16A Neutrik powerCON TRUE1 TOP with looping output
Finish: Polyurea coating, high grade resistant paint
Material: 15 mm Premium birch plywood
Dimensions: 755 x 415 x 430 mm (H x W x D)
Weight: 33 Kg (72.75 lbs)
•CPS-14
Extremely compact & powerful 3-way, tri-amplied (3000 W Class-D with PFC), DSP integrated
coaxial point source element. High power 14” neodymium transducers and a unique 1.4” Exit throat
(HF 2” voice coil/ MF 3” voice coil) coaxial neodymium compression driver.
• CPS-14 measurements

CPS Series User Manual
Lynx Pro Audio S.L 8www.lynxproaudio.com
• CPS-18S
CPS-18S is a compact & extremely powerful, self-powered (3000W Class-D with PFC), DSP integrated
subwoofer unit in 6th order band pass conguration. 18” (4” voice coil). Max SPL 138 dB.
• Technical Data:
Components:
• LF: LF: 1 x 18” (4” QUATTRO in/out copper voice coil), waterproof cone with
treatment for both sides
Frequency range: 35 Hz – 100 Hz (-6dB)
Max SPL / Peak: 132 dB / 138 dB
Coverage: QUASI Omnidirectional
Power amplier: 3000 W Class D with switching power supply & PFC
Processing: 96 KHz / 64 bit double-precision, DSP with FIR lter linear phase
Conguration: 6th Order Band Pass Subwoofer
Control: User control interface with 2.8” IPS screen and multifunction joystick controller
Control connections: USB (DSP programming) / Dual Ethernet port
Input: BAL/UNBAL XLR connectors analog input
AES/EBU digital input optional
Nominal voltage: 100 – 240V AC @ 50-60 Hz
Operating voltage: 85 – 264V AC
AC Connectors: 16A Neutrik powerCON TRUE1 TOP with looping output
Finish: Polyurea coating, high grade resistant paint
Material: 15 mm Premium birch plywood
Dimensions: 600 x 900 x 750 mm (H x W x D)
Weight: 62 Kg (136.6 lbs)

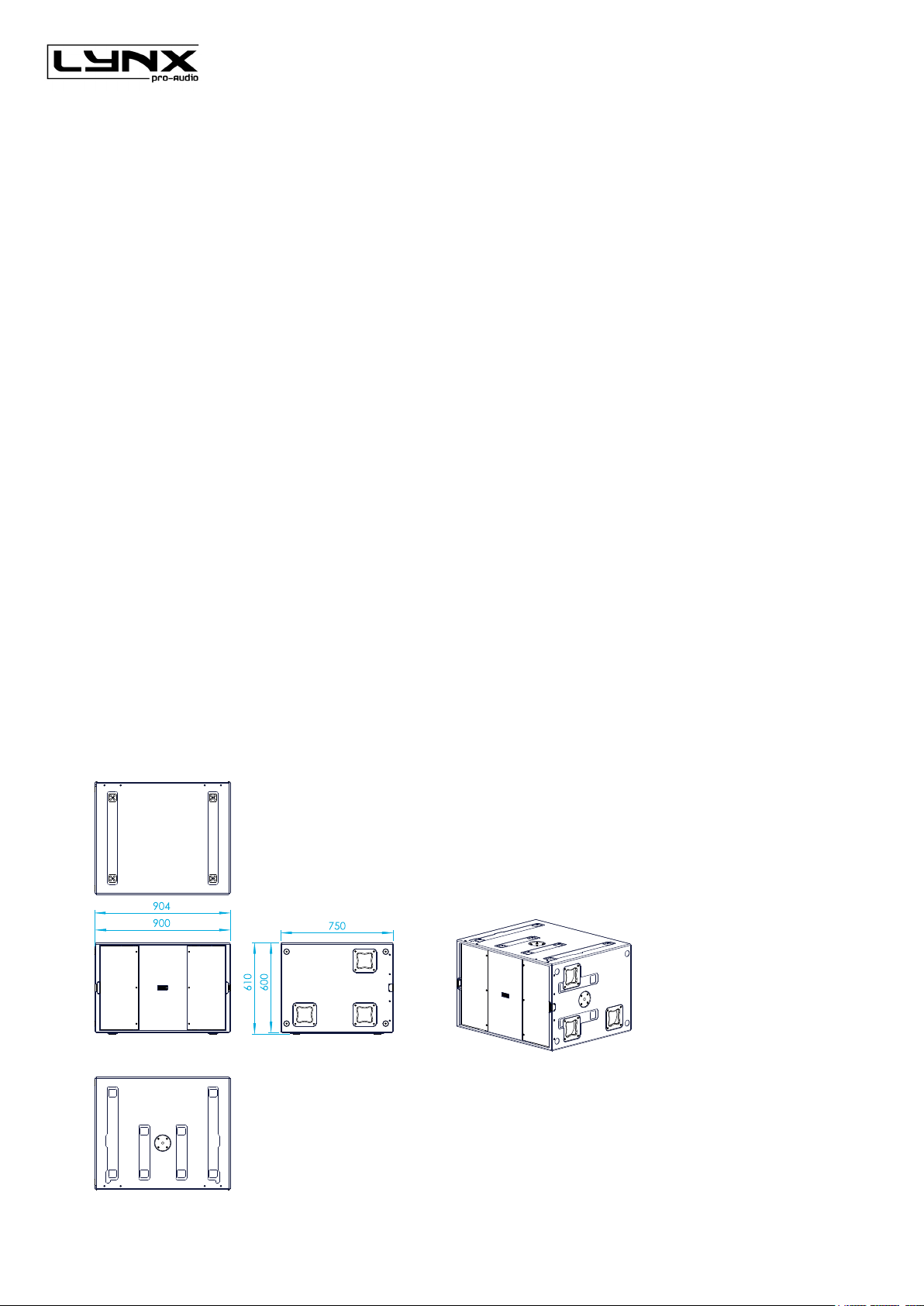

• CPS-18S measurements

CPS Series User Manual
Lynx Pro Audio S.L 9www.lynxproaudio.com
CPS BACK PANEL panel
CPS-214, CPS-210 and CPS-14 back panel:
IPS display &
digital control
digital
INPUT
Ethernet
USB
connection
Multifunction
joystick control
digital
Through
analog
INPUT
analog
Through
Main Link
Main input

CPS Series User Manual
Lynx Pro Audio S.L 10www.lynxproaudio.com
CPS BACK PANEL panel
CPS-18S back panel:
IPS display &
digital control
digital
INPUT
Ethernet
USB
connection
Multifunction
joystick control
digital
Through
analog
INPUT
analog
Through
Main Link
Main input

CPS Series User Manual
Lynx Pro Audio S.L 11www.lynxproaudio.com

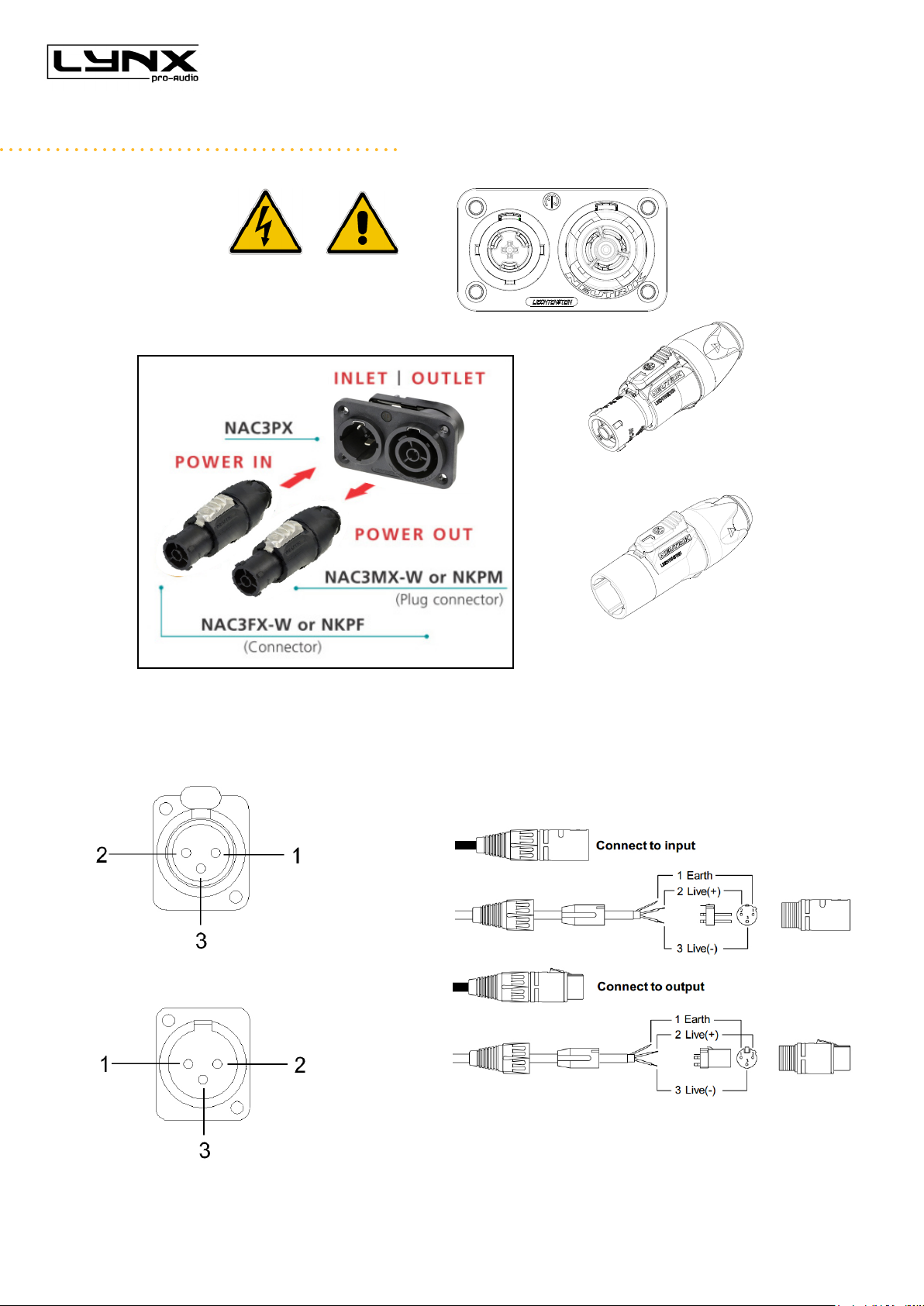

XLR AEREAL CONNECTORS
OUTPUTS
1.- EARTH
2.- LIVE (+)
3.- LIVE (-)
INPUTS
1.- EARTH
2.- LIVE (+)
3.- LIVE (-)
XLR SOCKET CONNECTORS
CONNECTORS AND CONNECTIONS
SOCKET POWERCON TRUE1
CAUTION: Do not connect
or disconnect the AC Power
connectors under load.
NAC3FX-W
NAC3MX-W

CPS Series User Manual
Lynx Pro Audio S.L 12www.lynxproaudio.com
FIR FILTERS
Finite Impulse Response (FIR) lters are used in the signal processing of the cabinets. FIR is a type of digital lter with
linear phase characteristics. This frees system designers from the constraints of phase anomalies associated with
analogue lters or their digital versions (IIR, Innite Impulse Response). When properly used, FIR ltering can audibly
improve a system’s impulse response and reduce crossover interference.
CONFIGURING THE CABINET DSP OPTIONS
On the back pannel of the cabinet you will nd the digital control area. From the compact joystick located below the
screen you are able to congure the Basic adjustment functions of the internal DSP. Just move the joystick to select
the icons on the left of the screen. You can enter into the following functions:
Please note that you must apply the desired conguration in each one cabinet and requires electrical power to work.
If changes are not made the display will automatically dim to avoid unnecessary light in situations where light is not
wanted. To re-activate the light simply press the joystick.
CONFIGURATION PANEL
On the main screen you can see the cabinet’s input and output.
• Input:
You can see a vumeter with the input level and a clip signal.
• Output:
You have a vumeter with the output level (0 dBu is the amp’s
maximum level) You can check the compressor and control the
dynamic activity.
On the second screen you can modify some parameters.
• Gain
• Mute
• Polarity
• Delay
• High Pass Filter: You can setup a High Pass lter selecting
type, frequency and order.
Home Settings Folder Conguration Information

CPS Series User Manual
Lynx Pro Audio S.L 13www.lynxproaudio.com
The folder screen shows you the name of the preset and its
description.
Using the joystick you can change the preset.
This screen is to congurate Ethernet. You can choose automatic
or manual
You can also congure the screen saver.
And here you have the input selection. You can choose between
analog or AES3 for channel 1 or channel 2.
The last screen shows you some general information regarding
the cabinet’s components.
Here you can see the cabinet model, its serial number, DSP
firmware and hardware versions, amp module model with
hardware version, as well as the accelerometer status.

CPS Series User Manual
Lynx Pro Audio S.L 14www.lynxproaudio.com
ONLINE CONTROL SYSTEM
• Who is it for?
Users of Self powered DSP incorporated Lynx Pro Audio Cabinets where the user has requested the cabinets
be supplied with the Ethernet Module kit.
• What is it for?
Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. You can change the
preset, gain, mute, polarity and phase. You can also activate the air absorption compensation and select the
«SOLO» mode.
• How does it work?
Via Ethernet (cable or wireless). Once installed, the O.C.S. software automatically detects all the cabinets
connected to the network and displays them in the O.C.S. window on the users PC.
• What does it show?
As well as displaying the cabinet model and IP address the O.C.S will be monitoring in real time and the user
will be able to view RMS levels, Input clip, power module temperature, compression levels, air absorption
compensation and cabinet angulation.

CPS Series User Manual
Lynx Pro Audio S.L 15www.lynxproaudio.com
RAINBOW 3D Acoustic Prediction Software
Lynx Pro Audio’s R&D department is working on Rainbow 3D, a new acoustic simulation software with dynamic 3D features.
With a sophisticated design, Rainbow 3D stands out for its speed, being able to provide a simulation in just a few seconds. It
also provides algorithms for beam steering and optimizing the listening area.
• Designed from scratch by professionals
Rainbow 3D has been programmed from scratch by Lynx Pro Audio engineers, using new programming procedures that
achieve an effective simulation with really low calculation time.
• Multiple listening zones
The program can simulate all Lynx Pro Audio’s acoustic enclosures located in a 3D space, including the classic side, top and
front views. It can also dene multiple listening zones and allows offset positioning and symmetry. Blueprint images, textures
and PNG format pictures can be imported.
• Unlimited sound sources
Allows the acoustic simulation for an unlimited number of sound sources and audio systems. You can place as many systems
(subwoofers, line arrays, columns and individual boxes) as you desire. Also, the line arrays can be placed in stack or own
conguration.
• Beam steering
Rainbow 3D has the ability to add DSP processing to the simulation and uses algorithms to control the directivity (beam
steering) in columns, without the need to tilt them physically, being able to divide the column into several beams that point
to different zones.
• Accurate optimization thanks to FIR lters
Optimized algorithms are used in the listening area to improve the sound coverage and the frequency response. This feature
can be executed in a matter of seconds. Additionally, the export of FIR coefcients can be performed with the optimization
for later loading in the DSP via Ethernet or a USB device. In the near future direct communication with Lynx Pro Audio and
OCS will be available.
• Multiple measures and tools
Likewise, the R&D department is developing multiple measurement and analysis tools for the calculated data. For example,
the sound pressure curves (SPL) in the listening areas and the capture of virtual measurements that show the frequency
response in the points of location indicated and added. Among other tools you will nd autosplay and a wizard to set up
different subwoofer arragements.

CPS Series User Manual
Lynx Pro Audio S.L 16www.lynxproaudio.com
HARDWARE AND ACCESSORIES
The CPS cabinets offer a variety of practical accessories to help use the system in a number of events, from
touring applications to xed installations, indoor and outdoor.
CA-CPS18S
Removable front transport
dolly for CPS-18S
SV-CPS214
Flying frame for CPS-214
FD-1CPS214NL
FD-1CPS210NL
FD-1CPS14NL
FD-1CPS18SNL
Rain cover for the back
panel of the CPS-214, CPS-
210, CPS-14 or CPS-18S
FD-CPS214
Nylon protection for CPS-
214
FD-CPS210
Nylon protection for CPS-
210
FD-CPS14
Nylon protection for CPS-
14
FD-CPS18S
Nylon protection for CPS-
18S
CA-CPS214
Removable front transport
dolly for CPS-214
UBR-HCPS214
UBR-HCPS210
UBR-HCPS14
Horizontal U bracket for
CPS-214, CPS-210 or
CPS-14
SC-FC1
Lightweight install stud for
CPS-214, CPS-210 and
CPS-14
AGR-10
Eye bolt for CPS-214, CPS-
210 and CPS-14
UBR-VCPS214
UBR-VCPS210
UBR-VCPS14
Vertical U bracket for CPS-
214, CPS-210 or CPS-14

CPS Series User Manual
Lynx Pro Audio S.L 17www.lynxproaudio.com
• Mounting advice
Cabinets must be installed and suspended by professional installers.
Never place the safety of personnel at risk. Always check the accessories, slings etc are in good condition
and the suspension point is secure and free of excess weight, vibration, etc. Be careful where the cabinets
are suspended from.
All responsibility lies with the installation company.
• How to rotate the horn
The CPS-214, CPS-210 and CPS-14 cabinets enable the horn to be rotated 60º H x 40º V offering further
coverage options. The rotatable horn feature enables the installer to also set the cabinet up horizontally
whilst maintaining the horn features such as horizontal and vertical coverage. This is helpful in installs with
low ceilings or where esthetically the cabinet looks better horizontally.
CABINET INSTALLATION
•Then, unscrew the screws that are holding the
speaker.
•To rotate the horn the user must rst remove
the central cabinet grill, pulling it out. It is
attached with magnets.

CPS Series User Manual
Lynx Pro Audio S.L 18www.lynxproaudio.com
CABINET INSTALLATION
•Takethehornoutandturnittothedesiredposition.
Make sure that the horn ts correctly.
•Introduce the screws again to secure the horn.
Make sure it is correctly xed.
• Place the cabinet grill back into the former position.
Make sure that the cabinet grill is properly xed with
the magnets.

CPS Series User Manual
Lynx Pro Audio S.L 19www.lynxproaudio.com
U BRACKET: HORIZONTAL MOUNTING FOR CPS-214 / CPS-210 / CPS-14
UBR-HCPS is the horizontal mounting system specially designed for Lynx Pro Audio CPS-214, CPS-210
and CPS-14 cabinets. In order to correctly mount the horizontal U bracket, you must rst put the wooden
adapter (Picture A) before mounting the U bracket.
Picture A:
Step 1
Step 2
Just follow the steps to x the wooden adapter correctly:
Step 1: Pull off the 4 screws on top and bottom side of the cabinet
Step 2: Place the wooden adapter and x it with 2 screws, as shown in the picture below.
Once this is done, the U bracket for horizontal mounting can be correctly attached.

CPS Series User Manual
Lynx Pro Audio S.L 20www.lynxproaudio.com
U BRACKET: HORIZONTAL MOUNTING FOR CPS-214 / CPS-210 / CPS-14
How to use it?
Before starting with the installation please note that the UBR bracket offers three different options and
you have to select one of them before installing the support. Simply check the following drawings and select
the best option in order to achieve the coverage required.
Below you can see in which direction to position the UBR support with regards to the cabinet:
Position 3
Position 1 Position 2
A
B
B
A
B
A
Cabinet
front Grill
Back of
the cabinet
The angles show the different variations available in order to x the center of the cabinet (front grill). Please
pay special attention to the optimal positioning of your cabinet.
Once your selection is made (Position 1, 2 or 3) then you can start with the installation.
Now, you can attach the UBR-HCPS, composed by the U type support made of steel and 4 special xing
screws (2 per side) in order to x the cabinet to the U support.
