Lynx Juno Series User manual

USER MANUAL
V.20.11
Lynx Pro Audio S.L.
Valencia, Spain - www.lynxproaudio.com - [email protected]
JUNO SERIES
JN-6T / JN-6TW
JN-8T / JN-8TW

Juno Series User Manual
Lynx Pro Audio S.L www.lynxproaudio.com 2
CONTENTS
• INTRODUCTION 3
• SAFETY PRECAUTIONS 4
• CABINET CONNECTIONS 5
• TROUBLESHOOTING 6
• JN-6T DATASHEET 7
• JN-8T DATASHEET 9
• LYNX PRO AUDIO GUARANTEE 11
• DECLARATION OF CONFORMITY 12

Juno Series User Manual
Lynx Pro Audio S.L www.lynxproaudio.com 3
INTRODUCTION
To facilitate the correct and reliable use of the Juno cabinets we have designed this
instruction manual, please read it before proceeding to install the cabinet.
Please observe the technical data carefully and do not ignore the instructions included
within this manual.
The Juno Series are weather-resistant, two-way full range loudspeakers. The Juno series
comprises one 6” low/mid-woofer with one 1” HF driver (JN-6T) and one 8” low/mid-woofer
with one 1” HF driver (JN-8T), both with line transformer as standard.
High durability and superior performance with full sound over a large listening area. These
cabinets have a sturdy structure and IP rated system which can be used both indoors and
outdoors, being able to withstand the elements. Also, their elegant and discreet design
make them the ideal speaker for outdoor installations such as beach clubs, pools, cruise
ships and terraces.
Juno series can be set up either vertically or horizontally. The body is made of engineered
plastic injection moulding and polypropylene guaranteeing complete protection against
ultraviolet rays. The grille is perforated aluminium, internally covered in waterproof fabric
and open cell expanded polyurethane.
The system conforms to IP46 international standard. JN-6T and JN8T cabinets are
equipped with multitap transformer.
UNPACKING
Juno Series are built under quality supervision of Lynx Pro Audio, according to the highest
standards. When unpacking your cabinets, carefully examine it for any signs of possible
transit damage and inform your dealer inmediately if any such damage has occurred.
It is suggested that you retain the original packaging so that the cabinet can be repacked
in the future if necessary. Please note that Lynx Pro audio and its authorized distributors
cannot accept any responsability for damage to any returned product through the use of
non-approved packaging.

Juno Series User Manual
Lynx Pro Audio S.L www.lynxproaudio.com 4
•Hearing damage risk
These systems can reproduce large quantities of sound pressure which can damage
hearing. Take precautions if you are going to be near them for extended amounts of time
and do not get too close.
•Hanging / Flying
Do not hang the cabinets from the handles or from any other part other than the
designated hanging point. When ying this system please observe the technical and
“Rainbow” software data carefully. Never exceed the maximum safe working loads or
ignore the instructions included within this manual. Use Only ying accessories provided
by Lynx Pro Audio S.L. Rigging must be always carried out by professionals.
•Delicate Material
Please ensure no foreign object or water enters the speaker. Only clean the unit with
dry cloths. Do not use solvents.
•Overheating / Fire risk
To reduce the risk of the speaker over heating, avoid direct contact with sunlight. Avoid
placing the unit close to heat inducing objects such as radiators. Do not cover the
equipment in use and do not block any ventilation openings. Do not put naked ame,
such as lighted candles, close or on top of the unit.
•Electromagnetic and interferente emissions
Avoid placing objects which through electromagnetic waves can damage the unit, such
as mobile phones, lap tops, magnetic strip cards etc.
This system complies with normatives EN 55103-1 (1)
EN 55103-2 (2)
(1) This device may not cause harmful interferences.
(2) This device may receive interference including interferences that may cause undesired
working.
SAFETY PRECAUTIONS
•IMPORTANT NOTE
This Equipment must be used in accordance with these instructions and by trained
professional personnel only. This equipment should not be used in places with extreme
tropical climates. Don’t expose this apparatus to extreme humidity and or temperature values.
Before starting to use this device, please read this instruction manual carefully.
Keep these instructions in the place where the equipment will be used and with easy access
to them.

Juno Series User Manual
Lynx Pro Audio S.L www.lynxproaudio.com 5
CABINET CONNECTIONS
• Connections:
The Juno Series speakers are equipped with a 4-positions Phoenix connector located on
the back plate. The rst two pins correspond to IN- / IN+, and the last two pins are Link- /
Link+, internally linked to the input sockets.
To connect the speaker, rstly unscrew the two silver screws and remove the plug. Screw
the wires to the plug and re-attach it to the speaker.
The screw connector provides a faster and easier way to wire the system allowing the
speaker to perfectly t the wall shape while keeps invisible.
•Normative
The Juno cabinets meet the following standards:
EN 55032:2012 Electromagnetic compatibility of multimedia equipment. Emmision
requeriments.
EN 55103-2:2009 Electromagnetic compatibility. Product family standard for audio,
video, audiovisual and entertainment lighting control apparatus for professional use.
Part 2: Immunity.
EN 60065:2014 Audio, video and similar electronic apparatus. Safety requirements.
EN 50581:2012 Technical documentation for the assessment of electrical and
electronic products with respect to the restriction of hazardous substances
RIGGING AND SUSPENSION SAFETY PRECAUTIONS
Before rigging or suspending Juno series cabinets, inspect all components and all hardware
for any signs of damaged or missing parts. If you nd any damaged, corroded or deformed
parts, do not use them, replace them inmediately.
Use only the recommended Lynx Pro Audio wall brackets. Doing otherwise may cause the
element to fall off, resulting in personal injury and/or property damage.
Use nuts and bolts that are appropiate for the wall’s materials and structure.

Juno Series User Manual
Lynx Pro Audio S.L www.lynxproaudio.com 6
TROUBLESHOOTING
Simple troubleshooting does not require sophisticated measurement equipment and can
be easily understaken by users. The technique should be to segment the system in order
to identify the faulty system component. A simple sweep with a sine generator can be very
helpful though it MUST be made at a fairly low level to prevent damage to the speakers.
A sine wave sweep can help nd:
Vibrations due to loose screws.
Air-leak noises: check that no screws are missing, particularly where the accessories attach
to the cabinet.
Vibrations due to front grille badly positioned on the quick release xings.
Foreign object that has fallen into the cabinet after repair or through the ports.
Internal connection wires or absorbing material touching the loudspeaker diaphragm.
• Back Cover:
Before exposing the speaker to rain or highly humid environments,
please make sure that back cover is correctly installed and the cable
gland is rmly screwed on. Adjust the power tap before applying
the back cover.
• 100V Tap Selector:
Every speaker from Juno Series is equipped with a
multi-tap 100V transformer. There is a rotary selector
placed on the back panel, near the connections plug.
On this section the user can nd ve different switch
positions according to the pretended 100V power and
impedance needed.
The rst three positions are related to 100V, the fourth
position shuts the speaker OFF - no sound will come
from the speaker - the last position is meant to be used
on low impedance operation (16 Ω).
To change the switch position a at screwdriver is
recommended.
On the Juno-6T, the available power taps are 20W, 40W and 80W.
On the Juno-8T, the available power taps are 37.5W, 75W and 150W.

Juno Series User Manual
Lynx Pro Audio S.L www.lynxproaudio.com 7
BRACKET INSTALLATION
Each Juno cabinet comes with its bracket. This bracket is a U type steel piece with 2 xing
screws (1 per side) in order to x it to the cabinet.
How to use it? The rst thing to do is to x the U bracket in the place required (ceiling, wall,
oor, etc).
Always check the suspension point is secure and free of excess weight, vibration, etc. And
be careful where the cabinets are suspended from. If everything is correct then you can
x the U bracket (without the cabinet). It is very important to ensure that the bracket is
strongly xed. Please always check it. Never place the safety of personnel at risk. If the U
bracket is strongly xed then you can hold the cabinet.
When the cabinet is in the desired position then tighten the screws (1 per side) and the
cabinet will be correctly installed.
360º
360º
360º

Juno Series User Manual
Lynx Pro Audio S.L www.lynxproaudio.com 8
• Technical Data:
Frequency response(-3dB): 60 Hz - 18 KHz
Frequency response (-10dB): 55 Hz - 20 KHz
Drivers: 1×6” (150 mm) / 1.5” voice coil LF
1×1” (25 mm) / 1” voice coil HF
Rated power: 80W
Transformer taps: 100 V: 20W / 40W / 80W
Sensitivity: 89 dB 1w/1m
Maximum SPL: 110 dB / 116 dB peak
Impedance: 16 Ω nominal
Dispersion (-6 dB): 90º x 60º
Crossover frequencies: 2.4 KHz passive
Input connectors: Covered barrier strip terminals
Package size: 524 x 242 x 417 mm (1 pair)
Net weight: 12 Kg / pair
Gross weight: 16 Kg / pair
• JN-6T
Weather resistant two-way full range loudspeaker.
Consists of one 6” low/mid-woofer with one 1”HF driver, with a multitap transformer.
116dB SPL.
JN-6T DATASHEET

Juno Series User Manual
Lynx Pro Audio S.L www.lynxproaudio.com 9
• Key features
• Indoor or outdoor application
• Weather resistant - IP46 rating
• Tested to withstand rain and salt
• Engineering plastic injection molding
• UV rays protection
• Vertical and horizontal installation
• Internal waterproof fabric
• Available in black or white colour
• Perfectly suited for:
• Meeting rooms
• Commercial centers
• Waterpaks & pools
• Outdoor background music
• Beach clubs
• Cruise ships
362
226
232
100181
181.6

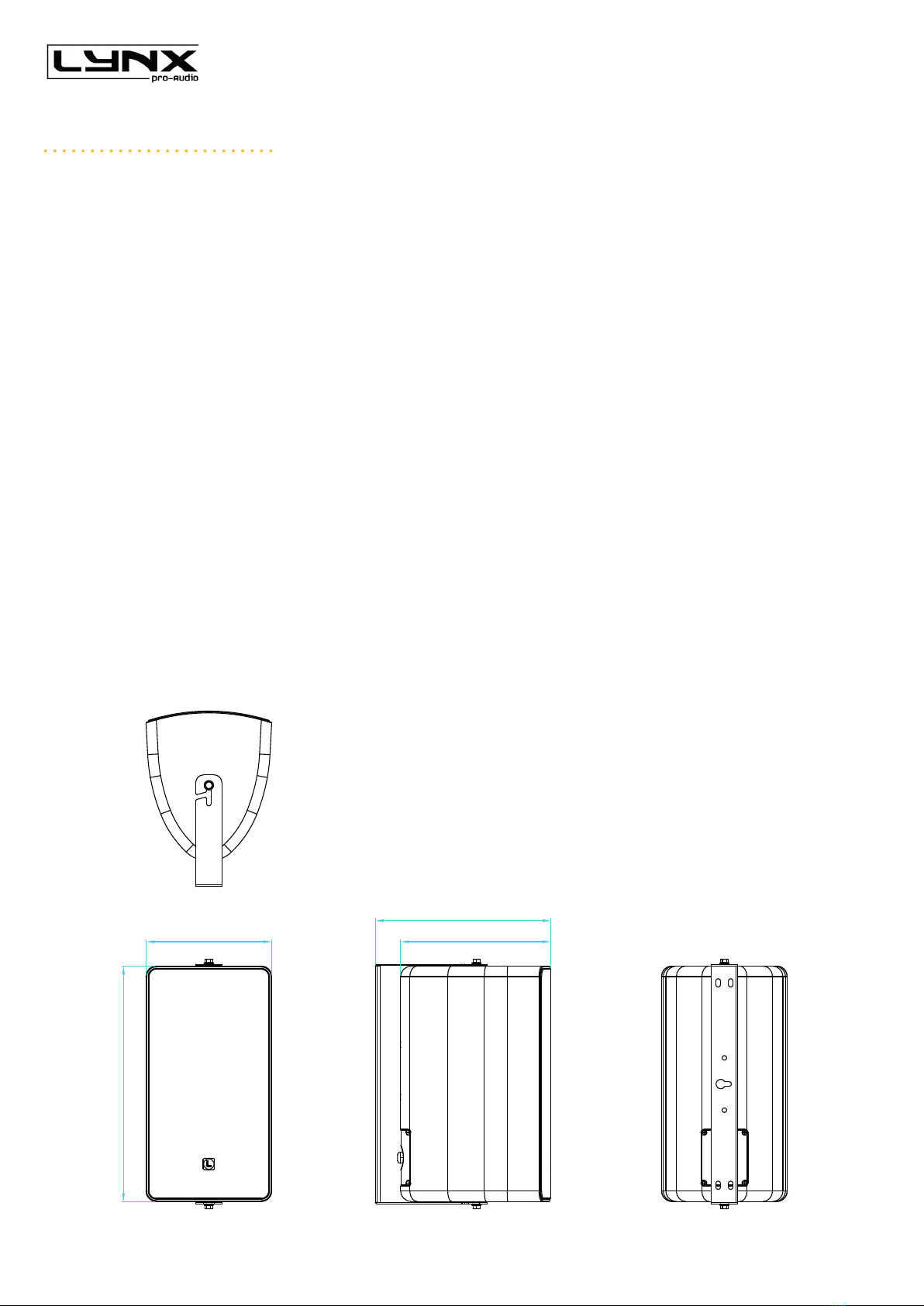

• Dimmensions:
JN-6T DATASHEET

Juno Series User Manual
Lynx Pro Audio S.L www.lynxproaudio.com 10
• Technical Data:
Frequency response(-3dB): 60 Hz - 18 KHz
Frequency response (-10dB): 55 Hz - 20 KHz
Drivers: 1×8” (200 mm) / 2” voice coil LF
1×1” (25 mm) / 1” voice coil HF
Rated power: 150 W
Transformer taps: 100 V: 37.5W / 75W / 150W
Sensitivity: 94 dB 1w/1m
Maximum SPL: 116 dB / 122 dB peak
Impedance: 16 Ω nominal
Dispersion (-6 dB): 90º x 50º
Crossover frequencies: 2.3 KHz passive
Input connectors: Covered barrier strip terminals
Package size: 370 x 310 x 525 mm
Net weight: 10 Kg / pc
Gross weight: 12 Kg / pc
• JN-8T
Weather resistant two-way full range loudspeaker.
Consists of one 8” low/mid-woofer with one 1” HF driver, with a multitap transformer.
122 dB SPL.
JN-8T DATASHEET

Juno Series User Manual
Lynx Pro Audio S.L www.lynxproaudio.com 11
• Key features
• Indoor or outdoor application
• Weather resistant - IP46 rating
• Tested to withstand rain and salt
• Engineering plastic injection molding
• UV rays protection
• Vertical and horizontal installation
• Internal waterproof fabric
• Available in black or white colour
• Perfectly suited for:
• Meeting rooms
• Commercial centers
• Waterpaks & pools
• Outdoor background music
• Beach clubs
• Cruise ships
240.2
450
287
335.5
• Dimmensions:
JN-8T DATASHEET

Juno Series User Manual
Lynx Pro Audio S.L www.lynxproaudio.com 12
LYNX PRO AUDIO GUARANTEE
Lynx products are guaranteed against every kind of manufacturing fault 2 year after the
date of sale. When products are under guarantee, the repairing and the free supplying of
the device parts in order to correct any kind of defect are guaranteed by Lynx Pro Audio S.L.
In the case that the product could not be returned to the factory for checking and repairing,
Lynx Pro Audio S.L. would supply all the necessary parts.
Lynx Pro Audio S.L. is not responsible for any damage or defect caused during the transport
or caused by an undue or improper handling y a non-authorized person during the life of
this guarantee.
All our products undergo rigorous tests and quality controls. We guarantee the characteristics
described here within and their quality against any fabrication defect.
The user loses all warranty rights if he incorporates or carries out any modication to the
product, if he uses it outside of the stated safe working loads or does not secure the system
properly using all the pins in their corresponding holes.
For any question regarding the product, the user must quote the model and serial number.
WEEE Declaration: Electrical and electronic equipment must be disposed of separately
from normal waste at the end of its operational lifetime. Please dispose of this product ac-
cording to the respective national regulations or contractual agreements. If there are any
further questions concerning the disposal of this product please contact Lynx Pro Audio S.L.

Juno Series User Manual
Lynx Pro Audio S.L www.lynxproaudio.com 13
DECLARATION OF CONFORMITY
Lynx Pro Audio S.L.
Calle 1 - Pol. Ind. Picassent
46220 Picassent (Valencia)
SPAIN - EU
Tel.: [phone]
www.lynxproaudio.com
Lynx Pro Audio S.L. declares that Juno series are in conformity with the following EC direc-
tives:
Low Voltage Directive 2014/35/UE
Electromagnetic Compatibility EMC 2014/30/UE
RoHS Directive 2011/65/UE
RAEE (WEEE) 2012/19/UE
In accordance with Harmonized European Norms:
EN 60065:2014 Audio, video and similar electronic apparatus. Safety requirements.
EN 55032:2012 Electromagnetic compatibility of multimedia equipment. Emission
requeriments.
EN 55103-2:2009 Electromagnetic compatibility. Product family standard for audio,
video, audiovisual and entertainment lighting control apparatus for
professional use. Part 2: Immunity.
EN 50581:2012 Technical documentation for the assessment of electrical and electronic
products with respect to the restriction of hazardous substances.
Juno models: JN-6T/JN-6TW/JN-8T/JN-8TW
