LUNA 850 V / 550 V GOLD GAS
LUNA 850 DV / 550 DV GOLD GAS
INSTRUCTION FOR INSTALLATION AND USE
Passion for fire
English 06-2012

INSTRUCTION FOR INSTALLATION AND USE - LUNA 550V - 550DV - 850V - 850DV GOLD - GAS M-DESIGN
2
V E R Y I M P O R TA N T
INSTALLATION
INSTRUCTIONS FOR THE
M - D E S I G N
GAS FIREPLACES
THE SUPPLIER TAKES NO
RESPONSBILITY FOR ANY
POSSIBLE DAMAGE, POOR WORKING
APPLIANCES AND ACCIDENT AS A
RESULT OF INCORRECT INSTALLATION

INSTRUCTION FOR INSTALLATION AND USE - LUNA 550V - 550DV - 850V - 850DV GOLD - GAS M-DESIGN
3
SUMMARY
1. GENERAL REMARKS.............................................................. 5
2. CONNECTION .......................................................................... 5
3. INSTALLING THE FIREPLACE............................................. 6
3.1.1 Positioning the replace .................................................. 6
3.1.2 Gas connection .................................................................. 7
3.1.3 Electrical connection ........................................................ 7
4. INSTALLING THE CHIMNEY .............................................. 7-12
5. INSULATION AND FINISHING........................................... 13
6. CONVECTION CURRENT...................................................... 14-15-16

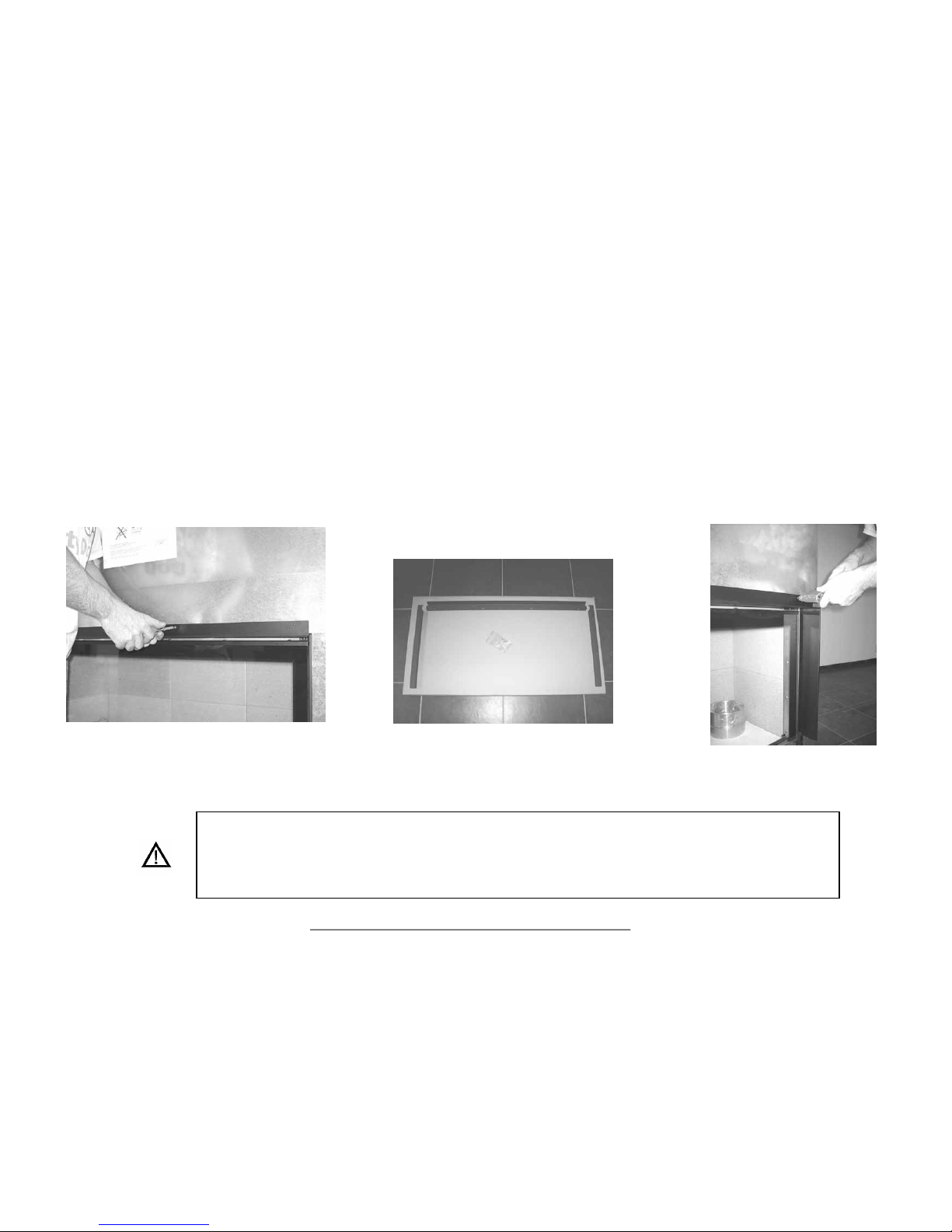

7. MOUNTING A 3 SIDED FRAME .......................................... 17

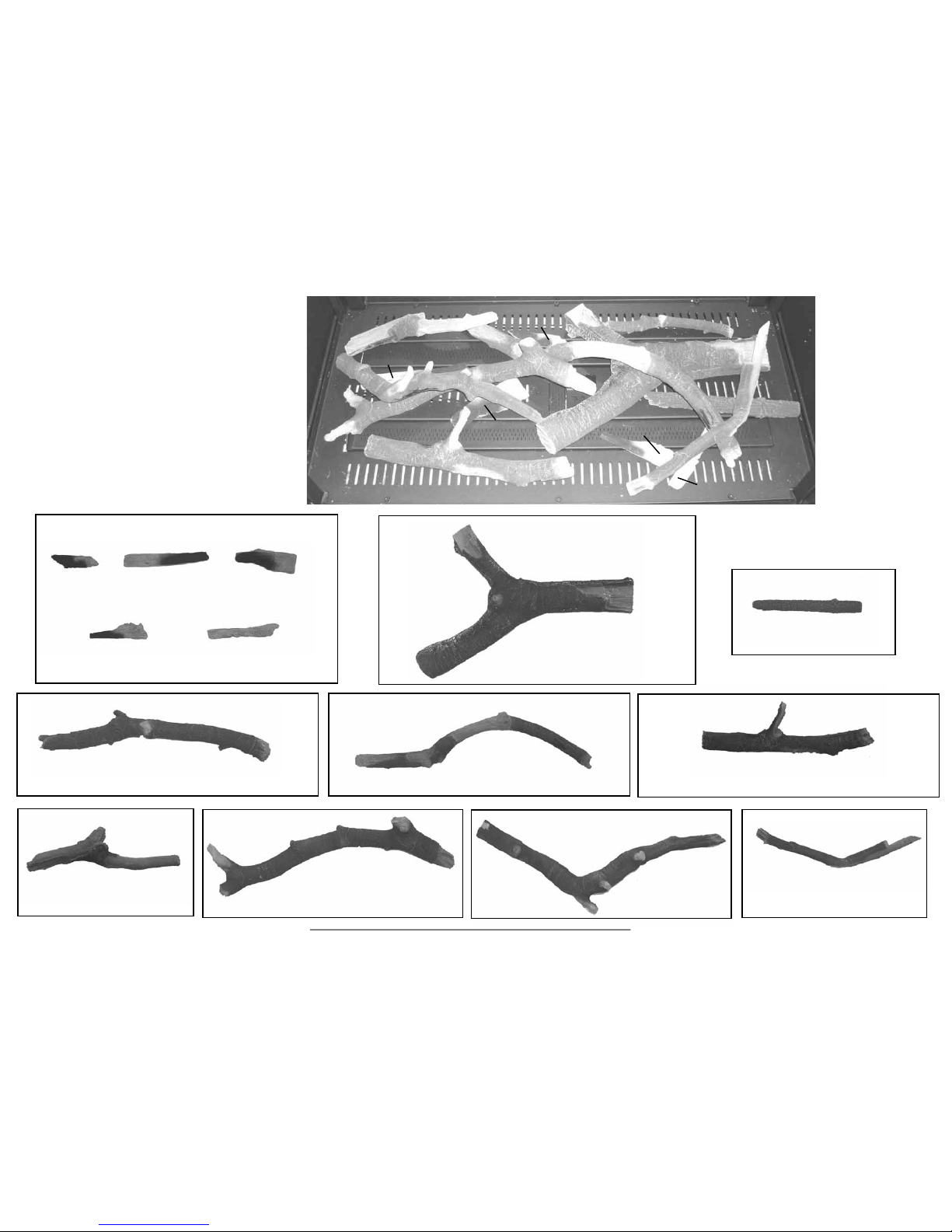

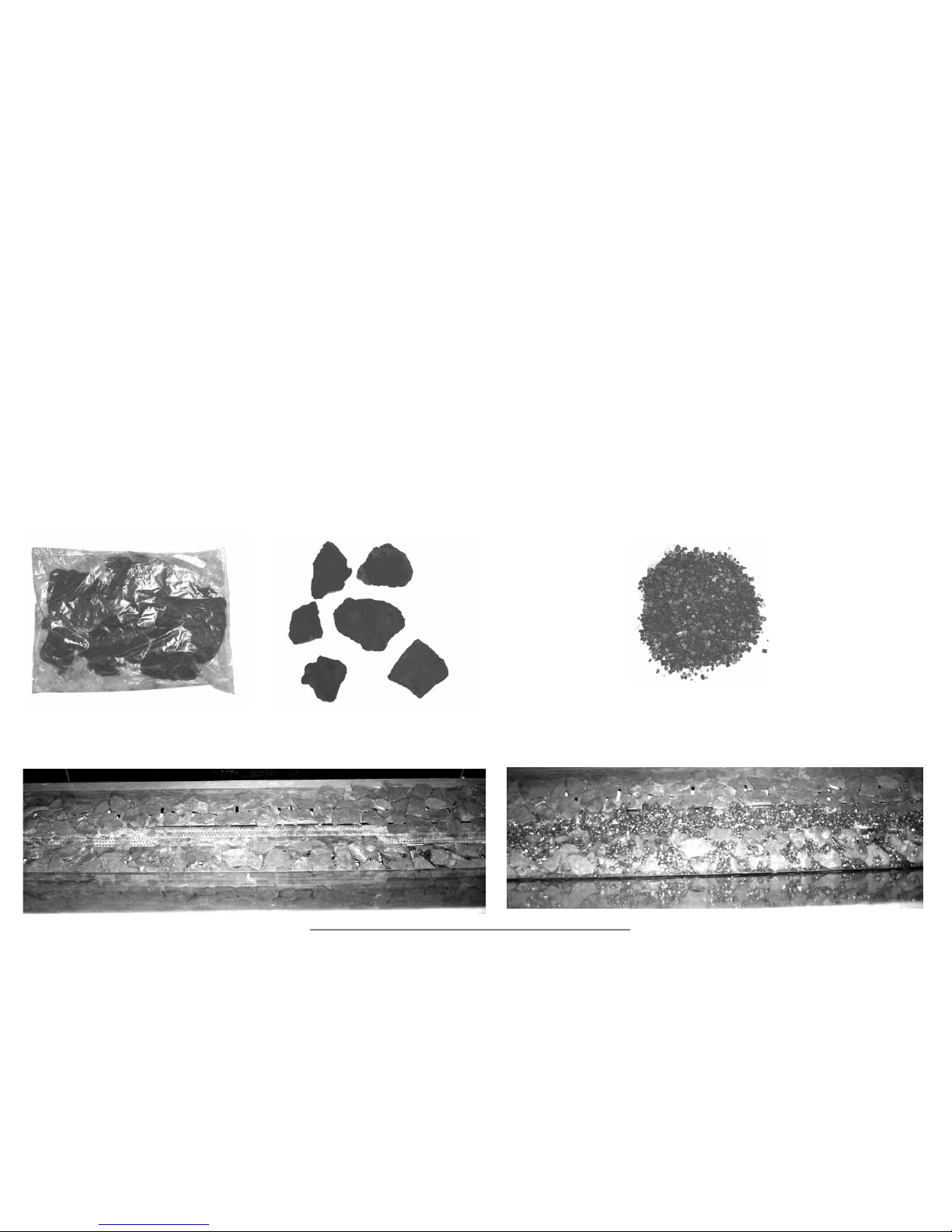

8. POSITIONING THE LOGS, DIAMOND, SAPPHIRE AND WHITE PEBBLES 18
850 V / 850 DV............................................................................. 19-21
550 V / 550 DV............................................................................. 22-23
9. FIRST-TIME USE....................................................................... 24
10. SAFETY, ADVICE AND MAINTENANCE ........................ 24
11. STARTPILOT............................................................................ 25
12. USIGN THE MANUAL CONTROL .................................... 25
13. SPECIFICATION SHEET ....................................................... 26-27
DRAWINGS.............................................................................. 28-31
EXAMPLES WITH OR WIHOUT FINISHING FRAME.. 32-33
FINISHING FRAME ............................................................... 34
14. SPARE PARTS .......................................................................... 35-36
15.GUARANTEE ............................................................................ 37
16. IDENTIFICATION BOARDS................................................ 38-39
17. CE CERTIFICATION ............................................................. 39-40
APPENDIX:

INSTRUCTION FOR INSTALLATION AND USE - LUNA 550V - 550DV - 850V - 850DV GOLD - GAS M-DESIGN
4

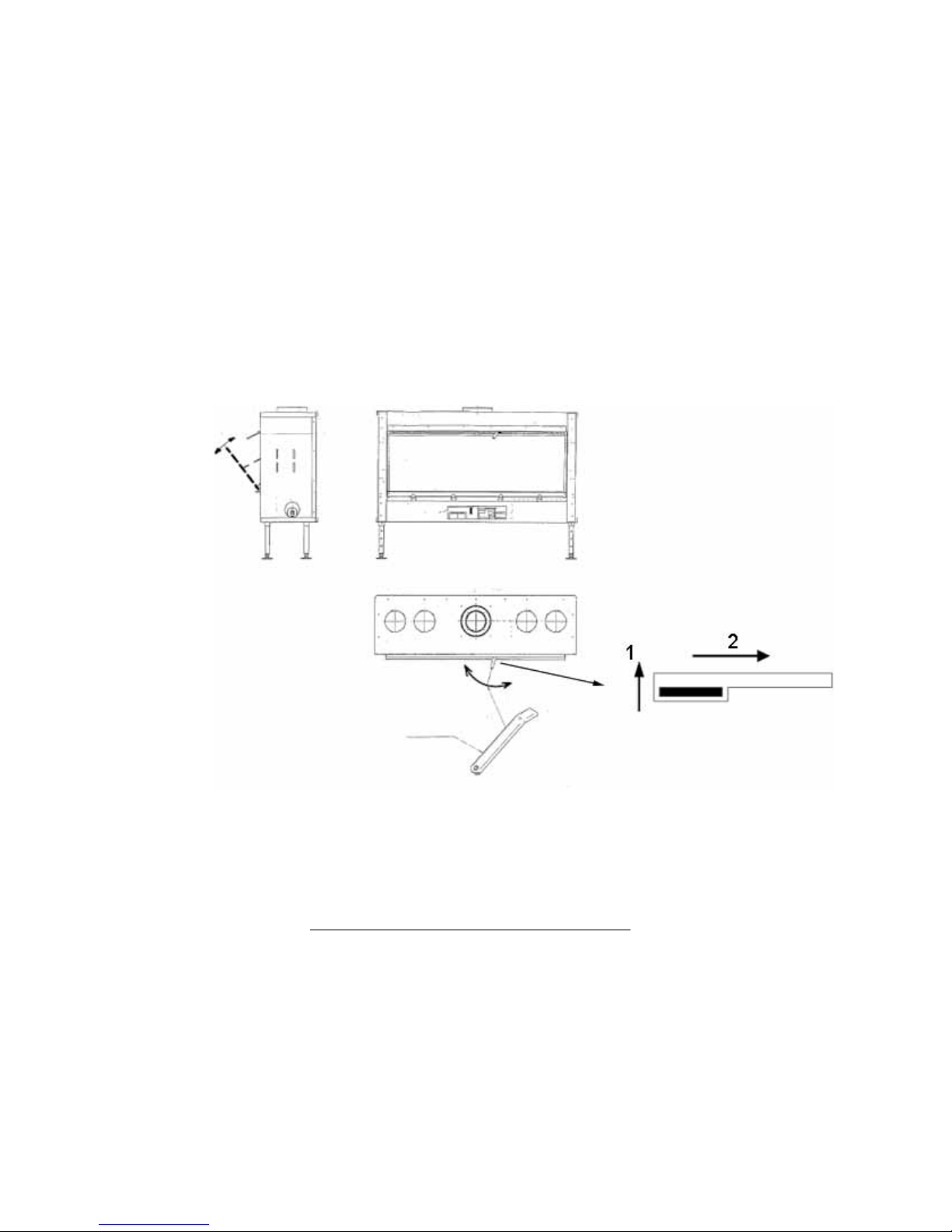

OPEN
CLOSING
KEY
IF SOME DUST OR WASTE IS SEEN ON THE WINDOW
( INSIDE AND OUTSIDE ), CLEAN THIS BEFORE THE
FIRST USE OF THE FIREPLACE.
OPEN AND CLOSE THE DOOR

INSTRUCTION FOR INSTALLATION AND USE - LUNA 550V - 550DV - 850V - 850DV GOLD - GAS M-DESIGN
5
1. GENERAL REMARKS
This is a moulding of the closed combustion system, designed for the atmosphere and comfort of your living-room. It constitutes an ecient
source of heat and gives the impression of a real chimney re.
The gas with air-vent furnaces are based on the principle of natural extraction from the furnace, which eliminates ue gas outside and brings in
air (oxygen) from outside the house which is necessary for combustion of the gas. It uses to this eect two concentric pipes. The internal pipe en-
sures the elimination of burned gases and the external pipe brings in combustion air. The advantage of this principle is that the equipment works
independently of the atmosphere which predominates in the house.
2. CONNECTION
This appliance must be connected by an approved installer in accordance with the most recent regulations in force. On the basis of your order
specications, this appliance is designed for natural or propane gas.
Read the instructions before installing and using this appliance. Before installing the furnace, please check the local regulations about this type of
furnace (identication of the type of gas, etc.) and check that the furnace is adapted to your means of installation.
CAUTION: The furnace must be connected to the type of gas mentioned on the appliance. Never connect a propane burner to natural gas or vice
versa!
It is imperative that the installer sees to the following:
• The appliance must be subject to a water tightness test of the gas and elimination of ue gases.
• The concentric pipe, if already available, must be working correctly.
• The running of the control valve, lighting of the pilot light, the main burner and the thermocouple must all be checked.
This appliance has been programmed and factory sealed. The sealed parts cannot be modied. The appliance may therefore also be installed in
watertight accommodation and accommodation equipped with mechanical ventilation. It constitutes ambient heating even in accommodation
equipped with a closed ventilation system.

INSTRUCTION FOR INSTALLATION AND USE - LUNA 550V - 550DV - 850V - 850DV GOLD - GAS M-DESIGN
6
3. INSTALLING THE FIREPLACE
After having checked the appliance, you ready to install your appliance.
This is done as follows

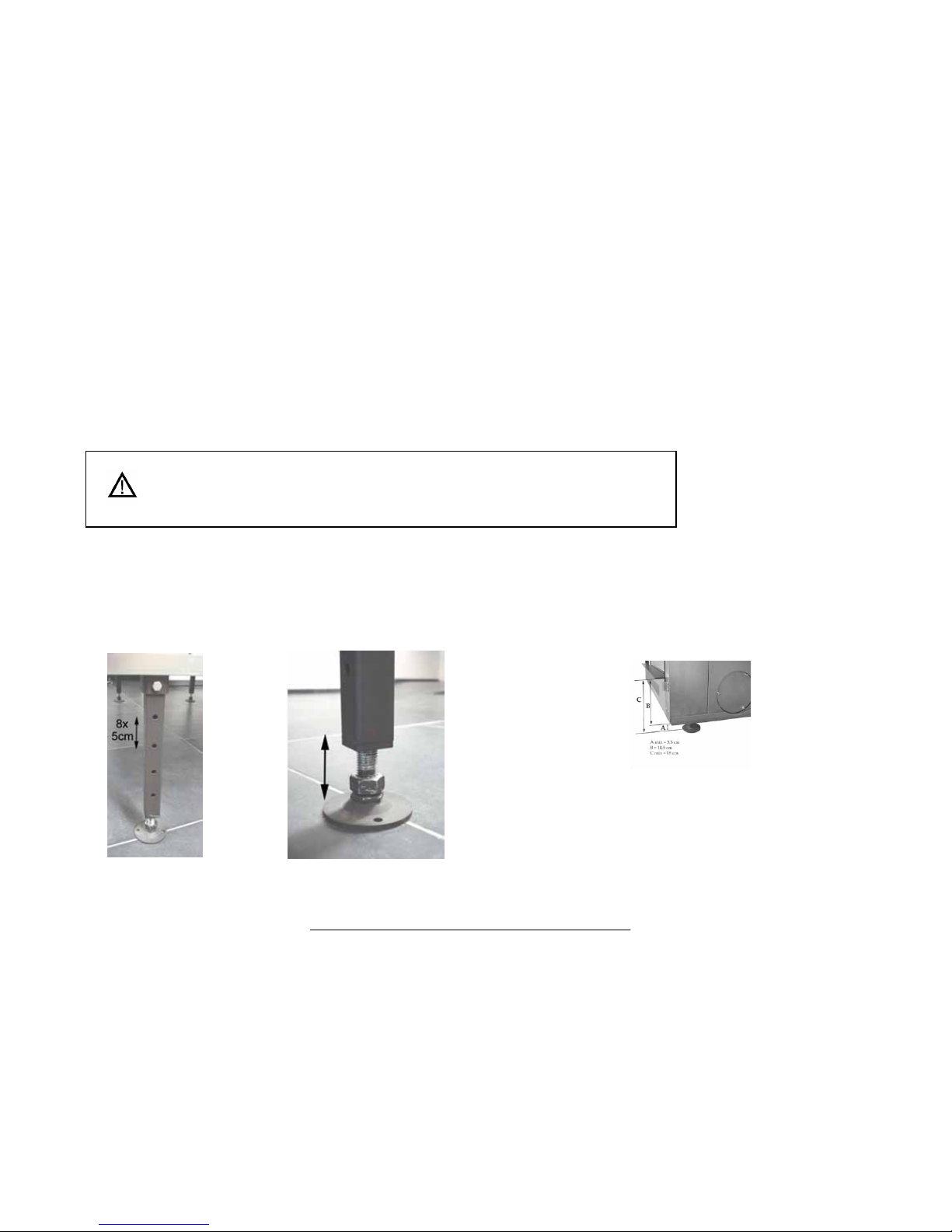

3.1.1 POSITIONING THE FIREPLACE
Place the replace on a stable surface using the adjustable feet. Adjust the height of the replace
by turning the bolt ( pic 1 )
pic. 1 pic. 2
A min = 3,5 cm
B = 14,5 cm
C min = 18 cm
The stove may not be placed direct ont the oor to allow natural convection.
The appertures for the air supply ( IN ) is situated underneath the appliances.
Regulating the height of the appliance :
This can be made in two ways.
A regulation by 8 times 5 cm ( pic. 1 ) and a ne regulation by screw ( pic.2 ).
The minimal height as from ground to the 4th side frame is 3,5 cm ( A min ).
The minimal height “C min” will be 18 cm, measured as from the ground to 4th side frame ( pic.3 ).
The maximal height as from the ground to the 4th side frame is 45 cm.
pic. 3

INSTRUCTION FOR INSTALLATION AND USE - LUNA 550V - 550DV - 850V - 850DV GOLD - GAS M-DESIGN
7
4. INSTALLING THE CHIMNEY
Install the concentric ue duct as indicated by ONTOP - METALOTERM. The only authorised pipes are ONTOP Metaloterm™.
ONTOP-METALOTERM tested our replace with their conduct and we only garantee a good
working of the replace with those.
Between the external wall of the pipe and the wall or the ceiling, you should anticipate for an interstice of at least 50mm and pro-
tection that is suitable against temperatures of around 130°C.
The passage of the front panel cowl in the external wall must be lled in using silicone mastic.
3.1.3 ELECTRICAL CONNECTION
These appliances are equiped with a radiographic remote control, making an earthened 220V
socket necessary. You should bear in mind that the appliance must be connectes from all
electrical supply for thurpose of service.
ITS OBLIGATORY TO CONNECT AN EARTH CURRENT.
3.1.2 GAS CONNECTION
The appliances are standard delivered with a 1/2” gas solded connection ( g. 1 ). It is always
located at the left-hand side of the appliance. Make sure nothing remains in the gas lines,
since this may easely lead to blockage. An approved gas valve should always be connected to
the appliance, wich must be accesible at all time .
For this you can use a acces door ( pic. 1 next page ). This access door is also used to have
access at the potentiometer (manual controller) and electrical supply.
valve
pic.1
min. Ø18mm
(3/4”)
Ø12mm
g.1

INSTRUCTION FOR INSTALLATION AND USE - LUNA 550V - 550DV - 850V - 850DV GOLD - GAS M-DESIGN
8
FIG. 1

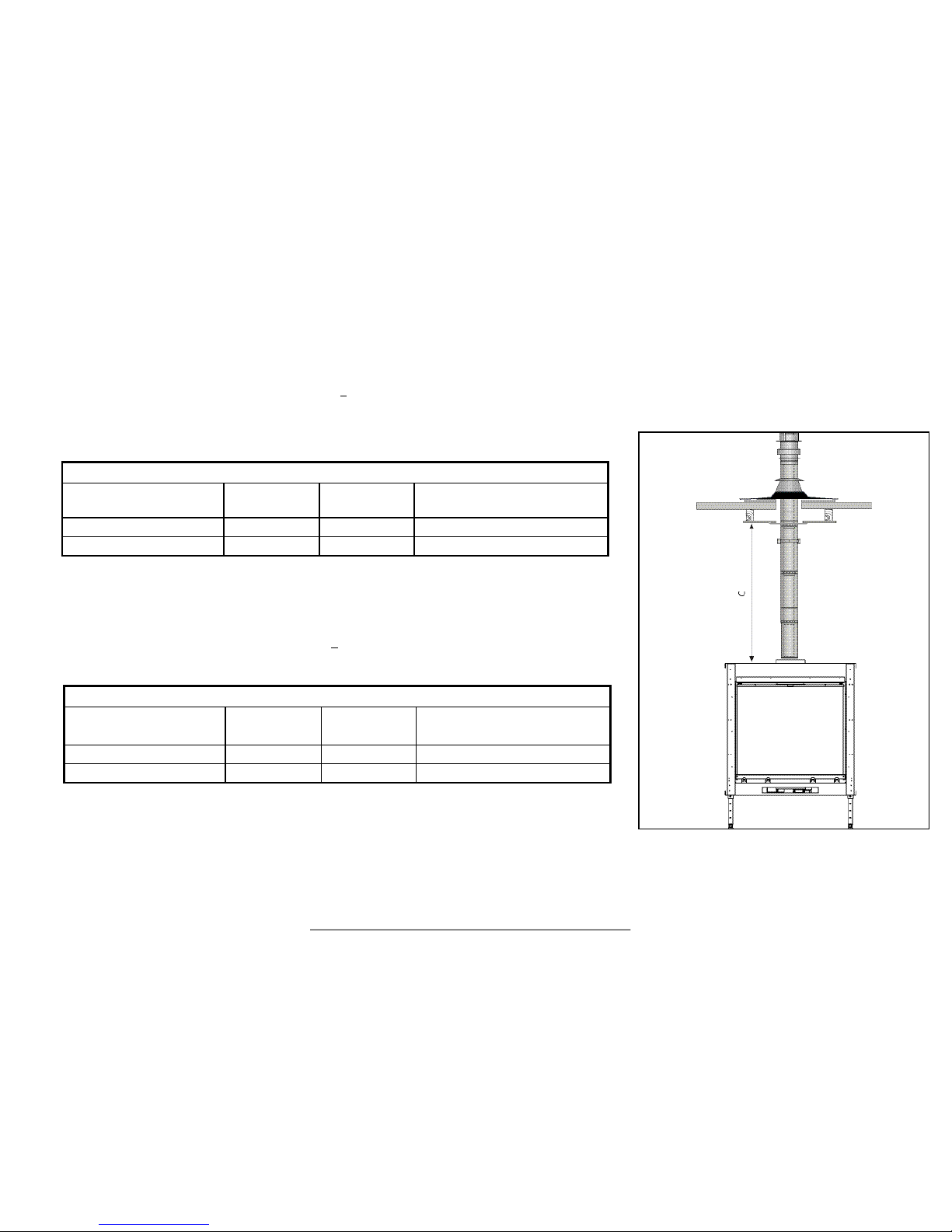

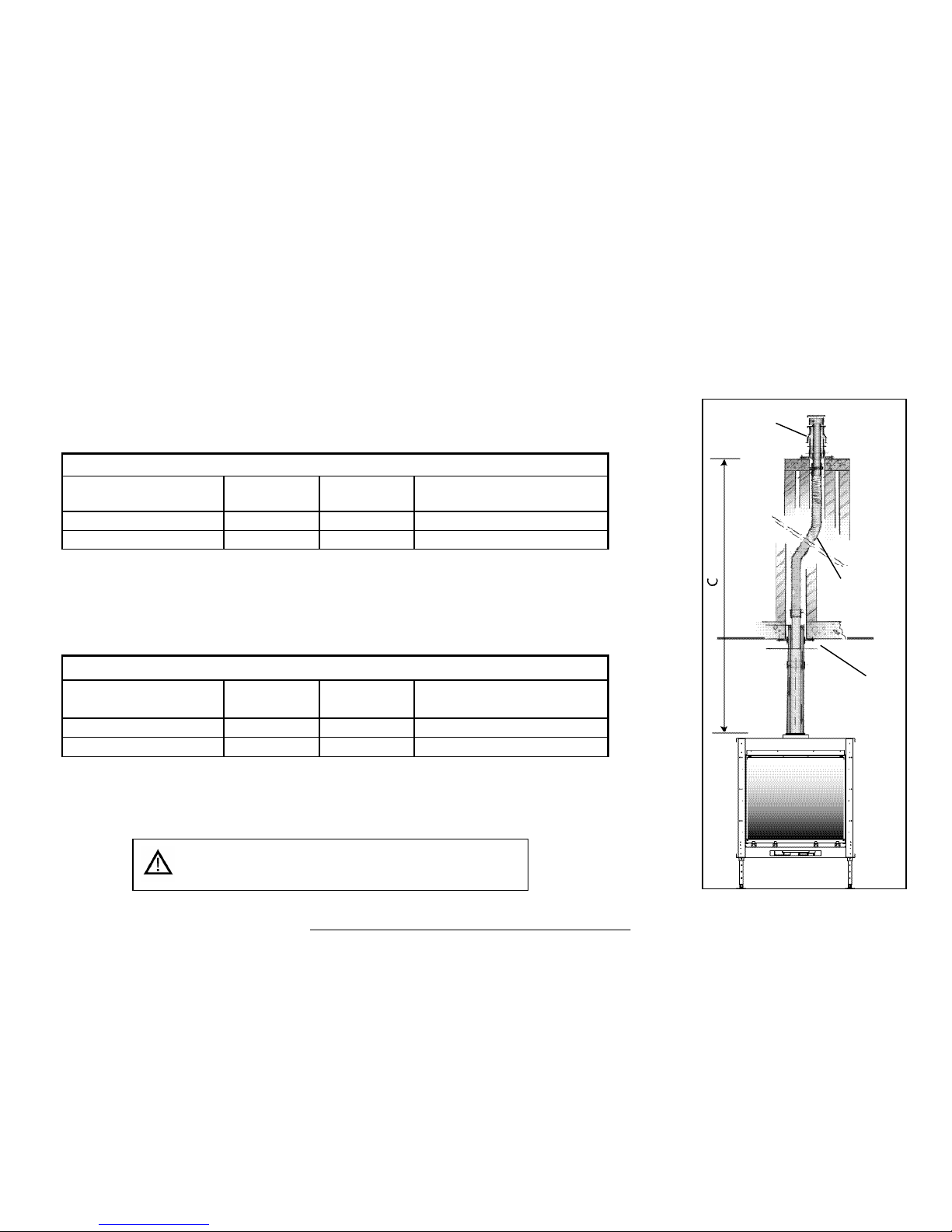

Fig. 1 ROOF EXIT ( C31 )
TAB. 2 This is recommanded with a roof exit < 3m
TAB. 1 This is recommanded with a roof exit > 3m
Ø 150/100
Appliance C (min) C (max) Restrictiion HR+ (as from 4m)
LUNA 850 V / 550 V 3 m 18m Ø 60
LUNA 850 DV / 550 DV 3 m 18m Ø 60
Ø 200/130
Appliance C (min) C (max) Restriction HR+ (as from 3m)
LUNA 850 V / 550 V 2 m 10m Ø 60
LUNA 850 DV / 550 DV 2 m 9m Ø 60

INSTRUCTION FOR INSTALLATION AND USE - LUNA 550V - 550DV - 850V - 850DV GOLD - GAS M-DESIGN
9
FIG. 2
Fig. 2 ROOF EXIT VIA EXISTING CHIMNEY (C31S)
TAB. 1
TAB. 2
It is obligatory to use the sanitation set USSAN with placing.
This USSAN piece must be saeled at the roof.
*
*
ou/of
USDHC10
USDHC13
ex 100 ou
130mm
 150(min) Ø 100
Aplliance C (min) C (max) Restriction HR+ (as from 4m)
LUNA 850 V / 550 V 3 m 18m Ø 60
LUNA 850 DV / 550 DV 3 m 17m Ø 60
 200(min) Ø 130
Appliance C (min) C (max) Restriction HR+ (as from 3m)
LUNA 850 V / 550 V 2 m 10m Ø 60
LUNA 850 DV / 550 DV 2 m 9m Ø 60

INSTRUCTION FOR INSTALLATION AND USE - LUNA 550V - 550DV - 850V - 850DV GOLD - GAS M-DESIGN
10
Ø 150/100 with reduction USVK13 on the aplliance
Appliance A (min) B (min) B (max) Restriction HR+
850 V / 550 V 1,25m wall exit A+0,5m Ø 75
850 DV / 550 DV 1,25 wall exit A Ø 75
(A) Ø 200/130
in combination with (B) Ø 150/100 after rst curve
Appliance A (min) B (min) B (max) Restriction HR+
850 V / 550 V 1,25m wall exit A+ ”USVK13” +4m ----------
850 DV / 550 DV 1,25m wall exit A+ ”USVK13” +3m ----------
FIG. 3
FIG. 4
with
USVK13
REDUCTION 200/130 →150/100
Fig. 3 WALL EXIT (C11)
Fig. 4 WALL EXIT (C11)

INSTRUCTION FOR INSTALLATION AND USE - LUNA 550V - 550DV - 850V - 850DV GOLD - GAS M-DESIGN
11
Ø 200/130
Appliance A (min) B (min) Restriction HR+ B (max)
850 V / 550 V 1 wall exit Ø 75 A+8m
850 DV / 550 DV 11 wall exit Ø 75 A+7m
3°
IMPORTANT : BE CAREFULL EVERY HORIZONTAL PART DOES NOT HAVE AN NEGATIVE INCLINATION (pic.5) IN DIRECTION
OF OUTLET. IT IS EVEN BETTER, WHEN POSSIBLE, TO HAVE A LITTLE INCLINATION OF 2 OR 3 DEGREES ASCENDING.
ONLY THE OUTLET MUST BE INSTALLED LIKE PIC. 6 ( TO AVOID RAIN DROPS IN TUBE )
Pic.6Pic. 5

INSTRUCTION FOR INSTALLATION AND USE - LUNA 550V - 550DV - 850V - 850DV GOLD - GAS M-DESIGN
12

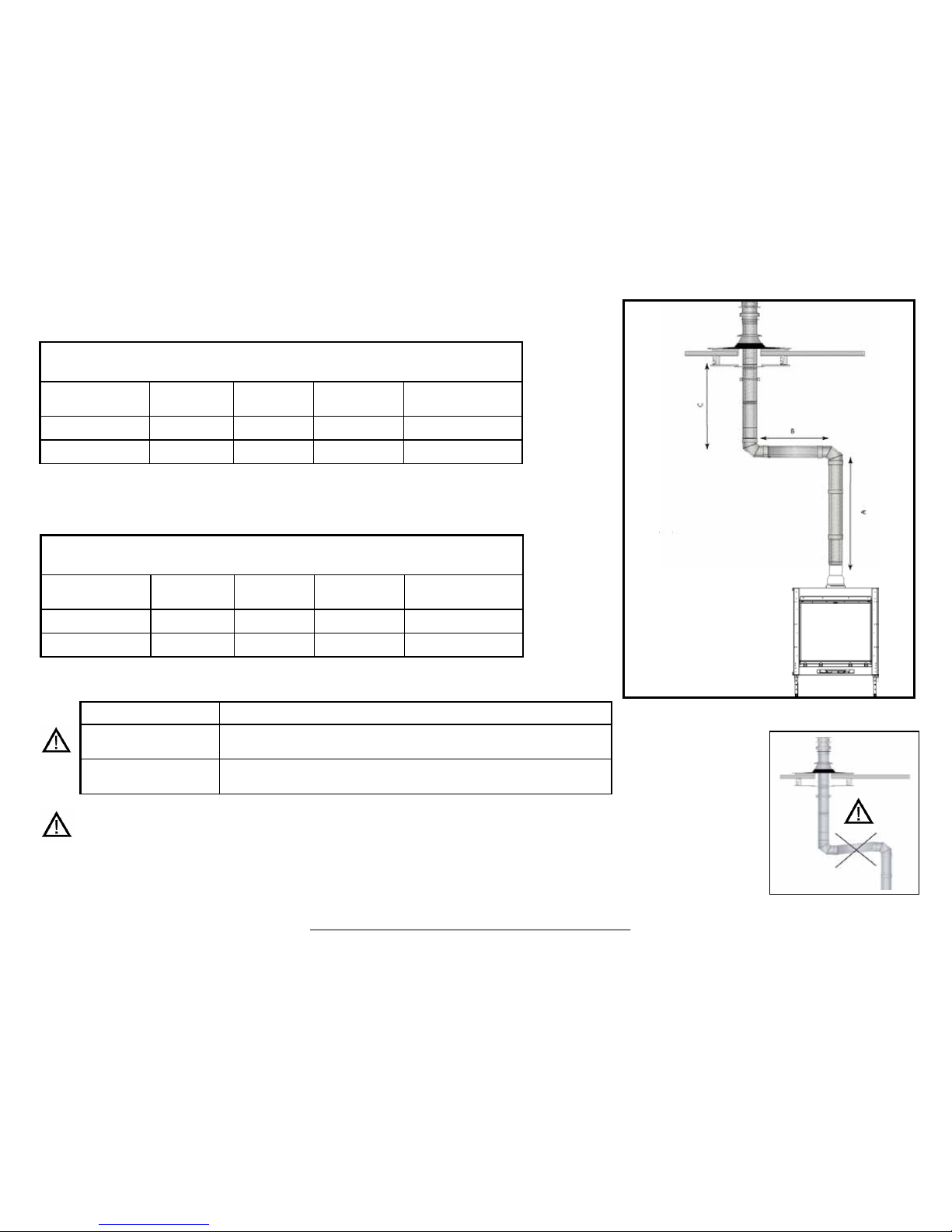

Fig. 5 ROOF EXIT with 90° bends
CAUTION : if the vertical lenght is over 3 meter longer than the horizontal lenght, you will
need to place a reduction ring of Ø 60.
Appliance Ø 150/100 and Ø 200/130
850 V / 850 DV
550 V / 550 DV
for each 90° bend substract 1 m horizontaly or add 1 m verticaly.
850 V / 850 DV
550 V / 550 DV
for each 45° / 30° / 15° bend substract 0,5 m horizontaly or add 0,5 m
verticaly.
FIG. 5
Ø 150/100 with reduction USVK13 on the appliance
Appliance A (min) B (max) C (min) (A+B+C ) max
850 V / 550 V 1,25 m A+C B-A 16m
850 DV / 850 DV 1,25 m A+C+0,5 B-A-0,5 15m
Ø 200 / 130
Appliance A (min) B (max) C (min) (A+B+C) max
850 V / 550 V 1,25 m (A+C) + 7m B-A -9m 20m
850 DV / 550 DV 1,25 m (A+C) + 6m B-A-8m 19m
Fig. 5 ROOF EXIT with 90° bends

INSTRUCTION FOR INSTALLATION AND USE - LUNA 550V - 550DV - 850V - 850DV GOLD - GAS M-DESIGN
13
pic. 1
pic. 2 pic. 3
REFERENTIAL DISTANCES IN REGARDS TO FINISHING THE MANTLEPIECE
A very essential point when seing up the Luna Gold is that the distance has to be respected inbetween replace and the
nishing material for the mantlepiece such as marble, gipsum,...
For this, a small bended metal sheet that is provided ont the replace ( pic.1 ) , is to be used as the minimal reference for
the distance. The nishing can only ga oas far as this meteal sheet ( pic.2 ). Don’t remove this ( pic.3 ) ! This allows you to
take out the 4th side frame and to let the airow in the mantelpiece for natural convection.
5. INSULATION AND FINISHING
Once installation is complete, the appliance can be ed. Before doing so, check the tightness of the gas pipe one more time. Light the
appliance and check that it is working: check the tightness of the gas pipe and the smoke pipe. Once you have checked everything,
you can perform the nal insulating and nishing operations.
The built-in part of the furnace tends to be very warm. Please check that the furnace is not too narrowly ed and that there is ade-
quate space for the elimination of hot air. For insulation of the furnace, we advise you to use M Design insulating plates. You are
advised against using any other insulation product. Inammable materials as well may not be used for the nishing.
The masonry must be raised around the furnace. Because of the expansion of the furnace during combustion, an interstice of at
least 5 mm must be provided on each side of the appliance. The masonry must not lean against the furnace.
THE APPLIANCE MUST BE SET FREE .
Please pay aention to leave approx. 2 mm inbetween the nishing frame and maconry ( see p.17 , mounting a 3-sided frame )
min. 5 mm
Please , follow this instruction. The appliance can overheat if you not apply those instructions. Errorcode F02 will appear !

INSTRUCTION FOR INSTALLATION AND USE - LUNA 550V - 550DV - 850V - 850DV GOLD - GAS M-DESIGN
14

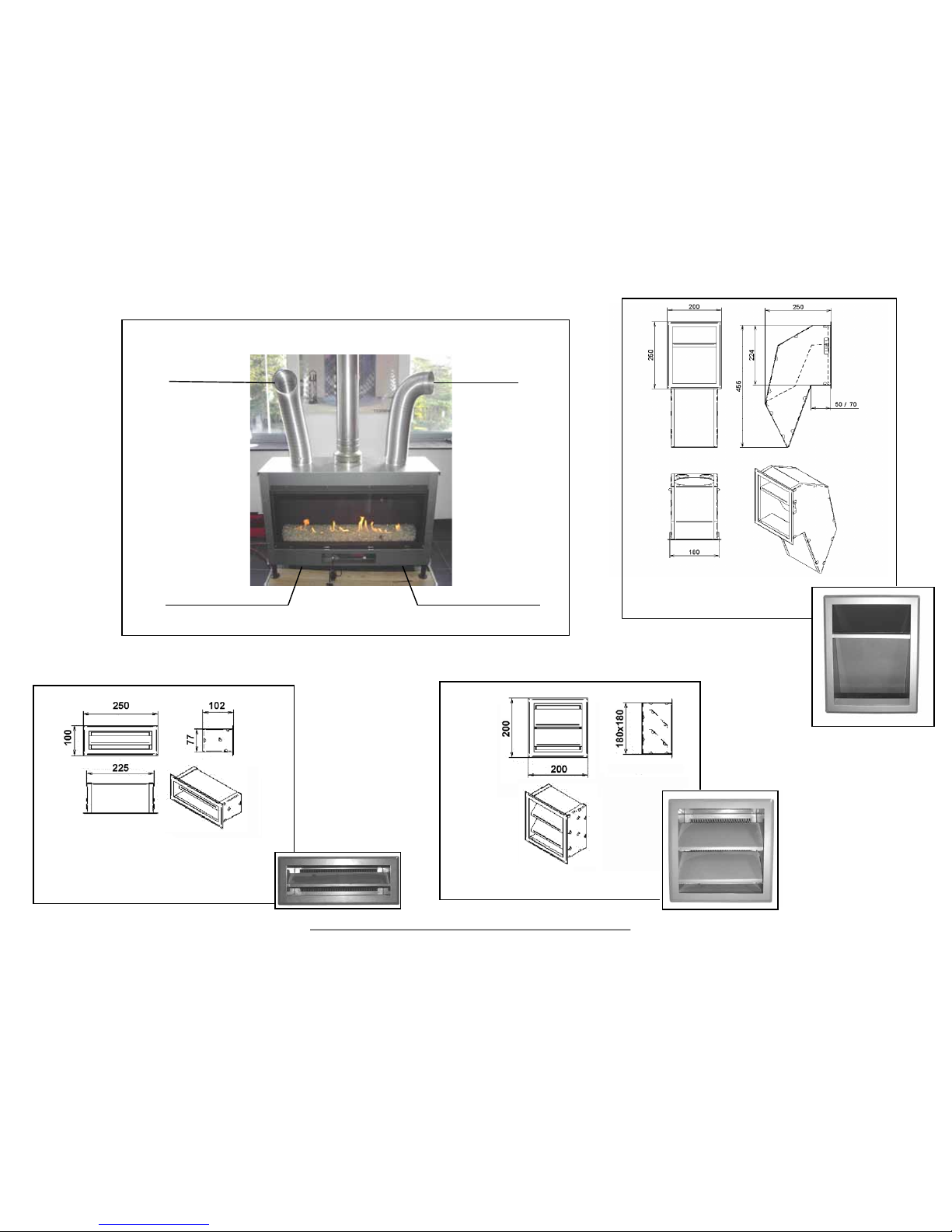

The enclosure of the furnace must be provided with ventilation grills or openings allowing for the elimination of heat by con-
vection. It is possible to have a convection kit ed with the furnace. This system directs the heat inside the room by means of
exible tubes ( dia. 150 mm).
It is obligatory to open at least 2 hot air vents ( for the LUNA 1600 you must open 4) at the top of the appliance.
For the purposes of the installation of these ducts it is best to go vertically upwards rst for at least 1m and then to change di-
rection, making a rather wide bend and avoid using a ue terminal grid with a small clearance because the speed loss that this
causes reduces the eciency of the hot air vents. Place all the ings that you use at the same lengths and angles if possible,
otherwise it is possible that some grids give o more heat than others and, seeing that a hot air pipe functions in a manner
similar to a chimney, the one that is hot rst has the most draught and therefore becomes hot even more quickly.
Note: a circulation of hot air requires that no under-pressure be created in the room. A grid that is near the oor (pic 2) sees to
it that cold air can be drawn in.

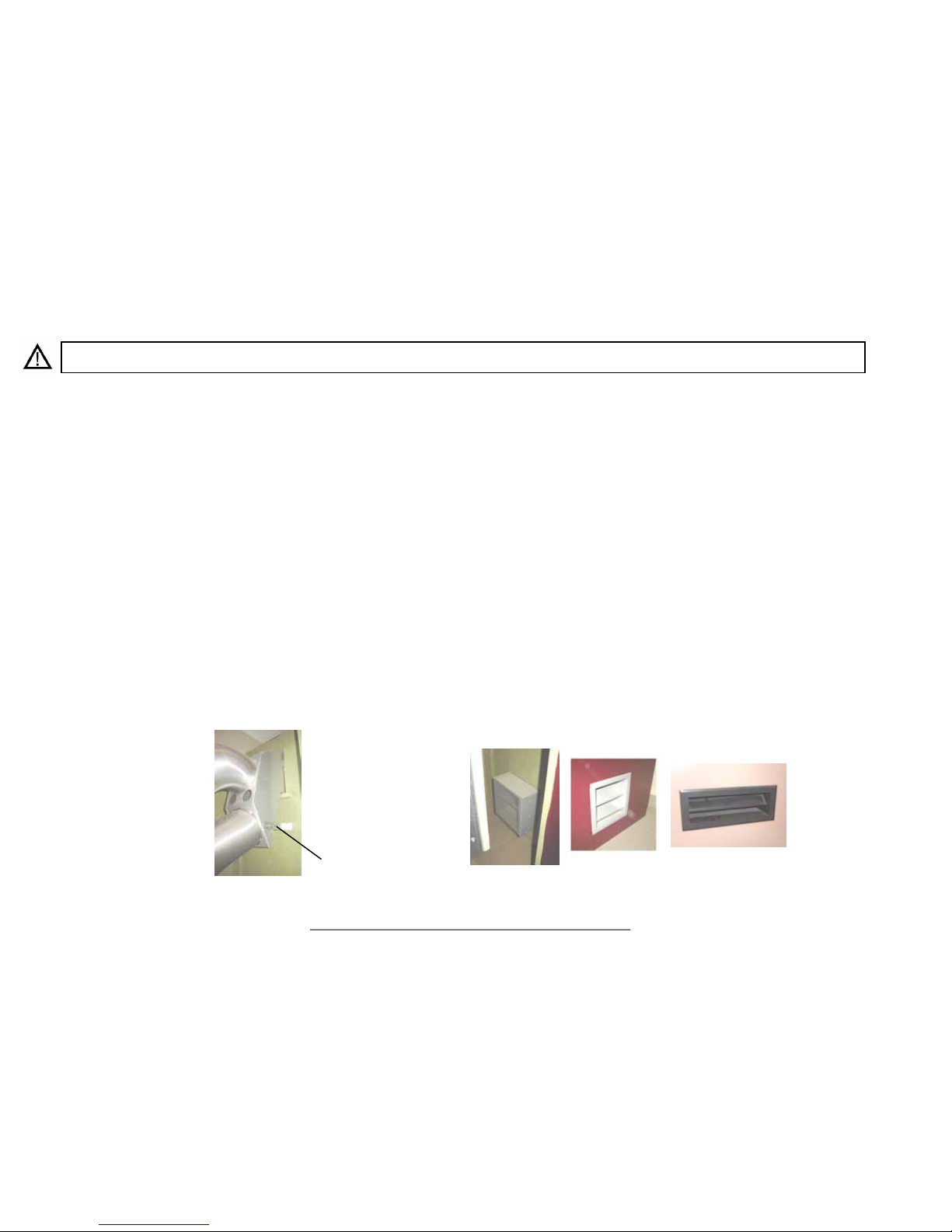

M-design has developed its ideal hot air grids which have many advantages (pic. 1 & 2) and for the elimination of hot air and
the entry of warm air we advise you to use those Design grills made by M-Design.
The appertures for the air supply “IN” (pic.2) is situated underneath the appliances. The stove may not be placed direct ont
the oor to allow natural convection.
To simplify the mounting of the grids you can use the corner prole (a) wich is furnished with the grid. This prole is can be
mounted on the side of the grid (two lile wholes en screws are provided).
6. CONVECTION CURRENT
Please , follow this instruction. The appliance can overheat if you not apply those instructions. Errorcode F02 will appear !
OUT
pic. 1 (a) INLET
pic. 2

INSTRUCTION FOR INSTALLATION AND USE - LUNA 550V - 550DV - 850V - 850DV GOLD - GAS M-DESIGN
15
OUT
IN
OUT
IN
OR
INLET INLET
Design Grill ( OUTLET )
2 dm² 4 dm²

INSTRUCTION FOR INSTALLATION AND USE - LUNA 550V - 550DV - 850V - 850DV GOLD - GAS M-DESIGN
16
YOU HAVE TO CONNECT AT LEAST TWO APPERTURES SITUATED AT THE TOP OF THE APPLIANCE. URES.
THE STOVE MAY NOT BE PLACED DIRECT ON THE STOVE MAY NOT BE PLACED DIRECT ON THE FLOOR,
WTHOUT THE FEETS. THIS TO ALLOW NATURAL CONVECTION. THE APPERTURES FOR THE AIR SUPPLY
ARE SITUATED UNDERNEATH THE APLLIANCE.
EVERY OPENING YOU MAKE MUST BE CONNECTED WITH A FLEXIBLE TUBE dia.150MM (see pic. below).
THIS WILL AVOID THE HEATING OF THE ELECTRONIC PART OF THEAPPLIANCE.
IN OTHER CASE YOU WILL HAVE ERRORCODE F02.
Good Good

INSTRUCTION FOR INSTALLATION AND USE - LUNA 550V - 550DV - 850V - 850DV GOLD - GAS M-DESIGN
17
7. MOUNTING A 3-SIDED FRAME
First remove the prole that is delivered with the replace ( pic. 1 )
The 3 sided frame consist of 3 parts and are assembled to the Luna ( pic. 2 )
the 3 sides frame and his 3 parts
Fixing to frame with the included screws ( pic.3 )
PLEASE PAY ATTENTION TO LEAVE APPROX 2 MM INBET-
WEEN THE FRAME AND THE FINISHING MATERIAL
( HEAT = EXPANSION)
pic.1 pic.2
pic.3

INSTRUCTION FOR INSTALLATION AND USE - LUNA 550V - 550DV - 850V - 850DV GOLD - GAS M-DESIGN
18
8. PUTTING IN PLACE THE LOGS, DIAMOND, SAPPHIRE AND WHITE STONES
• Please check that the pilot light is switched o and that the furnace has cooled down.
• Move the window to the front by pulling it. The window tips open at 45°.
• Arrange the materials supplied. In accordance with your order you will have either a set of logs, diamond, sapphire or white pebbles. There
is an adequate supply of materials . Our appliance is approved with these materials, so please do not use other products. Other decorative products
are prohibited in our appliances. Please do not change the delivered quantities.
ARRANGING THE SET OF LOGS
Caution: do not put anything on the pilot light. To arrange the logs respect the order as follows.
Put the big immitation coal pieces around the burner. Put the lile imitation coal pieces on the burner en here and there
around the big coal pieces.

INSTRUCTION FOR INSTALLATION AND USE - LUNA 550V - 550DV - 850V - 850DV GOLD - GAS M-DESIGN
19
123
4 5 67
8910
11 12 13 14
1
2
11
10
12 314
5
8
6
7
9
14
13
LUNA 850V / 850DVGAS

INSTRUCTION FOR INSTALLATION AND USE - LUNA 550V - 550DV - 850V - 850DV GOLD - GAS M-DESIGN
20
LUNA 850V 850DV GAS
