M Design Venus True Vision Series User manual

TRUE
ISION
V-01-2020
VENUS
INSTRUCTIONS FOR INSTALLATION AND USE
Distributor/Manufacturer
M-Design Benelux BVBA
B-8210 Zedelgem - Belgium

VERY IMPORTANT
INSTALLATION INSTRUCTIONS

FIREPLACES
THE SUPPLIER TAKES NO RESPONSBILITY FOR ANY


INSTALLATION









3
Instrucons for installaon and use - Venus True Vision Gas English
SUMMARY
1. GENERAL REMARKS....................................................................... 5
2. CONNECTION................................................................................. 5
3. INSTALLING THE FIREPLACE........................................................... 6
3.1. Posioning the replace ......................................................... 6
3.2. Nearbox (Gasunit)................................................................... 7
3.3 The Gas connecon ................................................................. 8
3.4 Electrical connecon................................................................ 8
3.5 Modicaon natural gaz to propane ....................................... 8
4. INSTALLING THE CHIMNEY ............................................................ 9
4.1 Roof Exit................................................................................... 9
4.2 Roof Exit via exisng chimney.................................................. 10
4.3 Roof Exit with bend.................................................................. 11
4.4 Wall Exit ................................................................................... 12
5. FLAME ADJUSTMENT SETTINGS .................................................... 13
6. INSULATION AND FINISHING ......................................................... 13
7. CONVECTION CURRENT................................................................. 14
7.1 Convecon grills....................................................................... 15
8. POSITIONING THE LOGS ................................................................ 16
8.1 Set H1....................................................................................... 16-17
8.2 Set H2....................................................................................... 18-19
9. FIRST-TIME USE.............................................................................. 20
10. SAFETY, ADVICE AND MAINTENANCE.......................................... 20
11.GUARANTEE.................................................................................. 21
12. REMOTE CONTROL ...................................................................... 22-24
13. DRAWINGS .................................................................................. 25
15. DESIGN GRILLS............................................................................. 26

4
Instrucons for installaon and use - Venus True Vision Gas English

For inial setup, you need to clean the window and clear the replace of any dust and gre-
ase that is le behind. This is also the only maintenance acon that may be performed on
the device by the user.
Open the window
Pull the lever towards you to open the window.

5
Instrucons for installaon and use - Venus True Vision Gas English

This is an appliance using the closed combuson system, designed for the atmosphere and
comfort of your living-room. It constutes an ecient source of heat and gives the impres-
sion of a real re.
The balanced ue appliances are based on the principle of natural extracon from the -
rebox, which eliminates ue gas outside and brings in air (oxygen) from outside the house
which is necessary for combuson of the gas. It uses to this eect two concentric pipes.
The internal pipe ensures the eliminaon of burned gases and the external pipe brings in
combuson air. The advantage of this principle is that the equipment works independently
of the atmosphere which predominates in the house.

This appliance must be connected by an approved installer in accordance with the most
recent
regulaons in force. On the basis of your order specicaons, this appliance is designed for
natural or propane gas.
Read the instrucons before installing and using this appliance. Before installing the appli-
ance, please check the local regulaons about this type of appliance (idencaon of the
type of gas, etc.) and check that the furnace is adapted to your means of installaont.
It is imperave that the installer sees to the following:
• The appliance must be subject to an air ghtness test of the gas and eliminaon of ue
gases.
• The concentric pipe, if already available, must be working correctly.
• The running of the control valve, lighng of the pilot light, the main burner and the
thermocouple must all be checked. This appliance has been programmed and factory
sealed. The sealed parts cannot be modied.
• The appliance may therefore also be installed in airght accommodaon and accom-
modaon equipped with mechanical venlaon. It constutes ambient heang even in
accommodaon equipped with a closed venlaon system.



1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
E E
F F
Min. 70mm
Max. 370mm
50
6
Instrucons for installaon and use - Venus True Vision Gas English

Aer having checked the appliance, you are ready to install your appliance. This is
done as follows

Place the appliance on a stable surface using the adjustable feet. Adjust the height of the
appliance turning the bolt.

Adjusng the height of the appliance Min 70mm to 370mm (oor to under the appliance).
If you want the replace to be installed with a dierent height, unscrew the nut to remove the
feet. Grind the desired height on foot. The distance between two holes is 50mm.
The appliance must not be placed directly on the oor as you need to allow natural
convecon. The appertures for the air supply (IN) is situated underneath the
appliances. Minimum height to oor = 70mm

B
A
7
Instrucons for installaon and use - Venus True Vision Gas English
For safety reasons, The gasbaery or “NEARBOX” is xed with screws on the pallet.
IT IS MANDATORY TO UNSCREW THE BATTERY FROM THE REAR PRIOR TO INSTALLATION .

Dimensions gasunit : 455 x 188 x Height 64mm
reciever
DFGT-03MC01 V09
Transmitter burner
Gas valva
VK4105ME5004
gas connection1/2”
Electro magnet ventil 1 or 2 burners
to main burner
to second burner or side burner

230V
8
Instrucons for installaon and use - Venus True Vision Gas English
NEARBOX
Connection Gas 1/2” (provide tap)
Opening provided in wall
for maintenance
Cable to ionistation pin
GAS SUPPLY TO MAIN BURNER ( RED)
flexible for GAS
True Vision is provided with
a direct ignition , no starting
pilot

Valve 1/2”
Aer the “NEARBOX” has removed from the of the back of the re, you can place it loosely
on the ground in proximity to the opening provided in the wall of mantelpiece. The device
is always connected with an approved gas tap 1/2, and preferably with a yellow gasexible
that is reachable at all mes. Provide the mantelpiece with a door so that the valve and
the electrical connecon is easily accessible.
GAS SUPPLY TO SIDE BURNER OR SECOND
BURNER (YELLOW)
Flexibel
Gas provider

These appliances are equipped with a radiographic remote control, making an earthened
220V socket necessary. You should bear in mind that the appliance must be connected to all
electrical supplies for the purposes of service. It’s obligatory to connect an earth current.

Modicaon of the replace can only be done by the manufacturer or an approved
installer. A new signal plate is provided.

C
C
USDVC13+USAB
USSR
USLS
USCP
USKB
USMB
US 100/50/25
USR
USDP
9
Instrucons for installaon and use - Venus True Vision Gas English

Install the concentric ue duct as indicated by ONTOP - METALOTERM. The only authorised
pipes are ONTOP Metaloterm™. ONTOP-METALOTERM tested our appliances with their
conduct and we only guarantee a good working of the appliance with those. Between the
external wall of the pipe and the wall or the ceiling, you should allow for a clearance of
at least 50mm and protecon that is suitable against temperatures of around 130°C. The
passage of the front panel cowl in the external wall must be lled in using silicone masc.

Ø 150/100
Appliance C (min) C (max) Restricon (as from 3m)
Venus True Vision 730 3 m 17m Ø 60
Venus True Vision 850 3 m 17m Ø 60
Ø 200/130
Appliance C (min) C (max) Restricon (as from 3m)
Venus True Vision 730 2 m 9m Ø 60
Venus True Vision 850 2 m 9m Ø 60

C
C
USDVC13
USKB
US 100/50/25
Ø200/Ø130
USSAN 13 USDVC13
10
Instrucons for installaon and use - Venus True Vision Gas English

Ø200 / Ø 130
Appliance C (min) C (max) Restricon (as from 4m)
Venus True Vision 730 2 m 9m Ø 60
Venus True Vision 850 2 m 9m Ø 60
Ø150 / Ø 100
Appliance C (min) C (max) Restricon (as from 4m)
Venus True Vision 730 3 m 17m Ø 60
Venus True Vision 850 3 m 17m Ø 60
: required when connecng to an exisng chemney.
This one must be hermecally sealed to the ceiling and the USSAN13 on the top of the
chimney must also be hermecally sealed at the exit.
CAUTION: It is imperave to sweep the chimney and clean it from dust and soot. The replace
funcons as an air inlet and if the replace is not clean, it will cause unpleasant odors.
seal hermecally on the
ceiling

A
B
C
A
B
C
A
B
C
A
B
C
USB90 Ø200/Ø130
USMB
USDVC13+USAB
USSR
USDP
US 100/50/25
Ø200/Ø130
USKB
USLS
11
Instrucons for installaon and use - Venus True Vision Gas English
Ø 200/130
Appliance A (min) B (max) C (min) (A+B+C )max
Venus True Vision 730 1 m (A+C)+7m B-A-9m 19m
Venus True Vision 850 1 m (A+C)+6m B-A-8m 18m
Ø 150/100
Appliance A (min) B (max) C (min) (A+B+C )max
Venus True Vision 730 1 m (A+C)+7m B-A-1m 17m
Venus True Vision 850 1 m (A+C)+6m B-A-8m 16m

for each 90° bend subtract 1m horizontally or add 1m vertically
for each 45°/30°/15° bend subtract 0,5m horizontally or add 0,5 m vertically

A
B
A
B
USMPG
USB90
Ø200/Ø130
US 100/50/25
Ø200/Ø130
USKB
12
Instrucons for installaon and use - Venus True Vision Gas English

Appliance A (min) B (min) B (max) Restricon
Venus True Vision 730 1m Wall Exit A+7m Ø 70
Venus True Vision 850 1m Wall Exit A+6m Ø 60

Appliance A (min) B (min) B (max) Restricon
Venus True Vision 730 1m Wall Exit A+0,5m Ø 75
Venus True Vision 850 1m Wall Exit A Ø 60

USDHC13+USAB
or
USDHC4 13+USAB

Be carefull every horizontal part does not
have a negave in clinaon in direcon of
the outlet. It is even beer, when possible
to have a lile inclinaon of 2 or 3 degrees
ascending to avoid rain and condenstaon in
the tube.

INSTALLATION - RÉGLAGE DU GAZ D'ADMISSION D'AIR18
Avant l'installation initiale, vous devez nettoyer la vitre (à l'extérieur et à
l'intérieur) et le foyer de toute poussière et graisse. Si vous ne nettoyez pas
correctement la vitre, un film peut apparaître après avoir allumé le foyer.
Après avoir installé le foyer, vous devez régler la flamme en fonction du
tirage avec les anneaux de restriction (voir le chapitre 9. Installation de la
cheminée + utilisation des bagues de restriction).

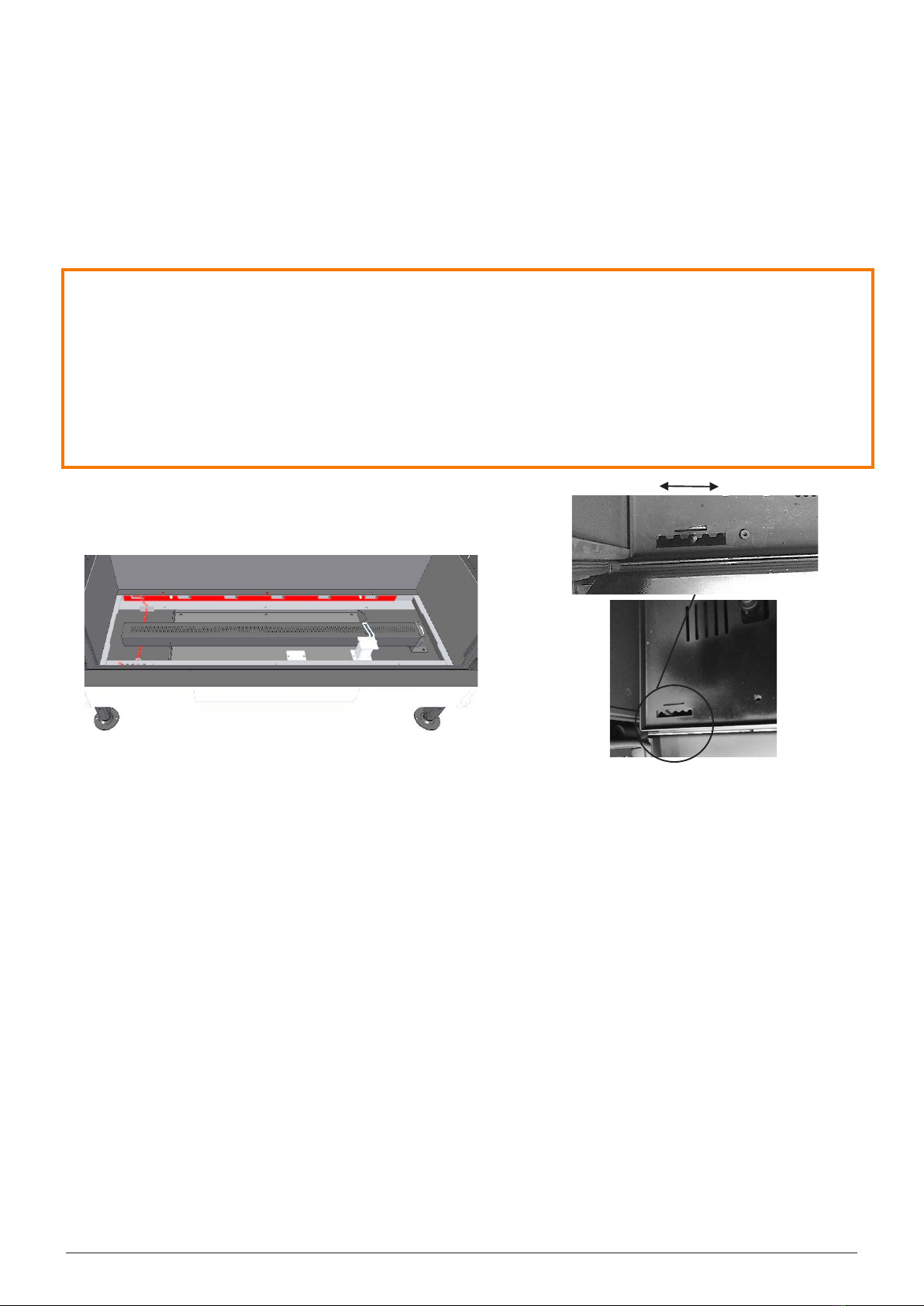

L'entrée d'air pour la flamme peut être réglée dans les foyers LUNA GAS 18,
GAZ TRUE VISION, VENUS GAS. Le levier de réglage est situé sur le côté
gauche de la plaque de sol dans la chambre de combustion. Le réglage de
l'entrée d'air ne peut être effectué que par un spécialiste.
Il faut attendre 30 à 60 minutes pour que le réglage soit complètement
visible dans le foyer. Le gaz naturel brûle d’abord en donnant une couleur
bleue et deviendra jaune avec le temps. La combustion de GPL deviendra
plus jaune.
Si la flamme est bleu, cela peut signifier qu'il y a trop d'air dans la chambre
de combustion mais aussi trop peu d'air. S'il y a trop d'air, la flamme se
déplace très rapidement..
Attention, les brûleurs doivent brûler de manière uniforme sur
toute la longueur, y compris les brûleurs secondaires.
Lors du réglage, il faut tenir compte du fait que plus la flamme est jaune,
plus vite la vitre peut se salir.
Min Max
INSTALLATION - RÉGLAGE DU GAZ D'ADMISSION D'AIR18
Avant l'installation initiale, vous devez nettoyer la vitre (à l'extérieur et à l'intérieur) et le foyer de toute poussière et graisse. Si vous ne nettoyez pas
correctement la vitre, un film peut apparaître après avoir allumé le foyer.
Après avoir installé le foyer, vous devez régler la flamme en fonction du
tirage avec les anneaux de restriction (voir le chapitre 9. Installation de la
cheminée + utilisation des bagues de restriction).
L'entrée d'air pour la flamme peut être réglée dans les foyers LUNA GAS 18,
GAZ TRUE VISION, VENUS GAS. Le levier de réglage est situé sur le côté
gauche de la plaque de sol dans la chambre de combustion. Le réglage de
l'entrée d'air ne peut être effectué que par un spécialiste.
Il faut attendre 30 à 60 minutes pour que le réglage soit complètement visible dans le foyer. Le gaz naturel brûle d’abord en donnant une couleur bleue et deviendra jaune avec le temps. La combustion de GPL deviendra plus jaune.
Si la flamme est bleu, cela peut signifier qu'il y a trop d'air dans la chambre de combustion mais aussi trop peu d'air. S'il y a trop d'air, la flamme se déplace très rapidement..
Attention, les brûleurs doivent brûler de manière uniforme sur
toute la longueur, y compris les brûleurs secondaires.
Lors du réglage, il faut tenir compte du fait que plus la flamme est jaune, plus vite la vitre peut se salir.
Min Max
INSTALLATION - RÉGLAGE DU GAZ D'ADMISSION D'AIR18
Avant l'installation initiale, vous devez nettoyer la vitre (à l'extérieur et à
l'intérieur) et le foyer de toute poussière et graisse. Si vous ne nettoyez pas
correctement la vitre, un film peut apparaître après avoir allumé le foyer.
Après avoir installé le foyer, vous devez régler la flamme en fonction du
tirage avec les anneaux de restriction (voir le chapitre 9. Installation de la
cheminée + utilisation des bagues de restriction).
L'entrée d'air pour la flamme peut être réglée dans les foyers LUNA GAS 18,
GAZ TRUE VISION, VENUS GAS. Le levier de réglage est situé sur le côté
gauche de la plaque de sol dans la chambre de combustion. Le réglage de
l'entrée d'air ne peut être effectué que par un spécialiste.
Il faut attendre 30 à 60 minutes pour que le réglage soit complètement
visible dans le foyer. Le gaz naturel brûle d’abord en donnant une couleur
bleue et deviendra jaune avec le temps. La combustion de GPL deviendra
plus jaune.
Si la flamme est bleu, cela peut signifier qu'il y a trop d'air dans la chambre
de combustion mais aussi trop peu d'air. S'il y a trop d'air, la flamme se
déplace très rapidement..
Attention, les brûleurs doivent brûler de manière uniforme sur
toute la longueur, y compris les brûleurs secondaires.
Lors du réglage, il faut tenir compte du fait que plus la flamme est jaune,
plus vite la vitre peut se salir.
Min Max
13
Instrucons for installaon and use - Venus True Vision Gas English
Before inial setup, you need to clean the window (from outside and inside) and replace
of any dust and grease. If you do not clean the glass properly, aer lightning up the replace
it can remained sll on the glass. Aer installing the replace correctly on the concentric
tube or chimney system, you must make a ame adjustment according to the dra (see
chapter 4 page9. Installing the chimney + use restricon rings). The air intake for ame can
be adjusted in replaces. Seng element is situated on the le side of the boom plate in
the combuson chamber. Adjustment of air intake may only be set out by a specialist.
At the rst ignion of replace rst test if ignion electrode work correctly. Close the
valve on gas connecon, open the door on replace and start replace by remotecontrol.
Ignion electrode has to spark. If it does not sparks, check cables and electrode. Then
subsequntly if electroda works correctlly, open the gas valve and repeat ignion with
opened door. Electrode should start the re on the burner. When the re burn evenly
over the enre length of burners included secondary burners, the door can be closed and
the ame can be set to local condion.


The brickwork must be erected around the replace with a minimum distance of 4 cm between
the replace and the nish. It is forbidden to place the brickwork on the re.

Now that the installaon is complete, the device can be built in.
Before starng the work, rst check the gas ghtness.
Ignite the re and check the operaon of the re, the ghtness of the gas pipes and the ue gas
discharge channel. If these are in order, you can denively start the insulaon and nishing
work. The built-in part of the replace becomes very hot. Therefore, make sure that the re-
place is not built in too ghtly, but that there is room for extracng warm air.
It is needed to wait 30-60 minute unl the seng is fully showen up in the red replace.
Natural gas is rst burning by blue colour and it will turn yellow in me, LPG burning beco-
me quicker yellow.
If the ame is blue, it can mean that there is too much air in the combuson chamber but
also that there is too lile air. If there is too much air, the ame move very quickly.
By adjustment must be taken to account that the more yellow the ame is the quicker glass
can get dirty.

14
Instrucons for installaon and use - Venus True Vision Gas English

When construcng the replace, it can be provided with a convecon package,
consisng of convecon grilles connected to extensible exibles of 3m or 5m.
In this way, thanks to the natural convecon, the heat can be dissipated.
This is important for cooling the replace in the mantelpiece and also serves for addional
heat recovery for the living room or for a nearby room, desk or kitchen. A fan can also be
placed at the boom of the device.


This system “guides” the heat through exibles (dia.150mm) into the room. For the instal-
laon of these channels, it is best to rst go up 1 m vercally and then make a change of
direcon, bend quite broadly and avoid the use of exit grangs with a small passage, be-
cause the speed losses caused reduce the eciency of the warm air outlets. M-design has
developed ideal warmer air vents for this with many advantages (see next page).
The drain grids are equipped with 2 or 4 connecons (2/4 exible on 1 grid!). The grangs
for the convecon air supply may not be connected with exibles. This must always be
placed below, as low as possible, at the level of the boom of the device.
Walls and ceilings can be discolored by contaminated air in the room where the replace
is located. This dirty air is sucked in through the convecon casing of the replace and is
blown out through the convecon grille and causes dark areas on the ceiling or walls. The
use of candles and oil lamps is therefore not recommended, or limit their use. Cigaree
and cigar smoke can also reinforce the phenomenon. It is also always recommended to
suciently venlate the room where the replace is located.
 A house can sll be dust-free, heat sources give a circulaon of house dust
parcles. During the periods of non-heang, one forms accumulaon of dust in the exi-
bels and the grangs.
This can cause odor problems when ring. It is recommended to make the exibles and
the grangs occasionally dust-free (using a vacuum cleaner). Aer a good puncture a few
mes, the odor disappears. This phenomenon can be compared to gray traces that appear
above a normal radiator. Oponally, you can order beauful metal lids from your dealer to
screen o the grilles during the summer period.
Do not insulate the device! Certainly do not use glass wool or rock wool, other types of in-
sulaon material (PVC, PUR, foam, plaster, etc.). These go through the convecon channels
discoloraon cause annoying odors. Ensure that no waste remains in the housing.

4 dm2
2 dm2
ATTENTION:
if the installer opens the openings in advance, these must be covered during the work
(grinding, drilling, sawing, etc.). Dust released during installaon will otherwise sneak into
convecon circuit. Dust can never be eliminated properly and give o a lingering smell when
using the appliance.
Once the installaon is complete, it is imperave to aspirate or blow the convecon
channels with compressed air (be sure not to return dust to the convecon chamber of the
replace).
15
Instrucons for installaon and use - Venus True Vision Gas English
Design Grills (outlet )
with to connectors
Outlet
Design Grill Long (outlet)
Inlet Grill
Inlet Grill
Inlet Inlet
Outlet
 You can choose between 3 models of grids according to your taste or
according to the replace: Grid Design (2 connecons), Grille design long small model (2
connecons) or long model (4 connecons)
: You have the opon to choose between inlets 2dm²
or 4dm²


Wood logs set GAS 650 DC True Vision, VENUS GAS 730,850 H1 1/ 2
Set H1
Gas 650 DC True Vision
VENUS GAS 730
VENUS GAS 850
WARNING: DO NOT PUT ANYTHING ON THE IGNITION STEM
AND IN THE RECTANGULAR AREA. TRY TO AVOID POSITIONING
THE COAL IMITATION ON SMALL BURNER OPENINGS.
x1
x2
x2
x1
x1
x1
* Insert the secondary burners into the wood logs holes
First put the ½ of imitation coal pieces. Packaging : 5 small bags size 15x22cm (or 1 big bag size 35x25cm + 1 small )
Warning: DO NOT PUT THE DUST FROM THE IMITATION COAL ON THE BURNER
1
2
3
4
1
2, 5
3a, 3b
4
6
7
with hole *
with hole
*
5
6
8
6
2
16
Instrucons for installaon and use - Venus True Vision Gas English



Wood logs set GAS 650 DC True Vision, VENUS GAS 730,850 H1 2/ 2
5 6
7
In the case you ordered angel`s hair arrange them after photo 4 according photo 8A
and then put imitation coal on it (8B) and continue with wood logs 5,6,7.
DO NOT PUT ANYTHING ON THE IGNITION STEM
8A 8B
2
5
6
*
17
Instrucons for installaon and use - Venus True Vision Gas English

Wood logs set VENUS GAS 730, 850 H2 1/ 2
Set H2
VENUS GAS 730, 850
WARNING: DO NOT PUT ANYTHING ON THE IGNITION STEM
AND IN THE RECTANGULAR AREA. TRY TO AVOID POSITIONING
THE COAL IMITATION ON SMALL BURNER OPENINGS.
DO NOT USE DUST FROM THE IMITATION COAL
x2
x1
x1
x1
x1
x2
* Insert the secondary burners into the wood logs holes
First put the imitation coal pieces. Packaging : 5 small bags size 15x22cm (or 1,25 big bags size 35x25cm or 1 big +1 small)
Warning: DO NOT PUT THE DUST FROM THE IMITATION COAL ON THE BURNER
12
3 4
1,3
2
4
5
6
7,7
with hole
*
with hole
*
5
6
8
2
18
Instrucons for installaon and use - Venus True Vision Gas English


Wood logs set VENUS GAS 730, 850 H2 2/ 2
56
7
In the case you ordered angel`s hair arrange them after photo 5 according photo 8A and
then put imitation coal on it (8B) and continue with wood logs 6,7.
DO NOT PUT ANYTHING ON THE IGNITION STEM
8A 8B
2
5
6
*
19
Instrucons for installaon and use - Venus True Vision Gas English


The masonry and plaster surrounding a recently installed appliance holds a great deal of
moisture, which must rst evaporate before commissioning the appliance. If not, the
plaster may crack or split. Ask your installer about the mescale to follow. The rst me you
use it, only make a moderate-sized re.
The rst few mes the appliance is used, an unpleasant odour may be apparent.
It comes from the protecve paintwork. These emissions are totally harmless. To quickly
get rid of these odours, all you need to do is venlate the room for a while.
Aer the rst few res, a light deposit may appear on the window. It comes from the paint-
work. Once the appliance is cold you can get rid of this deposit by using M Design’s Bio-
Clean cleaning product. This product may be used later on for cleaning the window.
The appliance must not be used if the door no longer has a window or with the door open.
If the window is broken or cracked, the appliance must not be used unl the window has
been replaced. Contact your M Design reseller.

Have your appliance inspected every 2 years by a qualied technician.
Please observe the following points:
•Closed appliances produce intense heat, which means that all the surfaces of the external
walls (metal, door frames and windows) become very hot once a certain tempera-ture is
reached. Make sure that young children do not touch the window; this could result in se-
vere burns.
•The logs, ceramic pebbles, a Diamond set and a Sapphire set are delivered with the
appliance. Never put other objects in the ames!
•Check that there is nothing on the ignion pin and that the imitaon coal does not lie on
the small openings of the burner. When starng up, make sure you see the ignion sparks.



•Keep inammable materials a suitable distance from the appliance (min. 1m)!
•Never modify the sengs yourself! The furnace warranty will then be considered as
invalid, null and void.
•Never let children use the remote control without supervision.
•If the burner goes out for any reason, wait at least three minutes before lighng the
appliance again. Open the window to vent the replace.
20
Instrucons for installaon and use - Venus True Vision Gas English
