INSTRUCTION MANUAL
PATLABOR™
WIRELESS TOWER LIGHT
(small size, 60 mm dia., Modbus-RTU transparent 900MHz band wireless
device (child), 1 - 5 lay ers)
MODEL IT60SW6F
BEFORE USE ....
Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System’s Sales Office or representatives.
■PACKAGE INCLUDES:
Tower Light .........................................................................(1)
Antenna ...............................................................................(1)
■MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
For information on the introduction of wireless device, refer
to the 900 MHz band wireless device operating manual
(EM-9085-B).
For information on Modbus specification, refer to the Mod-
bus Protocol Reference Guide (EM-5650).
These manuals are downloadable at M-System’s web site
(http://www.m-system.co.jp).
POINTS OF CAUTION
■POWER INPUT RATING & OPERATIONAL RANGE
• Locate the power input rating marked on the product and
confirm its operational range as indicated below:
24 V DC rating: 24 V ±10%, approx. 7W
■GENERAL PRECAUTIONS
• Before you remove the unit or mount it, turn off the power
supply and input signal for safety.
• The unit must not be subjected to external force.
• Do not rub the unit with organic solvent such as paint
thinner.
■ENVIRONMENT
• Indoor use.
• Attach the antenna to the unit.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -10 to +55°C
(14 to 131°F) with relative humidity within 10 to 90% RH
in order to ensure adequate life span and operation.
• Mount the unit on a flat and robust plate.
• Lamps are omnidirectional.
• The buzzer sound is directional in front of the unit.
• This unit communicates by radio waves. Do not install the
unit where it could be exposed to radio waves obstacles or
strong electric fields.
• How to change antenna angle: Rotate the antenna after
loosening the connector nut (refer to the next drawing).
Tighten the nut with torque (0.98 N·m) while holding the
antenna pointing to the intended direction. Otherwise,
tight manually the nut, and assure it turning 10° to 15°
more with a wrench.
Connector Nut
■INGRESS PROTECTION (IP65)
• The IP code is conformable when the unit is mounted ver-
tically, antenna is installed and the control panel cover is
locked. The compartment, where connectors are located,
is not protected.
• When opening the control panel cover, avoid humidity
and dust penetration. Dry and clean it if condensation is
formed, and close the cover locking tightly.
• Install the antenna and tighten the connector nut tightly.
• In order to protect ingress of water or dust into the bot-
tom compartment, mount the unit on the flat plane, and
be sure that the gasket does not roll back or dust is not
on the gasket.
■WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
• Cables to the unit must be wired indoor.
■AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.

IT60SW6F
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-2436 P. 2 / 8
CAUTION REGARDING RADIO FREQUENCY
■FCC NOTICE
• This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
■FCC CAUTION
• Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
■NOTE
• This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause
harmful interference in which case the user will be
required to correct the interference at his own expense.
• This transmitter must not be co-located or operated in
conjunction with any other antenna or transmitter.
■FCC RF EXPOSURE INFORMATION
• This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment and
meets the FCC radio frequency (RF) Exposure Guidelines.
This equipment should be installed and operated keeping
the radiator at least 20 cm or more away from person’s
body.
FCC ID : 2AOTF-0000007 (24V DC)
Contains FCC ID: 2AKGW-1TD3016A1

IT60SW6F
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-2436 P. 3 / 8

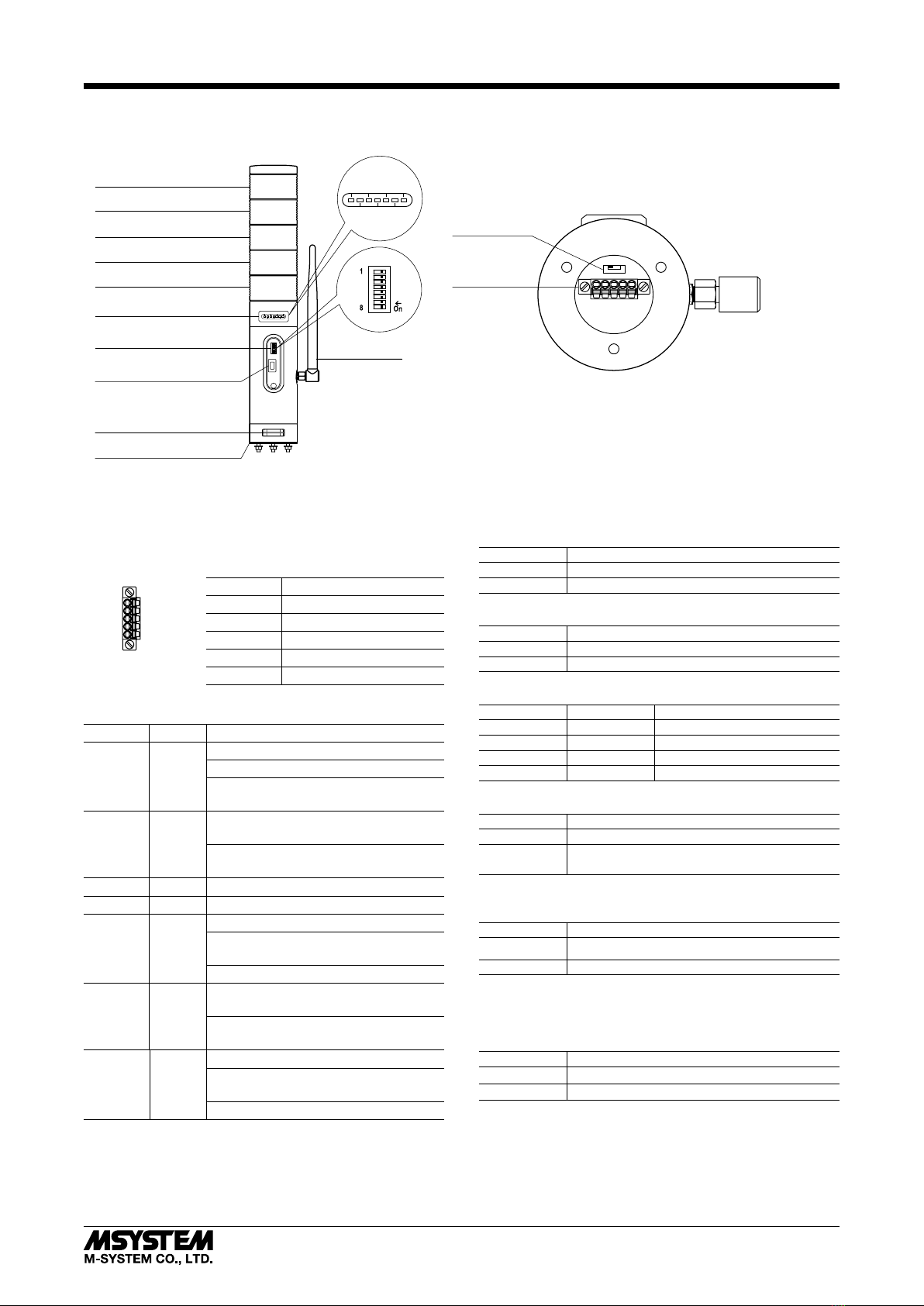

COMPONENT IDENTIFICATION
5
4
3
2
2
1
0
9
8
7
6
5
4
3
1
0
9
8
7
6
5
4
3
2
1
0
9
8
7
6
Mode
Power
Run
SD
920Link
RD
920ERR
920Run
Lamp 2
Lamp 3
Lamp 4
Lamp 5
Lamp 1
Status Indicator LED
Connector for
Maintenance/Configurator
Buzzer Aperture
Gasket
Antenna
Operating Mode Setting
DIP SW
■FRONT VIEW (with the cover open)
■BOTTOM VIEW
→ ON
RS-485
Connector
Te rminator SW
FRONT
■TERMINAL ASSIGNMENT
• Connector for Power Supply
Unit side connector: MC1,5/5-GF-3,5 (Phoenix Contact)
Cable side connector: FMC1,5/5-STF-3,5 (Phoenix Contact)
DA
DB
DG
SLD
FE
ID FUNCTION
DA DA
DB DB
DG DG
SLD Shield
FE Functional earth
■STATUS INDICATOR LED
ID COLOR FUNCTION
Power Green On when power is supplied.
Blinks when the IP Reset SW is on.
Off when power is not supplied or an
abnormality occurs in the unit.
Run Green On when Modbus communication is in
normal status.
Off at Modbus communication error or
during no Modbus communication.
SD Green On in sending data via RS-485
RD Green On in receiving data via RS-485
920Link Green On when wireless link is working.
Blinks with 0.5 Hz in establishing wire-
less link.
Off when wireless link stops working.
920Run Green On when wireless communication with
child device is in normal status.
Off at a wireless communication error
or during no communication.
920ERR Red On when there is no detour route.
Blinks at network authentication
failure.
Off in normal status.
■OPERATING MODE
(*) Factory setting
• Lamp Blinking Frequency: Mode-1
Mode-1 LAMP BLINKING FREQUENCY
OFF Approx. 2 Hz (*)
ON Approx. 10 Hz
• Buzzer Intermittent Frequency: Mode-2
Mode-2 BUZZER INTERMITTENT FREQUENCY
OFF Approx. 2 Hz (*)
ON Approx. 10 Hz
• Buzzer Volume: Mode-3, Mode-4
Mode-3 Mode-4 BUZZER VOLUME
OFF OFF Quiet (*)
OFF ON Middle
ON OFF Loud
ON ON Maximum
• Output at the Loss of Communication: Mode-6
Mode-6 OUTPUT AT THE LOSS OF COMMUNICATION
OFF Reset the output (turned off) (*)
ON Hold the output (maintains the last data
received normally)
Available for Modbus communication.
• Output Logic Reverse: Mode-7
Mode-7 OUTPUT LOGIC REVERSE
OFF Non-inverted (*)
ON Inverted
Available for discrete input.
Not available with blink (BLINK) or intermittence (BUZZ-
ER2), be sure to turn it off.
• Input Select: Mode-8
Mode-8 INPUT SELECT
OFF Modbus/TCP (*)
ON Discrete input
Selects the input signal of lamp and buzzer control.
Note: Be sure to set unused Mode-5 to OFF.
■TERMINATOR
To enable the terminator, turn ON the terminator SW. To
disable the terminator, turn OFF the terminator SW.
(Factory set to OFF)

IT60SW6F
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-2436 P. 4 / 8
CONFIGURATOR SOFTWARE SETTING
With configurator software, settings shown below are available.
Refer to the software manual of ITCFG for detailed operation.
■WIRELESS SETTING
ITEM SETTING RANGE DEFAULT
Preferred PAN ID (group number) 0000 – FFFE (hexadecimal, 4 digits) 0000
Radio channel number 1 – 43 (selectable up to 10 channels) None
Short address 0000 – FFFD (hexadecimal, 4 digits) 0000
Network name English one-byte characters within 16 characters
(one-byte space, “-” , “_” , “ . ” , “@” are usable.)
Blank
Encryption key 0000...0 – FFFF...F
(hexadecimal, 32 digits)
0000...0
Transmitter power output 0.16 mW / 1 mW / 20 mW 20 mW
Low-speed moving mode No / Yes No
Device type in a network,
Number of devices in a network
Child (fixed), 1 to 30 devices /
Child (fixed), 31 to 60 devices /
Child (fixed), 61 to 100 devices /
Child (fixed) + child (moving)
Child (fixed), 1 to 30 devices
Set network quality Standard (recommended) /
Frequency of route switching and delay (higher) /
Frequency of route switching and delay (highest)
Standard (recommended)
Network join mode V3-compatible mode / Fast join mode V3-compatible mode
Fixed route No / Yes No
Destination short address 0000 – FFFD (hexadecimal, 4 digits) 0000
Temporary detour No / Yes Yes
Packet filtering None / Yes (polling type) Yes (polling type)
Filter timeout on polling 1.0 – 60.0 (sec.) 1.0 (sec.)
920Run timeout 1.0 – 60.0 (sec.) 3.0 (sec.)
Modbus node address 1 – 247 1
Retry times before route switching Once / Twice / Three times Three times
Note: For version confirmation of communication module, refer to the software manual of ITCFG.
■MODBUS SETTING
ITEM SETTING RANGE DEFAULT
Transfer rate 38400 / 19200 / 9600 / 4800 bps 38400 bps
Parity bit Odd / Even / None Odd
Stop bit 1 bit / 2 bits 1 bit

IT60SW6F
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-2436 P. 5 / 8

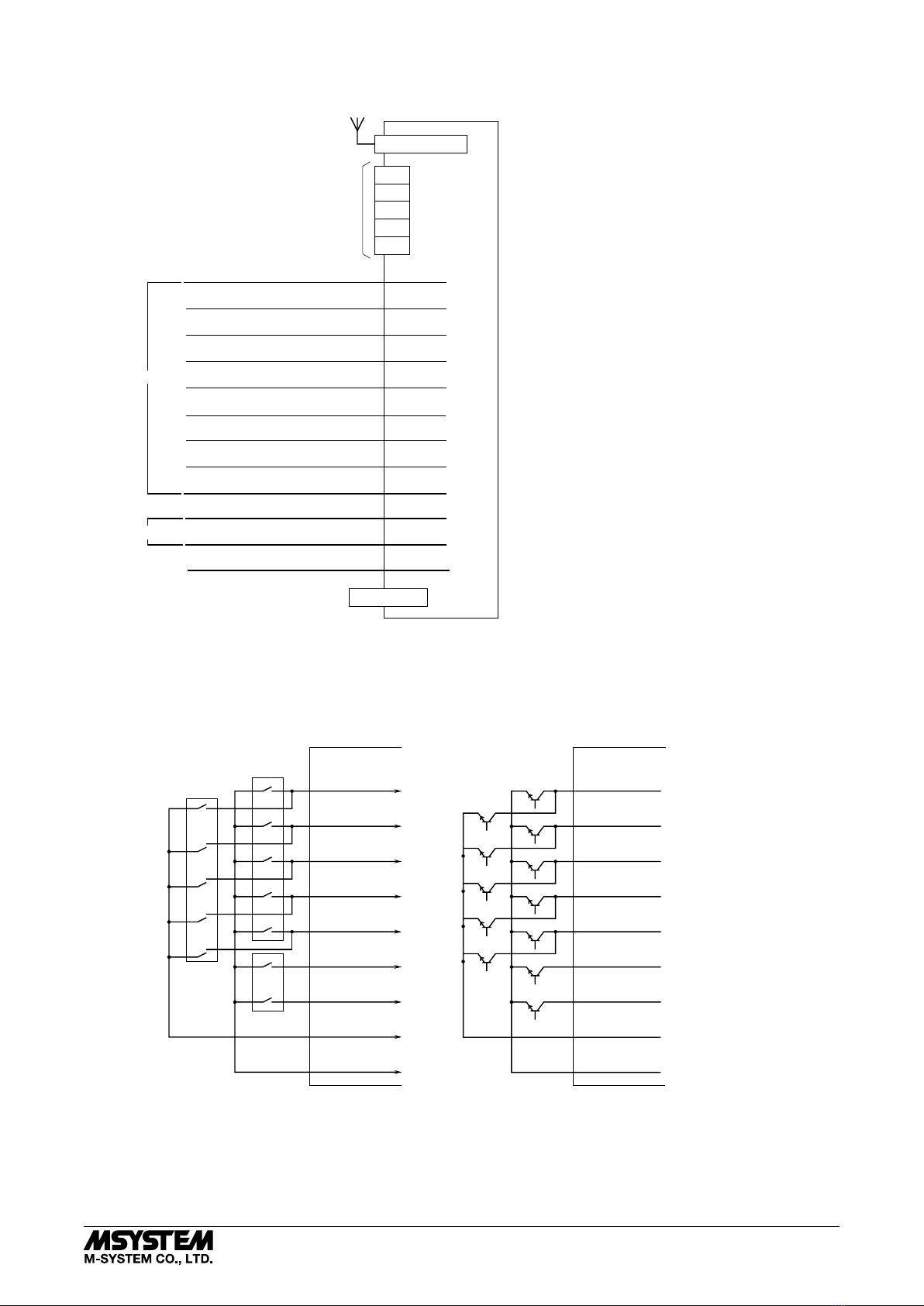

TERMINAL CONNECTIONS
Connect the unit as in the diagram below.
■EXTERNAL DIMENSIONS unit: mm
A
192
224
256
288
320
352
Control Panel Cover
Antenna
(60)
Approx. 1500
Lead wires
R165
*1. Consult M-System for other bolt length.
0
1
2
3
4
5
Lamp Layers
60±1.5dia.
A±4
(85)
3 Bolts and Nuts (M4)
43 ±1.5 dia.
(30 dia.)
1– 6 lengths*
■MOUNTING REQUIREMENTS unit: mm
120°
43 dia.
3 Holes (5 dia.)
Front
Wiring Hole 30 dia.*
* Protect wires to prevent scratching them at the edge of the
compartment.

IT60SW6F
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-2436 P. 6 / 8
■CONNECTION DIAGRAM
DA
DB
DG
SLD
FE
FE1
Gray
LAMP 1 INPUT
LAMP 2 INPUT
LAMP 3 INPUT
LAMP 4 INPUT
LAMP 5 INPUT
BUZZER INP 1 Continuance
BUZZER INP 2 Intermittence
LAMP BLINK
COM
Purple
Cyan
Brown
Orange
Black
INPUT
POWER
FE Green/Amber
BUZZER1
BUZZER2
BLINK
COM
+
–
Antenna Connector
To other Modbus devices
USB Connector
Connector for Maintenance/Configurator
*1. Example of 5 layers in order: red, yellow, green, blue and white.
Lamp and wire color are the same.
*2. When selecting the same color for more than one layer, cable colors
comply with ordering information sheet.
LAMP1
LAMP2
LAMP3
LAMP4
LAMP5
BUZZER1
BUZZER2
COM
BLINK
BLINK
ON TOWER LIGHT
LAMP1
LAMP2
LAMP3
LAMP4
LAMP5
BUZZER1
BUZZER2
COM
BLINK
TOWER LIGHT
BLINK
ON
Note: If “On” and “Blink” are set simultaneously for a single lamp, “Blink” is disabled.
At this time, if other lamps are being set to "Blink", they are also affected and work in the same manner.
LAMP1*1
LAMP2*1
LAMP3*1
LAMP4*1
LAMP5*1
Red*2
Amber*2
Green*2
Blue*2
White*2
• WIRING TO INPUT SIGNAL
Contact input e.g. NPN input e.g.

IT60SW6F
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-2436 P. 7 / 8
COMMUNICATION CABLE CONNECTIONS
■WIRING CONNECTION WITH SLAVE DEVICES
DA
DB
DG
SLD
FE
DA
DB
DG
SLD
FE
DA
DB
DG
SLD
FE
Remote UnitRemote Unit
TERMINATORTERMINATOR
*
*1. Connect SLD and FE for reducing noise interference if necessary.
*2. For units at both ends of communication line, “DA” and “DB” must be connected with a terminator,
however, for the unit, it is possible to set it by turning Te rminator SW ON instead.
*
*
■WIRING CONNECTION WITH SLAVE DEVICES
The Unit
■TENSION CLAMP TERMINAL BLOCK
Applicable wire size: 0.2 – 1.5 mm2
Stripped length: 10mm
Recommended solderless terminal
• AI0,25-10YE 0.25 mm2(Phoenix Contact)
• AI0,34-10TQ 0.34 mm2(Phoenix Contact)
• AI0,5-10WH 0.5 mm2(Phoenix Contact)
• AI0,75-10GY 0.75 mm2(Phoenix Contact)
MODBUS FUNCTION CODES & SUPPORTED CODES
■DATA AND CONTROL FUNCTIONS
CODE NAME
01 Read Coil Status Digital output from the slave (read/write)
02 Read Input Status Status of digital inputs to the slave (read only)
03 Read Holding Registers General purpose register within the slave (read/write)
04 Read Input Registers Collected data from the field by the slave (read only)
05 Force Single Coil Digital output from the slave (read/write)
06 Preset Single Registers General purpose register within the slave (read/write)
15 Force Multiple Coils Digital output from the slave (read/write)
16 Preset Multiple Registers General purpose register within the slave (read/write)
■EXCEPTION CODES
CODE NAME
01 Illegal Function Function code is not allowable for the slave.
02 Illegal Data Address Address is not available within the slave.
03 Illegal Data Value Data is not valid for the function.
04 Slave Device Failure
05 Acknowledge
06 Slave Device Busy
07 Negative Acknowledge

IT60SW6F
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: [phone] Fax: [phone] E-mail: [e-mail]
EM-2436 P. 8 / 8
MODBUS I/O ASSIGNMENTS
ADDRESS DATA TYPE DATA
Coils (0X) 1 – 16 Digital Output (lamp, buzzer)
Inputs (1X) 1 – 16 Digital Input (lamp, buzzer)
Input Registers (3X) ---- ---- Unused
Holding Registers (4X) ---- ---- Unused
Note: DO NOT access addresses other than the above. Such access may cause problems such as inadequate operation.
■OUTPUT DATA
015
Output 0
Output 1
•
•
•
Output 15
■INPUT DATA
015
Input 0
Input 1
Input 15
•
•
•
Output 0 Lamp 1 0: Off, 1: On Input 0 Lamp 1 0: Off, 1: On
Output 1 Lamp 2 0: Off, 1: On Input 1 Lamp 2 0: Off, 1: On
Output 2 Lamp 3 0: Off, 1: On Input 2 Lamp 3 0: Off, 1: On
Output 3 Lamp 4 0: Off, 1: On Input 3 Lamp 4 0: Off, 1: On
Output 4 Lamp 5 0: Off, 1: On Input 4 Lamp 5 0: Off, 1: On
Output 5 Buzzer 0: Off, 1: Continuous Input 5 Buzzer 0: Off, 1: Continuous
Output 6 – – Input 6 – –
Output 7 – – Input 7 – –
Output 8 Lamp 1 0: Off, 1: Blinking Input 8 Lamp 1 0: Off, 1: Blinking
Output 9 Lamp 2 0: Off, 1: Blinking Input 9 Lamp 2 0: Off, 1: Blinking
Output 10 Lamp 3 0: Off, 1: Blinking Input 10 Lamp 3 0: Off, 1: Blinking
Output 11 Lamp 4 0: Off, 1: Blinking Input 11 Lamp 4 0: Off, 1: Blinking
Output 12 Lamp 5 0: Off, 1: Blinking Input 12 Lamp 5 0: Off, 1: Blinking
Output 13 Buzzer 0: Off, 1: Intermittent Input 13 Buzzer 0: Off, 1: Intermittent
Output 14 – – Input 14 – –
Output 15 – – Input 15 – –
Note: If “On” (Continuous) and “Blinking” (Intermittent) are set simultaneously for a single lamp (buzzer), “Blinking” is disabled.
