mabe LMC0686XBBY User manual

LMC0686XBBY
LMC0886XBBY
LMC1086XBBY
LMC1086XSSY0

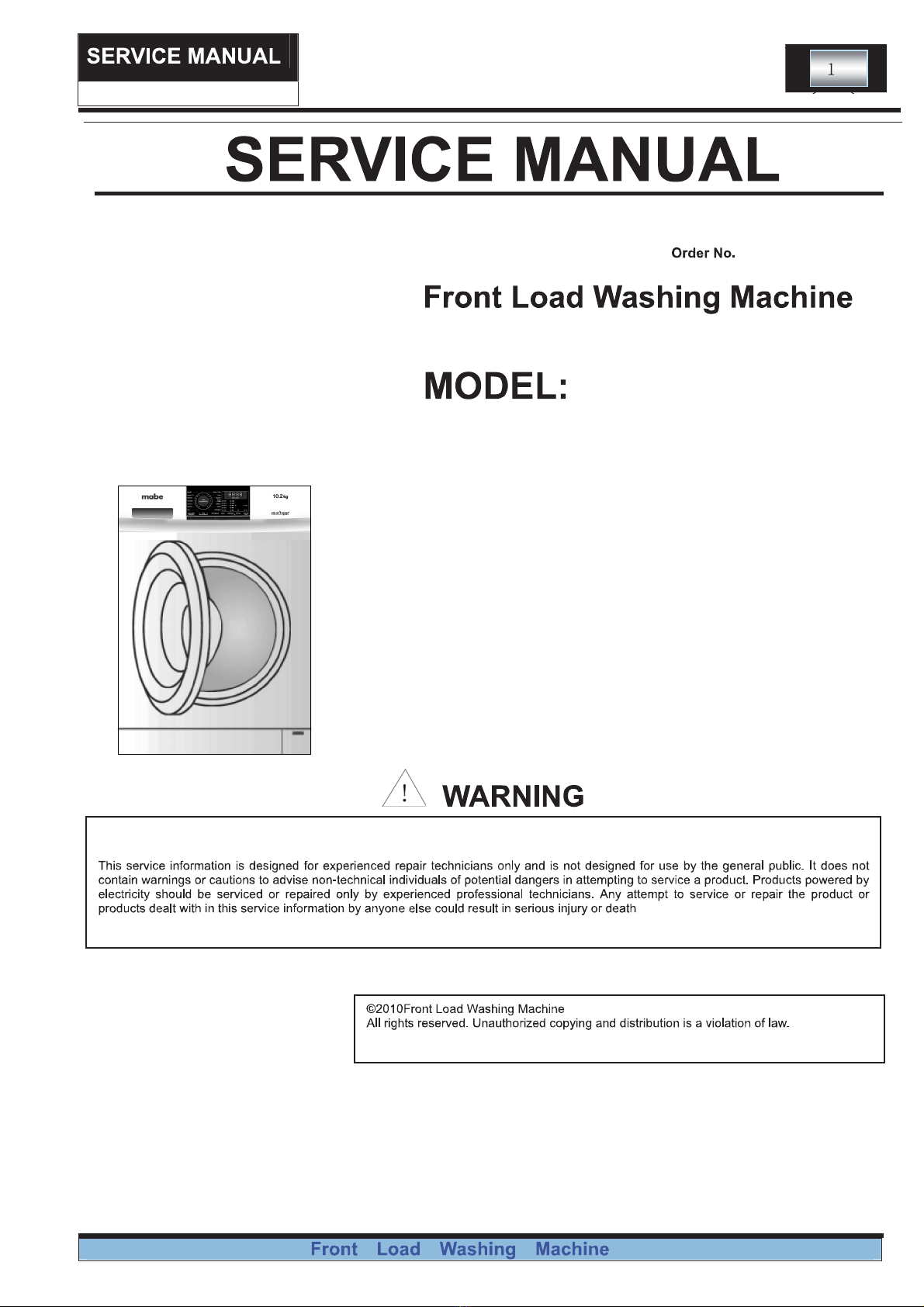

SERVICE MANUAL
Front Load Washing Machine
Contents
Chapter 1 General Information ________________________________________________
1-1. General Guidelines_____________________________________________________
Chapter 2 Product Feature ___________________________________________________
2-1. Features _____________________________________________________________
2-2. Specification __________________________________________________________
Chapter 3 Matters needing attention ___________________________________________
3-1. Safety _______________________________________________________________
3-2. During Use ____________________________________________
Chapter 4 Operational Guidance ____________________________________________
Chapter 5 Program Introduction_____________________________________________
Chapter 6 Washing Mathods ________________________________________________

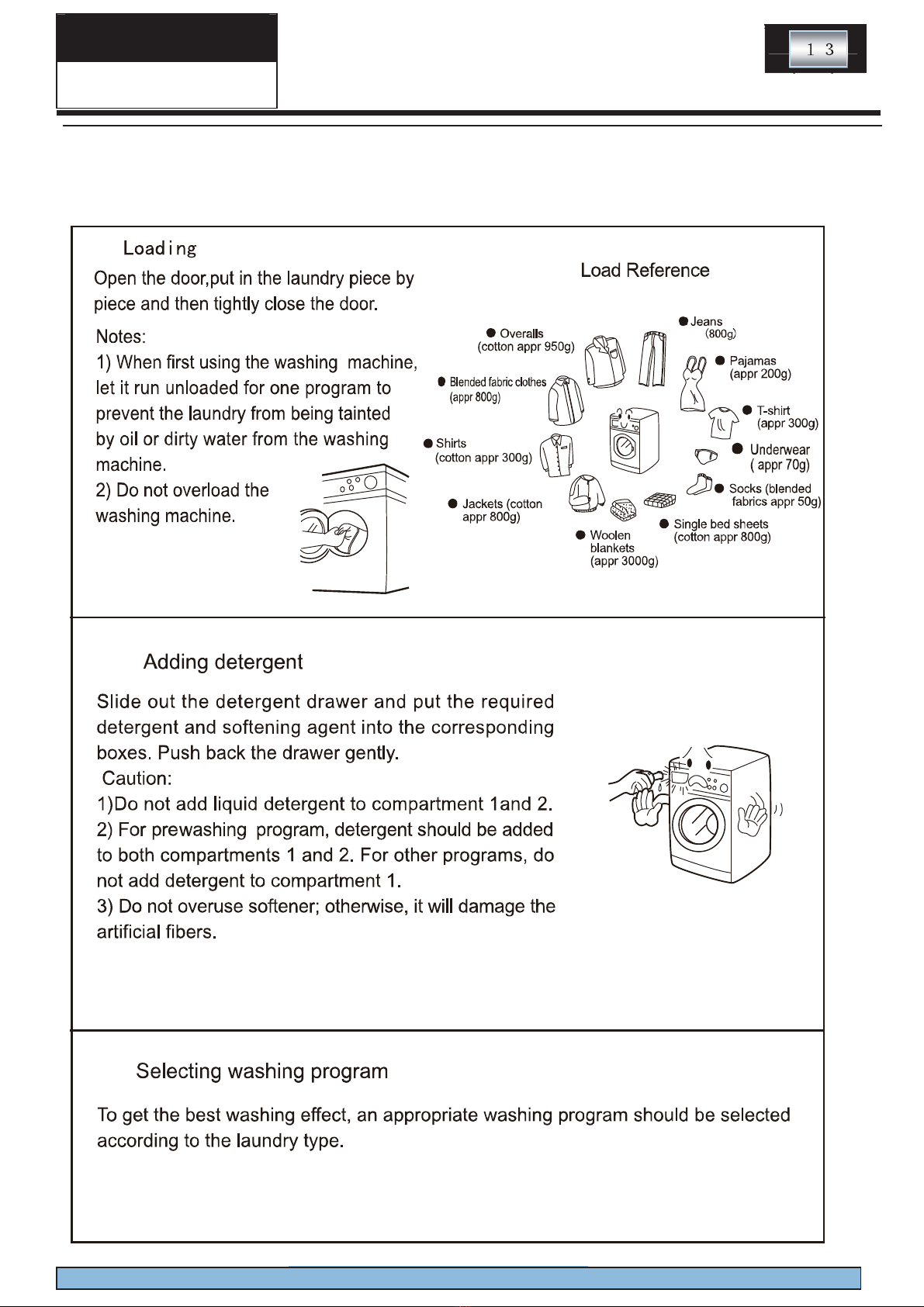

6-1. Loading ____________________________________________________________
6-2. Adding detergent ____________________________________________________
6-3. Selecting washing program ____________________________________________
Chapter 7 Appearance brief introduction _____________________________________

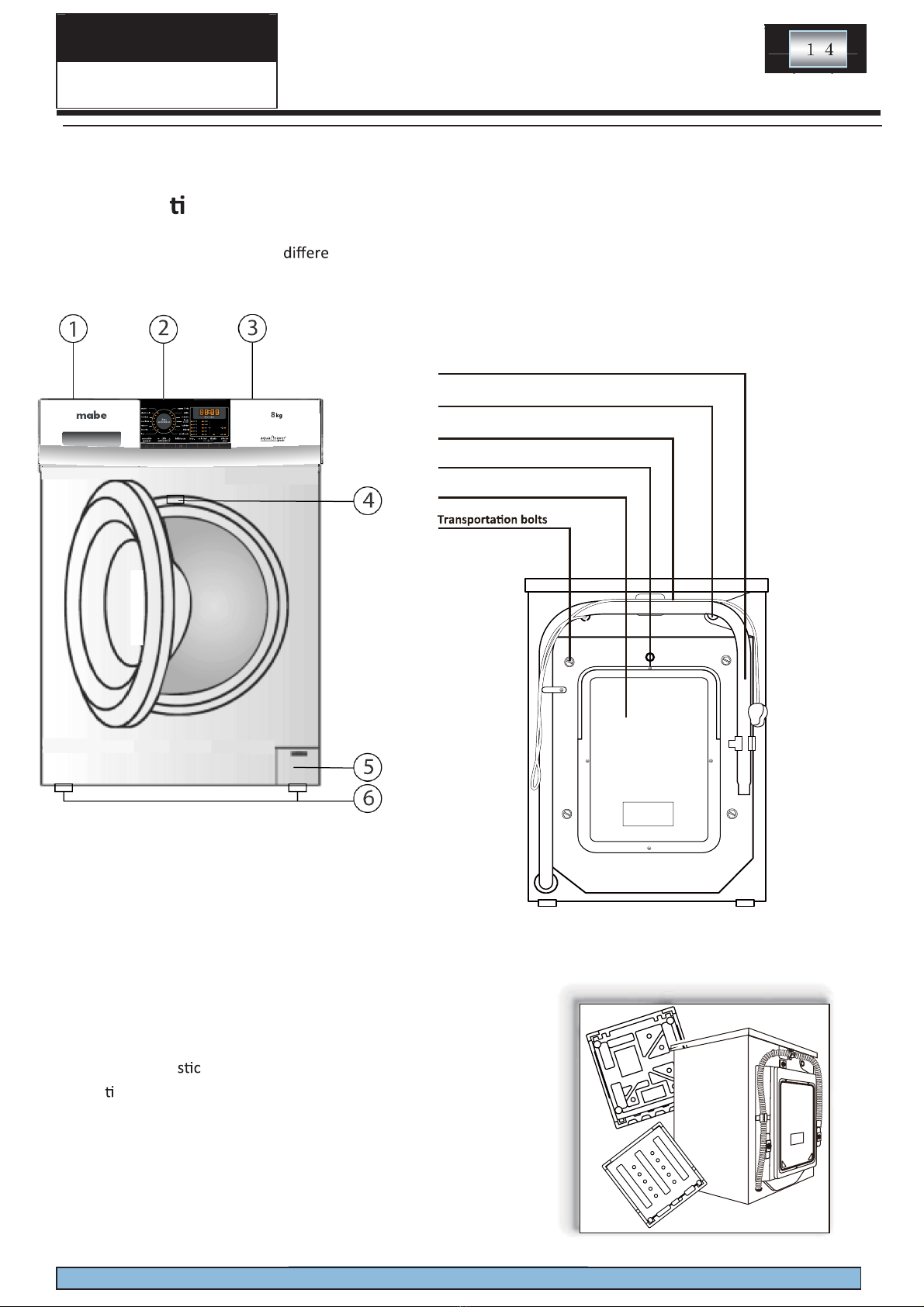

7-1. Name of parts _______________________________________________________
7-2. Net dimension_______________________________________________________
Chapter 8 Disassembly and Installation ______________________________________
8-1. Remove packing materials _____________________________________________
8-2. Dismantle packing bolts _______________________________________________
8-3. Adjusting the washing machine _________________________________________
829 Series
1-2.Quick reference sheet ________________________________________________
4

SERVICE MANUAL
829 Series
Front Load Washing Machine

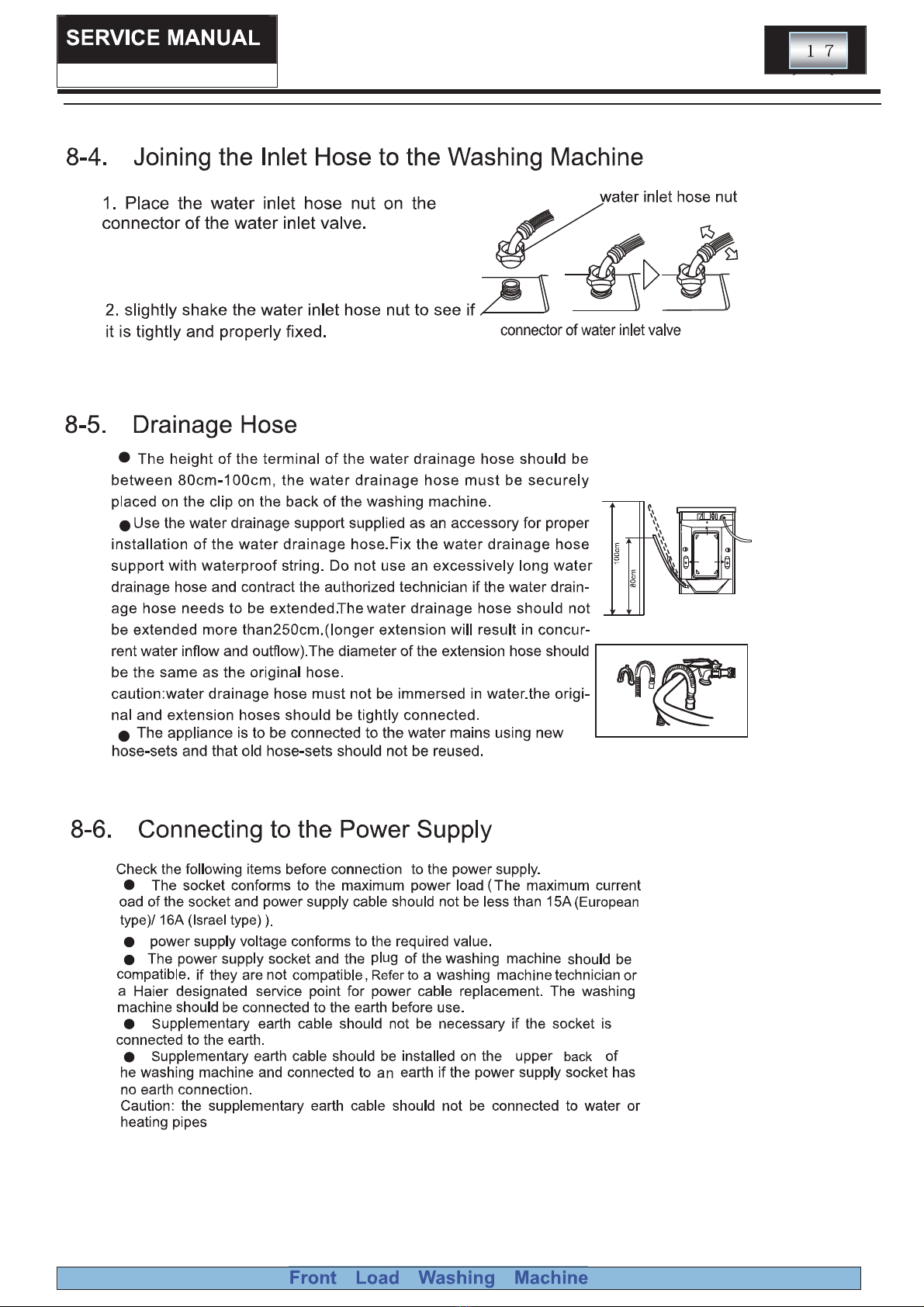

8-4. Joining the Inlet Hose to the Washing Machine _____________________________
8-5. Drainage Hose ______________________________________________________
8-6. Connecting to the Power Supply ________________________________________
Chapter 9 Wiring circuit and Self check ______________________________________

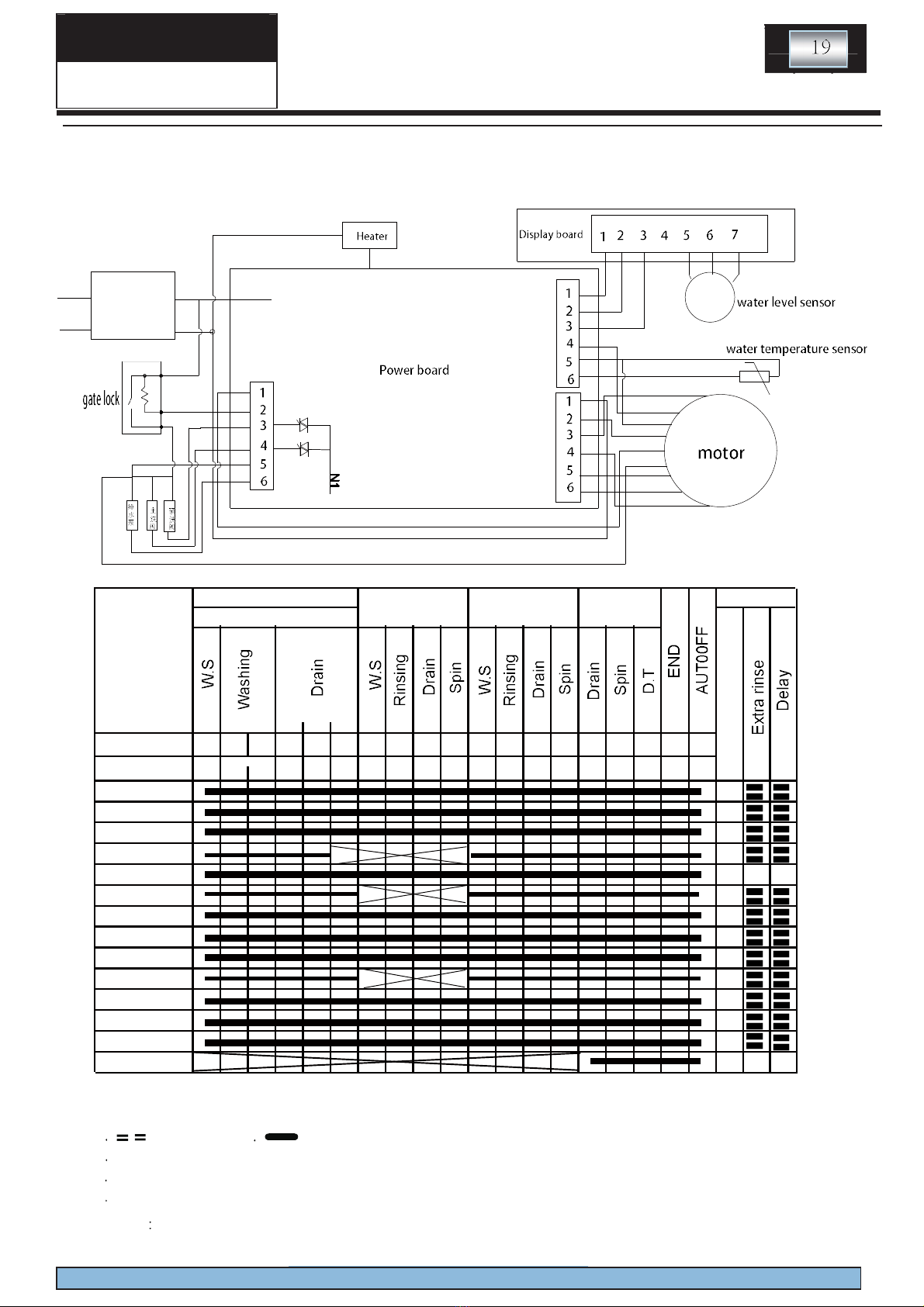

9-1. Wiring circuit ________________________________________________________
9-2. Self check __________________________________________________________
Chapter 10 Error Display and troubleshooting _________________________________
10-1. Error Display _______________________________________________________
10-2. Examination & Troubleshooting ________________________________________
10-2-1. Display nothing__________________________________________________
10-2-2. No water inletting ________________________________________________
10-2-3. No draining _____________________________________________________
10-2-4. Abnormal noise and vibration_______________________________________
10-2-5. Water leaking ___________________________________________________
Chapter 11 Disassembly guide ___________________________________________________
10-3. Parameter of primary eletronic appliance ________________________________
Chapter12 Maintenance ___________________________________________________

SE RVICE MANUAL
Front Load Washing Machine
Chapter 1 General Information
1-1. General Guidelines
When servicing,observe the original lead dress.If a short circuit is found, replace all parts which are
overheated or damaged by the short circuit.After servicing ,see to it that all the protective devices such as
insulation barriers ,insulation papers shields are properly installed .Confirm that the screws,parts and wiring
which were removed in order to service are put in the original positions, or whether there are the portions
which are deteriorated around the service places serviced or not. And be sure safety of that.
829 Series
1-2. Quick reference sheet
1-2-1. Model name explanation:
LMC0686XBBY
LMC0886XBBY
LMC1086XBBY
LMC1086XSSY0

SERVICE MANUAL
Front Load Washing Machine
Chapter 2 Product Feature
2-1. Features
(1). 320mm diameter porthole, door may be open at a 175 degrees.
Facilitate view of wash process, facilitate unloading and easy to use with large port.
(2). Class A energy-saving
Scientific design for tub can reduce the use of water heavy during washing, consequently upgrade the
energy efficiency class to A,also use scientific washing
(3). Multi-gear speed controller
According to different costuming you can select corresponding spin speed from 0 to 1400 rpm.
(4). Unique gasket design featuring no residual water hidden inside.
By the unique gasket washing machine can left no residual water hidden between outer drum and front
board.
(5). Delay time adjustive.
According to different costuming you can select delay time from 0.5h to 24h.
829 Series
(6). motor

SE RVICE MANUAL
Front Load Washing Machine
2-2. Specification
washing machines
Product identification
Description of appliance Washing machine
Type of appliance(FS = standing, BI = built-in) FS
Supplier own brand
Supplier bar code Europe EAN
HAIER
Commercial Brand / Model
1.
Commercial bar code EAN
Key-Features
Ener gy efficiency class
Washing performance class /
Spin efficiency class
B
Programs n°
Capacity kg 8106
Spin speed (max.) rpm 1000 1200 1400
Noise level sound pressure level dB(A) /
Energy consumption per wash circle 1.120.951.90 hWk
55 56.7 47
lelcychsawrepnoitpmusnocretaW
Annual average energy consumption * kWh
Annual average water consumption* l
Residual dampness (spin result) %
Adjustable thermostat (water temp. adjust from - to)°C 90 -
Drum capacity dry laundry / water kg / l
Auto water level adjust (depending on volume of filled in laundry) AWL
Washing time (max.) 160 nim
Washing temperatures (program-controlled) °C
20-90
Certification's (CE )
Approvals (VDE/GS / GS / IMQ) CE/GS
2.
* per average 200 wash cycles (EN50242) T= COLD
3. Basics data
850x595x410 850x595x550 850x595x600mm)DxWxH(snoisnemidtinU
Net weight kg 60 70 74
Voltage/frequency V/Hz 220V-240V~ 50Hz
Input power / main fuse (intensity) W / A 2050/10
Work top / removable ll
Control M = electromechanical, E = electronic, F = fuzzy E
Drum S = stainless steel / Z= zinc coated S
Tub P= Polyprop./ S= stainless steel P
Door:
aesthetic (R = round, Y = big eye, Q = square) R
Diameter 47 mc
Outer door frame S= stainless steel / M = metal / P = plastic P
Inner door G= glass / P= plastic G
Detergent compartments 3 °n
Removable compartment for liquid detergent -
Delay timer (from - to) h
Self cleaning suds pump
Water inlet hose cold water / hot water /-
Water drain hose / -support /
Adjustable feet n° 4
4. Safety systems
829 Series
/
/
/
/
/
/
0.5-24
-
mabe
mabe
/
14
LMC0686XBBY LMC0886XBBY LMC1086XSSY0
LMC1086XBBY

SERVICE MANUAL
Front Load Washing Machine
Auto door lock ADL
Motor overheating protection MOP
No heating without water NHW
Auto water cool-down (before drain 90°C boiled water) AWC
Water overflow protection WRP
Acqua Stop kit - -
Child protection
Programs
n°
n°
n°
n°
n°
n°
n°
n°
n°
n°
n°
n°
n°
n°
n°
Optional function keys (additional program settings)
ON/OFF
Start / Pause
Delay
Extra Rinse
Intense
Eco Time - -
-
-
-
-
-
-
-
-
Spin Select
Temperature Select
Baby Care
Cold wash
Super Wash
Pre-wash
Easy ironing
Packing dimensions & loadability
5.
890*650*515
7563
mm)DxWxH(snoisnemidgnikcaP
Gross weight kg
40' Container load pcs
Logistic / recicling information
6.
Packing weight kg
Packing materials / Recycling symbols
Carton gr Shrink package
Polistyren (weight)
(weight)
gr
Polyetylene foil (weight) gr
Other packing materials (weight)
(weight)
gr
Wood
Service
7.
User instruction (languages)
Max. failure rate (12 Months after sales to end customer) %
Delivery Time of First Batch Available
8.
9.
gr
1)Cotton
2)Synthetic
3)Mix
4)Wool
5)Under wear
6)Sport
7)Jeans
8)Hygienic
9)Fast
10)Express 15 min
11)Daily wash
12)Baby care
13)Delicate/Silk
14)Hand wash
15)Self Clean
(90°C/60°C/40°C/30°C/20°C )
(60°C/40°C/30°C/20°C )
(60°C/40°C/30°C/20°C )
(40°C/30°C/20°C )
(60°C/40°C/30°C/20°C )
(40°C/30°C/20°C )
(60°C/40°C/30°C/20°C )
(90°C/60°C/40°C/30°C/20°C )
(40°C/30°C/20°C )
(40°C/30°C/20°C )
(60°C/40°C/30°C/20°C )
(90°C/60°C/40°C/30°C/20°C )
(30°C/20°C )
(30°C/20°C )
(90°C )
RS
890*650*650 890*650*695
78
1500
200
300

3-1. Safety
BEFORE SWITCHING THE APPLIANCE ON FOR THE FIRST TIME
DO ...
... Make sure that the transportation bolt(T1,T2&T3) are
removed.
... Use a separate earthed socket for the power supply.
... Make sure that the plug is accessible.
... Hold the plug and not the electric cable when unplugging the
power supply.
... Make sure that the fuses in the power circuit are rated for
15A (European type)/ 16A (Israel type).
... Keep away from heat sources and direct sun light to
prevent
plastic and rubber components from aging.
... Make sure that the power cord is not caught under or in the
appliance and avoid damage to the power cable.
... Check that hose joints and connections are firm and no
water
can leak. If joints are loose or there is leakage,
turn off the
water supply and refix. Do not use the
washing machine until
the hoses are properly fixed.
SERVICE MANUAL
Chapter 3 Matters needing attention
829 Series
Front Load Washing Machine
This appliance can be used by children aged from 8 years and above and
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
maintenance shall not be made by children without supervision. Children of
less than 3 years should be kept away unless continuously supervised.
persons with reduced physical, sensory or mental capabilities or lack of
involved. Children shall not play with the appliance. Cleaning and user
DO NOT ...
... Touch or use the appliance when barefoot or with wet or
damp
hands or feet.
... Use flammable detergent or dry cleaning agent.
... Use any flammable sprays in close vicinity to the
appliance.
... Remove or insert the plug in the presence of flammable
gas.
... Allow children or infirm persons to play with the appliance or
packing materials.

SERVICE MANUAL
Front Load Washing Machine
DURING DAILY USE OF THE APPLIANCE
DO ...
... Pull up zips and fix loose threads to prevent the items from being
entangled. If necessary, put small items into
a net bag or pillow.
... Turn off the machine after each wash program and switch
it off at
the mains to save electricity and for safety. Wipe clean the lower
part of the porthole.
... Keep the door slightly open when the washing machine is not in
use to prevent formation of odours.
... Let the power cord be replaced by the manufacturer, his
service
agent or other accordingly qualified persons, in case it is damaged.
DO NOT ...
... Touch the washer door during the washing process - it
gets hot!
... Place heavy objects or sources of heat or damp on top of the app-
... Hot wash foam rubber or sponge-like materials.
... Open the detergent distribution drawer during the wash cycle.
... Force the washer door open. The door is fitted with a self-lock device
and will open shortly after the washing procedure is ended.
... Open the washer door if the water level is visibly over the
porthole.
... Cover the washing machine with plastic cover so that inside dampness
cannot be kept in.
3-2. During Use
829 Series
liance.
... Remove or insert the plug in the presence of flammable
gas.
... Allow children or infirm persons to play with the appliance
or
packing materials.

SE RVICE MANUAL
Front Load Washing Machine
8
1.
2.
3. Program
4. Wash Temp
5. Spin Speed
6.
7.
Extra Rinse
8.
9. LED Display
Delay
Oper onal Func ons
Nº Func on Explica on
1 Detergent
Drawer
2
Wash Temp
Spin Speed
3
4
5
Open the drawer, three compartments can be seen:
Compartment 1: Water inlet only,no detergent
Compartment 2: Detergent for programs 1 to 13.
indicator. Select a temperature according to the type of laundry.Note: If there
is no indicator light displayed, this means cold wash.
will be displayed on the indicator.Note: If there is no indicator light displayed,
this means no spinning.
Di erent water temperatures and spinning speeds can be set for
special requirement.
1
2
for the various washing temperatures, please refer to the
manual of detergent.
the correspondding light will illuminate.
counterclockwise clockwise
Temp.Speed Intense Delay Start/Pause
Extra rinse
HW80-BP14636
BLDC motor
+++
A
Auto weightCapacityEnergy
8kg
Self Clean
Temp.Speed Intense Delay Start/Pause
Extra rinse
R
+++
A
Energy
Capacity
10kg 1400
rpm
HW100-B14636
HW80-14829
+++
A
1400
CapacityrpmEnergy
8kg
DelayTemp. Spin
speed
Power Start/
Pause
Cotton
Cotton+
Synthetic
Mix
Jeans
Sport
Wool Spin
Express
15min
Fast
Delicate/
Silk
Hand
wash
Hygienic
Babycare
Program
HW70-12829
+++
A
1200
Capacity rpm Energy
7kg
DelayTemp. Spin
speed
Power Start/
Pause
Cotton
Cotton+
Synthetic
Mix
Jeans
Sport
Wool Spin
Express
15min
Fast
Delicate/
Silk
Hand
wash
Hygienic
Babycare
Program
HW60-14829
+++
A
1400
rpm
6kg
Clase
energética Capacidad
Temp. Vel.
Centrifugado
Encendido
/ Apagado Inicio / Pausa
Algodón
Algodón plus
Sintéticos
Mezclados
Vaqueros
Ropa
deportiva
Lana Centrifugado
Express 15 min
Rápido
Delicados
Lavado
Higiénico
Cuidado
Programa Aclarado
Extra
a mano
infantil
Fin
Diferido
R
Delay
Temp. Spin
speed
Power Start/
Pause
Cotton
Cotton+
Synthetic
Mix
Jeans
Sport
Wool Spin
Express
15min
Fast
Delicate/
Silk
Hand
wash
Hygienic
Babycare
°C
60
°C
20
°C
30
°C
90
°C
40
Program
R
1 2 3 8 4 5 7 6
9

11
829 Series
Extra Rinse
Start/Pause
disappears when the extra rinse ends.
When the washing machine is connected to the power socket and a
screen start blinking, press the Power switch, the program will be cancelled.
accordingly. When the laundry is not balanced during spinning, the
the washing machine will start the wash program directly.
6
7
8
LED Display
9
Delay
15

SERVICE MANUAL
829 Series
Front Load Washing Machine
Chapter 5 Program Introduction

1 Detergent compartment for prewash mode
2 Detergent compartment
Yes No
0-90° C 30°C h
0-60°C 30°C Chemical
0-60°C 30°C
0-40°C --- Woolen
C 20°C wear
0-40° Sports
0-60°C 30°C
90°C n
40-60°C 40°C s
0-40°C 40°C
0-40°C --- h
0-90°C 40°C h
0-30°C 30°C Silk
0-30°C 30°C s
---
1000 rpm
1000 rpm
1000 rpm
800 rpm
800 rpm
1000 rpm
1000 rpm
1400 rpm
1000 rpm
1000 rpm
1000 rpm
400 rpm
800 rpm
1000 rpm
P rogramme Temp. Preset re Preset Spin Speed
2 3 1
90°C
--- ---
n
Jeans
Type
n
c
3 Mix
4 Wool
6 Sport
7 Jeans
8 Hygienic
9 Fast
10 Exp r ess 15 min
re
13 Delicat e/Silk
14 Hand Wash
16 Spin

SERVICE MANUAL
Front Load Washing Machine
Chapter 6 Washing Mathods
6-1
6-2
6-3
829--- Series

SE RVICE MANUAL
Front Load Washing Machine
Chapter 7 Appearance brief introduction
7-1. Name of parts
T1 T2
T3 S1
S2 S4
S3
T4
Drain hose
Water inlet valve
Power cord
Back cover screws
Back cover
Before Use
Descrip on
This diagram may be slightly nt from the layout of the washing machine you have just
purchased.
Preparing the machine
Remove all the packing materials to prevent unsteadiness, including
the polystyrene base. Upon opening the package, water drops may be
seen on the pla bag and the porthole. This is normal phenomenon
resul ng from water tests in the factory.
e
n
1. Detergent/Softener drawer
2. Control panel
3. Worktop
4. Rating plate
5. Service flap
6. Adjustable feet
Temp.Speed Intense Delay Start/Pause
Extra rinse
HW80-BP14636
BLDC motor
+++
A
AutoweightCapacityEnergy
8kg
Self Clean
Temp.Speed Intense Delay Start/Pause
Extra rinse
R
+++
A
Energy
Capacity
10kg 1400
rpm
HW100-B14636
HW80-14829
+++
A
1400
CapacityrpmEnergy
8kg
DelayTemp. Spin
speed
Power Start/
Pause
Cotton
Cotton+
Synthetic
Mix
Jeans
Sport
Wool Spin
Express
15min
Fast
Delicate/
Silk
Hand
wash
Hygienic
Babycare
Program
HW70-12829
+++
A
1200
Capacity rpm Energy
7kg
DelayTemp. Spin
speed
Power Start/
Pause
Cotton
Cotton+
Synthetic
Mix
Jeans
Sport
Wool Spin
Express
15min
Fast
Delicate/
Silk
Hand
wash
Hygienic
Babycare
Program
HW60-14829
+++
A1400
rpm
6kg
Clase
energética Capacidad
Temp. Vel.
Centrifugado
Encendido
/ Apagado Inicio / Pausa
Algodón
Algodón plus
Sintéticos
Mezclados
Vaqueros
Ropa
deportiva
Lana Centrifugado
Express 15 min
Rápido
Delicados
Lavado
Higiénico
Cuidado
Programa Aclarado
Extra
a mano
infantil
Fin
Diferido
R
Delay
Temp. Spin
speed
Power Start/
Pause
Cotton
Cotton+
Synthetic
Mix
Jeans
Sport
Wool Spin
Express
15min
Fast
Delicate/
Silk
Hand
wash
Hygienic
Babycare
°C
60
°C
20
°C
30
°C
90
°C
40
Program
R

S
E
R
V
R
I
C
E
M
ANU
A
L
595
7-2. Net dimension
Front Load Washing Machine
Height:850mm / Width:595mm / Depth:410mm
Height:850mm / Width:595mm / Depth:550mm
Height:850mm / Width:595mm / Depth:600mm
410/550/600
LMC0686XBBY
LMC0886XBBY
LMC1086XBBY
Height:850mm / Width:595mm / Depth:600mm
LMC1086XSSY0

SERVICE MANUAL
Front Load Washing Machine
Chapter 8 Disassembly and Installation
8-1. Remove packing materials
8-2. Dismantle packing bolts
8-3. Adjusting the washing machine
829 Series

829Series

Chapter 9 Wiring circuit and Self check
Front Load Washing Machine
SERVICE MANUAL
829 Series

SERVICE MANUAL
Front Load Washing Machine
Chapter 9 Wiring circuit and Self check
829 Series

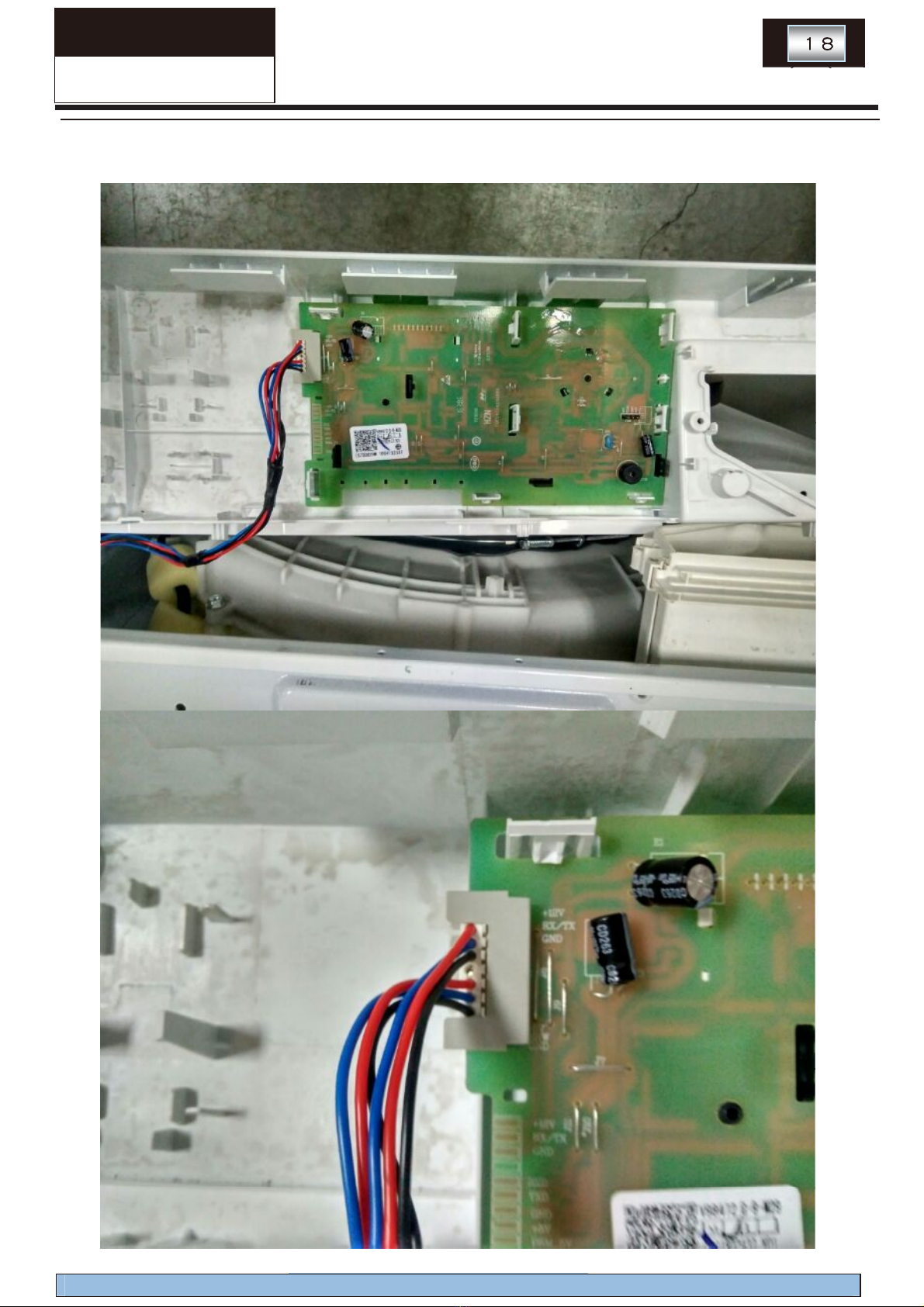

9-1. Wiring circuit

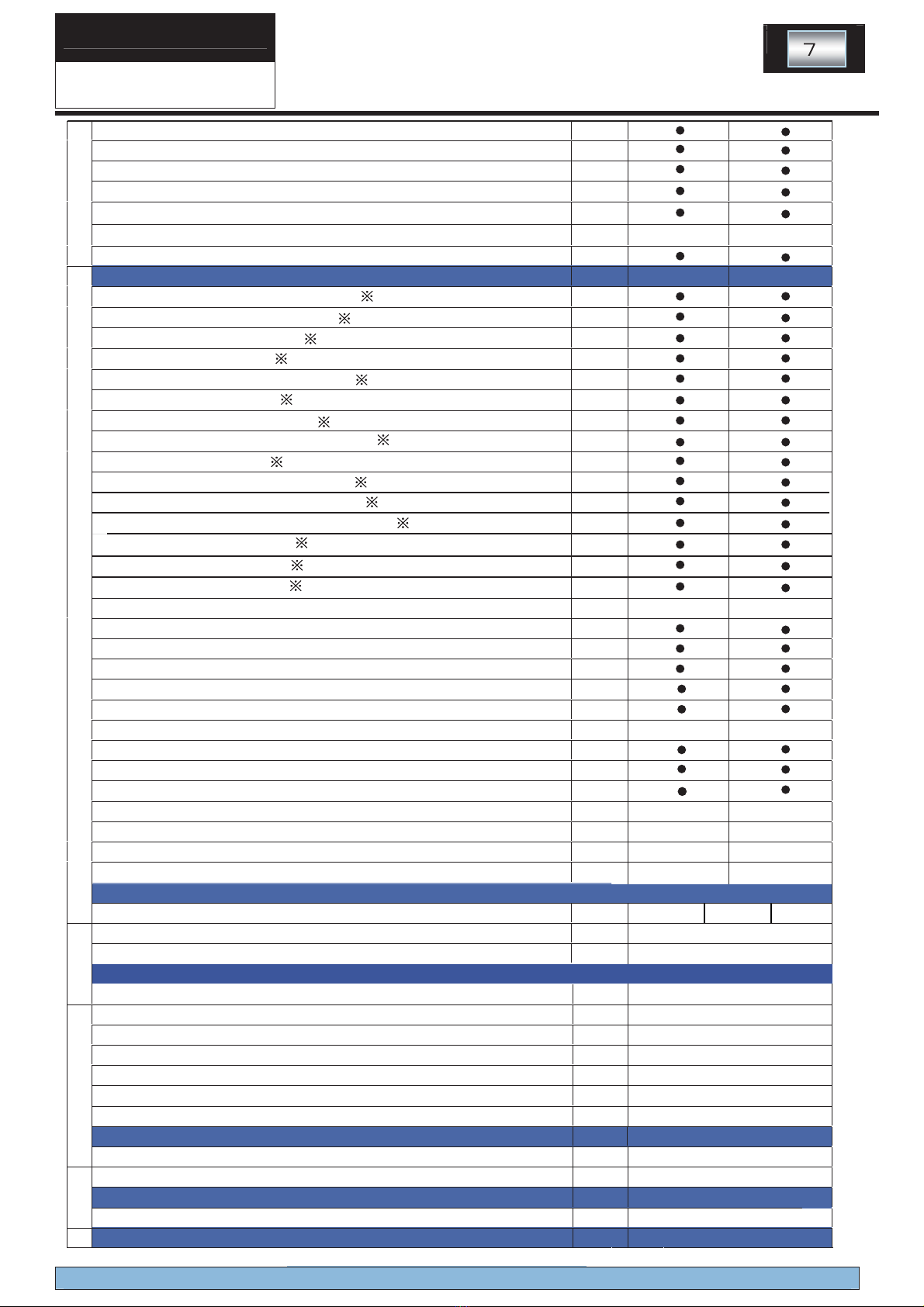

STEP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
NOTE
Cotton
Cotton+
Synthetic
Mix
Wool
××
Sport
Jeans
Hygienic
Fast
Express 15 min
Baby Care
Delicate/Silk
Hand Wash
Spin × ×
CYCLE
NOTE
Addition
Washing
Main Rinse Soften Spin
Basic cycle
Optional cycle
The actual program time can be varied with the load amount and water temperature.
Water Supply : W.S Disentangle : D.T
Basic time is minute in washing chart.
Note The heating time can be varied with the selected water temperature .
The heating starts at the same time of washing.
MRC
MRN
MRL
Filter
L
N
L0
N0
JK1 JK2
WL
5V
black
brown
brown
brown
brown
black
black
green
green
white
white
pink
pink
purple
red
red
red
red
red
red
blue
blue
blue
blue
blue
blue
blue
blue
grey grey
red
PGND
M1
M3
M4
M5
M6
M7
M8
M9
M10
CN1
CN2
CN3

and then press the “Temp.” and
Front Load Washing Machine
SERVICE MANUAL
9-2. Self check
Self check
1.How to start
2. Test item
Model selection
1.Press the power and extra rinse button and then put the plug in to the socket at the
same
time for 4 seconds, and it will enter the model-se
lecton model.
2.The default display shows 08 . Press the program button to choose 00/
till the needed model. Then press the start/pause button and
the mode can be storage. The model can not be changed after storage.
3.If you want to change the model again after storage, you can cut off the NTC and
do the cycle adjustment.
4.Model ，
you should choose 08.
Model ，
you should choose 09.
Model ，
you should choose 12.
5.Press On/Off button gently for 2 seconds to switch off the machine as buttons are
soft touch sensitive.
829 Series
01/02/03/04/05/06/07/08
20
LMC 0686XBBY
LMC 0886XBBY
LMC1086XBBY/
at the same time, then wait for about 3 seconds, the LED will display
” and all the light will light.
Press the "Extra rinse" key once to enter the machine model detection.
Then press the "Extra rinse" key once to enter the version number detecting Haier.
Press the “Power” button, the LED will light,
“Delay” button
“
1). Press the "Extra rinse" the third time to enter " " sensor mode. If the problem,
the water level sensor alarm FA, the water level sensor alarm F3.
2). Press the "Extra rinse" the fourth time to enter " " main wash valve detection
mode to observe whether the water tank detergent box water
inlet water.
3).Press the "Extra rinse" the fifth time to enter " " softener valve detection mode,
to observe whether the detergent box storage tank at the water inlet.
4). Press the “Extra rinse” the sixth time to enter “ ”, the machine test end.
LMC1086XSSY0
