Mac allister MPWP2200 User manual

EN
Original Instructions_MNL_MPWP2200_GB_V2_20200826_95476-HK
MPWP2200
Pressure washer
EAN: 5059340104065
CAUTION: Read the instructions before using the product!
MNL_MPWP2200_MAC_GB_V5_200528.indd 1 5/28/20 8:39 AM
BX220IM

EN
Let’s
get started...
02
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
36
36
37
34
30
27
23
In more detail...
Product functions
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
Guarantee
EC declaration of conformity
22
02
03
10
13
Getting started...
Safety information
Your product
Before you start
MNL_MPWP2200_MAC_GB_V5_200528.indd 2 5/28/20 8:39 AM

EN
MPWP2200 by MacAllister
Getting started...
03
Safety information
Safety warnings
1. Machines shall not be used by children. Children
should be supervised to ensure that they do not play
with the product.
2. This machine can be used by people with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
machine in a safe way and understand the hazards
involved.
Safety warnings for pressure washer
1. WARNING: This product has been designed for use
with the cleaning agent supplied or recommended by
the manufacturer. The use of other cleaning agents
or chemicals may adversely affect the safety of the
machine.
2. WARNING: During use of pressure washers, aerosols
may be formed. Inhalation of aerosols can be
hazardous to health.
3. WARNING: High pressure jets can be dangerous if
subject to misuse. Never direct the jet at persons, live
electrical equipment or the product itself.
4. WARNING: Do not use the machine within range of
persons unless they wear protective clothing.
5. WARNING: Do not direct the jet against yourself or
others in order to clean clothes or foot-wear.
6. WARNING: Risk of explosion – Do not spray ammable
liquids.
7. WARNING: Pressure washers shall not be used by
children or untrained personnel.
8. WARNING: High pressure hoses, ttings and couplings
are important for the safety of the product. Use only
hoses, ttings and couplings recommended by the
manufacturer.
MNL_MPWP2200_MAC_GB_V5_200528.indd 3 5/28/20 8:39 AM

EN
04
MPWP2200 by MacAllister
Getting started...
Safety information
Safety warnings
9. WARNING: To ensure machine safety, use only original
spare parts from the manufacturer or approved by the
manufacturer.
10. WARNING: Water that has owed through backow
preventers is considered to be non-potable.
11. WARNING: Remove the plug from the socket-outlet
and disconnected from the power source during
cleaning or maintenance and when replacing parts or
converting the machine to another function.
12. WARNING: Do not use the machine if a supply cord
or important parts of the machine are damaged, e.g.
safety devices, high pressure hoses, trigger gun.
13. WARNING: Inadequate extension cords can be
dangerous. If an extension cord is used, it shall be
suitable for outdoor use, and the connection has to be
kept dry and off the ground. It is recommended that
this is accomplished by means of a cord reel which
keeps the socket at least 60 mm above the ground.
14. WARNING: Always switch off the mains disconnecting
switch when leaving the machine unattended.
15. Never use the product with inammable or toxic liquids,
or liquids with characteristics incompatible with its
proper operation.
16. Never use the product outdoors in the rain.
17. Never lock the gun trigger in the operating position.
18. Check that the product is tted with its rating label;
contact your dealer if it is missing. Products without
rating label must not be used, since they cannot be
identied and are potentially hazardous.
19. Never tamper with or adjust the setting of the safety
valve or the safety devices.
20. Never change the original diameter of the adjustable
nozzle.
MNL_MPWP2200_MAC_GB_V5_200528.indd 4 5/28/20 8:39 AM

EN
MPWP2200 by MacAllister
Getting started...
05
Safety information
21. Never leave the product unattended when it is running.
22. Do not allow vehicles to drive over the pressure hose.
23. Do not move the product by pulling on the pressure
hose.
24. When directed towards tyres, tyre valves or other
pressurised components, the high pressure jet is
potentially dangerous. Do not apply a jet stream and
always keep the nozzle at a distance of at least 30 cm
during cleaning.
25. Protect all electrical conductors against the water jet.
26. High pressure may cause parts to rebound: wear
all the protective clothing and equipment needed to
ensure the operator’s safety.
27. Wear appropriate Personnel Protection Equipment
(PPE) while operation e.g. safety boots, safety gloves,
safety helmets with visors, hearing protection etc.
28. Be aware of kick-back: grip the gun rmly when
squeezing the trigger.
29. Comply with the regulations of the local water supply
authority. Under EN 12729 (BA) the product can be
connected directly to the mains drinking water supply
only if the supply hose is tted with a backow preventer
device with drainage facility.
30. Discharge residual pressure before disconnecting the
hose from the product.
31. Check before each use, and at regular intervals,
that all metal fasteners are tight and the product’s
components are in good condition; inspect for broken
or worn parts.
32. WARNING: Use only detergents compatible with
the high pressure hose cladding materials or other
cladding materials.
MNL_MPWP2200_MAC_GB_V5_200528.indd 5 5/28/20 8:39 AM

EN
06
MPWP2200 by MacAllister
Getting started...
Safety information
Safety warnings
33. The electric supply connection shall be made by a
qualied electrician and comply with IEC 60364- 1.
It is recommended that the electric supply to this
machine should include a residual current device that
will interrupt the supply if the leakage current to earth
exceeds 30 mA for 30 ms or a device that will prove
the earth circuit.
34. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
The following information applies to professional users
only but is good practice for all users:
Vibration and noise reduction
To reduce the impact of noise and vibration emission, limit
the time of operation, use low-vibration and low-noise
operating modes as well as wear personal protective
equipment.
Take the following points into account to minimise the
vibration and noise exposure risks:
1. Only use the product as intended by its design and
these instructions.
2. Ensure that the product is in good condition and well
maintained.
3. Use correct accessories for the product and ensure
they are in good condition.
4. Keep tight grip on the handles/grip surface.
5. Maintain this product in accordance with these
instructions and keep it well lubricated (where
appropriate).
MNL_MPWP2200_MAC_GB_V5_200528.indd 6 5/28/20 8:39 AM

EN
MPWP2200 by MacAllister
Getting started...
07
Safety information
6. Plan your work schedule to spread any high vibration
tool use across a longer period of time.
7. Prolonged use of the product exposes the user
to vibrations that can cause a range of conditions
collectively known as hand-arm vibration syndrome
(HAVS) e.g. ngers going white; as well as specic
diseases such as carpal tunnel syndrome. To reduce
this risk when using the product, always wear protective
gloves and keep your hands warm.
Emergency
Familiarise yourself with the use of this product by
means of this instruction manual. Memorise the
safety directions and follow them to the letter. This
will help to prevent risks and hazards.
1. Always be alert when using this product, so that you
can recognise and handle risks early. Fast intervention
can prevent serious injury and damage to property.
2. Switch off and disconnect from the power supply if
there are malfunctions. Have the machine checked
by a qualied professional and repaired, if necessary,
before you operate it again.
Residual risks
Even if you are operating this product in accordance
with all the safety requirements, potential risks of
injury and damage remain. The following dangers
can arise in connection with the structure and design
of this product:
1. Health defects resulting from vibration emission if the
product is being used over long periods of time or not
adequately managed and properly maintained.
2. Injuries and damage to property due to broken
attachments or the sudden impact of hidden objects
during use.
MNL_MPWP2200_MAC_GB_V5_200528.indd 7 5/28/20 8:39 AM

EN
08
MPWP2200 by MacAllister
Safety information
Getting started...
Safety warnings
3. Danger of injury and property damage caused by ying
objects.
WARNING! This product produces an
electromagnetic eld during operation! This eld
may under some circumstances interfere with
active or passive medical implants! To reduce
the risk of serious or fatal injury, we recommend
persons with medical implants to consult their
doctor and the medical implant manufacturer
before operating this product!
Symbols
On the product, the rating label and within these instructions you will nd among
others the following symbols and abbreviations. Familiarise yourself with them to
reduce hazards like personal injuries and damage to property.
V~ Volt, (alternating voltage)
Hz Hertz
W Watt
/min or min-1 Per minute
mm Millimetre
kg Kilogram
dB(A) Decibel (A-rated)
m/s² Metres per second squared
MPa Mega Pascal, pressure unit
bar Pressure unit
IPX5 The product is protected against water (out of a nozzle) from all
directions.
yyWxx Manufacturing date code; year of manufacturing (20yy) and week
of manufacturing (Wxx).
Lock / to tighten or secure.
Unlock / to loosen.
MNL_MPWP2200_MAC_GB_V5_200528.indd 8 5/28/20 8:39 AM

EN
MPWP2200 by MacAllister
Getting started...
09
Safety information
Note / Remark.
Caution / Warning.
Read the instruction manual.
Wear hearing protection.
Wear eye protection.
Wear respiratory protection.
Wear protective gloves.
Wear protective, slip-resistant footwear.
Switch the product off and disconnect it from the power supply
before assembly, cleaning, adjustments, maintenance, storage
and transportation.
Always ensure that other people and pets remain at a safe distance
from the product when it is in operation. In general, children must
not come near the area where the product is.
Do not expose the product to rain or wet conditions.
This product is not suitable for connection to the potable water
mains.
Do not direct the water jet onto people, animals, electrical equipment
or onto the product itself.
Lock both brakes during operation
Unlock both brakes during transportation
Guaranteed sound power level value in dB.
MNL_MPWP2200_MAC_GB_V5_200528.indd 9 5/28/20 8:39 AM

EN MPWP2200 by MacAllister
Getting started...
10
Safety information / Your product
Symbols
This product is of protection class II. That means it is equipped with
enhanced or double insulation.
The product complies with the applicable European directives and
an evaluation method of conformity for these directives was done.
WEEE symbol. Waste electrical products should not be disposed
of with household waste. Please recycle where facilities exist.
Check with your Local Authority or local store for recycling advice.
Your product
1
2
4
17
16
5
3
6
14
10
9
7
8
8a
11
12
13
15
MNL_MPWP2200_MAC_GB_V5_200528.indd 10 5/28/20 8:39 AM

EN
MPWP2200 by MacAllister
Getting started...

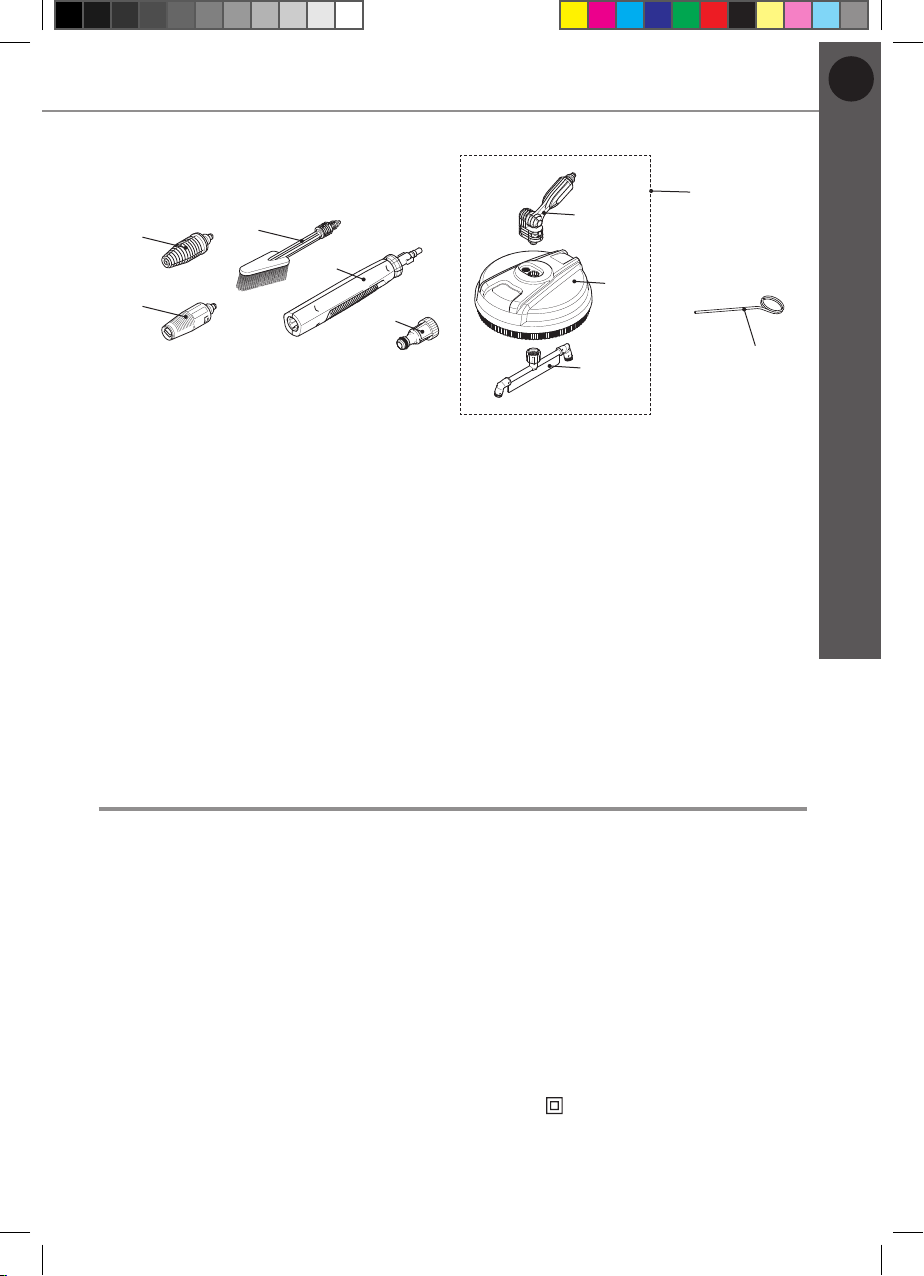

Your product
11
18
19
20
21
22
24
23a
23
23b
23c
1. Transportation handle
2. Hose reel
3. Pressure hose
4. Winding handle
5. Front wheel (X2)
6. Water inlet
7. Extension lance
8. Spray gun holder
a. Fixing screw
9. Spray gun
10. Accessories chamber
11. Supply cord
12. Supply cord holder (X2)
13. Rear wheel (X2)
14. Brake pedal (X2)
15. Soap tank
16. On/off switch 0/1/2
17. Lock-off button
18. Rotary nozzle
19. Vario nozzle
20. Rims brush
21. Short extension lance
22. Water inlet hose adaptor
23. Patio brush
24. Cleaning needle
Technical specications
General
> Rated voltage/frequency : 220 – 240 V ~ / 50 Hz
> Rated input : 2200 W
> Rated pressure : 11.5 MPa
> Max. allowable pressure : 15 MPa
> Max. inlet water pressure : 1 MPa
> Rated ow :5.5 l/min
> Max. rated ow :8.33 l/min
> Rated temperature : 50°C
> Gun kickback force at max. pressure : < 2.5 Nm
> Protection class : II
> Degree of protection : IPX5
> Weight : 14.7 kg
MNL_MPWP2200_MAC_GB_V5_200528.indd 11 5/28/20 8:39 AM

EN MPWP2200 by MacAllister
Getting started...
12
Your product
Technical specications
> Dimensions : 441 X 479 X 864 mm
High pressure hose
> Allowable pressure : 20 MPa
> Maximum temperature : 60 °C
> Length : 10 m
Water hose (not supplied)
> Quality : reinforced PVC hose
> Diameter : min. Ø 12.7 mm (½“)
> Max. length : 10 m
Sound level
> Sound pressure level LpA :78.8 dB(A)
> Uncertainty KpA :2.50 dB(A)
> Measured sound power level LWA :90.3 dB(A)
> Uncertainty KWA :2.50 dB(A)
> Guaranteed sound power level LWA
(acc. to 2000/14/EC amended by
2005/88/EC)
:93 dB(A)
Vibration level
> Declared vibration emission value ahd : <2.5 m/s²
> Uncertainty K : 1.0m/s²
The sound values have been determined according to noise test code given in
EN 60335-2-79, using the basic standards ISO 3744 and ISO 11203.
The sound intensity level for the operator may exceed 80 dB(A) and ear protection
measures are necessary.
The declared vibration value has been measured in accordance with a standard
test method (according to EN 60335-2-79) and may be used for comparing
one product with another. The declared vibration value may also be used in a
preliminary assessment of exposure.
MNL_MPWP2200_MAC_GB_V5_200528.indd 12 5/28/20 8:39 AM

EN
MPWP2200 by MacAllister
Getting started...
13
Your product / Before you start
WARNING! Depending on the actual use of the product the vibration
values can differ from the declared total! Adopt proper measures to
protect yourself against vibration exposures. Take the whole work
process including times the product is running under no load or
switched off into consideration. Proper measures include among
others regular maintenance and care of the product and cutting
attachments, keeping hands warm, periodical breaks and proper
planning of work processes.
Rating Label Explanation
MPWP2200
M = MacAllister
PW = Pressure washer
P2200 = Power 2200 W
P rated: Rated pressure
P max: Allowable pressure
Q rated: Rated ow
Q max: Max ow
p IN MAX: Max inlet water pressure
Unpacking
WARNING! The product is heavy, ask another person for assistance
if required!
1. Unpack all parts and lay them on a at, stable surface.
2. Remove all packing materials and shipping devices if applicable.
3. Make sure the delivery contents are complete and free of any damage. If
you nd that parts are missing or show damage do not use the product but
contact your dealer. Using an incomplete or damaged product represents a
hazard to people and property.
4. Ensure that you have all the accessories and tools needed for assembly and
operation. This also includes suitable personal protective equipment.
WARNING! The product and the packaging are not children’s toys!
Children must not play with plastic bags, sheets and small parts!
There is a danger of choking and suffocation!
MNL_MPWP2200_MAC_GB_V5_200528.indd 13 5/28/20 8:39 AM

EN MPWP2200 by MacAllister
Before you start
Getting started...
14
You will need
(items not supplied)
Suitable personal protective equipment
Crosshead screwdriver
Water hose
(items supplied)
Extension lance (7)
Spray gun holder (8)
Fixing screw (8a)
Spray gun (9)
Rotary nozzle (18)
Vario nozzle (19)
Rims brush (20)
Short extension lance (21)
Water inlet hose adaptor (22)
Patio brush (23)
Assembly
WARNING! The product must be fully assembled before operation!
Do not use a product that is only partly assembled or assembled with
damaged parts!
Follow the assembly instructions step-by-step and use the pictures
provided as a visual guide to easily assemble the product!
Do not connect the product to power supply before it is completely
assembled!
NOTE: Take care of small parts that are removed during assembly or
when making adjustments. Keep them secure to avoid loss.
Spray gun holder
1. Slide the spray gun holder (8) to the product and secure it with the screw (8a)
(Fig. 1).
Pressure hose
1. Insert the connector (3a) of the pressure hose (3) into the hose connection
port (9a) of the spray gun (9). Ensure it snaps in place (Fig. 2). Press the
release button (9b) to unlock if necessary.
8
8a Click
33a 9a
9b
9
Fig. 1 Fig. 2
MNL_MPWP2200_MAC_GB_V5_200528.indd 14 5/28/20 8:39 AM

EN
MPWP2200 by MacAllister
Getting started...
Before you start
15
Patio brush
1. Align the angle connector (23a) to the holes
on the housing (23b) and insert the angle
connector into the housing. (Fig. 3, step 1)
2. Connect the rotary shaft (23c) to the angle
connector. (step 2)
3. Secure the connection with the nut (23d)
(step 3).
1.
2.
3.
23a
23b
23c
23d
Fig. 3
Two extension lances (7, 21) and several accessories are supplied with this
product.
Please check the technical specication of any accessories that you purchase to
ensure they are compatible with this product.
Illustration Description Application
Extension lance (7) To be used in conjunction with
the spray gun, short extension
lance,nozzle, patio brush and
rims brush.
Short extension lance
(21)
To be used in conjunction with
the spray gun, extension lance
and patio brush.
Rotary nozzle (18) To be used for high pressure
cleaning in conjunction with the
extension lance.
Vario nozzle (19) Fan and pin jet to be used in
conjunction with the extension
lance.
Soap tank (15) High pressure setting to apply
detergent.
To be used in conjunction with
the spray gun.
MNL_MPWP2200_MAC_GB_V5_200528.indd 15 5/28/20 8:39 AM

EN MPWP2200 by MacAllister
Before you start
Getting started...
16
Accessories
Rims brush (20) with
adaptor (20a)
Cleaning of wheels and rims on
vehicles.
To be used in conjunction with
the extension lance.
Patio brush (23) Cleaning of oors, e.g. garden
path or courtyards.
To be used in conjunction with
the extension lance and short
extension lance.
Attaching accessories
1. Align and insert the tongues (7a)
of the extension lance (7) into
the grooves of the spray gun (9)
connection port. (Fig. 4, step 1).
2. Securely t the extension lance (7)
by turning it clockwise to lock it in
place (step 2). Ensure the arrow on
the spray gun aligns with the arrow
on the extension lance.
9
7a
7
1.
2.
Fig. 4
3. Align the tongues (18a) of the nozzle with
the grooves of the extension lance (7)
connection port (Fig. 5).
4. Insert the nozzle into the connection port
all the way to the end. Ensure it engaged
properly.
Removing accessories
1. Press the release button (7b) (Fig. 6, step 1)
and remove the nozzle (step 2).
2. Press the extension lance (7) towards
the spray gun (9) (Fig. 7, step 1) and turn it
anti-clockwise (step 2) to remove it (step 3).
7
18a Click
Fig. 5
7b 1.
2.
Fig. 6
MNL_MPWP2200_MAC_GB_V5_200528.indd 16 5/28/20 8:39 AM

EN
MPWP2200 by MacAllister
Getting started...
Before you start
17
1.
2. 3.
7
9
Fig. 7
Rotary nozzle
The high pressure rotary nozzle is intended for maximum cleaning effect. Keep
the spray wand 15-20 cm away from the surface being cleaned at all times.
1. Always attach the extension lance (7) when using the rotary nozzle (18) (Fig. 8).
7
18
19
Fig. 8
Vario nozzle
The vario nozzle is intended for a large choice of applications and cleaning effects.
1. Always use the vario nozzle (19) with the extension lance (7) attached (Fig. 8).
2. Turn the vario nozzle to adjust the water jet according to the surface to be
cleaned (Fig. 9).
3. Use the fan spray to clean wood decks, siding, vehicles etc.
4. Always start using the fan spray and begin spraying from a minimum 30 cm
away to avoid damaging the surface of the material being cleaned.
5. Use the pin spray for maximum cleaning effect.
18
Fig. 9
Rims brush
The rims brush is specially designed to clean rims and vehicle wheels.
MNL_MPWP2200_MAC_GB_V5_200528.indd 17 5/28/20 8:39 AM

EN MPWP2200 by MacAllister
Before you start
Getting started...
18
Accessories
1. Attach the extension lance (7) onto
the spray gun (9) (Fig. 10).
2. Attach the rims brush (20) onto the
extension lance.
3. Slightly rotate the rims brush to
ensure it faces the proper position if
necessary.
20
9
7
20a
Fig. 10
Patio brush
The patio cleaner is specially designed to clean large at surfaces.
1. Always attach the short extension lance (21) when using the patio brush.
2. Align and insert the tongues (21a) of the short extension lance (21) into the
grooves of the spray gun (9) connection port. (Fig. 11, step 1).
3. Turn the short extension lance clockwise to lock it in place
(step 2). Ensure the arrow on the spray gun aligns with the arrow on the
extension lance.
3. 2. 5.
1. 4.
21a
21b 21 7a 7
9
Fig. 11
4. Securely t the short extension lance (21) by turning the sleeve (21b)
clockwise (step 3).
5. Align and insert the tongues (7a) of the extension lance (7) into the grooves
of the short extension lance (21) connection port (step 4)
MNL_MPWP2200_MAC_GB_V5_200528.indd 18 5/28/20 8:39 AM

EN
MPWP2200 by MacAllister
Getting started...
19
Before you start
6. Securely t the extension lance (7) by
turning it clockwise to lock it in place
(step 5). Ensure the arrow on the
short extension lance aligns with the
arrow on the extension lance.
7. Attach the patio brush (23) onto the
extension lance (7) (Fig.12).
8. The angle of the connector (23a) can
be adjust as required.
23a
23
21
9
7
Fig. 12
WARNING! The patio brush is only intended to be used on at patio
surfaces! Do not attempt to use it on steps or use it vertically on
walls. Never attempt to touch the rotating nozzle while operating.
Soap tank
Some cleaning tasks can be completed with water alone, but for most tasks it is
advantageous to use a detergent. A detergent ensures a quick soaking of the dirt
allowing the high pressure water to penetrate and remove dirt more effectively.
1. Loosen the soap tank cap. Put proper detergent into the tank and then tighten
the cap afterwards.
2. Align and insert the tongues (15a) of the soap tank (15) with the grooves of
the spray gun (9) connection port (Fig. 13, step 1).
3. Securely t the soap tank by turning it clockwise to lock it in place (step 2).
15a
15
15c
15b
9
1. 2.
Fig. 13
4. Turn the ow rate knob (15b) to adjust the detergent ow rate. During operation
the detergent mixes automatically with water and is released through the
detergent nozzle (15c).
MNL_MPWP2200_MAC_GB_V5_200528.indd 19 5/28/20 8:39 AM

EN MPWP2200 by MacAllister
Before you start
Getting started...
20
Accessories
NOTE: Only use mild, environmentally friendly detergents. Never
use aggressive chemicals, abrasive detergents or similar to avoid
damage to your health, the product and the environment.
WARNING! Avoid skin contact with detergents, in particular contact
with eyes! If detergent gets in your eyes, ush your eyes with clean
water and seek immediate medical attention!
Connection to the water supply
WARNING! This product is not intended to be connected to the
potable water mains!
Observe the regulations of your local utility company when connecting
the product to a water supply line! It is prohibited to connect this
product to the drinking water facility without a backow preventer
which corresponds to EN 12729 Type BA or EN 61770! Make sure
that the hose is at least a diameter of min. Ø 12.7 mm (1/2“) and is
reinforced!
Connection to the water supply

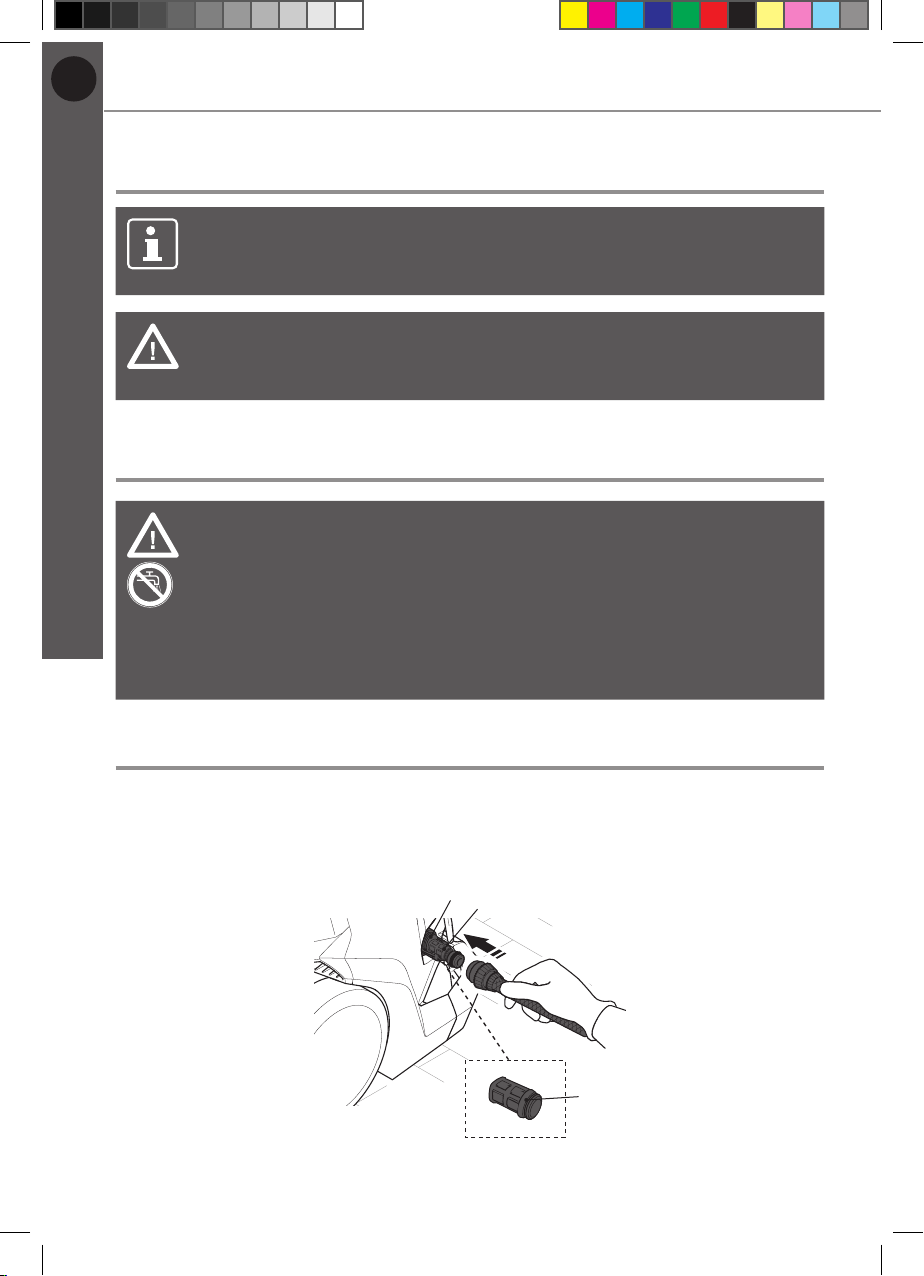

1. Attach the water inlet hose adaptor (22) on the water inlet (6) (Fig. 14).
2. Attach a suitable water hose (not included) onto the water supply and then
the other end onto the water inlet hose adaptor (22).
3. Open the water supply.
22a
622
Fig. 14
MNL_MPWP2200_MAC_GB_V5_200528.indd 20 5/28/20 8:39 AM
