MPWP2700 by MacAllister
Getting started...
03
Safety information
Safety warnings
1. Machines shall not be used by children. Children
should be supervised to ensure that they do not play
with the product.
2. This machine can be used by people with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
machine in a safe way and understand the hazards
involved.
Safety warnings for high pressure cleaner
1. WARNING: This product has been designed for use
with the cleaning agent supplied or recommended by
the manufacturer. The use of other cleaning agents
or chemicals may adversely affect the safety of the
machine.
2. WARNING: During use of high pressure cleaners,
aerosols may be formed. Inhalation of aerosols can
be hazardous to health.
3. WARNING: High pressure jets can be dangerous if
subject to misuse. Never direct the jet at persons, live
electrical equipment or the product itself.
4. WARNING: Do not use the machine within range of
persons unless they wear protective clothing.
5. WARNING: Do not direct the jet against yourself or
others in order to clean clothes or foot-wear.
6. WARNING: Risk of explosion – Do not spray flammabl
liquids.
7. WARNING: High pressure cleaners shall not be used
by children or untrained personnel.
8. WARNING: High pressure hoses, fittings and couplings
are important for the safety of the product. Use only
hoses, fittings and couplings recommended by the
manufacturer.
MNL_MAC_GB_High pressure cleaner_MPWP2700_V5_200528.indd 3 5/28/20 8:31 AM

EN
04
MPWP2700 by MacAllister
Getting started...
Safety information
Safety warnings
9. WARNING: To ensure machine safety, use only original
spare parts from the manufacturer or approved by the
manufacturer.
10. WARNING: Water that has flowed through backflow
preventers is considered to be non-potable.
11. WARNING: Remove the plug from the socket-outlet
and disconnected from the power source during
cleaning or maintenance and when replacing parts or
converting the machine to another function.
12. WARNING: Do not use the machine if a supply cord
or important parts of the machine are damaged, e.g.
safety devices, high pressure hoses, trigger gun.
13. WARNING: Inadequate extension cords can be
dangerous. If an extension cord is used, it shall be
suitable for outdoor use, and the connection has to be
kept dry and off the ground. It is recommended that
this is accomplished by means of a cord reel which
keeps the socket at least 60 mm above the ground.
14. WARNING: Always switch off the mains disconnecting
switch when leaving the machine unattended.
15. Never use the product with inflammable or toxic liquids,
or liquids with characteristics incompatible with its
proper operation.
16. Never use the product outdoors in the rain.
17. Never lock the gun trigger in the operating position.
18. Check that the product is fitted with its rating label;
contact your dealer if it is missing. Products without
rating label must not be used, since they cannot be
identified and are potentially hazardous
19. Never tamper with or adjust the setting of the safety
valve or the safety devices.
20. Never change the original diameter of the adjustable
nozzle.
MNL_MAC_GB_High pressure cleaner_MPWP2700_V5_200528.indd 4 5/28/20 8:31 AM

EN
MPWP2700 by MacAllister
Getting started...
05
Safety information
21. Never leave the product unattended when it is running.
22. Do not allow vehicles to drive over the pressure hose.
23. Do not move the product by pulling on the pressure
hose.
24. When directed towards tyres, tyre valves or other
pressurised components, the high pressure jet is
potentially dangerous. Do not apply a jet stream and
always keep the nozzle at a distance of at least 30 cm
during cleaning.
25. Protect all electrical conductors against the water jet.
26. High pressure may cause parts to rebound: wear
all the protective clothing and equipment needed to
ensure the operator’s safety.
27. Wear appropriate Personnel Protection Equipment
(PPE) while operation e.g. safety boots, safety gloves,
safety helmets with visors, hearing protection etc.
28. Be aware of kick-back: grip the gun firmly when
squeezing the trigger.
29. Comply with the regulations of the local water supply
authority. Under EN 12729 (BA) the product can be
connected directly to the mains drinking water supply
only if the supply hose is fitted with a backflow preventer
device with drainage facility.
30. Discharge residual pressure before disconnecting the
hose from the product.
31. Check before each use, and at regular intervals,
that all metal fasteners are tight and the product’s
components are in good condition; inspect for broken
or worn parts.
32. WARNING: Use only detergents compatible with
the high pressure hose cladding materials or other
cladding materials.
MNL_MAC_GB_High pressure cleaner_MPWP2700_V5_200528.indd 5 5/28/20 8:31 AM

EN
06
MPWP2700 by MacAllister
Getting started...
Safety information
Safety warnings
33. The electric supply connection shall be made by a
qualified electrician and comply with IEC 60364- 1.
It is recommended that the electric supply to this
machine should include a residual current device that
will interrupt the supply if the leakage current to earth
exceeds 30 mA for 30 ms or a device that will prove
the earth circuit.
34. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
The following information applies to professional users
only but is good practice for all users:
Vibration and noise reduction
To reduce the impact of noise and vibration emission,
limit the time of operation, use low-vibration and
low-noise operating modes as well as wear personal
protective equipment.
Take the following points into account to minimise the
vibration and noise exposure risks:
1. Only use the product as intended by its design and
these instructions.
2. Ensure that the product is in good condition and well
maintained.
3. Use correct accessories for the product and ensure
they are in good condition.
4. Keep tight grip on the handles/grip surface.
5. Maintain this product in accordance with these
instructions and keep it well lubricated (where
appropriate).
6. Plan your work schedule to spread any high vibration
tool use across a longer period of time.
MNL_MAC_GB_High pressure cleaner_MPWP2700_V5_200528.indd 6 5/28/20 8:31 AM

EN
MPWP2700 by MacAllister
Getting started...
07
Safety information
7. Prolonged use of the product exposes the user
to vibrations that can cause a range of conditions
collectively known as hand-arm vibration syndrome
(HAVS) e.g. fingers going white; as well as specific
diseases such as carpal tunnel syndrome. To reduce
this risk when using the product, always wear protective
gloves and keep your hands warm.
Emergency
Familiarise yourself with the use of this product by
means of this instruction manual. Memorise the
safety directions and follow them to the letter. This
will help to prevent risks and hazards.
1. Always be alert when using this product, so that
you can recognise and handle risks early. Fast
intervention can prevent serious injury and damage to
property.
2. Switch off and disconnect from the power supply if
there are malfunctions. Have the machine checked
by a qualified professional and repaired, if necessary,
before you operate it again.
Residual risks
Even if you are operating this product in accordance
with all the safety requirements, potential risks of
injury and damage remain. The following dangers
can arise in connection with the structure and design
of this product:
1. Health defects resulting from vibration emission if the
product is being used over long periods of time or not
adequately managed and properly maintained.
2. Injuries and damage to property due to broken
attachments or the sudden impact of hidden objects
during use.
3. Danger of injury and property damage caused by flying
objects.
MNL_MAC_GB_High pressure cleaner_MPWP2700_V5_200528.indd 7 5/28/20 8:31 AM

EN
08
MPWP2700 by MacAllister
Safety information
Getting started...
Safety warnings
WARNING! This product produces an
electromagnetic field during operation! This field
may under some circumstances interfere with
active or passive medical implants! To reduce
the risk of serious or fatal injury, we recommend
persons with medical implants to consult their
doctor and the medical implant manufacturer
before operating this product!
Symbols
On the product, the rating label and within these instructions you will find among
others the following symbols and abbreviations. Familiarise yourself with them to
reduce hazards like personal injuries and damage to property.
V~ Volt, (alternating voltage) kg Kilogram
Hz Hertz dB(A) Decibel (A-rated)
W Watt m/s² Metres per second
squared
/min or
min-1
Per minute MPa Mega Pascal, pressure
unit
mm Millimetre bar Pressure unit
IPX5 The product is protected against water (out of a nozzle) from all directions.
yyWxx Manufacturing date code; year of manufacturing (20yy) and week of
manufacturing (Wxx).
Lock / to tighten or secure.
Unlock / to loosen.
Note / Remark.
Caution / Warning.
Read the instruction manual.
MNL_MAC_GB_High pressure cleaner_MPWP2700_V5_200528.indd 8 5/28/20 8:31 AM

EN
MPWP2700 by MacAllister
Getting started...
09
Safety information
Wear hearing protection.
Wear eye protection.
Wear respiratory protection.
Wear protective gloves.
Wear protective, slip-resistant footwear.
Switch the product off and disconnect it from the power supply
before assembly, cleaning, adjustments, maintenance, storage and
transportation.
Always ensure that other people and pets remain at a safe distance
from the product when it is in operation. In general, children must not
come near the area where the product is.
Do not expose the product to rain or wet conditions.
This product is not suitable for connection to the potable water mains.
Do not direct the water jet onto people, animals, electrical equipment
or onto the product itself.
Lock both brakes during operation
Unlock both brakes during transportation
Guaranteed sound power level value in dB.
This product is of protection class II. That means it is equipped with
enhanced or double insulation.
The product complies with the applicable European directives and an
evaluation method of conformity for these directives was done.
WEEE symbol. Waste electrical products should not be disposed of
with household waste. Please recycle where facilities exist. Check with
your Local Authority or local store for recycling advice.
MNL_MAC_GB_High pressure cleaner_MPWP2700_V5_200528.indd 9 5/28/20 8:31 AM

EN MPWP2700 by MacAllister
Getting started...
10
Your product
Your product
5
7
6
8
9
1
4
2
3
8a
15
14
13
17
10
11
12
16
40
18
19
20
21
22
23
24
25
MNL_MAC_GB_High pressure cleaner_MPWP2700_V5_200528.indd 10 5/28/20 8:31 AM

EN
MPWP2700 by MacAllister
Getting started...
Your product
11

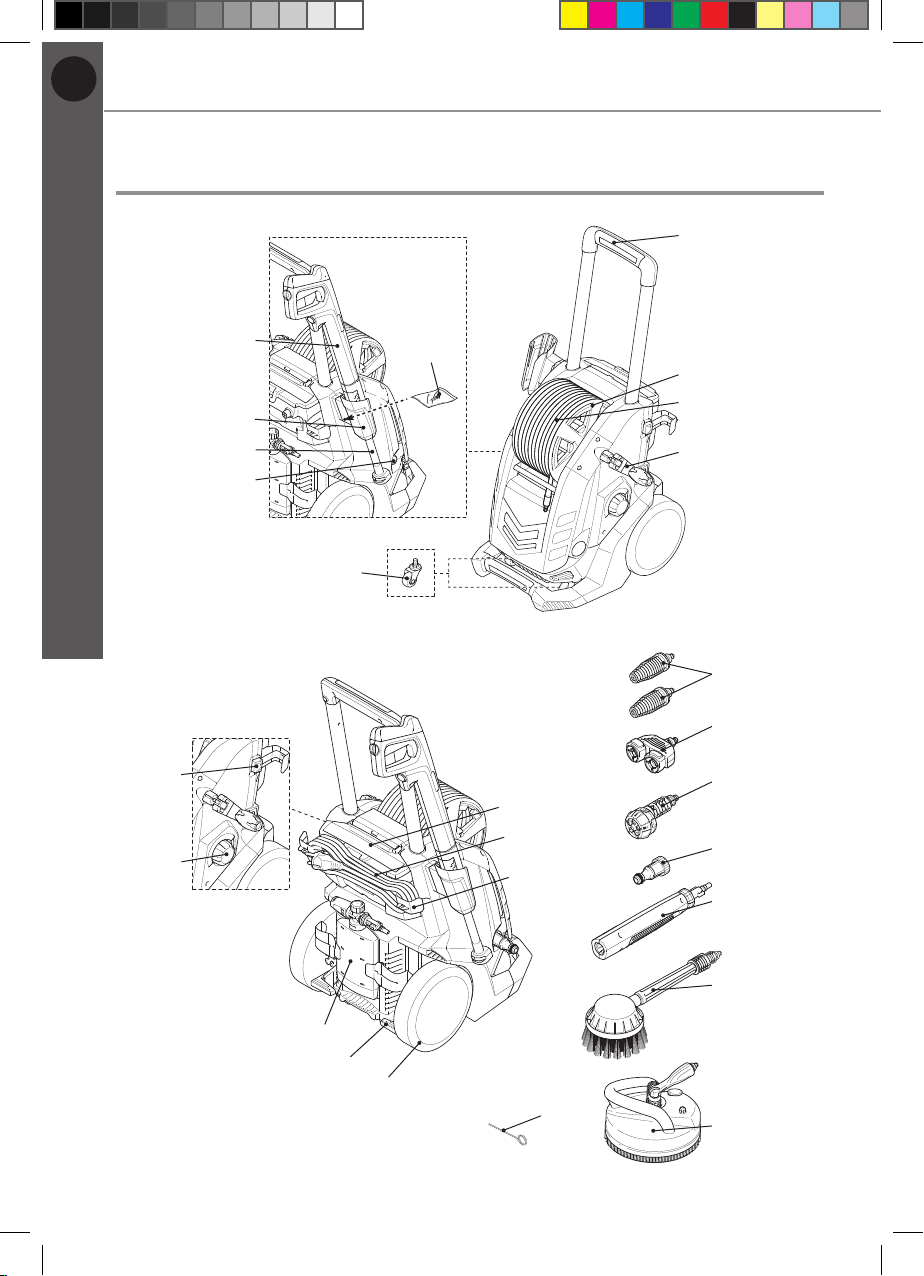

1. Transportation handle
2. Hose reel
3. Pressure hose
4. Winding handle
5. Front wheel (X2)
6. Water inlet
7. Extension lance
8. Spray gun holder
a. Fixing screw
9. Spray gun
10. Accessories chamber
11. Supply cord
12. Supply cord holder (X2)
13. Rear wheel (X2)
14. Brake pedal (X2)
15. Soap tank
16. On/off switch 0/1/2
17. Lock-off button
18. Rotary nozzle (X2)
19. Rotary nozzle adaptor
20. 5 in 1 nozzle
21. Water inlet hose adaptor
22. Short extension lance
23. Rotary brush
24. Patio brush
25. Cleaning needle
Technical specications
General
> Rated voltage/frequency
> Rated input
> Rated pressure
> Max. allowable pressure
> Max. inlet water pressure
> Rated ow
> Max. rated ow
> Rated temperature
> Gun kickback force at max. pressure
> Protection class
> Degree of protection
> Weight
> Dimensions
: 220 – 240 V ~ / 50 Hz
: 2700 W
: 10.5 MPa
: 15.5 MPa
: 1 MPa
: 9 l/min
: 14.16 l/min
: 50°C
: < 2.5 Nm
: II
: IPX5
: 17.2 kg
: 441 X 479 X 864 mm
High pressure hose
> Allowable pressure : 20 MPa
> Maximum temperature : 60 °C
> Length : 10 m
Water hose (not supplied)
> Quality : reinforced PVC hose
> Diameter : min. Ø 12.7 mm (½“)
> Max. length : 10 m
Sound level
> Sound pressure level LpA :82.6 dB(A)
> Uncertainty KpA :2.50 dB(A)
MNL_MAC_GB_High pressure cleaner_MPWP2700_V5_200528.indd 11 5/28/20 8:31 AM

EN MPWP2700 by MacAllister
Your product
Getting started...
12
Technical specications
> Measured sound power level LWA :94.1 dB(A)
> Uncertainty KWA :2.50 dB(A)
>Guaranteed sound power level LWA
(acc. to 2000/14/EC amended by 2005/88/EC) :97 dB(A)
Vibration level
>Declared vibration emission value ahd:: <2.5 m/s²
>Uncertainty K : 1.0 m/s²
The sound values have been determined according to noise test code given in
EN 60335-2-79, using the basic standards ISO 3744 and ISO 11203.
The sound intensity level for the operator may exceed 80 dB(A) and ear protection
measures are necessary.
The declared vibration value has been measured in accordance with a standard
test method (according to EN 60335-2-79) and may be used for comparing
one product with another. The declared vibration value may also be used in a
preliminary assessment of exposure.
WARNING! Depending on the actual use of the product the vibration
values can differ from the declared total! Adopt proper measures to
protect yourself against vibration exposures. Take the whole work
process including times the product is running under no load or
switched off into consideration. Proper measures include among
others regular maintenance and care of the product and cutting
attachments, keeping hands warm, periodical breaks and proper
planning of work processes.
Rating Label Explanation
MPWP2700
M = MacAllister
PW = Pressure washer
P2700 = Power 2700 W
P rated: Rated pressure
P max: Allowable pressure
Q rated: Rated flow
Q max: Max flow
p IN MAX: Max inlet water pressure
MNL_MAC_GB_High pressure cleaner_MPWP2700_V5_200528.indd 12 5/28/20 8:31 AM

EN
MPWP2700 by MacAllister
Getting started...
13
Before you start
Unpacking
WARNING! The product is heavy, ask another person for assistance
if required!
1. Unpack all parts and lay them on a flat, stable surface
2. Remove all packing materials and shipping devices if applicable.
3. Make sure the delivery contents are complete and free of any damage. If
you find that parts are missing or show damage do not use the product but
contact your dealer. Using an incomplete or damaged product represents a
hazard to people and property.
4. Ensure that you have all the accessories and tools needed for assembly and
operation. This also includes suitable personal protective equipment.
WARNING! The product and the packaging are not children’s toys!
Children must not play with plastic bags, sheets and small parts!
There is a danger of choking and suffocation!
You will need
(items not supplied)
Suitable personal protective equipment
Crosshead screwdriver
Water hose
(items supplied)
Extension lance (7)
Spray gun holder (8)
Fixing screw (8a)
Spray gun (9)
Rotary nozzle (18)
Rotary nozzle adaptor (19)
5 in 1 nozzle (20)
Water inlet hose adaptor (21)
Short extension lance (22)
Rotary brush (23)
Patio brush (24)
Assembly
WARNING! The product must be fully assembled before operation!
Do not use a product that is only partly assembled or assembled with
damaged parts!
Follow the assembly instructions step-by-step and use the pictures
provided as a visual guide to easily assemble the product!
Do not connect the product to power supply before it is completely
assembled!
MNL_MAC_GB_High pressure cleaner_MPWP2700_V5_200528.indd 13 5/28/20 8:31 AM

EN MPWP2700 by MacAllister
Before you start
Getting started...
14
Assembly
NOTE: Take care of small parts that are removed during assembly or
when making adjustments. Keep them secure to avoid loss.

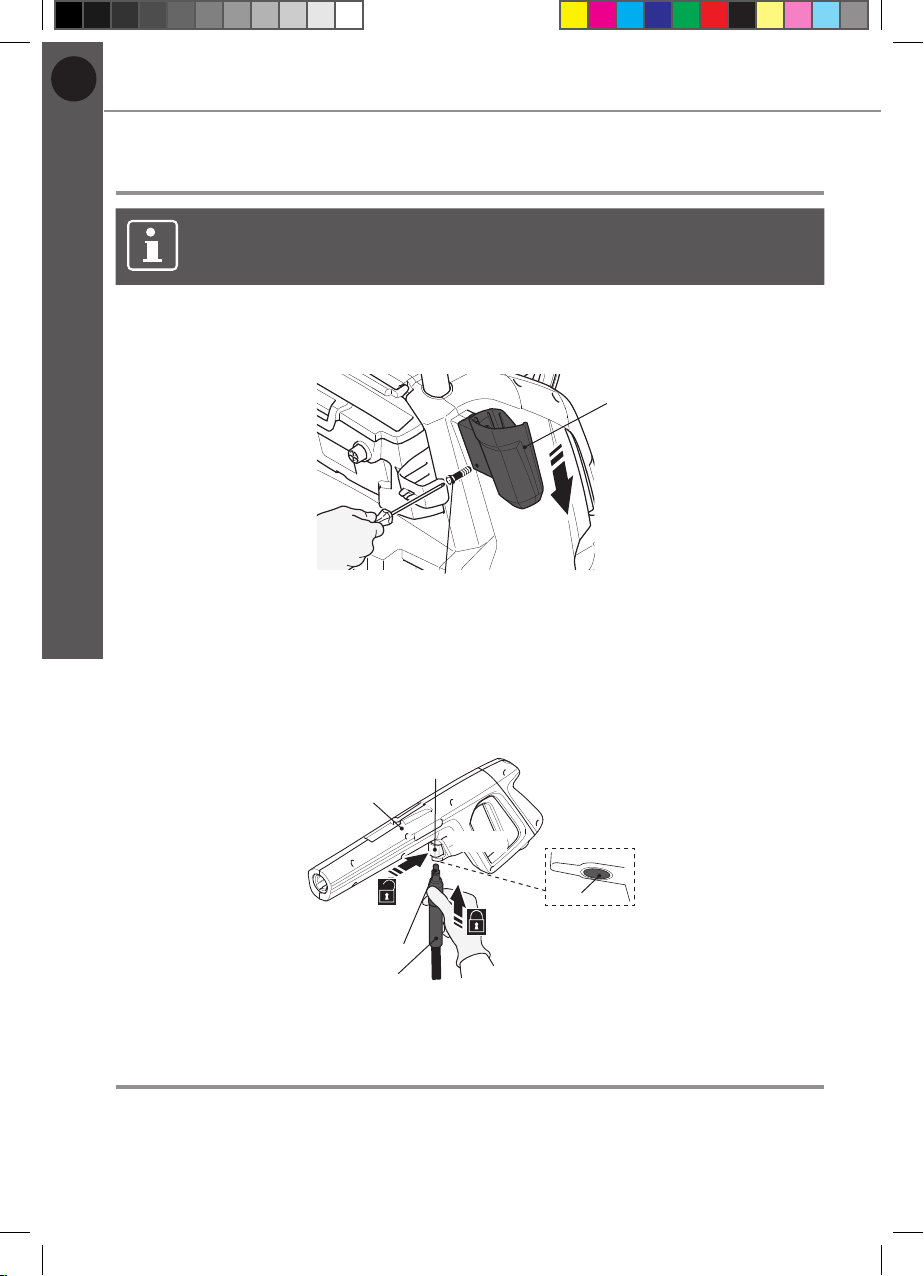

Spray gun holder
1. Slide the spray gun holder (8) to the product and secure it with the screw (8a)
(Fig. 1).
8a
8
Fig. 1
Pressure hose
1. Insert the connector (3a) of the pressure hose (3) into the hose connection
port (9a) of the spray gun (9). Ensure it snaps in place (Fig. 2). Press the
release button (9b) to unlock if necessary.
9
9b
9a
3
3a
Click
Fig. 2
Accessories
Two extension lances (7, 22) and several accessories are supplied with this
product.
Please check the technical specification of any accessories that you purchase to
ensure they are compatible with this product.
MNL_MAC_GB_High pressure cleaner_MPWP2700_V5_200528.indd 14 5/28/20 8:31 AM

EN
MPWP2700 by MacAllister
Getting started...
Before you start
15

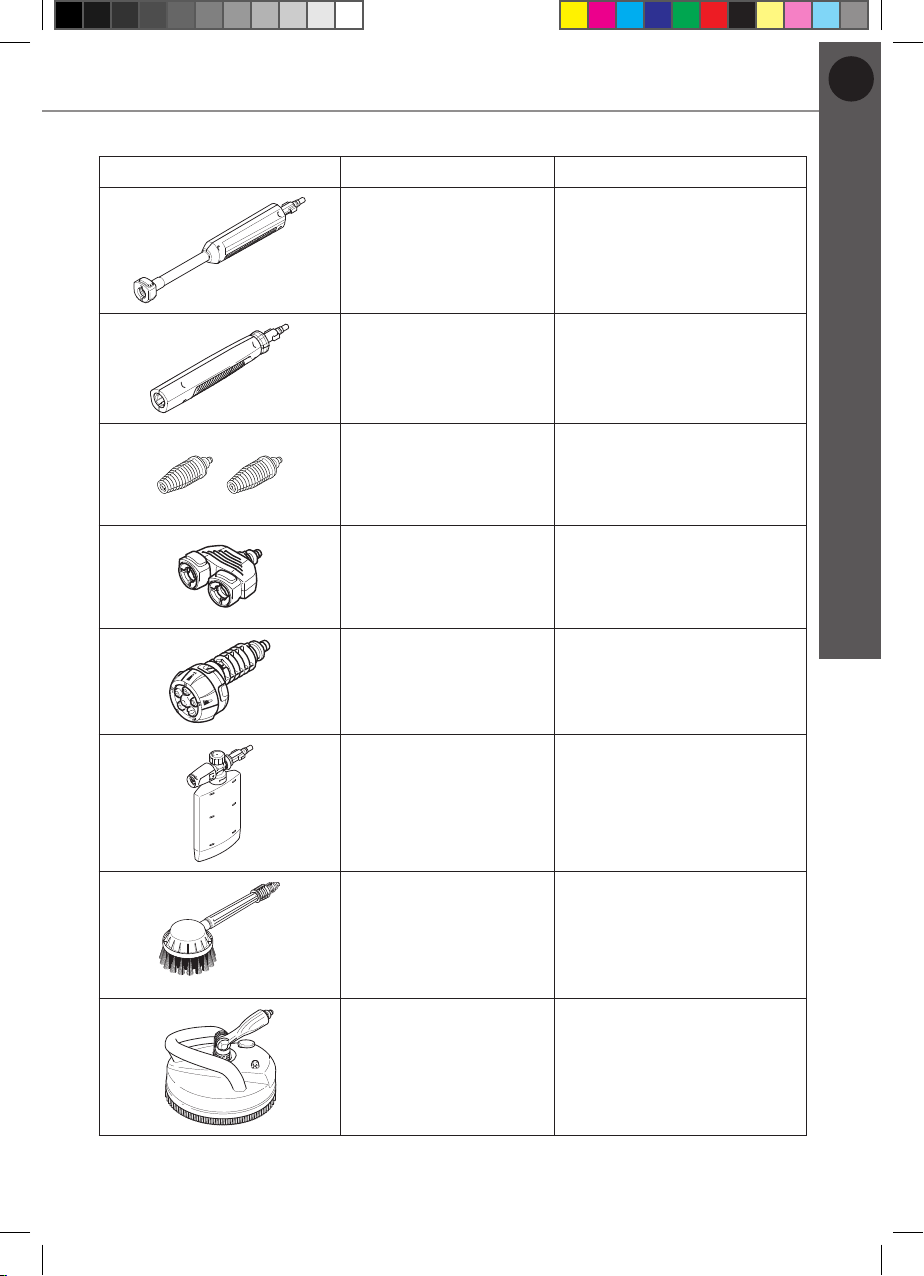

Illustration Description Application
Extension lance (7) To be used in conjunction
with the spray gun, short
extension lance, rotary
nozzle adaptor and 5 in 1
nozzle.
Short extension lance
(22)
To be used in conjunction
with the spray gun,
extension lance and patio
brush.
Rotary nozzle (18) X2 To be used for high
pressure cleaning in
conjunction with the rotary
nozzle adaptor.
Rotary nozzle adaptor
(19)
To be used in conjunction
with the extension lance
and rotary nozzle/5 in 1
nozzle.
40
5 in 1 nozzle (20) Fan and pin jet to be used
in conjunction with the
extension lance/rotary
nozzle adaptor.
Soap tank (15) High pressure setting to
apply detergent.
To be used in conjunction
with the spray gun.
Rotary brush (23) and
adaptor (23a)
Cleaning of wheels.
To be used in conjunction
with the spray gun and
extension lance.
Patio brush (24) Cleaning of floors, e.g.
garden path or courtyards.
To be used in conjunction
with the short extension
lance and extension lance.
MNL_MAC_GB_High pressure cleaner_MPWP2700_V5_200528.indd 15 5/28/20 8:31 AM

EN MPWP2700 by MacAllister
Before you start
Getting started...
16
Accessories
Attaching accessories
1. Align and insert the tongues (7a) of the extension lance (7) into the grooves
of the spray gun (9) connection port. (Fig. 3, step 1).
2. Securely fit the extension lance (7) by turning it clockwise to lock it in place
(step 2). Ensure the arrow on the spray gun aligns with the arrow on the
extension lance. 9
7a
7
1.
2.
Fig. 3

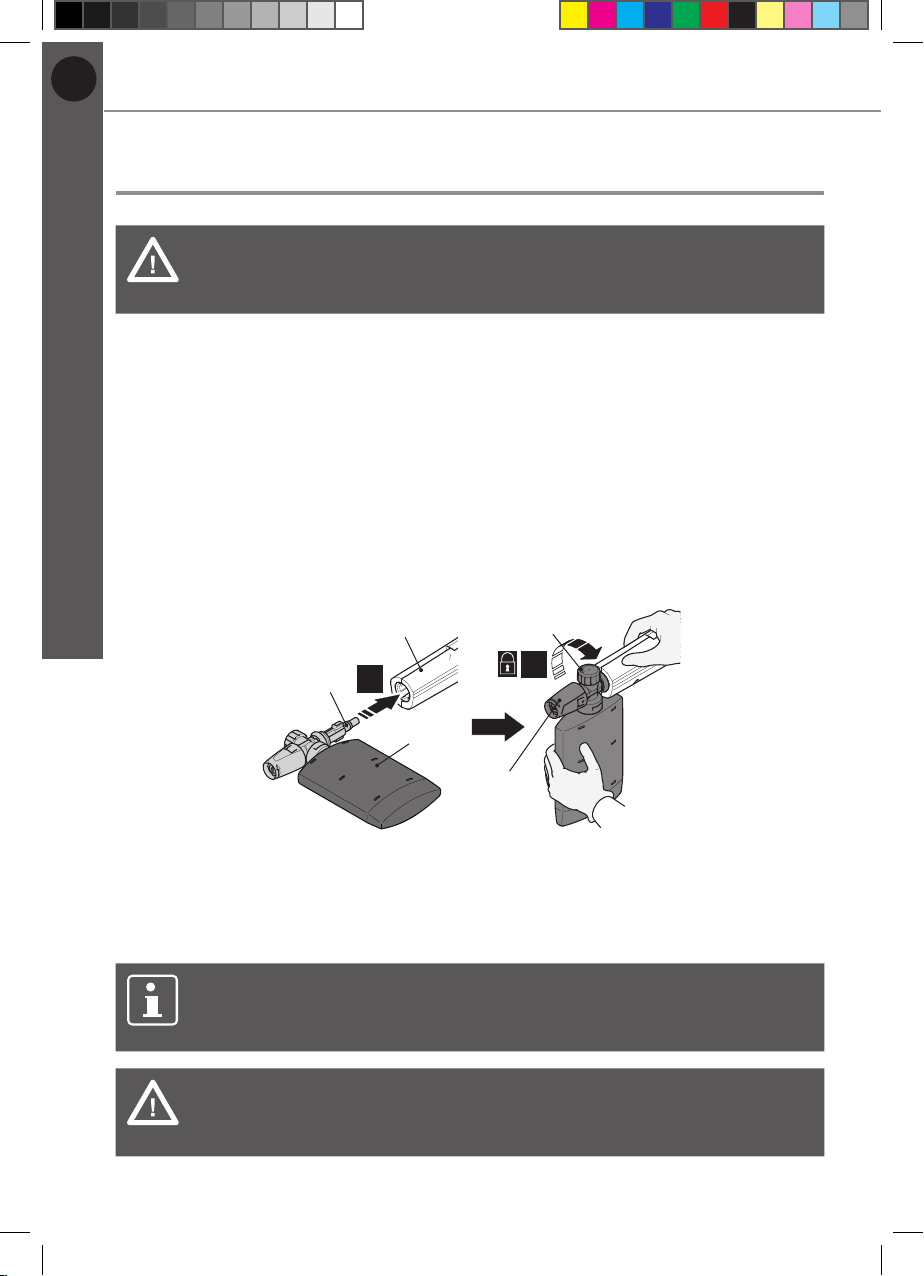

3. Align the tongues (20a) of the 5 in
1 nozzle with the grooves of the
extension lance (7) connection port
(Fig. 4).
4. Insert the 5 in 1 nozzle into the
connection port all the way to the
end. Ensure it engaged properly.
40
20a
7
Click
Fig. 4
Removing accessories
1. Press the release button (7b) (Fig. 5, step 1) and remove the nozzle (step 2).
2. Press the extension lance (7) towards the spray gun (9) (Fig. 6, step 1) and
turn it anti-clockwise (step 2) to remove it (step 3).
7b
1.
2.
Fig. 5
1.
2. 3.
7
9
Fig. 6
MNL_MAC_GB_High pressure cleaner_MPWP2700_V5_200528.indd 16 5/28/20 8:31 AM

EN
MPWP2700 by MacAllister
Getting started...
Before you start
17

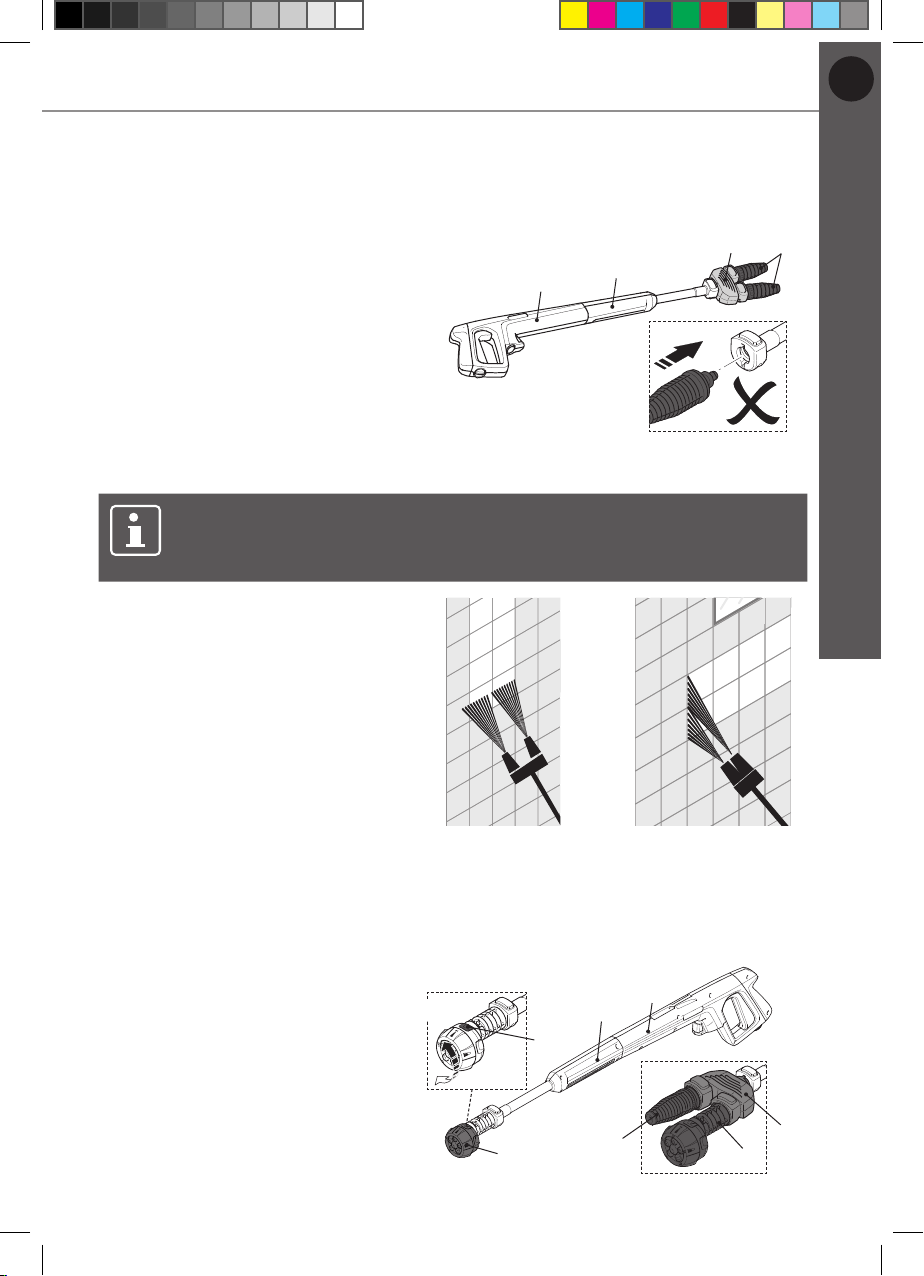

Rotary nozzle and rotary nozzle adaptor
The high pressure rotary nozzle is intended for maximum cleaning effect. Keep
the spray wand 15-20 cm away from the surface being cleaned at all times.
1. Attach the extension lance (7)
onto the spray gun (9) (Fig. 7).
2. Attach the rotary nozzle adaptor
(19) onto the extension lance.
3. Attach both rotary nozzles (18)
onto the rotary nozzle adaptor.
97
19 18
Fig. 7
NOTE: This two rotary nozzles model can work only under II POWER
UNIT (dual motor) mode. See chapter “on/off switch”. It can increase
the cleaning speed up to 70%.
4. Turn the spray gun (9) to orientate
the fan jet in a better way (Fig. 8).
Fig. 8
5 in 1 nozzle
The 5 in 1 nozzle is intended for a large choice of applications and cleaning
effects.
1. Attach the extension lance (7)
onto the spray gun (9) (Fig. 9).
2. Attach the 5 in 1 nozzle (20)
onto the extension lance.
40
9
20 20
18 19
20b
7
Click
Fig. 9
MNL_MAC_GB_High pressure cleaner_MPWP2700_V5_200528.indd 17 5/28/20 8:31 AM

EN MPWP2700 by MacAllister
Before you start
Getting started...
18
Accessories
3. The 5 in 1 nozzle can also be attached onto the rotary nozzle adaptor (19)
and works with the torary nozzle (20) if required.
4. Turn the nozzle (20) to adjust the required setting. The arrow (20b) on the
nozzle points to the selected application indicated with symbols on the nozzle.
5. Use the pen spray (0°) for maximum cleaning effect. The washing height is
up to approx. 5 m.
6. Use the fan spray (15°/40°) to clean sensitive surface such as wood decks,
siding, vehicles etc.
7. Use 0+ for low pressure water column.
8. Use 40+ for low pressure water curtain.

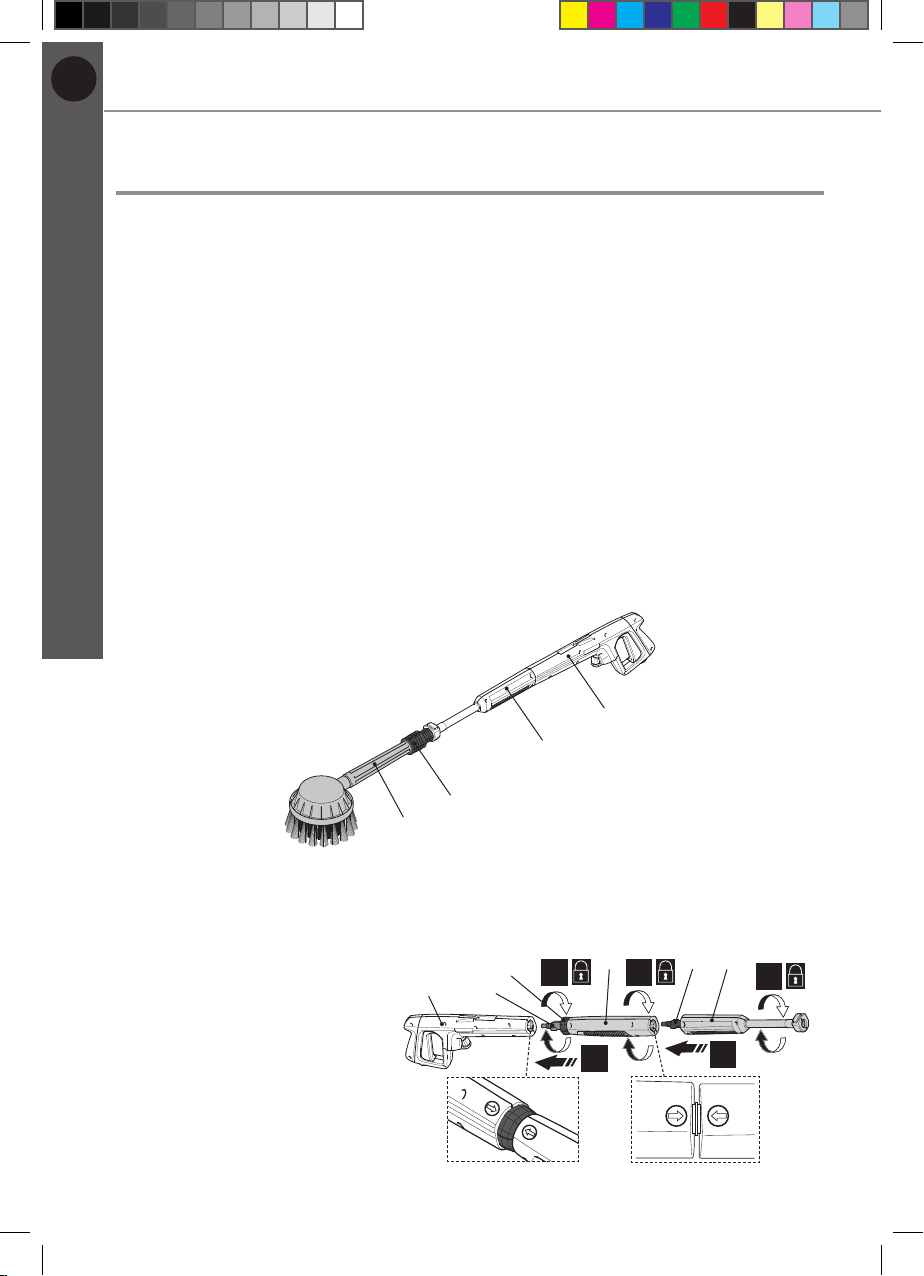

Rotary brush
The rotary brush is specially designed to clean rims and vehicle wheels.
1. Attach the extension lance (7) onto the spray gun (9) (Fig. 10).
2. Attach the rotary brush (23) onto the extension lance.
3. Slightly rotate the rotary brush to ensure it faces the proper position if
necessary.
23 23a
7
9
Fig. 10
Patio brush
The patio cleaner is specially designed to clean large flat surfaces
1. Always attach the short
extension lance (22) when
using the patio brush.
2. Align and insert the
tongues (22a) of the short
extension lance (22) into
the grooves of the spray
gun (9) connection port.
(Fig. 11, step 1).
3. 2. 5.
1. 4.
22a
22b 22 7a 7
9
Fig. 11
MNL_MAC_GB_High pressure cleaner_MPWP2700_V5_200528.indd 18 5/28/20 8:31 AM

EN
MPWP2700 by MacAllister
Getting started...
Before you start
19
3. Turn the short extension lance clockwise to lock it in place (step 2). Ensure
the arrow on the spray gun aligns with the arrow on the extension lance.
4. Securely fit the short extension lance (22) by turning the sleeve (22b)
clockwise (step 3).
5. Align and insert the tongues (7a) of the extension lance (7) into the grooves
of the short extension lance (22) connection port (step 4).
6. Securely fit the extension lance (7) by turning it clockwise to lock it in place
(step 5). Ensure the arrow on the short extension lance aligns with the arrow
on the extension lance.

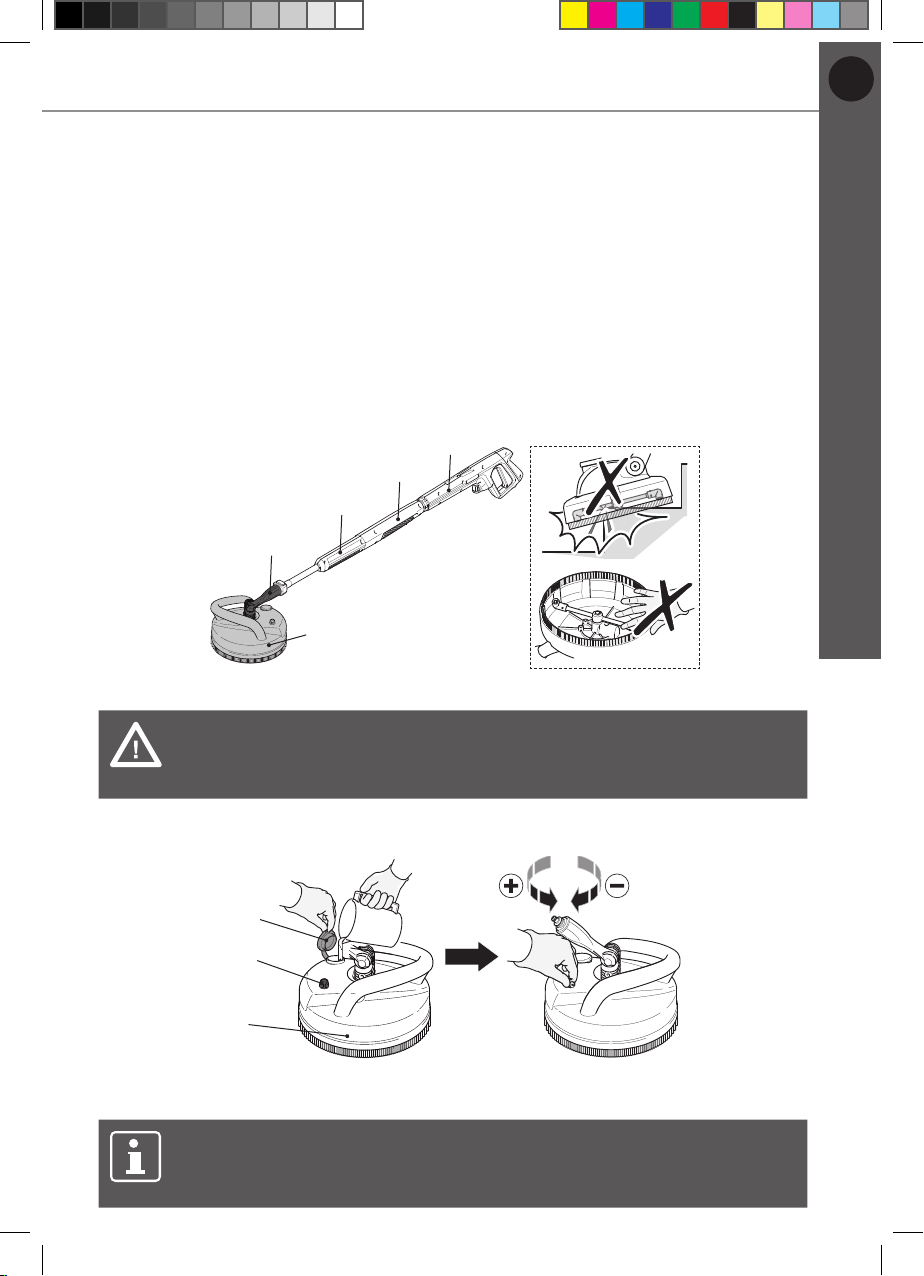

7. Attach the patio brush (24) onto the extension lance (7) (Fig. 12).
8. The angle of the connector (24a) can be adjust as required.
24a
24
7
22
9
Fig. 12
WARNING! The patio brush is only intended to be used on flat patio
surfaces! Do not attempt to use it on steps or use it vertically on
walls. Never attempt to touch the rotating nozzle while operating.
9. Open the cap (24b) and fill in suitable detergent and close the cap afterwards
(Fig. 13).
24b
24c
24
Fig. 13
NOTE: Only use mild, environmentally friendly detergents. Never
use aggressive chemicals, abrasive detergents or similar to avoid
damage to your health, the product and the environment.
MNL_MAC_GB_High pressure cleaner_MPWP2700_V5_200528.indd 19 5/28/20 8:31 AM

EN MPWP2700 by MacAllister
Before you start
Getting started...
20
Accessories
WARNING! Avoid skin contact with detergents, in particular contact
with eyes! If detergent gets in your eyes, flush your eyes with clean
water and seek immediate medical attention!
10. Adjust the detergent flow with the knob (24c)
Soap tank
Some cleaning tasks can be completed with water alone, but for most tasks it is
advantageous to use a detergent. A detergent ensures a quick soaking of the dirt
allowing the high pressure water to penetrate and remove dirt more effectively.
1. Loosen the soap tank cap. Put proper detergent into the tank and then tighten
the cap afterwards.
2. Align and insert the tongues (15a) of the soap tank (15) with the grooves of
the spray gun (9) connection port (Fig. 14, step 1).
3. Securely fit the soap tank by turning it clockwise to lock it in place (step 2).
15a
9
15
15b
15c
2.
1.
Fig. 14
4. Turn the flow rate knob (15b) to adjust the detergent flow rate. During operation
the detergent mixes automatically with water and is released through the
detergent nozzle (15c).
NOTE: Only use mild, environmentally friendly detergents. Never
use aggressive chemicals, abrasive detergents or similar to avoid
damage to your health, the product and the environment.
WARNING! Avoid skin contact with detergents, in particular contact
with eyes! If detergent gets in your eyes, flush your eyes with clean
water and seek immediate medical attention!
MNL_MAC_GB_High pressure cleaner_MPWP2700_V5_200528.indd 20 5/28/20 8:31 AM
Table of contents
Languages:
Other Mac allister Pressure Washer manuals
