These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Let’s
get started...
MNL_MPWP1800-3_MAC_GB_V6_200527.indd 2 5/27/20 5:54 PM

MPWP1800-3 by MacAllister
Getting started...
03
EN
Safety information
Safety warnings
1. Machines shall not be used by children. Children
should be supervised to ensure that they do not play
with the product.
2. This machine can be used by people with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
machine in a safe way and understand the hazards
involved.
Safety warnings for pressure washer
1. WARNING: This product has been designed for use
with the cleaning agent supplied or recommended by
the manufacturer. The use of other cleaning agents
or chemicals may adversely affect the safety of the
machine.
2. WARNING: During use of pressure washers, aerosols
may be formed. Inhalation of aerosols can be
hazardous to health.
3. WARNING: High pressure jets can be dangerous if
subject to misuse. Never direct the jet at persons, live
electrical equipment or the product itself.
4. WARNING: Do not use the machine within range of
persons unless they wear protective clothing.
5. WARNING: Do not direct the jet against yourself or
others in order to clean clothes or foot-wear.
6. WARNING: Risk of explosion – Do not spray flammabl
liquids.
7. WARNING: Pressure washers shall not be used by
children or untrained personnel.
8. WARNING: High pressure hoses, fittings and couplings
are important for the safety of the product. Use only
hoses, fittings and couplings recommended by the
manufacturer.
MNL_MPWP1800-3_MAC_GB_V6_200527.indd 3 5/27/20 5:54 PM

04
MPWP1800-3 by MacAllister
Getting started...
EN
Safety information
Safety warnings
9. WARNING: To ensure machine safety, use only original
spare parts from the manufacturer or approved by the
manufacturer.
10. WARNING: Water that has flowed through backflow
preventers is considered to be non-potable.
11. WARNING: Remove the plug from the socket-outlet
and disconnected from the power source during
cleaning or maintenance and when replacing parts or
converting the machine to another function.
12. WARNING: Do not use the machine if a supply cord
or important parts of the machine are damaged, e.g.
safety devices, high pressure hoses, trigger gun.
13. WARNING: Inadequate extension cords can be
dangerous. If an extesnsion cord is used, it shall be
suitable for outdoor use, and the connection has to be
kept dry and off the ground. It is recommended that
this is accomplished by means of a cord reel which
keeps the socket at least 60 mm above the ground.
14. WARNING: Always switch off the mains disconnecting
switch when leaving the machine unattended.
15. Never use the product with inflammable or toxic liquids,
or liquids with characteristics incompatible with its
proper operation.
16. Never use the product outdoors in the rain.
17. Never lock the gun trigger in the operating position.
18. Check that the product is fitted with its rating label;
contact your dealer if it is missing. Products without
rating label must not be used, since they cannot be
identified and are potentially hazardous
19. Never tamper with or adjust the setting of the safety
valve or the safety devices.
20. Never change the original diameter of the adjustable
nozzle.
MNL_MPWP1800-3_MAC_GB_V6_200527.indd 4 5/27/20 5:54 PM

MPWP1800-3 by MacAllister
Getting started...
05
Safety information
EN
21. Never leave the product unattended when it is running.
22. Do not allow vehicles to drive over the pressure hose.
23. Do not move the product by pulling on the pressure
hose.
24. When directed towards tyres, tyre valves or other
pressurised components, the high pressure jet is
potentially dangerous. Do not apply a jet stream and
always keep the nozzle at a distance of at least 30 cm
during cleaning.
25. Protect all electrical conductors against the water jet.
26. High pressure may cause parts to rebound: wear
all the protective clothing and equipment needed to
ensure the operator’s safety.
27. Wear appropriate Personnel Protection Equipment
(PPE) while operation e.g. safety boots, safety gloves,
safety helmets with visors, hearing protection etc.
28. Be aware of kick-back: grip the gun firmly when
squeezing the trigger.
29. Comply with the regulations of the local water supply
authority. Under EN 12729 (BA) the product can be
connected directly to the mains drinking water supply
only if the supply hose is fitted with a backflow preventer
device with drainage facility.
30. Discharge residual pressure before disconnecting the
hose from the product.
31. Check before each use, and at regular intervals,
that all metal fasteners are tight and the product’s
components are in good condition; inspect for broken
or worn parts.
32. WARNING: Use only detergents compatible with
the high pressure hose cladding materials or other
cladding materials.
MNL_MPWP1800-3_MAC_GB_V6_200527.indd 5 5/27/20 5:54 PM

06
MPWP1800-3 by MacAllister
Getting started...
EN
Safety information
Safety warnings
33. The electric supply connection shall be made by a
qualified electrician and comply with IEC 60364- 1.
It is recommended that the electric supply to this
machine should include a residual current device that
will interrupt the supply if the leakage current to earth
exceeds 30 mA for 30 ms or a device that will prove
the earth circuit.
34. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
The following information applies to professional users
only but is good practice for all users:
Vibration and noise reduction
To reduce the impact of noise and vibration emission, limit
the time of operation, use low-vibration and low-noise
operating modes as well as wear personal protective
equipment.
Take the following points into account to minimise the
vibration and noise exposure risks:
1. Only use the product as intended by its design and
these instructions.
2. Ensure that the product is in good condition and well
maintained.
3. Use correct accessories for the product and ensure
they are in good condition.
4. Keep tight grip on the handles/grip surface.
5. Maintain this product in accordance with these
instructions and keep it well lubricated (where
appropriate).
6. Plan your work schedule to spread any high vibration
tool use across a longer period of time.
7. Prolonged use of the product exposes the user
MNL_MPWP1800-3_MAC_GB_V6_200527.indd 6 5/27/20 5:54 PM

MPWP1800-3 by MacAllister
Getting started...
07
Safety information
EN
to vibrations that can cause a range of conditions
collectively known as hand-arm vibration syndrome
(HAVS) e.g. fingers going white; as well as specific
diseases such as carpal tunnel syndrome. To reduce
this risk when using the product, always wear protective
gloves and keep your hands warm.
Emergency
Familiarise yourself with the use of this product by
means of this instruction manual. Memorise the
safety directions and follow them to the letter. This
will help to prevent risks and hazards.
1. Always be alert when using this product, so that
you can recognise and handle risks early. Fast
intervention can prevent serious injury and damage to
property.
2. Switch off and disconnect from the power supply if
there are malfunctions. Have the machine checked
by a qualified professional and repaired, if necessary,
before you operate it again.
Residual risks
Even if you are operating this product in accordance
with all the safety requirements, potential risks of
injury and damage remain. The following dangers
can arise in connection with the structure and design
of this product:
1. Health defects resulting from vibration emission if the
product is being used over long periods of time or not
adequately managed and properly maintained.
2. Injuries and damage to property due to broken
attachments or the sudden impact of hidden objects
during use.
3. Danger of injury and property damage caused by flying
objects.
MNL_MPWP1800-3_MAC_GB_V6_200527.indd 7 5/27/20 5:54 PM

08
MPWP1800-3 by MacAllister
Safety information
Getting started...
EN
Safety warnings
WARNING! This product produces an
electromagnetic field during operation! This field
may under some circumstances interfere with
active or passive medical implants! To reduce
the risk of serious or fatal injury, we recommend
persons with medical implants to consult their
doctor and the medical implant manufacturer
before operating this product!
Symbols
On the product, the rating label and within these instructions you will find among
others the following symbols and abbreviations. Familiarise yourself with them to
reduce hazards like personal injuries and damage to property.
V~ Volt, (alternating voltage) Hz Hertz
W Watt /min or
min-1
Per minute
mm Millimetre kg Kilogram
dB(A) Decibel (A-rated) m/s² Metres per second
squared
MPa Mega Pascal, pressure unit bar Pressure unit
IPX5 The product is protected against water (out of a nozzle) from all
directions.
yyWxx Manufacturing date code; year of manufacturing (20yy) and
week of manufacturing (Wxx).
Lock / to tighten or secure.
Unlock / to loosen.
Note / Remark.
Caution / Warning.
MNL_MPWP1800-3_MAC_GB_V6_200527.indd 8 5/27/20 5:54 PM

MPWP1800-3 by MacAllister
Getting started...
09
EN
Safety information
Read the instruction manual.
Wear hearing protection.
Wear eye protection.
Wear respiratory protection.
Wear protective gloves.
Wear protective, slip-resistant footwear.
Switch the product off and disconnect it from the power supply
before assembly, cleaning, adjustments, maintenance, storage
and transportation.
Always ensure that other people and pets remain at a safe
distance from the product when it is in operation. In general,
children must not come near the area where the product is.
Do not expose the product to rain or wet conditions.
This product is not suitable for connection to the potable water
mains.
Do not direct the water jet onto people, animals, electrical
equipment or onto the product itself.
Guaranteed sound power level value in dB.
This product is of protection class II. That means it is equipped
with enhanced or double insulation.
The product complies with the applicable European directives
and an evaluation method of conformity for these directives was
done.
WEEE symbol. Waste electrical products should not be disposed
of with household waste. Please recycle where facilities exist.
Check with your Local Authority or local store for recycling
advice.
MNL_MPWP1800-3_MAC_GB_V6_200527.indd 9 5/27/20 5:54 PM

MPWP1800-3 by MacAllister
Getting started...
EN
10
Your product
Your product
1
2
3
4
567
89
9a
10
121315
11
14
16 17 18 19 20

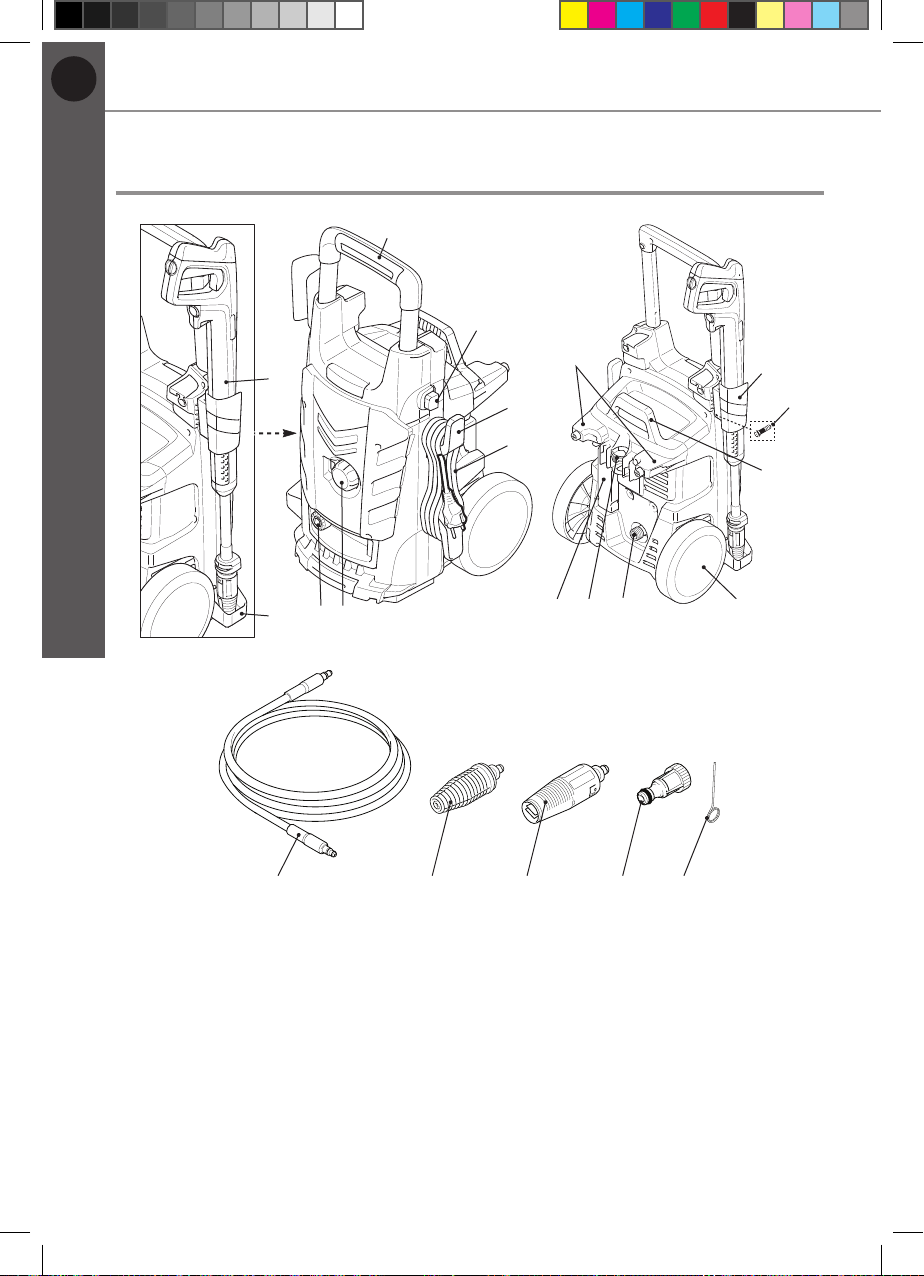

1. Transportation handle
2. Lock-off button
3. Supply cord holder (X2)
4. Supply cord
5. On/off switch I/O
6. Water outlet
7. Lower spray gun holder
8. Spray gun
9. Upper spray gun holder
a) Fixing screw
10. Hose holder / handle
11. Ground support
12. Wheel (x2)
13. Nozzle holder
14. Water inlet
15. Soap tank
16. Pressure hose
17. Rotary nozzle
18. Vario nozzle
19. Water inlet hose adaptor
20. Cleaning needle
MNL_MPWP1800-3_MAC_GB_V6_200527.indd 10 5/27/20 5:54 PM

MPWP1800-3 by MacAllister
Getting started...
EN
11
General
> Rated voltage/frequency
>Maximum permissible mains impedance
:220 – 240 V ~ / 50 Hz
> Rated input : 1800 W
:0.275 Ω
> Rated pressure : 9.5 MPa
> Max. allowable pressure : 14 MPa
> Max. inlet water pressure : 1 MPa
> :5.5l/min
> :7.33l/min
> Rated temperature : 50°C
> Gun kickback force at max. pressure
> Protection class
> Degree of protection
> Weight
> Dimensions
: 12.6 N
: II
: IPX5
: 11 kg
: 351 X 408 X 855 mm
High pressure hose
> Allowable pressure : 20 MPa
> Maximum temperature : 60 °C
> Length : 8 m
Water hose (not supplied)
> Quality : reinforced PVC hose
> Diameter : min. Ø 12.7 mm (½“)
> Max. length : 10 m
Sound level
> Sound pressure level LpA :78.8 dB(A)
> Uncertainty KpA :2.50 dB(A)
> Measured sound power level LWA :90.3 dB(A)
> Uncertainty KWA :2.50 dB(A)
> Guaranteed sound power level LWA
(acc. to 2000/14/EC amended by
:93 dB(A)
2005/88/EC)
Vibration level
> Declared vibration emission value ahd : <2.5 m/s²
> Uncertainty K : 1.0 m/s²
The sound values have been determined according to noise test code given in
EN 60335-2-79, using the basic standards ISO 3744 and ISO 11203.
The sound intensity level for the operator may exceed 80 dB(A) and ear protection
measures are necessary.
The declared vibration value has been measured in accordance with a standard
test method (according to EN 60335-2-79) and may be used for comparing
one product with another. The declared vibration value may also be used in a
preliminary assessment of exposure.
MNL_MPWP1800-3_MAC_GB_V6_200527.indd 11 5/27/20 5:54 PM

MPWP1800-3 by MacAllister
Getting started...
EN
12
Technical specications / Before you start
Technical specications
WARNING! Depending on the actual use of the product the vibration
values can differ from the declared total! Adopt proper measures to
protect yourself against vibration exposures. Take the whole work
process including times the product is running under no load or
switched off into consideration. Proper measures include among
others regular maintenance and care of the product and cutting
attachments, keeping hands warm, periodical breaks and proper
planning of work processes.
Rating Label Explanation
MPWP1800-3
M = MacAllister
PW = Pressure washer
P1800 = Power 1800 W
-3 = Version of the machine
P rated: Rated pressure
P max: Allowable pressure
Q rated: Rated flow
Q max: Max flow
p IN MAX: Max inlet water pressure
Unpacking
WARNING! The product is heavy, ask another person for assistance
if required!
1. Unpack all parts and lay them on a flat, stable surface
2. Remove all packing materials and shipping devices if applicable.
3. Make sure the delivery contents are complete and free of any damage. If
you find that parts are missing or show damage do not use the product but
contact your dealer. Using an incomplete or damaged product represents a
hazard to people and property.
4. Ensure that you have all the accessories and tools needed for assembly and
operation. This also includes suitable personal protective equipment.
MNL_MPWP1800-3_MAC_GB_V6_200527.indd 12 5/27/20 5:54 PM

MPWP1800-3 by MacAllister
Getting started...
EN
13
Before you start
WARNING! The product and the packaging are not children’s toys!
Children must not play with plastic bags, sheets and small parts!
There is a danger of choking and suffocation!
You will need
(items not supplied)
Suitable personal protective equipment
(items supplied)
Supply cord holder (3)
Water hose Lower spray gun holder (7)
Spray gun (8)
Upper spray gun holder (9)
Pressure hose (16)
Rotary nozzle (17)
Vario nozzle (18)
Water inlet hose adaptor (19)
Assembly
WARNING! The product must be fully assembled before operation!
Do not use a product that is only partly assembled or assembled
with damaged parts!
Follow the assembly instructions step-by-step and use the pictures
provided as a visual guide to easily assemble the product!
Do not connect the product to power supply before it is completely
assembled!
NOTE: Take care of small parts that are removed during assembly
or when making adjustments. Keep them secure to avoid loss.
MNL_MPWP1800-3_MAC_GB_V6_200527.indd 13 5/27/20 5:54 PM

MPWP1800-3 by MacAllister
Getting started...
EN
14
Before you start
Assembly
Holders

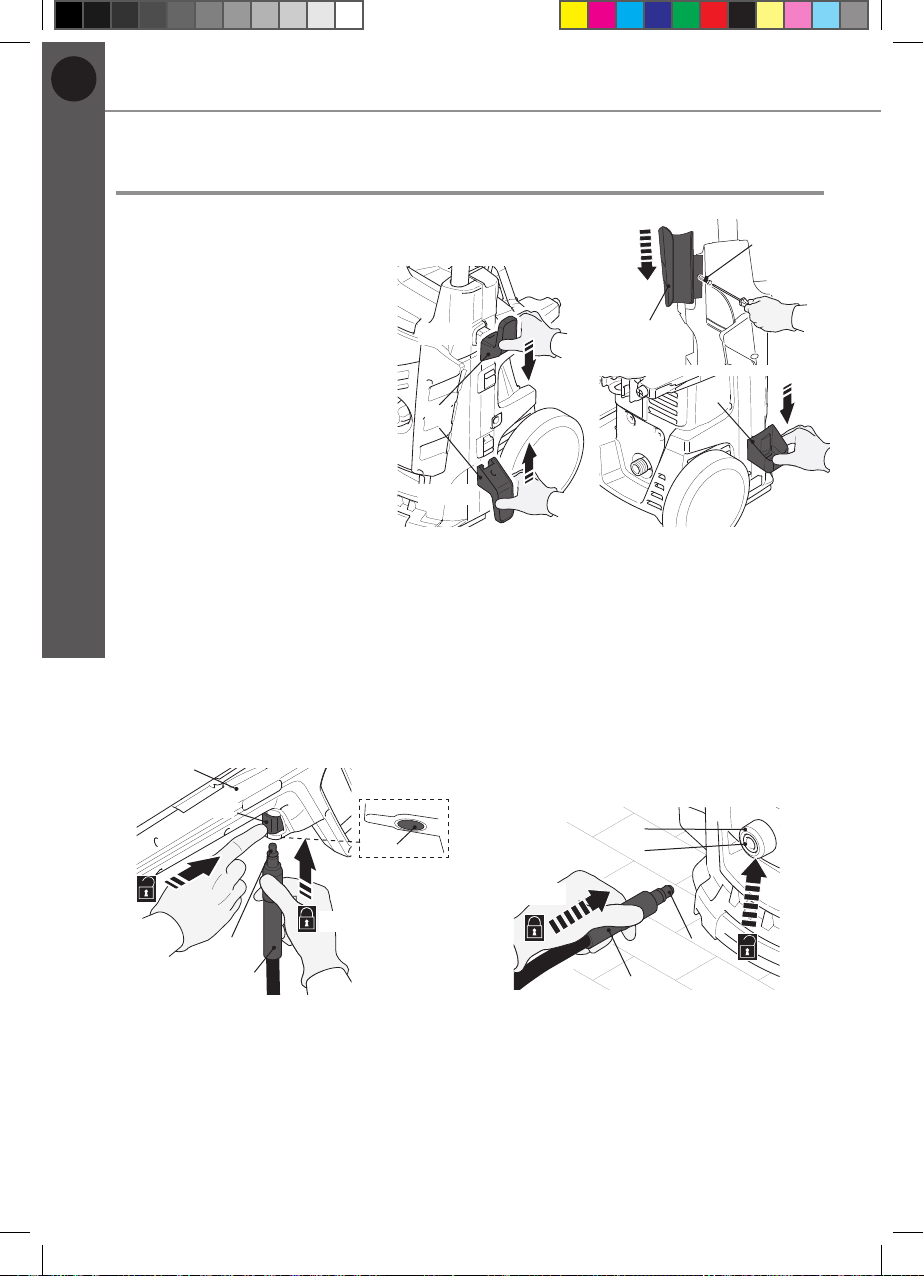

> Attach the two supply cord
holders (3) to the product
(Fig. 1). Ensure it engaged
properly.
> Slide the upper spray gun
hold (9) to the product and
secure it with the screw (9a)
(Fig. 2).
> Attach the lower spray gun
holder (7) to the product.
Ensure it engaged properly.
3
Click
Click
Fig. 1
7
9
9a
Fig. 2
Pressure hose
> Insert the connector (16a) of the pressure hose (16) into the hose connection
port (8a) of the spray gun (8). Ensure it snaps in place (Fig. 3). Press the
release button (8b) to unlock if necessary.
> Insert the other connector (16b) of the pressure hose (16) into the water outlet
(6). Ensure it snaps in place (Fig. 4). Press the release ring (6a) to unlock if
necessary.
Click
8
16
16a
8a
8b
Fig. 3
6
16b
16
6a
Click
Fig. 4
MNL_MPWP1800-3_MAC_GB_V6_200527.indd 14 5/27/20 5:54 PM

MPWP1800-3 by MacAllister
Getting started...
EN
15
Before you start
Accessories
An extension lance (8c) and several accessories are supplied with this product.
Please check the technical specification of any accessories that you purchase to
ensure they are compatible with this product.

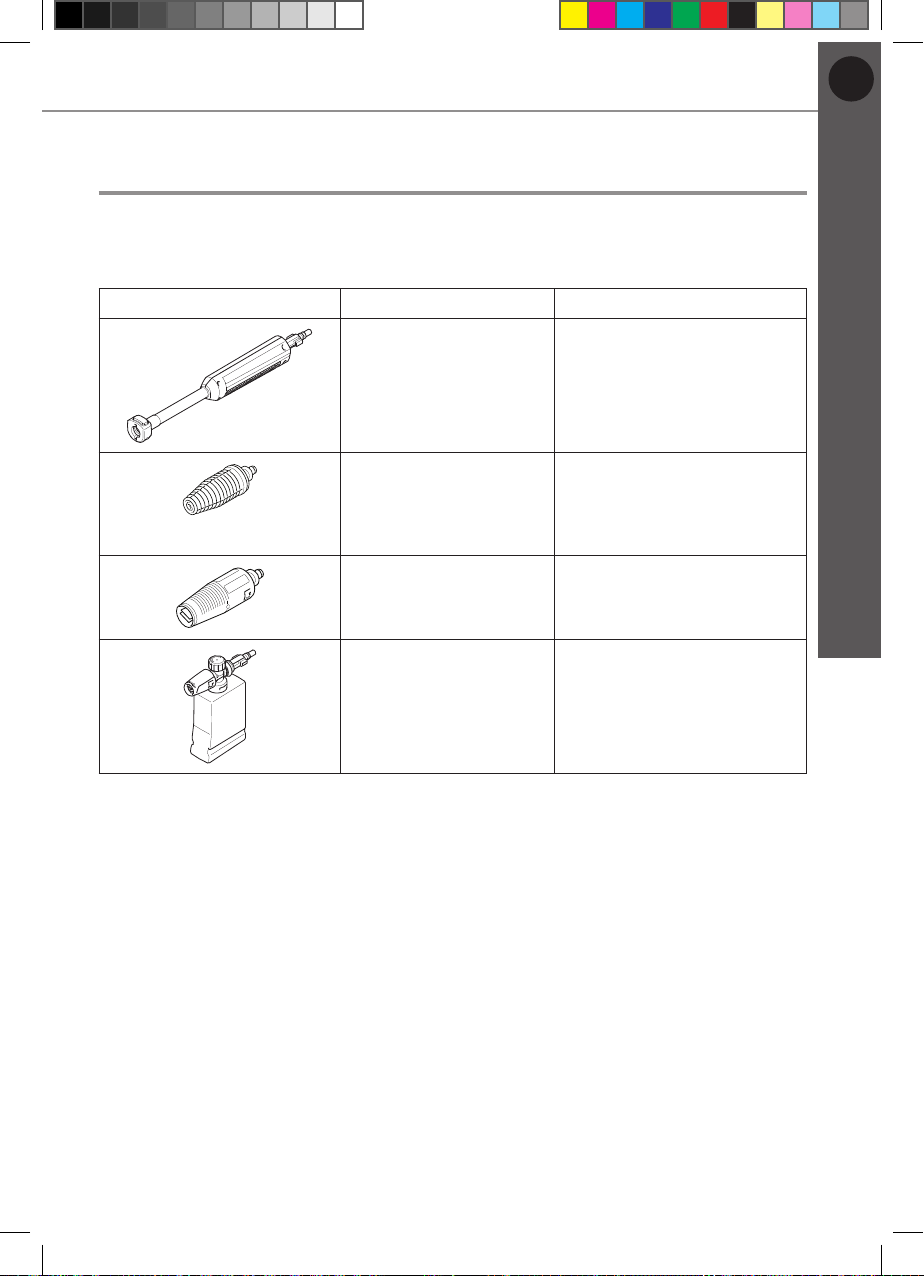

Illustration Description Application
Extension lance (8c) To be used in conjunction
with the spray gun and
nozzle.
Rotary nozzle (17) To be used for high
pressure cleaning in
conjunction with the
extension lance.
Vario nozzle (18) Fan and pin jet to be used
in conjunction with the
extension lance.
Soap tank (15) Low pressure setting to
apply the detergent.
To be used in conjunction
with the spray gun.
Attaching accessories

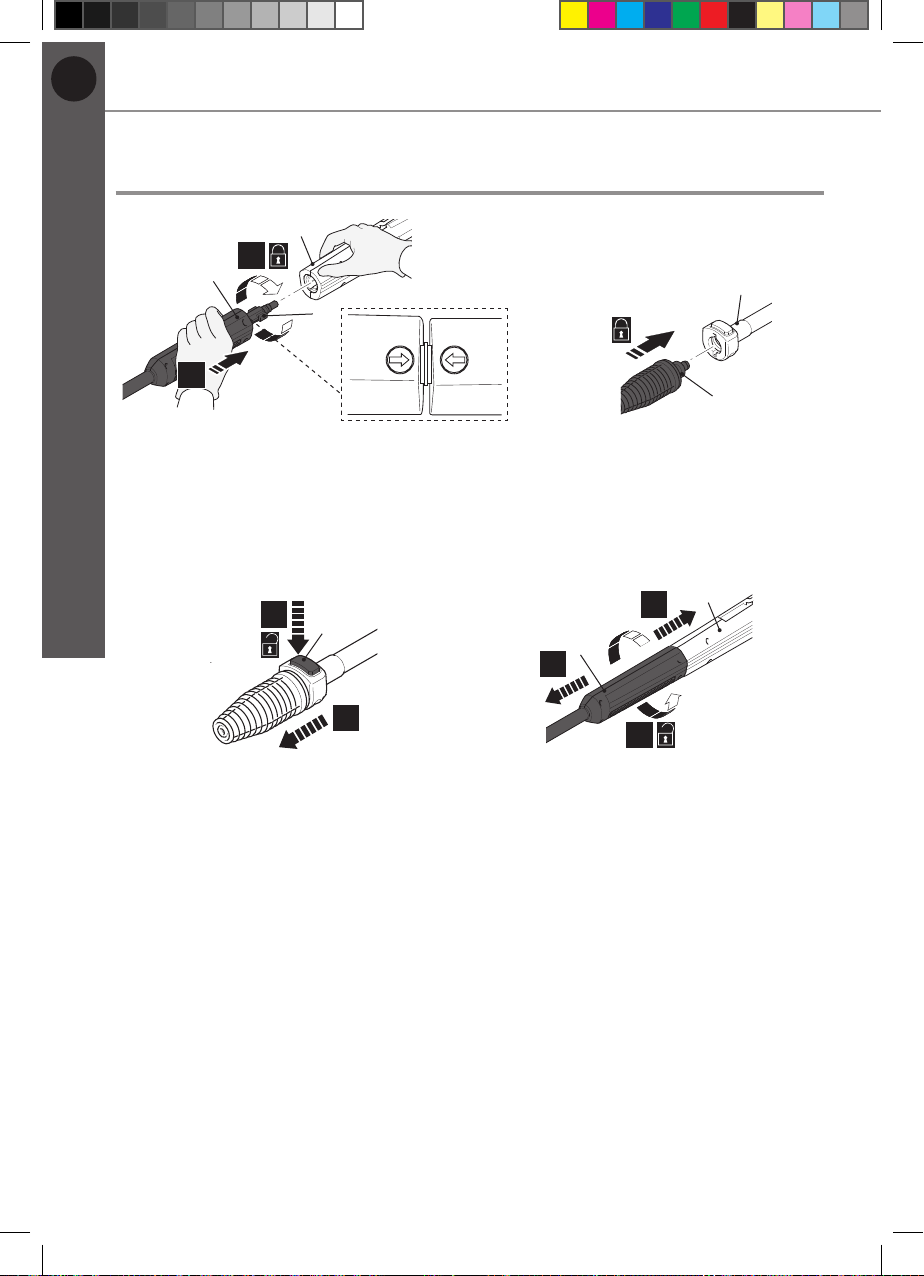

> Align the tongues (8d) of the extension lance (8c) with the grooves of the
connection port of the spray gun (8) and insert it. (Fig. 5, step 1).
> Securely fit the extension lance (8c) by turning it clockwise to lock it in place
(Fig. 5, step 2). Ensure the arrow on the spray gun aligns with the arrow on the
extension lance.
> Align the tongues (17a) of the nozzle with the grooves of the connection port of
the extension lance (8c) (Fig. 6).
> Insert the nozzle into the connection port all the way to the end. Ensure it
engaged properly.
MNL_MPWP1800-3_MAC_GB_V6_200527.indd 15 5/27/20 5:54 PM

MPWP1800-3 by MacAllister
Getting started...
EN
16
Before you start
Accessories
8
8d
8c
1.
2.
Fig. 5
8c
17a
Click
Fig. 6
Removing accessories
> Press the release button (8f) (Fig. 7, step 1) and remove the nozzle (step 2).
> Press the extension lance (8c) towards the spray gun (8) and turn it anti-
clockwise to remove it (Fig. 8).
8f
1.
2.
Fig. 7
8c
1.
2.
3.
8
Fig. 8
Rotary nozzle
> The high pressure rotary nozzle is intended for maximum cleaning effect. Keep
the spray wand 15-20 cm away from the surface being cleaned at all times.
> Always attach the extension lance (8c) when using the rotary nozzle (17).
Vario nozzle

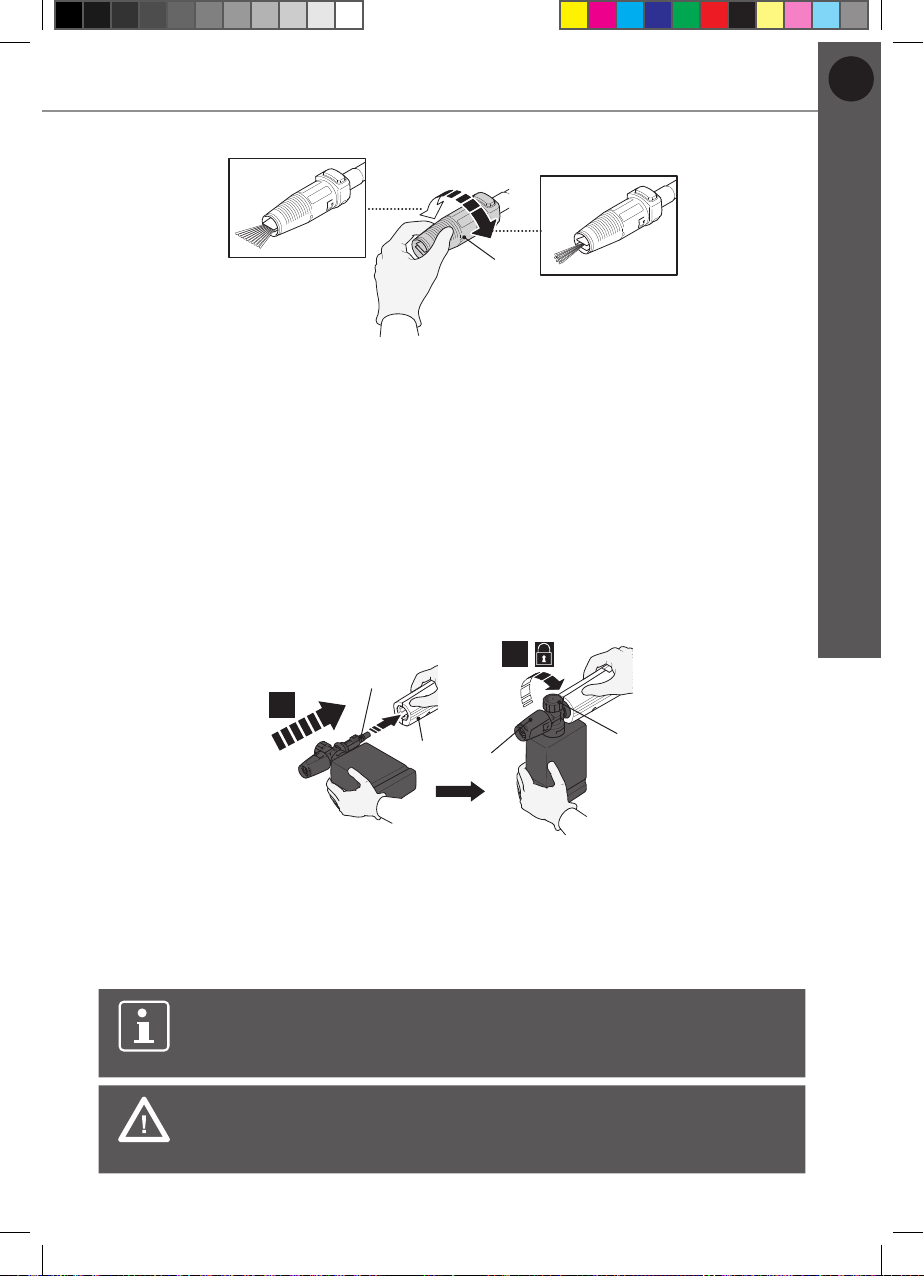

> The vario nozzle is intended for a large choice of applications and cleaning
effects.
> Always use the vario nozzle with the extension lance (8c) attached.
> Turn the vario nozzle to adjust the water jet according to the surface to be
cleaned (Fig. 9).
> Use the fan spray to clean wood decks, siding, vehicles etc.
> Always start using the fan spray and begin spraying from a minimum 30 cm
away to avoid damaging the surface of the material being cleaned.
> Use the pin spray for maximum cleaning effect.
MNL_MPWP1800-3_MAC_GB_V6_200527.indd 16 5/27/20 5:54 PM

MPWP1800-3 by MacAllister
Getting started...
Before you start
EN
17
18
Fig. 9
Soap tank
Some cleaning tasks can be completed with water alone, but for most tasks it is
advantageous to use a detergent. A detergent ensures a quick soaking of the dirt
allowing the high pressure water to penetrate and remove dirt more effectively.
> Loosen the soap tank cap. Put proper detergent into the tank and then tighten
the cap afterwards.
> Align and insert the tongues (15a) of the soap tank (15) with the grooves of the
connection port of the spray gun (8) . (Fig. 10, step 1).
> Securely fit the soap tank by turning it clockwise to lock it in place (Fig. 10, step
2).
1.
15a
15b
15c
8
2.
Fig. 10
Turn the flow rate knob (15b) to adjust the detergent flow rate. During operation the
detergent mixes automatically with water and is released through the detergent
nozzle (15c).
NOTE: Only use mild, environmentally friendly detergents. Never
use aggressive chemicals, abrasive detergents or similar to avoid
damage to your health, the product and the environment.
WARNING! Avoid skin contact with detergents, in particular contact
with eyes! If detergent gets in your eyes, flush your eyes with clean
water and seek immediate medical attention!
MNL_MPWP1800-3_MAC_GB_V6_200527.indd 17 5/27/20 5:54 PM

MPWP1800-3 by MacAllister
Before you start
Getting started...
EN
18
Connection to the water supply
WARNING! This product is not intended to be connected to the
potable water mains!
Observe the regulations of your local utility company when
connecting the product to a water supply line! It is prohibited to
connect this product to the drinking water facility without a backflow
preventer which corresponds to EN 12729 Type BA or EN 61770!
Make sure that the hose is at least a diameter of min. Ø 12.7 mm
(1/2“) and is reinforced!

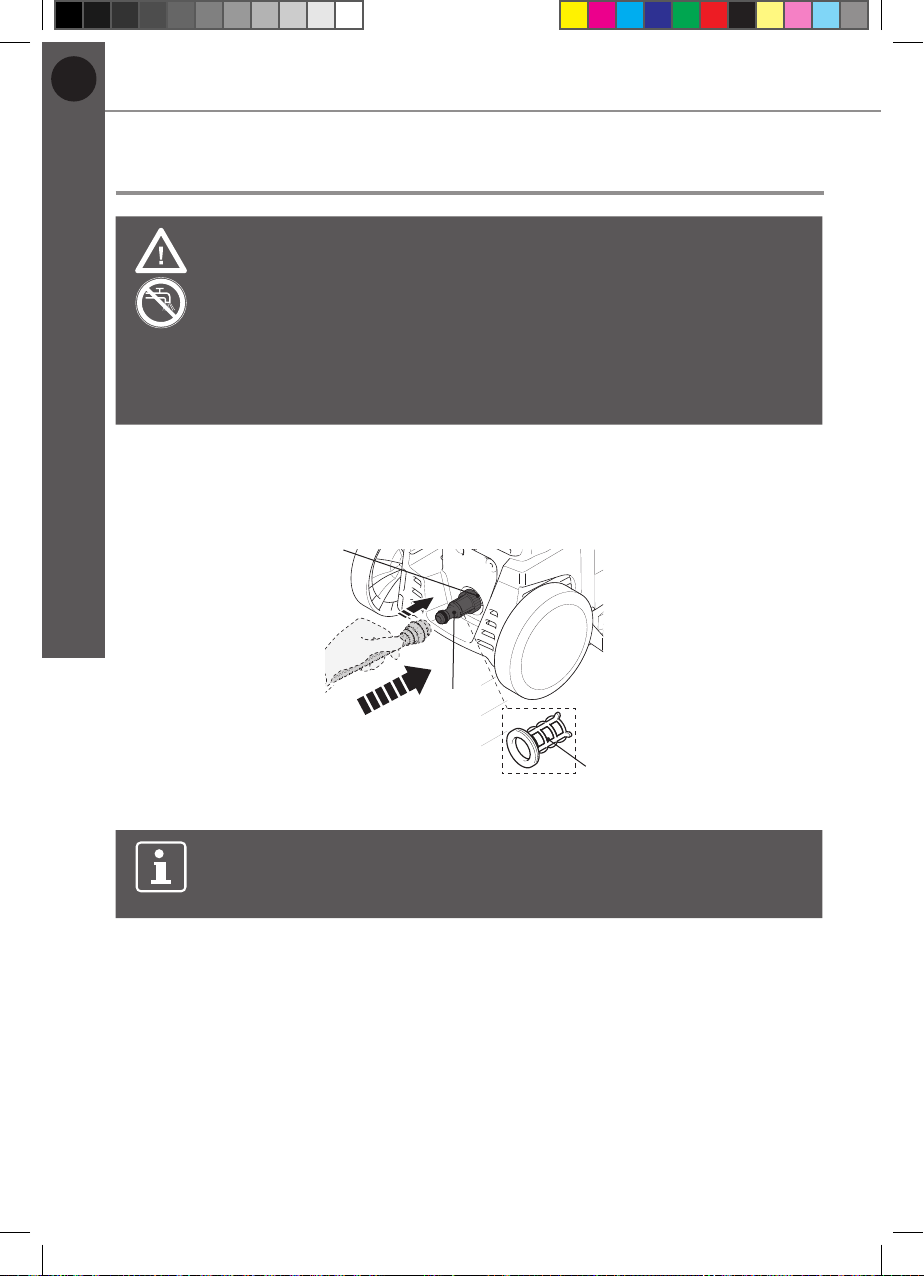

> Attach the water hose adaptor (19) on the water inlet (14).
> Attach a suitable water hose (not included) onto the water supply and then the
other end onto the water hose adaptor (19) (Fig. 11).
19a
14
19
Fig. 11
NOTE: The adaptor (19) contains filters (19a) to protect the product
against larger particles. Ensure the filters are fixed appropriately in
position. Do not use the water inlet and the adaptor without filte .
> Open the water supply.
MNL_MPWP1800-3_MAC_GB_V6_200527.indd 18 5/27/20 5:54 PM

MPWP1800-3 by MacAllister
Getting started...
Before you start
EN
19
Connection to power supply
> Make sure the on/off switch (5) is in its off position (“0”).
> Connect the plug with a suitable socket.
WARNING! Check the voltage! The voltage must comply with the
information on the rating label!
If using an extension cord it must be suitable for outdoor use with
sockets protected against water splashing. Ensure the extension
cord is of the proper size and type for your product (≥ 1.5 mm2)!
WARNING! The electric supply connection shall be made by a
qualified electrician and comply with IEC 60364-1. It is recommended
that the electric supply to this machine should include a residual
current device that will interrupt the supply if the leakage current to
earth exceeds 30 mA for 30 ms or a device that will prove the earth
circuit.
> Your product is now ready to be used.
MNL_MPWP1800-3_MAC_GB_V6_200527.indd 19 5/27/20 5:54 PM

31
33
33
34
27
24
21
Product functions
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
Guarantee
EC declaration of conformity
MPWP1800-3 by MacAllister
20
In more detail...
In more
detail...
EN
MNL_MPWP1800-3_MAC_GB_V6_200527.indd 20 5/27/20 5:54 PM
