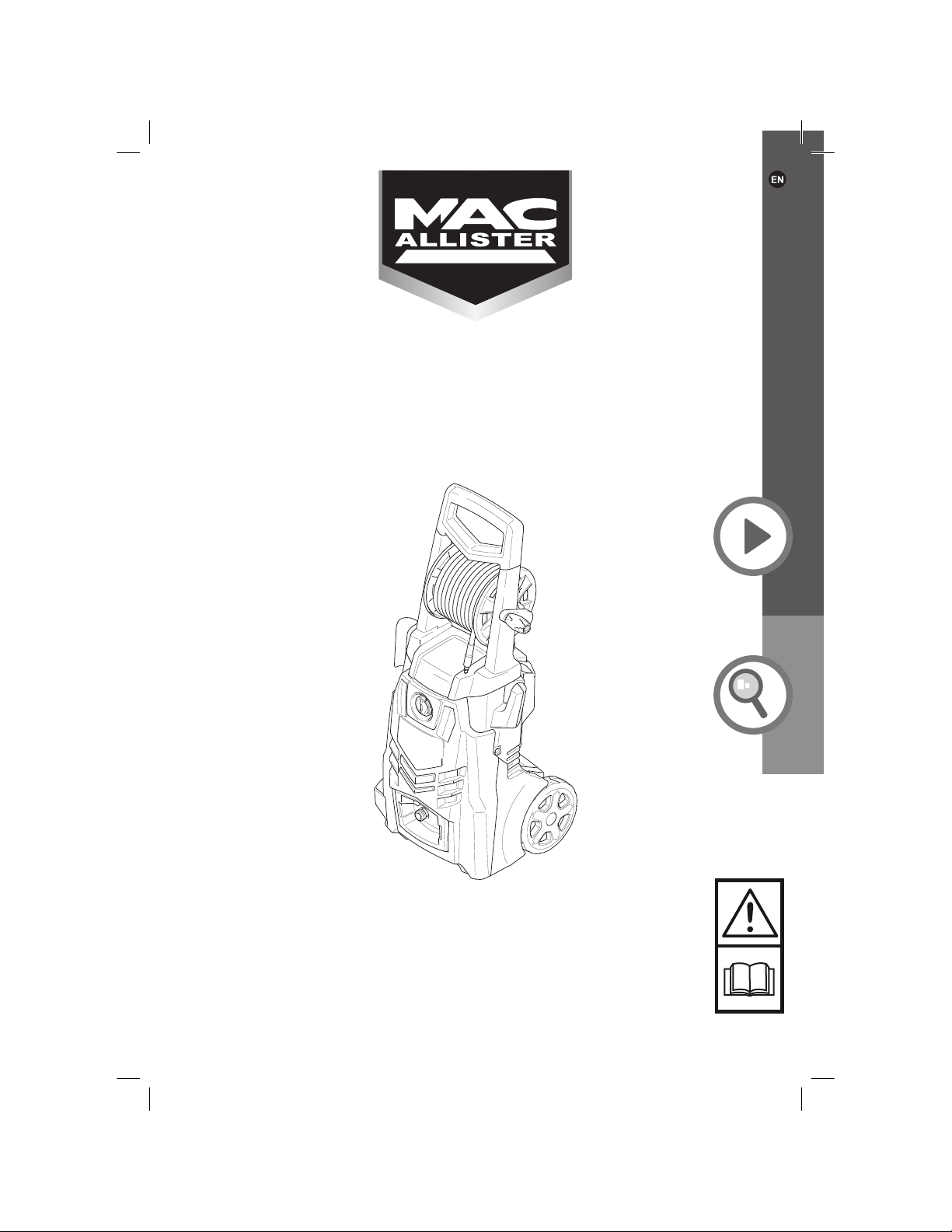

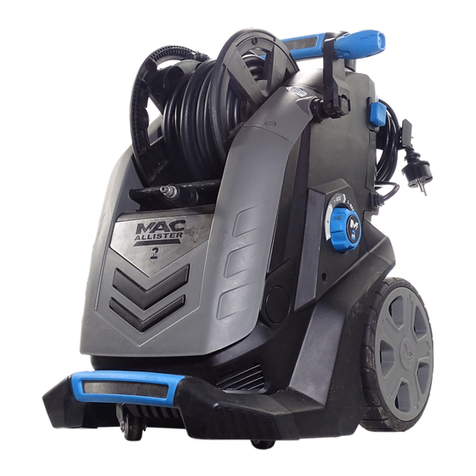

Mac allister MPWP2100-2 User manual

2100W High
pressure cleaner
MPWP2100-2
EAN: 3663602939702
WARNING: Read the instructions
before using the high pressure cleaner
ORIGINAL INSTRUCTIONS- MNL_V13_25/08/2020-HK
GP65-3663602939702-EN-V06.indd 1 11/2/16 6:05 PM
BX220IM

2 3
MPWP2100-2 By MacAllister MPWP2100-2 By MacAllister
Getting Started . . .
Safety information
Safety warnings
IMPORTANT: Retain this information for future reference, read carefully.
Machines shall not be used by children. Children should be supervised to ensure that they do not play with the machine. This machine can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the machine in a safe way and understand the hazards involved. High pressure cleaner safety warnings 1.
WARNING: If the power cord is damaged, it must be replaced persons in order to avoid a safety hazard.
2.
WARNING: This product has been designed for use with the cleaning agent supplied or recommended by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the safety of the product.
3.
WARNING: High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, live electrical equipment or the product itself.
4.
WARNING: Do not use the product within range of persons unless they wear protective clothing.
5. WARNING: Do not direct the jet against yourself or others
in order to clean clothes or foot-wear.
6.
WARNING: liquids.
Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference.
Getting Started... 02
Safety information 03
Your product 12 Before you start 15
In more detail... 27
Product functions 28 Operation 31 Care and maintenance 35
Trouble shooting 40 Recycling and disposal 42 Guarantee 42 EC Declaration of conformity 43
GP65-3663602939702-EN-V06.indd 2-3 11/2/16 6:05 PM

4 5
MPWP2100-2 By MacAllister MPWP2100-2 By MacAllister
Safety information
Getting Started . . .
Getting Started . . .
Safety information
7.
WARNING: This product shall not be used by children or untrained personnel.
8.
WARNING: are important for the safety of the product. Use only hoses,
9.
WARNING: To ensure product safety, use only original spare parts from the manufacturer or approved by the manufacturer.
10.
WARNING: is considered to be non-potable.
11. WARNING: Disconnect the product from its power source
by removing the plug from the socket-outlet during cleaning or maintenance and when replacing parts or converting the product to another function.
12.
WARNING: Do not use the product if a supply cord or important parts of the product are damaged, e.g. safety devices, high pressure hoses, trigger gun.
13.
WARNING: If an extension cord is used, the plug and socket must be of watertight construction.
14.
WARNING: Inadequate extension cords can be dangerous. If an extension cord is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommended that this is accomplished
by means of a cord reel which keeps the socket at
least 60 mm above the ground.
15. WARNING: The electric supply connection shall be made
IEC 60364-1. It is
recommended that the electric supply to this product should include either a residual current device that will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will prove the earth circuit.
16.
WARNING: liquids, or liquids with characteristics incompatible with its
proper operation.
17. WARNING: Never use the product outdoors in the rain.
18.
WARNING: Never allow the product to be used by children or those incapable of operating it correctly.
19.
WARNING: Never touch the plug and/or socket with wet hands.
20.
WARNING: Never use the product if the high pressure hose is damaged.
21.
WARNING: Never lock the gun trigger in the operating position.
22.
WARNING: plate; contact your dealer if it is missing. Products without and are potentially hazardous.
23. WARNING: Never tamper with or adjust the setting of the
safety valve or the safety devices.
24.
WARNING: Never change the original diameter of the nozzles provided with the product.
25. WARNING: Never leave the product unattended when it’s
connected to the power supply. Always switch off the mains disconneting switch when leaving the machine unattended.
26.
WARNING: Never move the product by pulling on the electrical power lead.
27.
WARNING: Do not allow vehicles to drive over the pressure hose.
GP65-3663602939702-EN-V06.indd 4-5 11/2/16 6:05 PM

6 7
MPWP2100-2 By MacAllister MPWP2100-2 By MacAllister
Safety information
Getting Started . . .
Getting Started . . .
Safety information
38.
WARNING: Check before each use, and at regular intervals, that all metal fasteners are tight and the product’s components are in good condition; inspect for broken or worn parts.
39. WARNING: Use only detergents compatible with the high
pressure hose / electrical power cord cladding materials.
40.
WARNING: Avoid skin contact with detergents, in particular eyes with clean water and seek immediate medical attention!
41.
WARNING: Never transport the product at vertical position to prevent user injury.
42.
Please wear appropriate personnel protection equipment (PPE) while operating the equipment, e.g. safety boots, safety gloves, safety helmets with visors, hearing protection etc.
Vibration and noise reduction To reduce the impact of noise and vibration emission, limit the
time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment. Take the following points into account to minimize the vibration and noise exposure risks: •
Only use the product as intended by its design and these instructions.
•
Ensure that the product is in good condition and well maintained.
•
Use correct application tools for the product and ensure they in good condition.
• Keep tight grip on the handles/grip surface. •
Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
• Plan your work schedule to spread any high vibration tool
use across a number of days.
28.
WARNING: Do not move the product by pulling on the pressure hose.
29.
WARNING: When directed towards tyres, tyre valves or other pressurised components, the high pressure jet is potentially dangerous. Do not use the rotating nozzle kit, and always keep the jet at a distance of at least 30 cm during cleaning.
30. WARNING: Protected all electrical conductors against the
water jet.
31.
WARNING: During start-up, the product may generate interference on the electricity supply system.
32.
WARNING: Use only authorised electrical extension cords with suitable conductor gauge.
33.
WARNING: High pressure may cause parts to rebound: wear all the protective clothing and equipment needed to ensure the operator’s safety.
34.
WARNING: pulling the trigger.
35. WARNING: Comply with the regulations of the local water
supply authority. Under EN 12729 (Type BA) the product
can be connected directly to the mains drinking water supply device with drainage facility. Make sure that the hose is at least a diameter of 12.7 mm(1/2”) and is reinforced!
36.
WARNING: Maintenance and/or repair work on electrical
37.
WARNING: Discharge residual pressure before disconnecting the hose from the product.
GP65-3663602939702-EN-V06.indd 6-7 11/2/16 6:05 PM

8 9
MPWP2100-2 By MacAllister MPWP2100-2 By MacAllister
Safety information
Getting Started . . .
Getting Started . . .
Safety information
Emergency Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards. 1.
Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
2.
Switch off and disconnect from the power supply if there is any malfunction. Have the product checked by a put it into operation again.
Residual risks
Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product: 1.
Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
2. Injuries and damage to property due to broken application
tools or the sudden impact of hidden objects during use.
3.
objects.
WARNING! This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product! WARNING! Depending on the actual use of the product the vibration values can differ from the declared total! Adopt proper measures to protect yourself against vibration exposures. Take the whole work process including times the product is running under no load or
switched off into consideration.
Proper measures include among others regular maintenance and care of the product and application tools, keeping hands warm, periodical breaks and proper planning of work processes. WARNING! Due to the power input of this product on other equipment (e.g. dimming lights). So for technical reasons we advise, if the mains-impedance is Zmax < 0.08 Ohm, these disturbances are not expected. If you power supply authority.
GP65-3663602939702-EN-V06.indd 8-9 11/2/16 6:05 PM

10 11
MPWP2100-2 By MacAllister MPWP2100-2 By MacAllister
Safety information
Getting Started . . .
Getting Started . . .
Safety information
Symbols the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. V~ Volt, (alternating voltage) W Watt kW Kilowatt Hz Hertz A Ampere cm3Cubic centimetre
mm Millimetre l/min Liter per minute dB(A) Decibel (A-rated) kg Kilogram MPa Mega Pascal, pressure unit m/s2Metre per second squared bar Pressure unit m Metre ºC Degree Celsius Ø Diameter N Newton
IPX5 The product is protected against water (out of a nozzle) from all directions.
yyWxx
Manufacturing date code; year of manufacturing (20yy) and week of manufacturing (Wxx). Caution/Warning Wear hearing protection. Note/Remark Wear eye protection. Read the instruction manual. Wear respiratory protection. Moving mechanisms - do not touch when working. Wear protective gloves.
Wear safety footwear.
Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation.
0Switch “off” position
ISwitch “on” position
Always ensure that other people and pets remain at a safe distance from the product when it is in operation. In general, children must not
come near the area where the product is.
Do not use in rain or wet conditions. Prohibition sign, instructs every user that local regulations can prohibit connection of the product to drinking water supply equipment.
87
Guaranteed sound power level value in dB. Warning sign reminding the user not to direct the water jet onto people, animals, electrical equipment or onto the product itself. The product complies with the applicable European directives and an evaluation method of conformity for these directives was done. WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. Rated pressure Allowable pressure
p IN Max: Max inlet water pressure
MPWP2100-2
Designation of the tool (M- MAC ALLISTER, PW - High pressure cleaner,
P- Power)
GP65-3663602939702-EN-V06.indd 10-11 11/2/16 6:05 PM
p rated:
p max:
Qrated:
QMax:

12 13
MPWP2100-2 By MacAllister MPWP2100-2 By MacAllister
Getting Started . . .
Getting Started . . .
Your product
Your product
22
3
1
2
5
6
11
12
12a
7
13
13a
19
14
20
21a
21b
21c
4a
4
16c
16d
16b
16a
21
10
9
18
9
8
17
17a
15
16
1. Power cord with plug 2. Handle 3. On-Off switch
4. Instruction Manual
a. Cleaning needle
5. Water inlet 6. Hose reel crank 7. Water inlet hose connector 8. Accessories storage compartment (Rotary brush) 9. Accessories storage compartment (Spray gun & extension lance) 10. Accessories storage compartment (Vario & nozzles)
11. Power cord storage 12. Rotary brush
a. Adaptor for spray gun b. Adaptor for extension lance
13. Extension lance
a. Unlock button
14. nozzle
15. High pressure hose 16. Spray gun
a. Connection port b. Latch c. Trigger d. Trigger locking button
17. Detergent tank
a. Detergent tank cap
18. Hose reel 19. Vario nozzle 20. Detergent spray nozzle 21. Patio cleaner
a. Detergent tank b. Tank cap c. Detergent spray regulator
22. Screw x 3
Your product
GP65-3663602939702-EN-V06.indd 12-13 11/2/16 6:05 PM

14 15
MPWP2100-2 By MacAllister MPWP2100-2 By MacAllister
Getting Started . . .
Getting Started . . .
Your product Before you start
General
>Rated voltage:
220 - 240 V~, 50 Hz
>Rated input: 2100 W
>Rated pressure PN 110 bar (11 MPa)
>Max. permissible pressure PSmax 140 bar (14 MPa)
>Max. inlet water pressure 10 bar (1MPa)
>6l/min
>7.5 l/min
>Rated temperature T 50 °C >Gun kickback force at maximum pressure 18 N
>Protection class/Protection degree / IPX5
>Weight 18.3 kg
>Dimensions
441 x 361 x 927 mm
High pressure hose
>Permissible pressure 160 bar (16 MPa)
>Maximum temperature 60 °C
>Length 9m
>Inlet water hose (not supplied) >Diameter min. Ø 12.7 (1/2”)
>Max. length 10 m
Sound level according to EN 60704-1 and ISO 3744
>Sound pressure level LpA 79 dB(A)
>Sound power level LWA 86 dB(A) >Uncertainty K 4dB(A)
>Guaranteed power level LWA 87 dB(A)
Vibration level according to ISO 5349-1
>Hand arm vibration ah1.75 m/s2
>Uncertainty K 1.5 m/s2
The declared vibration value has been measured in accordance with a standard test method and may be used for comparing one product with another. The declared vibration value may also be used to evaluate the exposure for the user caused by vibration in advance.
Unpack 1. 2. Remove all packing materials and shipping devices if applicable. 3.
parts are missing or show damage do not use the product but contact your dealer. Using an incomplete or damaged product represents a hazard to people and property.
4.
Ensure that you have all the accessories and tools needed for assembly and operation. This also includes suitable personal protective equipment.
Things to check before you start Check the pack and make sure you have all of the part listed. If not,contact your local
store who will be able to help you.
You will need
> Water hose with suitable connectors > Suitable personal protective
equipment
> Crosshead screwdriver
(items supplied)
> Spray gun > High pressure hose > Extension lance > Vario Nozzle > Rotary nozzle > Rotary brush > Patio cleaner > Detergent spray nozzle > Water inlet hose connector > Cleaning needle
Assembly 1.
Assemble the product completely before use. Attach the accessories storage compartment (9) to the lower side of the washer using one screw (22). Tighten the screw using a suitable crosshead screwdriver. Then attach the accessories storage compartment (9) to the upper side of the machine (Fig. 1).
Fig. 1
9
9
GP65-3663602939702-EN-V06.indd 14-15 11/2/16 6:05 PM

16 17
MPWP2100-2 By MacAllister MPWP2100-2 By MacAllister
Getting Started . . .
Getting Started . . .
Before you startBefore you start
2.
Attach the handle (2) to the support of the hose reel (18) using two screws (22). Tighten the screws using a suitable crosshead screwdriver. (Fig. 2).
2
18
Fig. 2
3. Push the crank (6) into the opening of the reel (18), ensure it clicks in place (Fig. 3).
Fig. 3
6
18
4. Screw the water inlet hose connector (7) to the water inlet (5) (Fig. 4).
Fig. 4
7
5.
Attach a suitable water hose to the water supply and then attach the other end to the water hose inlet connector (7) of the product (Fig. 5).
Fig. 5
Ø13 mm
7
NOTE: (7) that protects the product against
Pressure hose and spray gun 1. Unroll completely the high pressure hose (15) from the hose reel (18) by pulling it.
2.
Push the latch (16b) on the spray gun (16) to open the connecting port and insert the connector of the high pressure hose (15) (Fig. 6).
3.
Release the latch (16b) to lock the hose (15) in place. Check the connection by pulling on the hose. It should not pull out.
Fig. 6
A
16b
15
18
15
Accessories A choice of lances and accessories are supplied with this product. Please check the are compatible with this product.
GP65-3663602939702-EN-V06.indd 16-17 11/2/16 6:05 PM

18 19
MPWP2100-2 By MacAllister MPWP2100-2 By MacAllister
Getting Started . . .
Getting Started . . .
Before you start

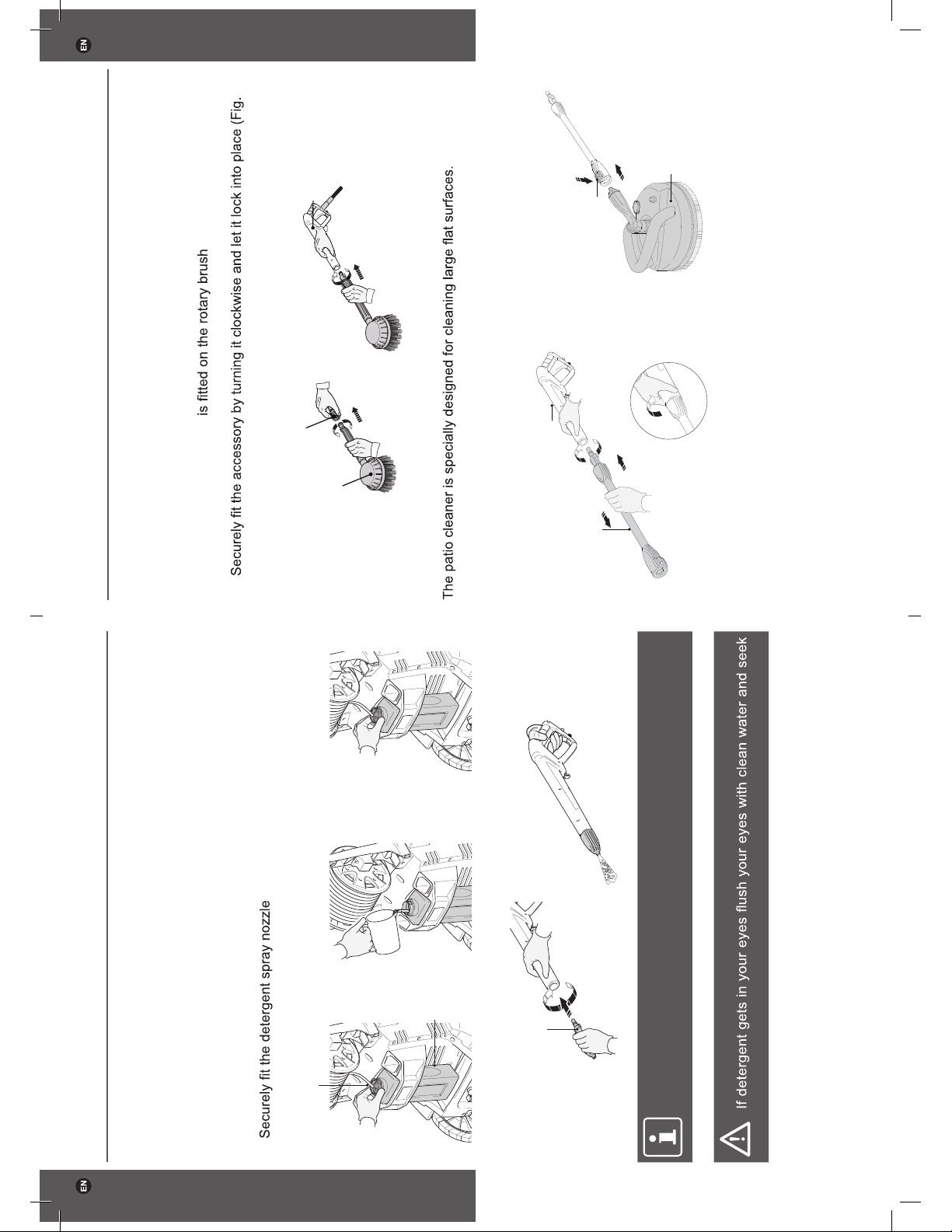

Attaching 1.
Select the suitable accessory (extension lance, Rotary brush or detergent spray nozzle), align the tongues with the grooves of the connecting port (16a) spray gun
and insert it.
NOTE: There is a spring in the connecting port of the spray gun (16).
This has to be pressed down and may require some pressure.
2. 7).
1.
16
2.
3.
13
Fig. 7
Fig. 9, attachment method shown with extension lance (13)
Removing
Press the accessory towards the spray gun (16) and turn it anti-clockwise to remove it. (Fig. 8).
1.
2.
3.
13
16
Fig. 8
Accessories
Illustration Description Application
Extension lance To be used in conjunction
with vario and turbo jet spray nozzle.
nozzle Fan and pin jet to be used
in conjunction with the extension lance.
Rotary nozzle To be used for high pressure
cleaning in conjunction with the extension lance.
Rotary brush with brush adaptors
To be used for rims and wheel cleaning in conjunction with the spray gun.
Detergent spray nozzle To be used for detergent
spraying in the conjunction with the spray gun.
Patio cleaner
e.g. patios, garden paths or courtyards. To be used in conjunction with the extension lance.
High pressure hose To be used in conjunction
with spray gun.
Spray gun To be used in conjunction
with extension lance and rotary brush.
Before you start
GP65-3663602939702-EN-V06.indd 18-19 11/2/16 6:05 PM

20 21
MPWP2100-2 By MacAllister MPWP2100-2 By MacAllister
Getting Started . . .
Getting Started . . .
Before you start
Vario nozzle The high pressure nozzle is intended for a large choice of applications and
cleaning effects. 1.
Always attach the extension lance (13) when using the nozzle (19) (Fig. 9).
16
13
1.
2.
3.
4.
Fig. 9
2.
Press the unlock button (13a) and attach the nozzle (19) to the extension lance (13). Release the button (13a) to secure the nozzle in place (Fig. 10).
3. Check if the nozzle (19) is attached properly by pulling on it. It should not pull out.
13a
19
1.
2.
Fig. 10
4. Turn the nozzle (19) to adjust the required setting. Use the fan spray to
clean wooden decks, vehicles, etc. When cleaning always start with the fan spray
and hold the lance at least 30 cm away from the surface being cleaned to avoid damaging it. Use the pin spray for maximum cleaning effect (Fig. 11).
Fig. 11
Rotary nozzle The high pressure rotary nozzle is intended for maximum cleaning effect. Keep the
spray wand 15-20 cm away from the surface being cleaned at all times.
1.
Always attach the extension lance (13) when using the rotary nozzle (14) (Fig. 12).
16
13
1.
2.
3.
4.
Fig. 12
2.
Press the unlock button (13a) and attach the
rotary
nozzle (14) to the extension
lance (13). Release the button (13a) to secure the nozzle in place (Fig. 13).
3. Check if the nozzle (14) is attached properly by pulling on it. It should not pull out.
13a
14 1.
2.
Fig. 13
NOTE: Always keep a reasonable distance between the nozzle and the object to be washed in order to avoid damage.
Before you start
GP65-3663602939702-EN-V06.indd 20-21 11/2/16 6:05 PM

22 23
MPWP2100-2 By MacAllister MPWP2100-2 By MacAllister
Getting Started . . .
Getting Started . . .
Before you start
Detergent spray nozzle Use the detergent spray nozzle (20) to apply detergent. Some cleaning tasks can be completed with water alone, but for most tasks the removal of dirt becomes more effective if a detergent is used. 1. Remove the cap (17a) from detergent tank (17) on the back of the product.
2. Add detergent to the tank (17) and attach the cap to the tank.
3. (20) into the port connection (16a) of spray
gun (16) by turning it clockwise to lock it in place (Fig. 14).
AA
A
17a
20
17
Fig. 14
NOTE: Only use mild, environmentally friendly detergents. Never use aggressive chemicals, abrasive detergents or similar to avoid damage to your health, the
product an dthe environment.
WARNING! Avoid skin contact with detergents, in particular contact with eyes! immediate medical attention!
Rotary brush The rotary brush is specially designed to clean rotary and vehicle wheels. Rotary brush in conjunction with the spray gun 1. Ensure the adaptor (12a) (12). Then align the tongues
of the adaptor (12a) with the grooves of the spray gun (16) and insert it.
2. 15).
3.
Press the accessory towards the lance extension and turn it anti-clockwise to remove it.
A
1.
2.
12
1.
2.
12a
16
Fig. 15
Patio cleaner
1. Always attach the extension lance (13) when using the patio cleaner (21) (Fig. 16).
Then press the unlock button (13a) and attach the patio cleaner (21) to the extension lance (13). Release the button (13a) to secure the patio in place (Fig. 16). Check if
the patio (21) is attached properly by pulling on it. It should not pull out.
A
16
13 13a
21
1.
1.
2. 2.
3.
4.
Fig. 16
Before you start
GP65-3663602939702-EN-V06.indd 22-23 11/2/16 6:05 PM

24 25
MPWP2100-2 By MacAllister MPWP2100-2 By MacAllister
Getting Started . . .
Getting Started . . .
Before you startBefore you start
2.
Remove the cap (21b) from the detergent tank (21a). Then add detergent to the tank and attach the cap to the tank (Fig. 17).
3. Adjust the detergent spraying mode by the detergent adjustment (21c) (Fig. 18).
Fig. 17
21b
21a
Fig. 18
21c

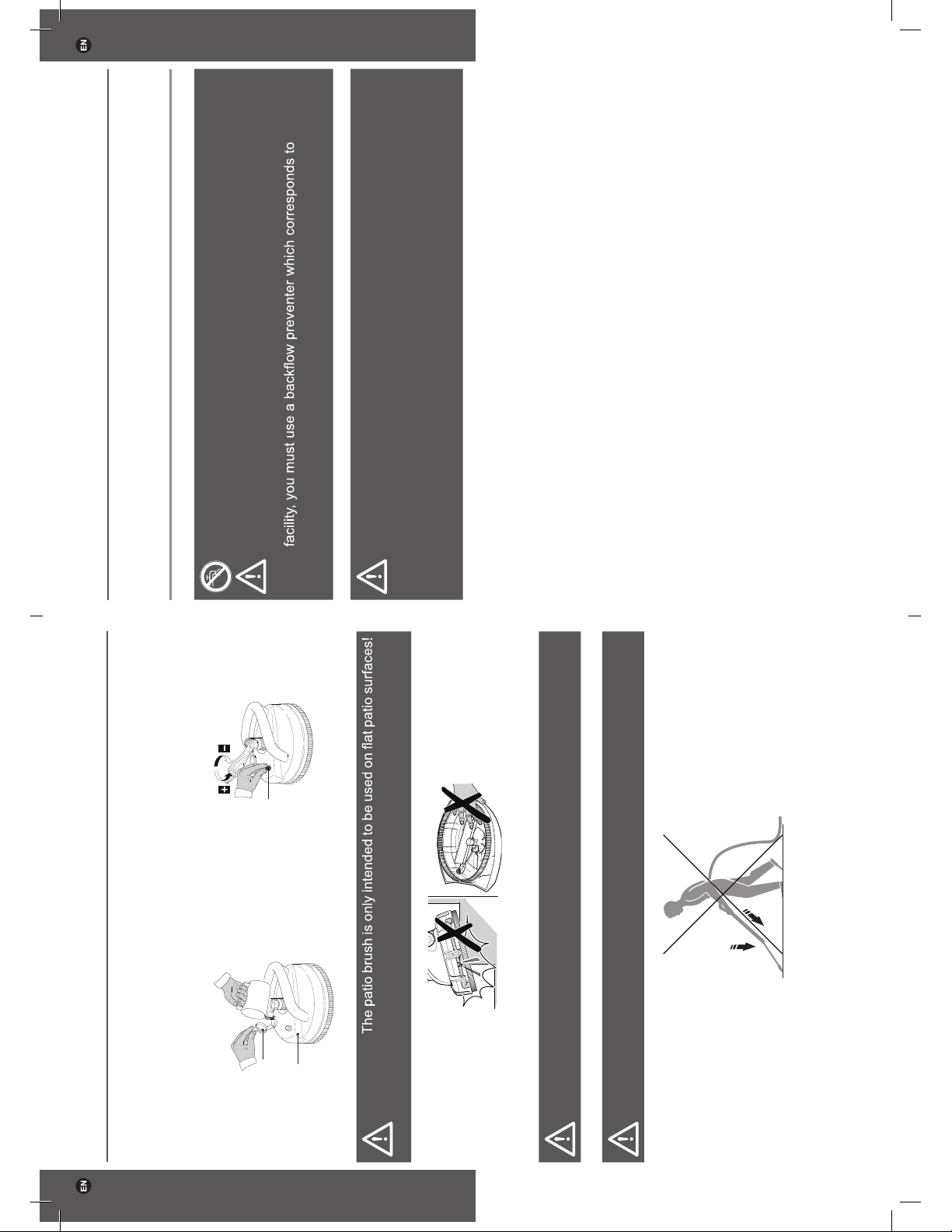

WARNING! Do not attempt to use it on steps or use it vertically on walls. Never attempt to touch the rotating nozzle while operating (Fig.19)!
Fig. 19
WARNING! Never operate the trigger (16c) of the spray gun (16) during the adjustment of the extension lance length. Danger of injury! WARNING! Never place weights or apply forces on the extension lance (13)
this leads to damage the product (Fig. 20)!
Fig. 20
Connection to the water supply
WARNING! Although this product is suitable for attachment to the drinking water supply local regulations may prohibit the connection to drinking water connections! Observe the regulations of your local utility company when connecting the product to a water supply line! If it is prohibited to connect to the drinking water
EN 12729
type BA. Make sure that the hose is at least a diameter of 12.7 mm (1/2”) and
is reinforced!
If your water supply is potable water, ensure that the pressure washer is connected to a non-return valve system (type BA). A Type BA system prevents the contamination of drinking water and must be
connected to the water tap output. The check valve is sold separately in stores.
GP65-3663602939702-EN-V06.indd 24-25 11/2/16 6:05 PM

26 27
MPWP2100-2 By MacAllister MPWP2100-2 By MacAllister
In more detail . . .
Getting Started . . .
Before you start

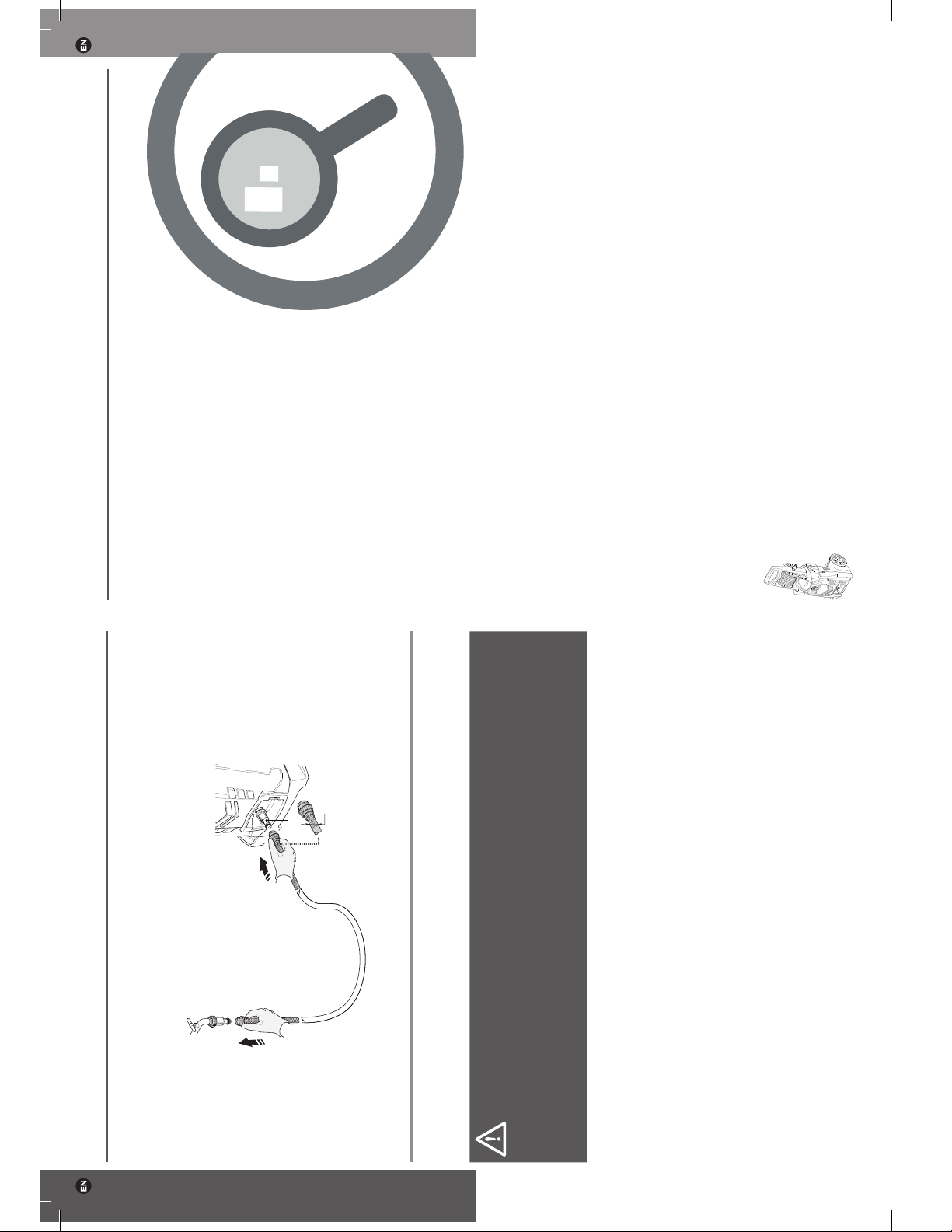

Attach a suitable water hose to the water supply and then attach the other end to the water hose inlet connector (7) of the product (Fig. 21).
7
Fig. 21
Ø 13 mm
Connection to the power supply 1. Make sure the on/off switch (3) is in its off position.
2. Connect the plug (1) with a suitable socket.
WARNING! Check the voltage! The voltage must comply with the information on the rating label! If using an extension cord it must be suitable for outdoor use with sockets protected against water splashing. Ensure the extension cord is of the proper size and type for your product (1.5mm²)! Always use a residual current device (RCD) protected supply.
Your product is now ready to be used.
In more
detail...
Product functions 28 Operation 31 Care and maintenance 35 Trouble shooting 40 Recycling and disposal 42 Guarantee 42 EC declaration of conformity 43
GP65-3663602939702-EN-V06.indd 26-27 11/2/16 6:05 PM

28 29
MPWP2100-2 By MacAllister MPWP2100-2 By MacAllister
In more detail . . .
In more detail . . .
Intended use This high pressure cleaner MPWP2100-2 is designated with a rated input of 2100 Watts. The intended use of this product covers cleaning the surfaces of domestic vehicles, buildings and patios using clean water and biodegradable chemical detergents. 1.
This product must not be used to clean clothing, shoes and other textiles. The water jet should not be directed or held against anyone, any animals or electrical equipment materials or liquids hazardous to health e.g. chemicals or asbestos. The product
2.
for the model in question is prohibited.
3. This product is intended for private domestic use only, not for any commercial trade
use. It must not be used for any purposes other than those described.
Safety devices This product is equipped with several safety devices to avoid damage and injuries. Overload cut-out In case of overload, the motor stops. In this case, switch the product off, remove the mains plug and let it cool down for 10 minutes, then repeat the startup.
1. Turn on the water tap fully.
2. Turn the On/Off switch (3) to “I”.
3. Hold the spray gun (16) with both hands.
4. Direct the nozzle of the chosen attachment away from yourself towards the surface
to be cleaned (Fig. 22).
5. Press the trigger (16c) and direct the water jet to the object to be washed.
6. Release the trigger (16d) to stop the water jet.
If the problem recurs more than once, contact your authorised service centre.
Fig. 22
Trigger lock
The spray gun (16) is equipped with a trigger lock in order to prevent accidental activation of the trigger (16c).
1.
Activate the trigger lock by pressing the activate button (16d) when the product is not in use, when it is left unattended or when setting the product down (Fig. 23).
2.
Deactivate the trigger lock by pressing the deactivate button (16d) to start operation (Fig. 24).
16 16c
16d Fig. 23 Fig. 24
16 16c
Fig. 23, trigger lock activated,
the trigger is locked in the off position
Fig. 24, trigger lock deactivated,
the trigger can be operated
Safety valve
The safety valve is a pressure limiting valve. When the trigger (16c) is released, the valve opens and discharges the pressure inside the pump. Automatic motor start-stop device Automatic motor start-stop device is operated by the trigger (16c) of the spray gun (16). When the trigger (16c) is released the dynamic pressure automatically cuts out the motor. When the trigger (16c) is depressed the automatic drop in pressure starts the motor and the pressure is restored after a very slight delay.
If the automatic motor start-stop device is to function correctly all trigger releasing and depressing operations must be performed with an interval of at least 5 seconds between each operation.
Product functionsProduct functions
GP65-3663602939702-EN-V06.indd 28-29 11/2/16 6:05 PM

30 31
MPWP2100-2 By MacAllister MPWP2100-2 By MacAllister
In more detail . . .
In more detail . . .
Operation
On/off switch 1. Make sure the on/off switch (3) is on “O”(off) (Fig. 25).
2. insert the plug (1) into a properly installed socket.
3. Turn the on/off switch (3) to “I” (on) (Fig. 26).
Fig. 25 Fig. 26
Note: The spray gun (16) is equipped with a trigger lock in order to prevent accidental activation of the trigger (16c). Activate the trigger lock when the product is not in use, when it is left unattended or when setting the product down (Fig. 23).
4.
Deactivate the trigger lock by pressing the deactivate button (16d) (Fig. 27).
5.
Press the trigger (16c), a water jet sprays out of the nozzle.
6.
Release the trigger (16c) to stop the water outlet.
Fig. 27
16 16c
16d
7.
Activate the trigger lock pressing the activate button (16d) to lock the trigger in its off-position (Fig. 28).
8. Turn the on/off switch (3) to “O”.
Fig. 28
16 16c
16d
General operation 1.
Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear.
2.
3.
Always hold the product by the spray gun and lance. Keep the surfaces dry to ensure safe support.
4.
Ensure that the air vents are always unobstructed and clear. Clean them if necessary with a soft brush. Blocked air vents may lead to overheating and damage the product.
5.
Switch the product off immediately if you are disturbed while working by other people entering the working area. Always let the product come to complete stop before putting it down.
6.
Do not overwork yourself. Take regular breaks to ensure you can concentrate on the work and have full control over the product.
Operation
WARNING! Do not operate the product when the ambient temperature is below 0°C. Water will freeze inside the product and damage it. WARNING! Do not operate the product with a closed water tap! This leads to
dry running and damage to the product! Rebound forces result from pressing
the trigger! Therefore, always hold the spray gun with both hands! Pay attention to safe posture! Improper handling can lead to injuries!
1. Assemble the product as described. 2. Turn on the water tap fully.
3. Turn the On/Off switch (3) to “I”.
4. Hold the spray gun (16) with both hands.
5. Direct the nozzle of the chosen attachment away from
yourself towards the surface to be cleaned (Fig. 29).
6.
Press the trigger (16c) and direct the water jet to the object to be washed.
Fig. 29
NOTE: Always keep a reasonable distance between the nozzle and the object to be washed in order to avoid damage.
7. Release the trigger (16c) to stop the water jet.
Product functions
GP65-3663602939702-EN-V06.indd 30-31 11/2/16 6:05 PM

32 33
MPWP2100-2 By MacAllister MPWP2100-2 By MacAllister
In more detail . . .
In more detail . . .
Operation

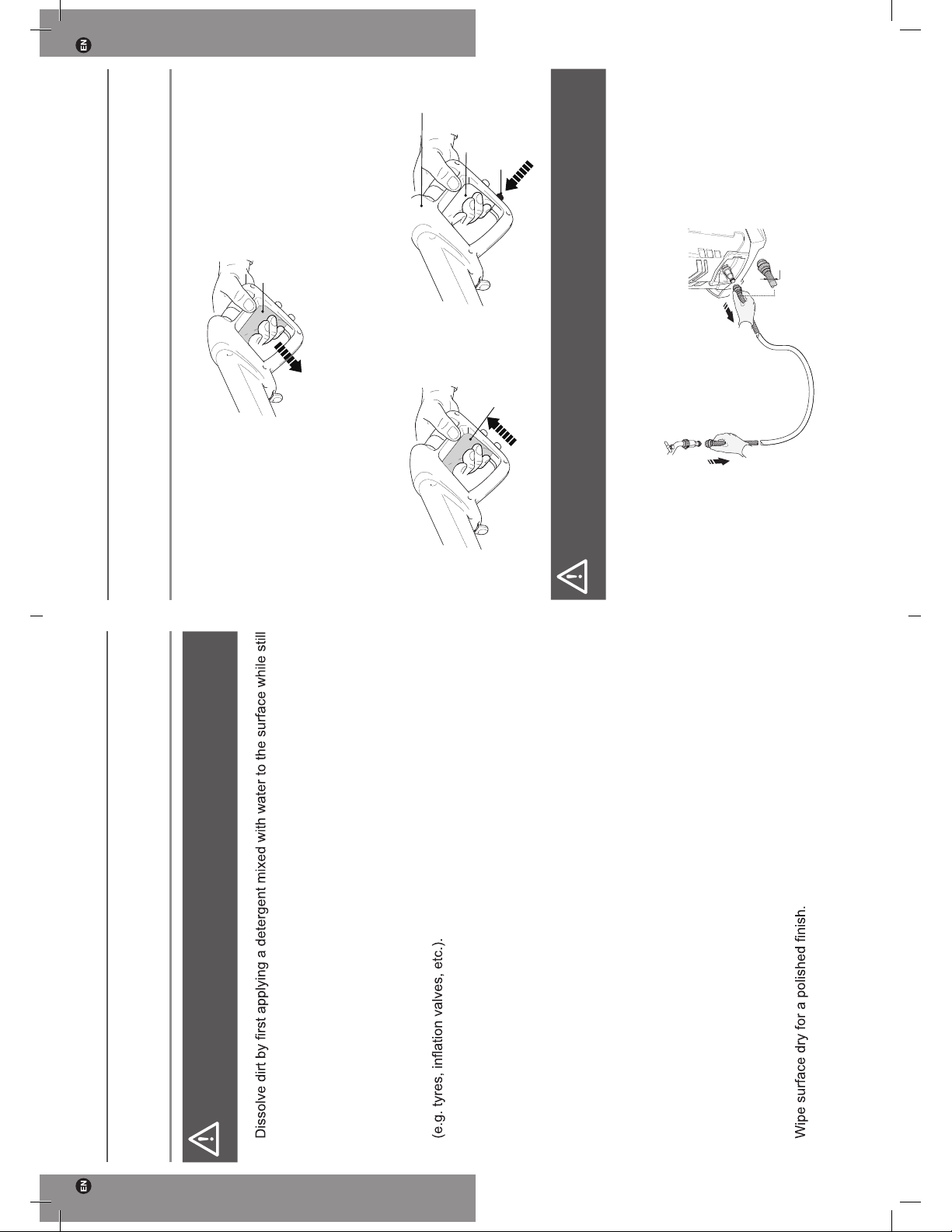

Tips
WARNING! Prevent water from penetrating the air vents of the product to minimize the risk of damage to the product and to reduce the risk of electric shock to the operater!
1.
dry. Allow the detergent to soak into the surface for a few minutes, but do not let the detergent dry.
2.
When dealing with vertical surfaces work from the bottom upwards. Leave the detergent to act for 1-2 minute(s) but do not allow the surface to dry. Starting from
the bottom, use the high pressure jet at a minimum distance of 30 cm. Do not allow
the rinse water to run onto unwashed surfaces.
3.
In some cases, scrubbing the surface with a suitable brush is needed to remove dirt. High pressure cleaning is not always the best solution for good washing results, since it may damage some surfaces. The turbo jet spray nozzle vario nozzle jet setting should not be used on delicate or painted parts, or on pressurised components
4. Effective washing depends on both the pressure and volume of the water used, to
the same degree.
5. Begin by spraying in a test area free and clear of people and objects. Wood and vinyl decks 1.
Reduce your work area to smaller sections and clean each section one at a time for optimal results.
2.
Rinse at high pressure using the fan spray keeping the tip of the spray nozzle at least 15 - 25 cm from the cleaning surface.
3. Maintain a further distance from the cleaning area when using a direct spray. 4. Caution! Increase the distance from the cleaning area for softer woods. Cement patios, stone, and brick 1. Rinse at high pressure using the fan spray in a sweeping motion keeping the tip of
the spray nozzle at least 7-15 cm from the cleaning surface.
2. Maintain a further distance from the cleaning area when using a direct spray. Cars, boats, and motorcycles 1. Clean one side at a time to achieve the best results. 2. Rinse at high pressure using the fan spray in a sweeping motion keeping the tip of
the spray nozzle at least 20 cm from the cleaning surface. Maintain a further distance from the cleaning area when using a direct spray.
3.
4. WARNING! Never clean the engine with this product!
Operation
After use 1. Release the trigger (16c) (Fig. 30)
Fig. 30
16c
2. Turn the on/off switch (3) to “O” (off).
3. Turn off the water tap. 4. Press the trigger (16c) to release the pressure still present in the product (Fig. 31).
5. Lock the trigger (16c) by pressing the activate button (16d) (Fig. 32).
16c
Fig. 31
Fig. 32
16
16c
16d
WARNING! Only separate the high-pressure hose from the spray gun and the water hose from the product when no more pressure exists in the system! Also ensure that the product is turned off and separated from electrical supply!
6. Disconnect from the power supply.
7. Separate the water hose from the water supply (Fig. 33).
Ø 13 mm
Fig. 33
GP65-3663602939702-EN-V06.indd 32-33 11/2/16 6:05 PM

34 35
MPWP2100-2 By MacAllister MPWP2100-2 By MacAllister
In more detail . . .
In more detail . . .
Care and maintenanceOperation
8.
Press the unlock button (13a) and disconnect nozzle (19) (Fig. 34) or the rotary nozzle (14) from the extension lance (13) (Fig. 35).
1.
2.
1.
2.
13a
13a
13 13
14
19
Fig. 34 Fig. 35
9.
Press the accessory towards the spray gun (16) and turn it anti-clockwise to remove it. (Fig. 36).
13
2.
1.
3.
Fig. 36
10.
Push the latch (16b) on the spray gun (16) to open the connecting port and disconnect the high pressure hose (15) by pulling it out (Fig. 37).
1. 2.
16b
15
16
Fig. 37
11. Check, clean and store the product as described below.
General operation
WARNING! Always switch the product off, disconnect it from power supply and let the product cool down before performing inspection, maintenance and cleaning work!
1. Keep the product clean. Remove debris from it after each use and before storage. 2.
Regular and proper cleaning will help ensure safe use and extend the life of the product.
3.
Inspect the product before each use for worn and damaged parts. Do not operate
WARNING! Only perform repairs and maintenance work according to these
General cleaning 1. Clean the product with a dry cloth. Use a brush for areas that are hard to reach. 2. In particular clean the air vents after every use with a cloth and brush. 3. Remove stubborn dirt with high pressure air (max. 3bar).
NOTE: Always keep a reasonable distance between the nozzle and the object to be washed in order to avoid damage.
4. Check for worn or damaged parts. Replace worn parts as necessary or contact an
authorised service centre for repair before using the product again.

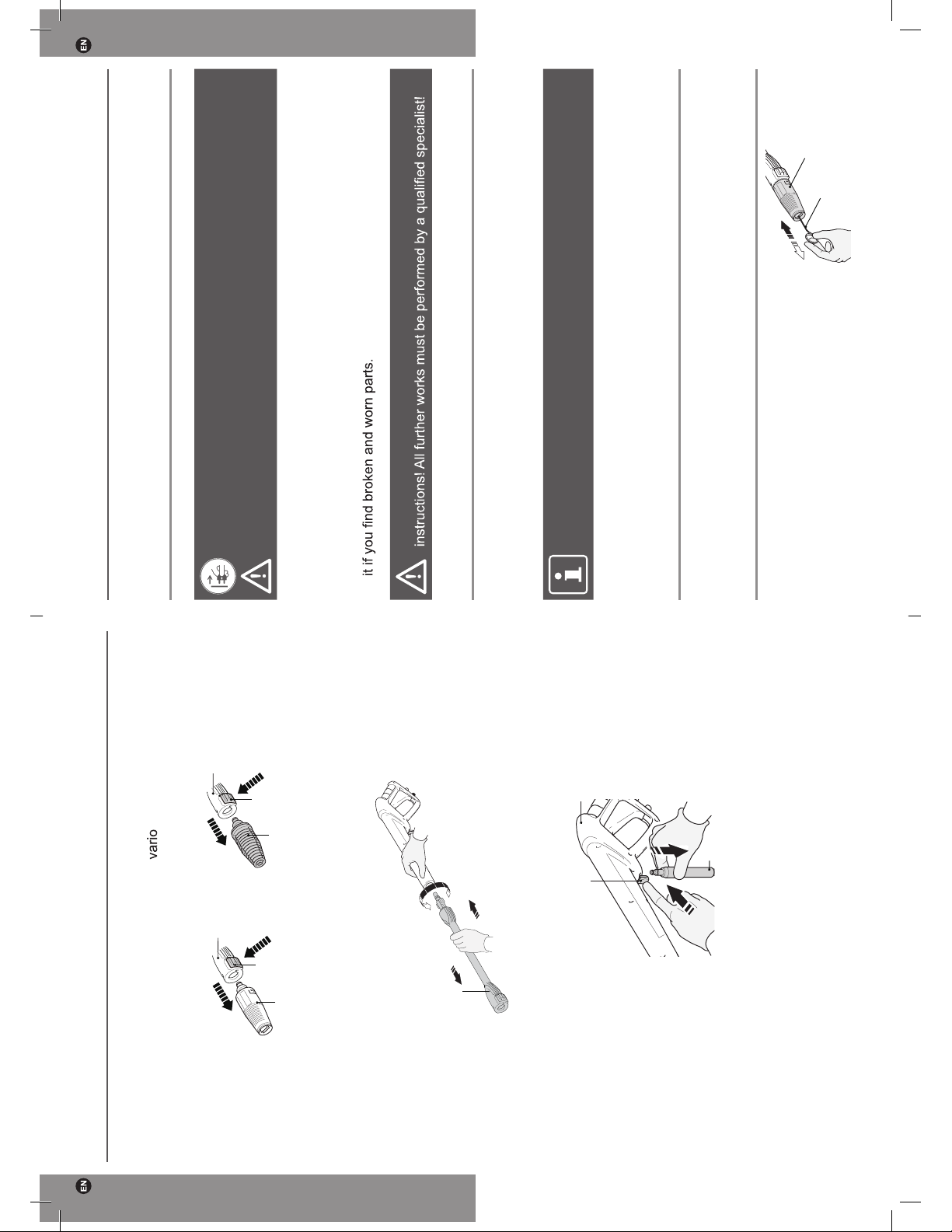

General operation A cleaning needle (4a) is supplied with this product and stored on the back side of instruction manual. Vario nozzle Remove any dirt deposits from the nozzle hole using the cleaning needle (4a) (Fig. 38).
Fig. 38
4a
19
GP65-3663602939702-EN-V06.indd 34-35 11/2/16 6:05 PM

36 37
MPWP2100-2 By MacAllister MPWP2100-2 By MacAllister
In more detail . . .
In more detail . . .
Care and maintenanceCare and maintenance

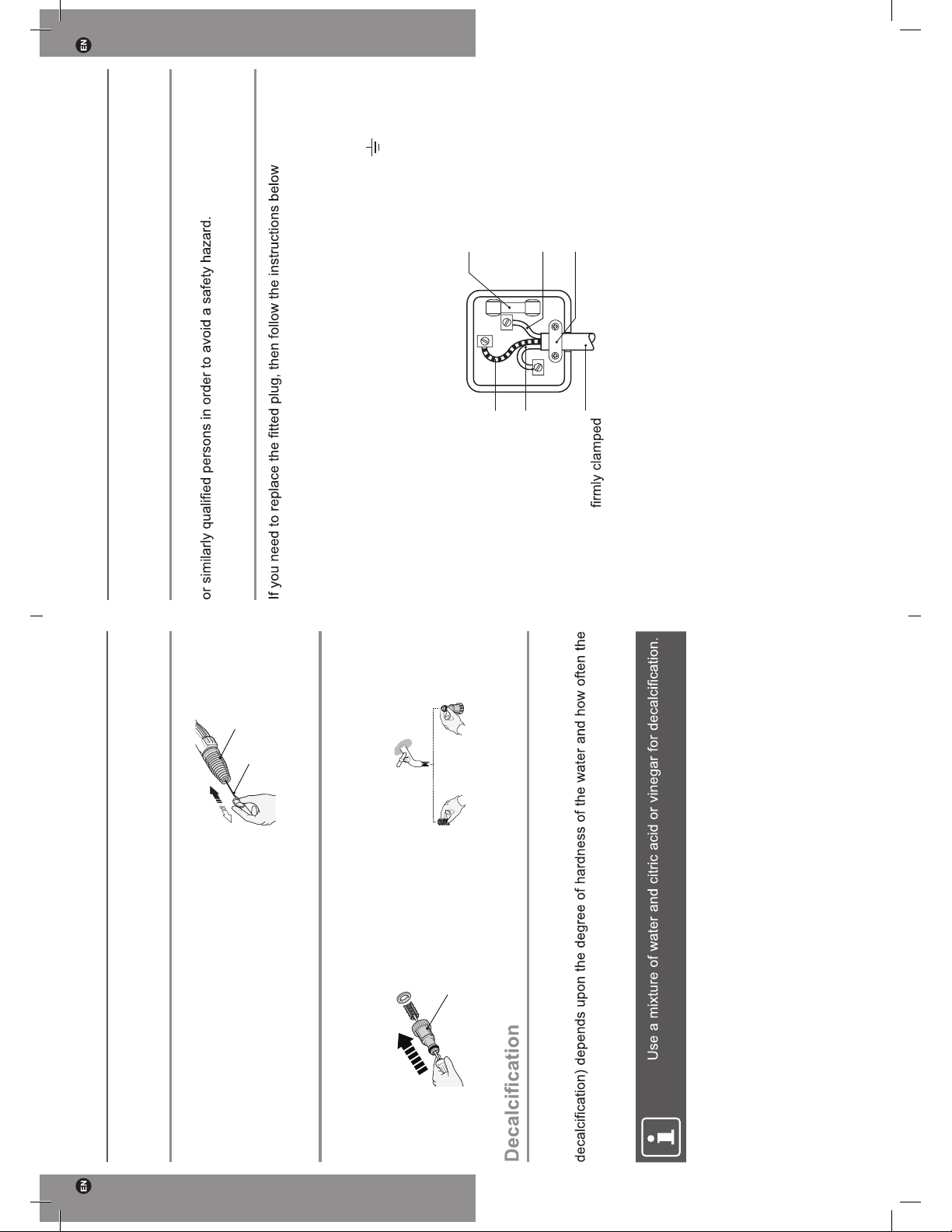

Power cord If the power cord is damaged, it must be replaced by the manufacturer, its service agent UK plug
.
IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue – Neutral Brown – Live Yellow/Green – Earth As the colours of the wire in the mains lead of this product may not correspond with the coloured marking identifying the terminals in your plug, proceed as follows. The green and yellow wire must be connected to the terminal in the plug, which is marked with the letter Eor with the earth ( ) symbol or
coloured green and yellow. The wire, which is coloured blue, must be connected to the
terminal, which is marked with Nor coloured black. The wire, which is coloured brown,
must be connected to the terminal, which is marked Lor coloured red.
E
N
L
Green and Yellow Earth
13AMP fuse
approved to
BS 1362 Brown L(Live)
Cable grip
Connect Blue to N(Neutral)
Outer sleeve
Rotary nozzle Remove any dirt deposits from the nozzle hole using the cleaning needle (4a) (Fig. 39).
Fig. 39
4a
14
Filter 1. Remove the water inlet hose connector (7) from the water inlet (5).
2. Use a damp tool to disassemble the water inlet hose connector (7) (Fig. 40).
3. Rinse the parts with clear water (Fig. 41).
Fig. 40
7
Fig. 41
From time to time, according to the hardness of your tap water, calcium deposits in the product and accessories. The strength of the deposits (and thus the frequency of product is used. Check with your local water company in order to establish the hardness of the water in your area.
NOTE: These substances are readily biodegradable and environmentally friendly!
1. Make a mixture of one part vinegar and two parts hot water 50 °C) in a suitable
container,e.g. in a bowl.
2. Lay the container e.g. accessory parts in the mixture. 3. Leave the parts in the mixture for approximately 12 hours.
4. Then rinse the parts with clear water.
GP65-3663602939702-EN-V06.indd 36-37 11/2/16 6:05 PM

38 39
MPWP2100-2 By MacAllister MPWP2100-2 By MacAllister
In more detail . . .
In more detail . . .
Care and maintenanceCare and maintenance
WARNING! Never connect live or neutral wires to the earth terminal of the plug.
13 Amp BS 1363 or BS 1363/A plug and the correctly rated fuse.
NOTE: in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket..
Repair This product does not contain any parts that can be repaired by the consumer. Contact Storage 1. Clean the product as described above. 2. Store the product and its accessories in a dry, frost-free place. 3.
Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10 and 30 °C.
4. We recommend using the original package for storage or covering the product with
a suitable cloth or enclosure to protect it against dust.
5.
Drain remaining water and wash out the detergent tank at the end of the working session. To wash out the tank, use clean water instead of the detergent.
6.
Store the accessories on the back and in the storage compartment of the product (Fig. 42).
Fig. 42
Transportation 1.
Switch the product off and disconnect it from water and power supply before transporting it anywhere.
2. Attach transportation guards, if applicable. 3. Always transport the product by its handle (2) (Fig. 43).
Fig. 43
2
4.
Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
5. Secure the product to prevent it from slipping or falling over.
GP65-3663602939702-EN-V06.indd 38-39 11/2/16 6:05 PM
