1 INTRODUCTION
1.1 Symbols and terminology used in the manual
Before performing any operation on the machine, the user must
carefully read the instructions contained in this publication and
follow them throughout the interventions.
If in doubt on the correct interpretation of the instructions, contact
our assistance service for the necessary clarications.
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
CAUTION:thissymbolindicatesinformationorprocedureswhich,ifnotcarefully
followed,maycauseseriouspersonalinjuries.Potentialsourceofinjuryordam-
agetohealth.
Theinstructionsaccompaniedbythissymbolcontaininformation,requirementsor
procedures,whichcancausedamageormalfunctions,ifnotcarriedoutcorrectly.
INFORMATION Theguidelinesindicatingthissymbolcontaininformationonpar-
ticularlyimportanttopicsandfailuretocomplywiththemmayrenderthewarranty
null and void.
CAREFULLY READtheinstructionmanualbeforecommissioning.
CAUTION:applianceconnectedtotheelectricalmains!
Disconnectthepowersupplybeforeperforminganymaintenance.
Injuryhazard!Usesuitablegloves.
OPERATOR:thissymbolindicatesinformationorproceduresconcerningtheuser
oftheappliance.Procedureswithinthecompetenceofthepersoninchargeofap-
plianceoperation,useandroutinemaintenance.
QUALIFIED TECHNICIAN:thissymbolindicatesinformationorproceduresregard-
ingspecialmaintenance(electrical/mechanical)foraqualiedpersonauthorised
bythemanufacturer.
EN
?

29
LEO 55 - LEO 55 essential EN
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
1.2 General information
This manual is an essential part of the LEO 55 on-demand co󰀨ee grinder; therefore, it is crucial
that you read the enclosed warnings and precautions carefully. In particular, pay attention to the
safety instructions during installation, commissioning, use and cleaning. Please keep this user
manual in a safe location where it may be available to all users of the device. For online consultation
of these instructions, go to www.macap.it. For a hard copy, send an email to: [email protected]
The description of the on-demand co󰀨ee grinder provided below is of a general
nature and may, therefore, not include all details on the various components.
The o󰀩cial language chosen by the manufacturer is Italian.
This manual reects the condition of the appliance at the time of delivery. MACAP s.r.l reserves
the right to make, at any time, all the changes it deems appropriate to mass production and the
related manuals without the obligation to update previous production and manuals.
The manufacturer shall not be liable for any damage caused to
people or property due to:
■ Improper use of the appliance.
■ Use by unsuitable personnel (unauthorised and/or untrained).
■ Power supply defects.
■ Lack of maintenance on the components of the co󰀨ee grinder.
■ Changes to the product not authorised by the manufacturer.
■ Use of non-original spare parts.
■ Replacement of components supplied with the appliance with other
components having di󰀨erent technical specications from those in the
project.
■ Failure to comply with these instructions.
■ Failure to comply with the safety regulations.
Transportation and handling
When handling the appliance, take the necessary precautions
to prevent it from falling, damaging people, animals and things,
as well as the co󰀨ee grinder itself.
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
?

30
LEO 55 - LEO 55 essential
?
EN
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
1. Install the machine on a at surface in conditions in which the
temperature cannot drop below 5°C. Keep warm.
2. Do not leave the machine exposed to environmental elements or
place it in damp rooms.
3. Do not place heavy items on the package.
4. In an emergency, such as re, unusual noise, overheating, etc.,
take immediate action by disconnecting power.
5. The installation and repair must conform to the codes and local
electrical safety regulations.
6. The on-demand co󰀨ee grinder must be installed after reading and
understanding this publication.
1.4 Safety instructions
1.3 Warranty
The warranty does not cover:
■ all parts subject to wear
■ parts damaged by tampering by personnel not authorised by the company
■ parts damaged by improper use of the product.
Any returns must be authorised by our company, shipping costs must be covered by the
customer. Returns will be considered covered by the warranty only after the returned goods
are checked.
When handling the product in the packaging, be sure to follow the wording “THIS WAY UP”
(identied by the symbol ) on the packaging.
Do not overturn the appliance during handling. Handle with care. The manufacturer cannot
be held responsible for damage caused by incorrect handling or by not complying with the
indications provided.

31
LEO 55 - LEO 55 essential EN
?
7. This appliance is only safe when it has been correctly connected
to an e󰀩cient earthing system.
8. Check to see that the data on the rating plate corresponds to that
of the main electrical mains to which the product will be connect-
ed. Before connecting the appliance to the electrical mains, make
sure that its voltage and frequency correspond to those of the local
electrical mains. The electrical data are indicated on the appliance
rating plate.
9. Do not use this machine if the cable, plug or any other part is
damaged or if the machine malfunctions. Return the machine to
the nearest authorised service facility for examination, repair or
adjustment. The power cable must not be replaced by the user.
10. This appliance was designed exclusively to grind co󰀨ee beans. All
other uses are inappropriate and dangerous. The manufacturer
shall not be held responsible for any damage caused by inappro-
priate use.
11. To protect against electric shocks when using any electrical appli-
ance, including the LEO 55 on-demand co󰀨ee grinder:
a. Do not immerse the co󰀨ee grinder, cable and plugs in water or
other liquid and do not let the machine’s internal parts get in
contact with liquid.
b. Make sure the power cable is not stretched or pulled.
c. Place a circuit breaker at the electrical mains feeding the appliance.
d. Do not spill liquids on top of the machine.
e. The machine should not be exposed to elements such as sunlight,
rain, snow, extreme temperatures, etc.
12.
Always use MACAP s.r.l. certied and manufactured spare parts and
accessories.

32
LEO 55 - LEO 55 essential
?
EN
13. Before performing any cleaning or maintenance turn the machine
o󰀨 by means of the power switch and disconnect the machine from
the electrical supply.
14. If the machine operates in a faulty manner or stops working, turn
it o󰀨 immediately and disconnect it from the electrical supply. Do
not attempt to repair it but contact an authorised and qualied
MACAP s.r.l. technician. Any repairs must be performed by the
manufacturer or by an authorised dealer using only original parts.
15. The appliance is not to be used by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they are supervised or have
been given instruction.
16. Keep the appliance and relevant cable out of reach of children.
17. Children must not play with the appliance.
18. Do not pull the power cable to disconnect the appliance from the
power supply.
19. To ensure correct operation and e󰀩ciency of the machine, it is
required to follow the manufacturer’s instructions, carrying out
cleaning and routine maintenance operations.
20. Remember that the appliance is intended for professional use, not
domestic, therefore it may only be used by qualied persons.
21. The appliance is not waterproof, therefore, it must be placed far
away from water jets or damp places. Do not wash the appliance
with water jets or steam cleaners.
22. The appliance is suitable for indoor use only.
23. The appliance must only be installed in locations where use and
maintenance is reserved to trained personnel.

33
LEO 55 - LEO 55 essential
?
EN
24. The instructions must specify that access to the service area, which
requires use of a tool, is reserved to persons who have knowledge
and practical experience of the appliance, in particular with regard
to safety and hygiene (also see point 19).
25. This appliance can be used by children aged 8 years and over and
by persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they are supervised or
instructed on using the appliance safely and they understand the
potential risks involved.

34
LEO 55 - LEO 55 essential
?
EN
Before proceeding with the
installation, in case anom-
alies are found during the
checks at delivery, report the
ndings to the manufacturer.
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
The weight of the unladen machine is indicated
directly on the packaging or is visible on the
“CE” marking plate applied on the machine.
The packed machine must be protected in a
sheltered and moisture-free place until it is
installed in a suitable environment.
After removing the packaging, it is required
to verify that the various components are in
perfect condition and that there are no traces
of tampering, damaged parts, etc.
It will also be necessary to check that the
machine is complete with all its parts, any
accessories and technical documentation as
per the transport documentation.
g_2.1
The packaging elements (plas-
tic bags, expanded polysty-
rene, cartons, etc...) must not
be left within the reach of children as
they are potential sources of danger.
These elements must be disposed of
in accordance with the local regula-
tions in force.
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
2UNPACKING
Before proceeding, the appliance
installation personnel must read
these instructions and, in par-
ticular, the previous sections
regarding general information
and safety requirements.
2.1 Contents of the packaging
The on-demand co󰀨ee grinder is supplied in a
cardboard box. Make sure that all components
are present when opening (g. 2.1)
1 On-demand co󰀨ee grinder
2 Co󰀨ee hopper with cover and locking slide
3Leo 55 user and maintenance manual
The packaging must be stored at least until
the warranty elapses.

35
LEO 55 - LEO 55 essential
?
EN
DESCRIPTION OF
THE ON-DEMAND
COFFEE GRINDER
LEO 55 LEO 55 Essential
Dose Single, double, triple, continuous
Single, double, triple, continuous
Filterholdersupport
withadjustablefork Standard Standard
Flat grinder burrs Ø55 mm Ø55 mm
Available voltages 220-240V 50-60Hz
110V 60Hz 220-240V 50-60Hz 110V 60Hz
Absorbed power 390W 310W
Dimensions (g._3.1)183 x 131 x 382 mm 183 x 131 x 382 mm
Hopper capacity 250 g 250 g
Weightwhenempty 6.2 Kg 6.2 Kg
This type of appliance is intended for commer-
cial use, for example in restaurant kitchens,
cafeterias, hospitals and businesses such as
bakeries, butcher shops, etc., but not for the
continuous mass production of food. This de-
vice was only designed to grind co󰀨ee beans.
Any other use is to be considered unsuitable
and therefore dangerous.
The manufacturer cannot
be held responsible for any
damage caused to people
or things due to unsuitable,
erroneous or irrational use
of the machine.
The operator must always follow the indica-
tions contained in this manual. In the case
of a failure or if the machine is not working
properly, switch it o󰀨 and do not attempt any
direct repair. Contact the service centre.
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
g_3.1
3
3.1 Intended use
3.2 Technical specifications

36
LEO 55 - LEO 55 essential
g_3.2
3.3 Main parts
3.4 Noise level
The noise tests performed according to current
regulations have determined that the co󰀨ee
grinder does not exceed 72±3dB (A).
1. Co󰀨ee hopper cover
2. Co󰀨ee hopper
3. Hopper locking slide
4. Display
5. Dispensing cone
6. Filter holder support pin
7. Grinding start button
(only for mod. LEO 55)
8.Filter holder fork
9. Grinding adjustment knob
10. Upper plate
11. Machine body
12. Switch
13. Lower plate
?
EN

37
LEO 55 - LEO 55 essential EN
The installation must be performed by
qualied technical personnel. The installa-
tion must be performed in conformity with
current safety regulation of the Country
where the product is used.
The machine must only be installed in places
where it is easy to use and access.
The support surface must be at, dry, smooth
and guarantee perfect stability.
The recommended height of the base is at
least approximately 90-100 cm from the ground
(g._4.1).
g_4.1
Do not use or install where water jets are used.
In order to ensure normal operation, the machine
must be installed in areas where the room temper-
ature is between +5°C and +36°C and humidity
does not exceed 70%.
Ensure that there is an open area of at least 10
cm on each side and at least 30cm above the ma-
chine to allow adequate ventilation, simple co󰀨ee
relling and facilitate its use and the performance
of any maintenance operations. (g._4.2).
If the machine is wet or very
damp, wait until it is com-
pletely dry before installing
or using it.
g_4.2
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
4INSTALLATION
?

38
LEO 55 - LEO 55 essential
Before connecting the ma-
chine ensure that the iden-
tication label data comply
with those of the local elec-
tric mains.
The earthing system must be carried out in
accordance with the provisions of current
legislation.
Check that the switch is o󰀨 and therefore in
zero position (O - OFF - g._4.4)before con-
necting the device to the electrical mains
Connect the power cable (g. 4.5)
Before installing the co󰀨ee
hopper and relative cover,
wash them with water and
mild detergent to remove
any processing residues.
Place the hopper (1 - g._4.3), correctly and
stably inside the rubber collar, with the hopper
locking slide inserted (2 - g._4.3)
g_4.3
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
g_4.4
4.1 Coffee hopper
installation 4.2 Electrical power supply
EN
?

39
LEO 55 - LEO 55 essential
OPERATION OF THE
5ON-DEMAND COFFEE
GRINDER
g_4.5
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
g_5.1
We assume the machine has been installed
correctly.
■ Remove the cover from the co󰀨ee hopper (1
- g._5.1) and insert the co󰀨ee beans. Close
the cover.
5.1 Preparation and start up
■ Open the co󰀨ee hopper locking slide (2-
g._5.2), allowing the co󰀨ee beans to enter
the grinding chamber.
Place any excess cable on
the worktop, so that it can-
not be pulled by children or
cause tripping.
If the power cable is dam-
aged it is to be replaced
by the manufacturer or by
their technical assistance
service or by a person with
equivalent qualication, in
order to prevent any risks.
EN
?
?

40
LEO 55 - LEO 55 essential
EN
?
g_5.3
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
g_5.4
g_5.2
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
The machine is factory calibrated with an es-
presso grinding. To adjust the granulometry,
use the continuous dose and a precision scale
to weigh the exact grammage. Every time a
grinding adjustment is required, the rst two
double doses must be discarded because they
might still contain parts of the previous grinding
adjustment. After pressing the co󰀨ee and check-
ing that the extraction time is the desired one,
proceed with the adjustment of the times of the
programmed doses.
To modify grinding: Rotate the adjustment
knob clockwise for a FINER granulometry and
anticlockwise for a COARSER granulometry
(g._5.4). Adjust the grinding with the motor
switched on if there is co󰀨ee between the grind-
ers, and with the motor switched o󰀨 if there is
no co󰀨ee.
The adjustment from coarse to ne
is best done while the machine is
grinding or with an empty grinding
chamber.
■ Activate the device by moving the switch to
the I- ON (3 - g._5.3). When starting the
device, a short welcome message appears
on the display and after a few seconds one
of the pre-set functions appears; to switch
from one function to another, press the dose
selection button .
5.2 Grinding
adjustment
At night or when there are no oper-
ators in the room, move the switch
to the O - OFF (see gure 4.4).
Never operate without the
hopper or without its cover.

41
LEO 55 - LEO 55 essential EN
?
MACCHINA
IN
MANUTENZIONE
VIETATO
L’ACCESSO
oltre questo limite
ATTENZIONE
ORGANI
IN MOVIMENTO
ATTENZIONE
CORRENTE
ELETTRICA
MANUTENZIONE ORDINARIA
OLIARE INGRASSARE
TUTTE LE PARTI IN MOVIMENTO
OGNI 30 GG
The device is equipped with a digital dose
time adjustment.
Pressing the dose selection button
in the operation menu allows you to choose
between single, double, triple or continuous
dose. To change the time of the programmed
doses make sure that the “PADLOCK” symbol
is in the open position .
If it is not, press the dose selection button
for 3 seconds; adjust the dose using
the “ ” or “ ” buttons.
Press the dose selection button for 3
seconds and return the “PADLOCK'” to the
closed position to prevent any change
in the time settings.
Please note that each time you adjust the
grinding, you must check that the quantity of
ground co󰀨ee has remained as desired.
g_5.5
g_5.6
It is also recommended to grind
and use a few grams of coffee
every time the granulometry is
altered. This procedure is useful
to eliminate the small amount of
pre-ground co󰀨ee present in the
appliance. If the machine dispens-
es co󰀨ee slowly, the ground co󰀨ee
is too ne, while if it is too fast, the
ground co󰀨ee is too coarse. Many
factors may inuence the dispens-
ing of co󰀨ee, including the quality
of the co󰀨ee, pressing, the adjust-
ment of the espresso machine, the
cleaning of the lters and climatic
conditions.
5.4 Fork adjustment
All models are supplied with a fork height ad-
justment device. To change the height, loosen
the screws by half a turn 1 - g._5.5) and move
the fork (2) to the desired position. The correct
height of the fork (g._5.6) is obtained when
the prole of the lter holder ts perfectly in
the groove of the support pin.(3 - g._5.5).
Fasten the screws to guarantee a secure grip
to the lter holder.
5.3 Time adjustment
dose

42
LEO 55 - LEO 55 essential

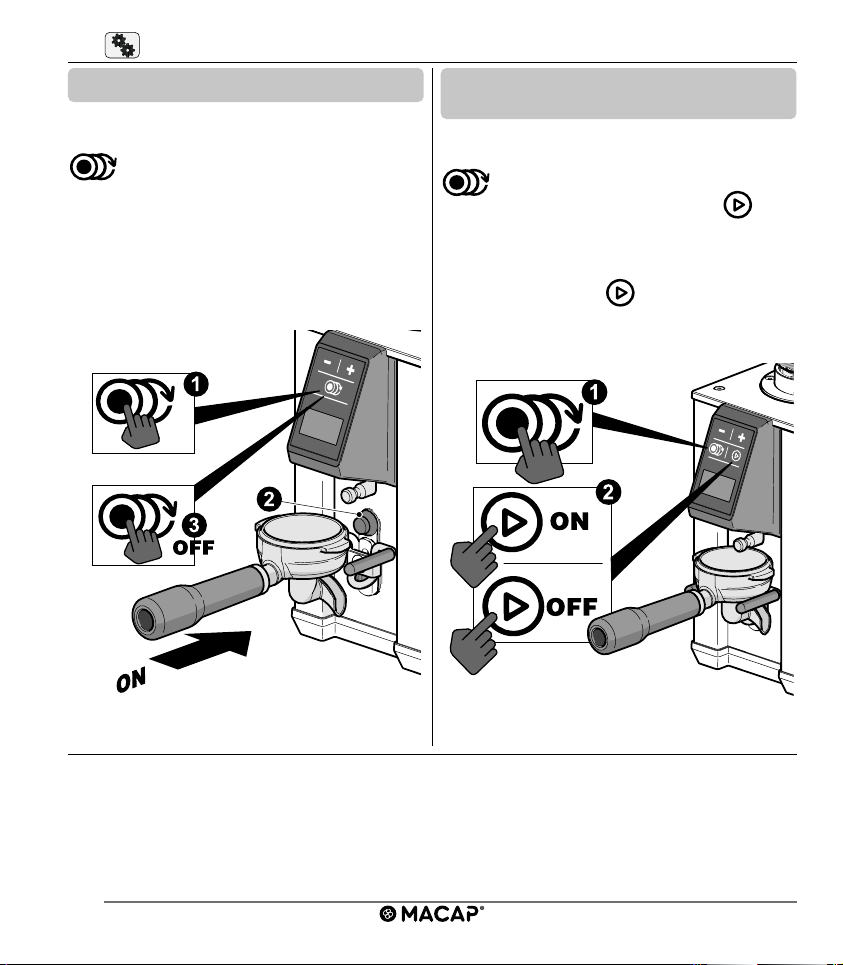

g_5.7 g_5.8
5.5 LEO 55 Operation
Grinding is activated by selecting one of the
working modes with the dose selection button
(1 - g._5.7) and pressing the grind-
ing start button (2 - g._5.7). Grinding of the
programmed doses will automatically stop at
the end of the set time, and to stop grinding
early press the dose selection button once
(OFF - g._5.7).
5.6 Operation
LEO 55 essential
Grinding is activated by selecting one of the
working modes with the dose selection button
(1 - g._5.8), and starting grinding by
pressing the relative start button (2-
g._5.8). Grinding of the programmed doses
will automatically stop at the end of the set
time, and to stop grinding early press the
grinding start button (2).
Continuous dose grinding takes place by keeping the start button pressed (2 - g._5.7 and
g._5.8). After prematurely interrupting grinding, the dose symbol will ash for 3 seconds, at
the end of which the timer will return to the dispensing time set in programming.
To restart dispensing, press the grinding start button (2) again within 3 seconds.
EN
?

43
LEO 55 - LEO 55 essential EN
?
6PROGRAMMING
To enter the programming menu, switch on the
machine, after the welcome message, press
the dose selection button for 8 seconds
until the display changes.
8 S
Pressing the buttons “ ” or “ ” allows you
to scroll through the menu; in programming
you can view the number of doses for timed
functions, activate triple dose as well as
continuous dose. To exit the programming
menu, scroll to the “EXIT” screen and press
the dose selection button to return to the op-
eration menu.
6.1 Operation menu
The display can show several screens for
controlling the co󰀨ee grinder.
Only some of these can be displayed depend-
ing on the settings in the programming menu.
To scroll through the menu, press the dose
selection button after the "WELCOME"
Message.
■ Single dose
■ Double dose
■ Triple dose (if active)
■ Continuous dose (if ac-
tive)

44
LEO 55 - LEO 55 essential
EN
?
The device is equipped with a function for
controlling the number of doses for timed
functions. The letter “P” indicates the number
of partial doses, “T” indicates the number of
total doses. The dose counter can be reset by
entering the programming menu and pressing
the dose selection button for 5 seconds.
5 S
Select EXIT and press the DOSE to exit pro-
gramming.
To enable the triple dose, proceed as follows:
enter the programming menu, scroll with the “
” or “ ” buttons until the “TRIPLE DOSE”
symbol is displayed.
8 S
Press the dose selection button to
activate the function ON/OFF and make the
selection via button “ ” or “ ”. Conrm
by pressing the dose selection button
again.
Select EXIT and press dose selection button
to exit programming. The operation
menu will now allow you to choose triple dose,
if enabled.
6.2 Dose counter
Single dose counter
Double dose counter
Triple dose counter
6.3 Triple dose
