Madison U3M-148 User manual

Installation and Maintenance
U3M-148 Ultrasonic Sensors
Madison Company, Inc.
27 Business Park Drive
Branford, CT 06405 MADE IN THE USA
Made in the USA
203-488-4477 or 800-466-5383
[email protected]
www.madisonco.com
Sensing Solutions since 1959
MF-163 Rev A
ECN 10703, 01/30/18
Page 1 of 3
INSTRUCTION MANUAL
U3M-148 Ultrasonic Sensors
DIMENSION
Model ABC
U3M-148 1.125”Ø 1.95” 1” NPT
Specifications
Model U3M-148
Beam Angle 12°
Range 0.33 -9 ft.
Resolution 0.03”
Temperature
Electronic Enclosure -40 to 140°F
Pressure 5 Bar
Ingress Protection NEMA 6 (IP68)
Input Power 12 -30 VDC
Output 4 -20 mA
Cable 5’ -24AWG
Mounting 1.0” NPT
Option
-S15 (Sanitary) 1.5” Ferrule
-S20 (Sanitary) 2” Ferrule
-3/4 (Adapter)13/4” Adapter
-HTP (High Temp &
Pressure Nozzle) -40 to 266°F
-485 (Communication) RS-485
-R (Relay)2SPDT
8A@230VAC
1. Not available with S15, S20, HTP option.
2. Includes 5’ -18AWG Cable.
© 2018 Madison Company, Inc., MAD_MAN_MF-163_060518
ECN #10900, Effective Date 08/2018, MF-163, Rev B
ISO 9001 Certied

MF-163 Rev A
ECN 10703, 01/30/18
Page 2 of 3
INSTRUCTION MANUAL
U3M-148 Ultrasonic Sensors
Alarm
Pump
Optional Relay Output
Solenoid
Valve
RS485 to USB
Panel Meter
MD4815
Power Supply
Computer
Electrical Connection
GatewayPC
Software
Process
Meter
12-30VDC
Supply
U3M-XXX
mA Out
Power In
+
-
+
-
ELECTRICAL SPECIFICATION
POWER DC 12-30VDC, 0.07A Max @ 24VDC
RLOAD= (Vs - 6) / 24mA
OUTPUT 4-20mA, 6.1uA Resolution
Installation and Maintenance
U3M-148 Ultrasonic Sensors
Madison Company, Inc.
27 Business Park Drive
Branford, CT 06405 MADE IN THE USA
Made in the USA
203-488-4477 or 800-466-5383
[email protected]
www.madisonco.com
Sensing Solutions since 1959
© 2018 Madison Company, Inc., MAD_MAN_MF-163_060518
ECN #10900, Effective Date 08/2018, MF-163, Rev B
ISO 9001 Certied

Installation and Maintenance
U3M-148 Ultrasonic Sensors
Madison Company, Inc.
27 Business Park Drive
Branford, CT 06405 MADE IN THE USA
Made in the USA
203-488-4477 or 800-466-5383
[email protected]
www.madisonco.com
Sensing Solutions since 1959
MF-163 Rev A
ECN 10703, 01/30/18
Page 3 of 3
INSTRUCTION MANUAL
U3M-148 Ultrasonic Sensors

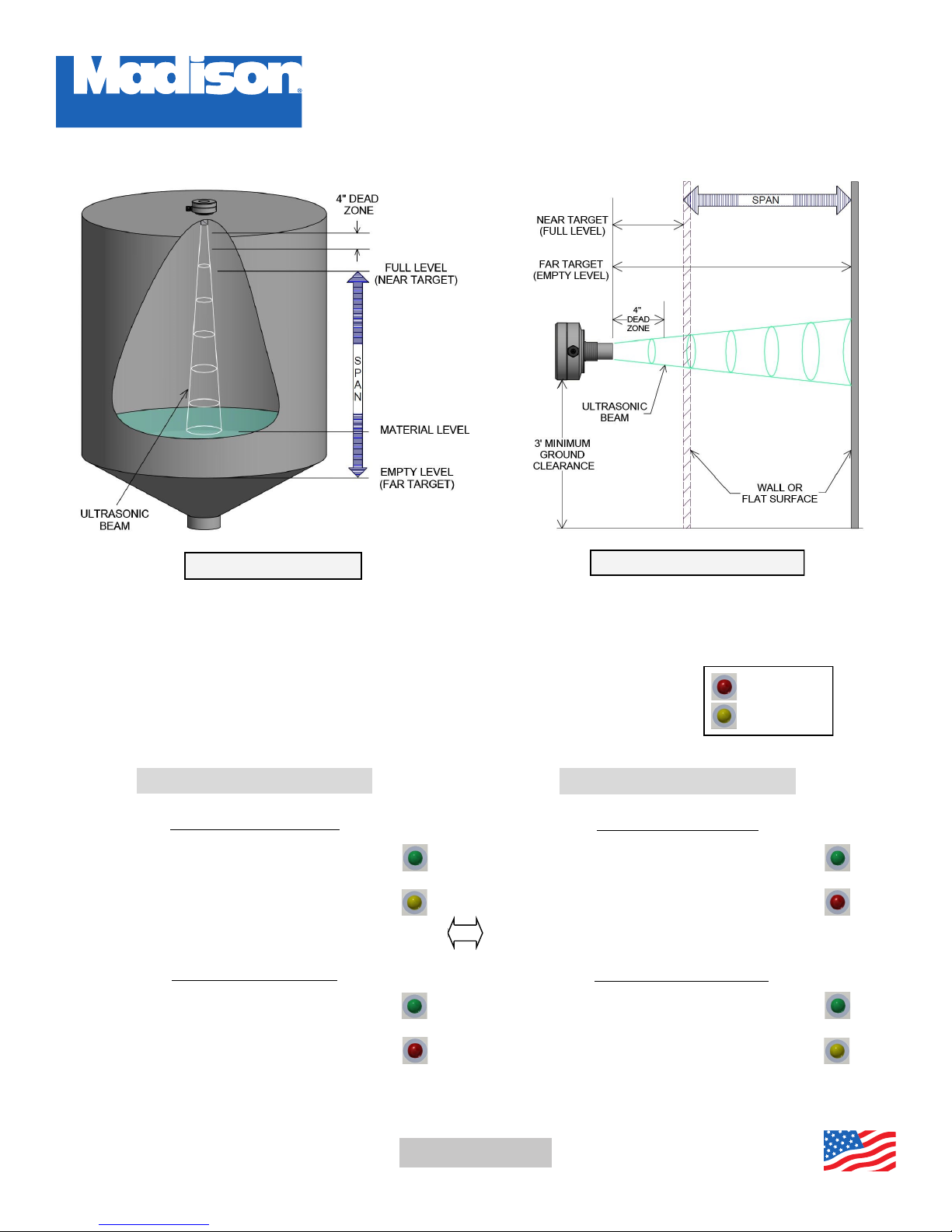

In Application Calibration Out Of Application Calibration
YELLOW = 20mA
RED = 4mA
NOTES:
If the Full Level (Near Target) is set to 20mA, then the Empty Level (Far Target) must be set to 4mA.
If the Full Level (Near Target) is set to 4mA, then the Empty Level (Far Target) must be set to 20mA.
Most common issue is setting 20mA & 4mA to same target. Unit will not function properly if this is the case.
Sensor can be pointed at wall, floor, or solid object to do calibration.
OR
FULL 20mA (Near Target)
1.
Power on sensor. STATUS LED should be Green. Set
near target (Full Level). Aim sensor to near target.
2.
Push and hold Calibration Button until LED turns YEL-
LOW (20mA). Approximately 2 seconds. Release but-
ton. LED should flash and return to Green to
acknowledge the calibration. If not repeat step 1.
EMPTY 4mA (Far Target)
3.
STATUS LED should be Green. Set far target (Empty
Level). Aim sensor to far target.
4.
Push and hold Calibration Button until LED turns RED
(4mA). Approximately 7 seconds. Release button.
LED should flash and return to Green to acknowledge
the calibration. If not repeat step 3.
CALIBRATION: 20-4mA
FULL 4mA (Near Target)
1. Power on sensor. STATUS LED should be Green. Set
near target (Full Level). Aim sensor to near target.
2. Push and hold Calibration Button until LED turns RED
(4mA). Approximately 7 seconds. Release button.
LED should flash and return to Green to acknowledge
the calibration. If not repeat step 1.
EMPTY 20mA (Far Target)
3. STATUS LED should be Green. Set far target (Empty
Level). Aim sensor to far target.
4. Push and hold Calibration Button until LED turns
YELLOW (20mA). Approximately 2 seconds. Re-
lease button. LED should flash and return to Green
to acknowledge the calibration. If not repeat step 3.
CALIBRATION: 4-20mA
