MAG CLUSTER SERIES User manual

CLUSTER Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
1
User Manual
Systems:
Cluster Q
Cluster Q4
Cluster Q8
CLUSTER SERIES

CLUSTER Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
2
Contents
Contents............................................................................................................................................................................................2
Panel A. Dimensions ....................................................................................................................................................................4
1. Safety instructions ...................................................................................................................................................................7
2. Regulatory information........................................................................................................................................................ 8
3. CLUSTER series.........................................................................................................................................................................9
3.1 Introduction..........................................................................................................................................................................9
3.2 CLUSTER series speaker models ...............................................................................................................................9
4. Specifications.......................................................................................................................................................................... 10
5. System operation....................................................................................................................................................................11
5.1. Rigging..................................................................................................................................................................................11
5.2. Assembling the Cluster array.....................................................................................................................................11
5.2.1. Removing the decorative side panels ...........................................................................................................11
5.2.2 Placing Cluster Connectors into the working position ..........................................................................12
5.2.3. Attaching Sub C15 to Cluster Frame. ............................................................................................................12
5.2.4. Attaching two Sub C15 ........................................................................................................................................12
5.2.5. Attaching Cluster Q, Q4, Q8 to Sub C15. ....................................................................................................12
5.2.6. Attaching additional Cluster Q, Q4, Q8 modules. ..................................................................................12
5.2.7 Attaching decorative side panels.....................................................................................................................13
5.3. Passive speakers.............................................................................................................................................................14
5.3.1. Passive connections...............................................................................................................................................14
6. Standard contents.................................................................................................................................................................15
7. Accessories ................................................................................................................................................................................15
8. Warranty and assistance....................................................................................................................................................16
8.1. Product warranty............................................................................................................................................................16
8.2. Assistance..........................................................................................................................................................................16

CLUSTER Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
3

CLUSTER Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
4
Panel A. Dimensions
Cluster Q
Cluster Q4
480
368
295
480
372
298
4°

CLUSTER Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
5
Cluster Q8
480 299
371
8°

CLUSTER Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
6
1. Safety instructions
1. Read these instructions carefully.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this equipment near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8. Do not use near heat sources such as stoves, heat registers,
radiators or otherequipment (including amplifiers) that produces
heat.
9. Do not use the unit near open fire sources.
10. Connect the unit only to the electric network with grounding.
Use only electric plugs that provide grounding.
11. Protect the power cord from being walked on, pinched, or
otherwise damaged.
12. Use only accessories specified by the manufacturer.
13. Unplug this unit during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is
required when the system has been damaged in any way, such
as power supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the unit, the unit has been exposed
to rain or moisture, does not operate normally, or has been
dropped.
15. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS SYSTEM UNIT TO RAIN OR
MOISTURE.
THIS UNIT CONTAINS POTENTIALLY LETHAL VOLTAGES.
TO PREVENT ELECTRIC SHOCK OR HAZARD, DO NOT
REMOVE THE AMPLIFIER MODULE. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
INSTALLING OF THIS UNIT MUST BE PERFORMED ONLY BY
QUALIFIED TRAINED PERSONNEL FOLLOWING APPLICABLE
SAFETY RULES. DO NOT ALLOW INSTALLATION OF THIS UNIT
IF INSTALLATION HARDWARE IS BROKEN, BENT, PARTS ARE
MISSING OR IS OTHERWISE DAMAGED.
The triangle with the lightning bolt is used to alert the
user to the risk of electric shock.
The triangle with the exclamation point is used to
alert the user to important operating or maintenance
instructions.
The CE-mark indicates the compliance with the low
voltage and electromagnetic compatibility.
Symbol for earth/ground connection.
Symbol indicating that the equipment is for indoor use
only.
Symbol for conformity with Directive 2002/96/EC and
Directive 2003/108/EC of the European Parliament on
waste electrical and electronic equipment (WEEE).
WARNING:TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT ATTEMPT TO OPEN ANY PART OF THE
UNIT. NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
TO COMPLETELY DISCONNECT THIS APPARATUS
FROM THE AC MAINS, DISCONNECT THE POWER
SUPPLY CORD PLUG FROM THE AC RECEPTACLE.
THE MAINS PLUG OF THE POWER SUPPLY CORD
MUST REMAIN READILY ACCESSIBLE.
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE, DRIPPING OR SPLASHING LIQUIDS.
OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,
SHOULD NOT BE PLACED ON THIS APPARATUS.
CONNECTIONS TO THE MAINS SHALL BE DONE ONLY
BY AN ELECTROTECHNICALLY SKILLED PERSON
ACCORDING TO THE NATIONAL REQUIREMENTS OF
THE COUNTRIES WHERE THE UNIT IS SOLD.
EXPLANATIONS OF GRAPHICAL SYMBOLS IMPORTANT SAFETY INSTRUCTIONS
= =
=
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

CLUSTER Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
7
2. Regulatory information
FCC COMPLIANCE NOTICE
This device complies with part 15 of the FCC
rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
CAUTION: Changes or modifications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to part 15 ofthe FCC Rules.These limits are
designed to provide reasonable protection against
harmful interference in aresidential installation.This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined
by turning the equipment o and on, the user is
encouraged to try to correct the interference by
one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the distance between the equipment
and receiver.
- Connect the equipment to an outlet on a
circuit dierent from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
EC DECLARATION OF CONFORMITY
Manufacturer:
MAG Audio LLC
Merezhna 2
Bila Tserkva, Kyiv region
09112 Ukraine
We declare that under our sole responsibility the
products:
Cluster Q, Cluster Q4,
Cluster Q8
Intended use: Professional Speaker System
Are in conformity with the provisions of the
following EC Directives, including all amendments,
and with the national legislation implementing
these directives:
- 2006/95/EC Low Voltage Directive
- 2004/108/EC Electromagnetic Compatibility Directive
- 2002/95/CE RoHs Directive
The following harmonized standards are applied:
EN 55103-1:2009 /A1:2012
EN 55014-1:2006 /A1:2009 /A2:2011
EN 55022:2010 /AC:2011
EN 61000-3-2:2006 /A1:2009 /A2: 2009
EN 61000-3-3:2013
EN 61000-3-11:2000
EN 61000-3-12:2011
EN 55103-2:2009 /IS:2012
EN 61000-4-2:2009
EN 61000-4-3:2006 /A1:2008 /IS1:2009 /A2:2010
EN 61000-4-4:2012
EN 61000-4-5:2006
EN 61000-4-6:2014
EN 61000-4-11:2004
EN 60065:2002 /A1:2006 /A11:2008 /A2:2010 /A12:2011
Bila Tserkva,
22 January 2019
Alexey Asanov
CEO
For compliance questions: [e-mail]
Model Names:

CLUSTER Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
8
3. CLUSTER series
3.1 Introduction
Covering the demand for high-pressure systems for
nightclubs, concert halls, and sport arenas, Cluster
series introduces the power of arrayable speakers
into the realm of fixed installation. Inheriting the
best features of reliability, sound performance, and
ease of control from touring and mobile sound,
Cluster series is augmented with convenient
mounting hardware solution for quick setups and
perfect fit into the architectural designs.

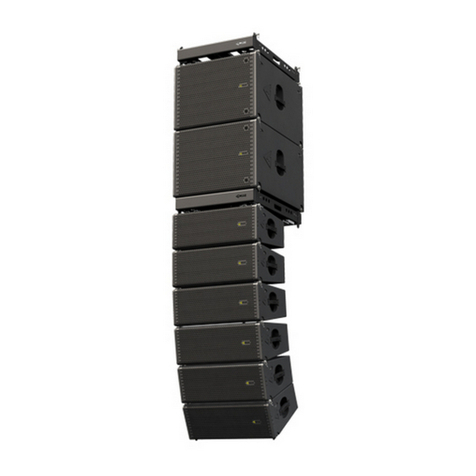

Cluster Q, Q4 and Q8 systems is a unique
installation line array system with integrated
mounting capabilities, providing flexible tool for
system engineer to introduce uniform coverage into
each and any of sound projects. With convenient
options for wiring and amplifier connection,
Q, Q4 and Q8 can be used to accurately steer the
sound field for even the most dicult acoustical
conditions.
Cluster series are optionally available as waterproof,
and can be used with installation subwoofers to
deliver a complete package of in-house sound
system for a sound-pressure demanding high-
profile projects.
3.2 CLUSTER series speaker models
AIR series includes following speaker models:
Cluster Q part number 00-0004804
Cluster Q4 part number 00-0003576
Cluster Q8 part number 00-0003575

CLUSTER Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
9
4. Specifications
System
Cluster Q
Installation line array
module
Cluster Q4
Installation line array
module
Cluster Q8
Installation line array
module
Frequency Response (−10dB) 100 - 19000 Hz 100 - 19000 Hz 100 - 19000 Hz
Max SPL 1142 dB 142 dB 142 dB
Sensitivity (1W/1m) 98 dB Low / 113 dB High 98 dB Low / 113 dB High 98 dB Low / 113 dB High
LF Driver 4x 6”, 1,75" VC 4x 6”, 1,75” VC 4x 6”, 1,75” VC
HF Driver 2x 1”, 1,75” VC 2x 1”, 1,75” VC 2x 1”, 1,75” VC
Impedance 8 Ohm Low / 16 Ohm High 8 Ohm Low / 16 Ohm High 8 Ohm Low / 16 Ohm High
Horizontal coverage 90° 90° 90°
Vertical splay angle 0° 4° 8°
Nominal power 2520 W Low / 100 W High 520 W Low / 100 W High 520 W Low / 100 W High
Connectors Barrier strip Barrier strip Barrier strip
Dimensions (W×H×D), mm 480x368x286 mm 480x372x298 mm 480x371x299 mm
Net weight, kg 24 kg 24 kg 24 kg
Shipping weight, kg 26,5 kg 26,5 kg 26,5 kg
Mounting Integrated flying hardware Integrated flying hardware Integrated flying hardware
Enclosure material Plywood; wear-resistant
paint
Plywood; wear-resistant
paint
Plywood; wear-resistant
paint
Grill Steel grill, polymer protective
net
Steel grill, polymer protective
net
Steel grill, polymer protective
net
1 - peak value, calculated according to AES 2 - 2012
2- based on transducer power measured according to AES 2 - 2012

CLUSTER Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
10
5. System operation
5.1. Rigging
Cluster installation array systems are equipped with integrated rigging system for versatile applications.
Rigging must be performed only by trained personnel following the established safety rules.
MAXIMUM WEIGHT RESTRICTIONS MUST BE FOLLOWED AT ALL TIMES!
MAKE SURE THE SUPPORT STRUCTURE IS CAPABLE OF HOLDING THE APPLIED WEIGHT WHILE
SUSPENDING THE SYSTEM!
5.2. Assembling the Cluster array
Accessories:
Cluster Frame (part No. 00-0004317)
5.2.1. Removing the decorative side panels
Remove M6 hex bolts from sides of Cluster
Q, Q4, Q8, and Sub C15, and remove
decorative side panels to gain access to
mounting hardware. (Pic 1, 2)
1
2

CLUSTER Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
11
5.2.2 Placing Cluster Connectors into the
working position
Cluster Connectors on Cluster Q, Q4, Q8
and Sub C15 are hidden by default for ease
of transportation. Remove M8 Hex head
bolt, and move Cluster Connectors into the
working position. (Pic 3, 4)
5.2.3. Attaching Sub C15 to Cluster Frame.
Use M8 Hex bolt to attach Sub C15 to
Cluster Frame via Cluster Connectors.
(Pic 5)
5.2.4. Attaching two Sub C15
If necessary, additional Sub C15s may be
attached via Cluster Connectors. (Pic 6)
5.2.5. Attaching Cluster Q, Q4, Q8 to
Sub C15.
Use M8 hex head bolts to attach Cluster
Q, Q4 or Q8 module to Sub C15 via Cluster
Connectors and M8 hex head bolts. (Pic 7)
5.2.6. Attaching additional Cluster Q, Q4,
Q8 modules.
If necessary, additional Cluster Q, Q4 or
Q8 modules may be attached via Cluster
Connectors and M8 hex head bolts. (Pic 8)
3
5
7
4
6
8

CLUSTER Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
12
5.2.7 Attaching decorative side panels
After assembling the array, attach
decorative side panels for all speakers using
M6 hex head bolts. (Pic 9, 10)
9
10

CLUSTER Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
13
Cluster series connection diagram
5.3.1. Passive connections
Use power amplifier with DSP or
power amplifiers with external speaker
processor with Cluster series systems.
MAKE SURE TO USE HIGH PASS
FILTER FOR ALL NX SERIES
SYSTEMS TO PREVENT EXCESSIVE
CONE MOVEMENT, RESULTING IN
TRANSDUCER DAMAGE OR FAST
DETERIORATION.
Recommended HPF settings,
suggested power amplifier ratings,
and connection pins are found in table
below:
System Amplifier power Amplifier impedance Connection pins Recommended HPF
Cluster Q 520 - 1040 W 8 Ohm MID + - 100 Hz or higher, 18 dB/oct min
Cluster Q 100 - 200 W 16 Ohm HI + - 1300 Hz or higher, 18 dB/oct min
Cluster Q4 520 - 1040 W 8 Ohm MID + - 100 Hz or higher, 18 dB/oct min
Cluster Q4 100 - 200 W 16 Ohm HI + - 1300 Hz or higher, 18 dB/oct min
Cluster Q8 520 - 1040 W 8 Ohm MID + - 100 Hz or higher, 18 dB/oct min
Cluster Q8 100 - 200 W 16 Ohm HI + - 1300 Hz or higher, 18 dB/oct min
Made in Ukraine
INPUT
www.mag-audio.com
Cluster Q, Q4, Q8 connection plate Sub C15 connection plate
1. LABEL FIELD. Name of the system, along with its basic
parameters is noted here.
2. SERIAL NUMBER FIELD. Sticker with the systems serial
number is located here. NEVER REMOVE THE SERIAL FROM
THE SYSTEM, AS IT IS AN IMMEDIATE WARRANTY VOID.
3. BI-AMP INPUTS. Two pair of screw terminals. Use this
connectors to connect power amplifier.
4. INPUT. Pair of screw terminals. Use these to connect power
amplifier.
3
2
5.3. Passive speakers
1
2
4
Made in Ukraine
www.mag-audio.com
MIDHI
1
DSP AMPLIFIER
DSP AMPLIFIER
DSP AMPLIFIER
Cluster Q, Q4, Q8
Sub C15
Sub C15
Cluster Q, Q4, Q8
Cluster Q, Q4, Q8
MID
MID
HI
HI
Speakon-2 wire cable
Speakon-2 wire cable
MID
MID
HI
HI
Speakon-2 wire cable
Cluster Q, Q4, Q8

CLUSTER Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
14
7. Accessories
Various accessories are available for Cluster series systems:
6. Standard contents
Please check complete complement of your Cluster series system upon receiving the package.
Standard contents of Cluster series systems:
System Supplied Cluster series system Cluster
Connector
M6 hex
head bolt
M8 hex
head bolt
Polyethylene
bag Carton Box
Cluster Q Cluster Q passive speaker system 2 pcs 8 pcs 8 pcs + +
Cluster Q4 Cluster Q4 passive speaker system 2 pcs 8 pcs 8 pcs + +
Cluster Q8 Cluster Q8 passive speaker system 2 pcs 8 pcs 8 pcs + +
Sub C15-8 Sub C15 8 Ohm passive subwoofer 4 pcs 12 pcs 16 pcs + +
Cluster Frame
mounting frame
Part No. 00-0004819
Cluster Connector
Part No. 00-0004821

CLUSTER Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
15
8. Warranty and assistance
8.2. Assistance
There are no user-serviceable parts in your
device. Refer servicing to qualified technical
personnel. In addition to in-house service
department, MAG Audio supports the chain of
distributors, authorized in repairs and service. If
your device needs repairing, contact your MAG
Audio dealer or distributor.
Occasionally, due to the nature of the failure, it
might be necessary to return defective products to
MAG Audio for repair. In this case, before shipping,
please kindly contact your MAG Audio distributor
or dealer, or MAG Audio directly. You will be
provided with the RMA number code and detailed
instructions regarding your particular case. Please
do not send products without a prior authorization.
Thank you for your understanding, cooperation and
choice of MAG Audio products.
8.1. Product warranty
1. By this warranty MAG Audio grants that all
equipment manufactured under the MAG Audio
trademark is free from defects in material,
components and factory workmanship under
the normal use and maintenance for the time as
specified below.
2. All warranty repairs and maintenance of MAG
Audio products shall be carried out at MAG Audio
production sites or by MAG Audio authorized
personnel at no cost for the product purchaser.
3. Warranty period for cone transducers, high
frequency drivers and crossovers, whether sold
separately or as a component of a speaker system,
is 60 months from the production date.
4. Warranty period for enclosures, grills, connection
plates and accessories, whether sold separately or
as a component of a speaker system, is 60 months
from the production date.
5. Warranty period for built-in power amplifiers,
whether sold separately or as a component of a
speaker system, is 36 months from the production
date.
6. Warranty repairs or maintenance will be
performed only if a) MAG Audio product was
purchased from an ocial MAG Audio distributor
/ dealer and b) warranty card with specified serial
number, production date, realization date, vendor’s
signature and stamp is presented.
7. Warranty shall not cover the following: damage
caused by accident, misuse or failure to follow
exploitation rules stated in technical manual;
repairs performed by non-authorized personnel;
mechanical damage caused by shipping accidents
and normal tear and wear.
8. Warranty shall not be applicable to any product
with defaced, removed, or modified serial number.
9. If your MAG Audio product needs repairing
or maintaining, contact your ocial MAG Audio
distributor / dealer. Please do not ship your MAG
Audio product without prior authorization.

CLUSTER Series User Manual rev 1.00
[e-mail] Tel./Fax: [phone] www.mag-audio.com
16
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine
Tel./Fax.: [phone]
e-mail: [e-mail]
www.mag-audio.com
