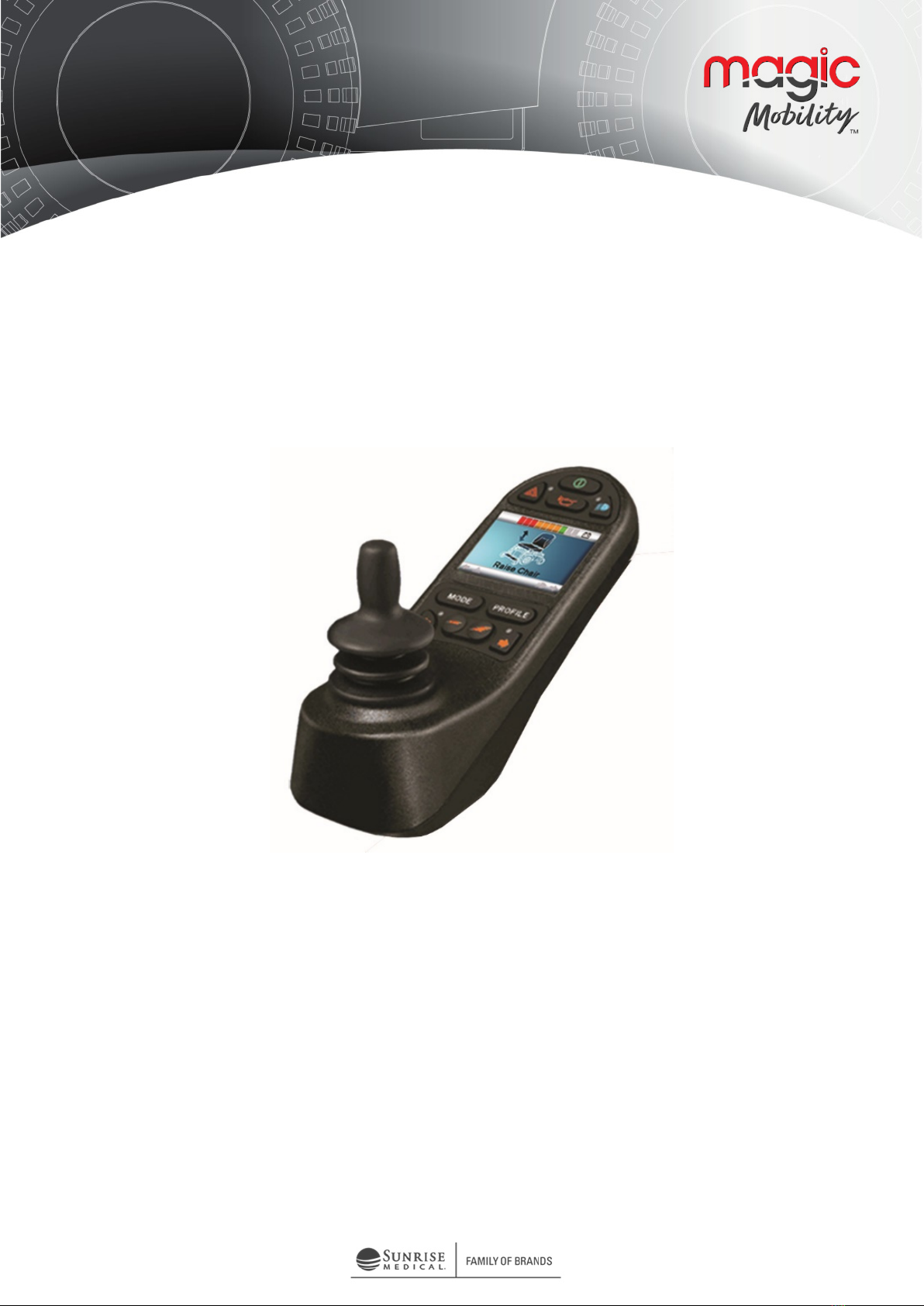

Magic Mobility R-NET CJSM2 User manual

r
-net
user guide

r-net user guide
25940A R-net User Guide DCR1266 magicmobility.com.au
Contents
About this manual ........................................................................................................................................................................ 6
Chapter 1 – Operation.................................................................................................................................................................. 7
1INTRODUCTION ............................................................................................................................................................ 7
2GENERAL .......................................................................................................................................................................... 7
2.1 Handling........................................................................................................................................................................ 7
2.2 Operating conditions................................................................................................................................................. 7
2.3 Cleaning........................................................................................................................................................................ 7
3MATING CONNNECTORS .......................................................................................................................................... 8
4CONTROLS ...................................................................................................................................................................... 9
4.1 Joystick.......................................................................................................................................................................... 9
4.2 Buttons........................................................................................................................................................................ 10
4.3 LCD Screen .................................................................................................................................................................12
4.4 Charger socket ...........................................................................................................................................................12
5LCD SCREEN - MONOCHROME ..............................................................................................................................12
5.1 Screen symbols..........................................................................................................................................................12
5.2 Momentary screens................................................................................................................................................. 14
5.3 Diagnostic screen..................................................................................................................................................... 14
5.4 Locking the control system.....................................................................................................................................15
5.5 Actuator selection screen .......................................................................................................................................17
6LCD SCREEN - COLOR.................................................................................................................................................17
6.1 Top bar ........................................................................................................................................................................ 18
6.2 Base bar ...................................................................................................................................................................... 18
6.3 Main screen area ...................................................................................................................................................... 18
6.4 Message window .................................................................................................................................................... 20
7GETTING READY TO DRIVE ..................................................................................................................................... 22
8SETTINGS MENU .........................................................................................................................................................23
8.1 Set time .......................................................................................................................................................................23
8.2 Display time............................................................................................................................................................... 23
8.3 Distance...................................................................................................................................................................... 23
8.4 Backlight .................................................................................................................................................................... 24
8.5 Background ............................................................................................................................................................... 24

r-net user guide
35940A R-net User Guide DCR1266 magicmobility.com.au
8.6 IR Setup...................................................................................................................................................................... 24
8.7 Exit............................................................................................................................................................................... 24
9TIPS FOR USING YOUR CONTROL SYSTEM ...................................................................................................... 24
9.1 Driving - General ..................................................................................................................................................... 24
9.2 Driving Technique ................................................................................................................................................... 24
9.3 Slow or sluggish movement...................................................................................................................................25
10 PRECAUTIONS FOR USE .......................................................................................................................................25
10.1 Hazards.......................................................................................................................................................................25
11 SAFETY CHECKS .....................................................................................................................................................25
11.1 Daily checks...............................................................................................................................................................26
11.2 Weekly checks ..........................................................................................................................................................26
11.3 Servicing .....................................................................................................................................................................26
12 BATTERY GAUGE....................................................................................................................................................26
12.1 How to read a battery gauge .................................................................................................................................27
13 BATTERY CHARGING ............................................................................................................................................27
14 PROGRAMMING .....................................................................................................................................................28
15 SERVICING ................................................................................................................................................................28
16 WARRANTY..............................................................................................................................................................28
17 JOYSTICK KNOBS ...................................................................................................................................................29
Chapter 2 – ELPM 90, JSM-LED & SM ................................................................................................................................ 30
1INTRODUCTION ......................................................................................................................................................... 30
2CONTROLS – JSM-LED AND JSM-LED-L............................................................................................................. 30
2.1 Buttons.........................................................................................................................................................................31
2.2 Actuator Indicator....................................................................................................................................................32
3CONTROL SYSTEM STATUS INDICATION .........................................................................................................32
3.1 Battery gauge is steady...........................................................................................................................................32
3.2 Battery gauge flashes slowly .................................................................................................................................32
3.3 Battery gauge steps up............................................................................................................................................32
3.4 Battery gauge flashes rapidly (even with the joystick released) ..................................................................32
3.5 Speed indicator ripples outwards.........................................................................................................................33
3.6 Speed indicator LEDs 2 & 4 flash ......................................................................................................................... 33
3.7 Self-help guide........................................................................................................................................................... 33

r-net user guide
45940A R-net User Guide DCR1266 magicmobility.com.au
Please note: If the programmable parameter, Motor Swap has been enabled, then left and right hand
references in this table will need transposing................................................................................................................ 34
3.8 Slow or sluggish movement.................................................................................................................................. 34
3.9 Maximum speed / Profile indicator is steady .................................................................................................. 34
3.10.1 Speed indication.................................................................................................................................................. 34
3.10.2 Profile indication.................................................................................................................................................. 34
3.11 Maximum speed / Profile indicator ripples up and down..............................................................................35
3.12 Maximum speed / Profile indicator flashes.......................................................................................................35
4GETTING READY TO DRIVE ..................................................................................................................................... 35
Chapter 3 - Diagnostics ............................................................................................................................................................36
1INTRODUCTION ..........................................................................................................................................................36
1.1 Diagnostic Procedure ..............................................................................................................................................36
2DIAGNOSTIC SCREENS .............................................................................................................................................36
2.1 Current diagnostic screen ......................................................................................................................................36
3DIAGNOSTIC TEXT DEFINITIONS..........................................................................................................................37
3.1 Centre joystick ..........................................................................................................................................................37
3.2 Low battery ................................................................................................................................................................37
3.3 High battery voltage ................................................................................................................................................38
3.4 Brake error..................................................................................................................................................................38
3.5 Motor error ................................................................................................................................................................38
3.6 Inhibit active ..............................................................................................................................................................38
3.7 Joystick calibration error.........................................................................................................................................38
3.8Brake lamp short.......................................................................................................................................................39
3.9 Lamp short .................................................................................................................................................................39
3.10 Indicator lamp short.................................................................................................................................................39
3.11 Indicator lamp failed ................................................................................................................................................39
3.12 Over-current..............................................................................................................................................................39
3.13 Overtemp (acts)...................................................................................................................................................... 40
3.14 Overtemp (lamps) .................................................................................................................................................. 40
3.15 DIME error ................................................................................................................................................................ 40
3.16 Memory error ........................................................................................................................................................... 40
3.17 PM Memory error .................................................................................................................................................... 41
3.18 Bad cable .................................................................................................................................................................... 41

r-net user guide
55940A R-net User Guide DCR1266 magicmobility.com.au
3.19 Bad settings................................................................................................................................................................ 41
3.20 Module error.............................................................................................................................................................. 41
3.21 System error ............................................................................................................................................................. 42
3.22 SID Disconnected.................................................................................................................................................... 42
3.23 Switch detached ...................................................................................................................................................... 42
3.24 Gone to sleep............................................................................................................................................................ 42
3.25 Charging .................................................................................................................................................................... 43
3.26 Joystick stationary time exceeded ...................................................................................................................... 43
3.27 Orientation error...................................................................................................................................................... 43
3.28 ASM disconnected.................................................................................................................................................. 43
3.29 Switch short .............................................................................................................................................................. 43
4SERVICING OF DEFECTIVE UNITS......................................................................................................................... 44
Chapter 4 - Specifications....................................................................................................................................................... 45
Contact Magic Mobility if you require further information........................................................................................ 45

r-net user guide
65940A R-net User Guide DCR1266 magicmobility.com.au
About this manual
The User Guide introduces the R-net Control System.
Throughout the manual icons are used to draw the reader’s attention.
The icons used are:
NOTE: A general point for best practice.
CAUTION: A point of safety which if ignored could result in damage to the Control System or the
vehicle.
WARNING: A point of safety which if ignored could cause injury to the individual.
Magic Mobility accepts no liability for any losses of any kind if the cautions and warnings are not followed.

r-net user guide
75940A R-net User Guide DCR1266 magicmobility.com.au
Chapter 1 – Operation
1 INTRODUCTION
The operation of the R-net wheelchair control system is simple and easy to understand. The control system
incorporates state-of-the-art electronics, the result of many years of research, to provide you with ease of use
and a very high level of safety. In common with other electronic equipment, correct handling and operation of
the unit will ensure maximum reliability.
Please read this chapter carefully - it will help you to keep your wheelchair reliable and safe.
2 GENERAL

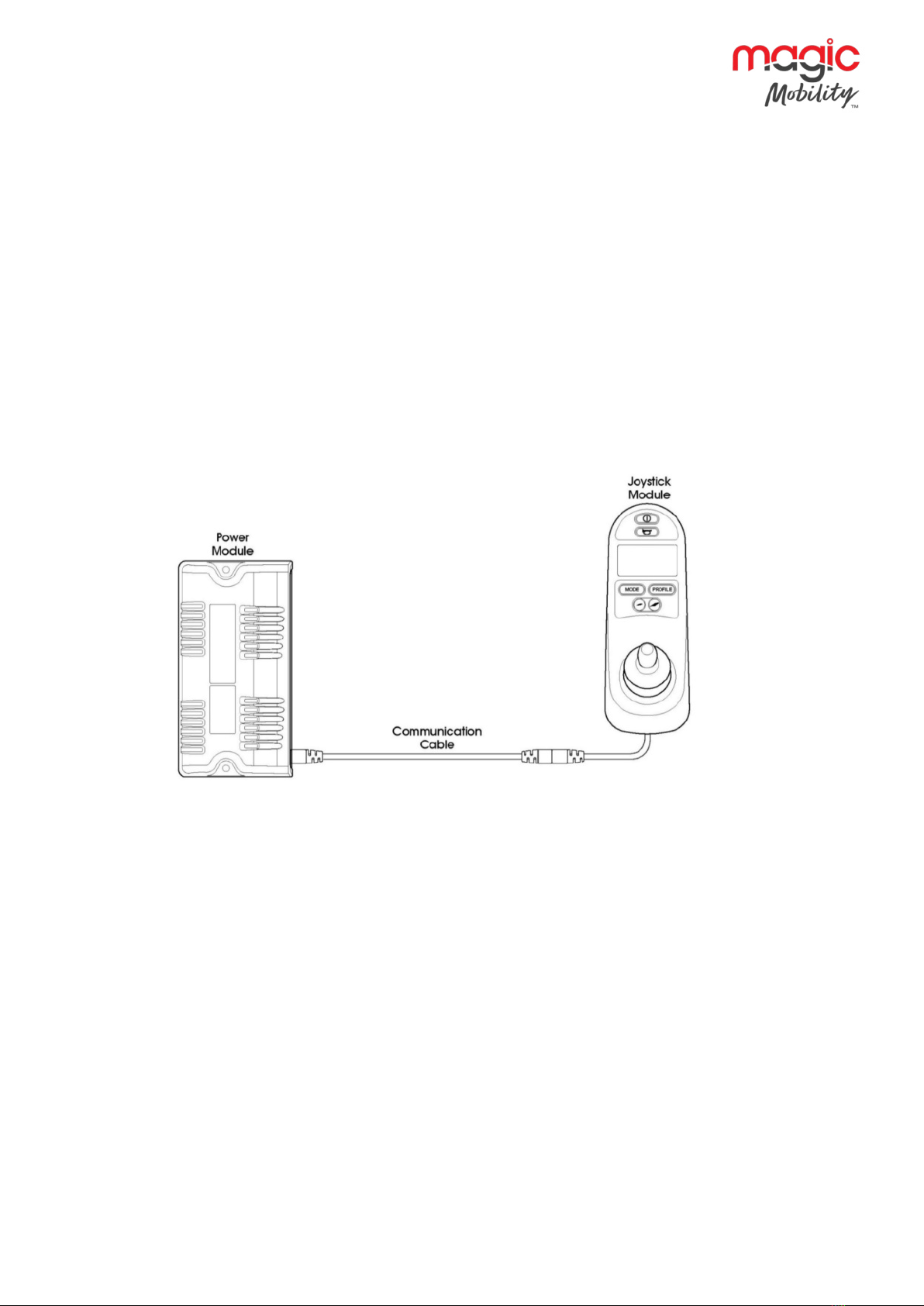

An R-net control system comprises a minimum of two modules - Joystick Module and Power Module.
Because of the modular design, the depth of the control system can be greatly increased. The following
diagram shows the basic set-up.
2.1 Handling
Avoid knocking your control system and especially the joystick. Be careful not to strike obstacles with the
control system or joystick when you drive. Never drop the control system.
When transporting your wheelchair, make sure that the control system is well protected. Avoid damage to
cables.
2.2 Operating conditions
Your control system uses industrial-grade components throughout, ensuring reliable operation in a wide
range of conditions. However, you will improve the reliability of the control system if you keep exposure to
extreme conditions to a minimum.
Do not expose your control system or its components to damp for prolonged periods. If the control system
becomes contaminated with food or drink clean it off as soon as possible.
2.3 Cleaning
Clean the control system and the joystick with a cloth dampened with diluted detergent. Be careful when
cleaning the joystick and screen.
Never use abrasive or spirit-based cleaners.

r-net user guide
85940A R-net User Guide DCR1266 magicmobility.com.au
3 MATING CONNNECTORS
To connect the Communication Cables:
Holding the connector housing, firmly push the connector into its mate until you can no longer see the
yellow plastic.
The connectors are secured using a friction system.
To disconnect the Communication Cables:
Holding the connector housing firmly, pull the connectors apart.
NOTE:
Do not hold or pull on the cable. Always grip the connector when connecting and disconnecting.
When the control system is first switched on after a connection, or system component change the Timer
will be displayed whilst the system checks itself and then the Re-start icon will be displayed. Switch the
control system off and on again to operate.

r-net user guide
95940A R-net User Guide DCR1266 magicmobility.com.au

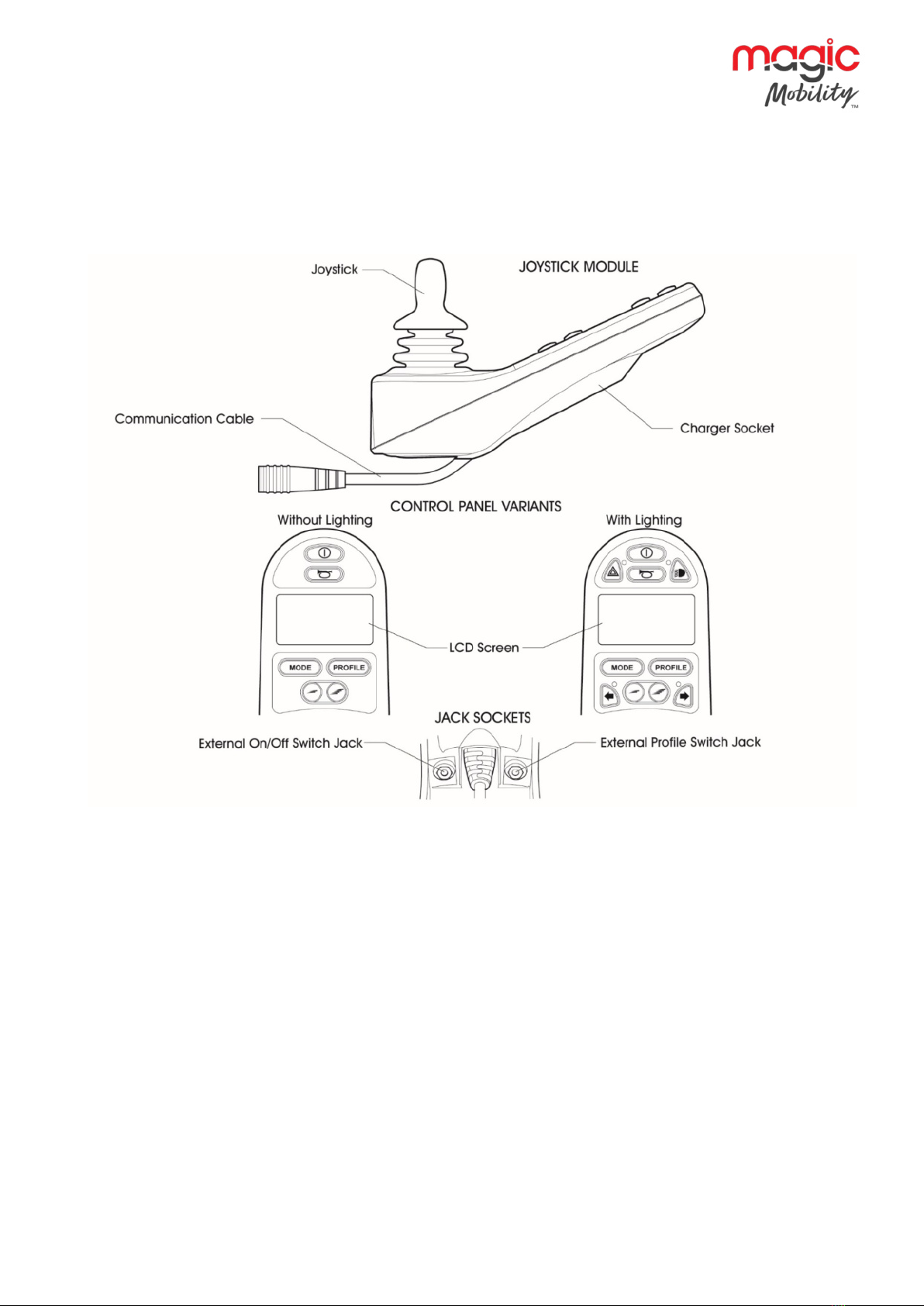

4 CONTROLS
The R-net control system has two versions of Joystick Module – with and without lighting control. Most of the
controls are common to both however, the lighting buttons are only included on the Joystick Module with
lighting control. Each of the controls is explained within this section.
4.1 Joystick
The primary function of the joystick is to control the speed and direction of the wheelchair. The further you
push the joystick from the centre position the faster the wheelchair will move. When you release the joystick,
the brakes are automatically applied.
If the wheelchair is fitted with actuators, the joystick can also be used to move and select actuators, refer to
section 5.5 for more details.

r-net user guide
10 5940A R-net User Guide DCR1266 magicmobility.com.au
4.2 Buttons
4.2.1 ON/OFF BUTTON
The On/Off button applies power to the control system electronics, which in turn supply power to the
wheelchair’s motors. Do not use the On/Off button to stop the wheelchair unless there is an emergency. (If
you do, you may shorten the life of the wheelchair drive components).
4.2.2 HORN BUTTON
The Horn will sound while this button is depressed.
4.2.3 SPEED DECREASE BUTTON
This button decreases the maximum speed setting.
Depending on the way the control system has been programmed a momentary screen may be displayed
when the button is pressed. Refer to section 5 for details of the momentary screen.
4.2.4 SPEED INCREASE BUTTON
This button increases the maximum speed setting.
Depending on the way the control system has been programmed a momentary screen may be displayed
when the button is pressed. Refer to section 5 for details of the momentary screen.
4.2.5 MODE BUTTON
The Mode button allows the user to navigate through the available operating Modes for the control system.
The available modes are dependent on programming and the range of auxiliary output devices connected to
the control system.
4.2.6 PROFILE BUTTON
The Profile button allows the user to navigate through the available Profiles for the control system. The
number of available Profiles is dependent on how the control system is programmed.
Depending on the way the control system has been programmed a momentary screen may be displayed
when the button is pressed. Refer to section 5 for details of the momentary screen.

r-net user guide
11 5940A R-net User Guide DCR1266 magicmobility.com.au
4.2.7 HAZARD WARNING BUTTON AND LED
This button activates and de-activates the wheelchair’s hazard lights. Depress the button to turn the hazards
on and depress the button again to turn them off. When activated the hazard LED and the indicator LEDs will
flash in sync with the wheelchair’s indicators.
4.2.8 LIGHTS BUTTON AND LED
This button activates and de-activates the wheelchair’s lights. Depress the button to turn the lights on and
depress the button again to turn them off. When activated the lights LED will illuminate.
4.2.9 LEFT INDICATOR BUTTON AND LED
This button activates and de-activates the wheelchair’s left indicator. Depress the button to turn the indicator
on and depress the button again to turn it off. When activated the left indicator LED will flash in sync with the
wheelchair’s indicator(s).
4.2.10 RIGHT INDICATOR BUTTON AND LED
This button activates and de-activates the wheelchair’s right indicator. Depress the button to turn the
indicator on and depress the button again to turn it off. When activated the right indicator LED will flash in
sync with the wheelchair’s indicator(s).
4.2.11 EXTERNAL ON/OFF SWITCH JACK
This allows the user to turn the control system on and off using an external device, such as a buddy button.
4.2.12 EXTERNAL PROFILE SWITCH JACK
This allows the user to select Profiles using an external device, such as a buddy button. To change the Profile
whilst driving simply press the button.
If the control system is set to latched drive or actuator control operation, then the polarity of the jack input is
reversed to effect a fail-safe system; meaning this input will provide an External Profile Switch function and an
Emergency Stop Switch function.
NOTE:
The Joystick Module is supplied with rubber bungs that must be inserted into the Jack Socket when no
external device is connected.

r-net user guide
12 5940A R-net User Guide DCR1266 magicmobility.com.au
4.3 LCD Screen
The status of the control system can be understood by observing the LCD screen. The control system is on
when the screen is backlit. Refer to section 5 for details on screen symbols.
4.4 Charger socket
This socket should only be used for charging or locking the wheelchair. Do not connect any type of
programming cable into this socket. Refer to section 13 for more details on charging.
This socket should not be used as a power supply for any other electrical device. Connection of other
electrical devices may damage the control system or affect the E.M.C. performance of the wheelchair.
WARNING:
The control system’s warranty will be voided if any device other than a battery charger supplied, with the
wheelchair, or the lock key is connected into this socket.
5 LCD SCREEN - MONOCHROME
The status of the control system can be understood by observing the LCD screen.
5.1 Screen symbols
The Drive screen for the R-net has common components, which will always appear, and components that will
only appear under certain conditions. Below is a view of a typical Drive screen in Profile 1.
5.1.1 BATTERY INDICATOR
This displays the charge available in the battery and can be used to alert the user to the status of the battery.
This displays the charge available in the battery and can be used to alert the user
to the status of the battery.
Steady This indicates that all is well.
Flashing Slowly The control system is functioning correctly, but you should charge the battery as soon
as possible.
Stepping Up The wheelchair batteries are being charged. You will not be able to drive the wheelchair
until the charger is disconnected and you have switched the control system off and on
again.
Refer to section 12 for a description of how to read the Battery Gauge.

r-net user guide
13 5940A R-net User Guide DCR1266 magicmobility.com.au
5.1.2 SPEED INDICATOR
This displays the current speed setting.
The speed setting is adjusted using the Speed Buttons.
5.1.3 CURRENT PROFILE
The Profile Number describes which Profile the control system is currently
operating in.
The Profile Text is the name or description of the Profile the control system is
currently operating in.
5.1.4 FOCUS
When the control system contains more than one method of direct control, such
as a secondary Joystick Module or a Dual Attendant Module, then the Module
that has control of the wheelchair will display the In Focus symbol.
5.1.5 SPEED LIMIT
If the speed of the wheelchair is being limited, for example by a raised seat, then
this symbol will be displayed.
If the wheelchair is being inhibited from driving, then the symbol will flash.
5.1.6 LATCHED
When the control system is operating in a latched condition this symbol will be
displayed.
5.1.7 RESTART
When the control system requires a reboot; for example, after a module re-
configuration, this symbol will be flashed.
5.1.8 FAULT
The control system can detect a wide variety of errors. When the system has
detected an error that is not severe enough to cause the system to trip, then this
symbol will be displayed.
5.1.9 MOTOR TEMPERATURE
This symbol is displayed when the control system has intentionally reduced the
power to the motors, in order to protect them against heat damage.

r-net user guide
14 5940A R-net User Guide DCR1266 magicmobility.com.au
5.1.10 CONTROL SYSTEM TEMPERATURE
This symbol is displayed when the control system has intentionally reduced its
own power, in order to protect itself against heat damage.
5.1.11 TIMER
This symbol is displayed when the control system is changing between different
states. An example would be entering into Programming Mode. The symbol is
animated to show the sands falling.
5.1.12 E-STOP
If the control system is programmed for latched drive or actuator operation, then
it is normal for an Emergency Stop Switch to be connected into the External
Profile Switch Jack. If the Emergency Stop Switch is operated or disconnected,
this symbol will be displayed.
5.1.13 BLUETOOTH
When Bluetooth Mode is entered the screen will display the following icon.
5.2 Momentary screens
If the momentary screens are programmed to be displayed, then pressing the Speed or Profile Buttons will
display screens such as below.
Speed Momentary Screen Profile Momentary Screen
5.3 Diagnostic screen
When the control system safety circuits have operated, and the control system has been prevented from
moving the wheelchair a diagnostics screen will be displayed.
This indicates a system trip, i.e. the R-net has detected a problem somewhere in the wheelchair’s electrical
system.
If the error is in a non-active module, for example in the ISM but with a drive Profile is selected, then drive will
still be possible, however, the diagnostic screen will appear intermittently.

r-net user guide
15 5940A R-net User Guide DCR1266 magicmobility.com.au
5.3.1 IDENTIFIED MODULE
This identifies which module of the control system has registered the problem, such as:
PM Power Module
JSM Joystick Module
ISM Intelligent Seating/lighting Module
5.3.2 TRIP TEXT
The Trip Text gives a brief description of the trip type.
5.3.3 TRIP CODE
The 4-digit code displayed gives the exact trip that has been recorded.
5.3.4 DIAGNOSTIC PROCEDURE
Please follow this procedure:
Read and note the Trip Text displayed, the identified Module and the Trip Code.
Switch off the control system.
Make sure that all connectors on the listed Module and the wheelchair are mated securely.
Check the condition of the battery.
Note the Trip Text description, and take the required action.
Switch on the control system again and try to drive the wheelchair. If the safety circuits operate again,
switch off and do not try to use the wheelchair. Contact your service agent.
Example:
Identified Module Power Module
Trip Text Low Battery
Trip Code 2C00
This means the battery needs charging or there is a bad connection to the battery.
Check the connections to the battery. If the connections are good, try charging the battery.
5.4 Locking the control system
The Control System can be locked in one of two ways. Either using a button sequence on the keypad or with a
physical Key. How the Control System is locked depends on how the wheelchair manufacturer has
programmed the system.

r-net user guide
16 5940A R-net User Guide DCR1266 magicmobility.com.au
5.4.1 KEYPAD LOCKING
To lock the wheelchair using the keypad:
While the control system is switched on, depress and hold the On/Off button.
After 1 second the control system will beep. Now release the On/Off button
Deflect the joystick forwards until the control system beeps.
Deflect the joystick in reverse until the control system beeps.
Release the joystick, there will be a long beep.
The wheelchair is now locked.
The following screen will be displayed, the next time the Control System is switched on.
If an LED Joystick Module is fitted the Speed Indicator LEDs will ripple from left to right.
To unlock the wheelchair:
If the control system has switched off, press the On/Off button.
Deflect the joystick forwards until the control system beeps.
Deflect the joystick in reverse until the control system beeps.
Release the joystick, there will be a long beep.
The wheelchair is now unlocked.
5.4.2 KEY LOCKING
To lock the wheelchair with a key:
With the Control System switched on, insert and remove a R-Net supplied key into the Charger Socket on
the Joystick Module. A short beep will be heard.
The wheelchair is now locked.
The following screen will be displayed, the next time the Control System is switched on.
To unlock the wheelchair:
If the control system has switched off, press the On/Off button.
Insert and remove a R-Net supplied key into the Charger Socket on the Joystick Module. A short beep will
be heard.
The wheelchair is now unlocked.

r-net user guide
17 5940A R-net User Guide DCR1266 magicmobility.com.au
5.5 Actuator selection screen
To adjust the seat position, the actuator screen must be visible.
Depress the Mode Button to scroll through the Mode screens until you reach the actuator screen, displayed
below.
Actuator adjustment is achieved as follows.
Move the Joystick sideways to select the desired axis.
(This is indicated by the section of the wheelchair that is highlighted)
Move the joystick forwards and backwards to move the actuator.
Repeat these steps for each actuator that requires adjustment.
To drive again depress the Mode button until the Drive screen is reached or, in the case of the LED joystick
module, until the Speed Indicator returns to its normal state.
6 LCD SCREEN - COLOR
This section covers those Joystick Modules that are fitted with a colour LCD screen.
The colour LCD screen is split into 3 areas of information. The Top Bar, the Base Bar and the Main Screen
Area.
Each area is covered separately within this section.

r-net user guide
18 5940A R-net User Guide DCR1266 magicmobility.com.au
6.1 Top bar
6.1.1 BATTERY INDICATOR
This displays the charge available in the battery and can be used to alert the user
to the status of the battery.
Steady: This indicates that all is well.
Flashing Slowly: The control system is functioning correctly, but you should charge the battery as soon
as possible.
Stepping Up: The wheelchair batteries are being charged. You will not be able to drive the wheelchair
until the charger is disconnected and you have switched the control system off and on
again.
Refer to section 12 for a description of how to read the Battery Gauge.
6.1.2 FOCUS
When the control system contains more than one method of direct control, such
as a secondary Joystick Module or a Dual Attendant Module, then the Module
that has control of the wheelchair will display the In Focus symbol.
6.2 Base bar
6.2.1 CURRENT PROFILE
The currently selected Profile is shown in numeric form.
6.2.2 MOTOR TEMPERATURE
This symbol is displayed when the control system has intentionally reduced the
power to the motors, in order to protect them against heat damage.
6.2.3 CONTROL SYSTEM TEMPERATURE
This symbol is displayed when the control system has intentionally reduced its
own power, in order to protect itself against heat damage.
6.3 Main screen area
Drive Screen
6.3.1 PROFILE NAME
This is a text string that displays the name of the currently selected Profile.

r-net user guide
19 5940A R-net User Guide DCR1266 magicmobility.com.au
6.3.2 CLOCK
This displays the current time in a numeric format. The clock is user adjustable.
Adjustable options are:
Visibility, whether the clock is displayed on screen.
The display format, 12 or 24 hour.
The time, the user can adjust the time.
These adjustments are made within the Settings Menu. Refer to section 8 for details.
6.3.3 SPEED DISPLAY
This gives a proportional display of the wheelchairs speed
6.3.4 MAXIMUM SPEED INDICATOR
This displays the current maximum speed setting.
6.3.5 DIGITAL SPEED DISPLAY
This displays the actual speed of the wheelchair derived from the motors. The
display can be set to mph or km/h.
These adjustments can be made in the OBP Menu.
6.3.6 LATCHED
When the control system is operating in a latched condition this symbol will be
displayed.
6.3.7 INHIBIT
If the speed of the wheelchair is being limited; for example, by a raised seat, then
this orange symbol will be displayed.
If the wheelchair is being inhibited from driving, then this red symbol will be
flashing.

r-net user guide
20 5940A R-net User Guide DCR1266 magicmobility.com.au
6.3.8 ACTUATOR MODE
Displays the sections of the chair currently selected for movement,
the name given to the selection and a direction arrow showing what
sort of movement is available.
6.3.9 BLUETOOTH MODE
When Bluetooth Mode is entered the following screen will be
displayed.
6.4 Message window
The R-net displays warning icons and informational messages, in a
dedicated message window.
6.4.1 RESTART
When the control system requires a reboot; for example, after a module re-
configuration, this symbol will be flashed.
6.4.2 TIMER
This symbol is displayed when the control system is changing between different
states. An example would be entering into Programming Mode. The symbol is
animated to show the sands falling.
6.4.3 SLEEP
This symbol will be displayed for a short time before the R-net enters into a sleep
state.
