Magicfx CONFETTI GUN MFX0370 Operating manual

CONFETTI GUN
CONFETTI & STREAMER FX
PART00086
rev 01-01
USER AND INSTALLATION MANUAL
ENGLISH
CONFETTI GUN
CONFETTI & STREAMER FX
PART00086
rev 01-00
USER AND INSTALLATION MANUAL
ENGLISH

2 MAGICFX®CONFETTI GUN —User and Installation Manual
DISCLAIMER
WARNING Read this manual carefully before installing and/or using this
product. Failure to read the manual and to follow the printed
instructions may lead to personal injury and/or damage to the
product.
© 2019 MAGICFX®
All rights reserved.
Nothing from this publication may be copied, reproduced and/or published by
means of printing, photocopying or by any other means, without the prior written
approval of MAGIC FX.
MAGIC FX reserves the right to modify specications stated in this manual.
TRADEMARKS
Any brand names mentioned in this manual are registered trademarks of their
respective owners.
LIABILITY
MAGIC FX accepts no liability for claims from third parties arising from unauthorised
use, use other than that stated in this manual, and use other than in accordance with
the General Conditions registered at the Chamber of Commerce.
We further refer to the General Conditions. These are available on request, free of
charge.
Although considerable care has been taken to ensure a correct and comprehensive
description of all relevant components, the manual may nonetheless contain errors
and inaccuracies.
Should you detect any errors or inaccuracies in the manual, we would be grateful if
you would inform us. This helps us to further improve our documentation.

MAGICFX®CONFETTI GUN —User and Installation Manual 3
TABLE OF CONTENTS
Disclaimer 2
Trademarks 2
Liability 2
Foreword 4
Language 4
Revision table 4
1 Meet the MAGICFX®CONFETTI GUN! 5
1.1 Main parts 5
1.2 Electric cannons 5
1.3 Productidentication 6
1.4 Technicaldata 6
2 Shoot safely! 7
2.1 General safety rules 7
2.2 Noise level 7
2.3 Safety symbols 8
2.4 Precautions for operation 8
3 Let’s shoot! 9
4 Troubleshooting 16
5 Maintenance 16
6 Correctdisposal 16
7 Declaration of Conformity 17

4 MAGICFX®CONFETTI GUN —User and Installation Manual
FOREWORD
Congratulations! You have bought a great new product from MAGIC FX.
This manual contains all information required for the intended use of the equipment.
Deviation from the described intended use can result in a hazardous situation and/or
property damage.
This manual includes notes and warnings on safe operation of the equipment. These
notes and warnings are accompanied by the following icons. Read them attentively!
DANGER Indicates a hazardous situation that, if not avoided, will result in
death or serious injury. This signal word is to be limited to the most
extreme situations.
WARNING Indicates a hazardous situation that, if not avoided, could result
in death or serious injury.
CAUTION Indicates a hazardous situation that, if not avoided, could result
in minor or moderate injury.
NOTICE Indicates information considered important, but not hazard-
related (e.g. messages relating to property damage).
LANGUAGE
This document contains the original instructions in English. In case you require other
languages please contact MAGIC FX.
REVISION TABLE
Doc nr Revision Date Description Author Approved
PART00086 01-00 29-08-2017 Initial release TFR TVA
PART00086 01-01 01-08-2019 A4 to A5 format, illustration
color changes, laser warning
TFR TVA

MAGICFX®CONFETTI GUN —User and Installation Manual 5
1 MEET THE MAGICFX®CONFETTI GUN!
The MAGICFX®CONFETTI GUN is a handheld gun-shaped electronic device for safe
shooting of MAGICFX® electric cannons.
Before operation one, two or three electric cannons need to be loaded into the
barrel(s) of the MAGICFX®CONFETTI GUN. Each cannon is held in place in the barrel
with a thumb screw. Each barrel is equipped with a connector for the power cable of
the cannon. When the user pulls the trigger, the reloadable battery inside provides a
current to the cannon through this connection. This releases the pressurized nitrogen
in the bottom part of the cannon, shooting the load into the air.
The MAGICFX®CONFETTI GUN can be operated in Single Shot or Full Shot mode.
Furthermore the gun is equipped with a built-in laser and a shoulder belt. With a fully
loaded battery the MAGICFX®CONFETTI GUN provides about 1 000 (single) shots.

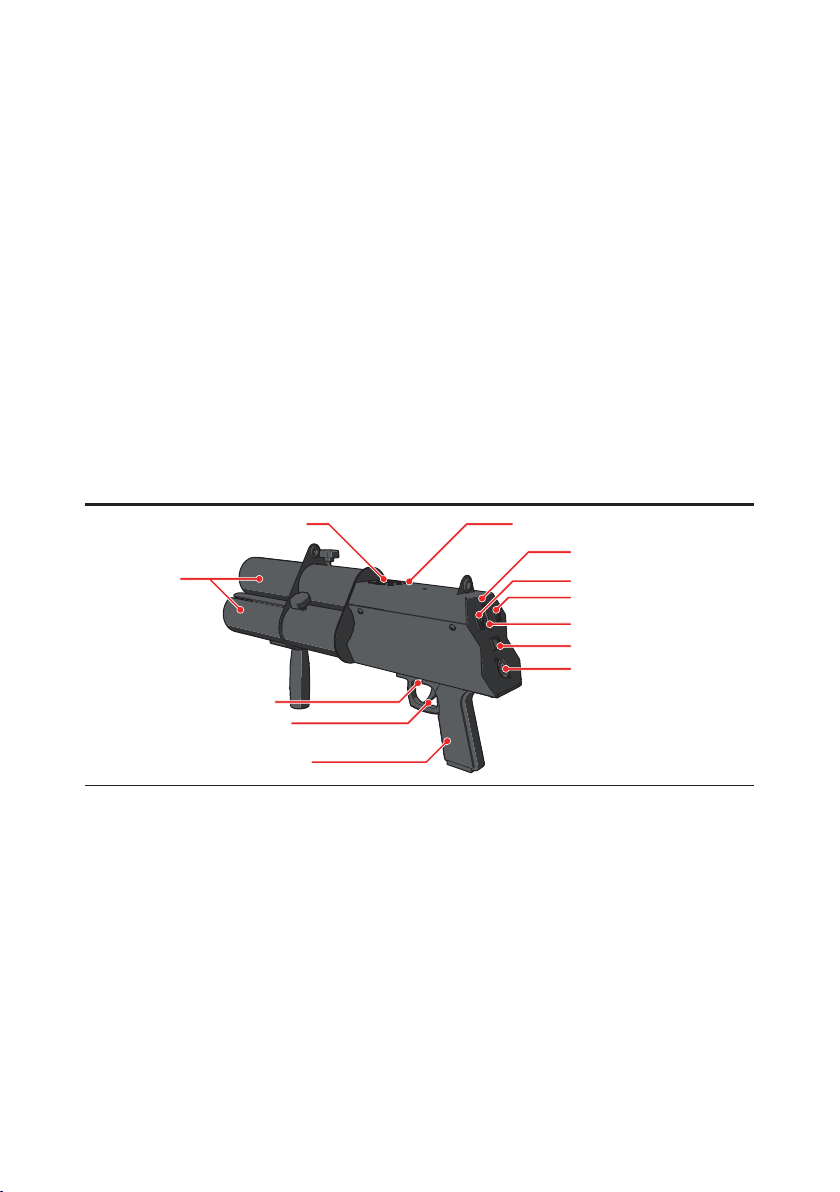

1.1 MAIN PARTS
BARREL
CANNON CONNECTORS
SAFETY
TRIGGER
HANDLE
MODE SWITCH
POWER SWITCH
BATTERY INDICATOR
CANNON LEDS
CHARGE LED
POWER INPUT
(100-250Va c )
LASER SWITCH
Main parts
1.2 ELECTRIC CANNONS
All Electric Cannons (50 cm and 80 cm) from MAGIC FX are compatible with the
MAGICFX®CONFETTI GUN. Check the website of MAGIC FX or contact your local
dealer for ordering information.

6  MAGICFX®CONFETTI GUN —User and Installation Manual
1.3 PRODUCT IDENTIFICATION
Type plate
1.4 TECHNICAL DATA
Product Product Name MAGICFX®CONFETTI GUN
Product Code MFX0370
Product Type CONFETTI & STREAMER FX
Main
Dimensions
Length 473 mm 18.6 in
Width 144 mm 5.7 in
Height 271 mm 10.7 in
Weight Empty weight 4.5 kg 9.9 lb
Package Length 500 mm 19.7 in
Width 300 mm 11.8 in
Height 220 mm 8.7 in
Packaged weight 5.1 kg 11.2 lb
Environment Minimum Temperature 0 °C 32 °F
Maximum Temperature 50 °C 122 °F
Humidity (Relative) 20 % to 90 % (non condensing)
Electrical Voltage Input 100 – 250 Vac
Voltage Frequency 50 – 60 Hz
Power Consumption 10 W
Power Connector Neutrik®powerCON 20 A (in)
Battery 3S LiPo (11.1 Vdc) 2.2 Ah 45C
Laser Type of laser Class II
Controlling Control Options Manual Trigger
Usage Consumable(s) MAGICFX®Electric Cannons
Technical data

MAGICFX®CONFETTI GUN —User and Installation Manual 7
2 SHOOT SAFELY!
The MAGICFX®CONFETTI GUN has been designed and constructed in such a manner
that it can be used safely. This applies to the use, the circumstances and the
regulations as described in this documentation. Reading this documentation and
following the instructions are therefore necessary for everyone who works with the
MAGICFX®CONFETTI GUN.
The MAGICFX®CONFETTI GUN must be used in surroundings that:
• Have a stable temperature of between +0 and 50 °C.
• Have a relative humidity degree between 20 % and 90 % (non condensing).
• Are free of dust, corrosive gases and high concentrations of organic vapours.
• Are not situated in the vicinity of a source of vibration.
2.1 GENERAL SAFETY RULES
• Only authorised persons may work with the MAGICFX®CONFETTI GUN.
• Do not use the MAGICFX®CONFETTI GUN if there are people or animals in the
direct output.
• Make sure that children, unauthorised people and animals do not obtain
access to the MAGICFX®CONFETTI GUN.
• Make sure there are no freestanding objects or objects that can be damaged
by the MAGICFX®CONFETTI GUN within the output distance.
• Do not remove any safeguards, safety caps and safety symbols.
• Always keep the laser beam away from heads and eyes of people and
animals.
• All required safety devices must be in good condition and function properly.
• Ensure sucient lighting of the surroundings.
• Keep the workplace clean.
2.2 NOISE LEVEL
The environmental noise level measured at 20 cm (7.87 in) from the product is 92
dB(A) for a single shot and 98 dB(A) for a full shot. This level of noise is only reached
during the short shooting instances. Therefore hearing protection is not necessary.
WARNING Do not operate the MAGICFX®CONFETTI GUN close to yourself or
to others for a long period of time. If you experience any hearing
loss or ringing in the ears, you should immediately stop using the
unit.

8 MAGICFX®CONFETTI GUN —User and Installation Manual
2.3 SAFETY SYMBOLS
Symbol Meaning Position
CAUTION
LASER RADIATION
DO NOT STARE INTO BEAM
CLASS II LASER PRODUCT
645nm - 660nm <1mW
The gun contains a Class II laser
product. The laser beam can
cause distraction, ashblindness
or eye damage. Do not stare
into the beam.
Top of the gun
Safety symbols
2.4 PRECAUTIONS FOR OPERATION
WARNING Using a damaged gun can lead to serious injury and property
damage. Always inspect the gun thoroughly before operation.
WARNING Using a damaged, used or an improper installed electric cannon
can lead to serious injury and property damage. Always inspect
the cannon thoroughly before operation.
CAUTION The gun contains a Class II laser product. The laser beam can
cause distraction, ashblindness or eye damage. Do not aim the
laser towards heads and eyes of people and animals. Do not
aim the laser towards an aircra or a vehicle that is in motion. Do
not stare into the beam.
WARNING Missing or obscured safety symbols on the machine can lead to
death or serious injury. Make sure all safety symbols are correctly
in place, see section 2.3.

MAGICFX®CONFETTI GUN —User and Installation Manual 9
3 LET’S SHOOT!
1 Check the battery level before use and charge the internal battery when
necessary. For charging connect the unit to a power outlet with a PowerCON
power cable.
The Charge LED lights up red, indicating that the unit is being charged. The gun
is fully charged in approximately 8 hours.
PowerCON female
POWER
2 When the Charge LED turns green, unplug the power cable.
3 Make sure that the gun is switched OFF and the safety is in locking position.

10 MAGICFX®CONFETTI GUN —User and Installation Manual

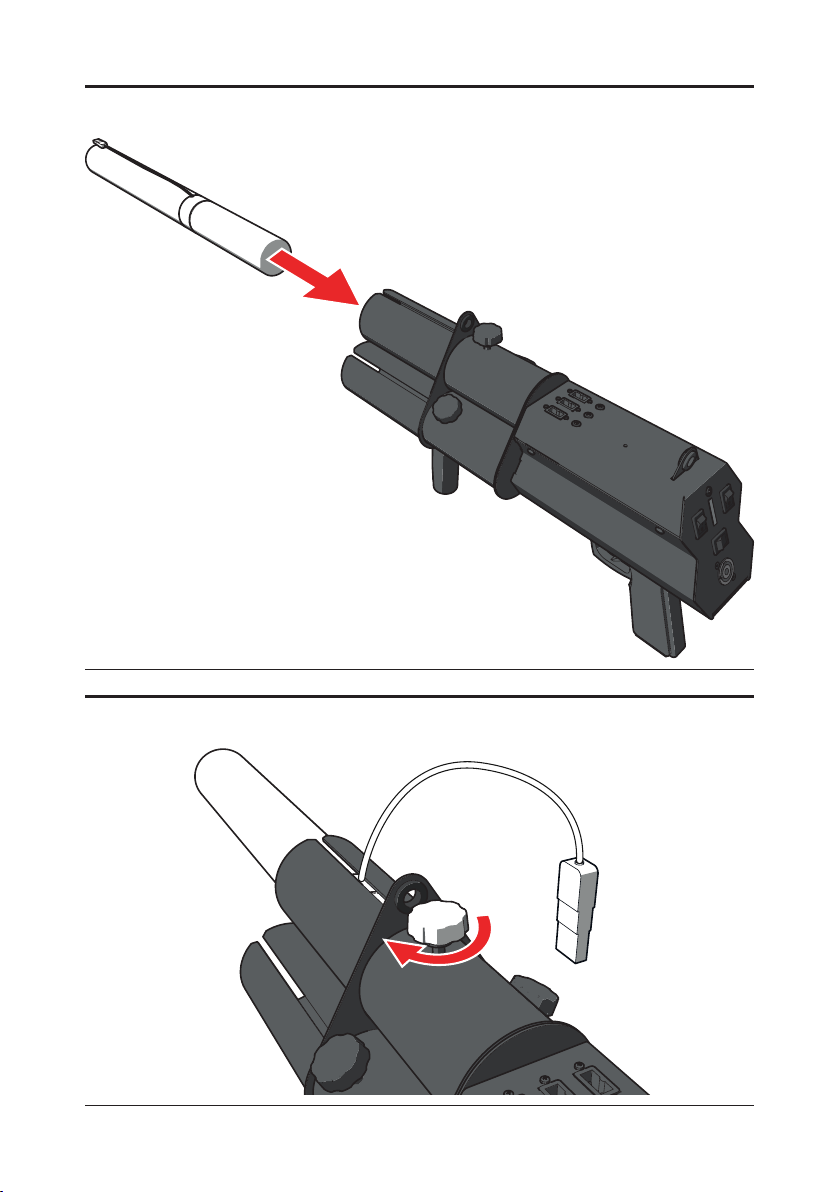

4 Place an unused electric cannon in the barrel with the cable facing upwards.
5 Lock the cannon in the barrel with the thumb screw.

MAGICFX®CONFETTI GUN —User and Installation Manual 11

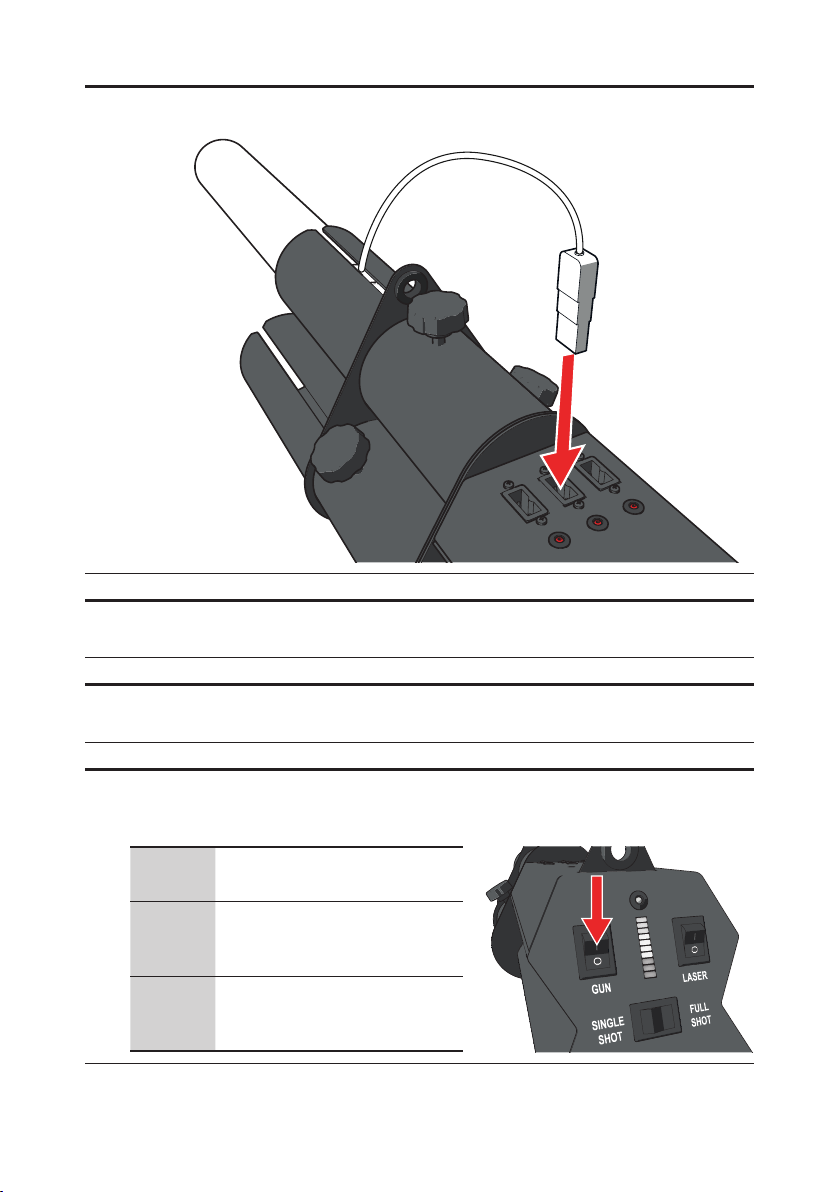

6Connect the power cable of the electric cannon.
7 Repeat steps 4 to 6 for each cannon.
8 Carefully walk to the desired shooting position.
9 Switch ON the MAGICFX®CONFETTI GUN. The LED of each available cannon
starts blinking.
Blinking Cannon is available for
shooting
Solid Cannon is unused and NOT
yet available for shooting
(in Single Shot mode)
No light Cannon is NOT available for
shooting (not connected or
already red)

12 MAGICFX®CONFETTI GUN —User and Installation Manual
10 Select Single Shot or Full Shot mode.
Single
Shot
Fire cannons one aer
another
Full
Shot
Fire all cannons at once
11 Release the safety.
12 Firmly hold the gun with two hands and aim above the audience.
Make sure there are no persons or animals in the direct output of the MAGICFX®
CONFETTI GUN.

MAGICFX®CONFETTI GUN —User and Installation Manual 13
13 Activate the laser beam for extra eect.
CAUTION Do not aim the laser towards heads and eyes of people and
animals.
14 When it’s time to shoot, pull
the trigger.
15 Press the safety back in locking position and switch OFF the MAGICFX®CONFETTI
GUN.

14 MAGICFX®CONFETTI GUN —User and Installation Manual
16 Deactivate the laser beam if switched on.
17 Enjoy the view.
18 Disconnect the power cable of a used electric cannon.

MAGICFX®CONFETTI GUN —User and Installation Manual 15
19 Release the thumb screw that holds the cannon in the barrel.
20 Place an unused electric cannon in the barrel with the cable facing upwards.
21 Repeat steps 17 to 19 for each used cannon.
22 Reload, recharge or store the MAGICFX®CONFETTI GUN.

16  MAGICFX®CONFETTI GUN —User and Installation Manual
4 TROUBLESHOOTING
Always contact MAGIC FX if any malfunctions or errors occur that cannot be solved
with the instructions as described in this manual.
5 MAINTENANCE
To achieve the maximum service life of the MAGICFX®CONFETTI GUN you must
regularly clean the MAGICFX®CONFETTI GUN and test if it is functioning correctly.
Contact MAGIC FX if the MAGICFX®CONFETTI GUN is not functioning correctly.
DANGER Do not replace parts yourself. Always consult MAGIC FX if
necessary.
6 CORRECT DISPOSAL
This symbol on the product and/or accompanying documents
means that used electrical and electronic products should not be
mixed with general household waste. For proper treatment,
recovery and recycling, please take this product to designated
collection points where it will be accepted free of charge.
Alternatively, in some countries you may be able to return your
products to your local retailer upon purchase of an equivalent
new product.
Disposing of this product correctly will help save valuable resources and prevent any
potential negative e ects on human health and the environment, which could
otherwise arise from inappropriate waste handling.
Please contact your local authority for further details of your nearest designated
collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
your national legislation.

MAGICFX®CONFETTI GUN —User and Installation Manual 17
7 DECLARATION OF CONFORMITY
DECLARATION OF CONFORMITY
(According to Annex III A Low Voltage Directive 2014/35/EU + Machinery Directive 2006/42/EC)
MAGIC FX B.V. declares as manufacturer and composer of the technical construction file that
the product with the following specifications:
Name machine
Type
Voltage
Serialnumber
: CONFETTI GUN
: MFX0370
: 100-250Vac 50-60Hz
: on product
Year of construction : on product
Is in conformity with the minimal safety regulations as stated in the following directive(s):
EMC (2014/30/EC) ElectroMagnetic Compatibility
RoHS (2011/65/EU) Restriction of the use of certain Hazardous Substances
WEEE (2012/19/EU) Waste Electrical & Electronic Equipment
The following harmonized standards were applied:
NEN-EN-ISO 12100:2010 Safety of machinery - General principles for design - Risk assessment
and risk reduction.
NEN-EN-IEC 60204-1:2006, Safety of machinery - Electrical equipment of machines - Part 1:
General requirements.
NEN-EN-IEC 61000-6-3:2007/A1:2011, Electromagnetic compatibility (EMC) - Part 6-3: Generic
standards - Emission standard for residential, commercial and light-industrial environments.
Original declaration of conformity
Translation of the original declaration of conformity
Name manufacturer : MAGIC FX BV
Address : Schouwrooij 27, 5281 RE BOXTEL
Country : The Netherlands
CEO : B. Veroude
Date : 13-01-2017
Signature :

WWW.MAGICFX.EU
