MAGINON MPP 10000-SF User manual

Quality products for Life.
MPP 10000-SF
Solar Charger
Instruction Manual

Overview
1
A
B
1
2
3

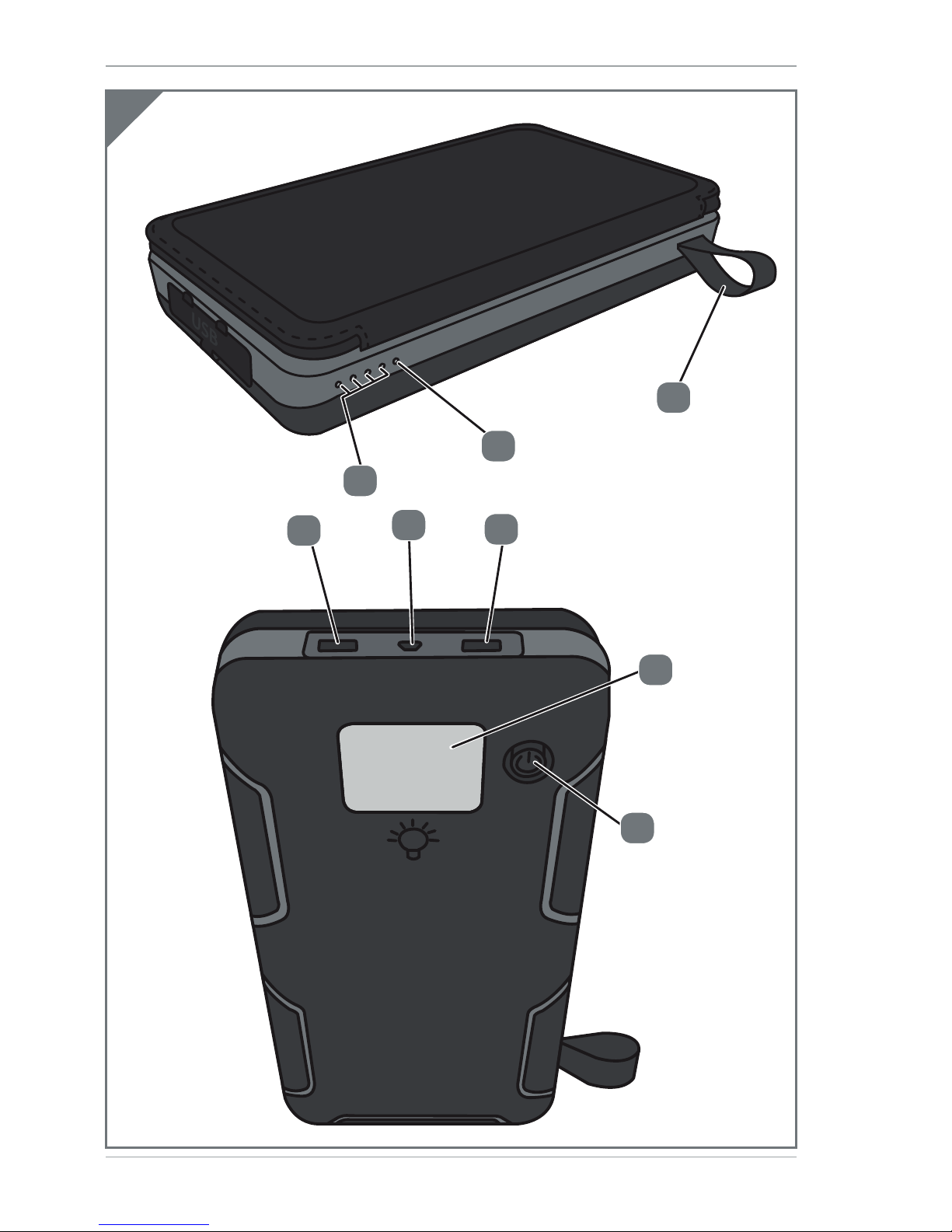

Operating elements
2
C
11
5
4
10
6
789

Description of the operating elements
3
Description of the operating
elements
1Maginon MPP 10000-SF
2Micro USB Charger Cable
3Solar panels
4Attachment loop
5Solar Status LED
6Battery status indicator LED
7USB connection 5V 2.1A (output)
8Micro USB connection 5V 2A (charging connection)
9USB connection 5V 1A (output)
10 LED lights
11 On / Off button

Contents
4
Contents
Overview ..............................................................................1
Operating elements............................................................ 2
Description of the operating elements ............................. 3
Preface................................................................................. 5
General ................................................................................6
Read and keep instructions......................................................6
Explanation of symbols .............................................................6
Appropriate use ..................................................................8
Safety...................................................................................9
Safety instructions......................................................................9
Commissioning.................................................................. 14
Check contents of box.............................................................. 14
Preparing the power bank...................................................... 15
Charging the power bank via mains adapter...................... 15
Charging the power bank with sunlight .............................. 15
The battery status LEDs............................................................ 16
Charging time of the power bank.......................................... 17
Charging devices with the power bank................................ 17
Charging times for devices...................................................... 18
LED lights ................................................................................... 19
Cleaning............................................................................. 19
Cleaning the solar panels........................................................ 19
Storing ................................................................................21
Troubleshooting ............................................................... 22
Technical Data ................................................................... 23
Disposal ............................................................................. 24
Dispose of packaging...............................................................24
Disposal of used device............................................................24

Preface
5
Preface
Dear customer,
Congratulations on purchasing a high-quality MAGINON®
product.
You have chosen a modern power bank with excellent
technical equipment and corresponding accessories that is
incredibly easy to operate.
The power bank comes with a 3-year warranty. In case of a
defect, you will need the enclosed warranty card and proof of
purchase. Keep these in a safe place.
Imprint
Issued by:
supra Foto-Elektronik-Vertriebs GmbH
Denisstr. 28A
67663 Kaiserslautern
Germany

General
6
General
Read and keep instructions
This manual is part of the power bank MPP 10000-
SF (hereinafter referred to as "power bank"). It is an
integral part of the product and contains important
information on setup, use, and disposal.
Read the Operating Instructions, especially the safety
instructions, carefully before using the power bank. Failure to
follow these Operating Instructions may result in damage to
the power bank.
These Operating Instructions are based on valid standards
and regulations of the EU. Please also observe country-
specific guidelines and laws abroad.
Keep Operating Instructions for further use. When passing
on the power bank equipment to third parties please also
include these Operating Instructions.
Explanation of symbols
The following symbols and signal words are used in these
Operating Instructions, on the device or on the packaging.
DANGER!
This symbol, in conjunction with the signal word "Danger",
means a high-risk hazard which, if not avoided, could result in
serious injury or death.

General
7
WARNING!
This symbol, in conjunction with the signal word "Warning",
means a medium-risk hazard which, if not avoided, could
result in serious injury or death.
CAUTION!
This symbol, in conjunction with the signal word "Caution",
means a low-risk hazard which, if not avoided, could result in
minor to moderate injury.
NOTE!!
This signal word warns against potential material damage.
This symbol gives you useful additional
information about the device.
Declaration of conformity (see chapter
“Declaration Of Conformity”): Products containing
this symbol comply with all Community
legislation of the European Economic Area.
Products containing this symbol are operated
with direct current.

Appropriate use
8
This symbol shows you that you should read the
Operating Instructions before using the device.
Appropriate use
The power bank is designed solely as a power bank. It is
intended exclusively for private use and not for commercial
use.
Only use the power bank as described in the operating
instructions. Any other use is deemed to be incorrect and can
cause damage to property.
This power bank is an information electronics device.
This power bank is designed to charge devices that can be
charged via a USB port as standard.
The LED light 10 can also be used as a flashlight. The LED
light is not suitable for household lighting and must not be
used for this purpose.
The power bank must not be altered under any
circumstances. Damage due to improper use is the sole
responsibility of the user.
Both USB output ports must not be used at the same time.

Safety
9
Safety
Safety instructions
− Before each use, check if the power bank is visibly
damaged or if the USB cable is defective. In such a case, do
not use the power bank.
− This product may only be charged with a USB power
supply with a nominal voltage of 5 V DC, 2 A. The power
bank must not be charged on a PC or notebook.
− If the power bank or housing is damaged, it must be
replaced by the manufacturer or his customer service or a
similarly qualified person to avoid hazards.
− Do not open housing but have repair carried out by an
expert. Contact a specialist workshop. All liability and
warranty claims shall be void in case of repairs carried out
by users, incorrect connection or improper use.
− For repairs only use parts corresponding to the original
devices. The power bank contains electrical and
mechanical parts that are required against hazard
sources.
− Both USB output ports must not be used at the same time.
− Do not immerse the power bank or accessories in water or
other liquids.
− Never touch the power bank or USB cable with wet hands.
− Never use USB cable as a carrying handle.

Safety
10
WARNING!
Risk of explosion!
− Never throw the power bank and USB cable into an open
fire and keep the power bank and USB cable away from
hot surfaces.
− Do not expose the power bank to spraying and/or
dripping water or place objects filled with liquid such as
vases or open drinks on or next to the unit.
− Never charge the power bank via the USB port or use it to
charge other devices at the same time. Parallel charging is
possible via the solar panel.
− Do not use the power bank in damp rooms or in the rain.
− Never store the power bank in such a way that it can fall
down.
− Do not insert any objects into the power bank.
− Always switch off the power bank if you are not using it,
cleaning it or if a fault occurs. When using a USB power
supply (not included), unplug it from a wall outlet
immediately! You should also disconnect the connected
devices from the USB port. Make sure to close the solar
panels. Do not use the power bank any more if you notice
a burnt smell or smoke.

Safety
11
WARNING!
Hazard for children and persons with reduced
physical, sensory or mental abilities (such as partially
disabled, older persons with limited physical and
mental abilities) or lack of experience and know-how
(such as older children).
− This power bank may be used by children 8 years or older
and persons with reduced physical, sensory or mental
abilities or lack of experience or know-how provided they
are supervised or have been instructed on how to safely
use the power bank and understand hazards resulting
therefrom. Children are not allowed to play with the
power bank. Cleaning and user maintenance must not be
carried out by children without supervision.
− Keep children younger than eight years away from the
power bank.
− Do not leave the power bank unattended during
operation.
DANGER!
Asphyxiation hazard!
Packaging material must not be used for playing with. Keep
packaging foil away from children. They could get caught in it
while playing and could suffocate.

Safety
12
NOTE!!
Risk of damage!
Improper handling of the power bank can lead to damage to
the power bank.
− Place the power bank on an easily accessible, level, dry,
heat-resistant and sufficiently stable work surface. Do not
place the power bank at the edge or periphery of the work
surface.
− Avoid heat build-up by not covering the power bank with
anything. The resulting heat can damage the power bank.
− Never expose the power bank to high temperatures
(heating, fire, etc.) or weather conditions (rain, etc.).
− Never expose the power bank to extreme heat. This is
particularly true for storing the product in a car. Extreme
temperatures develop in the interior and glove box over
an extended period of time.
− Do not bring the power bank into contact with hot parts.
− Never immerse the power bank in water for cleaning
and do not use steam cleaner for cleaning. Otherwise the
power bank may be damaged.
− Handle the power bank carefully. Shocks, blows or falling
from a low height can cause damage to the power bank.
− Do not open, alter or modify the power bank and do not
insert any metallic objects or wires into the power bank.
− Do not charge the power bank while charging another
device.

Safety
13
WARNING!
Risk of explosion!
Do not expose the battery to excessive heat such as sunlight,
fire or the like as there is a risk of explosion.
− Keep the battery away from children.
− Do not short-circuit the power bank.
− Do not puncture or pierce the power bank as the battery
acid could leak and cause severe burns. If you come into
contact with the battery acid, seek immediate medical
attention.
− Never use the power bank in environments with explosive
or flammable materials. There is danger of fire and
explosion.
− If you suspect that an adult or child has come into contact
with the acid of the battery, seek medical attention
immediately.
− Observe the usage restrictions or usage bans for battery-
powered devices in places with special hazards, such as
petrol stations, airplanes, hospitals, etc.
− Do not throw the power bank into an open fire.
− Improper handling of lithium-ion batteries can lead to fire,
explosions and other injuries. Hazardous substances can
also be released.
− When using a USB power supply (not included), connect
the power bank only to an easily accessible power outlet
so that you can quickly disconnect the power bank from
the power supply in the event of a malfunction.

Commissioning
14
Commissioning
Check contents of box
Check that the contents of the packaging listed below are
complete:
Solar power bank Operating instructions
USB charging cable Guarantee documents
WARNING!
Asphyxiation hazard!
Packaging material must not be used for playing with. Keep
plastic films and bags and the packaging away from babies
and toddlers, there is a risk of suffocation.
− Dispose of the packaging material immediately so that no
babies or small children can be injured.
NOTE!!
Risk of damage!
If the packaging is carelessly opened with a sharp knife or
other pointed objects, the power bank can be easily damaged.
− Please open packaging carefully.
1. Remove the power bank from its packaging.
2. Check whether the delivery is complete (seeFig.A).
3. Check whether the power bank or the individual parts are
damaged. If this is the case, do not use the power bank.

Commissioning
15
Contact the manufacturer at the service address indicated
on the warranty card.
Preparing the power bank
− Remove packaging material and all protective foil.
Charging the power bank via mains
adapter
Fully charge the battery before using the power bank.
The charging time of the battery depends on the selected
charging source and its output power. Only use the supplied
Micro USB charging cable 2. Connect the cable to the
Micro USB port 8between the two USB outputs. Connect
the other end of the cable to a mains charger (optional, not
supplied) or a car charger (optional, not supplied).
− Only use power supplies with an output
voltage of 5 V and an output current of at least
2 A to charge the power bank.
− Due to the input current of 2 A, USB
connections on computers or laptops must not
be used to charge the power bank.
Charging the power bank with sunlight
You can charge the power bank with 3the solar panels.
Make sure that the solar panels 3receive enough sunlight.
As soon as sufficient sunlight is available, the solar status LED
glows 5constantly green.
If the solar status LED 5is not lit, there is not enough
sunlight. In this case, change the position of the unit or
expose it to direct sunlight.
To check the charging status, switch on the power bank.
The battery status indicator LEDs light up depending on the

Commissioning
16
charging status (see table on page 17 ). The power bank
switches off automatically after approx. 35 seconds.
The power bank can provide you with endless charging
capacity during your activities, as it recharges itself through
the natural sunlight. Note that charging time via solar panels
is much longer than via USB cable and depends on the
intensity of sunlight.
A full charge of the power bank only by the
solar panels can take different amounts of time
depending on the sunlight. By direct sunlight the
charging time is approx. 16.5 hours and by normal
daylight without clouds approx. 23 hours.
The battery status LEDs
The following table shows the charging status of the power
bank.
Battery status indicator LED Charge
condition
All four LEDs are lit 100 %
Three LEDs light up, the fourth LED
flashes
75 - 99 %
Two LEDs light up, the third LED flashes 53 - 74 %
One LED lights up, the second LED
flashes
15 - 52 %
One LED flashes < 15 %
The above values are approximate and may vary slightly in
reality.

Commissioning
17
The charging status is identical when charging via USB cable
or solar panels.
You can also check the charging status of the power bank
without charging it or any other device. Briefly press the on /
off button 11 . The battery status indicator LEDs 6display
the current charge level of the power bank for approx. 35
seconds.
Battery status indicator
LED
Charge condition
4 LED lights are on 100 %
3 LED lights are on 75 %
2 LED lights are on 50 %
1 LED light is on 25 % or less
The above values are approximate and may vary slightly in
reality.
Charging time of the power bank
It takes about 3 hours to fully charge the power bank from
0-100% through a USB charger (5V, 2A).
Charging devices with the power bank
• Use the USB charging cable supplied with your phone and
plug it into one of the two USB ports 7/ 9. Make sure
that unused USB cables are disconnected from the power
bank.
• The included Micro USB charging cable 2can also be
used if your devices have a Micro USB port.
• Charging starts automatically when the device to be
charged is connected to the power bank. The battery
status LEDs 6light blue depending on the charging

Commissioning
18
status of the power bank and indicates the remaining
capacity of the power bank during charging.
• To switch off the power bank, disconnect the USB cable
from the power bank. The battery status LEDs 6then
goes off after approx. 35 seconds. Alternatively, you
can also press and hold the on/off 11 button for three
seconds.
Charging times for devices
Typical charging times for the power bank.
Time Smartphones Tablets
30 min. 50 % 30 %
1 hr. 70 % 50 %
1.5 hrs. 100 % 70 %
The times given are approximate and depend on
many different factors. Times may vary slightly
between different smartphone and tablet models.
The following are some examples of the operating time of
your devices using the power bank.
Tablets Smartphone Action Cams Navigation device
Watching films
approx. 5 hrs.
Recording
videos approx.
10 hrs.
Recording
videos approx.
12 hrs.
Navigation approx.
50 hrs.
Surfing the
Internet
approx. 15
hrs.
Surfing the
Internet
approx. 35 hrs.
Full charge
approx. 8 x
Full charge approx. 5 x
