Owner’s Manual
1. Read the Owners Manual thoroughly before first use.
2. Charge the LiftPlus for six hours before using it for the first time. If the LiftPlus battery
completely discharges, recharging will take 72 hours. See page 5 for battery and
charging information.
3. The lead screw requires regular lubrication for proper working condition. See page 13
for maintenance schedule.
Important Startup Instructions

1-800-MAGLINE (624-5463) www.magliner.com
LiftPlus®
2
Table of Contents
General Safety Instructions.......................................................................................................... 3
Startup Instructions ...................................................................................................................... 3
LiftPlus Unit .................................................................................................................................. 4
Charging the Battery .................................................................................................................... 5
Using the LiftPlus ......................................................................................................................... 6
Changing Attachments ................................................................................................................. 7
Moving with the LiftPlus ............................................................................................................... 7
Folding the Unit ............................................................................................................................ 8
Unfolding the Unit......................................................................................................................... 9
Using the Brakes.......................................................................................................................... 10
Adjusting the Brakes .................................................................................................................... 10-11
Replacing the Battery............................................................................... ................................... 12
Maintenance................................................................................................................................. 13-14
Troubleshooting Guide ................................................................................................................. 14
Operating Labels.......................................................................................................................... 15
Replacement Parts....................................................................................................................... 16
Warranty
Magliner products have a one (1) year warranty unless otherwise specied from the date of
purchase against defects in workmanship or material. Any part or component, except items covered
by warranties of other manufacturers, returned to the factory or service center freight prepaid
by the owner, found upon examination by Magline, Inc. to be defective or the result of improper
workmanship by the factory will be repaired or replaced without charge and returned to the owner
freight prepaid by Magline, Inc.
Alterations of Magliner products void any warranty or liability on the part of Magline, Inc.
Magline, Inc. does not guarantee product capacity if alterations are made.

1-800-MAGLINE (624-5463) www.magliner.com
LiftPlus®
3
Thank you for purchasing the Magliner LiftPlus®! If you have any questions regarding your new
Magliner product please call our customer service department at 1-800-MAGLINE (624-5463) or
[phone]. Please read this manual thoroughly to become familiar with the safe operation and
maintenance of your new LiftPlus system.
General Safety Instructions
• Inspect before each use for damaged and loose fasteners/connections.
• Inspect the unit for cracks, wear or damage. Replace damaged components immediately.
• Keep hands and feet away from all moving parts.
• Never stand or sit on the work bench.
• Do not use this product to lift or to transport people.
• Never use as a step ladder.
• Never use on a moving vehicle.
• Never operate when any of the housing components have been removed.
• Keep all loose items away from the lift screw, as they may become entangled during use.
• Never use or store in wet environments or get any of the unit wet. The unit may be used
indoors or outside, but always use caution to keep the unit from getting wet; dry as soon as
possible.
• Never exceed 350 lbs. capacity. Damage to the lift and personal injury could result.
• Never raise or lower the work bench unless the unit is unfolded and the folding latch is
locked.
• Use extreme care when raising or lowering in close proximity to other objects. Hands
and other items may get pinched or injured as the moving attachment passes non-moving
objects.
• Never place a load’s center of gravity over the vise or work bench nose; always keep the
load center of gravity centered on the work bench.
• Never tilt the unit back with a raised load.
• Always check that the brakes are working correctly before operating with a load.
• Never walk away from the unit when the folding latch is in an unlocked position.
• Always keep the power switch off when the unit is folded.
• Never go over a curb or any other multi-level transition with a raised load.
• Do not operate when the battery charger is plugged in.
• Never attempt to open the battery. If the battery is cracked or leaking, do not recharge it - it
must be replaced.
• Always use a Magliner battery charger to charge your battery.
1. Read the Owners Manual thoroughly before first use.
2. Charge the LiftPlus for six hours before using it for the first time. If the LiftPlus battery
completely discharges, recharging will take 72 hours. See page 5 for battery and
charging information.
3. The lead screw requires regular lubrication for proper working condition. See page 13
for maintenance schedule.
Startup Instructions

1-800-MAGLINE (624-5463) www.magliner.com
LiftPlus®
4
LiftPlus Unit
On/Off Switch
Electrical
Interface Panel
Brake Lever
Parking Brake
Latch
Column Handle
Up/Down
Switch
Quick
Change Latch
Lift Screw
Latch Release
Lever
Folding Latch
Handle
Battery
Compartment
Circuit Breaker
Column Channels
Storage Rollers
Casters
Column
Rear Rollers
Trolley
Side Plates
Front Rollers
Wheel and
Tire Assembly

1-800-MAGLINE (624-5463) www.magliner.com
LiftPlus®
5
Battery
The LiftPlus® must be charged for six hours before using it the rst time. If the LiftPlus battery
completely discharges, recharging will take 72 hours. When not in use, it is recommended to keep
the LiftPlus plugged in to maintain a maximum charge.
General Battery Warnings
• Do not connect accessories to the battery; this will cause premature battery failure.
• Unauthorized modication could create a hazardous condition and result in serious injury.
• Batteries contain sulfuric acid, which can burn eyes, skin, clothes, etc. Use caution! Always wear
gloves when working with batteries. If contact occurs, ush immediately with water and get
medical attention. Protect surfaces from battery damage by placing batteries on rubber or plastic
surfaces.
• To prevent electrical shock, do not touch non-insulated parts of the charger output connectors,
battery connectors or battery terminals. Do not use connectors that are cracked, corroded, or do
not make adequate electrical contact. Use of damaged or defective connectors could result in re
or electrical shock.
• Keep sparks, ame and smoking materials away from batteries.
• Batteries can supply a large amount of current. Do not wear jewelry or watches when working on
the batteries as an accidental shorting could occur and cause severe burning.
Battery Life
The LiftPlus is powered by one 12V battery.* The lift motor draws current from the battery based on
the amount of effort required to lift the load. A fully-charged battery will power 125 - 150 lift cycles
with a median load; however, extreme temperature ranges and extreme loads can have an effect on
the amount of power available during one charging cycle.
General Charging Warnings
• Use only the Magliner 15V charger designated for use with LiftPlus. Charge using a grounded
120V electrical outlet.
• Do not operate the unit when the battery charger is plugged in.
• Do not expose charger to rain or snow.
• To prevent risk of re, use the charger only in a dry, well ventilated room without ammable uids
or explosive gases.
• Make sure the cord is located such that it will not be a trip hazard or otherwise subject to
damage or stress.
• Do not operate a charger with a damaged cord or plug – replace immediately.
• To reduce risk of electrical shock, unplug the charging unit from the AC power supply source
before attempting any maintenance or cleaning.
• Always use battery chargers supplied by Magline, Inc. Other battery charging units could cause
damage to your batteries or personal injury.
• To avoid damage to battery charger connectors and cords, disconnect by grasping the plug
body and pulling it straight out of the outlet or receptacle. DO NOT pull on the cord. DO NOT
twist, rock, or pull the connector sideways.
• The metal tip on the end of the plug may be hot when it is rst unplugged.
*Battery has a warranty of six (6) months

1-800-MAGLINE (624-5463) www.magliner.com
LiftPlus®
6
Using the LiftPlus
NOTE: The LiftPlus must be unfolded and the folding latch locked before the quick change latch is
lifted or lowered. Failure to do so can damage the unit.
Loading the LiftPlus
1. Do not exceed the load capacity of 350 lbs. (120 lbs. on high-speed models).
2. Set the parking brake before loading (see page 10).
3. Be sure the load center of gravity is located as close as possible to the center or rear of the attachment.
Lift/Lower Operation
1. Move the power switch to the On position.
2. To lift the load, pull the lift actuation switch toward the back of the unit.
3. To lower the load, press the lift actuation switch toward the front of the unit.
Lift Overload
1. The overload protection circuit prevents lifting motion when it senses an excessive load. When the
circuit is triggered, a red light illuminates on the back of the LiftPlus.
2. To reset the overload circuit, lower the platform all the way to the bottom. The red light will turn off
when lifting function has been restored.
Circuit Breaker
1. When the circuit breaker trips, the button will pop-up and show a white face.
2. Reset the circuit breaker by pressing the button down until you hear a click. It will not reset for the rst
few seconds after tripping.
3. If the circuit breaker tips repeatedly, contact Magline.
TrippedNormal

1-800-MAGLINE (624-5463) www.magliner.com
LiftPlus®
7
Moving with the LiftPlus
Changing Attachments

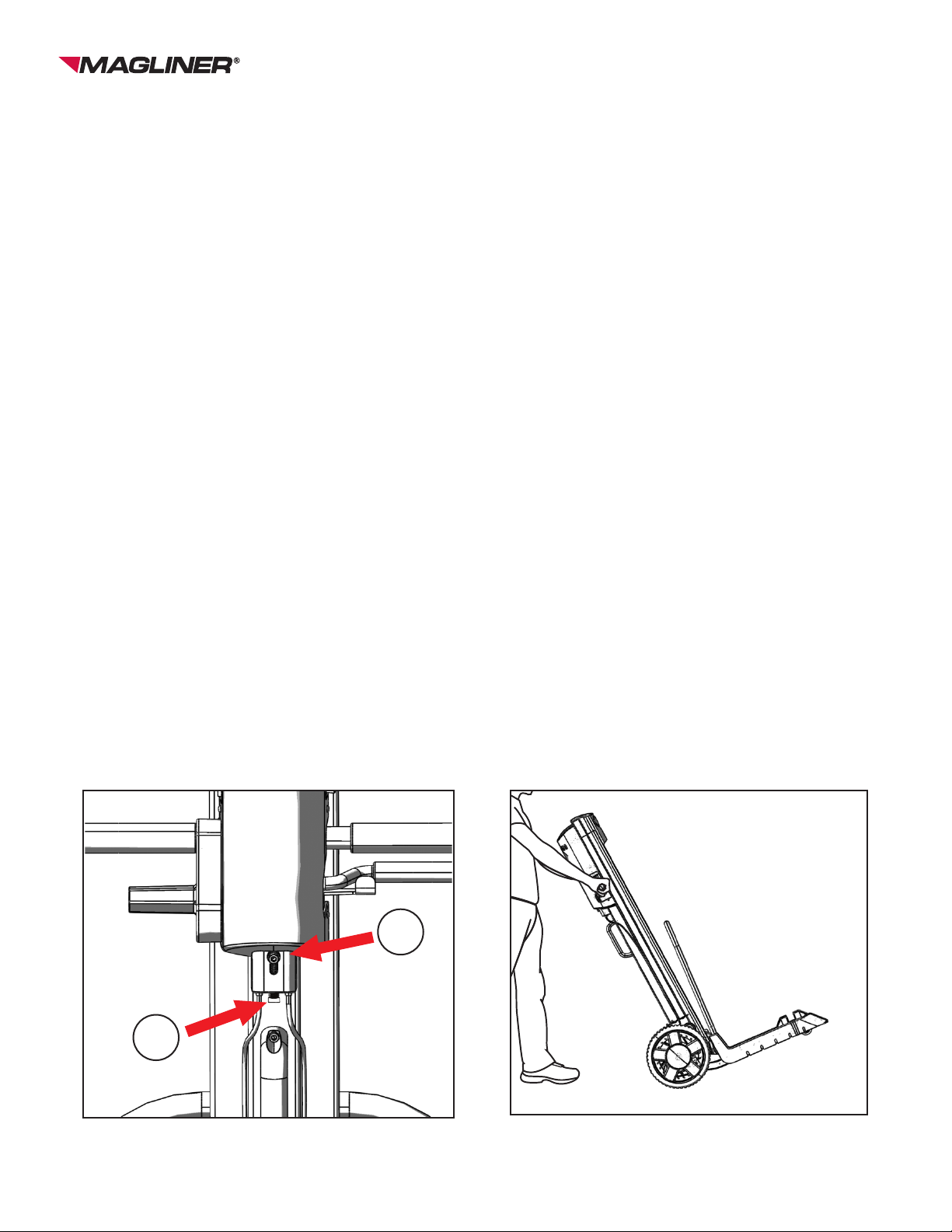

1. Lift or lower the quick change latch to comfortable height.
2. Pull the detent pin out of the quick change latch (located at the bottom front of the latch).
3. Angle the attachment slightly upward from center. Position the lift attachment notches at the top of the
quick change latch. Carefully push the attachment down and toward the quick change latch so that the
attachment is ush with the front of the latch.
4. Push the detent pin so that it contains both faces of the attachment inside both faces of the quick
change latch. Push through fully so that the pin does not back out on its own.
5. Reverse these steps to remove the attachment from the quick change latch.
1. Always stay behind the unit when moving it. Use both hands on the handlebars.
2. Never turn the unit quickly - this can cause the load to slide off the lift attachment.
3. To use the unit in two-wheel mode, apply the brake and gently pull back on the handlebars. When you
are ready to proceed, release the brake. NOTE: Never initiate two-wheel mode with a raised load!

1-800-MAGLINE (624-5463) www.magliner.com
LiftPlus®
8
Folding the Unit
NOTE: Never walk away from the unit when the folding latch is in an unlocked position. Never
store the unit with the power switch left “on.” If the lift actuation switch is accidentally pressed while
the unit is folded, it can damage the unit.
Folding the Unit
1. Remove any load and the lift attachment from the unit.
2. Make sure that the bottom of the quick change latch is at least 12” above the ground.
3. Turn off the unit.
4. Set and lock the brakes.
5. Grasp the folding latch handle and rotate it slightly forward to remove some tension on the red latch.
Press the red latch release lever up with your thumb.
6. Allow the folding latch handle to spring upwards.
7. Pull up on the folding latch handle with one hand and grasp the column handle with the other hand to
guide the column down. The column will slowly fall into the folded position.
8. Push the column as far down as possible.
9. Push down on the folding latch handle until the folding latch reaches the bottom of its travel.
10. Rotate the folding latch handle downward into its locked position. There will be a loud click as the latch
release lever engages. Ensure the folding latch handle is properly locked before moving, operating or
loading. When properly locked, the folding latch handle cannot be lifted without releasing the red latch
release lever.
11. Tug the folding latch handle towards you to be sure that it is properly locked (see next page for photos).
Latch Release Lever
Folding
Latch Handle

1-800-MAGLINE (624-5463) www.magliner.com
LiftPlus®
9
NOTE: A folded unit can be stood up on end for storage, but before you unfold it, you must lay it at
on the ground.
Unfolding the Unit
1. Set and lock the brakes.
2. Grasp the folding latch handle and rotate it slightly forward to remove some tension on the red
latch. Press the red latch release lever up with your thumb.
3. Allow the folding latch handle to rotate toward you and then pull it slightly outward.
4. Squat down beside the unit and grasp the column handle.
5. Pull up on the column handle and rotate the column as far back as possible.
6. Push down on the folding latch handle until the folding latch reaches the bottom of its travel.
7. Rotate the folding latch handle downward into its locked position. There will be a loud click as the
latch release lever engages. Ensure the folding latch handle is properly locked before moving,
operating or loading. When properly locked, the folding latch handle cannot be lifted without
releasing the red latch release lever.
8. To ensure the unit is locked, pull upward on the folding latch handle (it should not move). Push
forward on the column handle; the column should not rotate forward at all.
Be sure that the folding latch is completely locked before moving away from the unit.
Unfolding the Unit
Locked Properly Not Locked Properly Not Locked Properly

1-800-MAGLINE (624-5463) www.magliner.com
LiftPlus®
10
Adjusting the Brakes
The brakes are adjusted at the factory, but should still be checked before every use. If the braking
power is insufcient, the brakes should be adjusted. Perform the adjustment on a dry, non-slippery
surface.
There are two forms of adjustment. One adjusts the brake cable tension and the other adjusts the
set of brake calipers. Adjusting the brake cable tension is usually sufcient. If you are unable to
achieve sufcient braking force by tightening the cable or if one wheel brakes more effectively than
the other, you may need to adjust the brake caliper.
Adjusting the Brake Cable Tension
1. Loosen the screw (1) that locks the brake cable mount using a 3/16” Allen wrench.
2. Adjust the tension in the cables by turning the brake adjustment screw (2) that protrudes from
the bottom of the brake cable mount using a 3/16” Allen wrench.
3. After adjusting the brake adjustment screw, retighten the locking screw.
4. To test the tension, squeeze the brake lever tightly, tilt the unit back about 35°, and push the unit
forward along the ground. The combined action should make the wheels skid on the ground.
5. If the wheels spin, the brakes are not adjusted correctly. If the cable is too tight, it may engage
the brakes when you are not pulling on the brake lever.
1
2
Brake Operation
1. To engage the brakes, squeeze the brake lever toward the handlebar.
2. To lock the brakes, squeeze the brake lever toward the handlebar and press the red parking brake latch
forward with your thumb.
3. To disengage the brakes, squeeze the brake lever to release the red latch.
Brakes

1-800-MAGLINE (624-5463) www.magliner.com
LiftPlus®
11
Adjusting the Brake Calipers
The brake calipers can be adjusted using a 3/16” hex screwdriver. The brake caliper screws are
accessed between the wheel spokes on either side.
1. Adjust the brake cable mount to its highest position as described in the preceding section
(Adjusting the Brake Cable Tension).
2. Turn the brake caliper screw clockwise as far as it will go without excessive force.
3. Back both screws off one half turn in the opposite direction.
4. To test the caliper adjustment, push the unit around while not engaging the brakes. If you
feel that either brake is dragging too much, try backing out the screw another 1/8 of a turn
at a time until the unit rolls freely. Note: It is normal for the brakes to rub slightly, but they
should not drag enough to interfere with easy rolling of the unit.
5. Perform the full brake cable tension adjustment as described in the previous section.

1-800-MAGLINE (624-5463) www.magliner.com
LiftPlus®
12
Replacing the Battery
If the unit appears sluggish even after charging or if the battery does not hold its charge for very
long, the battery may need to be replaced. Use only Magliner replacement parts. The battery has a
warranty of six (6) months.
Caution: Never attempt to open the battery. If the battery is cracked or leaking, do not recharge it;
the battery must be replaced.
1. Disconnect from the charging port.
2. Turn the power switch to “Off.”
3. Fold the unit.
4. Remove the battery cover by gently pulling the latch tab outward and sliding the cover down.
5. Carefully slide the connectors off of the red and black terminals.
6. Using a Phillips screwdriver, remove the battery bracket.
7. Inspect the Battery for cracks, leakage, or corrosion. If you nd cracks, leakage or corrosion on
the battery:
a. Contact Customer Service toll free at [phone]. Do not operate the unit until repairs
are made.
b. Do not let the leakage get onto your skin. Wear acid-resistant gloves and chemical goggles.
c. If leakage gets onto the skin, ush immediately with water and mild soap. If irritation
develops, seek medical attention. If the leakage gets into the eyes, ush with clean water for
15 minutes and seek immediate medical attention.
8. Remove the battery.
9. Clean any dirt or debris from the battery compartment.
10. Place the replacement battery into the battery compartment.
11. Replace the battery bracket and screws.
12. Slide the red and black wire connectors onto the matching battery terminals. If the connectors do
not fit securely on the battery terminals, contact Customer Service toll free at [phone].
13. Reinstall the battery cover.

1-800-MAGLINE (624-5463) www.magliner.com
LiftPlus®
13
Maintenance
Area Inspection
Frequency Procedure/Normal Condition
Outside Surfaces Daily Keep clean and dry. Replace any cracked or missing
covers.
Fasteners Daily Tighten any loose hardware.
Battery Charging Daily Green charging light should turn on when charging.
Rear Wheels Daily Inspect wheels and tires for wear and cracks.
Front Casters Daily Inspect for wear; clean dirt and debris.
Rolling Function Daily Unit should roll easily in all directions: forward/back-
ward and left/right.
Brake Lever Daily Brake lever should move freely up and down; lock lever
should hold brake lever in locked (squeezed) position.
Brake Tension Daily
Braking power should be sufcient; if not, adjust as
necessary (see Brakes section). To test - squeeze the
brake lever tightly, tilt the unit back about 35° and try
to push the unit. Wheels should not spin when holding
the brakes tightly.
It is normal for brakes to rub slightly, but it should not
be enough to interfere with easy rolling of the unit.
Trolley Daily Inspect for wear or damage. Trolley should move up
and down smoothly within the lift assembly.
Lift Screw Daily Inspect before each use; keep free of dirt and debris.
Lifting and lowering motions should be smooth.
Attachments/
Accessories Daily Inspect for wear and damage; replace as needed.
Folding Linkage
Assembly Weekly
The unit should fold and unfold smoothly. Locking latch
should fully lock into place; see section Unfolding the
Unit for photos.
Battery Connections Weekly
Tighten any loose connections to the battery terminals.
Check for any cracked or damaged wires; replace parts
as needed.
Lift Screw
Lubrication
Weekly for rst month;
Monthly after rst
month.
Lubricate with a plastic-safe multi-purpose precision
lubricant such as CRC Industrial Technical Grade 3-36.
1. Place absorbent towel underneath the unit.
2. Spray length of lift screw, the center trolley surface,
and front and rear plastic wheel shafts (see next
page for diagram). It does not need to be soaked,
just enough so it spreads on the surfaces.
3. Lift and lower unloaded attachment for 5 full cycles
to distribute lubricant.

1-800-MAGLINE (624-5463) www.magliner.com
LiftPlus®
14
Troubleshooting Guide
Problem Solution(s)
The lift does not respond, and does
not make any noise when the lift
switch is activated.
1. Is the power switch turned on?
2. Has the circuit breaker tripped?
3. Check the battery connections.
4. Recharge the battery.
5. Replace the battery.
The lift struggles to raise objects and
works very slowly.
1. Check for dirt or other obstruction around the lift screw.
2. Recharge the battery.
3. Replace the battery.
The lift will not rise for more than a
second, but it will lower.
1. If the red light is on, you may have exceeded the weight
limit. Try less weight.
2. Lower the lift all the way to the bottom and the red light
should go out, resetting the protection circuit.
3. Check for dirt or other foreign materials in the lift
mechanisms and for interference of the lifting attachment
with other objects. If the lift is obstructed, this may activate
the overload protection circuit. To reset the circuit, repeat
Step 2.
The unit is very difcult to roll. 1. Check that the parking brake is not engaged.
2. Lift the lifting attachment and inspect the front casters for
obstructions.
3. Inspect the brake pads and brake rotors for obstructions.
4. Adjust the brake calipers. Details on page 11.
The brakes do not work at all or work
adequately.
1. Adjust the brake cable tension. Details on page 10.
2. Adjust the brake calipers. Details on page 11.
The unit will not charge.
1. Check to make sure the charger is fully plugged into the
outlet and the charging port of the unit.
2. Check that the circuit breaker is not tripped.
3. Check that the battery is connected.
Lubrication Points

1-800-MAGLINE (624-5463) www.magliner.com
LiftPlus®
15

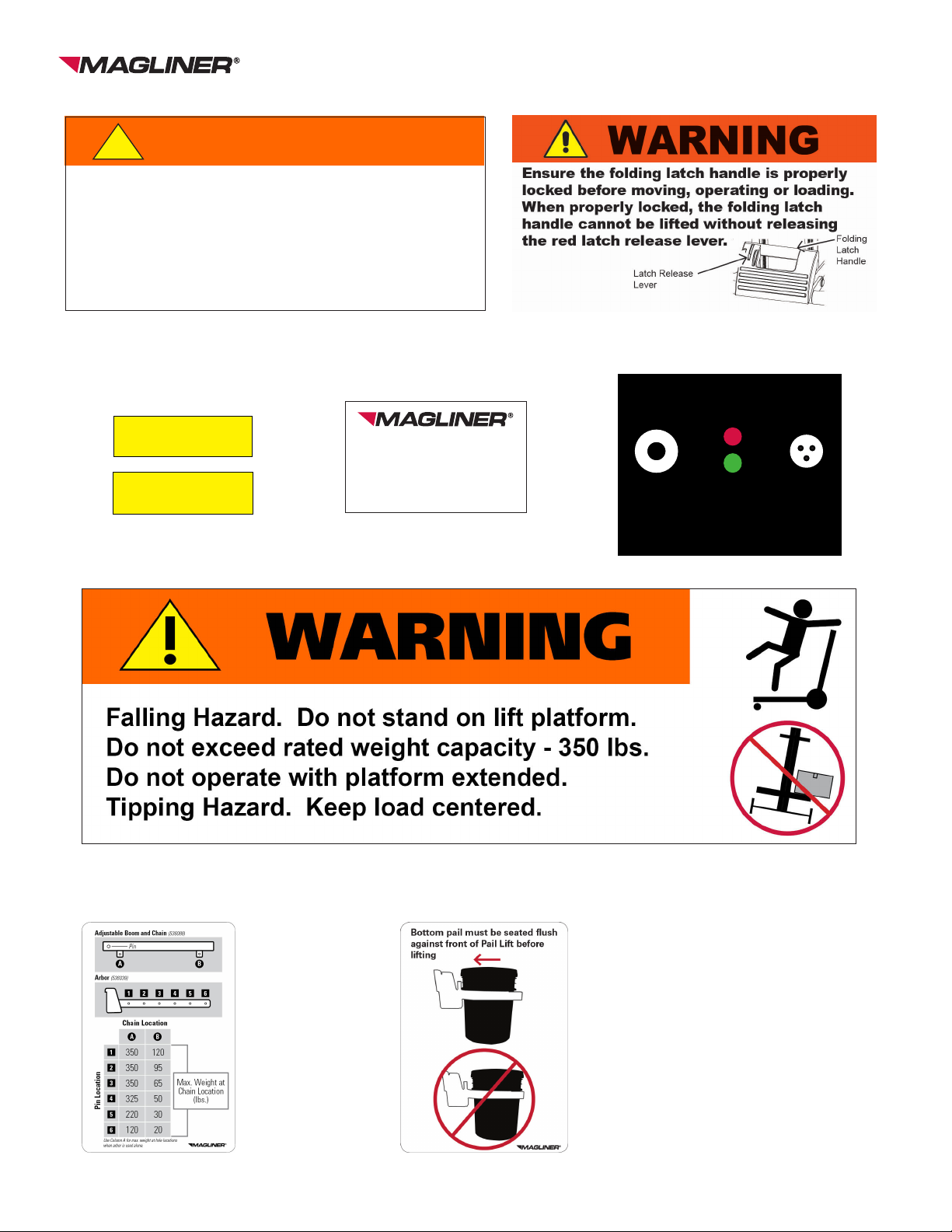

Serial No.
12345
LiftPlus
U.S Patent No. 7,712,582
®
WARNING
!
Read the Operator’s Manual and
all labels before use.
Do not exceed rated weight capacity -
350 lbs standard speed or 120 lbs high speed
1-800-MAGLINE (624-5463) • www.magliner.com
Over Weight
DC Input
15V-1.0A
Remote
Control
Charging
ON OFF
UP DOWN
Work Bench Label
LiftPlus Labels
Arbor, Boom & Chain Label Pail Lift Label

1-800-MAGLINE (624-5463) www.magliner.com
LiftPlus®
16
Accessories Part
Number
Work bench (includes platform, vice clamps, vice handle and back bar) 536020
Quick change adapter (for use with 536020 work bench only) 536026
Arbor - 24” long x 1.66” diameter 536039
Adjustable boom with chain/hook assembly (requires arbor
attachment) 536088
Bent Forks - 21” wide x 18” long, 3.5” height from oor 536044
Straight Forks - 18.5” wide x 18.5” long, 5” height from oor 536053
Straight Forks - 21” wide x 18” long, 5” height from oor 536060
Straight Forks - 20” wide x 32” long, 5” height from oor 536048
Anti-slip rubber kit for forks 536086
V-Tray (requires 18.5” wide x 18.5” long forks) 536054
Steel Pallet - 24” wide x 24” long (requires either 21” wide fork
attachment) 536025
Steel Pallet - 34” wide x 34” long (requires the 20” wide fork
attachment) 536033
Steel Pallet with sides - 21.5” wide x 19” long (requires the 21” wide
straight fork attachment) 536103
Pail Lifter - accommodates three 5-gallon pails 536093
Tethered remote control 534200
External battery charger 63027
Tote bag 534500
Parts Part
Number
Axle, front roller 22145
Front roller 531708
Axle, rear roller 22146
Rear roller 531709
Battery - 12V-15.0 Ah 61017
Battery cover 533501
Brake cable assembly - 14” chassis 532134
Brake caliper assembly 532100
Button, molded black 80813
Caster shell - LH 532503
Caster shell - RH 532504
Caster, assembly with plate only 532500
Caster, complete assembly in shell 530000
Charger assembly, 12V with U.S. blade plug 63030
Circuit breaker - 15A, 32VDC, 250 VAC (includes power supply wiring
harness) 534415
Electrical board 63025

1-800-MAGLINE (624-5463) www.magliner.com
LiftPlus®
17
Parts Part
Number
Limit switch (used for upper and lower) 62067
Lock washer for circuit breaker 80799
Motor assembly - high speed (includes motor, mounting bracket, solenoid,
brake, Pulley #1, Pulley #2-3 and timing belt) - 120 lbs. capacity 534101
Motor assembly - standard speed (includes motor, mounting bracket,
solenoid, brake, Pulley #1, Pulley #2-3 and timing belt) - 350 lbs. capacity 534100
Motor cover 533505
Nut, trolley drive 531705
Pulley assembly #1 (top gear) 534106
Pulley assembly #2-3 (intermediate) 534107
Pulley assembly #4 (lower) 531117
Switch - On/Off (includes wiring harness) 534410
Switch - Up/Down (includes wiring harness) 534416
Timing belt - 5mm pitch x 15mm W x 60 grooves 534118
Top cover assembly 533502
Trolley assembly 531700
Wiring harness for lower limit switch 534402
Wiring harness for upper limit switch - 48” models 534401
Wiring harness for upper limit switch - 60” models 534405
Wiring harness for upper limit switch - 72” models 534406
Wiring harness for negative power (ground) 534413
Wiring harness for positive power 534414
Wiring harness extension for positive motor lead - 60” models 534417
Wiring harness extension for negative motor lead - 60” models 534418
Wiring harness extension for positive motor lead - 72” models 534419
Wiring harness extension for negative motor lead - 72” models 534420
Wiring harness - adapter for motor solenoid - 48” models 534421
Wiring harness - adapter for motor solenoid - 60” models 534422
Wiring harness - adapter for motor solenoid - 72” models 534423
Wiring harness/connector assembly for remote control input 534409
Wiring harness/connector assembly for power jack (charger input) 534408
Wiring harness for green charging light 534411
Wiring harness for red overload light 534412
Wheel and tire assembly 532310
Work bench vise 536018

1-800-MAGLINE (624-5463) www.magliner.com
LiftPlus®
18

1-800-MAGLINE (624-5463) www.magliner.com
LiftPlus®
19

1-800-MAGLINE (624-5463) www.magliner.com
LiftPlus®
20
MAGLINE® INC.
1205 West Cedar Street
Standish, Michigan 48658
1-800-MAGLINE (624-5463)
Email: [e-mail]
www.magliner.com
Form # B9353 10/19 REV
© Copyright 2016-2019, Magline, Inc.
Patent: www.magliner.com/patents
