Magnasonic FS52 User manual

FS52 User Manual v1.0
All-In-One High Resolution
22MP Film Scanner
Thank you for your purchase of this Magnasonic product. Please read this user
manual carefully before using product to ensure proper use. Keep this manual
in a safe place for future reference.
magnasonic.com/support

Since 1954, Magnasonic has been a leader in developing innovative and unique products. We
are dedicated to empowering people using six key fundamentals: superior quality, performance,
simplicity, style, value and a fanatical obsession with outstanding customer service.
At Magnasonic, our mission is a simple one – create people-driven products that make life’s daily
adventures easier and more fun. We believe everyday experiences should be extraordinary.
Thank you for your purchase of this Magnasonic® product.
We hope you enjoy your experience.
Questions?
Give us a chance to help, we’re just a click away.
www.youtube.com/magnasonic
Magnasonic.com/support
Magnasonic.com/contact
Don’t forget to register your product with us!
Magnasonic.com/registration

Table Of Contents
What’s Included.........................................................................................................4
Product Information ................................................................................................5
Operating Instructions............................................................................................6
Powering on Your Film Scanner................................................................6
Changing the Language .............................................................................6
Prepping Your Film/Slides ..........................................................................7
Preparing the Film Scanner..................................................................... 10
Cleaning and Care...................................................................................... 10
Using an SD Card........................................................................................ 11
Formatting Your SD Card ......................................................................... 11
Scanning Your Images .............................................................................. 12
Viewing Your Scanned Images............................................................... 13
Downloading Images To Your Computer........................................... 13
Watching Saved Images From a TV Screen ....................................... 13
FAQ / Troubleshooting......................................................................................... 14
Specications .......................................................................................................... 15
Important Safety Instructions ........................................................................... 16
FCC Information ..................................................................................................... 17
Magnasonic® Warranty ........................................................................................ 18

4

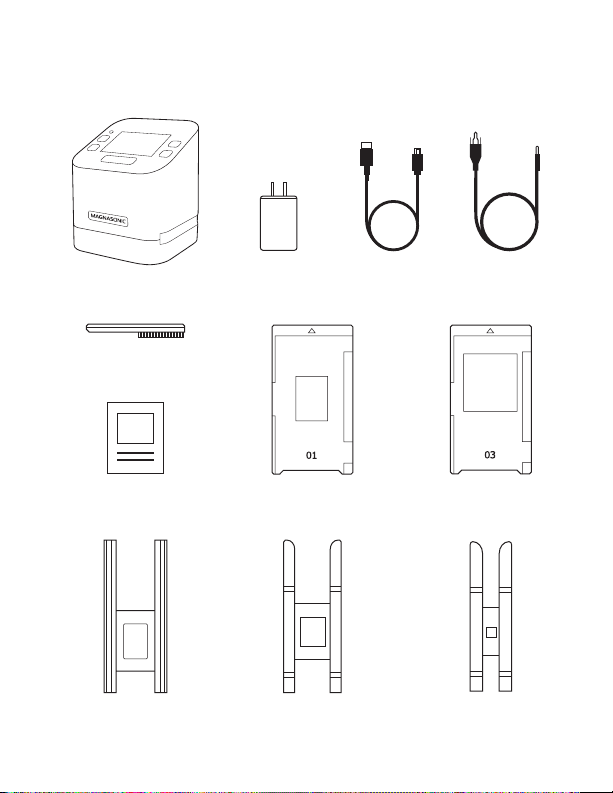

What’s Included
Film Scanner USB Cable TV Out Cable
User Manual
Power Adapter
Slide AdapterNegative Adapter
110 Film Insert Super 8/8mm Insert110 Slide Insert
Cleaning Brush

5
Product Information
SD Card Slot
Power Button
Home Button
Back/Flip Button
Scan Button
Front
Back
TV Out USB/Power Port
OK Button
LCD Screen
Forward/Mirror
Button
Film/Slide
Adapter Slot

6
Operating Instructions

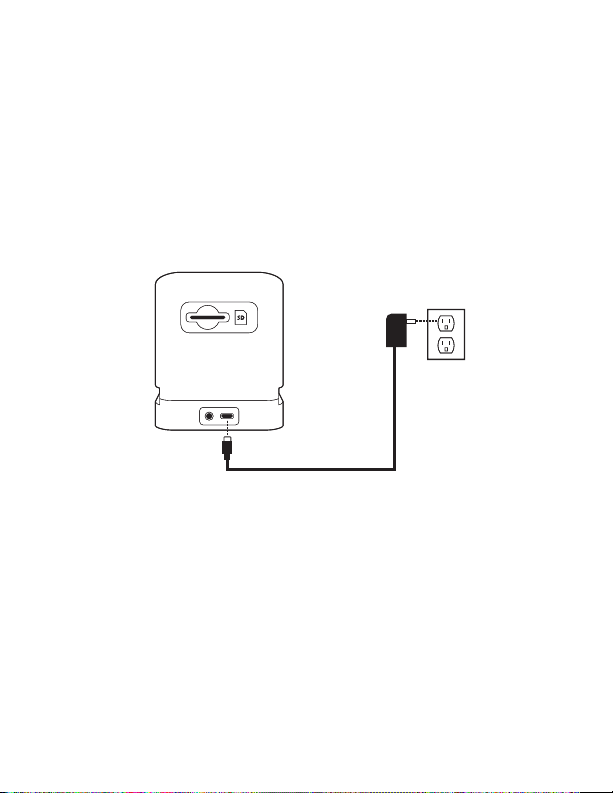

Powering on the Scanner
1. Connect the USB cable to the USB port on the lm scanner.
2. Connect the other end of the USB cable into the included USB wall
adapter. Plug the wall adapter into a power outlet.
3. Press and hold the Power button on the scanner to turn it on.
Changing the Language
1. On the Main Menu, go to LANGUAGE and press OK.
2. You may now select the language of your choice by using
the < and > buttons to scroll between the available selections.
• English • Deutsch
• Espanol • Japanese
• Francais • Chinese
3. Press the OK button to select the language.

7
Prepping Your Film/Slides
IMPORTANT: Ensure your slides/lm are clean and free of dirt or debris.
1. Open the appropriate slide/lm adapter and insert your slide/lm.
Each adapter is labelled to identify it. If you are not certain of your
slide/lm type refer to the images below.
2. Ensure the slide/lm is facing the correct way and is not bent.
3. Close the slide or lm adapter and press the edges so that it locks
into place.
Slide Types Film Types
110 Slide
2x2
1x1
35mm Slide (135)
126 Slide
135 Negative (35mm)
110 Negative
126 Negative
8mm Super 8

8

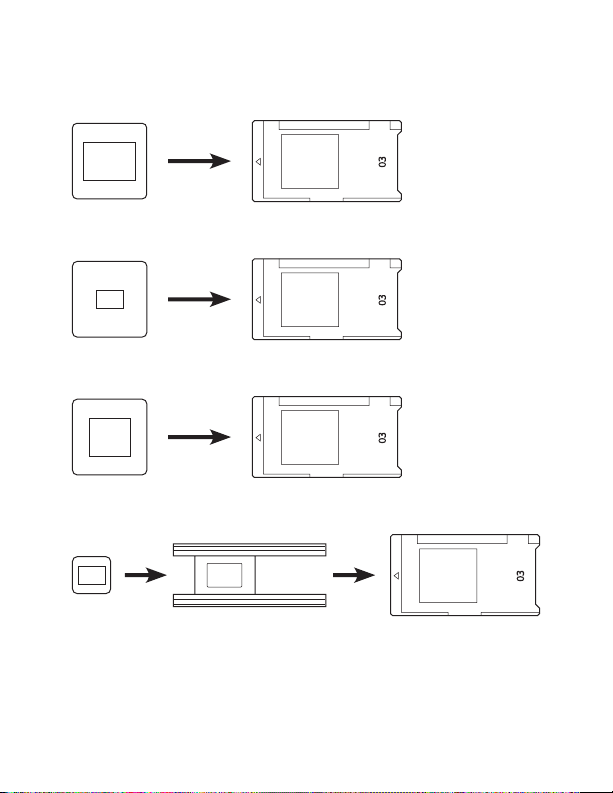

Slide Adapters
35mm Slide (135)
110 Slide
2x2
126 Slide
110 Slide
1x1

9

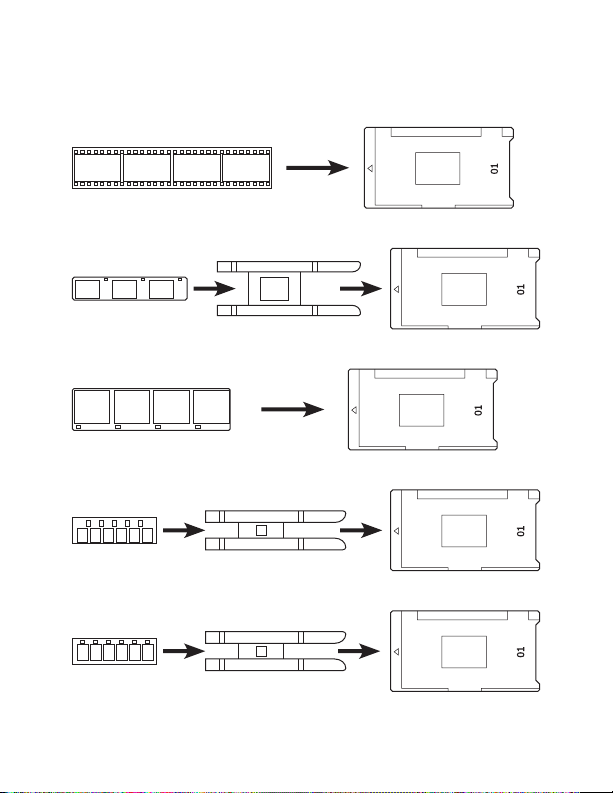

Negative Adapters
135 Negative (35mm)
126 Negative
110 Negative
8mm
Super 8

10

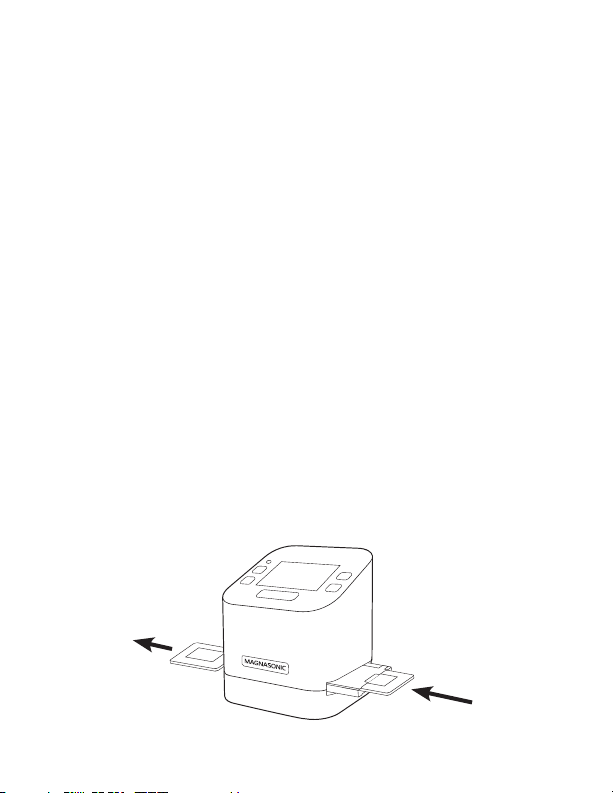

Preparing the Film Scanner
1. Press and hold the Power button on the scanner to turn it on.
2. Insert the prepared lm or slide adapter into the slot on the right
side of the lm scanner.
3. In the Main Menu use the arrow keys to highlight the FILM TYPE
option and press the OK button to select it.
4. Use the > arrow key to cycle through Negatives, Slides, or B&W.
Press the OK button to select it.
5. The next screen will show the dierent sizes of your selection.
Use the > arrow key to select the correct size and press the OK
button.

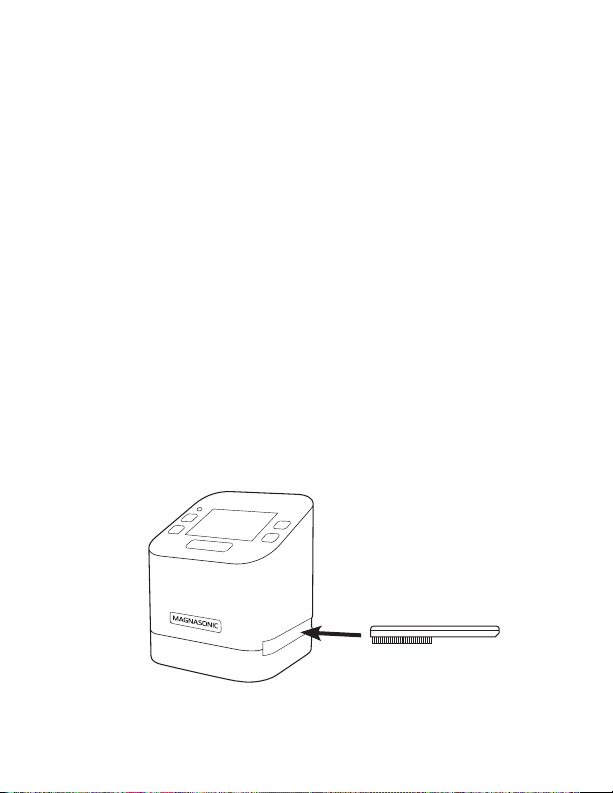

Cleaning and Care
Use the included cleaning brush to ensure there is no dust or debris
on the lens. Insert the soft end of the brush, face down, into the lm/
slide holder slot. Carefully push the brush around inside to get rid of
any dust or debris that may be on the lens.
