USER’S MANUALLED TVINSTRUCTION MANUALModel:L194DAMore information https://www.caravansplus.com.au

IMPORTANT SAFETY INSTRUCTIONSSafety InformationRead these instructions.Keep these instructions.Heed all warnings.Follow all instructions.Do not use this apparatus near water.Clean only with dry cloth.Do not block any ventilation openings. Install in accordance with themanufacture’s instructions.Do not install near any heat sources such as radiators, heat registers, stoves, orother apparatus (including amplifiers) that produce heat.Do not defeat the safety purpose of the polarized or grounding plug. A polarizedplug has two blades with one wider than the other. A grounding plug has twoblades and a third grounding prong. The wide blade or the third prong is providedfor your safety. If the provided plug does not fit into your outlet, consult anelectrician for replacement of the obsolete outlet.Protect the power cord from being walked on or pinched particularly at the plugs,convenience receptacles, and at the point where they exit from the apparatus.Only use attachments/accessories specified by the manufacturer.Use only with the cart, stand, tripod, bracket, or table specified by themanufacturer, or sold with the apparatus. When a cart or rack is used, use cautionwhen moving the cart/apparatus combination to avoid injury from tip-over.Unplug the apparatus during lightning storms or when unused for long periods oftime.Refer all servicing to qualified personnel. Servicing is required when theapparatus has been damaged in any way, such as power supply cord or plug isdamaged, liquid has been spilled or objects have fallen into the apparatus hasbeen exposed to rain or moisture, does not operate normally, or has beendropped.CAUTION: These servicing instructions are for use by qualified service personnelonly. To reduce the risk of electric shock, do not perform any servicing other thanthat contained in the operating instructions unless you are qualified to do so.WARNING：To reduce the risk of fire or electric shock, do not expose this apparatus torain or moisture. The apparatus shall not be exposed to dripping or splashing and thatobjects filled with liquids, such as vases, shall not be placed on apparatus.WARNING: The mains plug is used as disconnect device, the disconnect device shallremain readily operable.- This lightning flash with arrowhead symbol within an equilateral triangle isintended to alert the user to the presence of non-insulated “dangerous voltage”within the product’s enclosure that may be of sufficient magnitude to constitute arisk of electric shock.- Warning: To reduce the risk of electric shock, do not remove cover (or back) asthere are no user-serviceable parts inside. Refer servicing to qualified personnel.- The exclamation point within an equilateral triangle is intended to alert the user tothe presence of important operating and maintenance instructions in the literatureaccompanying the appliance.Apparatus with class I construction shall be connected to a mains socket outlet with a protective earthing connection.1More information https://www.caravansplus.com.au

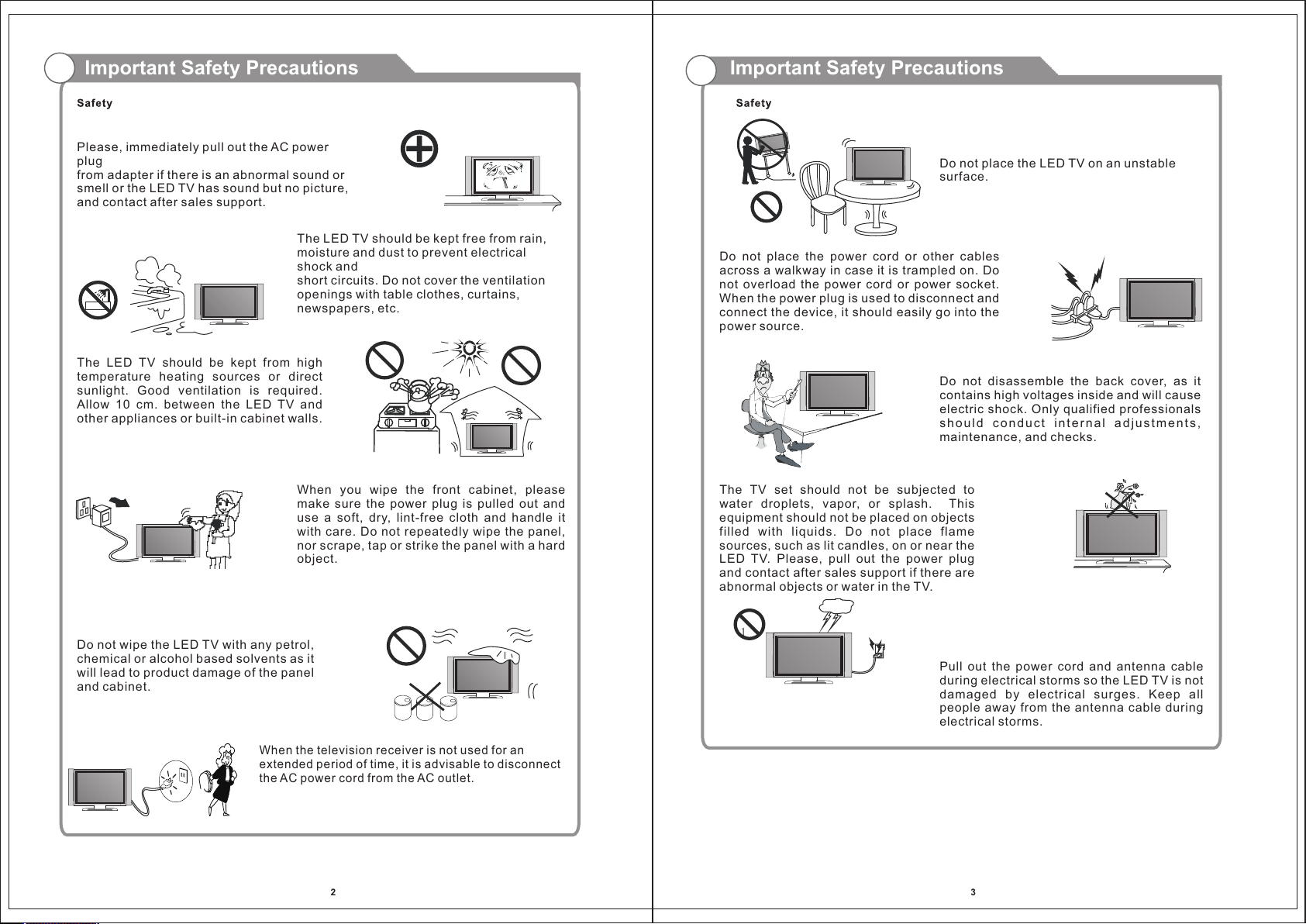

Important Safety PrecautionsDo not place the power cord or other cables across a walkway in case it is trampled on. Do not overload the power cord or power socket. When the power plug is used to disconnect and connect the device, it should easily go into the power source. Do not place the LED TV on an unstable surface.Do not disassemble the back cover, as it contains high voltages inside and will cause electric shock. Only qualified professionals should conduct internal adjustments, maintenance, and checks.The TV set should not be subjected to water droplets, vapor, or splash. This equipment should not be placed on objects filled with liquids. Do not place flame sources, such as lit candles, on or near the LED TV. Please, pull out the power plug and contact after sales support if there are abnormal objects or water in the TV.Pull out the power cord and antenna cable during electrical storms so the LED TV is not damaged by electrical surges. Keep all people away from the antenna cable during electrical storms.Important Safety PrecautionsPlease, immediately pull out the AC power plug from adapter if there is an abnormal sound or smell or the LED TV has sound but no picture, and contact after sales support. The LED TV should be kept free from rain, moisture and dust to prevent electrical shock and short circuits. Do not cover the ventilation openings with table clothes, curtains, newspapers, etc.The LED TV should be kept from high temperature heating sources or direct sunlight. Good ventilation is required. Allow 10 cm. between the LED TV and other appliances or built-in cabinet walls.When you wipe the front cabinet, please make sure the power plug is pulled out and use a soft, dry, lint-free cloth and handle it with care. Do not repeatedly wipe the panel, nor scrape, tap or strike the panel with a hard object.Do not wipe the LED TV with any petrol, chemical or alcohol based solvents as it will lead to product damage of the panel and cabinet.
When the television receiver is not used for anextended period of time, it is advisable to disconnectthe AC power cord from the AC outlet.
23More information https://www.caravansplus.com.au

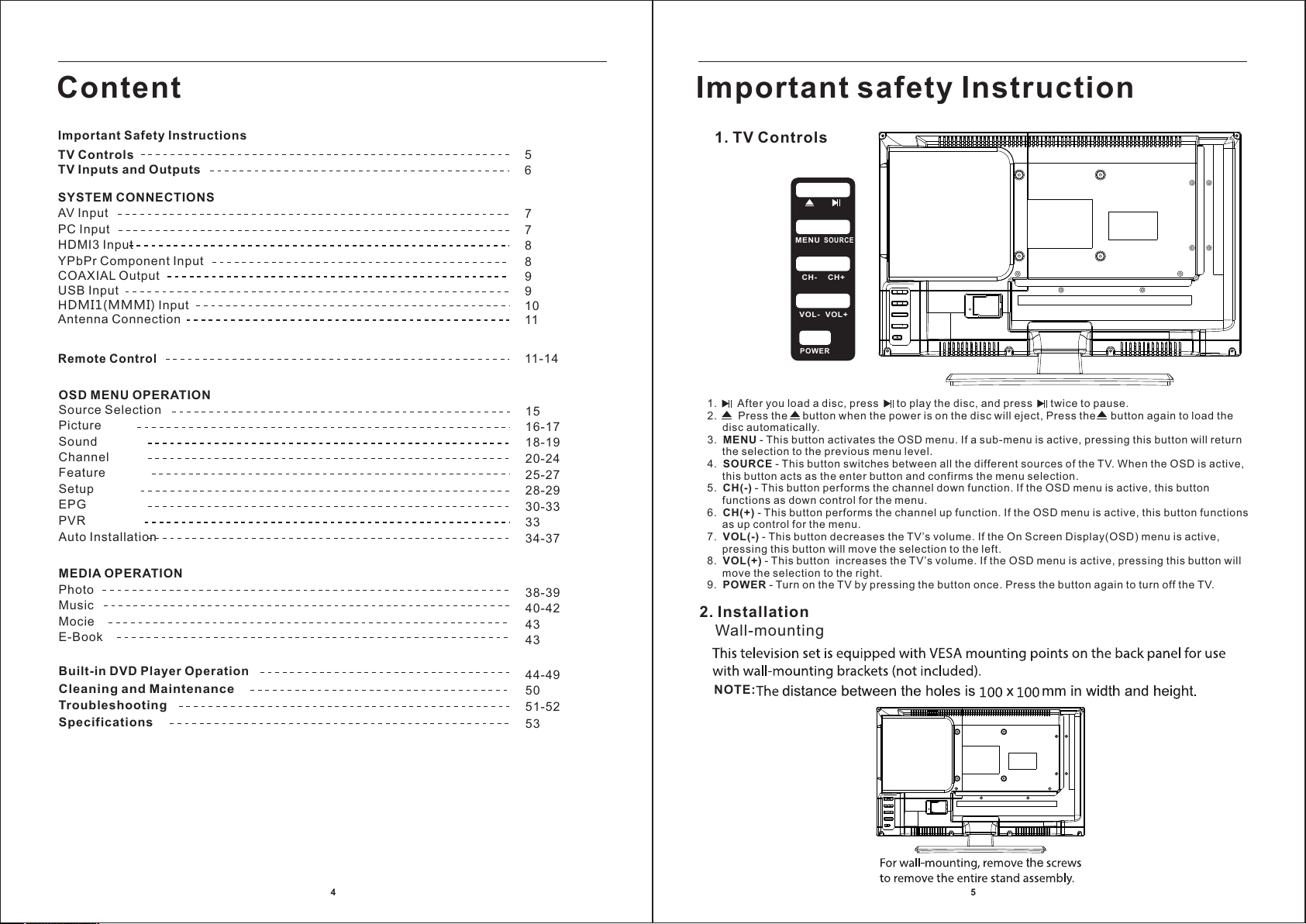

Content1. TV ControlsImportant safety Instruction2. InstallationWall-mountingNOTE:POWER
SOURCE MENUVOL+VOL-CH+CH-
1. After you load a disc, press to play the disc, and press twice to pause.2. Press the button when the power is on the disc will eject, Press the button again to load the disc automatically.3. MENU - This button activates the OSD menu. If a sub-menu is active, pressing this button will return the selection to the previous menu level. 4. SOURCE - This button switches between all the different sources of the TV. When the OSD is active, this button acts as the enter button and confirms the menu selection.5. CH(-) - This button performs the channel down function. If the OSD menu is active, this button functions as down control for the menu.6. CH(+) - This button performs the channel up function. If the OSD menu is active, this button functions as up control for the menu.7. VOL(-) - This button decreases the TV’s volume. If the On Screen Display(OSD) menu is active, pressing this button will move the selection to the left. 8. VOL(+) - This button increases the TV’s volume. If the OSD menu is active, pressing this button will move the selection to the right.9. POWER - Turn on the TV by pressing the button once. Press the button again to turn off the TV. 45TV ControlsTV Inputs and Outputs
Remote Control
SYSTEM CONNECTIONSAV InputPC InputHDMI3 InputYPbPr Component InputUSB Input511-1477889COAXIAL Output9OSD MENU OPERATIONPictureSoundChannel FeatureSetupEPGMEDIA OPERATIONPhotoMusicMocieE-BookBuilt-in DVD Player Operation16-1718-1920-2425-2728-2930-3338-3940-42434344-49PVR33
Cleaning and Maintenance
Troubleshooting
5051-5253
Specifications
Antenna Connection11Important Safety InstructionsSource Selection15Auto Installation34-376HDMI1(MMMI) Input10More information https://www.caravansplus.com.au

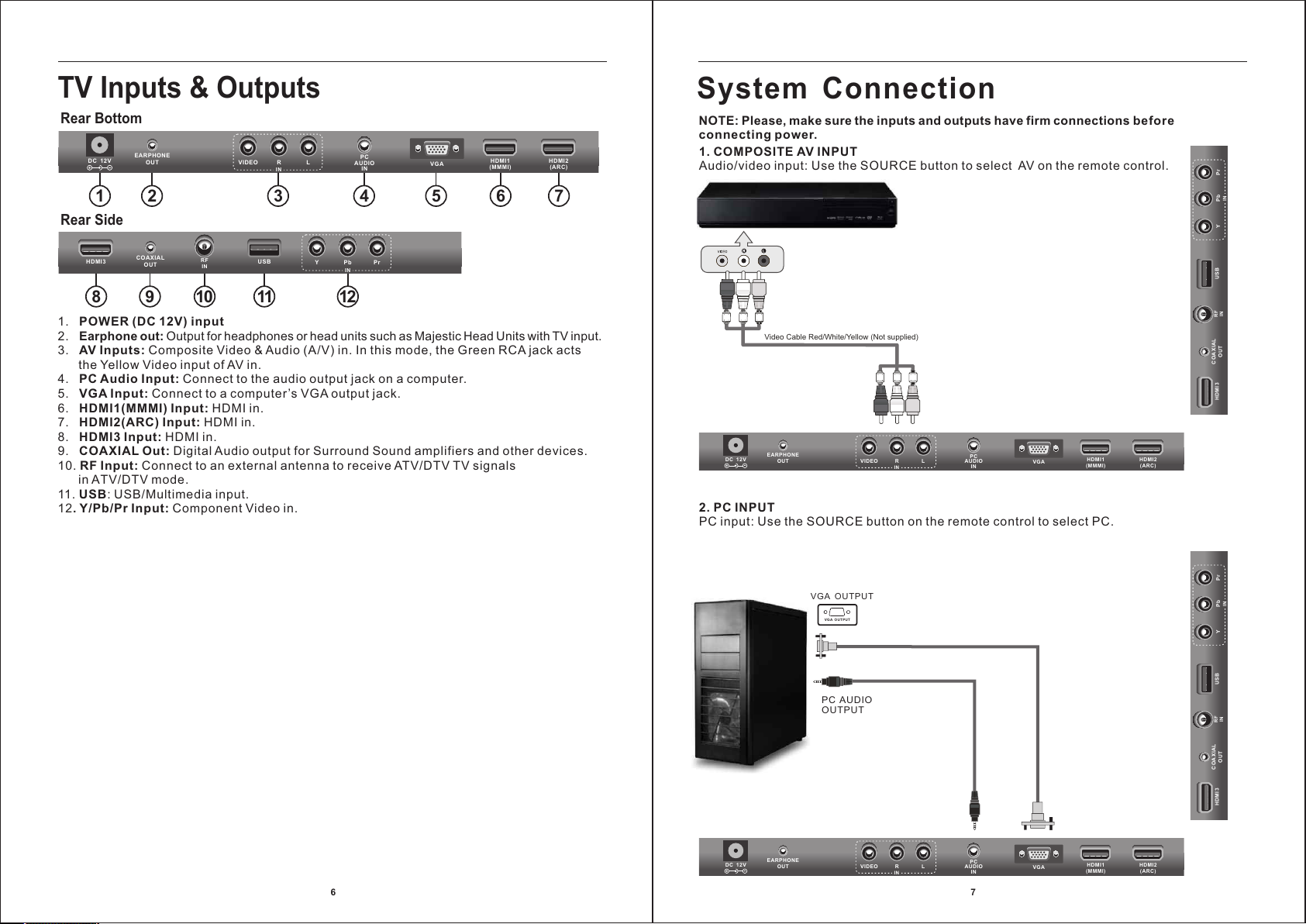

1. POWER (DC 12V) input2. Earphone out: Output for headphones or head units such as Majestic Head Units with TV input. 3. AV Inputs: Composite Video & Audio (A/V) in. In this mode, the Green RCA jack acts the Yellow Video input of AV in.4. PC Audio Input: Connect to the audio output jack on a computer. 5. VGA Input: Connect to a computer’s VGA output jack.6. HDMI1(MMMI) Input: HDMI in.7. HDMI2(ARC) Input: HDMI in.8. HDMI3 Input: HDMI in.9. COAXIAL Out: Digital Audio output for Surround Sound amplifiers and other devices.10. RF Input: Connect to an external antenna to receive ATV/DTV TV signals in ATV/DTV mode.11. USB: USB/Multimedia input.12. Y/Pb/Pr Input: Component Video in.
Rear BottomRear Side
123564DC 12VEARPHONEOUTVIDEO LRVGAHDMI1(MMMI) PCAUDIOINRFINUSBCOAXIALOUTYPrPb129ININ
TV Inputs & Outputs
7HDMI2(ARC) 8HDMI31110
System Connection
NOTE: Please, make sure the inputs and outputs have firm connections before connecting power.1. COMPOSITE AV INPUTAudio/video input: Use the SOURCE button to select AV on the remote control.VGA OUTPUT
PC AUDIO OUTPUTVGA OUTPUT
2. PC INPUTPC input: Use the SOURCE button on the remote control to select PC.Video Cable Red/White/Yellow (Not supplied)DC 12VEARPHONEOUTVIDEO LRVGAHDMI1(MMMI) PCAUDIOININHDMI2(ARC)
RFINUSBCOAXIALOUTYPrPbINHDMI3
DC 12VEARPHONEOUTVIDEO LRVGAHDMI1(MMMI) PCAUDIOININHDMI2(ARC)
RFINUSBCOAXIALOUTYPrPbINHDMI3
67More information https://www.caravansplus.com.au

89
System Connection

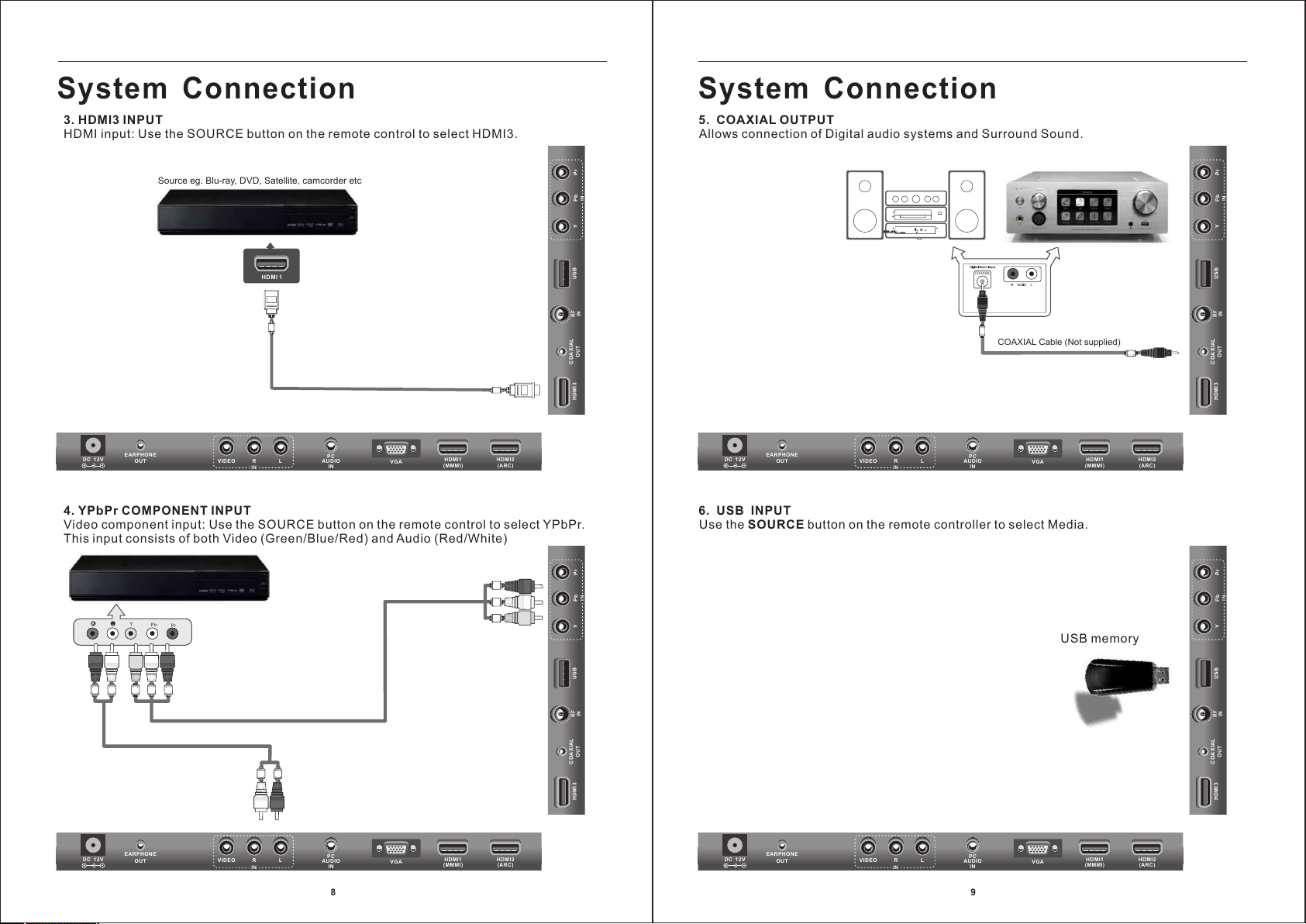

3. HDMI3 INPUTHDMI input: Use the SOURCE button on the remote control to select HDMI3.Source eg. Blu-ray, DVD, Satellite, camcorder etcHDMI 14. YPbPr COMPONENT INPUTVideo component input: Use the SOURCE button on the remote control to select YPbPr.This input consists of both Video (Green/Blue/Red) and Audio (Red/White)YPbPrDC 12VEARPHONEOUTVIDEO LRVGAHDMI1(MMMI) PCAUDIOININHDMI2(ARC)
RFINUSBCOAXIALOUTYPrPbINHDMI3
DC 12VEARPHONEOUTVIDEO LRVGAHDMI1(MMMI) PCAUDIOININHDMI2(ARC)
RFINUSBCOAXIALOUTYPrPbINHDMI3
System Connection
5. COAXIAL OUTPUT Allows connection of Digital audio systems and Surround Sound.6. USB INPUT Use the SOURCE button on the remote controller to select Media.USB memory
COAXIAL Cable (Not supplied)COAXIAL
DC 12VEARPHONEOUTVIDEO LRVGAHDMI1(MMMI) PCAUDIOININHDMI2(ARC)
RFINUSBCOAXIALOUTYPrPbINHDMI3
DC 12VEARPHONEOUTVIDEO LRVGAHDMI1(MMMI) PCAUDIOININHDMI2(ARC)
RFINUSBCOAXIALOUTYPrPbINHDMI3
More information https://www.caravansplus.com.au

11
Remote Control

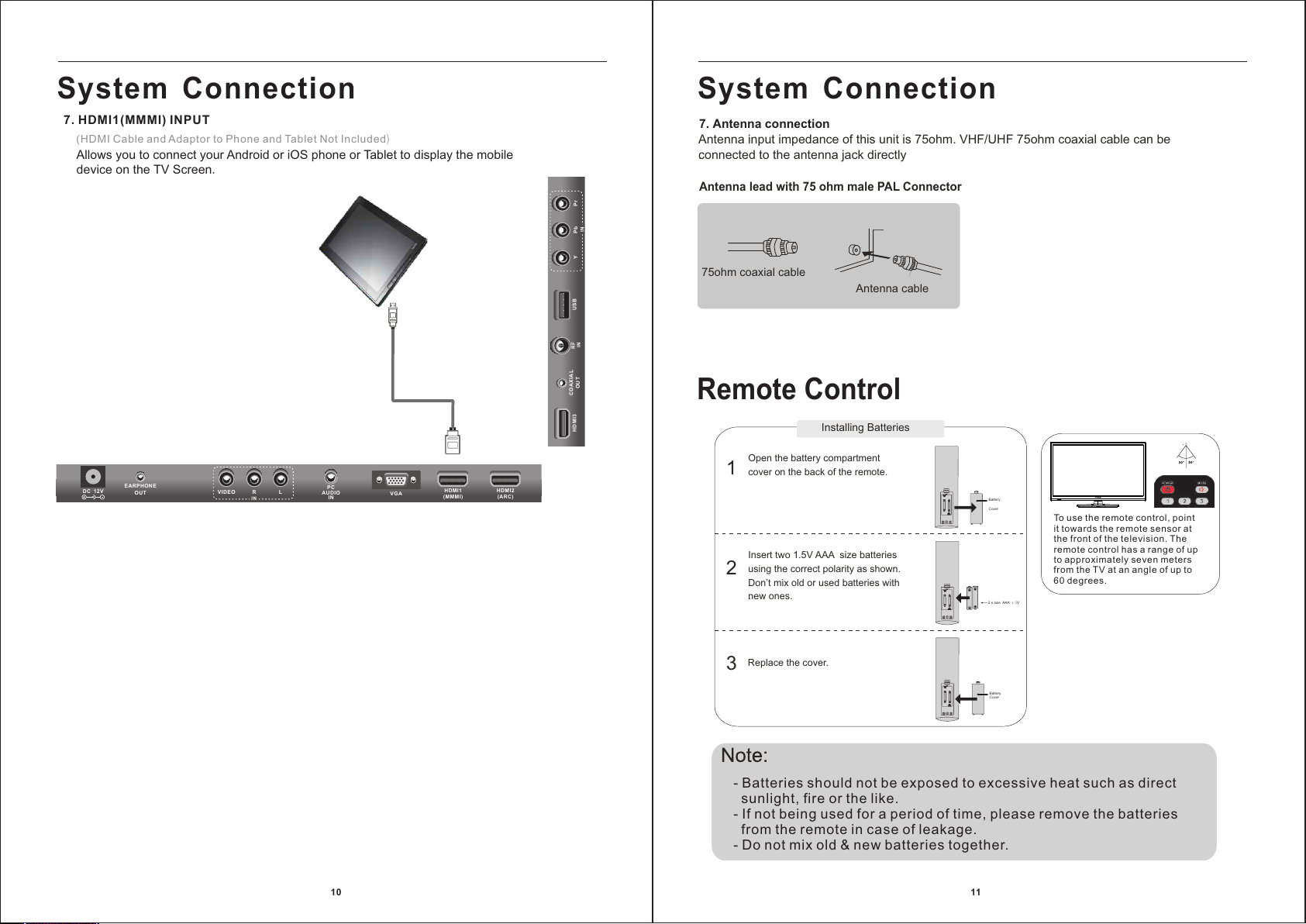

7. Antenna connection
Antenna input impedance of this unit is 75ohm. VHF/UHF 75ohm coaxial cable can be connected to the antenna jack directly. 75ohm coaxial cableAntenna cable
Antenna lead with 75 ohm male PAL Connector
- Batteries should not be exposed to excessive heat such as direct sunlight, fire or the like.- If not being used for a period of time, please remove the batteries from the remote in case of leakage.- Do not mix old & new batteries together.Installing Batteries1Open the battery compartment cover on the back of the remote.2Insert two 1.5V AAA size batteries using the correct polarity as shown.Don’t mix old or used batteries with.3Replace the cover.BatteryCover2 x size AAA 1.5VBatteryCover
System Connection
new ones..To use the remote control, point it towards the remote sensor at the front of the television. The remote control has a range of up to approximately seven meters from the TV at an angle of up to 60 degrees.10
System Connection
DC 12VEARPHONEOUTVIDEO LRVGAHDMI1(MMMI) PCAUDIOININHDMI2(ARC)
RFINUSBCOAXIALOUTYPrPbINHDMI3
7. HDMI1(MMMI) INPUT Allows you to connect your Android or iOS phone or Tablet to display the mobile device on the TV Screen.(HDMI Cable and Adaptor to Phone and Tablet Not Included)More information https://www.caravansplus.com.au

1213Remote-Control UnitP.MODES.MODEAUTO
DISPLAY SOURCE
EXIT MENU
AUDIO
REC.MENU
POWERMUTEFAVEPGHOLD
SUBTITLE
INDEXREVEALTEXT
SUBPAGE SIZERECOKSCAN
TIME SHIFT
ASPECT
TV/RADIO
CANCEL MIXD.MENUSETUPD.DISPA-B
REPEAT
I/II
SLEEP
1461115921/2522/2629303337413438/4542/481623587101314121718/192024/2823/273231363540/4739/4644/5043/49Allows you to navigate the on-screen menus and adjust the system settings to your preference.
Press these two buttons to increase/decrease the volume.
Press to change the DTV or DVD audio language.No.ButtonDescriptionPOWERTurns the TV on or off to standby mode.12MUTEPress to mute the sound. Press again to regain sound.0-9Press 0-9 to select a TV channel directly. The cannel will change after 2 seconds. 345Return to the previously viewed program.67AUTO89P.MODE10S.MODE1112Select the picture mode.Select the sound mode.EXITMENUExit from the current menu or sub-menu. Allows you to navigate the on screen menus (OSD).1314OKSelect the option.1516VOL+/-CH+/-Press these two buttons to change channels up/down.AUDIO1718ASPECTPress this button to select the aspect ratio of the screen.20DISPLAYPress to display the source and channel info.25262728Use for adjustments in PC mode.Delete function button.Rename function button.Move function button.Skip function button. R (DELETE)G (RENAME)Y (MOVE)B (SKIP)29FAVSelects favorite channel(s).30TEXTSwitch on/off of Teletext window.313233343536SUBTITLEPress to select the subtitle language.INDEXReturns to Index page by Teletext.REVEALShows hidden words or pages by Teletext.EPGPress to display EPG (Electronic Program Guide).SOURCEPress to select signal the source for the TV.Eject/insert disc.D.MENUQuick Teletext navigation or setup settings / DVD: VideoDVD Menu button.SETUPDVD system setup.D.DISPQuick navigation during Teletext or setup settings / DVD: DVDInformation button.TIME SHIFTPress to switch to TIME SHIFT mode.SLEEPSet the delay time for the TV to turn off automatically. Press to record the program immediately.REC/3738TV/RADIOPress to switch between DTV and radio programs21222324I/II19
Select NICAM audio mode.Only be available for TV programmers with NICAM transmission,and default mode is mono.
REC.MENUPress to switch to REC.MENU immediately (DTV only).SCAN
Press to Auto scan TV program.
More information https://www.caravansplus.com.au

1415OSD Menu OperationPress SOURCE button to display the input source list.Press the ▼/▲ buttons to select the input source you want to watch,Press the OK button to select the input source.Source SelectionNo.ButtonDescription42454647484950SIZEZoom In or Out of the Teletext window.Play and Pause Media-Player / DVD.Stops playback Media-Player and DVD.Fast Rewind Media-Player and DVD.Fast Forward Media-Player and DVD.Plays the previous Media Player or DVD file/chapter.Plays the next Media Player or DVD file/chapter..Holds on the current Teletext page.HOLDDisplays a sup-page of upper Teletext options.SUBPAGEMIXSets the transparency of Teletext window.DVD: Repeat mode selection.REPEAT4041434439CANCELSwitches the Teletext window to the background; only the current page no is visible.Press MENU button to display the MAIN OSD MENU.Press ▼/▲ button to select the MENU you want.Press ENTER button or button to enter the sub menu, and press button to return back ► ◄ to the previous menu.Press ▼/▲ button to select the option and then press ENTER button or button to enter the►submenu, press button to adjust the value or press ▼/▲ button to selec in the sub menu.◄ / ► You can press MENU button to save and return back to the previous menu, and pressEXIT button to exit the entire menu.
InputDTVATVAV YPbPrHDMI1HDMI2HDMI3PCMediaDVD
More information https://www.caravansplus.com.au

1617OSD Menu OperationPicture MenuPress TV MENU button to display the main menu.Press ▼/▲ button to select Picture in the main menu, then press ENTER button or ► button to enter.OSD Menu OperationPress ▲/▼ button to select the option that you want to adjust in the Picture menu, and then press ENTER button or ► button to enter.Press ◄/► button to adjust or press ▲/▼ button to select. And press ENTER button or ► button to select the sub menu.After finishing your adjustment, press MENU button to save and return back to the previous menu, and press EXIT button to exit the entire menu.BrightnessPress ▲/▼ button to select Brightness, then press ENTER button or ► button to enter and press ◄/► button to adjust. Then press MENU button to return back the previous menu directly.ContrastPress ▲/▼ button to select Contrast, then press ENTER button or ► button to enter and press ◄/► button to adjust. Then press MENU button to return back the previous menu directly.SharpnessPress ▲/▼ button to select Sharpness, then press ENTER button or ► button to enter and press ◄/► button to adjust. Then press MENU button to return back the previous
menu directly.ColourPress ▲/▼ button to select Colour, then press ENTER button or ► button to enter
and press ◄/► button to adjust. Then press MENU button to return back the previous
menu directly.TintPress▼/▲buttontoselectTint,thenpress ENTERbuttonor►buttontoenterandpress◄ / ►buttontoadjust.Colour TemperaturePress ▲/▼ button to select Colour Temperature, then press ENTER button or ►
button to enter and ▲/▼ button to select Standard, Cool, Warm.
Aspect RatioPress ▲/▼ button to select Aspect Ratio, then press ENTER button or ► button
to enter and ▲/▼ button to select Auto,4:3,16:9,Zoom1,Zoom2 or Panorama.More information https://www.caravansplus.com.au
