Majestic TVD232/S2 LED User manual

32 "HD READY LED TV
DVB-T / T2 HD ANALOG AND DIGITAL TERRESTRIAL TUNER
DVB-S / S2 HD SATELLITE TUNER
REPRODUCTION OF MULTIMEDIA CONTENTS VIA USB
COMPATIBLE WITH CI + HD CAM MODULE
MODEL NO.: TVD232/S2 LED
USER MANUAL
New Majestic S.p.A. Via Rossi Martini, 41, 26013 Crema (CR) –Italy
www.newmajestic.com
ASSEMBLED IN EU
Please read this manual carefully before using,
and keep it for future reference.

1
ASSEMBLED IN EU
SAFETY INSTRUCTIONS
WARNING –TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
SERIOUS PERSONAL INJURY:
●This product shall not be exposed to dripping or splashing and that no objects filled
with liquids, such as vases, shall be placed on the apparatus.
●Situate this product away from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.
●Clean the product only as recommended by the manufacturer (see “Maintenance”
section for details). Unplug the power cord from the wall outlet before cleaning,
●Unplug the power cord from the wall outlet when left unused for an extended
period.
●Prevent objects/liquids from falling or spilled on the product.
●Operate the product only with the supplied power cord. Route power cords so they
are not likely to be walked on or pinched by items placed upon or against them, paying
particular attention to plugs, convenience receptacles, and the point where they exit
from the product.
●Where the MAINS plug or an appliance coupler is used as the disconnect device,
the disconnect device shall remain readily operable.
●Do not operate this product under the following conditions.
- When the power-supply cord or plug is damaged.
- If liquid has been spilled into or objects have fallen into the product.
- If the product has been exposed to rain or water.
- If the product does not operate when used according to the operating instructions.
- If the product has been dropped or damaged in any way.
●Do not attempt to service the product; take it to the electronics repair shop of your
choice for any servicing or repair.
●Do not overload wall outlets, extension cords, or integral convenience receptacles.
IMPORTANT INSTRUCTIONS

2
●Connect this product to the power outlet which has protective earth connection.
CAUTION- TO REDUCE THE RISK OR PERSONAL INJURY OR
PRODUCT/PROPERTY DAMAGE:
●This product is intended solely for non-commercial, non-industrial, personal use as
a television. Do not use this product for any other purpose.
●Do not subject the product to violent shocks, extreme temperatures, or lengthy
periods or direct sunlight.
●Keep the product away from magnetic objects, motors, and transformers.
●Do not use outdoors in inclement weather.
●Do not use the TV while driving; this is dangerous and is illegal in some areas.
BATTERY HANDLING AND USAGE:
●Keep batteries away from children and pets. Only adults should handle batteries.
●Never throw batteries into a fire or expose them to fire or other heat sources.
●Follow the battery satiety and usage instructions provided by the manufacturer.
User Manual…………………………………………………………………………………………1
Remote Control……………..………………………………………………………………………1
All the pictures in this manual are just for your reference, appearance and display should
subject to the final product.
ACCESSORIES

3
TABLE OF CONTENTS
GETTING STARTED
IMPORTANT INSTRUCTIONS...................................................................................1-2
ACCESSORIES……….......................................................................................................2
FEATURES....................................................................................................................4
GENERAL PARTS..............................................................................................................5-6
REMOTE CONTROL.....................................................................................................7-8
REMOTE CONTROL PREPARATION.................................................................................9
BASIC CONNECTION....................................................................................................10-13
OPERATIONS
BASIC OPERATIONS.............................................................................................14-18
MAIN MENU...........................................................................................................19-30
FIRST TIME INSTALLATION……..………………….………………………………..………19
DTV MODE.................................................................................................................20-28
ATV AND OTHER MODES..............................................................................................28
SATELLITE MODE……………………………………………………………………………..29
PC/VGA MODE................................................................................................................30
FOR REFERENCE
MAINTENANCE..................................................................................................................31
WALL MOUNTING…………………………………………………………………………..........31
STAND INSTALLATION…………………………………………………………………………..32
SPECIFICATIONS..........................................................................................................33-34
TROUBLESHOOTING........................................................................................................35

4
32" LED Display
With Hotel Lock
Support Auto TV Scanning
Analogue tuner and DVB-T
DVB-S tuner
Support EPG (Electric Program Guide) Function
Support TELETEXT (Europe) Function
Support USB Multimedia Playback
Support Multi-languages On Screen Display
Support Full Function Remote Control
Support HDMI x2, YPBPR, AV, VGA, PC AUDIO Input
CI+ (high definition contents playback supported)
Support EARPHONE and COAXIAL Output
With Detachable Stand Holder
With External Antenna Jack (DVB-T/DVB-S)
With Built-in Speakers
FEATURES

5
MAIN UNIT
1. LED display screen
2. Remote control sensor / Powerindicator- In standby mode the
indicator light will display red color; when switching on the unit the
indicator light will display blue color.
3. Stand holder
4. STANDBY button- To turn ON/OFF the TV.
5. VOL+/- button-To increase/decrease the volume level or move
left/right.
6. CH +/- button-To select next/previous channel or move up/down.
7. MENU button- To enter menu setting page.
8. SOURCE button-To select the input source.
GENERAL PARTS
Front View
Back View

6
1. Power input
2. EARPHONE output terminal
3. HDMI 1/2 input terminal (Note: “ARC”function is enable on HDMI 1 port only!)
4. VGA input terminal
5. PC AUDIO input terminal
6. CI input terminal (CI Plus compatible)
7. Mini YPbPr input terminal
8. Mini AV input terminal
9. USB 1/2 input terminal
10. COAXIAL output terminal
11. RF input terminal- To connect the external TV antenna (DTV \ ATV).
12. RF input terminal- To connect the external Satellite TV Antenna (DVB-S2).
GENERAL PARTS
Back View

7

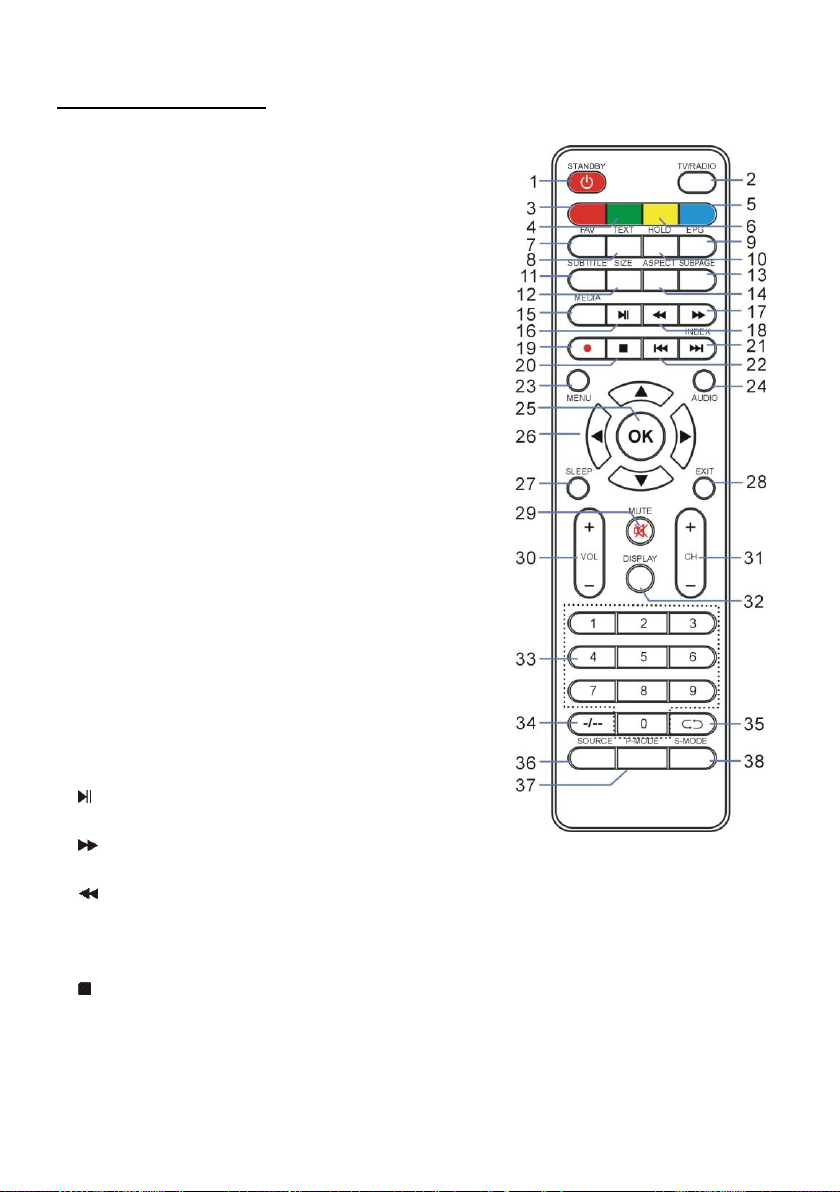

REMOTE CONTROL
1 STANDBY
Set the unit in standby mode; press it again to switch
it on.
2 TV/RADIO (DTV)
Switch the unit between TV and Radio.
3 RED button
4 GREEN button
5 BLUE button
6 YELLOW button
7 FAV
Display the favorite channels list.
8 TEXT
Display the available Teletext.
9 EPG (DTV)
Display electronic program guide.
10 HOLD
Hold the image on Teletext and TV.
11 SUBTITLE
Enable/disable subtitles.
12 SIZE
Switch Teletext size.
13 SUBPAGE
Enter Teletext sub-page.
14 ASPECT
Press it repeatedly to select desired screen size.
15 MEDIA
Enter Media (USB) mode directly.
16
Start/pause playing.
17
Move fast forward.
18
Move fast backward.
19 ●(DTV)
No function available for this model.
20
Stop playing.

8

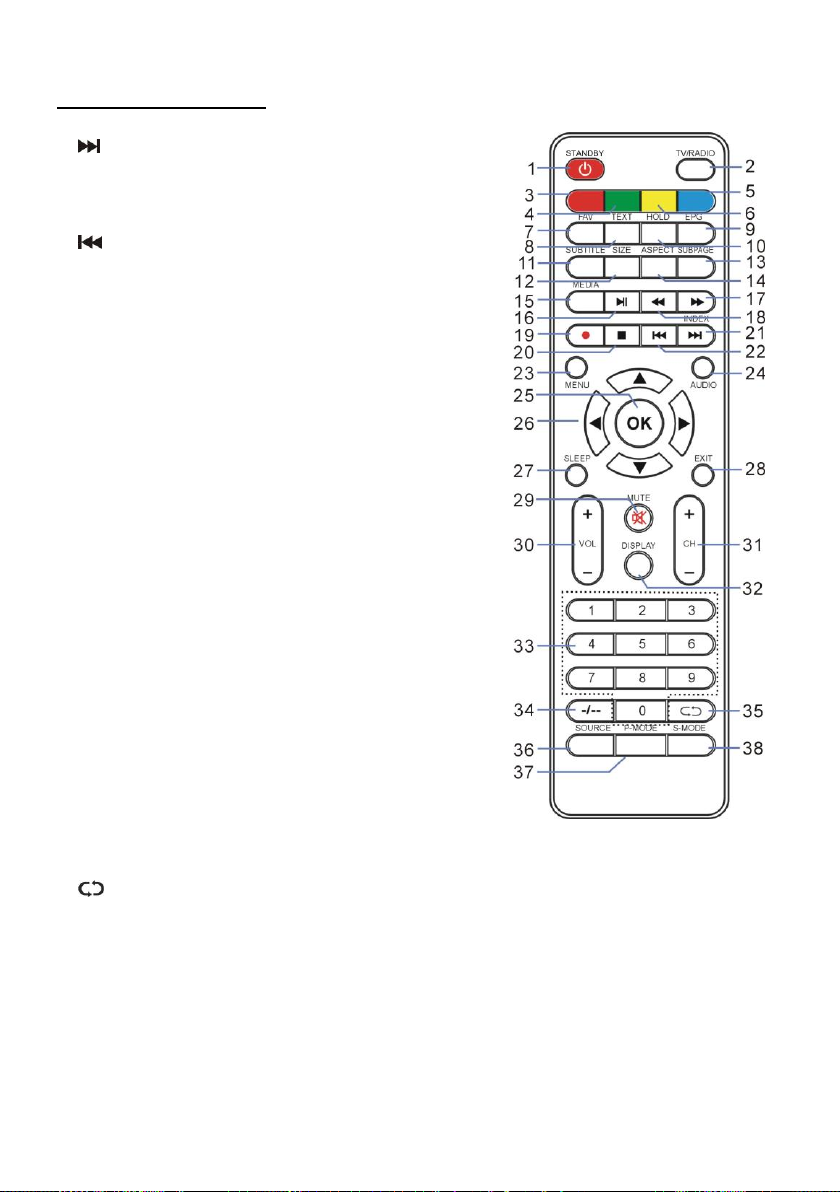

REMOTE CONTROL
21
Play the next file.
INDEX (DTV)
Display the Teletext index.
22
Play the previous file.
23 MENU
Call out the main menu or return to previous menu.
24 AUDIO
Switch the available sound-track.
25 OK
Confirm selection.
26 ▲/▼/◄/►
Navigation buttons
27 SLEEP
Set desired sleep time.
28 EXIT
Exit the menu page.
29 MUTE
Mute the sound.
30 VOL +/-
Increase/decrease the volume level.
31 CH +/-
Play the next/previous program.
32 DISPLAY
Display the available program information.
33 Number buttons (0-9)
Input the number information, such as channel
number and so on.
34 -/--
Switch the digit when watching TV programs.
35
Return to previous channel.
36 SOURCE
Select desired input source.
37 P-MODE
Switch the picture mode.
38 S-MODE
Switch the sound mode.

9
REMOTE CONTROL PREPARATION
BATTERY INSTALLATION
Install the batteries as the following pictures. Be sure + and –terminals are positioned
as indicated in the battery compartment (Fig1).
SERVICE LIFE OF BATTERIES
- The batteries normally last for one year although this depends on how often the
remote control is used.
- If the remote control fails to work even when it is operated near the player, replace the
batteries.
- Use two size AAA dry batteries.
NOTE:
●Do not drop, step on or otherwise impact the remote control. This may damage the
parts or lead to malfunction.
●If the remote control is not going to be used for a long time, remove the batteries.
REMOTE CONTROL
OPERATION
Point the remote control from no more
than about 6m from the remote control
sensor and within about 60°of the
front of the player (Fig2).
NOTES:
- The operating distance may vary
according to the brightness of the
room.
- Do not point bright light at remote
control sensor.
- Do not place objects between the
remote control and the remote control
sensor.
- Do not use this remote control while
simultaneously operating the remote
control of any other equipments.
Fig1 Fig2
Remote Control
Sensor
Push
Open
Press

10
●Ensure all the cables are disconnected from the main unit before connecting to AC
power source.
●Read through the instructions before connecting other equipments.
CONNECTING TO AC POWER SOURCE
CONNECT EXTERNAL ANTENNA TO UNIT
Install external antenna into antenna jack for best picture.
BASIC CONNECTION
Antenna
Outdoor
antenna
amplifier
Indoor
antenna
amplifier
Power plug
of antenna
amplifier
75 OHM
antenna
plug
To power outlet

11
HDMI CONNECTION
PC/VGA CONNECTION
HDMI cable
(Not included)
Use HDMI cable to connect the unit with
other devices to receive high-definition
multimedia signal.
Back of DVD/VCR
Back of PC
Use VGA cable and Audio cable to
connect the unit with TV or PC, and
use this product as a monitor.
VGA cable
(Not included)
Audio cable
(Not included)

12
AV (COMPOSITE VIDEO) CONNECTION
YPBPR CONNECTION
Back of DVD/VCR
Back of DVD/VCR
For basic connection, use the composite
Audio L/R (white/red) and CVBS (yellow)
cable to connect the unit with other devices.
AV cable
(Not included)
AUDIO cable
(Not included)
YPbPr cable
(Not included)

13
COAXIAL CONNECTION
USB CONNECTION
INSERT A CI CARD (CI+ or standard)
EARPHONE CONNECTION
Insert your CI card (Conditional
Access Module) to watch special
digital channels in your area.
(Not included)
Earphone cable
(Not included)
USB Memory Device
(Not included)
Use coaxial cable (not included) to connect the unit with amplifier
or other audio decoding devices for coaxial audio signal output.

14
MAKE SURE ALL THE EQUIPMENTS AND POWER CORD ARE
CONNECTED PROPERLY AND THE UNIT IS SET IN CORRECT MODE
BEFORE KINDS OF OPERATIONS.
- Press STANDBY button on the unit or remote control to power ON the unit
(indicator will glow blue); press it again to power OFF (standby mode) the unit
(indicator will glow red).
- Press SOURCE button on the unit or remote control to switch the unit to DTV or
ATV mode.
SELECT DESIRED PROGRAM
1. Press CH+ button to play next channel.
2. Press CH- button to play previous channel.
3. Press number buttons on remote control directly to select desired program.
NOTE: Press -/-- button repeatedly to switch the digit.
VOLUME CONTROL
- Press VOL+ or VOL- to adjust the level of current volume.
Available range: 0-100.
MUTE CONTROL
- Press MUTE button to mute the sound, press it again to turn on the sound.
SOURCE SETTING
- Press SOURCE button on the unit or remote control to display the sources list.
- Press UP or DOWN navigation button to select desired input source, and then press OK
button to confirm selection.
Available options: Satellite, DTV, ATV, AV, YPbPr, HDMI 1/2, PC, USB.
MULTIAUDIO SETTING
- Press AUDIO button on remote control and use navigation buttons to select desired audio
language.
NOTE: To enable this function, make sure that the channel you are viewing supports
multi-audio languages.
INFORMATION DISPLAY
- Press DISPLAY button on remote control to display information of current program.
BASIC OPERATIONS

15
EPG TV GUIDE (FOR DTV MODE ONLY)
- Press EPG button on remote control to display program guide.
- Press UP/DOWN navigation button to select preferred program
- Press LEFT/RIGHT navigation button to switch between left column and right column.
When a program is highlighted (cursor moved to Right column):
- Press GREEN button repeatedly to set a reminder.
- Press YELLOW button to display program guide of previous day.
- Press BLUE button to display program guide of next day.
FAVORITE LIST
When viewing an available channel, press FAV button on
remote control to enter Favorite List menu page.
- Press UP or DOWN navigation button to select preferred
channel.
- Press OK button to confirm selection.
Note: To add a favorite channel, please use menu “TV >
Channel Edit”, then press FAV button on the remote control.

16

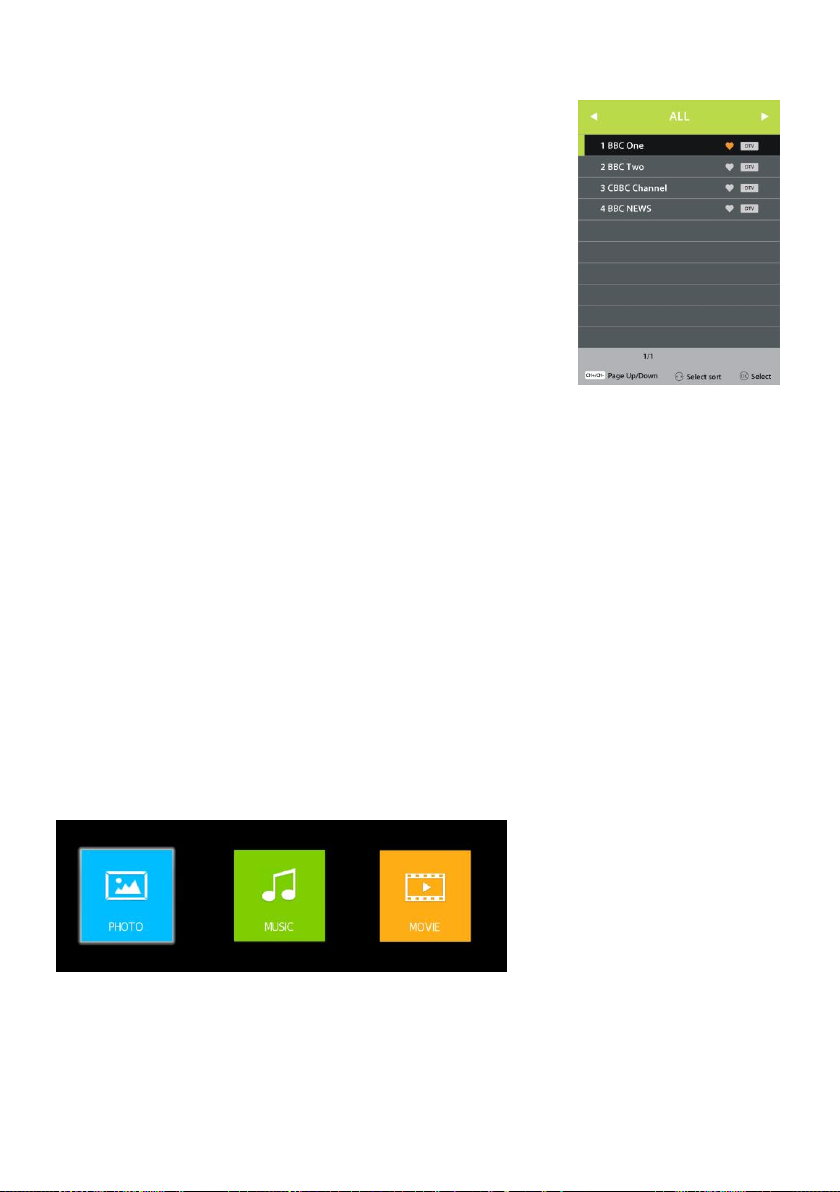

QUICK SELECT
When viewing an available channel, press OK button on remote
control to enter Channel List menu page.
- Press UP or DOWN navigation button to select preferred
channel.
- Press LEFT/RIGHT navigation button to select a channel
group.
- Press OK button to confirm selection.
TELETEXT
- Press TEXT button on remote control to display the available
teletext information and press it again to exit the teletext.
TV/RADIO (FOR DTV MODE ONLY)
- Press TV/RADIO button on remote control to switch the unit between TV and radio mode.(DTV
only)
SUBTITLE
- Press SUBTITLE button on remote control repeatedly to select desired subtitle.
NOTE: To enable this function, make sure that the channel you are viewing supports
multi-subtitle.
MEDIA PLAYBACK(USB INPUT)
- Insert a USB memory device into USB slot before following operations.
- Press SOURCE button on the unit or remote control to switch the unit to USB mode or
press MEDIA button on remote control.
- Press UP/DOWN/LEFT/RIGHT navigation button to select the file, press OK button to
confirm the selection then press PLAY to start the selected file. Repeat the procedure to
select/unselect new files.
- Press EXIT button to return to previous menu page.

17
1. PHOTO
- Press LEFT/RIGHT navigation button to select Photo in the main menu and press OK
button to enter it.
- Use navigation buttons to select desired folder or file.
- When selecting files, press RED button to enter submenu and you can delete a file
accordingly.
- Use navigation buttons to select a file and press OK button to add to play list.
- Press button to start playback.

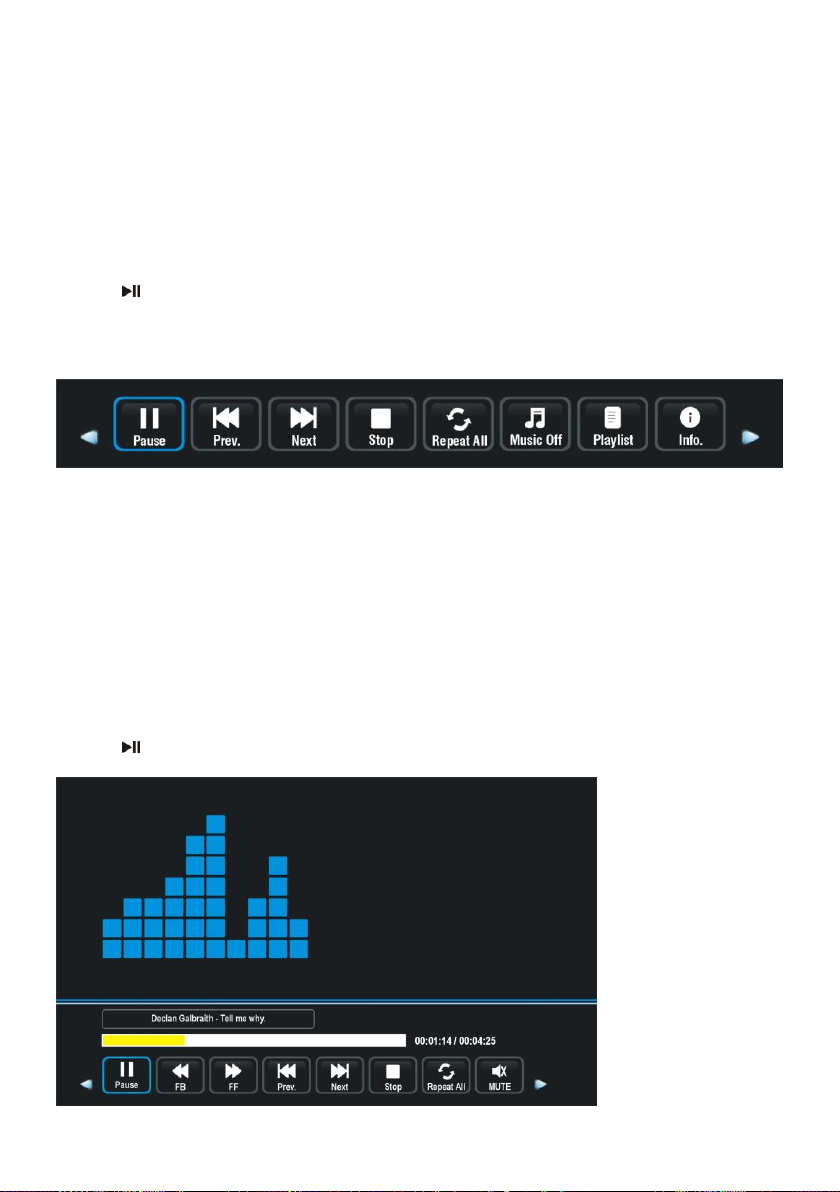

- Press DISPLAY button to call out the tool bar. Use navigation buttons to select desired
option and press OK to confirm it.
- Press EXIT button to dismiss the tool bar.
2. MUSIC
- Press LEFT/RIGHT navigation button to select Music in the main menu and press OK
button to enter it.
- Use navigation buttons to select desired folder or file.
- When selecting files, press RED button to enter submenu and you can delete a file
accordingly.
- Use navigation buttons to select a file and press OK button to add to play list.
- Press button to start playback.

18
- Use navigation buttons to select desired option and press OK to confirm it.
- Press EXIT button to return.
3. MOVIE
- Press LEFT/RIGHT navigation button to select Movie in the main menu and press OK
button to enter it.
- Use navigation buttons to select desired folder or file.
- When selecting files, press RED button to enter submenu and you can delete a file
accordingly.
- Use navigation buttons to select a file and press OK button to add to play list.
- Press button to start playback.
- Press DISPLAY button to call out the tool bar. Use navigation buttons to select desired
option and press OK to confirm it.
- Press EXIT button to return.

19
●The unit contains different setting menus. Once the initial programming is entered, it will
be remained in the memory until change, and the unit can always be operated under the
same conditions.
●The settings will be remained in the memory until the settings are changed, even after
setting the player to standby mode.
Common procedure for initial settings
- Press MENU button on the unit or remote control to display the main menu.
- Press UP/DOWN/LEFT/RIGHT navigation buttons to move the cursor.
- Press OK or RIGHT navigation button to enter submenu.
- Press MENU button to save current setting and return to previous menu page.
- Press EXIT button to exit menu page.
First Time Installation
- Connect to power source and turn on this TV, then below setup page will display on the
screen.
- Press UP/DOWN navigation button to move the cursor.
- Press LEFT/RIGHT navigation button to select an option.
Language: select the on-screen menu language.
Country: select your country.
Energy Mode: select Home or Store mode.
Tuning Setup
- If above selections are finished, press OK button to call
out Tuning Setup.
- Select preferred Tune Type and Digital Type using
navigation buttons and press OK button to start auto
tuning.
Note: Digital Type is adjustable only under DVB-C
mode.
MAIN MENU
