Makita 4307D User manual

n
72v
MODEL 43071)
MODEL 4307DW
With Fast Charger
A C only DC
145 mm x 80 mm x 61 mm 0 7 kq
50Hz 60Hr 72v
15 3 4" x 3~1j8'' x 2 318") 11 5 It)bl
1 Hi

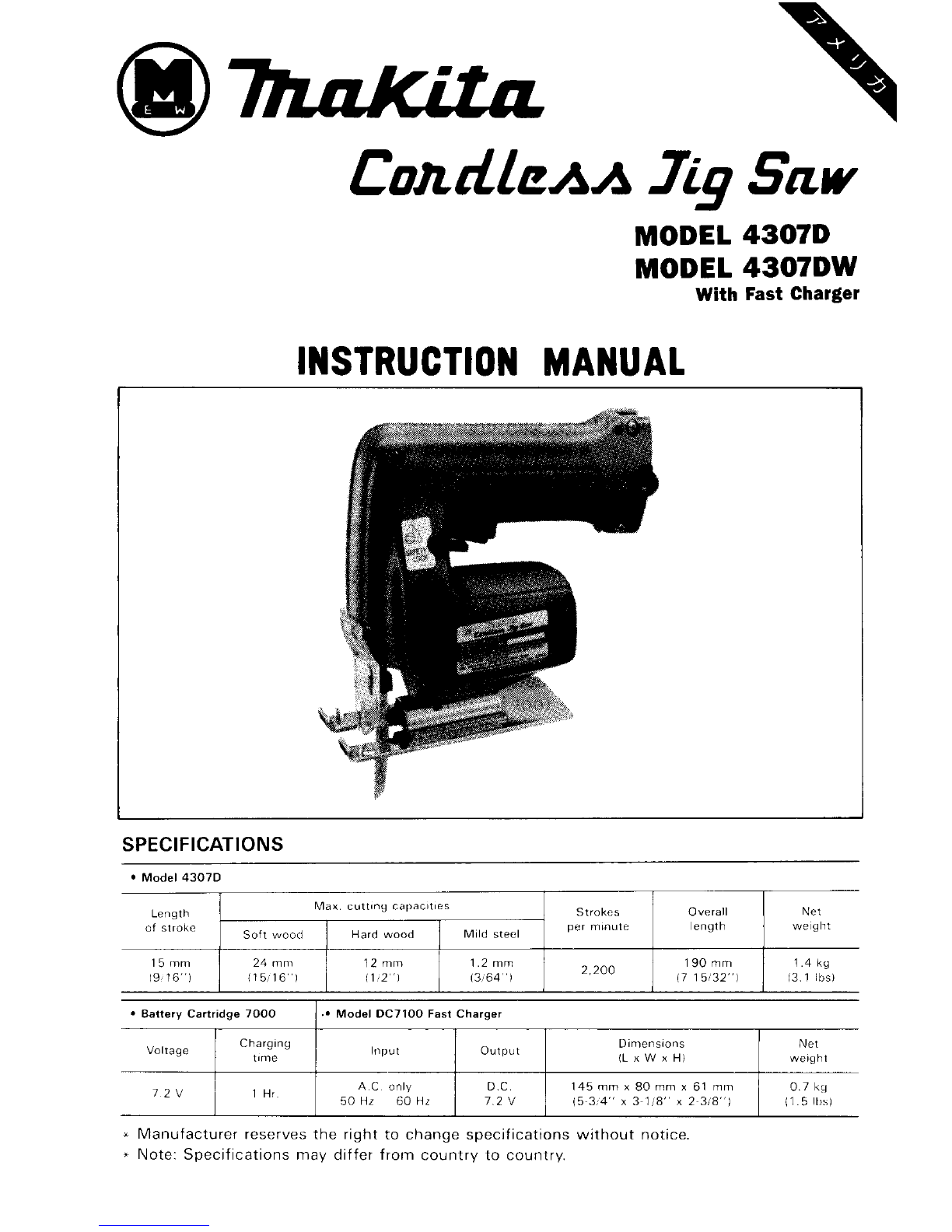

INSTRUCTION MANUAL
SPEC IF I CAT IONS
Model 4307D
1 1 1
190 mm 14kg
19 16' ! (15 16") 11 2") 13'64 'I 17 15r32") 13 1 IbS!
12 mm
2.200
Battery Cartridge 7000 1 .. Model DC7100 Fast Charger

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING: WHEN USING ELECTRIC TOOLS, BASIC SAFE-
REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PER-
TY PRECAUTIONS SHOULD ALWAYS
BE FOLLOWED TO
SONAL INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools
in damp
or wet locations. Keep work area well
lit. Don't expose power tools to rain.
Don't use tool in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. When notinuse, tools should be stored
in dry, and high
or locked-up place
- out of reach of children.
DON'T FORCETOOL.
It will dothejob better andsafer at the ratefor which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do the job of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear loose clothing orjewelry. They can be caught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair covering tocontain long hair.
USE SAFETY GLASSES. Also use face or dust mask
if cutting operation is
dusty.
DON'T ABUSE CORD. Nevercarry tool by cord or yank
it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricating and changing acces-
sories. Inspecttool cords periodicallyand
if damaged, have repairedby autho-
rized service facility. Inspect extension cords periodically and replace
if
damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS. When not
in use, before servicing, and when chang-
ing accessories, such as blades, bits, cutters.

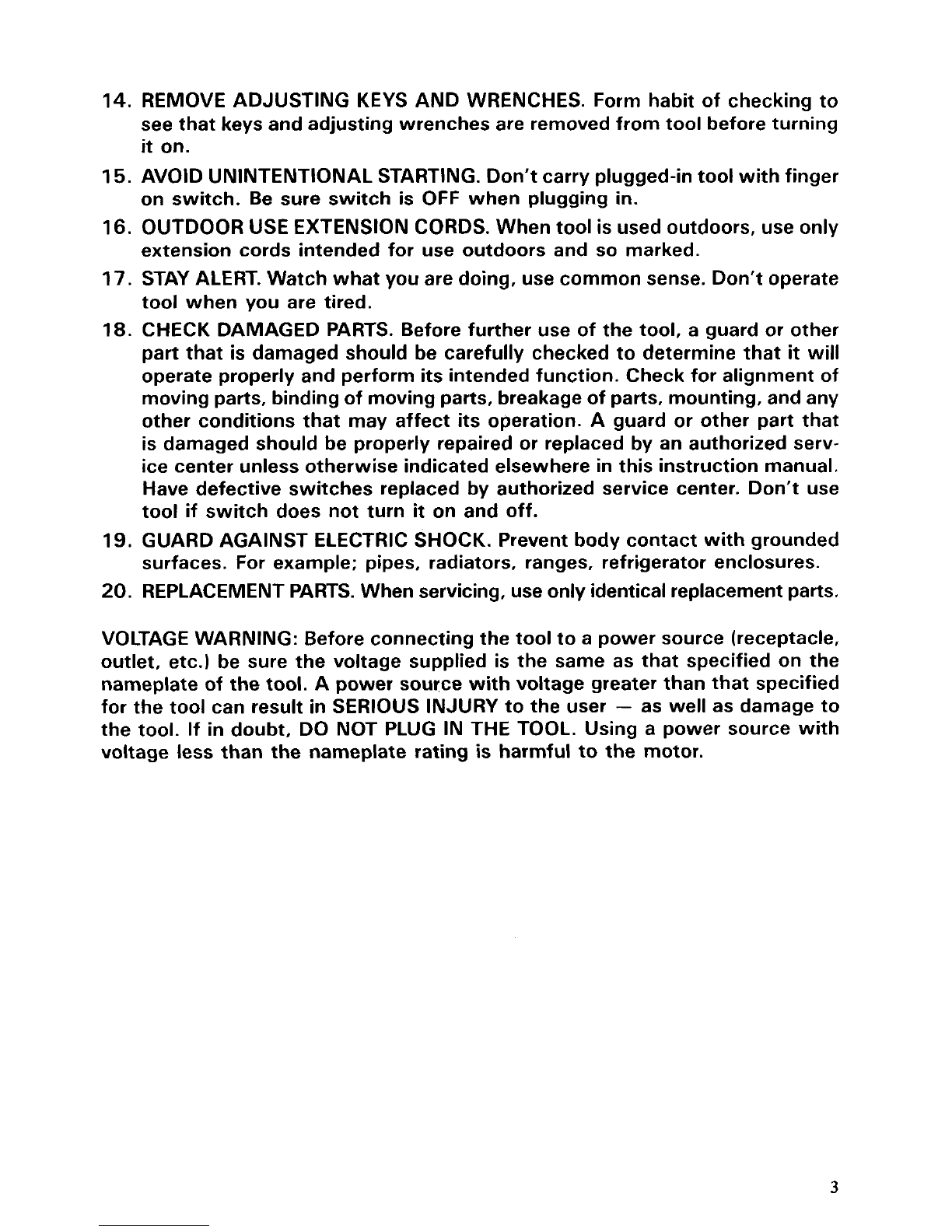

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keysand adjusting wrenches are removed from tool before turning
it on.
15. AVOID UNINTENTIONAL STARTING. Don't carry plugged-intoolwithfinger
on switch. Be sure switch is OFF when plugging in.
16. OUTDOOR USE EXTENSIONCORDS. When tool is used outdoors, use only
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what you are doing, use common sense. Don't operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform its intended function. Check for alignment
of
moving parts, bindingof moving parts, breakageof parts, mounting, and any
other conditions that may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced
by an authorized serv-
ice center unless otherwise indicated elsewhere inthis instruction manual.
Have defective switches replaced by authorized service center. Don't use
tool if switch does not turn
it on and off.
19. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENT PARTS. When servicing, useonly identical replacementparts.
VOLTAGE WARNING: Before connecting the tool to a power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result in SERIOUS INJURY to the user
- as well as damage to
the tool.
If indoubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating
is harmful to the motor.
3

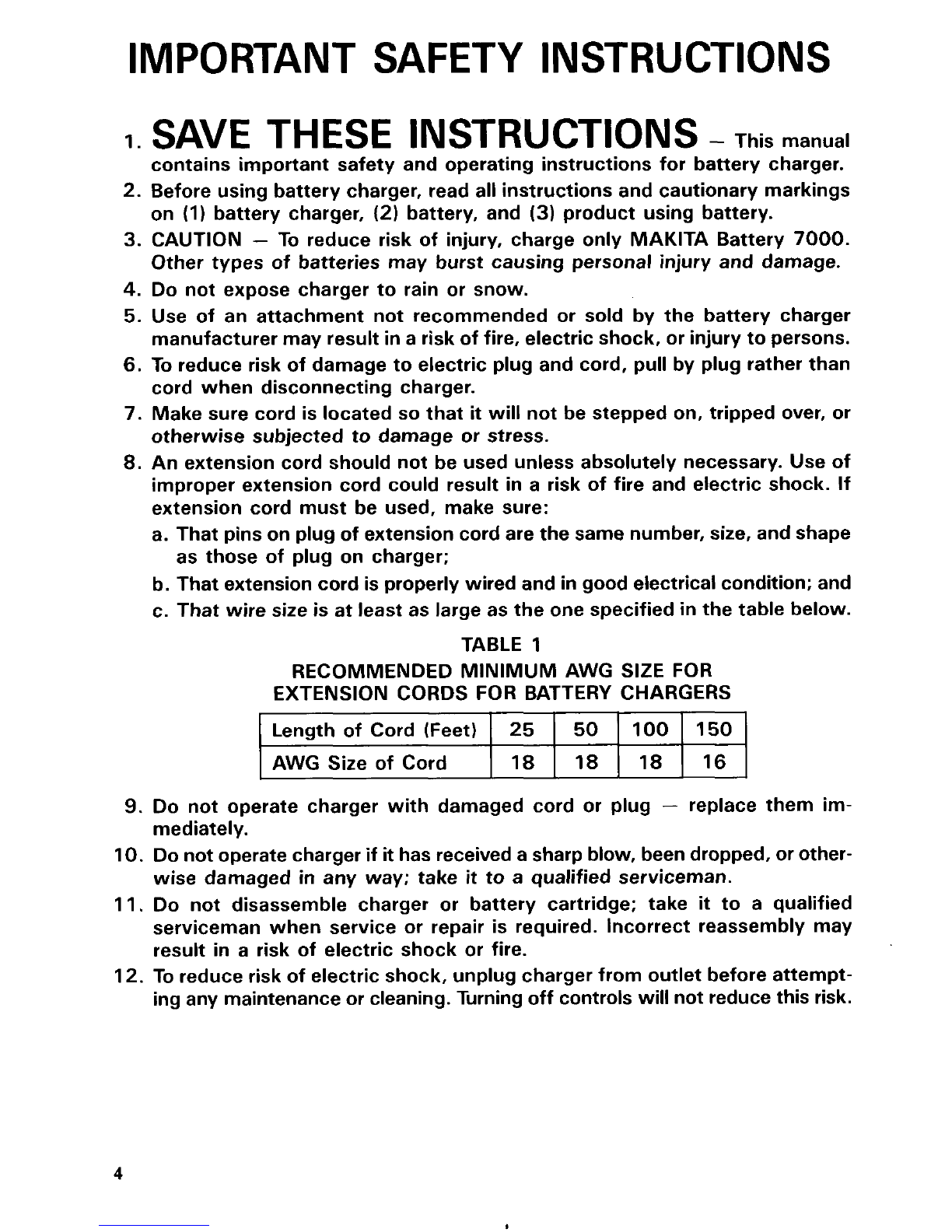

IMPORTANT SAFETY INSTRUCTIONS
Length of Cord (Feet) 25 50
AWG Size of Cord 18 18
I. SAVE THESE INSTRUCTIONS - This manual
100 150
18 16
9. Do not operate charger with damaged cord or plug - replace them im-
mediately.
IO. Do notoperate charger if it hasreceiveda sharp blow, beendropped, or other-
wise damaged
in any way; take it to a qualified serviceman.
11. Do not disassemble charger or battery cartridge; take it to a qualified
serviceman when service or repair is required. Incorrect reassembly may
result in a risk of electric shock or fire.
12. To reduce risk of electric shock, unplugcharger from outlet before attempt-
ingany maintenanceor cleaning. Turning off controls will not reducethis risk.
4

ADDITIONAL SAFETY RULES
FOR CHARGER
& BATTERY CARTRIDGE
1. Do not charge Battery Cartridge when temperature is BELOW 10°C (5OOF)
2. Do not attempt to use a step-up transformer, an engine generator or DC
3. Do not allow anything to cover or clog the charger vents.
4. Do not short the battery cartridge. A battery short can cause a large current
flow, overheating, possible burns and even a breakdown.
5. Do not store the tool and Battery Cartridge in locations where the tempera-
ture may reach or exceed 5OoC (122OF).
6. Do not incinerate the Battery Cartridge even if it is severely damaged or is
completely worn out. The battery cartridge can explode in a fire.
or ABOVE 4OoC
(104OF).
power receptacle.
ADDITIONAL SAFETY RULES
FOR CORDLESS
JIG SAW
1. Avoid cutting nails. Inspect for and remove all nailsfrom the workpiece be-
2. Do not cut hollow pipe.
3. Do not cut oversize workpiece.
4. Check for the proper clearancebeneaththe workpiece before cutting so that
5. Hold the tool firmly.
6. Check the bladeisnotcontacting the workpiece before the switchisturned
7. Keep hands away from moving parts.
8. When cuttingthrough walls, floors or wherever "live" electrical wires may
be encountered, DO NOT TOUCH ANY METAL PARTS
OF THE TOOL!
Holdthe tool only by the plastic handle to prevent electric shock if you cut-
ting through a "live" wire.
fore operation.
the blade will not strike the floor, workbench, etc.
on.
9. Do not leave the tool running. Operate the tool only when hand-held.
10. Always switchoff and wait for the blade tocome toa complete stop before
11. Do not touch the blade or the workpiece immediately after operation; they
removing the blade from the workpiece.
may be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
5

Installingor removingbattery cartridge
0 Always switch off the tool before insertion or removalof the battery cartridge.
0 To remove the battery cartridge, pullout
the
set plate on the tool and grasp both
sides of the cartridge while withdrawing
it
from the barrel.
0 To insert the battery cartridge, align the
tongue on the battery cartridge with the
groove in the housing and slip
it into
place. Snap the
set plate back intoplace.
Be sure to close the
set plate fully before
usingthe tool.
Battery cartridge
0 Do not use force when inserting the battery cartridge.
If the cartridge does notslide ineasily,
it is not beinginserted correctly.
Charging
Plug the fast charger into your power
source. Insert the battery cartridge
so that
the plus and minus terminals on the bat-
tery cartridge are on the same sides
as thier
respective markings on the fast charger.
Insert the cartridge fully into the port
so
that it restson the charger portfloor.
The charging light will come on and charg-
ing will begin. If the charging light does
not come on, press the reset button. If the
charging light goes out within
10 seconds
even after pressing the reset button
a couple of times, the battery cartridge is dead.
(CAUTION
: Wait for more than 5 seconds after the charging light goes out to press the
reset button again.) Replace
it with a new one. When the charging light goes out after
about one hour, you may remove the fully charged battery cartridge.
After charging, unplugthe charger from the power source.
CAUTION
:
0 Your new battery cartridge is not charged. You will need tocharge it before use.
If you try to charge a cartridge from a just-operated tool, sometimes the charginglight
will not come on. If this occurs,
let the cartridge cool off for a while. Then re-insert it
and try tocharge it once more.
0 When you charge a new battery cartridge or a battery cartridge which has not been used
for
a long period, it may not accept a full charge. This is a normal condition and does
not indicate
a problem. You can recharge the battery cartridge fully after discharging
it completely a couple of times.
0 If you wish tocharge two battery cartridges, allow 15 minutes between chargings on the
fast charger.
6

Mounting blade
First, use the hex wrench to remove the
bolt which secures the blade clamp to the
blade holder shaft. With the blade teeth
facing forward, place the shank of the
blade over the flat side of the blade holder
shaft. Then place the blade clamp over the
other side
of the blade shank. Secure this
assembly together with bolt. Make sure
that the bolt passes through the larger hole
inthe blade shank.
Using roller
With the hex wrench loosen the boltwhich
holds the base and retainer. Slide the re-
tainer
so that the roller contactsthe blade,
then tighten the bolt.
Hexwrench
w SDrina washer
Bladeclamp
h
Blade holder shaft
Retainer
II \ '
Roller
Blade
IU
Use a lubricant or cutting oil between the blade and roller when cutting metals. Failure
todo
so will shortenthe service life of your blade and roller.
7

CAUTION :
0 Before inserting the battery cartridge into the tool, always check to see that the trigger
0 When not operatingthe tool, keep the lock-off lever inthe SAFETY LOCK position.
.Pulling the trigger hard when the lock-off lever
is set to the SAFETY LOCK position
switch actuates properly and returnsto the "OFF" position when released.
can cause switch breakage.
Operation
Turn the tool on before contacting the
workpiece. Then rest the base flat on the
workpiece and gently move the tool for-
ward along the previously marked cutting
line.
Plunge cutting
Starting
a cut at other than the edge of the
workpiece without first drilling
a starting
hole requires
a "plunge cut." This can be
accomplished by tipping the tool forward
until the front end of the base rests against
the workpiece. Switchthetoolonand lower
the back end of the tool slowly, gradually
allowing the bladetosaw throughthe wood
until the base
is able to sit flat on thework-
piece. You may then proceed forward with
the cut in
a normal manner.
If using
a drill for a starting hole, bore a hole over 12 mm (1/2") indiameter. Then insert
the blade in
it and proceed.
8

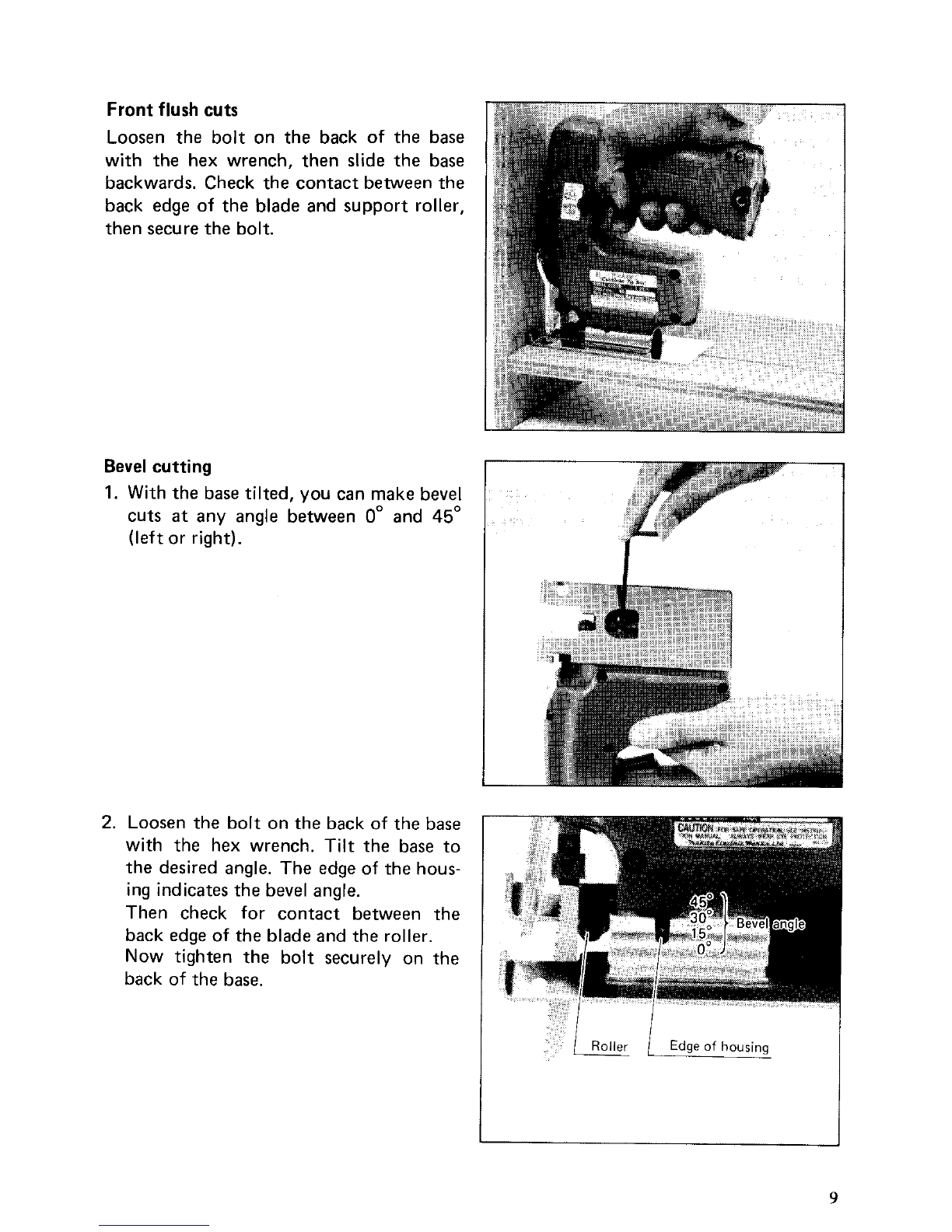

Front flush cuts
Loosen the bolt on the back of the base
with the hex wrench, then slide the base
backwards. Check the contact betweenthe
back edge
of the blade and support roller,
then secure the bolt.
Bevel cutting
1. With the base tilted, you can make bevel
cuts
at any angle between 0" and 45'
(leftor right).
1 Roller 1 Edge of housing
i
9

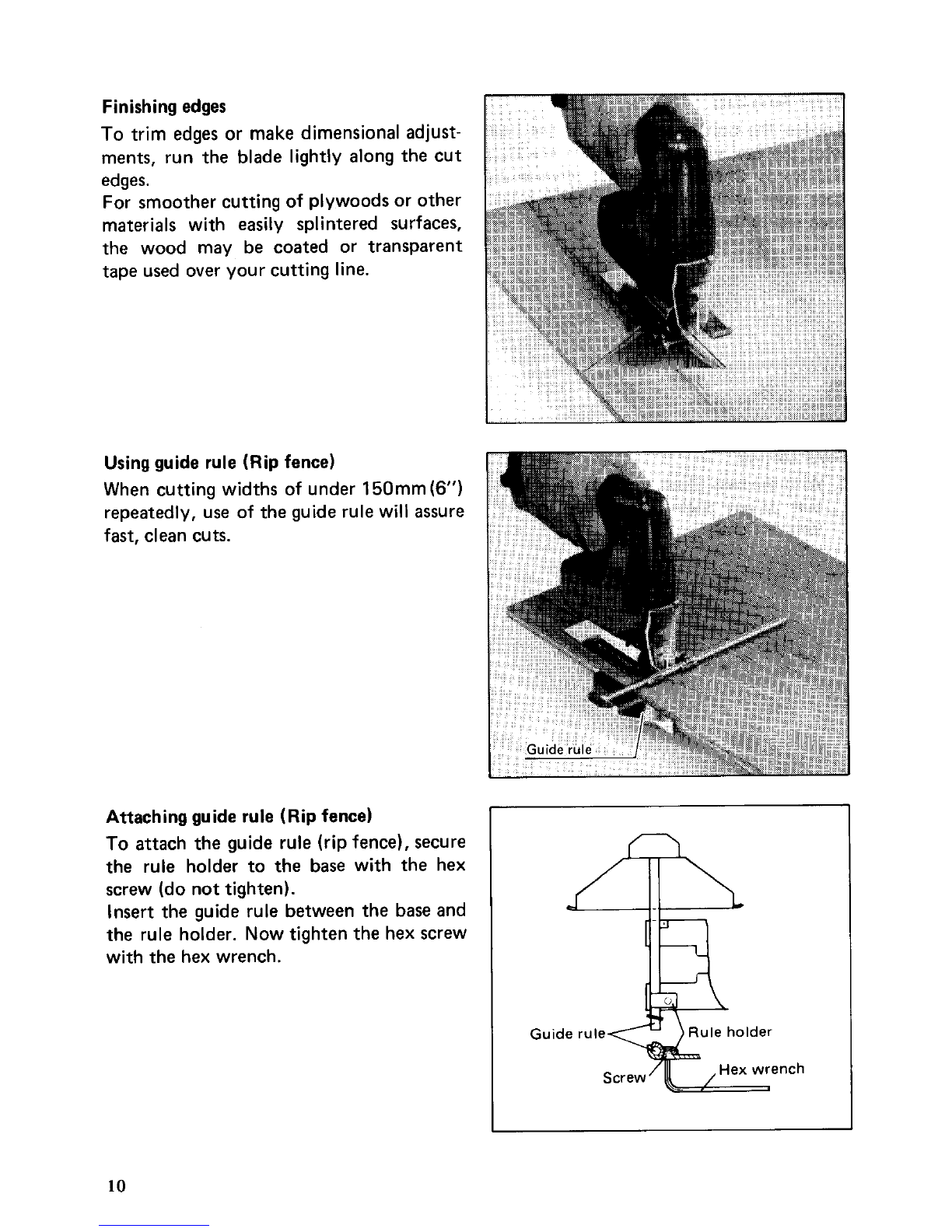

Finishingedges
To trim edges or make dimensional adjust-
ments, run the blade lightly along the cut
edges.
For smoother cuttingof plywoodsor other
materials with easily splintered surfaces,
the wood may be coated or transparent
tape used over your cutting line.
Usingguide rule (Ripfence)
When cutting widths of under 150mm(6")
repeatedly, use of the guide rule will assure
fast, clean cuts.
Attaching guide rule (Ripfence)
To attach the guide rule (ripfence), secure
the rule holder to the base with the hex
screw (do nottighten).
Insert the guide rule between the base and
the rule holder. Nowtighten the hex screw
with the hex wrench.
Guide
10

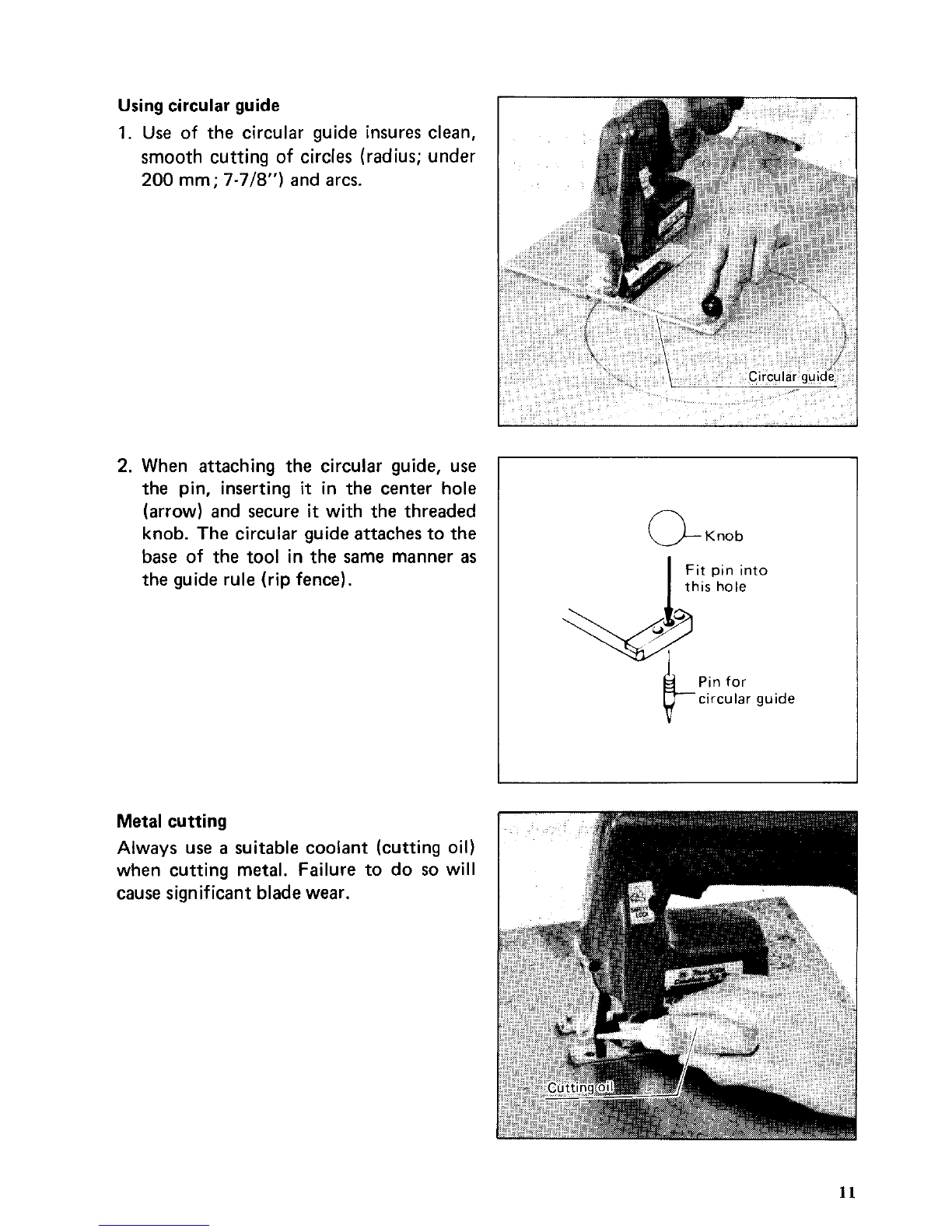

Using circular guide
1. Use of the circular guide insures
smooth cutting of circles (radius;
200 mm; 7-7/8") and arcs.
clean,
under
0 Knob
Fit pin into
this hole
2. When attaching the circular guide, use
the pin, inserting
it in the center hole
(arrow) and secure
it with the threaded
knob. The circular guide attachesto the
base of the tool in the same manner
as
the guide rule (ripfence).
Metalcutting
Always use
a suitable coolant (cutting
when cutting metal. Failure to do
so
cause significant bladewear.
oil)
will
Pin for
circular guide
I-
ll

Cutting performance
The following reference table indicatesthe
approximate cutting capacity from
a single
1-hourbattery charge.
It may differ under
some conditions.
Material Thickness Cutting length
Soft wood
(,5,,6") 2.5 m (8.2 ft)
Hard wood I ::,;: I 4 m (13ft)
Mild
steel I ;&:: 1 3 m (9.8 ft)
CAUTION :
If the tool is operated continuously until the battery cartridge has discharged, allow the
tool to rest for 15 minutesbefore proceedingwith
a fresh battery.
Hex wrench storage
When not in use, the hex wrench can be
conveniently stored.
L 1
Hole
The hole on the heel of the tool is a con-
venient way to
carry it by a cord, hook or
other means.
12

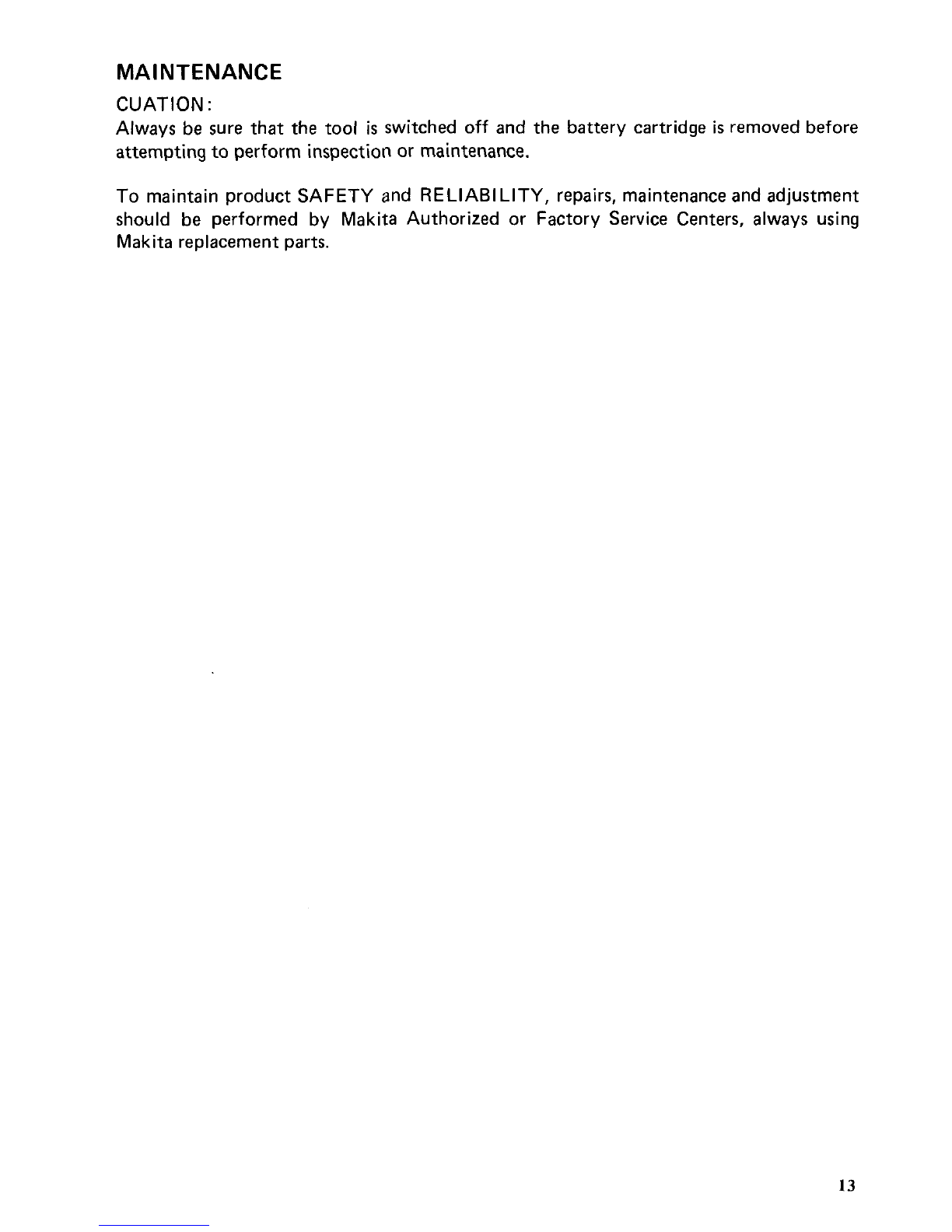

MAINTENANCE
CUATION :
Always be sure that the tool is switched off and the battery cartridge is removedbefore
attempting toperform inspection or maintenance.
To maintain product SAFETY and RELlABlLITY, repairs, maintenanceand adjustment
should be performed by Makita Authorized or Factory Service Centers, always using
Makita replacementparts.
13

ACCESSORIES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The
use of any other accessories or attachments might present a risk of injury to persons.
The accessoriesor attachmentsshould be used only in the proper and intendedmanner.
0 Jig saw blade (packed5 each in handy vinyl pouch)
I
1 Teeth I y;;;;; I
Part No‘ per inch
Blade type Applications
No. 31 1792221-5 I 24 1 8o mm, 1 Extra-fineblade for mild steel, plys,
(3-5/32
) masonite, plastics, formica, etc.
0 Guide rule (Ripfence)
Part No. 164113-2
Fastcharger
Model DC7100
0 Circular guideassembly
Part No. 123030-5
0 12 V Fastcharger
Model DC7012
*Hexwrench
3
Part No. 783201-2
0 Rule holder assembly
Part No. 191602-4
0 Battery cartridge 7000
1 -hour fast charge nickel cadmium battery
Part
No. 632003-2
0 Battery holster
Holster holdsextra battery
Part No. 823033-3C
14

Mar 03 '86 EN

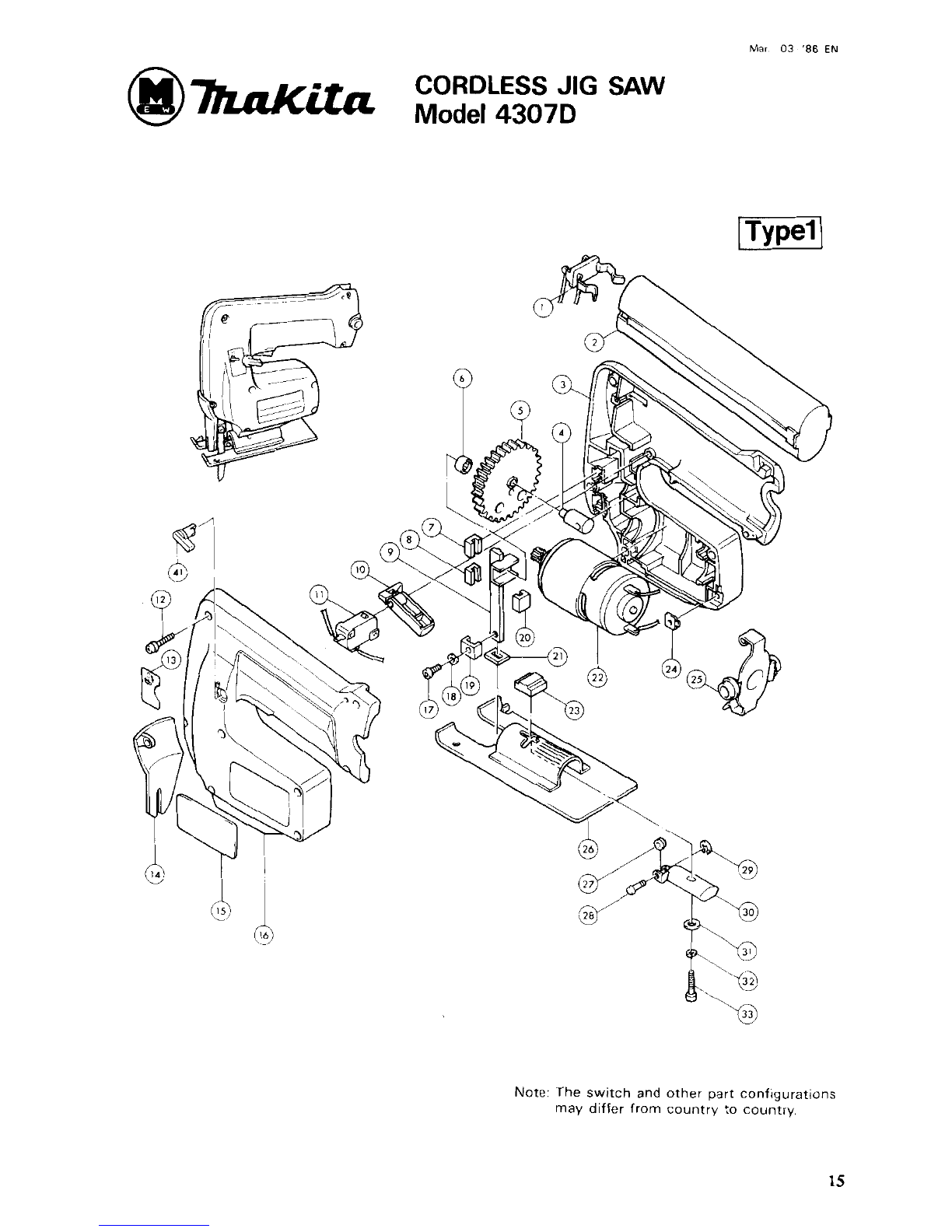

CORDLESS JIG SAW
Model 4307D
Note: The switch and other part configuratlons
may differ from country
to country.
15

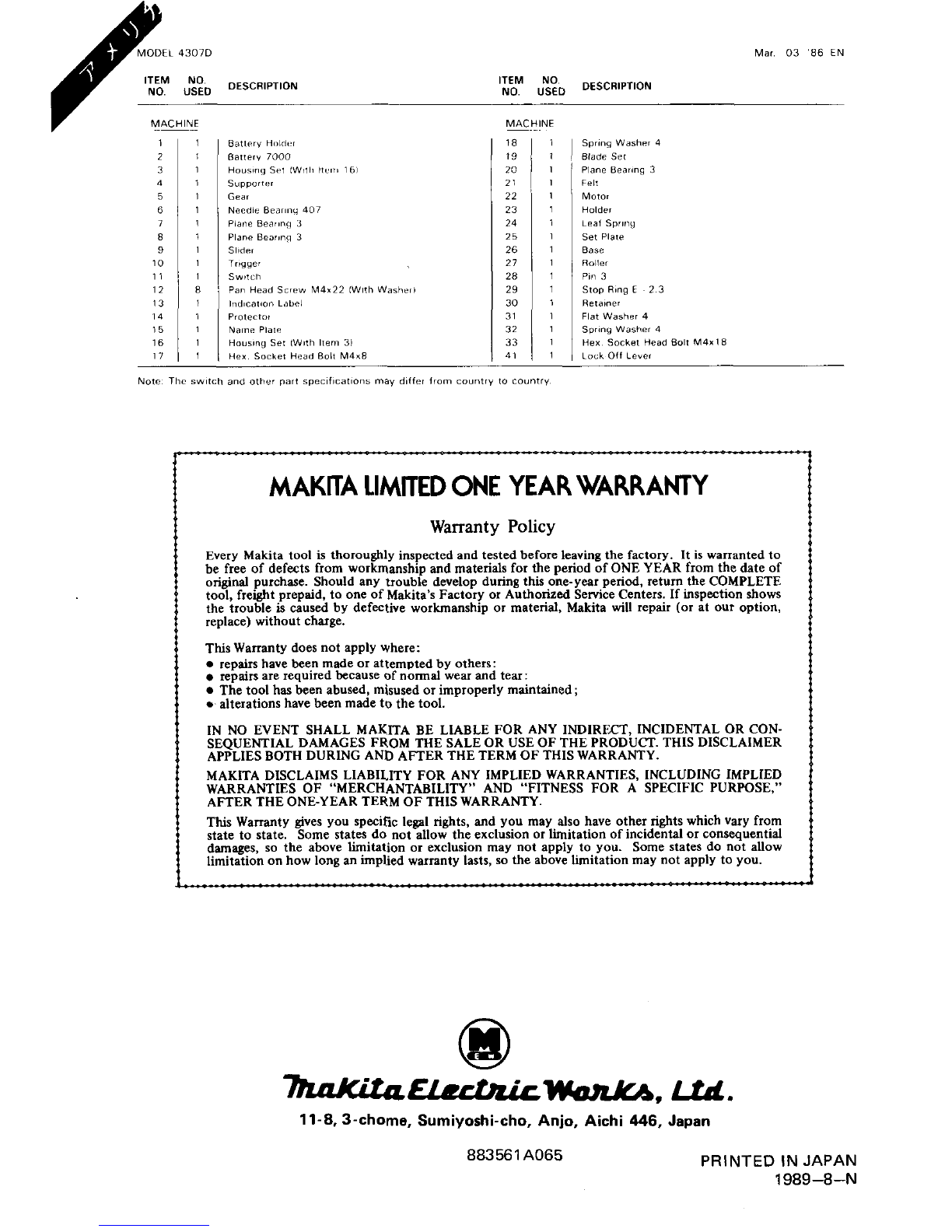

ITEM ,"&, DESCRIPTION
MENE
Hex Socket Head Bolt M4xB I 41 I 1
11
21
31
41
51
61
I1
91
IO 1
11
I
1
12 8
13 1
14
I
I5 1
16 1
17 1
ni
Lock Of1 Lever
Mar 03 86 EN
$:D DESCRIPTION
25
26
27
MACHINE
1
1
1
31
32
33
Spring WdahPr 4
Blade Ser
Felt
Motor
Holder
Plane Bearing 3
Leal Sprlrlg
set Plat?
Babe
Holler
P," 3
Stop Ring E 2 3
HefdlOer
Flat Washer 4
Spriny Washer 4
Hex Socket Head Boll M4x18
1
1
1
MAKITALIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leavingthe factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the
COMPLETE
tool, freight prepaid, to one of Makita's Factory or Authorized ServiceCenters. If inspection shows
the trouble is caused by defective workmanship or material, Makita
will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
repairs have been made or attemptedby others:
repairs are required because of normal wear and tear:
The tool has been abused, misused or improperly maintained;
alterations have been made
to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEOUENTIAL DAMAGES FROM THE SALE
OR USF OF THt PRODUCT. THIS DISCLAIMER
APFLIES
BOTH DURING AND AFTER THETERM OF THIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIFD WARRANTIFS, INCLUDING IMPLIED
WARRANTIFS OF "MERCHANTABILITY" AND "FITNESS FOR A SPECIkIC PURPOSt."
AFTk
R THE ONF-YtAR Tt RM OF THIS WARRANTY
This
Warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion
or Limitation of incidentalor consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do
not allow
limitation on how long an implied warranty
lasts, so the above limitation may not apply to you.
~- - wunkx,Ltd.
11-8,3-chome, Sumiyoshi-cho. Anjo, Aichi 446, Japan
883561A065 PRINTED IN
JAPAN
1989-8-N
