Makita LS711D User manual

INSTRUCTION MANUAL
WARNING:
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
www.makitatools.com
Cordless Slide
Compound Saw
Equipped with Electric Blade Brake
190 mm (7-1/2”)
MODEL LS711D

2
SPECIFICATIONS
Blade diameter : ......................................................................................... 190 mm (7-1/2”)
Hole (arbor) diameter : ............................................................................... 15.88 mm (5/8”)
Max. Miter angle : ...................................................................................Left 47° , Right 57°
Max. Bevel angle : ....................................................................................................Left 45°
Max. Cutting capacities (H x W) with blade 190 mm (7-1/2”) in diameter.
(Note)
The max. Cutting capacities may vary according to workpiece, blade and/or charging condition.
No load speed (RPM) : ........................................................................................ 2,000/min.
Dimensions (L x W x H) : ................550 mm x 430 mm x 454 mm (21-5/8” x 17” x 17-7/8”)
Net weight : ............................................................................................... 10.5 kg (23.1 lbs)
• Manufacturer reserves the right to change specifications without notice.
• Specifications may differ from country to country.
For Your Own Safety Read Instruction Manual
Before Operating Tool
Save it for future reference
GENERAL SAFETY PRECAUTIONS USA005-1
Miter angle Bevel angle
0°45°(left)
0°50 mm x 182 mm
(2” x 7-1/8”)
35 mm x 182 mm
(1-3/8” x 7-1/8”)
45°(left and right) 50 mm x 127 mm
(2” x 5”)
35 mm x 127 mm
(1-3/8” x 5”)
Battery Charger DC1804
Input A. C. only 50 Hz-60 Hz
Output D. C. 7.2 V-18 V
Battery Cartridge 1822 1833 1834 1835
Voltage 18 V
Charging time 45 min. 50 min. 60 min. 70 min.

3
(For All TOOIS)
1. KNOW YOUR POWER TOOL. Read the
owner’s manual carefully. Learn the tool’s
applications and limitations, as well as the
specific potential hazards peculiar to it.
2. KEEP GUARDS IN PLACE and in working
order.
3. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are
removed from tool before turning it on.
4. KEEP WORK AREA CLEAN. Cluttered
areas and benches invite accidents.
5. DON’T USE IN DANGEROUS ENVIRON-
MENT. Don’t use power tools in damp or
wet locations, or expose them to rain.
Keep work area well lighted. Don’t use
tool in presence of flammable liquids or
gases.
6. KEEP CHILDREN AWAY. All visitors
should be kept safe distance from work
area.
7. MAKE WORKSHOP KID PROOF with pad-
locks, master switches, or by removing
starter keys.
8. DON’T FORCE TOOL. It will do the job bet-
ter and safer at the rate for which it was
designed.
9. USE RIGHT TOOL. Don’t force tool or
attachment to do a job for which it was not
designed.
10. WEAR PROPER APPAREL. Do not wear
loose clothing, gloves, neckties, rings,
bracelets, or other jewelry which may get
caught in moving parts. Nonslip footwear
is recommended. Wear protective hair
covering to contain long hair.
11. ALWAYS USE SAFETY GLASSES. Also
use face or dust mask if cutting operation
is dusty. Everyday eyeglasses only have
impact resistant lenses, they are NOT
safety glasses.
12. SECURE WORK. Use clamps or a vise to
hold work when practical. It’s safer than
using your hand and it frees both hands
to operate tool.
13. DON’T OVERREACH. Keep proper footing
and balance at all times.
14. MAINTAIN TOOLS WITH CARE. Keep tools
sharp and clean for best and safest perfor-
mance. Follow instructions for lubricating
and changing accessories.
15. DISCONNECT BATTERY FROM TOOL
before servicing; when changing acces-
sories such as blades, bits, cutters, and
the like.
16. REDUCE THE RISK OF UNINTENTIONAL
STARTING. Make sure switch is in off
position before inserting battery.
17. USE RECOMMENDED ACCESSORIES.
Consult the owner’s manual for recom-
mended accessories. The use of improper
accessories may cause risk of injury to
persons.
18. NEVER STAND ON TOOL. Serious injury
could occur if the tool is tipped or if the
cutting tool is unintentionally contacted.
19. CHECK DAMAGED PARTS. Before further
use of the tool, a guard or other part that
is damaged should be carefully checked
to determine that it will operate properly
and perform its intended function - check
for alignment of moving parts, binding of
moving parts, breakage of parts, mount-
ing, and any other conditions that may
affect its operation. A guard or other part
that is damaged should be properly
repaired or replaced.
20. DIRECTION OF FEED. Feed work into a
blade or cutter against the direction of
rotation of the blade or cutter only.
21. NEVER LEAVE TOOL RUNNING UNAT-
TENDED. TURN POWER OFF. Don’t leave
tool until it comes to a complete stop.

4
ADDITIONAL SAFETY RULES USB033-2
DO NOT let comfort or familiarity with product (gained from
repeated use) replace strict adherence to slide compound saw
safety rules. If you use this tool unsafely or incorrectly, you can
suffer serious personal injury.
1. Wear eye protection.
2. Keep hands out of path of saw blade.
Avoid contact with any coasting blade. It
can still cause severe injury.
3. Do not operate saw without guards in
place. Check blade guard for proper clos-
ing before each use. Do not operate saw if
blade guard does not move freely and
close instantly. Never clamp or tie the
blade guard into the open position.
4. Do not perform any operation freehand.
The workpiece must be secured firmly
against the turn base and guide fence with
a vise during all operations. Never use
your hand to secure the workpiece.
5. Never reach around saw blade.
6. Turn off tool and wait for saw blade to
stop before moving workpiece or chang-
ing settings.
7. Remove battery from tool before changing
blade or servicing.
8. To reduce the risk of injury, return car-
riage to the full rear position after each
crosscut operation.
9. Always secure all moving portions before
carrying the tool.
10. Stopper pin which locks the cutter head
down is for carrying and storage pur-
poses only and not for any cutting opera-
tions.
11. Be aware that this tool is always in an
operating condition, because it does not
have to be plugged into an electrical out-
let.
12. Do not use the tool in the presence of
flammable liquids or gases.
13. Check the blade carefully for cracks or
damage before operation. Replace
cracked or damaged blade immediately.
Gum and wood pitch hardened on blades
slows saw and increases potential for
kickback. Keep blade clean by first remov-
ing it from tool, then cleaning it with gum
and pitch remover, hot water or kerosene.
Never use gasoline to clean blade.
14. While making a slide cut, KICKBACK can
occur. KICKBACK occurs when the blade
binds in the workpiece during a cutting
operation and the saw blade is driven
back rapidly towards the operator. Loss of
control and serious personal injury can
result. If blade begins to bind during a cut-
ting operation, do not continue to cut and
release switch immediately.
15. Use only flanges specified for this tool.
16. Be careful not to damage the arbor,
flanges (especially the installing surface)
or bolt. Damage to these parts could
result in blade breakage.
17. Make sure that the turn base is properly
secured so it will not move during opera-
tion. Use the holes in the base to fasten
the saw to a stable work platform or
bench. NEVER use tool where operator
positioning would be awkward.
18. For your safety, remove the chips, small
pieces, etc. from the table top before oper-
ation.

5
19. Avoid cutting nails. Inspect for and
remove all nails from the workpiece
before operation.
20. Make sure the shaft lock is released
before the switch is turned on.
21. Be sure that the blade does not contact
the turn base in the lowest position.
22. Hold the handle firmly. Be aware that the
saw moves up or down slightly during
start-up and stopping.
23. Make sure the blade is not contacting the
workpiece before the switch is turned on.
24. Before using the tool on an actual work-
piece, let it run for a while. Watch for
vibration or wobbling that could indicate
poor installation or a poorly balanced
blade.
25. Wait until the blade attains full speed
before cutting.
26. Stop operation immediately if you notice
anything abnormal.
27. Do not attempt to lock the trigger in the on
position.
28. Be alert at all times, especially during
repetitive, monotonous operations. Do
not be lulled into a false sense of security.
Blades are extremely unforgiving.
29. Always use accessories recommended in
this manual. Use of improper accessories
such as abrasive wheels may cause an
injury.
30. NEVER hold workpiece on right side of
blade with left hand or vice versa. This is
called cross-armed cutting and exposes
user to risk of SERIOUS PERSONAL
INJURY as shown in the figure. ALWAYS
use vise to secure workpiece.
31. NEVER stack workpieces on the table top
to speed cutting operations. Cut only one
piece at a time.
32. Some material contains chemicals which
may be toxic. Take caution to prevent dust
inhalation and skin contact. Follow mate-
rial supplier safety data.
SAVE THESE INSTRUCTIONS
WARNING:
MISUSE or failure to follow the safety rules stated in this
instruction manual may cause serious personal injury.

6
IMPORTANT SAFETY INSTRUCTIONS FOR
CHARGER & BATTERY CARTRIDGE USC001-3
1. SAVE THESE INSTRUCTIONS - This man-
ual contains important safety and operat-
ing instructions for battery charger.
2. Before using battery charger, read all
instructions and cautionary markings on
(1) battery charger, (2) battery, and (3)
product using battery.
3. CAUTION - To reduce risk of injury, charge
only MAKITA rechargeable batteries
marked on the charger label. Other types
of batteries may burst causing personal
injury and damage.
4. Do not expose charger to rain or snow.
5. Use of an attachment not recommended
or sold by the battery charger manufac-
turer may result in a risk of fire, electric
shock, or injury to persons.
6. To reduce risk of damage to electric plug
and cord, pull by plug rather than cord
when disconnecting charger.
7. Make sure cord is located so that it will
not be stepped on, tripped over, or other-
wise subjected to damage or stress.
8. An extension cord should not be used
unless absolutely necessary. Use of
improper extension cord could result in a
risk of fire and electric shock. If extension
cord must be used, make sure:
a. That pins on plug of extension cord
are the same number, size, and shape
as those of plug on charger;
b. That extension cord is properly wired
and in good electrical condition;
c. That wire size is at least as large as
the one specified in the table below.
9. Do not operate charger with damaged
cord or plug - replace them immediately.
10. Do not operate charger if it has received a
sharp blow, been dropped, or otherwise
damaged in any way; take it to a qualified
serviceman.
11. Do not disassemble charger or battery
cartridge; take it to a qualified serviceman
when service or repair is required, Incor-
rect reassembly may result in a risk of
electric shock or fire.
12. To reduce risk of electric shock, unplug
charger from outlet before attempting any
maintenance or cleaning. Turning off con-
trols will not reduce this risk.
13. The battery charger is not intended for
use by young children or infirm persons
without supervision.
14. Young children should be supervised to
ensure that they do not play with the bat-
tery charger.
15. If operating time has become excessively
shorter, stop operating immediately. It
may result in a risk of overheating, possi-
ble burns and even an explosion.
16. If electrolyte gets into your eyes, rinse
them out with clear water and seek medi-
cal attention right away. It may result in
loss of your eyesight.
Table 1: RECOMMENDED MINIMUM AWG SIZE FOR EXTENSION CORDS FOR BATTERY CHARGERS
Length of Cord (Feet) 25 50 100 150
AWG Size of Cord 18 18 18 16

7
ADDITIONAL SAFETY RULES FOR CHARGER &
BATTERY CARTRIDGE
1. Do not charge Battery Cartridge when
temperature is BELOW 10°C (50°F) or
ABOVE 40°C (104°F).
2. Do not attempt to use a step-up trans-
former, an engine generator or DC power
receptacle.
3. Do not allow anything to cover or clog the
charger vents.
4. Always cover the battery terminals with
the battery cover when the battery car-
tridge is not used.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any
conductive material.
(2) Avoid storing battery cartridge in a
container with other metal objects
such as nails, coins, etc.
(3) Do not expose battery cartridge to
water or rain.
A battery short can cause a large current
flow, overheating, possible burns and
even a breakdown.
6. Do not store the tool and Battery Car-
tridge in locations where the temperature
may reach or exceed 50°C (122°F).
7. Do not incinerate the Battery Cartridge
even if it is severely damaged or is com-
pletely worn out. The battery cartridge can
explode in a fire.
8. Be careful not to drop, shake or strike bat-
tery.
9. Do not charge inside a box or container of
any kind. The battery must be placed in a
well ventilated area during charging.
SAVE THESE INSTRUCTIONS

8
INSTALLATION
Bench mounting
When the tool is shipped, the handle is locked in the lowered
position by the stopper pin. Release the stopper pin by lower-
ing the handle slightly and pulling the stopper pin.
This tool should be bolted with two bolts to a level and stable
surface using the bolt holes provided in the tool’s base. This
will help prevent tipping and possible injury.
FUNCTIONAL
DESCRIPTION CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before adjusting or
checking function on the tool.
Installing or removing battery cartridge
• Always switch off the tool before insertion or removal of
the battery cartridge.
• To remove the battery cartridge, withdraw it from the tool
while pressing the buttons on both sides of the cartridge.
• To insert the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Always insert it all the way until it locks in
place with a little click. If not, it may accidentally fall out
of the tool, causing injury to you or someone around you.
• Do not use force when inserting the battery cartridge. If
the cartridge does not slide in easily, it is not being
inserted correctly.
1. Stopper Pin
1
002193
1. Bolt
1
002194
1. Battery cartridge
2. Button
1
2
002240

9
Charging
1. Plug the battery charger into the proper AC voltage
source. The charging light will flash in green color.
2. Insert the battery cartridge so that the plus and minus
terminals on the battery cartridge are on the same sides
as their respective markings on the charger. Insert the
cartridge fully into the port so that it rests on the charger
port floor.
3. When the battery cartridge is inserted, the charging light
color will change from green to red and charging will
begin. The charging light will remain lit steadily during
charging.
4. When the charging light color changes from red to
green, the charging cycle is complete.
5. If you leave the battery cartridge in the charger after the
charging cycle is complete, the charger will switch into
its “trickle charge (maintenance charge)”mode.
6. After charging, unplug the charger from the power
source.
NOTE:
•The battery charger is for charging Makita battery
cartridge. Never use it for other purposes or for other
manufacturer’s batteries.
•When you charge a new battery cartridge or a battery
cartridge which has not been used for a long period of
time, it may not accept a full charge. This is a normal
condition and does not indicate a problem. You can
recharge the battery cartridge fully after discharging it
completely and recharging a couple of times.
•If you charge a battery cartridge from a just operated
tool or a battery cartridge which has been left in a
location exposed to direct sunlight or heat for a long
time, the charging light may flash in red color. If this
occurs, wait for a while. Charging will begin after the
battery cartridge cools. The battery cartridge will cool
faster if you remove the battery cartridge from the
battery charger.
•If the charging light flashes alternately in green and red
color, charging is not possible. The terminals on the
charger or battery cartridge are clogged with dust or the
battery cartridge is worn out or damaged.
Trickle charge (Maintenance charge)
1. Battery charger
2. Battery cartridge
3. Charging light
2
3
1
004513

10
If you leave the battery cartridge in the charger to prevent
spontaneous discharging after full charge, the charger will
switch into its “trickle charge (maintenance charge)”mode
and keep the battery cartridge fresh and fully charged.
Tips for maintaining maximum battery life
1. Charge the battery cartridge before completely dis-
charged.
Always stop tool operation and charge the battery car-
tridge when you notice less tool power.
2. Never recharge a fully charged battery cartridge.
Overcharging shortens the battery service life.
3. Charge the battery cartridge with room temperature at
10°C - 40°C (50°F - 104°F).
Let a hot battery cartridge cool down before charging it.
4. Charge the Nickel Metal Hydride battery cartridge when
you do not use it for more than six months.
Blade guard
When lowering the handle, the blade guard rises automati-
cally. The guard is spring loaded so it returns to its original
position when the cut is completed and the handle is raised.
NEVER DEFEAT OR REMOVE THE BLADE GUARD OR
THE SPRING WHICH ATTACHES TO THE GUARD.
In the interest of your personal safety, always maintain the
blade guard in good condition. Any irregular operation of the
blade guard should be corrected immediately. Check to
assure spring loaded return action of guard. NEVER USE
THE TOOL IF THE BLADE GUARD OR SPRING ARE DAM-
AGED, FAULTY OR REMOVED. DOING SO IS HIGHLY
DANGEROUS AND CAN CAUSE SERIOUS PERSONAL
INJURY.
If the see-through blade guard becomes dirty, or sawdust
adheres to it in such a way that the blade is no longer easily
visible, remove the battery cartridge and clean the guard
carefully with a damp cloth. Do not use solvents or any petro-
leum-based cleaners on the plastic guard.

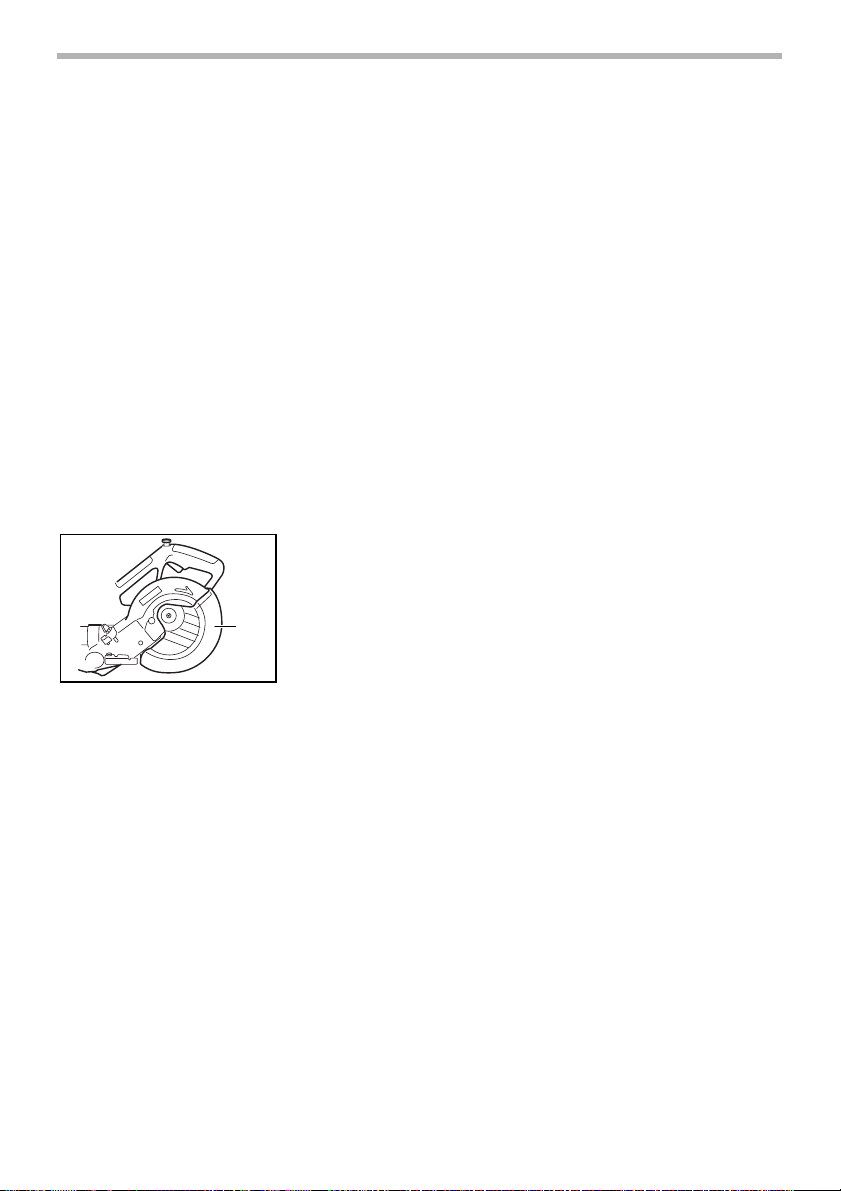

1. Blade guard
1
002245

11
If the blade guard is especially dirty and vision through the
guard is impaired, use the supplied socket wrench to loosen
the hex bolt holding the center cover. Loosen the hex bolt by
turning it counterclockwise and raise the blade guard and
center cover. With the blade guard so positioned, cleaning
can be more completely and efficiently accomplished. When
cleaning is complete, reverse procedure above and secure
bolt. Do not remove spring holding blade guard. If guard
becomes discolored through age or UV light exposure, con-
tact a Makita service center for a new guard. DO NOT
DEFEAT OR REMOVE GUARD.
Positioning kerf board
This tool is provided with the kerf boards in the turn base to
minimize tearing on the exit side of a cut. The kerf boards are
factory adjusted so that the saw blade does not contact the
kerf boards. Before use, adjust the kerf boards as follows:
First, remove the battery cartridge. Loosen all the screws (2
each on left and right) securing the kerf boards. Re-tighten
them only to the extent that the kerf boards can still be easily
moved by hand. Lower the handle fully and push in the stop-
per pin to lock the handle in the lowered position. Loosen the
clamp screw which secures the slide poles. Pull the carriage
toward you fully. Adjust the kerf boards so that the kerf
boards just contact the sides of the blade teeth. Tighten the
front screws (do not tighten firmly). Push the carriage toward
the guide fence fully and adjust the kerf boards so that the
kerf boards just contact the sides of blade teeth. Tighten the
rear screws (do not tighten firmly).
After adjusting the kerf boards, release the stopper pin and
raise the handle. Then tighten all the screws securely.
CAUTION:
•Before and after changing the bevel angle, always adjust
the kerf boards as described above.
1. Blade guard
1
001782
1. Clamp screw
2. Kerf board
1. Saw blade
2. Blade teeth
3. Kerf board
4. Left bevel cut
5. Straight cut
1
2
002195
12
3
45
001800

12
Maintaining maximum cutting capacity
This tool is factory adjusted to provide the maximum cutting
capacity for a 190 mm (7 - 1/2”) saw blade.
When installing a new blade, always check the lower limit
position of the blade and if necessary, adjust it as follows:
First, remove the battery cartridge. Push the carriage toward
the guide fence fully and lower the handle completely. Use
the socket wrench to turn the adjusting bolt until the periph-
ery of the blade extends slightly below the top surface of the
turn base at the point where the front face of the guide fence
meets the top surface of the turn base.
With the battery cartridge removed, rotate the blade by hand
while holding the handle all the way down to be sure that the
blade does not contact any part of the lower base. Re-adjust
slightly, if necessary.
CAUTION:
•After installing a new blade, always be sure that the
blade does not contact any part of the lower base when
the handle is lowered completely. Always do this with the
battery cartridge removed.
Stopper arm
The lower limit position of the blade can be easily adjusted
with the stopper arm. To adjust it, move the stopper arm in
the direction of the arrow as shown in the figure. Adjust the
adjusting screw so that the blade stops at the desired posi-
tion when lowering the handle fully.
1. Adjusting bolt
2. Guide fence
3. Turn Base
1. Top surface ot turn base
2. Periphery of blade
3. Guide fence
1
23
002196
2
1
3
001540
1. Adjusting screw
2. Stopper arm
1
2
002241

13
Adjusting the miter angle
Loosen the grip by turning counterclockwise. Turn the turn
base while pressing down the lock lever. When you have
moved the grip to the position where the pointer points to the
desired angle on the miter scale, securely tighten the grip
clockwise.
CAUTION:
•When turning the turn base, be sure to raise the handle
fully.
•After changing the miter angle, always secure the turn
base by tightening the grip firmly.
Adjusting the bevel angle
To adjust the bevel angle, loosen the lever at the rear of the
tool counterclockwise.
Push the handle to the left to tilt the saw blade until the
pointer points to the desired angle on the bevel scale. Then
tighten the lever clockwise firmly to secure the arm.
CAUTION:
•When tilting the saw blade, be sure to raise the handle
fully.
•After changing the bevel angle, always secure the arm
by tightening the lever clockwise.
•When changing bevel angles, be sure to position the kerf
boards appropriately as explained in the “Positioning kerf
boards”section.
Switch action
CAUTION:
•Before inserting the battery cartridge into the tool,
always check to see that the switch trigger actuates
properly and returns to the “OFF”position when
released.
•When not using the tool, remove the lock-off button and
store it in a secure place. This prevents unauthorized
operation.
1. Turn base
2. Miter scale
3. Pointer
4. Grip
5. Lock lever
2
5
4
3
1
002197
1. Lever
1. Pointer
2. Bevel scale
3. Arm
1
002198
1
2
3
002199
1. Lock-off button
2. Switch trigger
12
001811

14
•Do not pull the switch trigger hard without pressing in the
lock-off button. This can cause switch breakage.
To prevent the switch trigger from being accidentally pulled, a
lock-off button is provided. To start the tool, press in the lock-
off button and pull the switch trigger. Release the switch trig-
ger to stop.
WARNING:
•NEVER use tool without a fully operative switch trigger.
Any tool with an inoperative switch is HIGHLY
DANGEROUS and must be repaired before further usage.
•For your safety, this tool is equipped with a lock-off
button which prevents the tool from unintended starting.
NEVER use the tool if it runs when you simply pull the
switch trigger without pressing the lock-off button.
Return tool to a Makita service center for proper repairs
BEFORE further usage.
•NEVER tape down or defeat purpose and function of
lock-off button.
Electric brake
This tool is equipped with an electric blade brake. If the tool
consistently fails to quickly stop blade after switch trigger
release, have tool serviced at a Makita service center.
The blade brake system is not a substitute for blade guard.
NEVER USE TOOL WITHOUT A FUNCTIONING BLADE
GUARD. SERIOUS PERSONAL INJURY CAN RESULT.
ASSEMBLY CAUTION:
•Always be sure that the tool is switched off and the
battery cartridge is removed before carrying out any
work on the tool.
Socket wrench storage
The socket wrench is stored as shown in the figure. When
using the socket wrench, pull it out of the wrench holder.
After using the socket wrench, return it to the wrench holder.
1. Arm
2. Wrench holder
3. Socket wrench
2
1
3
002200

15
Installing or removing saw blade
CAUTION:
•Always be sure that the tool is switched off and the
battery cartridge is removed before installing or
removing the blade.
•Use only the Makita socket wrench provided to install or
remove the blade. Failure to do so may result in
overtightening or insufficient tightening of the hex bolt.
This could cause an injury.
Lock the handle in the raised position by pushing in the stop-
per pin.
To remove the blade, use the socket wrench to loosen the
hex bolt holding the center cover by turning it counterclock-
wise. Raise the blade guard and center cover.
Press the shaft lock to lock the spindle and use the socket
wrench to loosen the hex bolt clockwise. Then remove the
hex bolt, outer flange and blade.
1. Stopper Pin
1
002193
1. Blade Case
2. Hex bolt
3. Socket wrench
4. Blade guard
2
4
3
1
002215
1. Shaft lock
2. Arrow
3. Blade case
4. Socket wrench
5. Hex bolt
2
5
4
3
1
002216

16
To install the blade, mount it carefully onto the spindle, mak-
ing sure that the direction of the arrow on the surface of the
blade matches the direction of the arrow on the blade case.
Install the outer flange and hex bolt, and then use the socket
wrench to tighten the hex bolt (left-handed) securely counter-
clockwise while pressing the shaft lock.
Return the blade guard and center cover to its original posi-
tion. Then tighten the hex bolt clockwise to secure the center
cover. Release the handle from the raised position by pulling
the stopper pin. Lower the handle to make sure that the
blade guard moves properly. Make sure shaft lock has
released spindle before making cut.
Dust bag
The use of the dust bag makes cutting operations clean and
dust collection easy. To attach the dust bag, fit it onto the
dust nozzle.
When the dust bag is about half full, remove the dust bag
from the tool and pull the fastener out. Empty the dust bag of
its contents, tapping it lightly so as to remove particles adher-
ing to the insides which might hamper further collection.
NOTE:
If you connect a Makita vacuum cleaner to your saw, more
efficient and cleaner operations can be performed.
Securing workpiece
WARNING:
•It is extremely important to always secure the workpiece
properly and tightly with the vise. Failure to do so can
cause the tool to be damaged and/or the workpiece to
1. Outer flange
2. Inner flange
3. Spindle
4. Saw blade
5. Hex bolt
1. Arrow
2. Blade case
3. Saw blade
4. Arrow
54
3
2
1
001771
21 4 3
001783
1. Dust nozzle
2. Fastener
3. Dust bag
13
2
002217

17
be destroyed. PERSONAL INJURY MAY ALSO
RESULT. Also, after a cutting operation, DO NOT raise
the blade until the blade has come to a complete stop.
CAUTION:
•When cutting long workpieces, use supports that are as
high as the top surface level of the turn base. Do not rely
solely on the vertical vise and/or horizontal vise to
secure the workpiece.
Thin material tends to sag. Support workpiece over its
entire length to avoid blade pinch and possible
KICKBACK.
Vertical vise
The vertical vise can be installed in two positions on either
the left or right side of the guide fence or the holder assembly
(optional accessory). Insert the vise rod into the hole in the
guide fence or the holder assembly and tighten the screw to
secure the vise rod.
Position the vise arm according to the thickness and shape
of the workpiece and secure the vise arm by tightening the
screw. If the screw to secure the vise arm contacts the guide
fence, install the screw on the opposite side of vise arm.
Make sure that no part of the tool contacts the vise when
lowering the handle fully and pulling or pushing the carriage
all the way. If some part contacts the vise, re-position the
vise.
Press the workpiece flat against the guide fence and the turn
base. Position the workpiece at the desired cutting position
and secure it firmly by tightening the vise knob.
CAUTION:
•The workpiece must be secured firmly against the turn
base and guide fence with the vise during all operations.
1. Support
2. Turn base
1 2
001549
1. Vise arm
2. Vise rod
3. Guide fence
4. Holder
5. Holder assembly
6. Vise knob
7. Screw
1
2
3
6
7
4
5
001806

18
Horizontal vise (optional accessory)
The horizontal vise can be installed on the left side of the
base. By turning the vise knob counterclockwise, the screw
is released and the vise shaft can be moved rapidly in and
out. By turning the vise knob clockwise, the screw remains
secured. To grip the workpiece, turn the vise knob gently
clockwise until the projection reaches its topmost position,
then fasten securely. If the vise knob is forced in or pulled out
while being turned clockwise, the projection may stop at an
angle. In this case, turn the vise knob back counterclockwise
until the screw is released, before turning again gently clock-
wise.
The maximum width of the workpiece which can be secured
by the horizontal vise is 120 mm (4 - 3/4”).
CAUTION:
•Grip the workpiece only when the projection is at the
topmost position. Failure to do so may result in
insufficient securing of the workpiece. This could cause
the workpiece to be thrown, cause damage to the blade
or cause the loss of control, which can result in
PERSONAL INJURY.
Holders and holder assembly
(optional accessories)
The holders and the holder assembly can be installed on
either side as a convenient means of supporting workpieces
horizontally. Install them as shown in the figure. Then tighten
the screws firmly to secure the holders and the holder
assembly.
When cutting long workpieces, use the holder-rod assembly
(optional accessory). It consists of two holder assemblies
and two rods 12.
CAUTION:
•Always support long workpieces level with the top
surface of the turn base for accurate cuts and to prevent
dangerous loss of control of the tool.
1. Vise knob
2. Projection
3. Vise shaft
4. Base
12
3
4
001807
1. Holder
2. Holder assembly
12
002247
1. Holder assembly
2. Rod 12
2
1
002246

19
OPERATION CAUTION:
•Before use, be sure to release the handle from the
lowered position by pulling the stopper pin.
•Make sure the blade is not contacting the workpiece, etc.
before the switch is turned on.
•Do not apply excessive pressure on the handle when
cutting. Too much force may result in overload of the
motor and/or decreased cutting efficiency. Push down
handle with only as much force as is necessary for
smooth cutting and without significant decrease in blade
speed.
•Gently press down the handle to perform the cut. If the
handle is pressed down with force or if lateral force is
applied, the blade will vibrate and leave a mark (saw
mark) in the workpiece and the precision of the cut will
be impaired.
•During a slide cut, gently push the carriage toward the
guide fence without stopping. If the carriage movement
is stopped during the cut, a mark will be left in the
workpiece and the precision of the cut will be impaired.
1. Press cutting (cutting small workpieces)
Workpieces up to 50 mm (2”) high and 97 mm (3-13/16”)
wide can be cut in the following way.
Push the carriage toward the guide fence fully and
tighten the clamp screw on the turn base clockwise to
secure the carriage. Secure the workpiece with the vise.
Switch on the tool without the blade making any contact
and wait until the blade attains full speed before lower-
ing. Then gently lower the handle to the fully lowered
position to cut the workpiece. When the cut is com-
pleted, switch off the tool and WAIT UNTIL THE BLADE
HAS COME TO A COMPLETE STOP before returning
the blade to its fully elevated position.
CAUTION:
•Firmly tighten the clamp screw on the turn base
clockwise so that the carriage will not move during
operation. Insufficient tightening may cause unexpected
kickback of the blade. Possible serious PERSONAL
INJURY may result.
002218

20
2. Slide (push) cutting (cutting wide workpieces)
Loosen the clamp screw on the turn base counterclock-
wise so that the carriage can slide freely. Secure the
workpiece with the vise. Pull the carriage toward you
fully. Switch on the tool without the blade making any
contact and wait until the blade attains full speed. Press
down the handle and PUSH THE CARRIAGE TOWARD
THE GUIDE FENCE AND THROUGH THE WORK-
PIECE. When the cut is completed, switch off the tool
and WAIT UNTIL THE BLADE HAS COME TO A COM-
PLETE STOP before returning the blade to its fully ele-
vated position.
CAUTION:
•Whenever performing the slide cut, FIRST PULL THE
CARRIAGE TOWARD YOU FULLY and press down the
handle to the fully lowered position, then PUSH THE
CARRIAGE TOWARD THE GUIDE FENCE. NEVER
START THE CUT WITH THE CARRIAGE NOT FULLY
PULLED TOWARD YOU. If you perform the slide cut
without pulling the carriage fully or if you perform the
slide cut toward your direction, the blade may kickback
unexpectedly with the potential to cause serious
PERSONAL INJURY.
•Never perform the slide cut with the handle locked in the
lowered position by pressing the stopper pin.
•Never loosen the clamp screw which secures the
carriage while the blade is rotating. This may cause
serious injury.
3. Miter cutting
Refer to the previously covered “Adjusting the miter
angle”.
4. Bevel cut
Loosen the lever and tilt the saw blade to set the bevel
angle (Refer to the previously covered “Adjusting the
bevel angle”). Be sure to retighten the lever firmly to
secure the selected bevel angle safely. Secure the work-
piece with a vise. Make sure the carriage is pulled all the
way back toward the operator. Switch on the tool without
the blade making any contact and wait until the blade
attains full speed. Then gently lower the handle to the
fully lowered position while applying pressure in parallel
with the blade and PUSH THE CARRIAGE TOWARD
THE GUIDE FENCE TO CUT THE WORKPIECE. When
002219
002220
