INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
Cordless Scarier
Escaricador Inalámbrico
GVU01
IMPORTANT: Read Before Using.
IMPORTANTE: Lea antes de usar.

2ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: GVU01
Working width 380 mm (15″)
No load speed 3,200 /min
Part number of replacement
scarier blades
Vertical cutter 1913J5-0
Thatching blades 1913J7-6
Dimensions
(L x W x H)
during operation L: 1,020 mm to 1,240 mm (40-1/4″ to 48-3/4″)
W: 680 mm (26-3/4″)
H: 915 mm to 1,155 mm (36″ to 45-1/2″)
when stored
(without grass basket)
550 mm x 680 mm x 640 mm (21-5/8″ x 26-3/4″ x 25-1/4″)
Rated voltage D.C. 36 V - 40 V max
Net weight 18.7 - 23.8 kg (41.2 - 52.5 lbs)
Protection degree IPX4
• Due to our continuing program of research and development, the specications herein are subject to change
without notice.
• Specications may di󰀨er from country to country.
• The weight may di󰀨er depending on the attachment(s), including the battery cartridge. The lightest and heavi-
est combinations, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge and charger
Battery cartridge BL4020 / BL4025* / BL4040* / BL4050F* / BL4080F*
* : Recommended battery
Charger DC40RA / DC40RB / DC40RC
• Some of the battery cartridges and chargers listed above may not be available depending on your region of
residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
and chargers may cause injury and/or re.
WARNING: Do not use a corded power supply such as battery adapter or portable power pack with
this machine. The cable of such power supply may hinder the operation and result in personal injury.
SAFETY WARNINGS
General power tool safety warnings
WARNING Read all safety warnings, instruc-
tions, illustrations and specications provided with
this power tool. Failure to follow all instructions listed
below may result in electric shock, re and/or serious
injury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.

3ENGLISH
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location is
unavoidable, use a ground fault circuit inter-
rupter (GFCI) protected supply. Use of a GFCI
reduces the risk of electric shock.
7. Power tools can produce electromagnetic
elds (EMF) that are not harmful to the user.
However, users of pacemakers and other similar
medical devices should contact the maker of their
device and/or doctor for advice before operating
this power tool.
Personal safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
power tools may result in serious personal injury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
3. Prevent unintentional starting. Ensure the
switch is in the o󰀨-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your nger on the switch or energising power tools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8. Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action
can cause severe injury within a fraction of a
second.
9. Always wear protective goggles to protect
your eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in
the USA.
It is an employer's responsibility to enforce the
use of appropriate safety protective equipment
by the tool operators and by other persons in
the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and o󰀨. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5. Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may a󰀨ect the power tool’s operation. If dam-
aged, have the power tool repaired before use.
Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations di󰀨erent from those intended could
result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpected
situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
result in personal injury.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of re
when used with another battery pack.
2. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and re.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nals together may cause burns or a re.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause
irritation or burns.

4ENGLISH
5. Do not use a battery pack or tool that is dam-
aged or modied. Damaged or modied batteries
may exhibit unpredictable behaviour resulting in
re, explosion or risk of injury.
6. Do not expose a battery pack or tool to re or
excessive temperature. Exposure to re or tem-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outside the specied range may damage the
battery and increase the risk of re.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
3. Follow instruction for lubricating and chang-
ing accessories.
4. Do not modify or attempt to repair the appli-
ance or the battery pack except as indicated in
the instructions for use and care.
Lawn scarier and lawn aerator
safety warnings
1. Do not use the machine in bad weather condi-
tions, especially when there is a risk of light-
ning. This decreases the risk of being struck by
lightning.
2. Thoroughly inspect the area for wildlife where
the machine is to be used. Wildlife may be
injured by the machine during operation.
3. Thoroughly inspect the area where the
machine is to be used and remove all stones,
sticks, wires, bones, and other foreign objects.
Thrown objects can cause personal injury.
4. Before using the machine, always visually
inspect to see that the tines and the tines
assembly are not worn or damaged. Worn or
damaged parts increase the risk of injury.
5. Check the grass catcher frequently for wear or
deterioration. A worn or damaged grass catcher
may increase the risk of personal injury.
6. Keep guards in place. Guards must be in work-
ing order and be properly mounted. A guard
that is loose, damaged, or is not functioning cor-
rectly may result in personal injury.
7. Keep all cooling air inlets clear of debris.
Blocked air inlets and debris may result in over-
heating or risk of re.
8. While operating the machine, always wear
non-slip and protective footwear. Do not oper-
ate the machine when barefoot or wearing
open sandals. This reduces the chance of injury
to the feet from contact with the moving tines.
9. While operating the machine, always wear long
trousers. Exposed skin increases the likelihood of
injury from thrown objects.
10. Do not operate the machine in wet grass. Walk,
never run. This reduces the risk of slipping and
falling which may result in personal injury.
11. Do not operate the machine on excessively
steep slopes. This reduces the risk of loss of
control, slipping and falling which may result in
personal injury.
12. When working on slopes, always be sure of
your footing, always work across the face
of slopes, never up or down and exercise
extreme caution when changing direction. This
reduces the risk of loss of control, slipping and
falling which may result in personal injury.
13. Use extreme caution when reversing or pulling
the machine towards you. Always be aware
of your surroundings. This reduces the risk of
tripping during operation.
14. Hold the machine by insulated gripping sur-
faces only, because the tines may contact
hidden wiring. Tines contacting a "live" wire may
make exposed metal parts of the machine "live"
and could give the operator an electric shock.
15. Do not touch tines and other hazardous mov-
ing parts while they are still in motion. This
reduces the risk of injury from moving parts.
16. When clearing jammed material or cleaning
the machine, make sure all power switches are
o󰀨 and the battery packs are disconnected.
Unexpected operation of the machine may result
in serious personal injury.
17. Be sure to stop the scarier blades if the
machine has to be tilted for transportation
when crossing surfaces other than grass and
when transporting the machine to and from the
area in which it is to be used.
18. Do not to tilt the machine when switching on
the machine.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product.
MISUSE or failure to follow the safety rules stated
in this instruction manual may cause serious
personal injury.
IMPORTANT SAFETY
INSTRUCTIONS
WARNING: When using the machine, basic
safety precautions should always be followed to
reduce the risk of re, electric shock, and per-
sonal injury; including the following.
Read All Instructions
WARNING!
Read, understand, and follow all instructions on the
machine and in the instruction manuals. Be thoroughly
familiar with the controls and the proper use of the
machine before starting.

5ENGLISH
Training
1. This machine is capable of amputating hands
and feet and throwing objects. Failure to
observe the following safety instructions
could result in serious injury or death.
2. Only allow responsible adults, who are familiar
with the instruction, to operate the machine.
Preparation
1. Keep Children Away - All visitors should be kept
a safe distance from work area. Be alert and
turn the machine o󰀨 if a child enters the area.
Use extra care when approaching blind corners,
shrubs, trees, or other objects that may block your
view of a child.
2. Dress Properly - Do not wear loose clothing or
jewelry. They can be caught in moving parts. Use
of rubber gloves and substantial footwear is rec-
ommended when working outdoors. Do not oper-
ate the machine when barefoot or wearing open
sandals.
3. Use Safety Glasses- Always use face or dust
mask if operation is dusty.
4.
Objects struck by the scarier blades can cause
severe injuries to persons. The lawn should
always be carefully examined and cleared of all
objects prior to each operation. Stay behind the
handle when the motor is running.
5. Be sure the area is clear of other people before
operation. Stop the machine if anyone enters
the area.
6. Watch for holes, ruts, bumps, rocks, or other
hidden objects. Uneven terrain could cause a slip
and fall accident. Tall grass can hide obstacles.
7. Check the blades or blade bolts carefully for
cracks or damage before operation. Replace
cracked or damaged blades or blade bolts
immediately.
8. Before operation, inspect the machine or scar-
ier blades for any damage.
Operation
1. Avoid Dangerous Environment - Never operate
the machine in damp or wet locations. Always be
sure of your footing: keep a rm hold on the han-
dle and walk; never run.
2. Don't Use In Rain.
3. Use Right Appliance - Do not use the machine
for any job except that for which it is intended.
4. Don't Force Machine - It will do the job better and
safer at the rate for which it was designed.
5. Don't Overreach - Keep proper footing and bal-
ance at all times. Do not operating the machine
near drop o󰀨s, ditches, or embankments. You
could lose your footing or balance.
6. Stay Alert - Watch what you are doing. Use com-
mon sense. Do not operate the machine when you
are tired. Do not operate machine while under the
inuence of alcohol or drugs. A moment of inat-
tention while operating the machine may result in
serious personal injury.
7. Remove Battery From Machine - Remove
the battery when not in use, before servicing,
cleaning, removing material from the machine, or
changing accessories such as scarier blades,
and the like.
8. Keep hands and feet away from cutting area.
Keep clear of the discharge opening at all
times.
9. If the machine strikes a foreign object, follow
these steps:
• Stop the machine. Release the switch. Wait
until the blade comes to a complete stop.
• Remove the battery cartridge.
• Inspect the machine for any damage.
• Repair any damage before restarting and
operating the machine. Replace the scarier
blades if they are damaged in any way.
10. Never direct discharged material toward
anyone. Avoid discharging material against a
wall or obstruction. Material may ricochet back
toward the operator. Stop the scarier blades
when crossing gravel surfaces.
11. Do not pull the machine backwards unless
absolutely necessary. When you are compelled
to back the machine from a fence or other similar
obstruction, look down and behind before and
while moving backwards.
12. Release switch lever and wait for blade rota-
tion to stop before crossing driveways, walks,
roads and any gravel-covered areas. Also turn
o󰀨 the machine if you leave the machine, reach
to pick up or remove something out of your way,
or for any other reason that may distract you from
what you are doing.
13. Do not operate machine without the entire
grass catcher, discharge guard, rear guard, or
other safety protective devices in place and
working.
14. Stop the machine and remove the batteries
whenever you leave the machine, before clean-
ing the machine, or unclogging the chute, or
making any repairs or inspections.
15. Shut the motor o󰀨 and wait until the scarier
blades come to a complete stop before remov-
ing the grass catcher. Beware that the blades
coast after turn o󰀨.
16. Operate the machine only in daylight or good
articial light.
17. If the machine starts to vibrate abnormally
(check immediately)
- inspect for damage,
- replace or repair any damaged parts,
- check for and tighten any loose parts.
18. Don't grasp the exposed scarier blades or
cutting edges when picking up or holding the
appliance.
19. Never attempt to make working depth adjust-
ments while the machine is running.
20. Operate the machine across the face of slopes,
never up and down. Exercise extreme caution
when changing direction on slopes. Do not
operate the machine excessively steep slopes.
Poor footing could cause a slip and fall accident.
21. Avoid operating the machine in wet grass.
22. Stop operation immediately if you notice any-
thing unusual. Switch o󰀨 the machine. Then
inspect the machine.

6ENGLISH
23. Avoid using the machine in bad weather
conditions especially when there is a risk of
lightning.
24. When you use the machine on muddy ground,
wet slope, or slippery place, pay attention to
your footing.
25. Do not submerge the machine into a puddle.
26. When operating the machine, pay attention to
piping and wiring.
Maintenance and storage
1. Store Idle Machine Indoors - When not in use,
the machine should be stored in an indoor dry and
locked-up place - out of reach of children.
2. Maintain Machine With Care - Keep cutting
edges sharp and clean for best and safest per-
formance. Follow instructions for lubricating and
changing accessories. Keep handles dry, clean,
and free from oil and grease.
3. Keep machine free of grass, leaves, or other
debris build up. Keep guards in place and in
working order.
4. Use identical replacement blades only.
5. Check the grass basket frequently for wear or
deterioration. For storage, always make sure
the grass basket is empty. Replace a worn grass
basket with a new factory replacement one for
safety.
6. Check grass basket components and the
discharge guard frequently and replace with
manufacturer’s recommended parts, when
necessary.
7. Check the scarier blades mounting bolt at
frequent intervals for proper tightness.
8. Keep all nuts, bolts, and screws tight to
be sure the equipment is in safe working
condition.
9. Never remove or tamper with safety devices.
Check their proper operation regularly. Never
do anything to interfere with the intended
function of a safety device or to reduce the
protection provided by a safety device.
10. Be careful during adjustment of the machine
to prevent entrapment of the ngers between
moving blades and xed parts of the machine.
11. Always allow the machine to cool down before
storing.
12. When servicing the scarier blades be
aware that, even though the power source is
switched o󰀨, the blades can still be moved.
13. Maintain or replace safety and instruction
labels, as necessary.
14. Do not leave the machine unattended outdoors
in the rain.
15. When storing the machine, avoid direct sun-
light and rain, and store it in a place where it
does not get hot or humid.
Battery tool use and care
1. Prevent unintentional starting. Ensure the
switch is in the o󰀨-position before connecting
to battery pack, picking up or carrying the
machine. Carrying the machine with your nger
on the switch or energizing machine that have the
switch on invites accidents.
2. Disconnect the battery pack from the machine
before making any adjustments, changing
accessories, or storing machine. Such preven-
tive safety measures reduce the risk of starting the
machine accidentally.
3. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of re
when used with another battery pack.
4. Use machines only with specically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and re.
5. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nals together may cause burns or a re.
6. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, seek medical help. Liquid
ejected from the battery may cause irritation or
burns.
7. Do not use a battery pack or machine that is
damaged or modied. Damaged or modied
batteries may exhibit unpredictable behaviour
resulting in re, explosion or risk of injury.
8. Do not expose a battery pack or machine to
re or excessive temperature. Exposure to re
or temperature above 130°C (265°F) may cause
explosion.
9. Follow all charging instructions and do not
charge the battery pack or machine outside of
the temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outside of the specied range may damage the
battery and increase the risk of re.
10. Have servicing performed by a qualied repair
person using only identical replacement parts.
This will ensure that the safety of the product is
maintained.
11. Do not modify or attempt to repair the machine
or the battery pack except as indicated in the
instructions for use and care.
Electrical and battery safety
1. Do not dispose of the battery(ies) in a re.
The cell may explode. Check with local codes for
possible special disposal instructions.
2. Do not open or mutilate the battery(ies).
Released electrolyte is corrosive and may cause
damage to the eyes or skin. It may be toxic if
swallowed.
3. Do not charge battery in rain, or in wet
locations.
4. Do not charge the battery outdoors.
5. Do not handle charger, including charger plug,
and charger terminals with wet hands.
6. When replacing batteries, all batteries should
be replaced at the same time. Mixing fresh and
discharged batteries could increase internal cell
pressure and rupture the discharged battery.

7ENGLISH
7. Exercise care in handling batteries in order not
to short the battery with conducting materials
such as rings, bracelets, and keys. The battery
or conductor may overheat and cause burns.
8. Do not replace the battery in the rain.
9. Do not wet the terminal of battery with liquid
such as water, or submerge the battery. Do not
leave the battery in the rain, nor charge, use,
or store the battery in a damp or wet place. If
the terminal gets wet or liquid enters inside of bat-
tery, the battery may be short circuited and there is
a risk of overheat, re, or explosion.
10. After removing the battery from the machine or
charger, be sure to attach the battery cover to
the battery and store it in a dry place.
11. Do not replace the battery with wet hands.
12. Avoid dangerous environment. Don't use the
machine in damp or wet locations or expose it
to rain. Water entering the machine will increase
the risk of electric shock.
13. If the battery cartridge gets wet, drain the
water inside and then wipe it with a dry cloth.
Dry the battery cartridge completely in a dry
place before use.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
SAVE THESE INSTRUCTIONS.
WARNING: Use of this product can create
dust containing chemicals which may cause
respiratory or other illnesses. Some examples of
these chemicals are compounds found in pesti-
cides, insecticides, fertilizers and herbicides.
Your risk from these exposures varies, depend-
ing on how often you do this type of work. To
reduce your exposure to these chemicals: work
in a well ventilated area, and work with approved
safety equipment, such as those dust masks that
are specially designed to lter out microscopic
particles.
Symbols
The followings show the symbols used for tool.
volts
direct current
no load speed
revolutions or reciprocation per minute
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble or tamper with the battery
cartridge. It may result in a re, excessive heat,
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge. Such conduct may result in a
re, excessive heat, or explosion.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask o󰀨 open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliant products may result in a re, exces-
sive heat, explosion, or leak of electrolyte.

8ENGLISH
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge. It may cause heating, catching re,
burst and malfunction of the tool or battery car-
tridge, resulting in burns or personal injury.
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near high-voltage electri-
cal power lines. It may result in a malfunction or
breakdown of the tool or battery cartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causing res, personal injury and damage. It will
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
ASSEMBLY
WARNING: Always be sure that all the battery
cartridges are removed before carrying out any
work on the machine. Failure to remove all the bat-
tery cartridges may result in serious personal injury
from accidental start-up.
WARNING: Never start the machine unless it
is completely assembled. Operation of the machine
in a partially assembled state may result in serious
personal injury from accidental start-up.

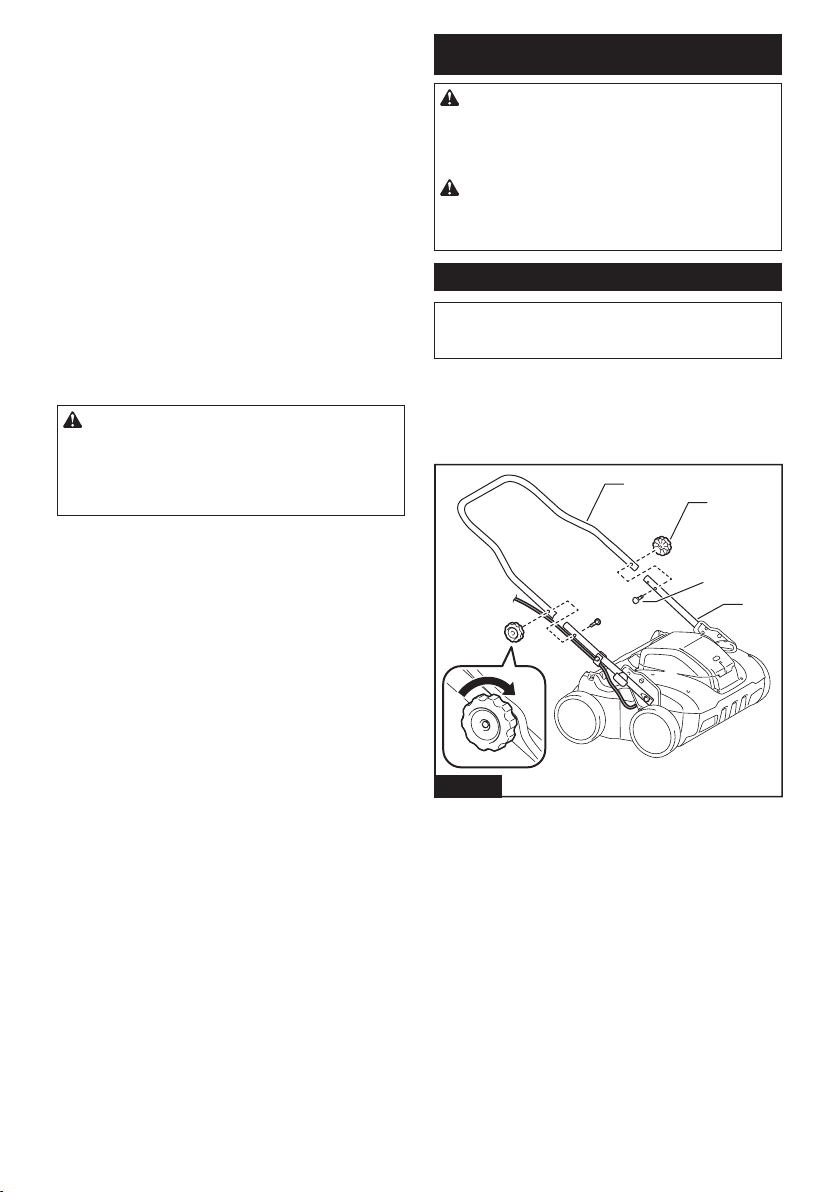

Installing the handle
NOTICE: When installing the handles, be careful
not to pinch the cord between the handles. If the
cord is damaged, the switch may not work.
1. Raise the lower handle.
2. Align the hole in the lower handle with the hole
in the middle handle, then insert the bolt from the
inside, and then tighten the thumb nut from the outside.
Perform the same procedure on the other side.
3
2
1
4
Fig.1
► 1. Middle handle 2. Thumb nut 3. Bolt 4. Lower
handle

9ENGLISH
3. Align the hole in the middle handle with the
hole in the upper handle, then insert the bolt from the
inside, and then tighten the thumb nut from the outside.
Perform the same procedure on the other side.
12
3
4
Fig.2
► 1. Upper handle 2. Thumb nut 3. Bolt 4. Middle
handle
NOTE: Make sure that the cord is not caught between
the handle and the thumb nut.
Fig.3
Installing or removing the grass
basket
To install the grass basket, follow the steps below.
1. Open the rear cover.
1
Fig.4
► 1. Rear cover
2. Hold the handle of the grass basket, and then
install the grass basket by inserting the rod of the grass
basket into the grooves on the machine as shown in the
gure.
1
2
3
3
Fig.5
► 1. Grass basket 2. Handle 3. Rod
To remove the grass basket, open the rear cover, and
then remove the grass basket by holding the handle.

10 ENGLISH
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the machine
is switched o󰀨 and the battery cartridges are
removed before adjusting or checking function on
the machine.

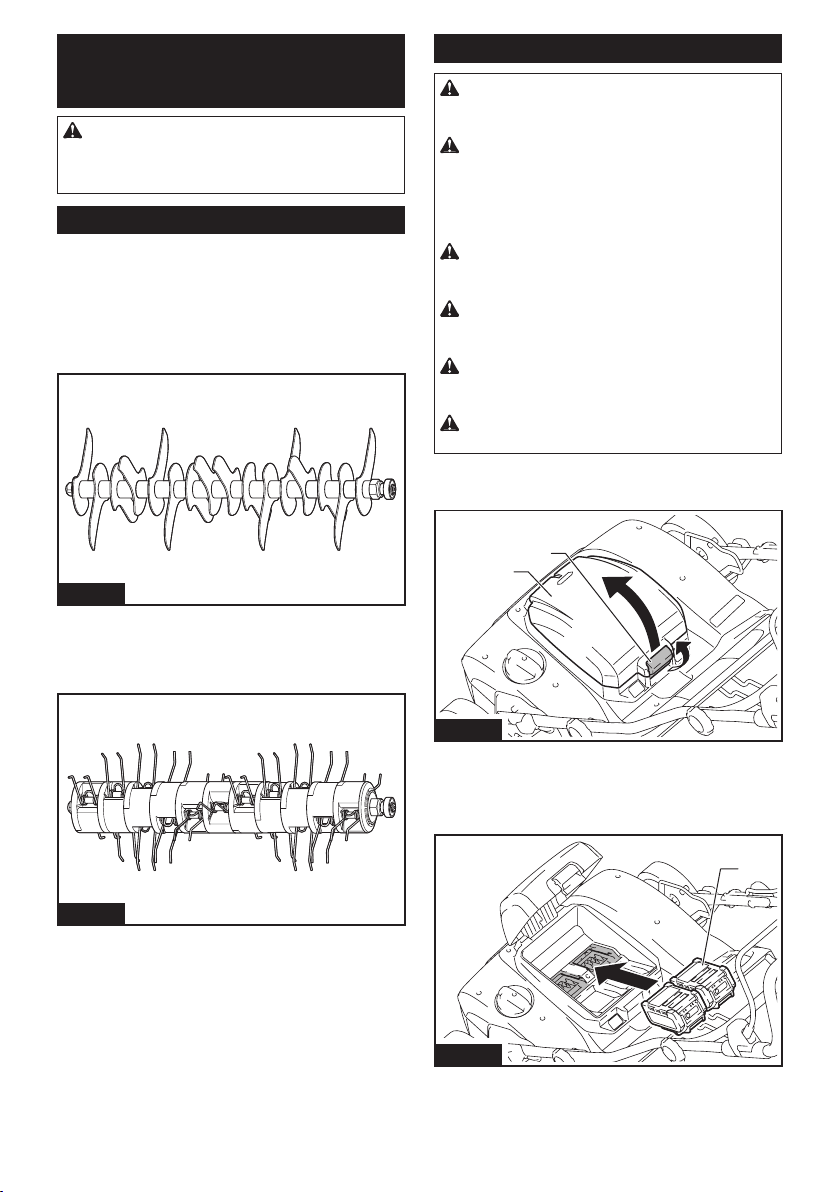

Applications of scarier blades
Vertical cutter
The vertical cutter removes the thatch and moss from
the lawns and cut the roots of lawns vertically. The verti-
cal cutter loosens the soil and increases the aeration of
lawns, and let the water go into the roots of lawns and
prevent the water from staying on the surface.
Fig.6
Thatching blades
The thatching blades remove the thatch and mosses
from the lawns without cutting the roots of lawns.
Fig.7
Installing or removing battery cartridge
CAUTION: Always switch o󰀨 the machine
before installing or removing of the battery
cartridge.
CAUTION: Hold the machine and the battery
cartridge rmly when installing or removing bat-
tery cartridge. Failure to hold the machine and the
battery cartridge rmly may cause them to slip o󰀨
your hands and result in damage to the machine and
battery cartridge and a personal injury.
CAUTION: Make sure that you lock the battery
cover before use. Otherwise, mud, dirt, or water may
cause damage to the product or the battery cartridge.
CAUTION: Always install the battery cartridge
fully. If not, it may accidentally fall out of the machine,
causing injury to you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
CAUTION: Hold the battery cover rmly when
installing or removing the battery cartridge.
To install the battery cartridge;
1.
Pull up the locking lever, and then open the battery cover.
2
1
Fig.8
► 1. Battery cover 2. Locking lever
2. Align the tongue on the battery cartridge with the
slot on the machine, and then slide the cartridge until it
locks in place with a little click.
1
Fig.9
► 1. Battery cartridge
3. Close the battery cover and push it until it is
latched with the locking lever.

11 ENGLISH
To remove the battery cartridge;
1. Pull up the locking lever and open the battery
cover.
2. Pull out the battery cartridge from the machine
while sliding the button on the front of the cartridge.
3. Close the battery cover.
Machine / battery protection system
The machine is equipped with a machine/battery
protection system. This system automatically cuts o󰀨
power to the motor to extend machine and battery life.
The machine will automatically stop during operation if
the machine or battery is placed under one of the fol-
lowing conditions:
Overload protection
When the battery is operated in a manner that causes
it to draw an abnormally high current, the machine
automatically stops and the main power lamp blinks in
green. In this situation, turn the machine o󰀨 and stop
the application that caused the machine to become
overloaded. Then turn the machine on to restart.
Overheat protection
When the machine is overheated, the machine stops
automatically and the main power lamp lights up in red.
In this case, let the machine and batteries cool before
turning the machine on again.
NOTE: When the battery is overheated, the main
power lamp blinks in red.
Overdischarge protection
When the battery capacity is not enough, the machine
stops automatically and the main power lamp blinks in
red. In this case, remove the battery from the machine
and charge the battery cartridges or change the battery
cartridges to fully charged ones.
Protections against other causes
Protection system is also designed for other causes that
could damage the machine and allows the machine to
stop automatically. Take all the following steps to clear
the causes, when the machine has been brought to a
temporary halt or stop in operation.
1. Turn the machine o󰀨, and then turn it on again to
restart.
2. Charge the battery(ies) or replace it/them with
recharged battery(ies).
3. Let the machine and battery(ies) cool down.
If no improvement can be found by restoring protection
system, then contact your local Makita Service Center.
NOTICE: If the machine stops due to a cause
not described above, refer to the section for
troubleshooting.
Indicating the remaining battery
capacity
1
Fig.10
► 1. Battery indicator
When the remaining battery capacity gets low, the bat-
tery indicator blinks on the applicable battery side. By
further use, the machine stops and the battery indicator
lights up. In this situation, charge the battery cartridge.
NOTE: If two battery cartridges are installed, the
battery installed on the left side is used rst.
NOTE: If two battery cartridges are installed, the
machine automatically switches the battery when the
battery in use becomes empty.
Indicating the remaining battery
capacity
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
1
2
Fig.11
► 1. Indicator lamps 2. Check button

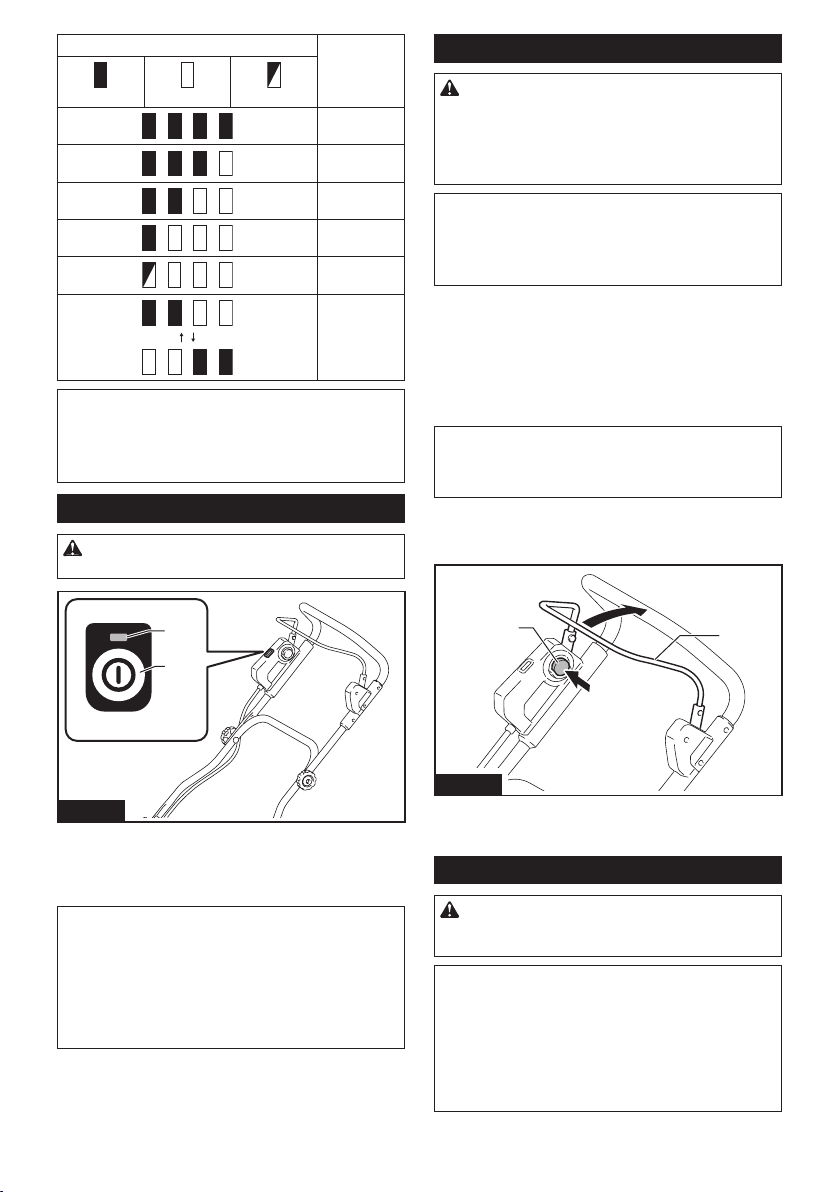

12 ENGLISH
Indicator lamps Remaining
capacity
Lighted O󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may di󰀨er slightly
from the actual capacity.
NOTE: The rst (far left) indicator lamp will blink when
the battery protection system works.
Main power switch
WARNING: Always turn o󰀨 the main power
switch when not in use.
1
2
Fig.12
► 1. Main power lamp 2. Main power switch
To turn on the machine, press the main power switch.
The main power lamp lights up in green. To turn o󰀨 the
machine, press the main power switch again.
NOTE: If the main power lamp lights up in red or
blinks in red or green, refer to the instructions for
machine/battery protection system.
NOTE: This machine employs the auto power-o󰀨
function. To avoid unintentional start up, the main
power switch will automatically shut down when the
switch lever is not pulled for a certain period after the
main power switch is turned on.
Switch action
WARNING: Before installing the battery car-
tridge, always check to see that the switch lever
actuates properly and returns to the original posi-
tion when released. Operating the machine with a
switch that does not actuate properly can lead to loss
of control and serious personal injury.
NOTE: The machine does not start without pressing
the switch button even if the switch lever is pulled.
NOTE: The machine may not start due to the over-
load when you try to operate the machine on solid
soil. In this case, set the working depth shallower.
This machine is equipped with the switch button. If you
notice anything unusual with the switch button, stop
the operation immediately and have it checked by your
nearest Makita Authorized Service Center.
1. Install the battery cartridges, and then close the
battery cover.
2. Press the main power switch.
NOTE: The main power lamp blinks in green if you
press the main power switch while pulling the switch
lever. Release the switch lever before pressing the
main power switch.
3. Pull the switch lever toward you while holding
down the switch button. Release the switch button when
the motor starts running.
12
Fig.13
► 1. Switch button 2. Switch lever
4. Release the switch lever to stop the motor.
Adjusting the working depth
WARNING: Never put your hand or leg under
the machine body when adjusting the working
depth.
NOTICE: When transporting the machine, be
sure to set the adjusting dial to the far left posi-
tion so that the scarier blades do not touch the
ground.
NOTICE: When using the thatching blades, do
not set the working depth deeper than - 4 mm (-
5/32″). If the working depth is too deep, it may accel-
erate the wear of the thatching blades.

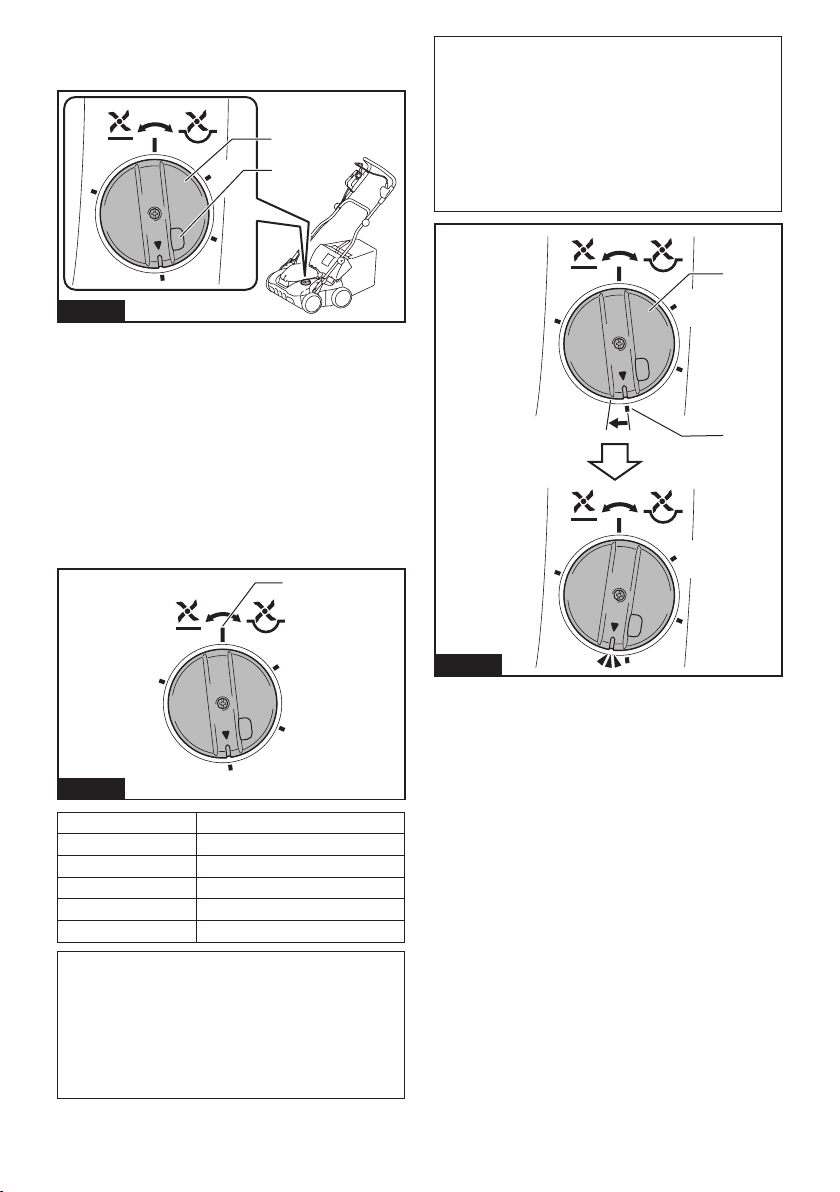

13 ENGLISH
To adjust the working depth, turn o󰀨 the machine, and
then turn the adjusting dial while pressing the lock-o󰀨
button.
1
2
Fig.14
► 1. Adjusting dial 2. Lock-o󰀨 button
The working depth can be adjusted in the range of
between -12 mm (-15/32″) and 5 mm (3/16″).
When you turn the adjusting dial to the far left position,
the working depth becomes the shallowest (5 mm
(3/16″) from the ground). When you turn the adjusting
dial to the far right position, the working depth becomes
the deepest (-12 mm (-15/32″) from the ground). When
you set the adjusting dial to the upper center position,
the working depth becomes 0.
The table below shows the relationship between the
number in the gure and the approximate working
depth.
(1)
(2)
(3)
(4)
(5)
Fig.15
Number Working depth
(1) 5 mm (3/16″)
(2) 0 mm (0″)
(3) - 4 mm (-5/32″)
(4) - 8 mm (-5/16″)
(5) - 12 mm (-15/32″)
NOTE: The working depth can be set in 1 mm (1/32″)
increments.
NOTE: The working depth gures should be used just
as a guideline. Depending on lawn or soil conditions,
the actual working depth may become slightly di󰀨er-
ent from the set depth.
NOTE: Try a test operation in a less conspicuous
place to get the desired depth.
NOTE: When you turn the adjusting dial to the right
and set it to the lower scale of the machine, the work-
ing depth is set to -12 mm (-15/32″).
If the set working depth cannot be obtained when
you set the adjusting dial to the lower scale of the
machine depending on the conditions such as lawn
environment or wear of scarier blades, you can
operate the machine with a setting one step deeper
by turning the adjusting dial to the right beyond the
lower scale.
1
2
Fig.16
► 1. Adjusting dial 2. Lower scale

14 ENGLISH
Adjusting the handle height
The handle height can be adjusted in two levels.
1. Hold the middle handle, and then turn the knob
90° while pulling the knob on the lower handle to
release the locking pin. Perform the same procedure on
the other side.
1
2
Fig.17
► 1. Lower handle 2. Knob
NOTE: Supporting the handle makes it easier to
release the locking pin when pulling the knob.
2. Adjust the handle height, and then turn the
knob on both sides 90°. Make sure that the knobs are
securely xed.
1
Fig.18
► 1. Knob
Using the rear discharge
Using the rear discharge allows you to discharge the cut
grass to the ground from the rear side of the machine
without gathering the cut grass in the grass basket.
When you operate the machine using the rear dis-
charge, be sure to remove the grass basket, and close
the rear cover.
Electronic function
The machine is equipped with the following electronic
functions.
• Electric brake
This machine is equipped with an electric brake. If
the machine consistently fails to quickly stop the
scarier blades after releasing the switch lever,
have the machine serviced at Makita Authorized
Service Center.
OPERATION
Operating the machine
WARNING: Before operating the machine,
remove sticks and stones from the work area.
Also, remove any weeds from the work area in
advance.
WARNING: Always wear the safety goggles or
safety glasses with side shields when operating
the machine.
CAUTION: If the cut grass or foreign object
blocks up inside of the machine body, be sure to
remove the battery cartridges and wear gloves
before removing the grass or foreign object.
NOTICE: Use this machine only on lawns. Do not
use this machine on weeds.
Fig.19
NOTICE: Before operating the machine, be sure
to mow the lawn to a height of approximately
20 mm (13/16″) to 30 mm (1-3/16″). If the lawn is
too long, it may interfere with the operation of the
machine.

15 ENGLISH
Hold the handle rmly with both hands when operating
the machine. The operating speed guideline is approxi-
mately 5 to 8 meters (16.4 to 26.3 ft.) per 10 seconds.
Fig.20
NOTE: When working on dense lawn, if a poor nish
is found after operation, or decrease of the motor
speed is found during operation, decrease the operat-
ing speed lower than recommended in this manual, or
set the working depth shallower.
Use the marks on the front side as a guide for working
width.
12
Fig.21
► 1. Working width 2. Mark
Periodically check the grass basket for cut grass. Empty
the grass before it becomes full. Before each periodic
check, be sure to stop and turn o󰀨 the machine.
NOTICE: Using the machine with a full grass
basket prevents the scarier blades from rotating
smoothly and puts extra load on the motor, which
may result in a breakdown.
Emptying the grass basket
WARNING: To reduce a risk of accident, reg-
ularly check the grass basket for any damage or
weakened strength. Replace the grass basket if
necessary.
1. Release the switch lever.
2. Turn o󰀨 the machine.
3. Open the rear cover and take out the grass basket
by holding the handle.
1
2
3
Fig.22
► 1. Rear cover 2. Handle 3. Grass basket
4. Empty the grass basket.
MAINTENANCE
WARNING: Always be sure that all the battery
cartridges are removed from the machine before
storing or carrying the machine or attempting to
perform inspection or maintenance.
WARNING: Wear gloves when performing
inspection or maintenance.
WARNING: Always wear the safety goggles or
safety glasses with side shields when performing
inspection or maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY,
repairs, any other maintenance or adjustment should
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
Maintenance
1. Remove all the battery cartridges, and then close
the battery cover.
2. Place the machine on its side. Clean grass clip-
pings accumulated on the underside of the machine
body.

16 ENGLISH
3. Pour water toward the bottom of the machine to
which the scarier blades are attached.
Fig.23
NOTICE: Do not wash the machine with high
pressure water.
4. Check all nuts, bolts, screws, etc. for tightness.
5. Inspect moving parts for damage, breakage, and
wear. Damaged or missing parts should be repaired or
replaced.
6. Store the machine in a safe place out of the reach
of children.
Carrying the machine
CAUTION: Before carrying the machine, make
sure that all the battery cartridges are removed.
When carrying the machine, hold the middle handle and
the lower holding part on the front of the machine with
two people as shown in the gure.
1
2
Fig.24
► 1. Middle handle 2. Lower holding part
Storing
Store the machine indoors in a cool, dry and locked
place. Do not store the machine in locations where the
temperature may reach or exceed 40 °C (104 °F).
1. Remove all the battery cartridges.
2. Loosen the thumb nuts on both sides of the lower
handle, and then fold the upper and middle handles.
1
Fig.25
► 1. Thumb nut
NOTICE: Be careful not to pinch the cords when
folding the handle.

17 ENGLISH
3.
Loosen the thumb nuts on both sides of the upper handle.
1
Fig.26
► 1. Thumb nut
4. Fold the upper handle as shown in the gure.
Fig.27
NOTICE: Be careful not to pinch the cords when
folding the handle.
5. Place the grass basket as shown in the gure.
1
Fig.28
► 1. Grass basket
Removing or installing the scarier blades
WARNING: The scarier blades coast for a
few seconds after releasing the switch lever. Do
not start any operation until the blades come to a
complete stop.
WARNING: Always remove all the battery
cartridges when removing or installing the scar-
ier blades. Failure to remove all the battery car-
tridges may cause a serious injury.
WARNING: Always wear gloves when han-
dling the scarier blades.
Guideline for replacing the vertical cutter
If the tips of the vertical cutter blades have reached the
wear lines, replace the vertical cutter with a new one.
1
Fig.29
► 1. Wear line
Removing the scarier blades
1. Place the machine on its side so that the adjusting
dial comes to the upper side.
2.
Loosen the bolts, and then remove the bolt and the bracket.
2
1
Fig.30
► 1. Bolt 2. Bracket

18 ENGLISH
3. Lift the scarier blades upward slightly, and then
remove the scarier blades from the machine.
1
Fig.31
► 1. Scarier blades
NOTE: If it is di󰀩cult to remove the scarier blades
from the machine, use the tool such as slotted screw-
driver to lift the scarier blades upward slightly.
1
Fig.32
► 1. Slotted screwdriver
Installing the scarier blades
WARNING: When you replace the scarier
blades, always follow the instructions provided in
this manual.
WARNING: Tighten the bolts clockwise rmly
to secure the scarier blades.
WARNING: Make sure that the scarier blades
and all the xing parts are installed correctly and
tightened securely.
1. Place the one end of the scarier blades into the
hole on the machine, and then place the other end of
the blades into the groove on the machine as shown in
the gure.
2
1
Fig.33
► 1. Groove 2. Hole
NOTE: When installing the scarier blades, rotating
the scarier blades makes it easier to insert the end
of blades into the hole.
2. Attach the bracket, and then tighten the bolts.
1
2
Fig.34
► 1. Bolt 2. Bracket

19 ENGLISH
TROUBLESHOOTING
Before asking for repairs, conduct your own inspection rst. If you nd a problem that is not explained in the manual,
do not attempt to disassemble the machine. Instead, ask Makita Authorized Service Centers, always using Makita
replacement parts for repairs.
State of abnormality Probable cause (malfunction) Remedy
Machine does not start. Battery cartridge is not installed. Install charged battery cartridge.
Battery problem (under voltage) Recharge the battery cartridge. If recharging is not
e󰀨ective, replace battery cartridge.
Motor stops running after a little use. Battery's charge level is low. Recharge the battery cartridge. If recharging is not
e󰀨ective, replace battery cartridge.
Working depth is too deep. Set the working depth shallower.
Cut grass is clogged in the machine. Remove the clogged grass from the machine.
Motor does not reach maximum
RPM.
Battery cartridge is installed improperly. Install the battery cartridge as described in this
manual.
Battery power is dropping. Recharge the battery cartridge. If recharging is not
e󰀨ective, replace battery cartridge.
The drive system does not work
correctly.
Ask your local authorized service center for repair.
Scarier blades do not rotate:
stop the machine immediately!
Foreign object such as branch is stuck
in the scarier blades.
Remove the foreign object.
The drive system does not work
correctly.
Ask your local authorized service center for repair.
Abnormal vibration:
stop the machine immediately!
Scarier blades are imbalanced, exces-
sively or unevenly worn.
Replace the scarier blades.
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita
machine specied in this manual. The use of any
other accessories or attachments might present a risk
of injury to persons. Only use accessory or attach-
ment for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Scarier blades
• Makita genuine battery and charger
NOTE: Some items in the list may be included in the
product package as standard accessories. They may
di󰀨er from country to country.
MAKITA LIMITED WARRANTY
Please refer to the annexed warranty sheet for the
most current warranty terms applicable to this product.
If annexed warranty sheet is not available, refer to the
warranty details set forth at below website for your
respective country.
United States of America: www.makitatools.com
Canada: www.makita.ca
Other countries: www.makita.com

20 ESPAÑOL
ESPAÑOL (Instrucciones originales)
ESPECIFICACIONES
Modelo: GVU01
Amplitud de trabajo 380 mm (15″)
Velocidad sin carga 3 200 r/min
Número de pieza de las cuchi-
llas escaricadoras de repuesto
Cortadora vertical 1913J5-0
Cuchillas para corte de paja 1913J7-6
Dimensiones
(La x An x Al)
durante la operación La: 1 020 mm a 1 240 mm (40-1/4″ a 48-3/4″)
An: 680 mm (26-3/4″)
Al: 915 mm a 1 155 mm (36″ a 45-1/2″)
durante el almacenamiento
(sin el canasto para césped)
550 mm x 680 mm x 640 mm (21-5/8″ x 26-3/4″ x 25-1/4″)
Tensión nominal 36 V - 40 V c.c. máx.
Peso neto 18,7 kg - 23,8 kg (41,2 lbs - 52,5 lbs)
Grado de protección IPX4
• Debido a nuestro continuo programa de investigación y desarrollo, las especicaciones aquí incluidas están
sujetas a cambio sin previo aviso.
• Las especicaciones pueden variar de país a país.
• El peso puede variar en función de los accesorios, incluido el cartucho de batería. En la tabla se muestra la
combinación de peso más ligero y más pesado conforme al procedimiento 01/2014 de EPTA.
Cartucho de batería y cargador aplicables
Cartucho de batería BL4020 / BL4025* / BL4040* / BL4050F* / BL4080F*
* : Batería recomendada
Cargador DC40RA / DC40RB / DC40RC
• Algunos de los cartuchos de batería y cargadores enumerados arriba podrían no estar disponibles depen-
diendo de su área de residencia.
ADVERTENCIA: Use únicamente los cartuchos de batería y los cargadores indicados arriba. El uso de
cualquier otro cartucho de batería y cargador podría ocasionar una lesión y/o un incendio.
ADVERTENCIA: No use ningún alimentador con cableado eléctrico como un adaptador para batería o
una unidad portátil de alimentación eléctrica con esta máquina. El cable de dicho alimentador podría impedir
la operación y ocasionar una lesión personal.
ADVERTENCIAS DE
SEGURIDAD
Advertencias generales de
seguridad para herramientas
eléctricas
ADVERTENCIA Lea todas las advertencias de
seguridad, instrucciones, ilustraciones y espe-
cicaciones suministradas con esta herramienta
eléctrica. El no seguir todas las instrucciones indicadas
a continuación podrá ocasionar una descarga eléctrica,
incendio o lesiones graves.
Conserve todas las advertencias
e instrucciones como referencia
en el futuro.
En las advertencias, el término “herramienta eléctrica” se
reere a su herramienta eléctrica de funcionamiento con
conexión a la red eléctrica (con cableado eléctrico) o herra-
mienta eléctrica de funcionamiento a batería (inalámbrica).
Seguridad en el área de trabajo
1. Mantenga el área de trabajo limpia y bien ilu-
minada. Las áreas oscuras o desordenadas son
propensas a accidentes.
2.
No utilice las herramientas eléctricas en atmósferas
explosivas, tal como en la presencia de líquidos, gases
o polvo inamables. Las herramientas eléctricas crean
chispas que pueden prender fuego al polvo o los humos.
3. Mantenga a los niños y curiosos alejados
mientras utiliza una herramienta eléctrica. Las
distracciones le pueden hacer perder el control.
