Makita HR2010 User manual
Rotary Hammer Instruction manual
Bor Getar Rotari Petunjuk penggunaan
Máy khoan ng lcTài liu hng dn
GB
VI
TH
ID
HR2010
2
1003105 2003142
3003150 4003158
5003180 6003223
7001146 8003229
1
2
4
3
5
6
7
89
2
10
11
12
13
14
15
16
3
9003234 10 003245
17
18
19
4
ENGLISH
Explanation of general view
SPECIFICATIONS
•Due to our continuing programme of research and development, the specifications herein are subject to change without
notice.
• Specifications may differ from country to country.
• Weight according to EPTA-Procedure 01/2003
END201-5
Symbols
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
.... Read instruction manual.
.............. DOUBLE INSULATION
ENE041-1
Intended use
The tool is intended for hammer drilling in brick, concrete
and stone.
ENF002-2
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and can
only be operated on single-phase AC supply. They are
double-insulated and can, therefore, also be used from
sockets without earth wire.
GEA005-3
General Power Tool Safety
Warnings
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and
instructions for future reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause you
to lose control.
Electrical safety
4. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
5. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
6. Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase
the risk of electric shock.
7. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
1. Switch trigger
2. Side grip
3. Bit shank
4. Bit grease
5. Bit
6. Chuck cover
7. Depth gauge
8. Clamp screw
9. Grip base
10. Drill chuck
11. Chuck adapter
12. Commutator
13. Insulating tip
14. Carbon brush
15. Screwdriver
16. Brush holder cap
17. Lock nut wrench
18. Crank cap
19. Hammer grease
Model HR2010
Capacities
Concrete 20 mm
Steel 13 mm
Wood 24 mm
No load speed (min-1)0 - 900
Blows per minute 0 - 4,000
Overall length 302 mm
Net weight 3.4 kg
Safety class /II
5
8. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
9. If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
10. Use of power supply via a RCD with a rated
residual current of 30mA or less is always
recommended.
Personal safety
11. Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personal injury.
12. Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
13. Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch
on invites accidents.
14. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result
in personal injury.
15. Do not overreach. Keep proper footing and
balance at all times. This enables better control of
the power tool in unexpected situations.
16. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
17. If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust
collection can reduce dust-related hazards.
Power tool use and care
18. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
19. Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
20. Disconnect the plug from the power source and/or
the battery pack from the power tool before
making any adjustments, changing accessories,
or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool
accidentally.
21. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands
of untrained users.
22. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by
poorly maintained power tools.
23. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
24. Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
Service
25. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power tool
is maintained.
26. Follow instruction for lubricating and changing
accessories.
27. Keep handles dry, clean and free from oil and
grease.
GEB007-7
ROTARY HAMMER SAFETY
WARNINGS
1. Wear ear protectors. Exposure to noise can cause
hearing loss.
2. Use auxiliary handle(s), if supplied with the tool.
Loss of control can cause personal injury.
3. Hold power tool by insulated gripping surfaces,
when performing an operation where the cutting
accessory may contact hidden wiring or its own
cord. Cutting accessory contacting a “live” wire may
make exposed metal parts of the power tool “live” and
could give the operator an electric shock.
4. Wear a hard hat (safety helmet), safety glasses
and/or face shield. Ordinary eye or sun glasses
are NOT safety glasses. It is also highly
recommended that you wear a dust mask and
thickly padded gloves.
5. Be sure the bit is secured in place before
operation.
6. Under normal operation, the tool is designed to
produce vibration. The screws can come loose
easily, causing a breakdown or accident. Check
tightness of screws carefully before operation.
7. In cold weather or when the tool has not been
used for a long time, let the tool warm up for a
while by operating it under no load. This will
loosen up the lubrication. Without proper warm-
up, hammering operation is difficult.
8. Always be sure you have a firm footing.
Be sure no one is below when using the tool in
high locations.
9. Hold the tool firmly with both hands.
10. Keep hands away from moving parts.
11. Do not leave the tool running. Operate the tool
only when hand-held.
6
12. Do not point the tool at any one in the area when
operating. The bit could fly out and injure
someone seriously.
13. Do not touch the bit or parts close to the bit
immediately after operation; they may be
extremely hot and could burn your skin.
14. Some material contains chemicals which may be
toxic. Take caution to prevent dust inhalation and
skin contact. Follow material supplier safety data.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product (gained
from repeated use) replace strict adherence to safety
rules for the subject product. MISUSE or failure to
follow the safety rules stated in this instruction
manual may cause serious personal injury.
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on the
tool.

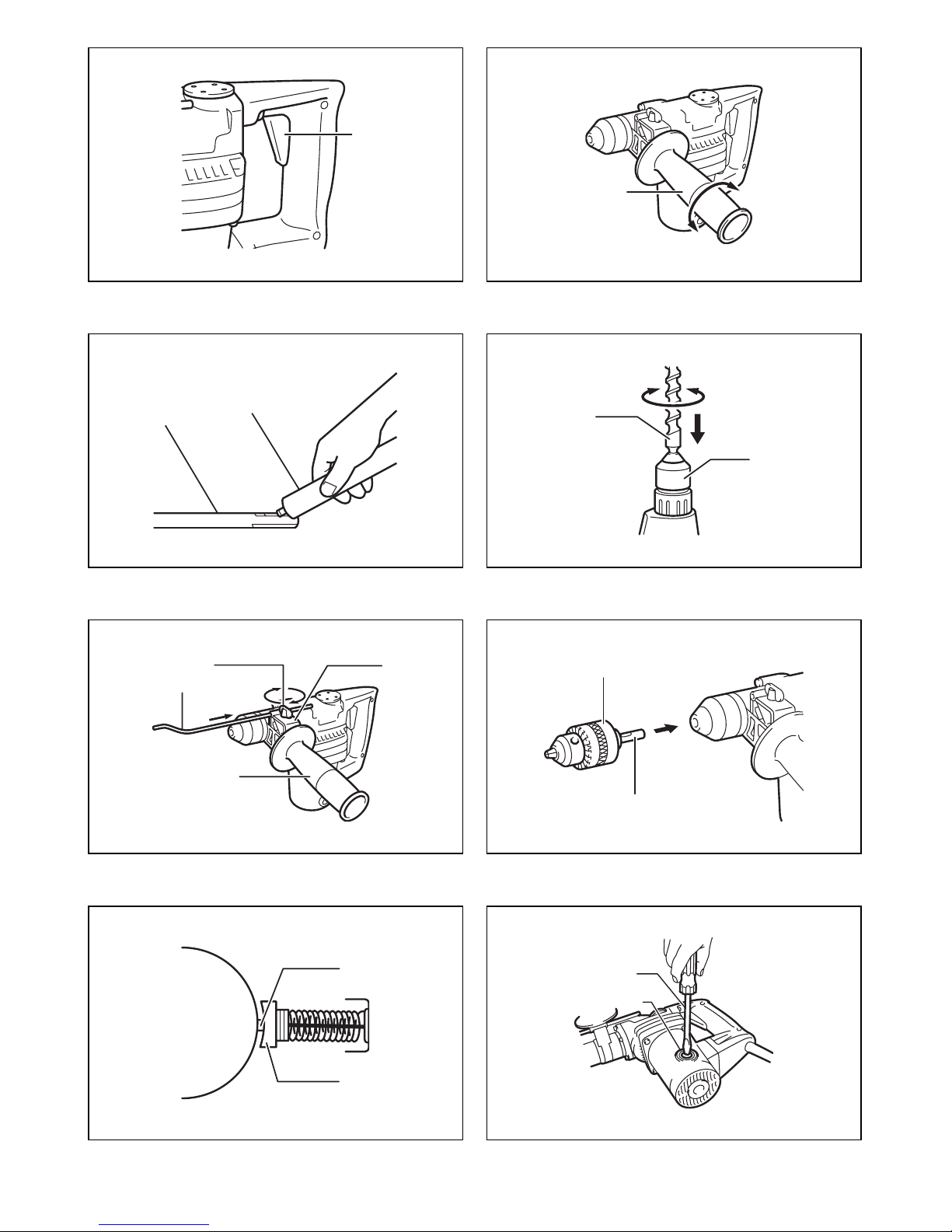

Switch action (Fig. 1)
CAUTION:
•Before plugging in the tool, always check to see that
the switch trigger actuates properly and returns to the
“OFF” position when released.
• Do not tape, tie or otherwise secure the trigger in the
“ON” position.
To start the tool, simply pull the switch trigger. Tool speed
is increased by increasing pressure on the switch trigger.
Release the switch trigger to stop.
Torque limiter
The torque limiter will actuate when a certain torque level
is reached. The motor will disengage from the output
shaft. When this happens, the bit will stop turning.
CAUTION:
•As soon as the torque limiter actuates, switch off the
tool immediately. This will help prevent premature wear
of the tool.
• Hole saws, core bits, diamond core bits, etc. cannot be
used with this tool. They tend to pinch or catch easily in
the hole. This will cause the torque limiter to actuate
too frequently.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.
Side grip (auxiliary handle) (Fig. 2)
The side grip swings around to either side, allowing easy
handling of the tool in any position. Loosen the side grip
by turning it counterclockwise, swing it to the desired
position and then tighten it by turning clockwise.
Bit grease
Coat the bit shank head beforehand with a small amount
of bit grease (about 0.5 - 1 g).
This chuck lubrication assures smooth action and longer
service life.
Installing or removing the bit
Clean the bit shank and apply bit grease before installing
the bit. (Fig. 3)
Insert the bit into the tool. Turn the bit and push it in until it
engages.
If the bit cannot be pushed in, remove the bit. Pull the
chuck cover down a couple of times. Then insert the bit
again. Turn the bit and push it in until it engages. (Fig. 4)
After installing, always make sure that the bit is securely
held in place by trying to pull it out.
To remove the bit, pull the chuck cover down all the way
and pull the bit out.
Depth gauge (Fig. 5)
The depth gauge is convenient for drilling holes of uniform
depth. Insert the depth gauge into the hole in the grip
base. Adjust the depth gauge to the desired depth and
then tighten the clamp screw to secure the depth gauge.
NOTE:
•The depth gauge cannot be used at the position where
the depth gauge strikes against the gear housing.
OPERATION
Hammer drilling operation
Position the bit at the desired location for the hole, then
pull the switch trigger. Do not force the tool. Light pressure
gives best results. Keep the tool in position and prevent it
from slipping away from the hole.
Do not apply more pressure when the hole becomes
clogged with chips or particles. Instead, run the tool at an
idle, then remove the bit partially from the hole. By
repeating this several times, the hole will be cleaned out
and normal drilling may be resumed.
CAUTION:
•There is a tremendous and sudden twisting force
exerted on the tool/bit at the time of hole break-
through, when the hole becomes clogged with chips
and particles, or when striking reinforcing rods
embedded in the concrete. Always use the side grip
(auxiliary handle) and firmly hold the tool by both side
grip and switch handle during operations. Failure to do
so may result in the loss of control of the tool and
potentially severe injury.
Drilling in wood or metal (Fig. 6)
Use the optional drill chuck assembly (consisting of drill
chuck and chuck adapter assembly). When installing it,
refer to “Installing or removing drill bit” described on the
previous page.
You can drill up to 13 mm diameter in metal and up to 24
mm diameter in wood.
7
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection or
maintenance.
• Never use gasoline, benzine, thinner, alcohol or the
like. Discoloration, deformation or cracks may result.
Replacing carbon brushes
When the resin insulating tip inside the carbon brush is
exposed to contact the commutator, it will automatically
shut off the motor. When this occurs, both carbon brushes
should be replaced. Keep the carbon brushes clean and
free to slip in the holders. Both carbon brushes should be
replaced at the same time. Use only identical carbon
brushes. (Fig. 7)
Use a screwdriver to remove the brush holder caps. Take
out the worn carbon brushes, insert the new ones and
secure the brush holder caps. (Fig. 8)
Lubrication
This tool requires no hourly or daily lubrication because it
has a grease-packed lubrication system. Lubricate the
tool every time the carbon brushes are replaced.
Run the tool for several minutes to warm it up. Switch off
and unplug the tool.

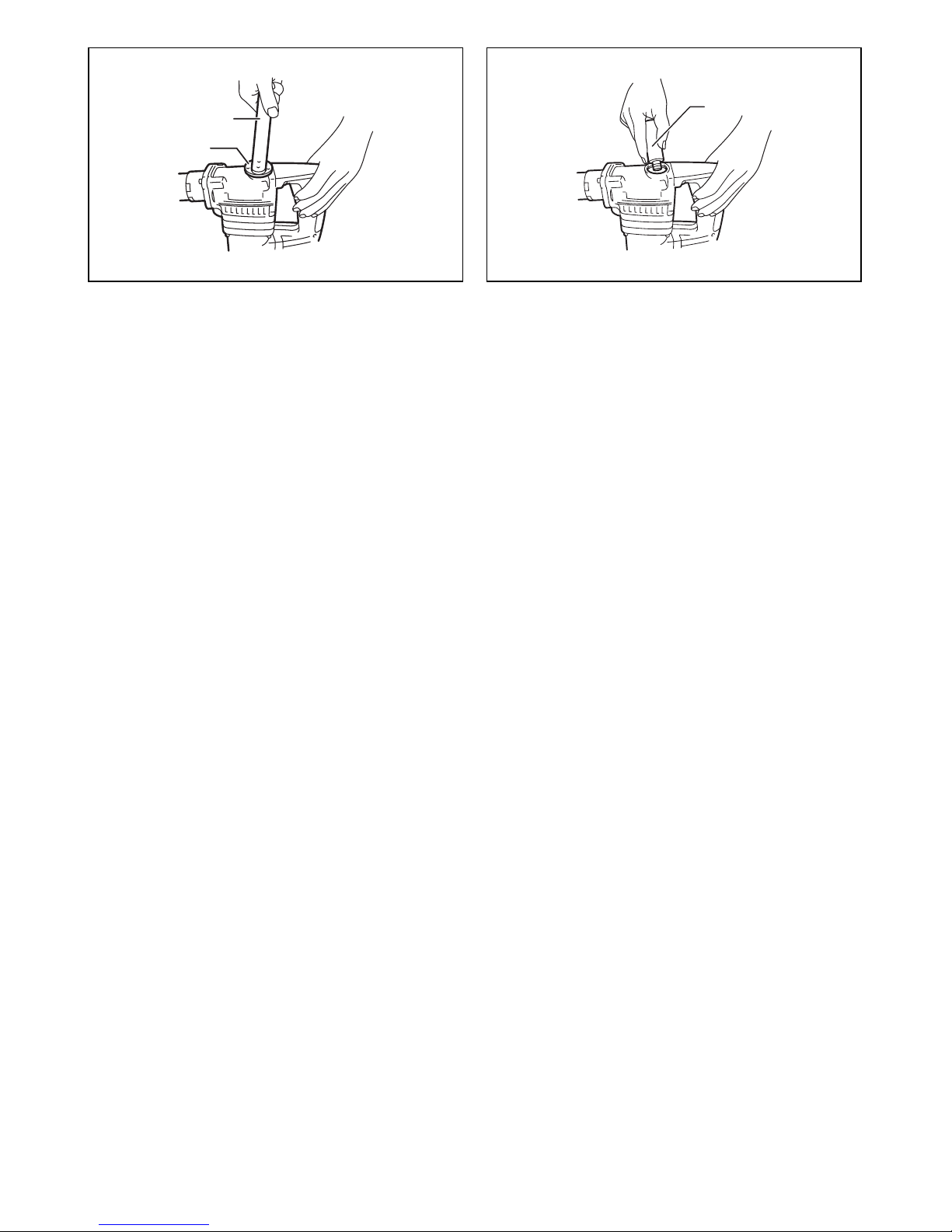

Remove the crank cap using a Makita lock nut wrench
(optional accessory). Rest the tool on the table with the bit
end pointing upwards. This will allow the old grease to
collect inside the crank housing. (Fig. 9)
Wipe out the old grease inside and replace with a fresh
grease (30 g). Use only Makita genuine hammer grease
(optional accessory). Filling with more than the specified
amount of grease (approx. 30 g) can cause faulty
hammering action or tool failure. Fill only with the
specified amount of grease. (Fig. 10)
Reinstall the crank cap and tighten with the lock nut
wrench.
CAUTION:
• Do not tighten the crank cap excessively. It is made of
resin and is subject to breakage.
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized Service Centers, always
using Makita replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are recommended
for use with your Makita tool specified in this manual.
The use of any other accessories or attachments might
present a risk of injury to persons. Only use accessory
or attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• SDS-Plus Carbide-tipped bits
•Drill chuck S13
• Chuck adapter
• Chuck key S13
•Hammer grease
•Bit grease
• Depth gauge
•Blow-out bulb
•Dust cup
•Dust extractor attachment
• Safety goggles
• Lock nut wrench 28
• Plastic carrying case
NOTE:
•Some items in the list may be included in the tool
package as standard accessories. They may differ from
country to country.
8
BAHASA INDONESIA
Penjelasan tampilan keseluruhan
SPESIFIKASI
•Karena kesinambungan program penelitian dan pengembangan kami, spesifikasi yang disebutkan di sini dapat
berubah tanpa pemberitahuan.
• Spesifikasi dapat berbeda dari satu negara ke negara lainnya.
•Berat menurut Prosedur EPTA 01/2003
END201-5
Simbol
Berikut ini adalah simbol-simbol yang digunakan pada
peralatan ini.
Pastikan Anda mengerti makna masing-masing simbol
sebelum menggunakan alat.
.... Baca petunjuk penggunaan.
.............. ISOLASI GANDA
ENE041-1
Penggunaan
Mesin ini digunakan untuk pengeboran dengan getar
pada batu bata, beton dan batu.
ENF002-2
Pasokan daya
Mesin harus terhubung dengan pasokan daya listrik yang
bervoltase sama dengan yang tertera pada pelat nama,
dan hanya dapat dijalankan dengan listrik AC fase
tunggal. Mesin diisolasi ganda dan oleh sebab itu dapat
dihubungkan dengan soket tanpa arde.
GEA005-3
Peringatan Keselamatan Umum
Mesin Listrik
PERINGATAN! Bacalah semua peringatan
keselamatan dan semua petunjuk. Kelalaian mematuhi
peringatan dan petunjuk dapat menyebabkan sengatan
listrik, kebakaran dan/atau cedera serius.
Simpanlah semua peringatan dan
petunjuk untuk acuan di masa
depan.
Istilah “mesin listrik” dalam semua peringatan mengacu
pada mesin listrik yang dijalankan dengan sumber listrik
jala-jala (berkabel) atau baterai (tanpa kabel).
Keselamatan tempat kerja
1. Jaga tempat kerja selalu bersih dan
berpenerangan cukup. Tempat kerja yang
berantakan dan gelap mengundang kecelakaan.
2. Jangan gunakan mesin listrik dalam lingkungan
yang mudah meledak, misalnya jika ada cairan,
gas, atau debu yang mudah menyala. Mesin listrik
menimbulkan bunga api yang dapat menyalakan debu
atau uap tersebut.
3. Jauhkan anak-anak dan orang lain saat
menggunakan mesin listrik. Bila perhatian terpecah,
anda dapat kehilangan kendali.
Keamanan kelistrikan
4. Steker mesin listrik harus cocok dengan
stopkontak. Jangan sekali-kali mengubah steker
dengan cara apa pun. Jangan menggunakan
steker adaptor dengan mesin listrik berarde
(dibumikan). Steker yang tidak diubah dan
stopkontak yang cocok akan mengurangi risiko
sengatan listrik.
5. Hindari sentuhan tubuh dengan permukaan
berarde atau yang dibumikan seperti pipa,
radiator, kompor, dan kulkas. Risiko sengatan listrik
bertambah jika tubuh Anda terbumikan atau terarde.
1. Saklar pemicu
2. Gagang sisi
3. Kepala tirus
4. Gemuk mata mesin
5. Mata mesin
6. Tutup cekam
7. Pengukur kedalaman
8. Sekrup penjepit
9. Alas gagang
10. Cuk bor
11. Adaptor cekam
12. Komutator
13. Ujung isolasi
14. Sikat karbon
15. Obeng
16. Tutup tempat sikat
17. Kunci pas baut pengunci
18. Tutup engkol
19. Gemuk mesin bor getar
Model HR2010
Kapasitas
Beton 20 mm
Baja 13 mm
Kayu 24 mm
Kecepatan tanpa beban (min-1)0 - 900
Hembusan per menit 0 - 4.000
Panjang keseluruhan 302 mm
Berat bersih 3,4 kg
Kelas keamanan /II
9
6. Jangan membiarkan mesin listrik kehujanan atau
kebasahan. Air yang masuk ke dalam mesin listrik
akan meningkatkan risiko sengatan listrik.
7. Jangan menyalahgunakan kabel. Jangan sekali-
kali menggunakan kabel untuk membawa,
menarik, atau mencabut mesin listrik dari
stopkontak. Jauhkan kabel dari panas, minyak,
tepian tajam, atau bagian yang bergerak. Kabel
yang rusak atau kusut memperbesar risiko sengatan
listrik.
8. Bila menggunakan mesin listrik di luar ruangan,
gunakan kabel ekstensi yang sesuai untuk
penggunaan di luar ruangan. Penggunaan kabel
yang sesuai untuk penggunaan luar ruangan
mengurangi risiko sengatan listrik.
9. Jika mengoperasikan mesin listrik di lokasi
lembap tidak terhindarkan, gunakan pasokan daya
yang dilindungi peranti imbasan arus (residual
current device - RCD). Penggunaan RCD
mengurangi risiko sengatan listrik.
10. Penggunaan pasokan daya melalui RCD dengan
kapasitas arus sisa 30 mA atau kurang selalu
dianjurkan.
Keselamatan diri
11. Jaga kewaspadaan, perhatikan pekerjaan Anda
dan gunakan akal sehat bila menggunakan mesin
listrik. Jangan menggunakan mesin listrik saat
Anda lelah atau di bawah pengaruh obat bius,
alkohol, atau obat. Sekejap saja lalai saat
menggunakan mesin listrik dapat menyebabkan
cedera diri yang serius.
12. Gunakan alat pelindung diri. Selalu gunakan
pelindung mata. Peralatan pelindung seperti masker
debu, sepatu pengaman anti-selip, helm pengaman,
atau pelindung telinga yang digunakan untuk kondisi
yang sesuai akan mengurangi risiko cedera diri.
13. Cegah penyalaan yang tidak disengaja. Pastikan
bahwa sakelar berada dalam posisi mati (off)
sebelum menghubungkan mesin ke sumber daya
dan/atau baterai, atau mengangkat atau
membawanya. Membawa mesin listrik dengan jari
Anda pada sakelarnya atau mengalirkan listrik pada
mesin listrik yang sakelarnya hidup (on) akan
mengundang kecelakaan.
14. Lepaskan kunci-kunci penyetel sebelum
menghidupkan mesin listrik. Kunci-kunci yang
masih terpasang pada bagian mesin listrik yang
berputar dapat menyebabkan cedera.
15. Jangan meraih terlalu jauh. Jagalah pijakan dan
keseimbangan sepanjang waktu. Hal ini
memungkinkan kendali yang lebih baik atas mesin
listrik dalam situasi yang tidak diharapkan.
16. Kenakan pakaian dengan baik. Jangan memakai
pakaian yang kedodoran atau perhiasan. Jaga
jarak antara rambut, pakaian, dan sarung tangan
Anda dengan bagian mesin yang bergerak.
Pakaian kedodoran, perhiasan, atau rambut panjang
dapat tersangkut pada bagian yang bergerak.
17. Jika tersedia fasilitas untuk menghisap dan
mengumpulkan debu, pastikan fasilitas tersebut
terhubung listrik dan digunakan dengan baik.
Penggunaan pembersih debu dapat mengurangi
bahaya yang terkait dengan debu.
Penggunaan dan pemeliharaan mesin listrik
18. Jangan memaksa mesin listrik. Gunakan mesin
listrik yang tepat untuk keperluan Anda. Mesin
listrik yang tepat akan menuntaskan pekerjaan
dengan lebih baik dan aman pada kecepatan sesuai
rancangannya.
19. Jangan gunakan mesin listrik jika sakelar tidak
dapat menyalakan dan mematikannya. Mesin listrik
yang tidak dapat dikendalikan dengan sakelarnya
adalah berbahaya dan harus diperbaiki.
20. Cabut steker dari sumber listrik dan/atau baterai
dari mesin listrik sebelum melakukan penyetelan,
penggantian aksesori, atau menyimpan mesin
listrik. Langkah keselamatan preventif tersebut
mengurangi risiko hidupnya mesin secara tak
sengaja.
21. Simpan mesin listrik jauh dari jangkauan anak-
anak dan jangan biarkan orang yang tidak paham
mengenai mesin listrik tersebut atau petunjuk ini
menggunakan mesin listrik. Mesin listrik sangat
berbahaya di tangan pengguna yang tak terlatih.
22. Rawatlah mesin listrik. Periksa apakah ada bagian
bergerak yang tidak lurus atau macet, bagian yang
pecah dan kondisi lain yang dapat mempengaruhi
penggunaan mesin listrik. Jika rusak, perbaiki
dahulu mesin listrik sebelum digunakan. Banyak
kecelakaan disebabkan oleh kurangnya pemeliharaan
mesin listrik.
23. Jaga agar mesin pemotong tetap tajam dan bersih.
Mesin pemotong yang terawat baik dengan mata
pemotong yang tajam tidak mudah macet dan lebih
mudah dikendalikan.
24. Gunakan mesin listrik, aksesori, dan mata mesin,
dll. sesuai dengan petunjuk ini, dengan
memperhitungkan kondisi kerja dan jenis
pekerjaan yang dilakukan. Penggunaan mesin listrik
untuk penggunaan yang lain dari peruntukan dapat
menimbulkan situasi berbahaya.
Servis
25. Berikan mesin listrik untuk diperbaiki hanya
kepada oleh teknisi yang berkualifikasi dengan
menggunakan hanya suku cadang pengganti yang
serupa. Hal ini akan menjamin terjaganya keamanan
mesin listrik.
26. Patuhi petunjuk pelumasan dan penggantian
aksesori.
27. Jagalah agar gagang kering, bersih, dan bebas
dari minyak dan gemuk.
GEB007-7
PERINGATAN KESELAMATAN
BOR GETAR ROTARI
1. Kenakan pelindung telinga. Terpaan kebisingan
dapat menyebabkan hilangnya pendengaran.
2. Gunakan gagang tambahan, jika disertakan
bersama mesin ini. Kehilangan kendali dapat
menyebabkan cedera.
3. Pegang mesin listrik pada permukaan genggam
yang terisolasi saat melakukan pekerjaan bila
aksesori pemotong mungkin bersentuhan dengan
kawat tersembunyi atau kabelnya sendiri. Aksesori
10
pemotong yang menyentuh kawat “hidup” dapat
menyebabkan bagian logam pada mesin teraliri arus
listrik dan menyengat pengguna.
4. Kenakan helm pengaman, kaca mata pengaman
dan/atau pelindung muka. Kaca mata biasa atau
kaca mata hitam BUKANLAH kaca mata
pengaman. Anda sangat dianjurkan untuk
mengenakan masker debu dan sarung tangan
tebal.
5. Pastikan mata mesin terpasang pada tempatnya
sebelum penggunaan.
6. Pada penggunaan normal, mesin dirancang untuk
menghasilkan getaran. Sekrup bisa menjadi
longgar dengan mudah, menyebabkan kerusakan
atau kecelakaan. Periksa kekencangan sekrup
sebelum penggunaan.
7. Pada cuaca dingin atau ketika mesin telah lama
tidak digunakan, lakukan pemanasan pada mesin
beberapa saat dengan mengoperasikannya tanpa
beban. Hal ini akan memperlancar pelumasan.
Tanpa pemanasan yang tepat, pengerjaan dengan
getaran menjadi sulit.
8. Selalu pastikan Anda berada di atas alas yang
kuat.
Pastikan tidak ada orang di bawahnya bila Anda
menggunakan mesin di tempat yang tinggi.
9. Pegang mesin kuat-kuat dengan kedua tangan.
10. Jauhkan tangan dari bagian yang bergerak.
11. Jangan tinggalkan mesin dalam keadaan hidup.
Jalankan mesin hanya ketika digenggam tangan.
12. Jangan mengarahkan mesin pada siapapun di
tempat kerja ketika mengoperasikan. Mata mesin
bisa terlempar dan melukai orang dengan serius.
13. Jangan menyentuh mata mesin atau benda kerja
segera setelah pengoperasian; suhunya mungkin
masih sangat panas dan dapat membakar kulit
Anda.
14. Bahan tertentu mengandung zat kimia yang
mungkin beracun. Hindari menghirup debu dan
persentuhan dengan kulit. Ikuti data keselamatan
bahan dari pemasok.
SIMPAN PETUNJUK INI.
PERINGATAN:
JANGAN biarkan kenyamanan atau terbiasanya Anda
dengan produk (karena penggunaan berulang)
menggantikan kepatuhan yang ketat terhadap aturan
keselamatan untuk produk yang terkait.
PENYALAHGUNAAN atau kelalaian mematuhi kaidah
keselamatan yang tertera dalam petunjuk ini dapat
menyebabkan cedera badan serius.
DESKRIPSI FUNGSI
PERHATIAN:
• Selalu pastikan bahwa mesin dalam keadaan mati dan
steker tercabut sebelum menyetel atau memeriksa
kerja mesin.
Kerja saklar (Gb. 1)
PERHATIAN:
• Sebelum memasukkan steker, selalu periksa apakah
picu saklar berfungsi dengan baik dan kembali ke
posisi “OFF” saat dilepas.
•Jangan melakban, mengikat atau dengan cara lainnya
untuk menahan picu pada posisi “ON”.
Untuk menjalankan mesin, cukup tarik picu saklarnya.
Kecepatan mesin akan meningkat dengan menambah
tekanan pada picu saklar. Lepaskan picu saklar untuk
berhenti.
Pembatas torsi
Pembatas torsi akan berfungsi ketika mencapai tingkat
torsi tertentu. Motor akan terlepas dari poros keluaran.
Ketika hal ini terjadi, mata bor akan berhenti berputar.
PERHATIAN:
•Segera setelah pembatas torsi berfungsi, matikan
mesin dengan segera. Hal ini akan membantu
mencegah keausan dini pada mesin.
• Gergaji lubang, mata bor berteras, mata bor berteras
intan, dll. tidak bisa digunakan pada mesin ini. Karena
cenderung terjepit atau terperangkap dalam lubang
dengan mudah. Hal ini akan menyebabkan pembatas
torsi terlalu sering berfungsi.
PERAKITAN
PERHATIAN:
•Selalu pastikan bahwa mesin dalam keadaan mati dan
steker tercabut sebelum melakukan pekerjaan apapun
pada mesin.
Gagang sisi (pegangan tambahan) (Gb. 2)
Gagang sisi berputar ke sisi lain, memudahkan dalam
memegang mesin pada posisi apapun. Kendurkan
gagang sisi dengan memutarkan berlawanan arah jarum
jam, putar pada posisi yang diinginkan kemudian
kencangkan dengan memutarnya searah jarum jam.
Gemuk mata mesin
Lapisi sebelumnya kepala tirus dengan sedikit gemuk
mata mesin (sekitar 0,5 - 1 g).
Pelumasan cekam ini menjamin kelancaran kerja dan
memperpanjang umur pemakaian mesin.
Memasang atau melepas mata mesin
Bersihkan kepala tirus dan beri gemuk sebelum
memasang mata mesin. (Gb. 3)
Masukkan mata mesin ke dalam mesin. Putar mata mesin
dan dorong sampai terpasang.
Jika mata mesin tidak bisa didorong, lepas mata mesin.
Tarik tutup cekam beberapa kali. Kemudian masukkan
lagi mata mesin. Putar mata mesin dan dorong sampai
terpasang. (Gb. 4)
Setelah memasang, selalu pastikan bahwa mata mesin
benar-benar terpasang pada tempatnya dengan mencoba
menariknya keluar.
Untuk melepas mata mesin, tarik tutup cekam
sepenuhnya dan tarik mata mesin keluar.
11
Pengukur kedalaman (Gb. 5)
Pengukur kedalaman sangat tepat digunakan untuk
menghasilkan lubang-lubang pengeboran dengan
kedalaman yang seragam. Masukkan pengukur
kedalaman ke dalam lubang pada alas gagang.
Sesuaikan pengukur kedalaman pada kedalaman yang
diinginkan dan kemudian kencangkan sekrup penjepit
untuk mengikat pengukur kedalaman.
CATATAN:
•Pengukur kedalaman tidak bisa digunakan bila
posisinya berlawanan dengan rumahan gir.
PENGGUNAAN
Cara pengoperasian bor getar
Posisikan mata mesin pada lokasi yang diinginkan untuk
membuat lubang, kemudian tarik picu saklarnya. Jangan
memaksa mesin listrik. Tekanan yang ringan akan
memberi hasil yang terbaik. Jaga posisi mesin dan cegah
agar tidak selip dari lubang.
Jangan menambah tekanan bila lubang dipenuhi geram-
geram atau partikel. Tetapi, nyalakan mesin tanpa
putaran, lalu angkat mata mesin sedikit dari lubang.
Dengan melakukan hal ini beberapa kali, lubang akan
besih dan pengeboran normal bisa dilanjutkan kembali.
PERHATIAN:
•Akan timbul gaya yang sangat kuat dan tiba-tiba pada
mesin/mata mesin saat menembus lubang, bila lubang
dipenuhi geram-geram atau partikel, atau bila
menabrak besi-besi tulangan yang terpasang di dalam
beton. Selalu gunakan gagang sisi (pegangan
tambahan) dan pegang mesin kuat-kuat pada kedua
gagang sisi dan pegangan saklar selama penggunaan.
Kelalaian dalam melakukannya dapat menyebabkan
kehilangan kendali pada mesin dan berpotensi
mengakibatkan cedera berat.
Mengebor kayu atau logam (Gb. 6)
Gunakan pilihan rakitan cekam bor (terdiri atas cekam bor
dan rakitan adaptor cekam). Ketika memasangnya,
silakan mengacu pada “memasang atau melepas mata
bor” yang telah dijelaskan pada halaman sebelumnya.
Anda bisa mengebor sampai diameter 13 mm pada logam
dan sampai diameter 24 mm pada kayu.
PERAWATAN
PERHATIAN:
• Selalu pastikan bahwa mesin dimatikan dan steker
dicabut sebelum melakukan pemeriksaan atau
perawatan.
•Jangan sekali-kali menggunakan bensin, tiner, alkohol,
atau bahan sejenisnya. Penggunaan bahan demikian
dapat menyebabkan perubahan warna, perubahan
bentuk atau timbulnya retakan.
Mengganti sikat karbon
Jika ujung isolasi resin di dalam sikat karbon dibiarkan
mengenai komutator, akan mematikan motor secara
otomatis. Jika hal ini terjadi, kedua sikat karbon harus
diganti. Jaga agar sikat karbon tetap bersih dan tidak
bergeser dari tempatnya. Kedua sikat karbon harus
diganti pada waktu yang sama. Hanya gunakan sikat
karbon yang sama. (Gb. 7)
Gunakan obeng untuk melepas tutup tempat sikat. Tarik
keluar sikat karbon yang aus, masukkan yang baru dan
pasang tutup tempat sikat. (Gb. 8)
Pelumasan
Mesin tidak memerlukan pelumasan setiap jam atau
harian karena mempunyai sistem pelumasan gemuk yang
telah terpasang. Lumasi mesin pada setiap penggantian
sikat karbon.
Nyalakan mesin selama beberapa menit untuk
pemanasan. Matikan dan cabut steker mesin.
Lepas tutup engkol dengan menggunakan kunci pas baut
pengunci Makita (pilihan aksesori). Letakkan mesin di
atas meja dengan ujung mata mesin menghadap ke atas.
Hal ini akan membuat gemuk bekas bisa terkumpul di
dalam rumah engkol. (Gb. 9)
Lap gemuk bekas di dalamnya dan ganti dengan gemuk
yang baru (30 g). Hanya gunakan gemuk mesin bobok
asli buatan Makita (aksesori pilihan). Melumasi dengan
gemuk lebih dari yang ditentukan (kira-kira 30 g) bisa
menyebabkan mesin bobok tidak bekerja dengan baik
atau rusak. Lumasi sesuai dengan yang ditentukan
banyaknya. (Gb. 10)
Pasang kembali tutup engkol dan kencangkan dengan
kunci pas baut pengunci.
PERHATIAN:
•Jangan mengencangkan tutup engkol terlalu kuat.
Tutup engkol terbuat dari resin dan mudah pecah.
Untuk menjaga KEAMANAN dan KEANDALAN mesin,
perbaikan, perawatan atau penyetelan lain harus
dilakukan oleh Pusat Layanan Resmi Makita dan selalu
gunakan suku cadang pengganti buatan Makita.
PILIHAN AKSESORI
PERHATIAN:
•Dianjurkan untuk menggunakan aksesori atau
perangkat tambahan ini dengan mesin Makita Anda
yang ditentukan dalam petunjuk ini. Penggunaan
aksesori atau perangkat tambahan lain bisa
menyebabkan risiko cedera pada manusia. Hanya
gunakan aksesori atau perangkat tambahan sesuai
dengan peruntukkannya.
Jika Anda memerlukan bantuan lebih rinci berkenaan
dengan aksesori ini, tanyakan pada Pusat Layanan
Makita terdekat.
• Mata mesin berujung Carbide SDS-Plus
•Cekam bor S13
•Adaptor cekam
•Kunci cekam S13
•Gemuk mesin bor getar
•Gemuk mata mesin
• Pengukur kedalaman
•Penghembus angin
•Mangkuk debu
•Perangkat tambahan pengumpul debu
•Kaca mata pelindung
• Kunci pas baut pengunci 28
•Tas jinjing plastik
12
CATATAN:
•Beberapa item dalam daftar tersebut mungkin sudah
termasuk dalam paket mesin sebagai aksesori standar.
Hal tersebut dapat berbeda dari satu negara ke negara
lainnya.
13
TING VIT
Gii thích v hình v tng th
THÔNG S K THUT
•Do chng trình nghiên cu và phát trin liên tc ca chúng tôi nên các thông s k thut trong ây có th thay i mà
không cn thông báo trc.
• Các thông s k thut có th thay i tùy theo tng quc gia.
•Trng lng tùy theo Quy trình EPTA tháng 01/2003
END201-5
Ký hiu
Phn di ây cho bit các ký hiu c dùng cho thit b.
m bo rng bn hiu rõ ý ngha ca các ký hiu này
trc khi s dng.
.... c tài liu hng dn.
.............. CÁCH IN KÉP
ENE041-1
Mc ích s dng
Dng c này c dùng cho công tác khoan óng búa
vào gch, bê tông và á.
ENF002-2
Ngun cp in
Dng c này ch c ni vi ngun cp in có in áp
ging nh ã ch ra trên bin tên và ch có th c vn
hành trên ngun in AC mt pha. Chúng c cách in
hai lp và do ó cng có th c s dng vi các cm
in không có dây tip t.
GEA005-3
Cnh báo An toàn Chung dành
cho Dng c Máy
CNH BÁO! c tt c các cnh báo an toàn và
hng dn. Vic không tuân theo các cnh báo và
hng dn có th dn n in git, ho hon và/hoc
thng tích nghiêm trng.
Lu gi tt c cnh báo và hng
dn tham kho sau này.
Thut ng “dng c máy” trong các cnh báo cp n
dng c máy (có dây) c vn hành bng ngun in
chính hoc dng c máy (không dây) c vn hành
bng pin ca bn.
An toàn ti ni làm vic
1. Gi ni làm vic sch s và có ánh sáng. Ni
làm vic ba bn hoc ti thng d gây ra tai nn.
2. Không vn hành dng c máy trong môi trng
cháy n, ví d nh môi trng có s hin din
ca các cht lng, khí hoc bi d cháy. Các dng
c máy to tia la in có th làm bi hoc khí bc
cháy.
3. Gi tr em và ngi ngoài tránh xa ni làm vic
khi ang vn hành dng c máy. S xao lãng có th
khin bn mt kh nng kim soát.
An toàn v in
4. Phích cm ca dng c máy phi khp vi cm.
Không bao gi c sa i phích cm theo bt
k cách nào. Không s dng bt k phích chuyn
i nào vi các dng c máy c ni t (tip
t). Các phích cm còn nguyên vn và cm phù
hp s gim nguy c in git.
5. Tránh c th tip xúc vi các b mt ni t
hoc tip t nh ng ng, b tn nhit, bp ga
và t lnh. Nguy c b in git s tng lên nu c
th bn c ni t hoc tip t.
6. Không dng c máy tip xúc vi ma hoc
trong iu kin m t. Nc lt vào dng c máy
s làm tng nguy c in git.
1. Cn khi ng công tc
2. Tay cm hông
3. u gn mi
4. Du tra u mi
5. Mi vít
6. Np ngàm
7. Thanh o sâu
8. c xit
9. tay cm
10. Ngàm khoan
11. Thanh dn ngàm
12. Vành góp in
13. u cách in
14. Chi các-bon
15. Tuc-n-vít
16. Np gi chi
17. C-lê khóa ai c
18. Np tay quay
19. M tra búa
KiuHR2010
Công sut
Bê-tông 20 mm
Thép 13 mm
G24 mm
Tc không ti (phút-1)0 - 900
S nhát mi phút 0 - 4.000
Chiu dài tng th302 mm
Trng lng tnh 3,4 kg
Cp an toàn /II
14
7. Không lm dng dây. Không bao gi s dng dây
mang, kéo hoc tháo phích cm dng c máy.
Gi dây tránh xa ngun nhit, du, các mép sc
hoc các b phn chuyn ng. Dây b hng hoc
b ri s làm tng nguy c in git.
8. Khi vn hành dng c máy ngoài tri, hãy s
dng dây kéo dài phù hp cho vic s dng ngoài
tri. Vic dùng dây phù hp cho vic s dng ngoài
tri s gim nguy c in git.
9. Nu bt buc phi vn hành dng c máy ni
m t, hãy s dng ngun cp in c bo v
bng thit b ngt dòng in rò (RCD). Vic s
dng RCD s gim nguy c in git.
10. Chúng tôi luôn khuyên bn s dng ngun cp
in qua thit b RCD có th ngt dòng in d
nh mc 30 mA hoc thp hn.
An toàn cá nhân
11. Luôn tnh táo, quan sát nhng vic bn ang làm
và s dng nhng phán oán theo kinh nghim
khi vn hành dng c máy. Không s dng dng
c máy khi bn ang mt mi hoc chu nh
hng ca ma tuý, ru hay thuc. Ch mt
khonh khc không tp trung khi ang vn hành dng
c máy cng có th dn n thng tích cá nhân
nghiêm trng.
12. S dng thit b bo h cá nhân. Luôn eo thit b
bo v mt. Các thit b bo h nh mt n chng
bi, giày an toàn chng trt, m bo h hay thit b
bo v thính giác c s dng trong các iu kin
thích hp s giúp gim thng tích cá nhân.
13. Tránh vô tình khi ng dng c máy. m bo
công tc v trí off (tt) trc khi ni ngun in
và/hoc b pin, cm hoc mang dng c máy. Vic
mang dng c máy khi ang t ngón tay v trí công
tc hoc cp in cho dng c máy ang bt thng
d gây ra tai nn.
14. Tháo mi khoá hoc chìa vn iu chnh trc khi
bt dng c máy. Vic chìa vn hoc khoá vn còn
gn vào b phn quay ca dng c máy có th dn
n thng tích cá nhân.
15. Không vi quá cao. Luôn gi thng bng tt và có
ch chân phù hp. iu này cho phép iu khin
dng c máy tt hn trong nhng tình hung bt ng.
16.
n mc phù hp. Không mc qun áo rng hay
eo trang sc. Gi tóc, qun áo và gng tay
tránh xa các b phn chuyn ng.
Qun áo rng,
trang sc hay tóc dài có th mc vào các b phn
chuyn ng.
17. Nu các thit b c cung cp kt ni các thit
b thu gom và hút bi, hãy m bo chúng c
kt ni và s dng hp lý. Vic s dng thit b thu
gom bi có th làm gim nhng mi nguy him liên
quan n bi.
S dng và bo qun dng c máy
18. Không dùng lc i vi dng c máy. S dng
úng dng c máy cho công vic ca bn. S
dng úng dng c máy s giúp thc hin công vic
tt hn và an toàn hn theo giá tr nh mc c
thit k ca dng c máy ó.
19. Không s dng dng c máy nu công tc không
bt và tt c dng c máy ó. Mi dng c máy
không th iu khin c bng công tc u rt
nguy him và cn c sa cha.
20. Rút phích cm ra khi ngun in và/hoc ngt
kt ni b pin khi dng c máy trc khi thc
hin bt k công vic iu chnh, thay i ph
tùng hay ct gi dng c máy nào. Nhng bin
pháp an toàn phòng nga này s gim nguy c vô
tình khi ng vô tình dng c máy.
21. Ct gi các dng c máy không s dng ngoài
tm vi ca tr em và không cho bt k ngi nào
không có hiu bit v dng c máy hoc các
hng dn này vn hành dng c máy. Dng c
máy s rt nguy him nu c s dng bi nhng
ngi dùng cha qua ào to.
22. Bo qun dng c máy. Kim tra tình trng lch
trc hoc bó kp ca các b phn chuyn ng,
hin tng nt v ca các b phn và mi tình
trng khác mà có th nh hng n hot ng
ca dng c máy. Nu có hng hóc, hãy sa cha
dng c máy trc khi s dng. Nhiu tai nn xy
ra là do không bo qun tt dng c máy.
23. Luôn gi cho dng c ct c sc bén và sch
s. Nhng dng c ct c bo qun tt có mép ct
sc s ít b kt hn và d iu khin hn.
24. S dng dng c máy, ph tùng và u dng c
ct, v.v... theo các hng dn này, có tính n iu
kin làm vic và công vic c thc hin. Vic s
dng dng c máy cho các công vic khác vi công
vic d nh có th gây nguy him.
Bo dng
25. nhân viên sa cha trình bo dng
dng c máy ca bn và ch s dng các b phn
thay th ng nht. Vic này s m bo duy trì
c an toàn ca dng c máy.
26. Tuân theo hng dn dành cho vic bôi trn và
thay ph tùng.
27. Gi tay cm khô, sch, không dính du và m.
GEB007-7
CNH BÁO AN TOÀN MÁY
KHOAN BÚA XOAY
1. eo thit b bo v tai. Vic tai tip xúc vi ting
n có th gây gim thính lc.
2. S dng các tay cm ph nu c cung cp kèm
theo dng c. Không iu khin c dng c s
gây ra thng tích cho con ngi.
3. Cm dng c máy bng b mt kp cách in khi
thc hin mt thao tác trong ó b phn ct có th
tip xúc vi dây dn kín hoc dây ca chính nó. B
phn ct tip xúc vi dây dn “có in” có th khin
các b phn kim loi b h ca dng c máy “có in”
và làm cho ngi vn hành b in git.
4. i m cng (m bo h), mang kính bo h và/
hoc mt n bo v mt. Mt thng hoc kính
râm KHÔNG phi là loi kính an toàn. Chúng tôi
ht sc khuyn cáo bn nên mang khu trang
chng bi và eo gng tay có m dày.
5. m bo rng u mi c gn cht úng v trí
trc khi vn hành.
6. Trong iu kin vn hành bình thng, dng c
c thit k to ra rung ng. Các c vít có th
d dàng b lng dn ra, gây ra hng hóc hoc tai
nn. Kim tra k cht ca các c vít trc khi
vn hành.
15
7. Khi thi tit lnh hoc không s dng dng c
trong thi gian dài, hãy làm nóng dng c mt lúc
bng cách vn hành không ti. iu này s giúp
du bôi trn giãn n ra. Nu không c làm
nóng úng cách, thao tác óng búa s gp khó
khn.
8. Luôn chc chn rng bn có ch ta chân vng
chc.
m bo rng không có ai di khi dùng dng
c nhng v trí trên cao.
9. Cm chc dng c bng c hai tay.
10. Gi tay tránh xa các b phn quay.
11. Không mc dng c hot ng. Ch vn hành
dng c khi cm trên tay.
12. Không c cha dng c vào bt c ai gn khi
vn hành dng c. u mi có th vng ra ngoài
và gây thng tích nghiêm trng cho ai ó.
13. Không chm vào u mi hoc các b phn gn
u mi ngay sau khi vn hành; chúng có th rt
nóng và gây bng da.
14. Mt s vt liu có cha các hóa cht có th rt
c hi. Phi cn trng tránh hít phi bi và
tip xúc vi da. Tuân theo các thông tin v an toàn
ca nhà cung cp i vi mi loi vt liu.
LU GI CÁC HNG DN NÀY.
CNH BÁO:
KHÔNG c s thoi mái hay quen thuc vi sn
phm (có c do s dng nhiu ln) thay th vic
tuân th nghiêm ngt các quy nh v an toàn dành
cho sn phm này. VIC DÙNG SAI hoc không tuân
theo các quy nh v an toàn c nêu trong tài liu
hng dn này có th dn n thng tích cá nhân
nghiêm trng.
MÔ T CHC NNG
CN TRNG:
•Phi luôn m bo rng dng c ã c tt in và
ngt kt ni trc khi chnh sa hoc kim tra chc
nng ca dng c.
Hot ng công tc (Hình 1)
CN TRNG:
•Trc khi cm in vào dng c, luôn luôn kim tra
xem cn khi ng công tc có hot ng bình thng
hay không và tr v v trí “OFF” (TT) khi nh ra.
•Không c buc, dùng bng dính hoc bt c cách
nào khác gi cht cn khi ng v trí “ON” (BT).
khi ng dng c, ch cn kéo cn khi ng công
tc. Tc dng c c gim xung bng cách tng lc
ép lên cn khi ng công tc. Nh cn khi ng công
tc ra dng.
B phn gii hn lc vn xit
B phn gii hn lc vn xit s khi hot khi t ti mt
mc lc vn xit nht nh. ng c s c ngt khi
trc dn xut. Khi iu này xy ra, u mi s ngng
xoay.
CN TRNG:
•Khi b phn gii hn lc vn xit khi hot, hãy tt
dng c ngay càng sm khi có th. iu này s giúp
ngn nga dng c b mài mòn quá sm.
•Các loi ca l, các u mi lõi, u mi lõi kim cng,
v.v... không th dùng vi dng c này. Chúng có
khuynh hng d dàng b kp hoc kt vào trong l.
iu này s làm cho b phn gii hn lc vn xit khi
hot quá thng xuyên.
LP RÁP
CN TRNG:
•Luôn luôn m bo rng dng c ã c tt và tháo
phích cm trc khi dùng dng c thc hin bt c
công vic nào.
Tay cm hông (tay nm ph tr) (Hình 2)
Tay cm hông có th lt qua li các mt, cho phép d
dàng cm gi dng c bt c v trí nào. Vn lng tay
cm hông bng cách xoay nó ngc chiu kim ng h,
lt n v trí mong mun và vn cht li bng cách xoay
theo chiu kim ng h.
Du tra u mi
Ph lên phía trc thân u mi mt lng nh du tra
u mi (khong 0,5 - 1 g).
Cht bôi trn ngàm này nhm m bo vn hành trôi
chy và kéo dài tui th dng c hn.
Vic lp t hoc tháo g u mi
V sinh thân u mi và bôi du tra u mi trc khi lp
u mi. (Hình 3)
Lp u mi và dng c. Xoay u mi và nhn vào cho
n khi nào vào khp.
Nu không th y u mi vào, hãy tháo u mi ra. Kéo
np ngàm xung mt vài ln. Sau ó lp u mi vào li.
Xoay u mi và nhn vào cho n khi nào vào khp.
(Hình 4)
Sau khi lp, hãy luôn m bo rng u mi ã c gi
chc chn úng v trí bng cách th kéo ra.
tháo u mi, kéo np ngàm xung ht mc và kéo
u mi ra.
Thanh o sâu (Hình 5)
Thanh o sâu rt thun tin khoan các l có chiu sâu
ng nht. Lp thanh o sâu vào l trong tay cm.
iu chnh thanh o sâu n sâu mong mun và vn
cht c xit gi thanh o sâu.
LU Ý:
• Thanh o sâu không th dùng v trí ni thanh o sâu
vng vào hp s.
VN HÀNH
Thao tác khoan búa
nh v u mi vào v trí mong mun cho l khoan, sau
ó kéo cn khi ng công tc. Không dùng lc i vi
dng c máy. n nh s mang li kt qu tt nht. Gi
cho dng c úng v trí và ngn không b trt khi l
khoan.
Không c n mnh khi l khoan bt u b nghn bi
các mt vn và các ht. Thay vào ó, hãy chy dng c
16
ch ch, sau ó tháo riêng mi khoan khi l. Bng
cách lp li thao tác này vài ln, l khoan s c sch
s và có th tip tc khoan bình thng.
CN TRNG:
•S có lc xon rt ln và bt ng trên dng c/mi
khoan lúc l khoan c xuyên thng, khi l khoan bt
u b kt bi các mt vn và ht hoc khi ng vào
các thép gia cng có trong bê-tông. Luôn s dng tay
cm bên hông (tay cm ph tr) và gi cht dng c
bng c hai tay cm bên hông và i tay cm trong lúc
vn hành. Không làm nh vy có th mt iu khin
dng c và gây thng tích nghiêm trng.
Khoan trong g hoc kim loi (Hình 6)
S dng b ngàm khoan tùy chn (gm có ngàm khoan
và b chuyn i ngàm). Khi lp nó, tham kho phn "Lp
hoc tháo u mi khoan” c mô t trang trc.
Bn có th khoan l ng kính lên n 13 mm vào kim
loi và lên n 24 mm khi khoan vào g.
BO TRÌ
CN TRNG:
• Hãy luôn chc chn rng dng c ã c tt và ngt
kt ni trc khi c gng thc hin vic kim tra hay
bo dng.
•Không bao gi dùng xng, ét xng, dung môi, cn
hoc hóa cht tng t. Có th xy ra hin tng mt
màu, bin dng hoc nt v.
Thay th các chi các-bon
Khi u cách in bng nha do bên trong chi các-bon
b l ra tip xúc vi vành góp in, nó s t ng tt mô-
t. Khi iu này xy ra cn phi thay c hai chi các-bon.
Hãy gi cho các chi các-bon sch s và không qun vào
trong các u gi. Các chi các-bon nên c thay th
cùng lúc. Hãy s dng các chi các-bon ging nhau.
(Hình 7)
Hãy s dng mt tuc-n-vít tháo các np gi chi.
Hãy tháo các chi các-bon ã b mòn, lp vào các chi
mi và vn cht các np gi chi. (Hình 8)
Tra du m
Dng c này không cn phi tra du m hàng gi hoc
hàng ngày bi nó có sn h thng tra du m gn trong.
Bôi trn dng c mi ln thay th các chi các-bon.
Chy dng c trong vài phút làm nóng dng c. Tt và
rút phích in ca dng c.
Tháo np tay quay bng c-lê khóa ai c ca Makita
(ph kin tùy chn). t dng c lên bàn vi u mi
hng lên trên. ng tác này s giúp cho du m c dn
v phn v tay quay. (Hình 9)
Lau sch phn du m c bên trong và thay bng du m
mi (30 g). Ch s dng du m tra búa chính hãng ca
Makita (ph kin tùy chn). Vic tra du m quá lng
quy nh (khong 30 g) có th gây ra sai lch thao tác
óng búa hoc làm dng c không hot ng. Ch tra
úng lng du m theo quy nh. (Hình 10)
Lp t li np tay quay và vn cht bng c-lê khóa ai
c.
CN TRNG:
•Không c vn np tay quay quá cht. Nó c làm
bng nha do và có th b nt gãy.
m bo AN TOÀN và TIN CY ca sn phm, vic
sa cha hoc bt c thao tác bo trì, iu chnh nào u
phi c thc hin bi các Trung tâm Dch v c y
quyn ca Makita (Makita Authorized Service Center),
luôn s dng các ph tùng thit b thay th ca Makita.
PH KIN TÙY CHN
CN TRNG:
• Các ph kin hoc ph tùng gn thêm này c
khuyn cáo s dng vi dng c Makita ca bn theo
nh quy nh trong hng dn này. Vic s dng bt
c ph kin hoc ph tùng gn thêm nào khác u có
th gây ra ri ro thng tích cho ngi. Ch s dng
ph kin hoc ph tùng gn thêm cho mc ích ã quy
nh sn ca chúng.
Nu bn cn h tr bit thêm chi tit v nhng ph
kin này, hãy liên h vi Trung tâm Dch v ca Makita ti
a phng ca bn.
•u mi bt SDS-Plus các-bua
•Ngàm khoan S13
•Thanh dn ngàm
• Khóa ngàm S13
•M tra búa
•Du tra u mi
• Thanh o sâu
• Bóng thi khí
•ng cha bi
•Ph kin hút bi
•Kính bo h
•C-lê khóa ai c s 28
•Hp nha cha dng c
LU Ý:
•Mt vài mc trong danh sách có th c bao gm
trong gói dng c làm ph kin tiêu chun. Các thông
s k thut có th thay i tùy theo tng quc gia.
17
!"#"$%&
'(")*+,"&-)./0//).%123$4
-5)/678("9:";
!!"#$%&'())(*+,"+-,(-.'/01234/5"(%06(&
76%!"#$%& 8,%9:2';(!4(3<"!%)=(*>?/?"@A%('
!B2@$0"1B2&CD,ED0C967,%&1',&<F,G*(?26-&F",(
!8,%9:2';(!4(3%('17)76(&)/"CB<"17623B*3!GH
!"A;(F"/)7(98,%?/&+/?8%& EPTA 01/2003
END201-5
!"#$"%&'(
76%CB"@A+#%=/I2/)JKLG@$<M,=;(F*/?%NB)*KL
EB*DHO)J(+-(9F9(08%&=/I2/)JKL<F,!8,(<')6%")(*<M,&("
..... %6("+:69#%)(*<M,&("
................ >"-"=%&M/A"
ENE041-1
!"#$%&'()*+,(-)%./,(0.,
!+*#$%&9#%M".D"@A<M,!4#$%!'(3)*31G)%.P +%")*@7 123F."
ENF002-2
1234(!45678
+-*!M#$%976%!+*#$%&9#%)/?1F26&'6(0CQG@$9@1*&D/"CQQR(7(9G@$*3?NC-,
<"BR(08,%9:28%&!+*#$%&9#% 123'37,%&<M,CQQR()*31==2/?1??!Q=
!D@0-!G6("/A" %NB)*KL"@ACD,*/?)(*FN,9>"-"=%&M/A"123=(9(*S<M,)/?
B2/T)CQG@$C969@=(0D."CD,
GEA005-3
!"#$%&'()*#(!+#,-.')/012'3
$!4&5'3,&'6778#905+6-
!"#$%&'(! ')#(!"#$%&'(*+#(!,#-./'*0123/4!"#3(4(5
61789-*
!"#$%&'()*+,),"%-."/,012345-."3252."6+7!4&"81"9:&7;4
<=>/!)6$??@"AB1, $?$=%>345/=#01$6>#+**"6/9B*1C&"7#>"C3#7
$:;<40:=#!"#$%&'(>.?!"#>(?("#90@3A,)
6+*$-B(2*',C.'*#3'D3E('(#!%
+;(-6( "!+*#$%&9#%CQQR(#<"+;(!7#%""@A F9(0SO& !+*#$%&9#%CQQR( (9@
=(0) G@$G;(&("ED0<M,)*31=CQQR( F*#%!+*#$%&9#%CQQR( (C*,=(0) G@$
G;(&("ED0<M,1?7!7%*@$
)950$3,#:;6+,(<.=>?@/?A5(5>
1. #B13<.=>?@/?A5(5>C2D0@)950'&,5#13&0@1'(78'945( 4#A"G@$
*)*3!)3*3)3F*#%9#DGO?%('";(CB=:6)(*!).D%N?/7.!F7NCD,
2. ,645CED(5>-)%./,(0.,788F5C>':5<?@/,5!-GH#G5%%&-IH#
-E4> C>'J5>?@/?@/0@+,(-239 GK5L 2%.,M"N>O(?@/0@)"P'0I;QH
1. =-.7ML=/$&&("
2. D,(9'/?D,("8,(&
3. ),("D%)=-6("
4. '(*3?@D%)=-6("
5. D%)C8+-&
6. U(+*%?F/-'/?
7. !)'-/D+-(92O)
8. =)*:0OD
9. P("D,(9'/?
10. F/-'/?D%)=-6("
11. 7/-1B2&F/-'/?
12. %NB)*KL=/?!B2@$0"
13. =6-"B2(0FN,9>"-"
14. 1B*&+(*L?%"
15. C8+-&
16. U(BVDG@$0OD1B*&
17. C8+-&!)2@0-2W%)
18. U(+*%?8,%!F-@$0&
19. '(*3?@!+*#$%&!'(3=)/D
*N6" HR2010
+-(9=(9(*S<")(*!'(3
+%")*@7 20 99.
E2F3 13 99.
C9,24 99.
+-(9!*W-8K3F9N"!B26( (*%?76%"(G@)0-900
%/7*(!'(3)*31G)76%"(G@0 - 4,000
+-(90(-ED0*-9 302 99.
"A;(F"/)=NGX. 3.4 )).
9(7*P("+-(9B2%DY/0 /II
18
7978 !+*#$%&9#%CQQR('3=*,(&B*3)(0CQ!4#$%'NDM"-"
UNZ"[&
F*#%)\(]D/&)26(-
3.
*:3/;-)<9+-=$*>?@ 9A&'BC!!/'&D('2:)<(BAE$,F6=D?"#/18<G+
$!A&D'8-&';HHI#
!"#%D:)E7#*!82:%"F)1"9G."<=>-HI:JK/:DC
!"#-8*-H%
)950$3,#:;6#D5>788F5
4. $3;RG+,(-)%./,(0.,788F5QD,(<,#@G;I-QD5%;I ,645#;#1$3(
$3;RG704945G%P@C#S ,645CED$3;RG,&1#T$-Q,%*G;I
-)%./,(0.,
788F5?@/Q4,'56#H> B2/T)G@$C96S:)D/D1B2&123!7,(*/?CQG@$!8,()/"
4%D@'3M6-02D+-(9!=@$0&8%&)(*!).DCQQR(MW%7
5. %&9;(,645C2D%45(G56';0O;'G;I<.=>OH9?@/Q4,'56#H> -E4> ?4,
-)%./,(>A5)950%D,> -Q52"(QD0 13&QBD-6T> 9@+-(9!=@$0&G@$'3
!).DCQQR(MW%7=:&8OA" F()*6(&)(08%&+NK=/9[/=)/?4#A"
6. ,645C2D-)%./,(0.,788F5JBG>=A52%.,,6B4C>':5<-$U6GE.=> "A;(
G@$CF2!8,(CB<"!+*#$%&9#%CQQR('3!4.$9+-(9!=@60&8%&)(*!).D
CQQR(MW%7
7. ,645CED'5678,645(704-205&'0 ,645CED'5678-<./,6G #V(
2%., J,#$3;RG-)%./,(0.,788F5 -GTI'5678C2D245(!5G
)950%D,> >=A50;> +,(0@)0 2%.,EH=>'49>?@/-)3./,>?@/ =(0G@$
M;(*NDF*#%4/")/"'3!4.$9+-(9!=@$0&8%&)(*!).DCQQR(MW%7
8. +P&?@/CED(5>-)%./,(0.,788F5>,G,5)5% )9%CED'56Q4,
<49(?@/-205&'0G;I(5>:56>,G,5)5% )(*<M,=(0G@$
!F9(3=9)/?&("Y(0"%)%(+(*'32D+-(9!=@$0&8%&)(*!).D
CQQR(MW%7
9. 25GQD,(CED(5>-)%./,(0.,788F5C>'J5>?@/-$U6GE.=> C2DCED
,"$G%P*$F,(G;>G%&1'78%;/9 (RCD) )(*<M,RCD '32D
+-(9!=@$0&8%&)(*!).DCQQR(MW%7
10. +,1>&>A5C2DCED1234(!45678O45> RCD ?@/0@G%&1'78%;/9
C>,;Q%5704-GH> 30 mA -'0,
)950$3,#:;6'49>I"))3
11. C2D%&0;#%&9;( 13&';(-GQ-'0,945)"PGA53;(?A5'H/(C#,6B4
13&CED'50;W'A5>VGC>+P&CED(5>-)%./,(0.,788F5 ,645CED
(5>-)%./,(0.,788F5C>+P&?@/)"PGA53;(-2>./,6 2%.,C>
':5<?@/0V>-05!5G65-'<QH# -)%./,(#./01,3G,X,3*2%.,
G5%CED65 M/$-8K3G@$8(D+-(9*39/D*3-/&!9#$%);(2/&<M,&("
!+*#$%&9#%CQQR(%('G;(<F,+NKCD,*/??(D!'W?%06(&*N"1*&
12. CED,"$G%P*$F,(G;>'49>I"))3 '90194>Q5$F,(G;>-'0,
%NB)*KLBR%&)/" !M6" F",()())/"UNZ" *%&!G,(".*Y/0)/"2#$" F9-)
".*Y/0 F*#%!+*#$%&BR%&)/")(*CD,0."G@$<M,<"=Y(4G@$!F9(3=9'3
M6-02D)(*?(D!'W?
13. $F,(G;>704C2D-$Y#CED(5>,645(704Q;=(C! Q%9!',I945'9HQE*
,6B4C>QA512>4($Y#G4,>-E./,0Q4,G;I1234(!45678 13&/2%.,
E"#1IQ-Q,%@/ 2%.,G4,>G5%6G2%.,J.,-)%./,(0., )(*=%D
".A-9#%?*.!-K=-.7ML!4#$%S#%!+*#$%&9#%CQQR( F*#%)(*M(*L'CQ
!+*#$%&9#%CQQR(<"8K3G@$!BVD=-.7ML%0:6%('";(CB=:6)(*!).D
%N?/7.!F7N
14. >A5G"W1!$%;I1Q4(2%.,$%&1!,,GG4,>?@/!&-$Y#-)%./,(0.,
788F5 B*31'F*#%)NI1'G@$!=@0?+,(&%0:6<"M.A"=6-"G@$F9N"CD,8%&
!+*#$%&9#%CQQR(%('G;(<F,+NKCD,*/??(D!'W?
15. ,645?A5(5>C>%&6&?@/'"#-,.=,0 !;#?45G5%6.>13&G5%
?%(Q;9C2D-205&'0Q3,#-935 !4*(3'3G;(<F,+-?+N9
!+*#$%&9#%CQQR(CD,D@8OA"<"=S(")(*KLG@$C96+(D+.D
16. 1Q4(G56C2D-205&'0 ,645'90-)%./,(1Q4(G56?@/2390-GH>
7$ 2%.,'90-)%./,($%&#;I #B13704C2D-'D>O0 -'.=,OD5 13&
J"(0.,,6B4CG3DEH=>'49>?@/-)3./,>?@/ !=#A%[,(*N69*6(9 !+*#$%&B*3D/?
F*#%[9G@$9@+-(90(-%('!8,(CB7.D<"M.A"=6-"G@$!+2#$%"G@$
17. 25G0@G5%!;#,"$G%P*'A52%;I#B#13&!;#-GTIM"N>79DC>
'J5>?@/ C2DQ%9!',I9457#D-E./,0Q4,13&CED(5>,"$G%P*>;=>
,645(-205&'0 )(*<M,!+*#$%&D:D123'/D!)W?UNZ"'3M6-02D
%/"7*(0G@$!).D'()UNZ"[&CD,
G5%CED13&#B13-)%./,(0.,788F5
18. ,645MZ>CED-)%./,(0.,788F5 CED-)%./,(0.,788F5?@/-205&'0
G;IG5%CED(5>+,()"P !+*#$%&9#%CQQR(G@$!F9(3=9'3G;(<F,CD,
&("G@$9@B*3=.GX.Y(4123B2%DY/0)-6(7(98@D+-(9=(9(*S
8%&!+*#$%&G@$CD,*/?)(*%%)1??9(
19. ,645CED-)%./,(0.,788F5 25G'9HQE*704'505%J-$Y#$Y#7#D
!+*#$%&9#%CQQR(G@$+-?+N9D,-0=-.7MLC96CD,!B^"=.$&%/"7*(0123
7,%&CD,*/?)(*]6%91]9
20. J,#$3;RG!5G1234(!45678 13&/2%.,E"#1IQ-Q,%@/,,G
!5G-)%./,(0.,788F5G4,>?A5G5%$%;I1Q4( -$3@/6>,"$G%P*
-'%H0 2%.,!;#-GTI-)%./,(0.,788F5 -.X@)(*BR%&)/"D,("+-(9
B2%DY/0D/&)26(-'3M6-02D+-(9!=@$0&8%&)(*!BVD<M,&("
!+*#$%&9#%CQQR(%06(&C967/A&<'
21. !;#-GTI-)%./,(0.,788F5?@/7047#DCED(5>C2D245(!5G0.,-#TG
13&,645,>"W5QC2DI"))3?@/704)"D>-)6G;I-)%./,(0.,788F5
2%.,)A51>&>A5-2345>@=CED(5>-)%./,(0.,788F5 !+*#$%&9#%
CQQR('3!B^"%/"7*(0!9#$%%0:6<"9#%8%&[:,G@$C96CD,*/?)(*U_)%?*9
22. G5%#B13%;G[5-)%./,(0.,788F5 Q%9!',IG5%$%&G,I?@/
704JBGQD,(2%.,G5%-E./,0Q4,+,(EH=>'49>
?@/-)3./,>?@/ G5%
1QG2;G+,(EH=>'49> 2%.,':5<,./>S ?@/,5!'4(O3G%&?I
Q4,G5%?A5(5>+,(-)%./,(0.,788F5 25G0@)950-'@6256 C2D
>A5-)%./,(0.,788F57$L4,01L0G4,>G5%CED(5> %N?/7.!F7N
';("-"9()!).D'())(*D:12*/)J(!+*#$%&9#%CQQR(%06(&C96
S:)7,%&
23. 3;I)950)013&?A5)950'&,5#-)%./,(0.,G5%Q;#,6B4-'0,
!+*#$%&9#%)(*7/DG@$9@)(*D:12%06(&S:)7,%&1239@8%?)(*7/D+9
9/)'39@B`IF(7.D8/D",%0123+-?+N9CD,&6(0)-6(
24. CED-)%./,(0.,788F5 ,"$G%P*-'%H0 13&9;'#"'H=>-$3.,( \3\
Q50)A51>&>A5#;(G3459 <H!5%P5':5<G5%?A5(5>13&
19
(5>?@/!&3(0.,?A5 )(*<M,!+*#$%&9#%CQQR(!4#$%G;(&("%#$""%)
!F"#%'()G@$);(F"DC-,%('G;(<F,!).D%/"7*(0
G5%I%HG5%
25. >A5-)%./,(0.,788F5-+D5%;II%HG5%!5GE45(L4,0
?@/O45>G5%
%;I%,(]#6CED,&72341II-#@69G;>-?45>;=> !4*(3'3G;(<F,
)(*<M,!+*#$%&9#%CQQR(9@+-(9B2%DY/0
26.
.JEB1%E%#-!"#3(4("#<(?#A9/)'/&D(3/4?#A$./=D2(
'C.?AFK$LAE-
27. #B130.,!;IC2D12D( '&,5# 13&7040@>=A50;>13&!5%&I@
-$Z^,>
GEB007-7
!"#$%&'()*#(!+#,-.')/012'3
F+G#(H4%#4I5
1. '90C'4,"$G%P*$F,(G;>-'@6( !=@0&G@$D/&!)."8"(D%('G;(<F,
=:I!=@0)(*CD,0."
2. CED0.,!;I-'%H0 JD50@05G;I-)%./,( )(*=:I!=@0+-(9+-?+N9
%('G;(<F,!).D)(*?(D!'W?
3. J.,-)%./,(0.,I%H-9P0.,!;I?@/-$_>`>9> +P&?A5(5>?@/
-)%./,(0.,Q;#,5!';0O;'G;I'5678?@/L4,>,6B42%.,'5678
+,(-)%./,(-,( !+*#$%&9#%7/DG@$=/9[/=)/?=(0CQG@$ "9@)*31=
CQQR(CF2[6("#%('G;(<F,=6-"G@$!B^"E2F38%&!+*#6%&9#%CQQR(G@$
C969@>"-"FN,9 "9@)*31=CQQR(CF2[6("#123G;(<F,[:,Ba.?/7.&("
S:)CQQR(MW%7CD,
4. '90209G1+T( (209G>H%:;6) 194>>H%:;6 13&/2%.,
2>D5G5G$F,(G;> 194>Q5$GQH2%.,194>G;>1##704CE4194>
>H%:;6 13&+,1>&>A5,645(6H/(C2D'902>D5G5GG;>M"4>13&
J"(0.,2>5S
5. Q%9!',IC2D1>4C!945#,G'945>6V#1>4>-+D5?@/#@13D9G4,>
G5%CED(5>
6. :56CQDG5%?A5(5>$GQH -)%./,(0.,7#D%;IG5%,,G1II05
-<./,'%D5(1%(';/>'&-?.,> #;(>;=> 'G%BQ45(S !&23907#D
(456 LV/(,5!?A5C2D-)%./,(-'@62%.,-GH#,"I;QH-2Q"Q%9!',I
C2D1>4C!945+;>'G%B1>4>#@13D9G4,>G5%CED(5>
7. C>':5<,5G5a2>592%.,-0./,7040@G5%CED-)%./,(0.,-$_>
%&6&-935>5> QD,(,"4>-)%./,(0.,';G)%B4]#6G5%-$Y#-)%./,(
?H=(79D-`6S -<./,C2D0@G5%234,3./> 25G7040@G5%,"4>-)%./,(
0.,,645(-205&'0 G5%-!5&'G;#!&?A57#D65G
8. Q%9!',II%H-9P?@/6.>C2D0@)9500;/>)(-'0,25GCED(5>
-)%./,(0.,C><.=>?@/'B( %&9;(,645C2D0@)>,6B4#D5>345(
9. !;I-)%./,(0.,C2D1>4>#D960.,?;=(',(+D5(
10. %&9;(,645C2D0.,';0O;'G;IEH=>'49>?@/-)3./,>?@/
11. ,645$34,6C2D-)%./,(0.,?A5(5>)D5(79DCED(5>-)%./,(0.,C>
+P&?@/J.,,6B4-?45>;=>
12. ,645CED-)%./,(0.,E@=7$?@/I"))3C#C><.=>?@/?A5(5>+P&CED(5>
#,G'945>,5!23"#,,G13&?A5C2D7#D%;II5#-!TI%D561%(
7#D
13. 2D50';0O;'G;I#,G'945>2%.,EH=>'49>?@/CG3DG;I#,G'945>
?;>?@?@/?A5(5>-'%T! ->./,(!5G#,G'945>2%.,EH=>'49>,5!0@
)950%D,>'B(13&39GOH92>;(+,()"P7#D
14. 9;'#"I5(,645(,5!0@'5%-)0@?@/-$_><H[ %&9;(,645'B##0M"N>
2%.,C2D'5%-2345>;=>';0O;'G;I%45(G56 $bHI;QHQ50+D,0B3
#D5>)950$3,#:;6+,(OBDO3HQ9;'#"
<0(9J:!"#>(?("#$A.G#(I@
)A5-Q.,>:
,645C2D)950704%&0;#%&9;(2%.,)950)"D>-)6G;IO3HQ:;Pc*
(!5GG5%CED(5>L=A52356)%;=() ,6B4-2>.,G5%$bHI;QHQ50
Gd-GPc*#D5>)950$3,#:;6C>G5%CED(5>O3HQ:;Pc*,645(
-)%4()%;# G5%$bHI;QH,645(704-205&'02%.,G5%704$bHI;QHQ50
Gd-GPc*#D5>)950$3,#:;6C>)B40.,CED(5>>@=,5!?eC2D-GH#
G5%I5#-!TI,645(%">1%(
!"#'KD<#1:#49"#3#(
+D,)9%%&9;(:
!7*-'=%?<F,1"6<'-6(=-.7ML!+*#$%&9#%%0:6<"7;(1F"6&BVD!+*#$%&
123S%DB2/T)!+*#$%&9#%%%))6%"B*/?7/A&F*#%7*-'=%?)(*G;(
&("8%&!+*#$%&9#%
%)*+,)-)./0-!1234((5)6+78 1)
+D,)9%%&9;(:
!)6%"!=@0?B2/T)!+*#$%&9#% <F,7*-'=%?-6(=-.7ML=/$&&("=(9(*SG;(
&("CD,%06(&S:)7,%& 123)2/?CB0/&7;(1F"6& "OFF#!9#$%B26%0
!%06([:) <M,!GB4/" F*#%2W%)=-.7ML=/$&&("<F,%0:6<"7;(1F"6& "ON#
!BVD<M,!+*#$%&9#%ED0DO&=-.7ML=/$&&(" +-(9!*W-!+*#$%&9#%'3!4.$98OA"
!9#$%%%)1*&)DG@$=-.7ML=/$&&(" B26%0=-.7ML=/$&&("!4#$%F0NDG;(&("
3"19,)%":;*-<2:
7/-';()/D1*&?.D'3G;(&("!9#$%1*&?.D8OA"CBSO&*3D/?F"O$& 9%!7%*L'3
[23%%)'()!42(=6&);(2/& !9#$%!B^"!M6""@A D%)=-6("'3F0NDF9N"
+D,)9%%&9;(:
!!9#$%7/-';()/D*%?G;(&(" <F,BVD=-.7ML!+*#$%&9#%<"G/"G@ "@$'3!B^"
)(*<M,BR%&)/")(*=O)F*%)6%");(F"D8%&!+*#$%&9#%
!C96=(9(*S<M,!2#$%0!'(3*: 1)"D%)=-6(" D%)=-6("1)"!4M*
b2b )/?!+*#$%&9#%"@ACD,!2#$%0!'(3*:"/A"9/)8?F*#%7.D%0:6<"*:CD,
&6(0 =.$&"@A'3G;(<F,7/-';()/D*%?G;(&("?6%0!)."CB
:#4-4?:'<
+D,)9%%&9;(:
!7*-'=%?<F,1"6<'-6(=-.7ML!+*#$%&9#%%0:6<"7;(1F"6&BVD!+*#$%&
123S%DB2/T)!+*#$%&9#%%%))6%"D;(!"."&("<Dc )/?!+*#$%&9#%
20
:=)>9"<:=)./=)- (>?09"<@!*2>) (5)6+78 2)
D,(9'/?D,("8,(&=(9(*S!2#$%"CB*%?c CD,G/A&=%&D,(" G;(<F,'/?
!+*#$%&9#%CD,&6(0<"GN)7;(1F"6& +2(0D,(9'/?D,("8,(&ED0)(*F9N"
D,(9'/?G-"!8W9"(d.)( 12,-!2#$%"CB0/&7;(1F"6&G@$7,%&)(* '()"/A"
0OD<F,1"6"ED0)(*F9N"D,(9'/?7(9!8W9"(d.)(
9)*A<7:0%!1B).
G('(*3?@G@$D%)=-6("!2W)",%0)6%")(*<M,&("
(B*39(K 0.5 -1 )*/9)
)(*F26%2#$"'3M6-0<F,!+*#$%&9#%G;(&("CD,*(?*#6"0.$&8OA"123M6-00#D
%(0N)(*<M,&("8%&!+*#$%&9#%D,-0
%)*32:3"C-D*?0E0::0%F/G1-
G;(+-(9=3%(D),("D%)=-6("123G('(*3?@G@$D%)=-6(")6%")(*
7.D7/A&D%)=-6(" (:5<?@/ 3)
<=6D%)=-6("2&<"!+*#$%&9#% F9N"123D/"D%)=-6("'")*3G/$&!8,(G@$
S,(C96=(9(*SD/"D%)=-6("!8,(CBCD,<F,S%DD%)=-6("%%) 12,-DO&
U(+*%?F/-'/?2&=%&+*/A& '()"/A"<=6D%)=-6("%@)+*/A& F9N"123D/"
D%)=-6("'")*3G/$&!8,(G@$ (:5<?@/ 4)
F2/&'())(*7.D7/A& 7*-'=%?<F,1"6<'-6(D%)C8+-&0OD1"6"!8,(G@$D@
12,-ED02%&40(0(9DO&%%)
!9#$%7,%&)(*S%DD%)=-6("%%) <F,DO&U(+*%?F/-'/?2&'"=ND123
DO&D%)=-6("%%)
@%91":G1)>$H% (5)6+78 5)
!)'-/D+-(92O)!F9(3=9G@$'3<M,=;(F*/?*:!'(3G@$9@+-(92O)!G6()/"
=%D!)'-/D+-(92O)!8,(CB<"M6%&8%&P("G@$'/?
B*/?!)'-/D+-(92O)CBG@$*3D/?+-(92O)G@$7,%&)(* '()"/A"8/"=)*:0OD
!4#$%0OD!)'-/D+-(92O)
2056-2Q":
!!)'-/D+-(92O)C96=(9(*S<M,G@$7;(1F"6&]O$&!)'M")/?!*#%"!)@0*L
CD,
:#4EL*3#(
%)*I4=-).%)*@9)A%*A;+%
-(&7;(1F"6&D%)=-6("G@$7;(1F"6&G@$7,%&)(*!'(3*:'()"/A")D
=-.7ML=/$&&(" %06(Ue"<M,!+*#$%&9#% )(*<M,1*&)D!?(c '3<F,[2D@G@$=ND
'/?!+*#$%&9#%<F,%0:6<"7;(1F"6&C-,123)/"C96<F,!+*#$%&9#%2#$"F2ND%%)
9('()*:G@$!'(3
F,(9<M,1*&)D9()8OA"!9#$%9@!HJE2F3 F*#%-/=DN%ND7/"G@$*: <F,<M,&("
!+*#$%&9#%G@$*%?!D."!?(1G" '()"/A"DO&D%)=-6("?(&=6-"%%)9(
'()*: )(*G;(1??"@A]A;(F2(0c +*/A&'3G;(<F,*:=3%(D 123=(9(*SG;(
)(*!'(3CD,7(9B)7.
+D,)9%%&9;(:
!'39@1*&?.D?"!+*#$%&9#%/D%)=-6("%06(&9()G/"G@8K3!'(3*:
G32N !9#$%9@!HJ-/=DN%ND7/"G@$*: F*#%!9#$%B3G3)/?!F2W)!=*.9<"
+%")*@7 <M,D,(9'/?D,("8,(& (9#%'/?!=*.9) !=9% 123'/?!+*#$%&
9#%<F,1"6"D,-0D,(9'/?D,("8,(&1239#%'/?=-.7ML<"*3F-6(&)(*
<M,&(" )(*C96Ba.?/7.7(98/A"7%"D/&)26(-%('G;(<F,C96=(9(*S
+-?+N9!+*#$%&9#%123CD,*/??(D!'W?*N"1*&
%)*@9)AF>=D*?0@D$J% (5)6+78 6)
<M,MNDF/-'/?%NB)*KL!=*.9 (B*3)%?D,-0F/-'/?123MND7/-1B2&
F/-'/?) !9#$%G;()(*<=67/-1B2& <F,D:+;(%X.?(0 ")(*7.D7/A&F*#%S%DD
%)=-6("!'(3#<"F",(G@$[6("9(
+NK=(9(*S!'(3*:G@$!=,"[6(H:"0L)2(&=:&=NDSO& 13 99. <"E2F3123
24 99. <"C9,
:#4<"#4M340:=#
+D,)9%%&9;(:
!7*-'=%?<F,1"6<'-6(CD,BVD=-.7ML!+*#$%&9#%123S%DB2/T)%%)
)6%"G;()(*7*-'=%?F*#%?;(*N&*/)J(
!%06(<M,"A;(9/"!M#A%!42.& !?"]." G."!"%*L 1%2)%f%2LF*#%-/=DN
B*3!YG!D@0-)/" !4*(3%('G;(<F,!+*#$%&9#%9@=@]@D'(& [.D*:BG*&
F*#%17)F/)CD,
%)*@K$78L.;K*-G)*(<0.
!9#$%=6-"B2(0G@$FN,9!*]."D,("<"1B*&+(*L?%"=/9[/=)/?%NB)*KL
=/?!B2@$0" %NB)*KLD/&)26(-'3BVD)(*G;(&("8%&9%!7%*LED0
%/7E"9/7. !9#$%!F7N)(*KLD/&)26(-!).D8OA" +-*!B2@$0"1B*&+(*L?%"
G/A&+:6 */)J(1B*&+(*L?%"<F,=3%(D 123%06(<F,1B*&+(*L?%"F2ND
!8,(CB<"G@$0OD +-*!B2@$0"1B*&+(*L?%"G/A&=%&1B*&4*,%9)/" <M,
1B*&+(*L?%"G@$);(F"D!G6("/A" (:5<?@/ 7)
<M,C8+-&!4#$%S%DU(BVDG@$0OD1B*&%%) ";(1B*&+(*L?%"G@$=O)F*%
%%)9( <=61B*&+(*L?%"<F96!8,(CB 123BVDU(BVDG@
60OD1B*&<F,1"6"
(:5<?@/ 8)
%)*D$B0$?8.
!+*#$%&9#%"@AC96';(!B^"7,%&F26%2#$"GN)M/$-E9&F*#%GN)-/" !"#$%&'()9@
*3??F26%2#$"D,-0)(*%/D'(*3?@ +-*F26%2#$"GN)c +*/A&!9#$%9@)(*
!B2@$0"1B*&+(*L?%"
!BVD=-.7ML<F,!+*#$%&9#%G;(&("=/)=%&=(9"(G@!4#$%%N6"!+*#$%&9#% '()
"/A" BVD=-.7ML123S%DB2/T)!+*#$%&9#%%%)
S%DU(+*%?8,%!F-@$0&%%)ED0<M,B*31'!)2@0-2W%) Makita
(%NB)*KL!=*.9) -(&!+*#$%&9#%C-,?"E7\3ED0<F,D%)=-6("F&(08OA"
D,("?" )(*)*3G;(D/&)26(-'3G;(<F,'(*3?@CF2!8,(%%)'())*%?
8,%!F-@$0& (:5<?@/ 9)
!MWD'(*3?@!)6(D,("<"%%) 123<=6'(*3?@<F96(30 )*/9) <M,!>4(3
'(*3?@8%&1G,=;(F*/?!+*#$%&!'(3=)/D'() Makita !G6("/A"
Other manuals for HR2010
11
Table of contents
Languages:
Other Makita Rotary Hammer manuals
Makita
Makita M8700 User manual
Makita
Makita HR1840 User manual
Makita
Makita CP100DSA User manual
Makita
Makita DHR400 User manual
Makita
Makita HR4041C User manual
Makita
Makita HK1800 User manual
Makita
Makita HR2455 User manual
Makita
Makita HR5000 User manual
Makita
Makita HR2800 User manual
Makita
Makita DHR183 User manual
Makita
Makita HR4501C Manual
Makita
Makita DHR400 User manual
Makita
Makita BHR162 User manual
Makita
Makita HR3520B User manual
Makita
Makita HR2610X5 User manual
Makita
Makita HR1830 User manual
Makita
Makita DHR165 Manual
Makita
Makita HR2470F Quick start guide
Makita
Makita DHR165ZJ User manual
Makita
Makita HR4501C User manual
