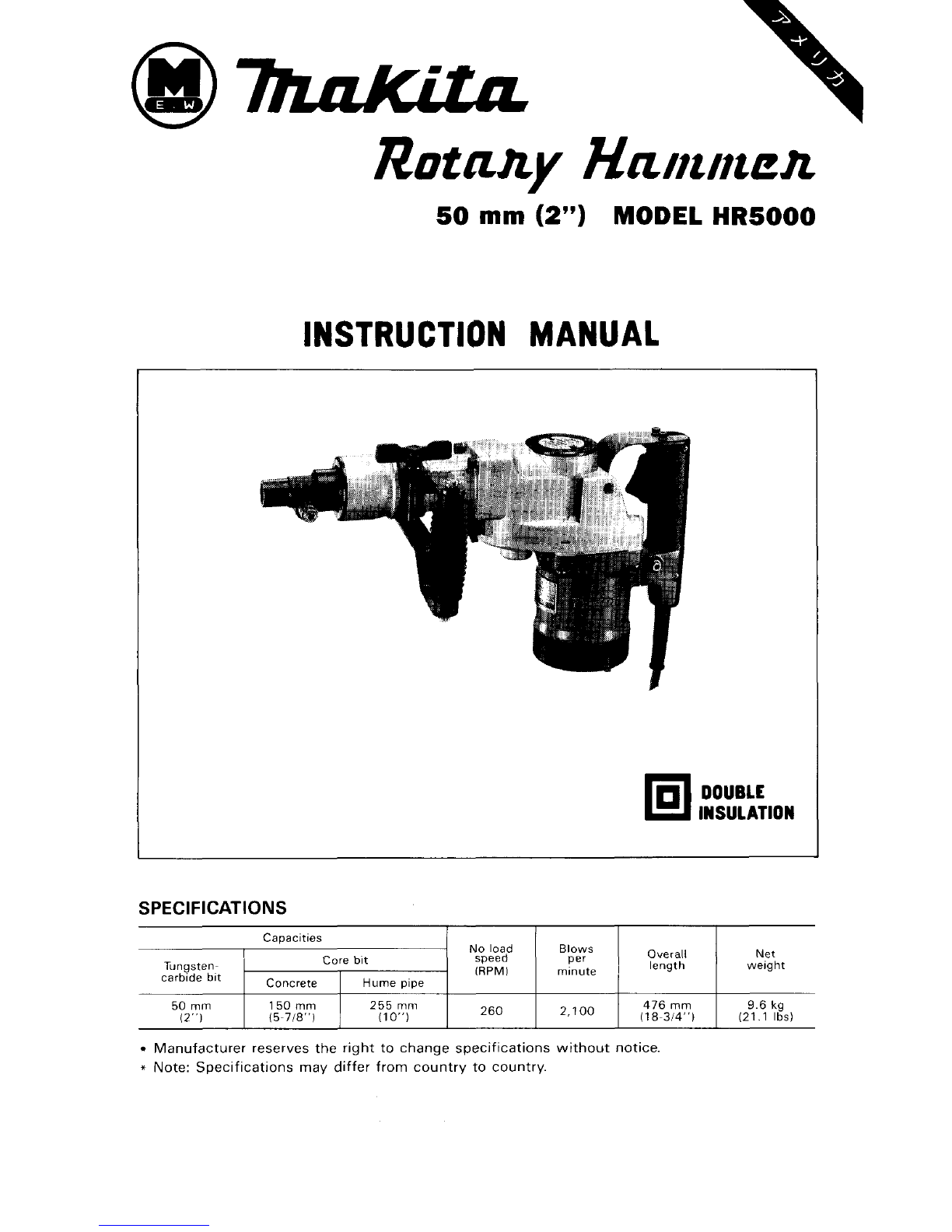

Makita HR5000 User manual

n
Capacities
Core bit
Tungsten
carbide bit Hume pipe
50
mm 150 mm 255 mm
12"1 15 71B"I 110")
50 mm (2") MODEL HR5000
Overall Net
No
load Blows
speed
IRPMl minute
per length weight
476
mm 9 6 kg
2,100 (18 314") (21 1 Ibs)
260
INSTRUCTION MANUAL
DOUBLE
INSULATION
SPEC IF I CAT I 0 N S
Manufacturer reserves the right to change specifications without notice.
* Note: Specifications may differ from country to country.

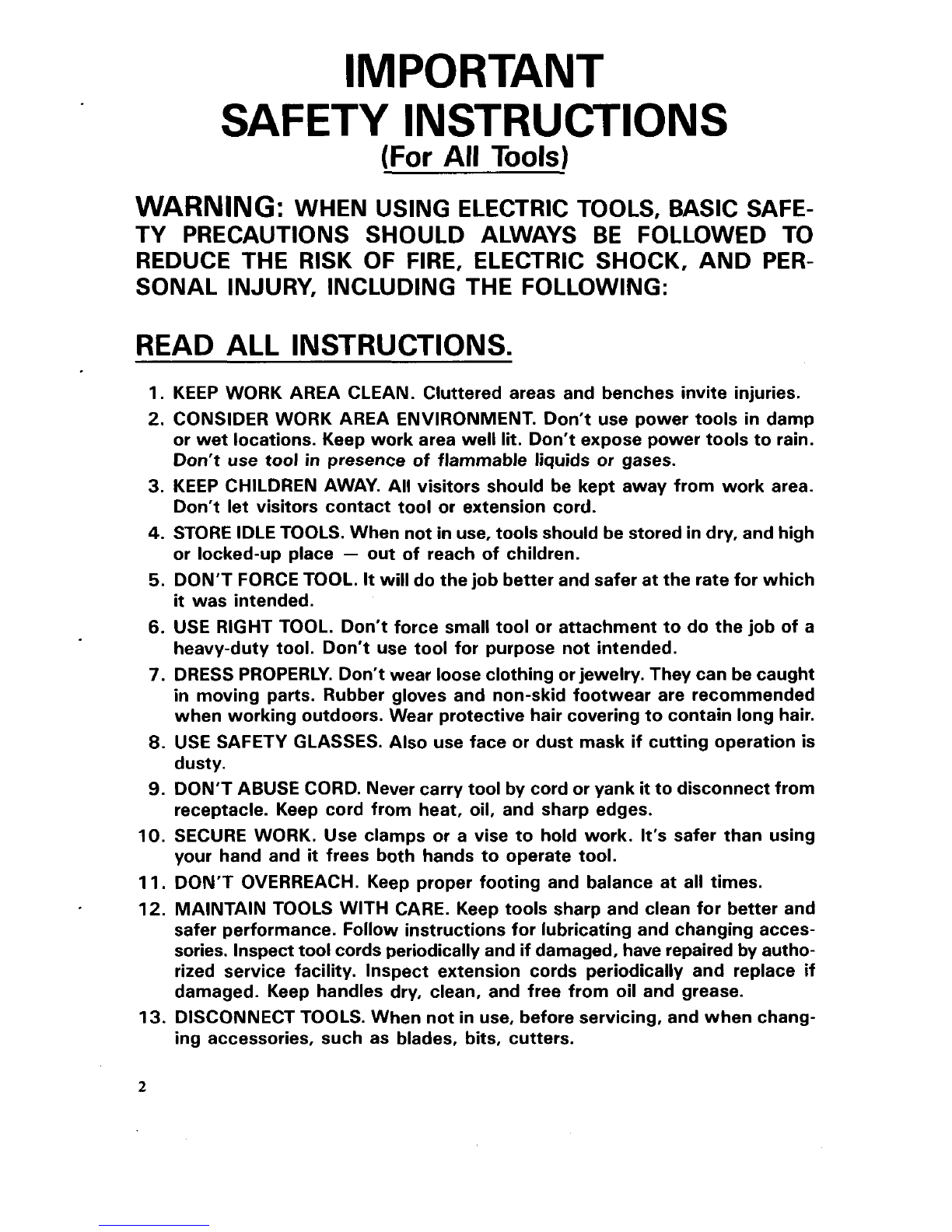

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING:
WHEN USING ELECTRIC TOOLS, BASIC SAFE-
REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PER-
TY PRECAUTIONS SHOULD ALWAYS
BE FOLLOWED TO
SONAL INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools
in damp
or wet locations. Keepwork area well
lit. Don't expose power tools to rain.
Don't
use tool in presence of flammable liquids or gases.
KEEP CHILDREN AWAY.
All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. When not
in use, toolsshould be stored indry, andhigh
or locked-up place
- out of reach of children.
DON'T FORCETOOL.
It will do thejob betterandsafer at the ratefor which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do the job of a
heavy-dutytool. Don't use tool for purpose not intended.
DRESSPROPERLY. Don't wear
loose clothingor jewelry. They canbecaught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protectivehair covering tocontain long hair.
USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
DON'T ABUSE CORD. Never carry tool by cordor yank
it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAINTOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructionsfor lubricatingand changing acces-
sories. Inspecttoolcords periodicallyand
if damaged, haverepairedby autho-
rized service facility. Inspect extension cords periodically and replace
if
damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS. When not inuse, before servicing, and when chang-
ing accessories, such as blades, bits, cutters.

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keysandadjusting wrenches are removed from tool beforeturning
it on.
15. AVOID UNINTENTIONALSTARTING. Don’t carry plugged-intoolwithfinger
on switch. Be sure switch is OFF when plugging in.
16. OUTDOOR USEEXTENSIONCORDS. Whentool is used outdoors, use only
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what you are doing, use common sense. Don’t operate
tool when you are tired.
18. CHECK DAMAGEDPARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and performits intended function. Check for alignment of
movingparts, bindingof movingparts, breakageof parts, mounting, and any
other conditions that may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced by an authorized serv-
ice center unless otherwise indicated elsewhere
in this instruction manual.
Have defective switches replaced by authorized service center. Don‘t use
tool if switch does not turn
it on and off.
19. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact withgrounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENTPARTS. When servicing, useonly identicalreplacementparts.
VOLTAGE WARNING: Before connectingthe tool toa power source (receptacle,
outlet, etc.) be sure the voltage supplied
is the same as that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result inSERIOUS INJURY to the user
- as well as damage to
the tool. If in doubt, DO NOT PLUG INTHE TOOL. Usinga power source with
voltage less than the nameplate rating is harmful to the motor.
3

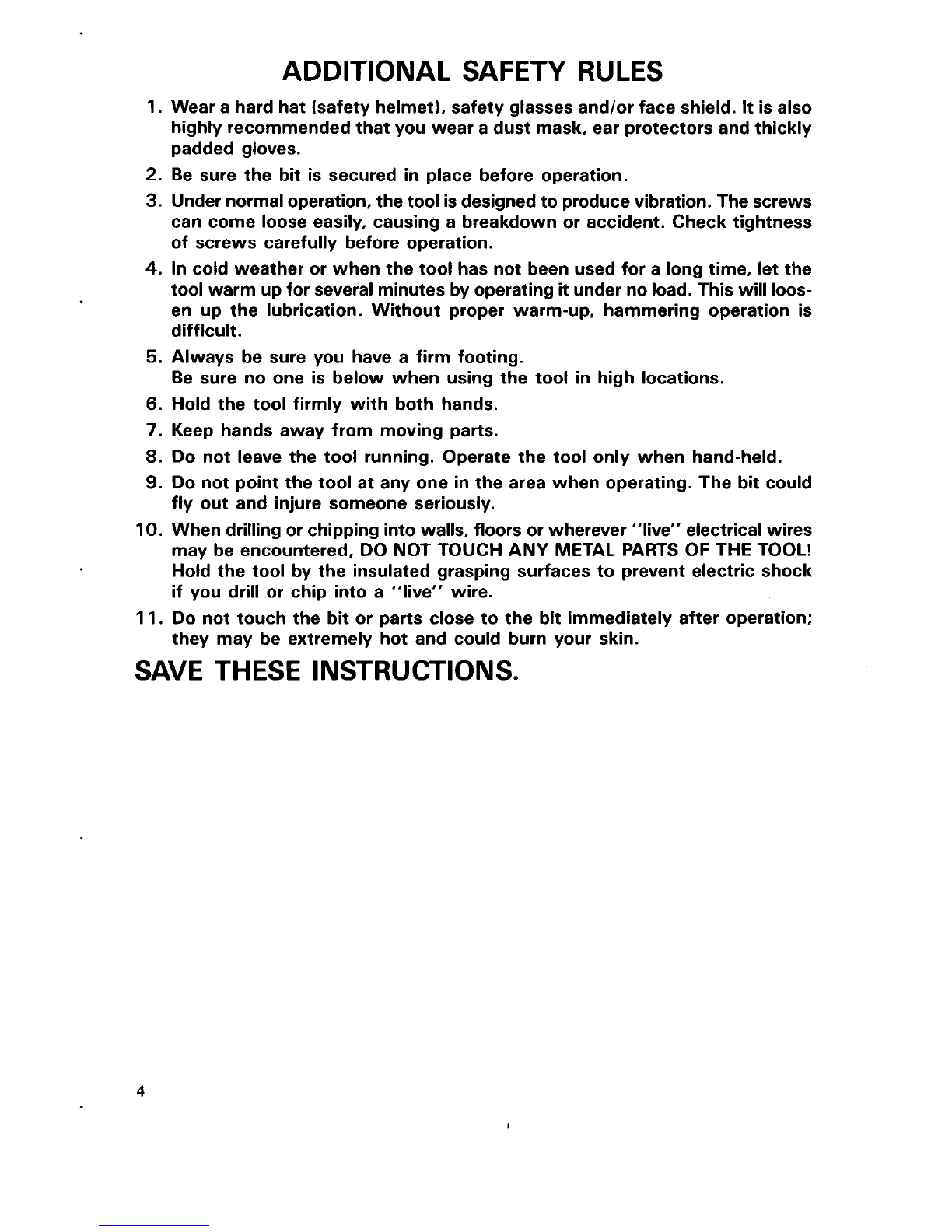

ADDITIONAL SAFETY RULES
1. Wear a hardhat (safetyhelmet), safety glasses and/or face shield. It isalso
highly recommendedthat you wear a dust mask, ear protectorsandthickly
padded gloves.
2. Be sure the bit is secured in place before operation.
3. Undernormal operation, the toolisdesignedtoproducevibration. Thescrews
can come loose easily, causing a breakdown or accident. Check tightness
of screws carefully before operation.
4. Incold weather or whenthe tool has not been used for a longtime, let the
toolwarm upfor several minutesby operating
it under noload. This will loos-
en up the lubrication. Without proper warm-up, hammering operation is
difficult.
Be sure no one is below when using the tool in high locations.
5. Always be sure you have a firm footing.
6. Hold the tool firmly with both hands.
7. Keep hands away from moving parts.
8. Do not leave the tool running. Operate the tool only when hand-held.
9. Do not point the tool at any one inthe area when operating. The bit could
fly out and injure someone seriously.
IO. When drilling or chipping intowalls, floors or wherever "live" electrical wires
may be encountered,
DO NOT TOUCH ANY METAL PARTS OF THE TOOL!
Hold the tool by the insulated grasping surfaces to prevent electric shock
if you drill or chip into a "live" wire.
11. Do not touch the bit or parts close to the bit immediately after operation;
they may be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
4

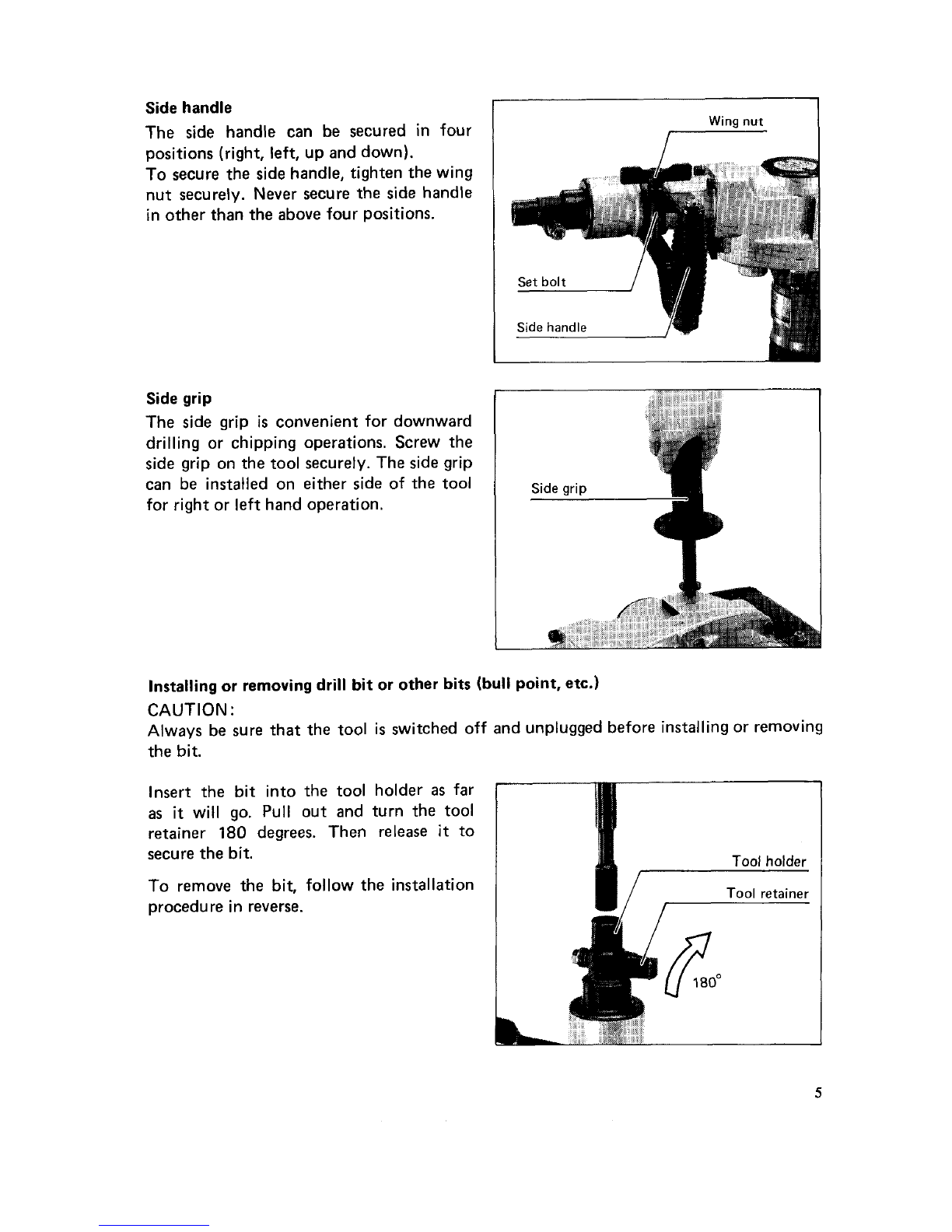

Side handle
The side handle can be secured in four
positions(right, left, up and down).
To secure the side handle, tightenthe wing
nut securely. Never secure the side handle
inother than the above four positions.
Side grip
The side grip
is convenientfor downward
drilling or chipping operations. Screw the
side grip on the tool securely. The side grip
can be installed on either side of the tool
for right or left hand operation.
Installingor removingdrill bitor other bits (bullpoint, etc.)
CAUTION:
Always be sure that the tool
is switched off and unpluggedbefore installingor removing
the bit.
Insert the bit into the tool holder
as far
as it will go, Pull out and turn the tool
retainer
180 degrees. Then release it to
secure the bit.
To remove the bit, follow the installation
procedure in reverse.
5

Selectingactionmode
Rotationwith hammering:
For drilling in concrete, masonry,
etc.,
rotate the change lever to the posi-
tion.
Hammeringonly:
For chipping, scaling or demolition opera-
tions, rotatethe change lever tothe
? posi-
tion.
CAUTION
:
.Do not rotate the change lever when the tool is running under load. The tool will be
damaged.
.To avoid rapid wear on the mode change mechanism, be sure that the change lever
is
always positivelylocatedinone of the two actionmode positions.
Switchaction
Release the trigger tostop.
To start the tool, simply pull the trigger.
Trigger switch
CAUTION:
0 Before plugginginthe tool, alwayscheck to see that the triggerswitchactuates properly
0 Do nottape, tie or otherwise secure the trigger inthe "ON" position.
and returnstothe
"OFF" positionwhen released.
Chipping
- Scaling - Demolition
Holdthe tool firmly with both hands. Turn
the tool on and apply slight pressure on
the tool
so that the tool will not bounce
around, uncontrolled. Pressing very hard
on the tool will notincreasethe efficiency.
6

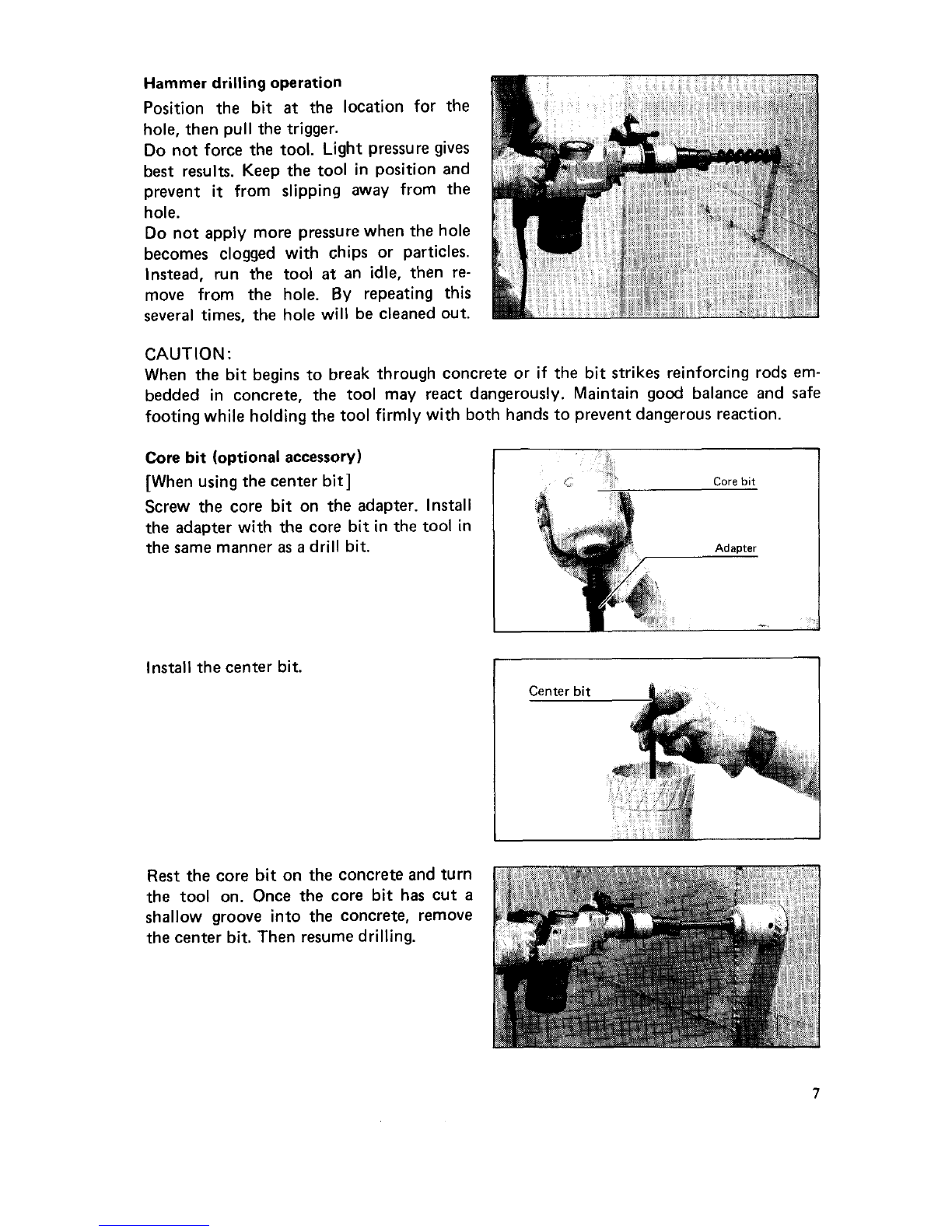

Hammerdrillingoperation
Position the bit
at the location for the
hole, then pull the trigger.
Do not force the tool. Light pressure gives
best results. Keep the tool in position and
prevent
it from slipping away from the
hole.
Do not apply more pressurewhen the hole
becomes clogged with chips or particles.
Instead, run
the tool at an idle, then re-
move from the hole.
By repeating this
several times, the hole will be cleaned out.
CAUTION :
When the bit begins to break through concrete or if the bit strikes reinforcing rods em-
bedded in concrete, the tool may react dangerously. Maintain good balance and safe
footingwhile holdingthe tool firmly with both handsto preventdangerous reaction.
Core bit (optional accessory)
[When usingthe center bit]
Screw the core bit
on the adapter. Install
the adapter with
the core bitinthe tool in
the same manner
as a drill bit.
Installthe center bit.
Rest the core bit on the concreteand turn
the tool on. Once the core bit has cut
a
shallow groove into the concrete, remove
the center bit. Then resumedrilling.
7

To remove the core bit, follow the procedures (1) or (2).
1) Rotate the change lever to the posi-
tion. Then rest the core bit on the con-
crete and turn the tool on. The core bit
will come loose from the hammering
action.
2) Hold the adapter with the wrench, in-
sert the rod intothe hole inthe core bit
and tapwith
a hammer tounscrew.
[When notusingthe center bit]
Screw the core bit on the adapter. Install
the adapter with the core bit inthe tool in
the same manner as a drill bit.
Rotatethe change lever tothe position.
Rest the core bit on the concreteand turn
the tool on. Once the core bit has cut
a
shallow groove into the concrete, rotate
the change lever to the position and
resumedrilling.
Ti
NOTE :
No problem is caused even ifthe core bitunscrewsslightly during brief use since the core
bit rotates inthe tighteningdirection.
To remove the core bit, follow the same removal procedurescoveredin [when usingthe
center bit
1.
8

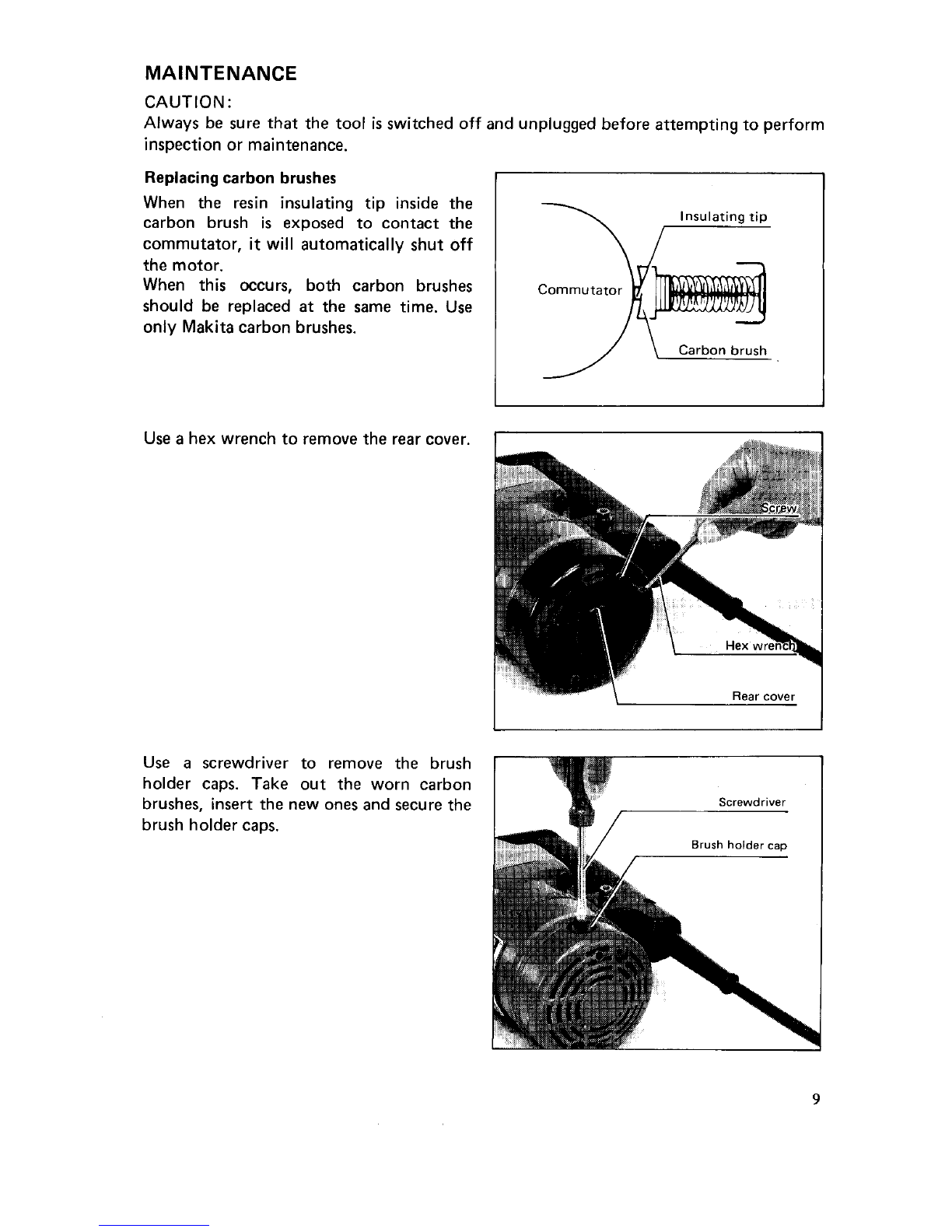

MAINTENANCE
CAUTION:
Always be sure that the tool
is switched off and unpluggedbefore attempting toperform
inspectionor maintenance.
Replacingcarbon brushes
When the resin insulating tip inside the
carbon brush
is exposed to contact the
commutator,
it will automatically shut off
the motor.
When this occurs, both carbon brushes
should be replaced
at the same time. Use
only Makitacarbonbrushes.
I
Insulatingtip
>I--
Carbon brush
1'
Use a hex wrench to remove the rear cover.
Use
a screwdriver to remove the brush
holder caps. Take out the worn carbon
brushes, insert the new ones and secure the
brush holdercaps.
9

Lubrication
Lubricatethe tool every time the carbon brushesare replaced.
Run the tool for several minutes towarm
it
up, then rest the tool on the table with the
bit end pointing upwards. Thiswill allow
the old grease to collect inside the crank
housing. After five minutes, take off the
crank cap and remove the old grease. Wipe
out all grease inside and replace with
a
fresh supply (30 g; 1 oz).
CAUTION :
0 Filling with more than the specified
amount of grease (approx.309;
1 oz.) can
cause faulty hammering action or tool
failure. Fill only with the specified
amount of grease.
The use of any other grease may harm the
tool.
0 Use only Makitagenuine grease.
Sharpeningtungstencarbidetip bit
When your bit becomes dull, use
an ordinary bench grinder with a wheel made of silicon
carbide toresharpen
it.
CAUT I 0 N :
.Be sure to maintain the original angles of the tip. Especially without 60" chamfering,
0 Do notquench the bitinwater or oil.
0 Do notgrindthe sides B and C.
the tungsten-carbidetip may be damaged.
To maintain product SAFETY and RELlABlLITY, repairs, any other maintenance or
adjustment should be performed by Makita Authorized or Factory Service Centers,
always usingMakitareplacementparts.
10

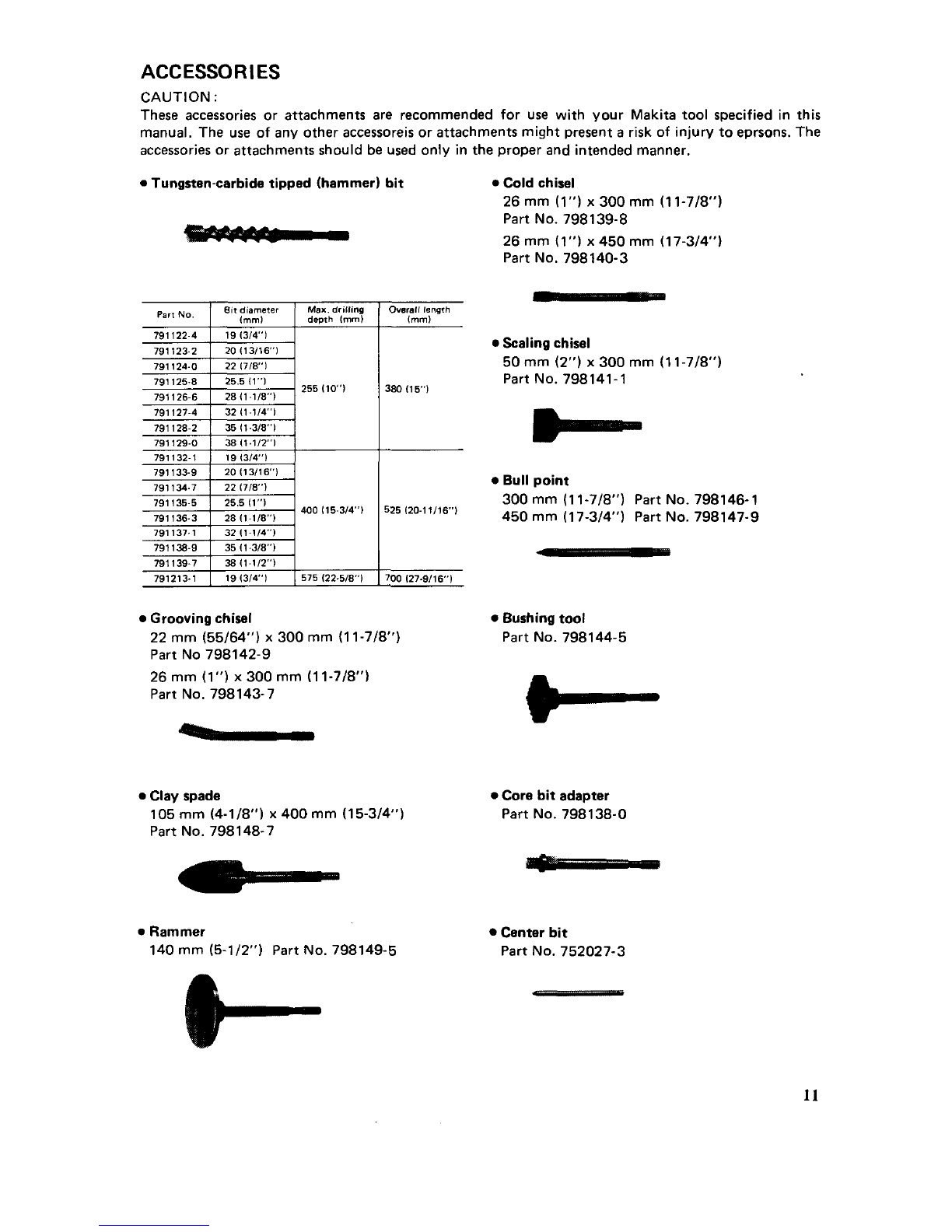

ACCESSORIES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use
of any other accessoreisor attachments might present a risk of injury toeprsons.The
accessoriesor attachments should
be used only inthe proper and intendedmanner.
0 Tungsten-carbidetipped (hammer) bit
Ovsrall length
Imml
380 (1 5'1
525 120-11/16")
700 127-9/16"1
0 Groovingchisel
22
mm (55/64") x 300 mm (11-7/8")
Part No 798142-9
26
mm (1") x 300 mm (11-7/8")
Part
No. 798143-7
0 Clay spade
105 mm (4-1/8") x 400 mm (15-3/4")
Part
No. 798148-7
0 Coldchisel
26
mm (1") x 300 mm (11-7/8")
Part
No. 798139-8
26 mm
(1") x 450 mm (17-3/4")
Part
No. 798140-3
0 Scalingchisel
50 mm(2")
x 300 mm (1 1 -7/8")
Part No. 798141-1
0 Bull point
300
mm (1 1-7/8") Part No. 798146-1
450
mm (17-3/4") Part No. 798147-9
0 Bushingtool
Part No. 798144-5
0 Core bit adapter
Part
No. 798138-0
0 Rammer
140 mm (5-1/2") Part No. 798149-6 Center bit
Part No. 752027-3
11

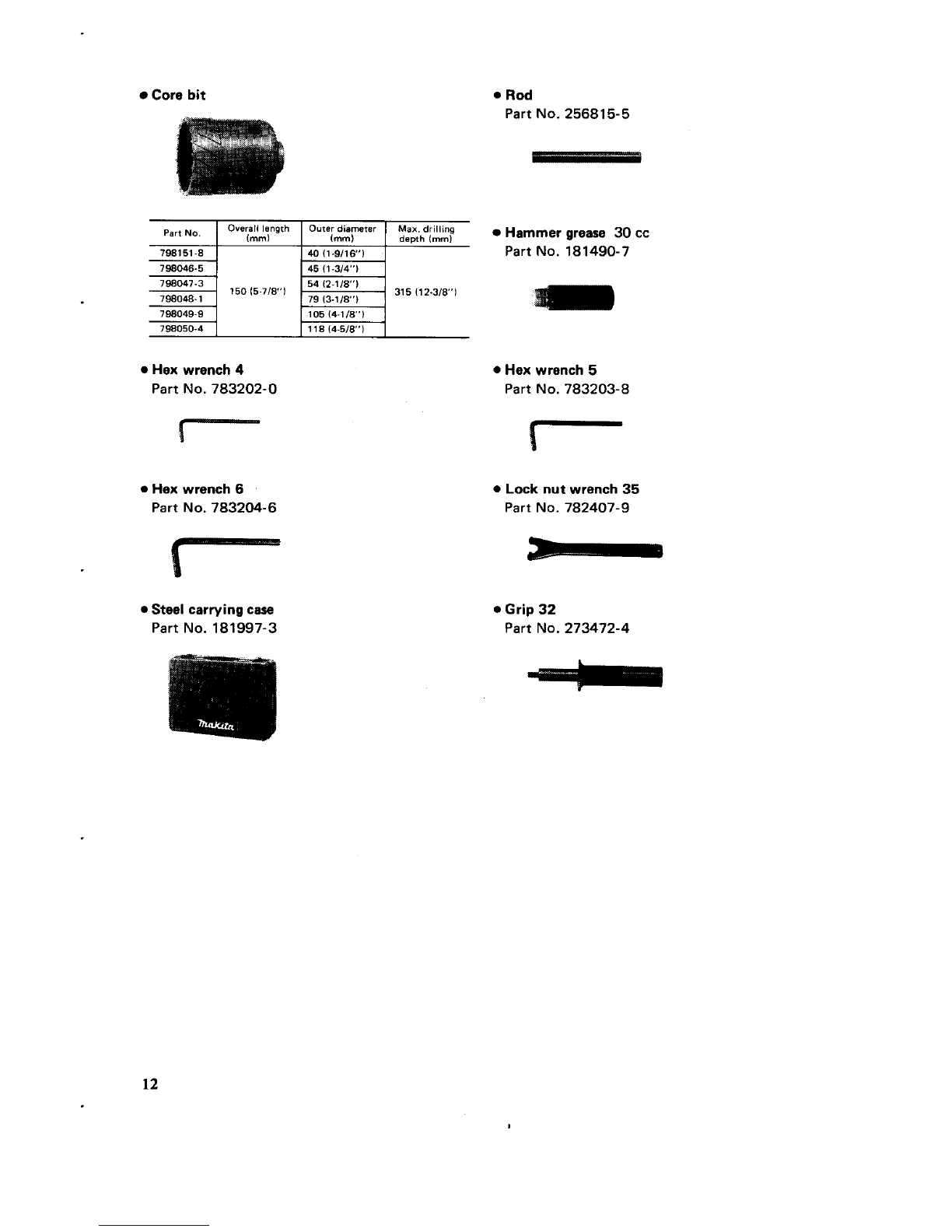

Core bit
0 Rod
Part No. 256815-5
H~~~~~ grease 30 cc
Part No. 181490-7
0 Hex wrench 4
Part No. 783202-0
0 Hex wrench 6
Part No. 783204-6
0 Steel carrying case
Part No. 181997-3
0 Hex wrench 5
Part No. 783203-8
0 Lock nut wrench 35
Part No. 782407-9
0 Grip 32
Part No. 273472-4
12

50 mm (2")
@7hnKitrr ROTARY HAMMER
Sep-084l8 EN
Model HR5000
Note: The switch, noise suppressor and other part configurations
may differ from country to country.
13

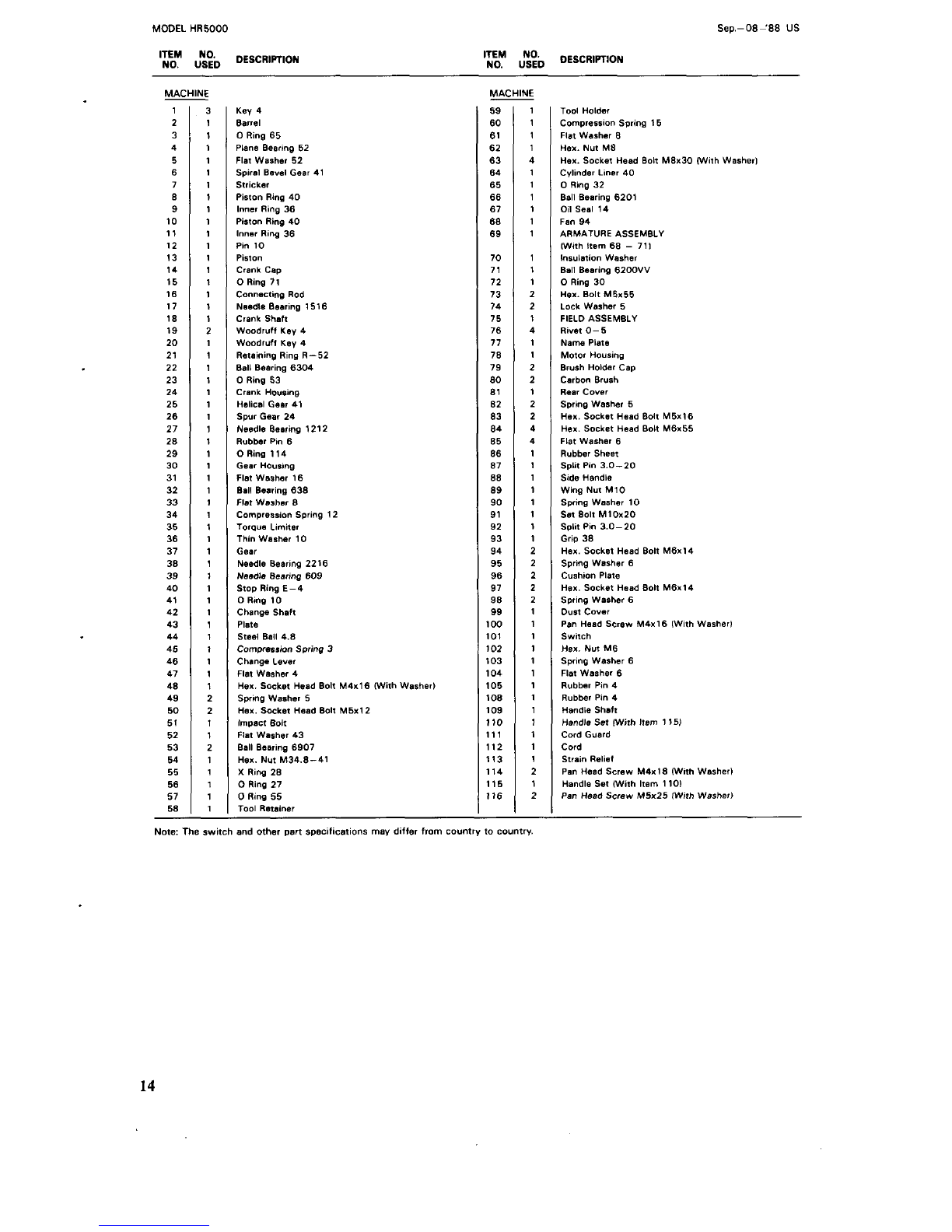

MODEL HR5000
';'OM {2D DESCRIPTION
MACHINE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
1
1
2
1
1
1
1
1
-
Key 4
Barrel
0 Ring 65
Plans Bearing 52
FIal Washer 52
Spiral
Bevel Gear 41
Strickar
Ptnon Ring 40
Inner Ring 36
Piston Ring 40
Inner Ring 36
Pm 10
Piston
Crank Cap
0 Ring 71
Connecting
Rod
NeedleBearing 1516
Crank Shaft
Woodrulf Key 4
Woodrut1 Key 4
Retaining Ring R-52
Ball Bearing 6304
0 Ring 53
Crank Housing
Helical
Gear 41
Spur
Gear 24
NeedleBearing 1212
Rubbar Pm 6
ORing 114
Gear Housing
FIal Washer 16
Ball Bearing638
Flat Washer 8
Comprssaon Spring 12
Torgua Limiter
Thin Washer 10
Gear
NeedleBearing 2216
Needle
Bsanng 609
Stop Ring E-4
0 Ring 10
Change Shaft
PIPB
Steal Ball 4.0
Change
Lever
Flat Washer 4
Hex. Socket Head Bolt M4xl6 [With Washerl
Spring Washer 5
Hex. Socket Head Bolt M5x12
lmpacr Bolt
Flat Washer 43
Ball Bearing 6907
Hex. Nu1M34.8-41
X Ring 28
0 Ring 27
0 Ring 55
Tool Retainer
Compresslo" sprmg
3
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
60
81
82
83
64
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
108
109
110
111
112
113
114
115
116
-
1
1
1
1
4
1
1
1
1
1
1
1
1
1
2
2
1
4
1
1
2
2
1
2
2
4
4
1
1
1
1
1
1
1
1
2
2
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
2
-
Tool Holder
CompressionSpring 15
Flat Washer 8
Hex. Nut M8
Hex. Socket Head Bolt M8x30 (With Washer]
Cylinder Liner 40
0 Ring 32
Ball Bearing 6201
011 Seal 14
Fan 94
ARMATUREASSEMBLY
[With
Item 68 - 711
Insulation Washer
Ball Bearing 6200VV
0 Ring 30
Hex. Bolt M5x55
Lock Washer 5
FIELDASSEMBLY
Rwet 0-5
Name
Plate
Motor Housing
Brush
Holder Cap
Carbon Brush
Rear Cover
Spring Washer 5
Hex. Socket Head Bolt M5x16
Hex.
Socket Head Boll M6x55
Flat Washer 6
Rubber Sheet
Split
Pin 3.0-20
Side Handle
Wing Nut M10
Spring Washer 10
Set 8011 M10x20
Split Pin 3.0-20
Grip
38
Hex. Socket Head Bolt M6xl4
Spring Washer
6
Cushion Plate
Hex. Socket Head Bolt M6xl4
Spring Washer
6
Dust Cover
Pan Head Screw M4x16 [WithWasher)
Switch
Hex. Nut M6
Spring Washer 6
Flat Washer 6
Rubber Pin 4
Rubber Pin 4
Handle Shalt
Handle Set IWithItem 115)
Cord
Guard
Cord
Strain Relief
Pan Head Screw M4x18 lWnh Washer1
Handle
Set IWith Item 1101
Pan Head Screw M5x25 (With Washer)
Note: The
switch and other panspecifications may differ from country to country.
14

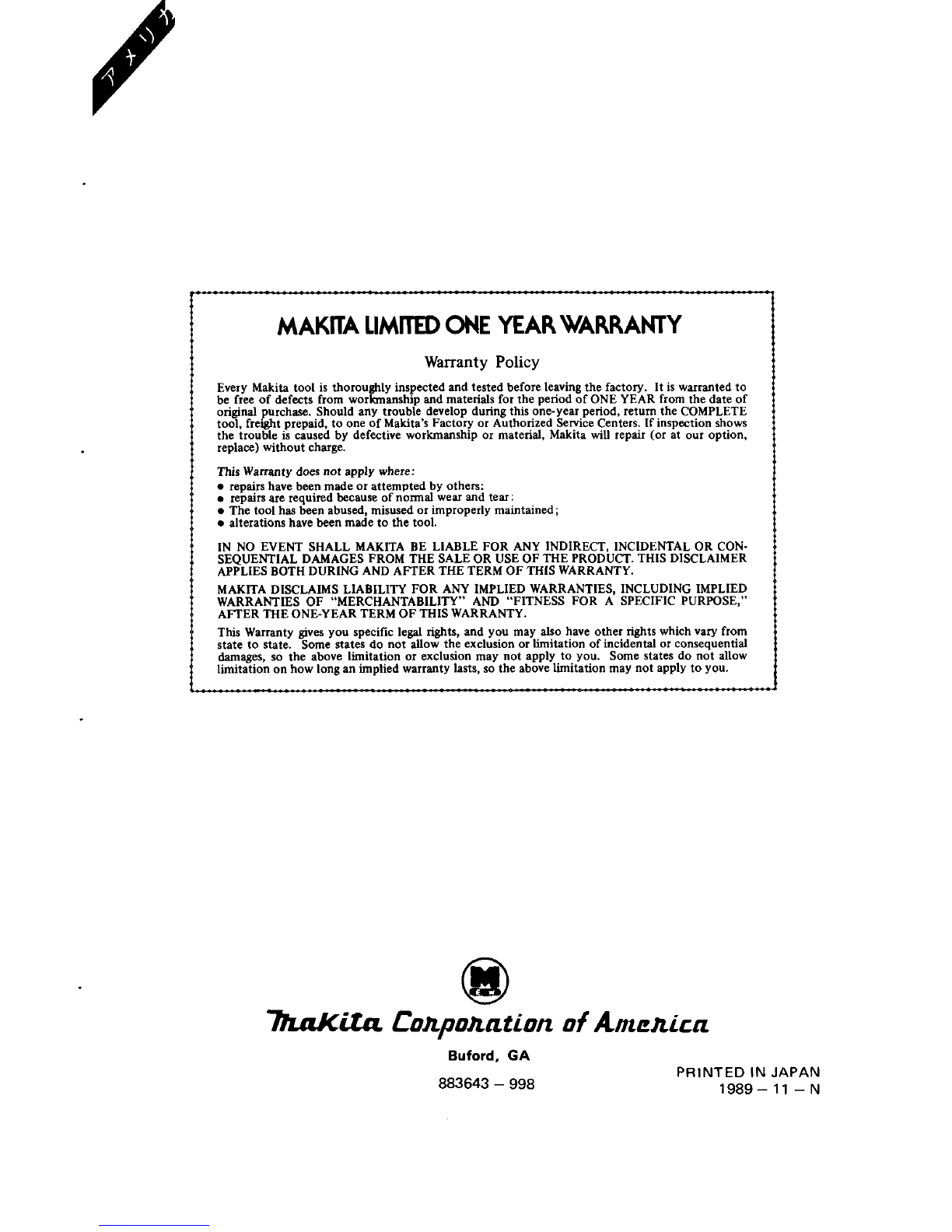

MAKKA LIMED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, retum the COMPLETE
tool, freight prepaid, to one of Makita’s Factory or Authorized ServiceCenters. If inspection shows
the trouble is caused by defective workmanship
or material, Makita will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
repam have been made 01 attempted by others.
repairs are required because of normal wear and tear
The tool has been abused. misused 01 improperly mamtained;
alterations have been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGESFROM THE SALE
OR USE OF THE PRODUCT. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THETERM
OF THISWARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THEONE-YEAR TERM OFTHISWARRANTY.
This Warranty gives you specific IegaI
rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion or Limitationof incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation on how long animplied warranty lasts,
so the above limitation may not apply to you.
Buford, GA
883643 - 998
PRINTED IN JAPAN
1989- 11 -N
