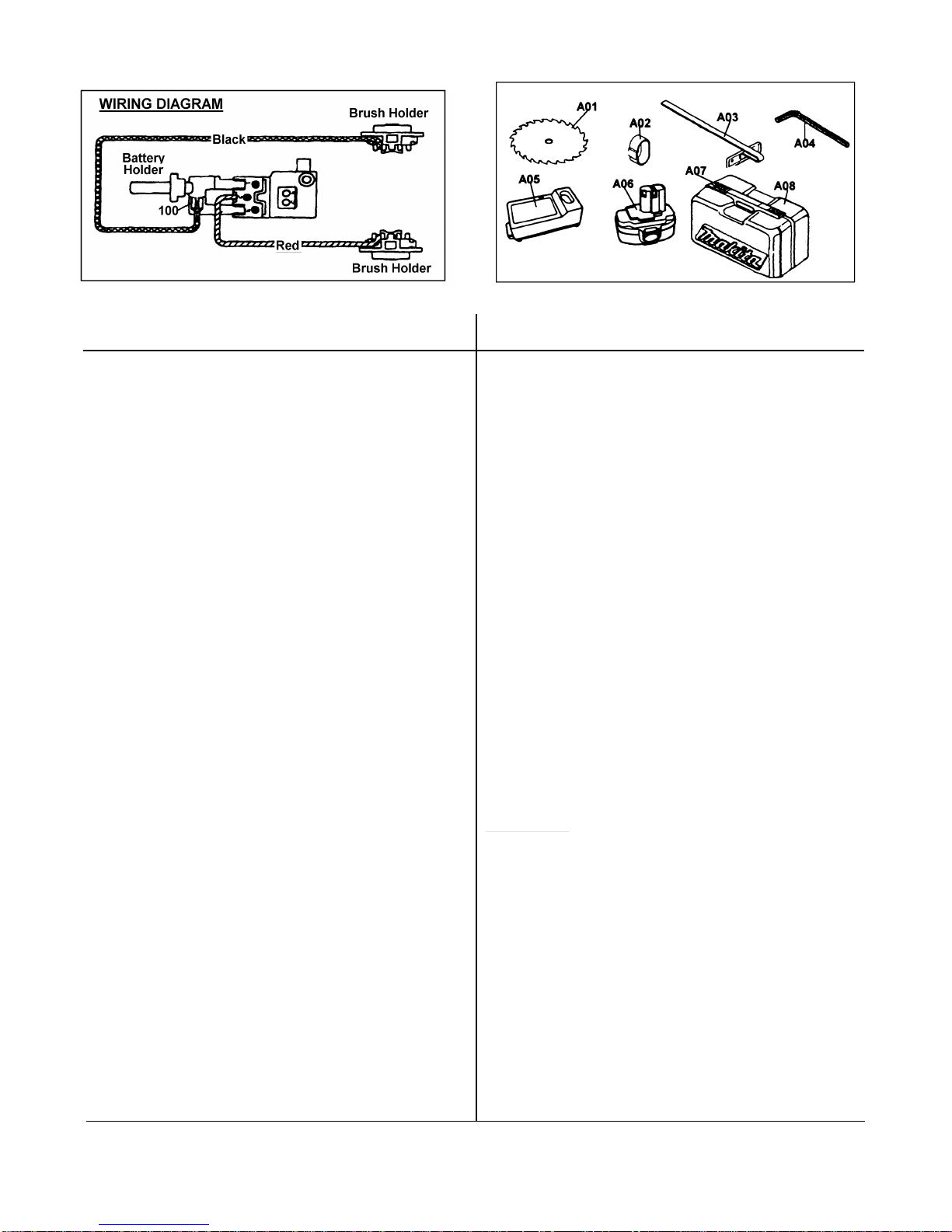

Makita 5620DWA Quick start guide

06-2001
18V 6-1/2” CIRCULAR SAW KIT
(Blade - Left) Model 5620DWA(MCA)

2 Model 5620DWA
Item Part No.
No. No. Used Description Item Part No. No. No. Used Description
1266133-3 1Hex Socket Head Bolt M6X20
2224275-9 1Outer Flange 40
3224151-7 1Inner Flange 40 (For 5/8”)
4323797-7 1Spindle
5285834-4 1Bearing Retainer 19-33
(Old 285802-7)
6211129-9 1Ball Bearing 6201DDW
7961155-5 1Retaining Ring S-38
8416596-5 1Safety Cover
9*1Ring 12 (Type 1)
10 231821-1 1Tension Spring 3
11 251368-9 1(+) Countersunk Screw M6
12 262049-0 1Rubber Ring 6
13 819080-3 1Makita Label
14 233092-6 1Compression Spring 5
15 150995-8 1Blade Case Com. (Includes
Items 62 & 810939-7 -
Caution Label)
16 211014-6 1Ball Bearing 606
17 *1Spur Gear 53
18 316766-5 1Bearing Box
19 265034-2 2(+) Countersunk Head Screw
M5x16
20 416644-0 1Switch Button
21 233194-8 1Compression Spring 4
22 911263-2 3P.H. Screw M5X40
23 265995-6 6Tapping Screw 4X18
24 416638-5 1Handle Cover
25 265995-6 2Tapping Screw 4X18
26 416639-3 1Rear Cover
28 416640-8 1Motor Housing
29 632828-4 1Yoke Unit
30 416641-6 1Baffle Plate
31 210023-2 1Ball Bearing 627DDW
(Old 211026-9 & 210025-8)
32 519045-2 1Armature Assy (Includes Items
31, 33 & 35)
33 241869-5 1Fan 55
34 344657-0 1Shaft Lock
35 211088-7 1Ball Bearing DDW (Old 211061-7)
36 231316-4 1Compression Spring 7
37 265701-9 1Screw M6X14
38 252103-8 1Hex Lock Nut M5-8
39 266209-6 2Tapping Screw MT4X60
40 643939-0 2Brush Holder
41 191970-5 2Carbon Brush CB-429 (2pcs/Set)
42 643941-3 2Holder Cap
43 961014-3 1Stop Ring E-8
44 252158-3 1Hex Nut M6
45 272229-0 1Lever 40
46 253804-1 1Falt Washer 6
47 651956-6 1Switch
48 416642-4 1Switch Lever
49 643942-1 1Battery Holder
50 163404-8 1Depth Com.
51 266194-3 1Flat Head Screw M6X90
52 317074-7 1Base
53 265085-5 2Countersunk Head Screw M4X8
(Old 912107-9)
54 266180-4 1(+) Screw M5X12
55 265086-3 3Countersunk Head Screw M5X8
(Old 912202-5)
56 265056-2 1(+) P.H. Screw M5
57 941151-9 1Flat Washer 6
58 942151-2 1Spring Washer 6
59 265701-9 1Screw M6X14
60 163403-0 1Angular Com.
61 643940-5 1Brush Holder
62 213434-0 1O Ring 26 (Added)
100 654187-6 1Receptacle
Accessories
A01 A-85092 16-1/2” T.C.T. Saw Blade
24 Teeth (Arbor: 5/8”)
A02 414938-7 1Battery Cover
A03 164095-8 1Guide Rule
A04 783203-8 1Hex Wrench 5
A05 DC1801 1DC1801 Battery Charger
For 7.2V ~ 14.4V & 1.3Ah ~ 3.0Ah
Ni-Cad & Ni-MH Batteries
A06 192827-3 118V Ni-Cad Battery 1822 (2.0Ah)
192829-9 118V Ni-MH Battery 1833 (2.2Ah)
A07 A00188-3 2Snap Lock (L)
A08 824524-0A 1Plastic Carrying Case
(Old 824524-0)

3 Model 5620DWA
Item No. Description Type 1 Type 2
9Ring 12 257010-0 226391-3
17 Spur Gear 53 226370-1
Serial # ~ 43896A 43897A ~
Above parts are completely interchangeable as a set.
SERVICE CHANGES
1. Change on Spur Gear 53 and Ring 12.
