Makita JR3030 User manual

Recipro Saw
MODEL JR3030
Variable Speed
MODEL JR3030T
Variable Speed
INSTRUCTION MANUAL
DOUBLE
INSULATION
SPEC IF I CAT I 0 N S
Model I Length of stroke 1 Strokes per minute I Overall length I Net weight
438
mm (17-1 14")
JR3030 3.5 kg (7.7 Ibs) 28 mm 11-3/32") 0 - 2,600
1 JR3030T
I I I I
* Manufacturer reserves the right to change specifications without notice.
Note: Specifications may differ from country to country.
WARNING: For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

GENERAL SAFETY RULES
(For All Tools)
WARNING! Read and understand all instructions. Failure
tofollow
all instructions listed below, may result in electric
shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
READ ALL INSTRUCTIONS.
WORK AREA
1. Keepyour work area cleanand well lit. Cluttered benches and dark areas invite
accidents.
2. Donotoperate power tools inexplosiveatmospheres, suchas inthe presence
of flammable liquids, gases, or dust. Power tools create sparks which may
ignite the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
4.
5.
6.
7.
8.
Double Insulatedtoolsare equipped with apolarizedplug(onebladeiswider
than the other.) This plug will fit in a polarized outlet only one way.
If the
plug
does not fit fully in the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician to install a polarized outlet. Do not change
the
plug in any way. Double insulation eliminates the need for the three
wire grounded power cord and grounded power supply system.
Avoid body contact withgrounded surfaces suchas pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is
grounded.
Don't expose power tools torain or wet conditions. Water entering a power
tool
will increase the risk of electric shock.
Do notabuse the cord. Never use the cordtocarry the tools or pullthe plug
from an outlet. Keepcordaway from heat, oil, sharp edges or movingparts.
Replace damaged cords immediately. Damaged cords increase the risk of
electric shock.
Whenoperating a powertooloutside, use anoutdoorextension cord marked
"W-A' or "W." These cords are rated for outdoor use and reduce the risk
of electric shock.
PERSONAL SAFETY
9.
10.
Stay alert, watch what you aredoing and usecommonsensewhenoperating
a power tool. Do not use tool while tired or under the influence of drugs,
alcohol, or medication.
A momentof inattention while operating power tools
may result
in serious personal injury.
Dressproperly. Donot wear loose clothing
or jewelry. Containlonghair. Keep
your hair, clothing, and glovesaway from movingparts. Looseclothes, jewelry
or long hair can be caught in moving parts.
2

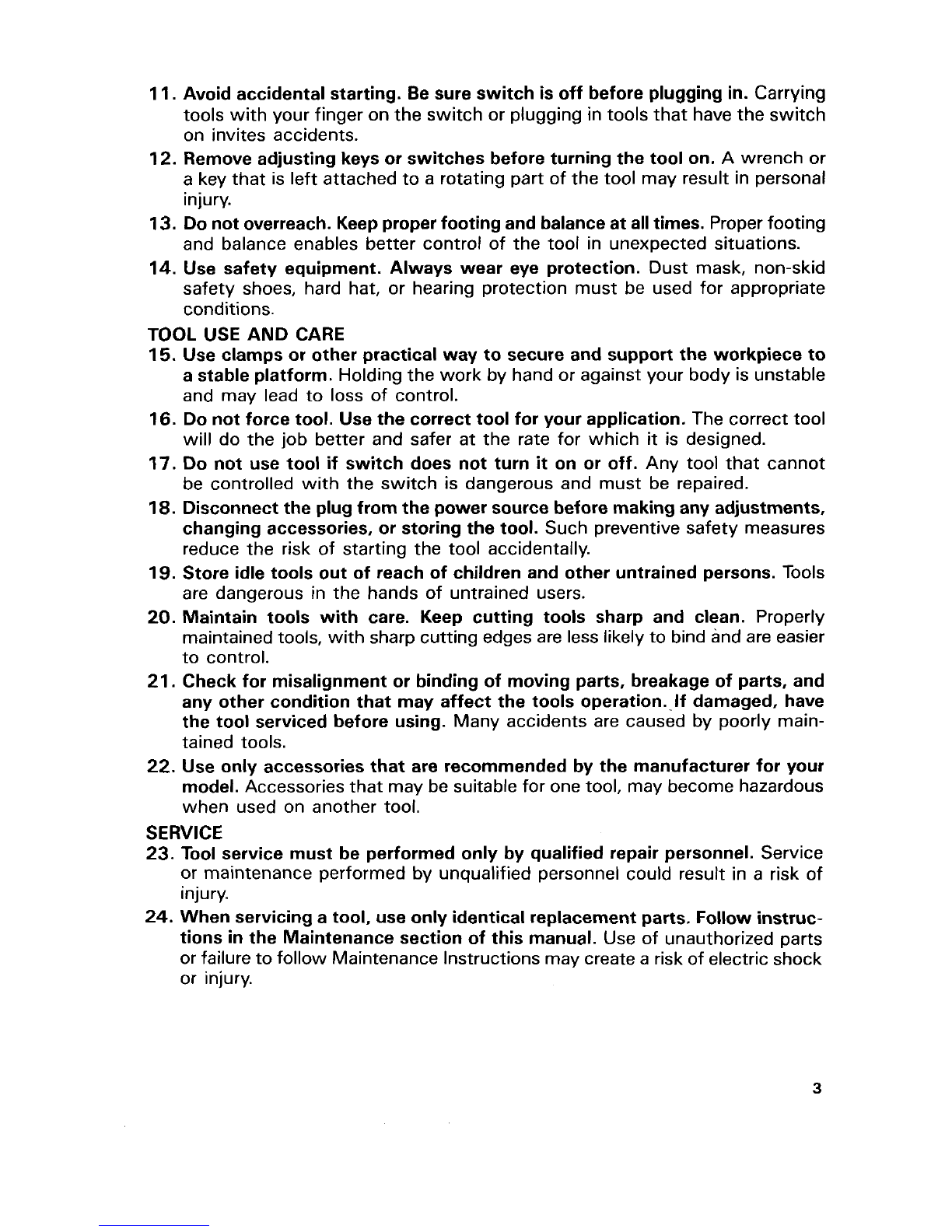

11. Avoid accidental starting. Be sure switch isoff before plugging in. Carrying
tools with your finger
on the switchor plugging intools that havethe switch
on invites accidents.
12. Remove adjusting keys or switches beforeturning the tool on. A wrench or
a key that is left attached to a rotating part of the tool may result in personal
injury.
13. Donotoverreach. Keepproperfooting and balanceatalltimes. Proper footing
and balance enables better control of the tool in unexpected situations.
14. Use safety equipment. Always wear eye protection. Dust mask, non-skid
safety shoes, hard hat, or hearing protection must be used for appropriate
conditions.
TOOL USE AND CARE
15. Use clamps or other practicalway to secure and support the workpiece to
a stable platform. Holdingthe work by hand or against your body is unstable
and may lead to
loss of control.
16. Do notforce tool. Usethe correcttool for your application. The correct tool
will do the job better and safer at the rate for which it is designed.
17. Do not use tool if switch does not turn it on or off. Any tool that cannot
be controlled with the switch is dangerous and must be repaired.
18. Disconnectthe plugfrom the powersource before makingany adjustments,
changing accessories, or storing the tool. Such preventive safety measures
reduce the risk of starting the tool accidentally.
19. Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
20. Maintain tools with care. Keep cutting tools sharp and clean. Properly
maintainedtools, withsharp cutting edges are less likelyto bindandare easier
to control.
21. Check for misalignmentor binding of moving parts, breakage of parts, and
any other condition that may affect the tools operation..lf damaged, have
the tool serviced before using. Many accidents are caused by poorly main-
tained tools.
22. Use only accessories that are recommendedby the manufacturerfor your
model. Accessories that may be suitablefor one tool, may become hazardous
when used on another tool.
SERVl CE
23. Tool service must be performed only by qualified repair personnel. Service
or maintenance performedby unqualified personnel could result in
a risk of
injury.
24. When servicing a tool, use only identicalreplacementparts. Follow instruc-
tions
in the Maintenance sectionof this manual. Use of unauthorized parts
or failuretofollow MaintenanceInstructions may create
a risk of electricshock
or injury.
3

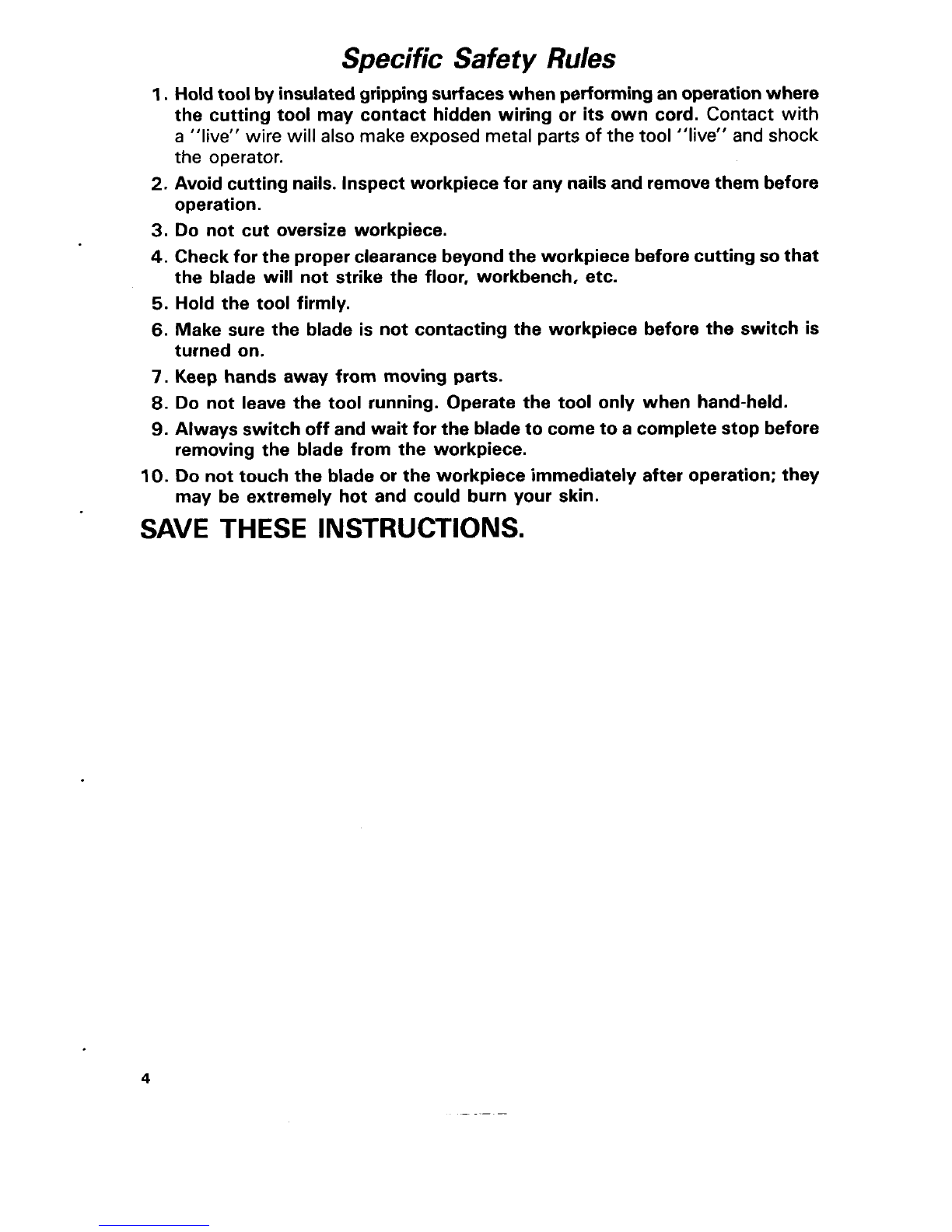

Specific Safety Rules
1. Holdtoolby insulatedgrippingsurfaceswhenperforminganoperationwhere
the cutting tool may contact hidden wiring
or its own cord. Contact with
a "live" wire will also makeexposed metal parts of the tool "live" and shock
the operator.
2. Avoid cutting nails. Inspectworkpiece for any nailsandremovethem before
operation.
3. Do not cut oversize workpiece.
4. Checkfor the properclearancebeyondthe workpiece beforecutting so that
5. Hold the tool firmly.
6. Make sure the blade is not contacting the workpiece before the switch is
7. Keep hands away from moving parts.
8. Do not leave the tool running. Operate the tool only when hand-held.
9. Always switchoff and wait for thebladetocome to a complete stopbefore
IO. Do nottouch the blade or the workpiece immediately after operation; they
the blade
will not strike the floor, workbench, etc.
turned on.
removing the blade from the workpiece.
may be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
4

SYMBOLS
The followings showthe symbols used for tool.
v
A
Hz
kg
h
min
S
'L
-
----
n,
-
'L
lol
A
AA
.../ min
................................. volts
................................. amperes
................................. herts
................................. kilograms
................................. hours
................................. minutes
................................. seconds
................................. alternating current
................................. direct current
................................. no load speed
................................. alternating or direct current
................................. Class II Construction
................................. splash-proof construction
................................. watertight construction
................................ revolutions or reciprocation per minute
@ ................................. number of blow
5

FUNCTIONAL DESCRIPTION
Adjusting shoe
When the blade loses its cutting efficiency
in one place along its cutting edge, reposi-
tion the shoe to unitize
a sharp, unused
portionof itscutting edge. This
will helpto
lengthenthe life of the blade.
To reposition
the shoe, loosen the lever and slide the
shoe forward or back to the desired posi-
tion.Then tightenthe lever tofirmly secure
the shoe.
Loosen
r"
I
Shoe
Switch action
CAUTION:
Beforeplugginginthe tool, always check to see that the switch trigger actuatesproperly
and returnstothe
"OFF" positionwhen released.
To start the tool, simply pull the trigger.
Tool speed is increased by increasing pres-
sure on the trigger. Release the trigger to
stop. For continuousoperation, pullthe trig-
ger and then push in the lock button.
To
stop the tool from lockedposition, pullthe
triggerfully, then release it.
Lock button
Switch trigger
6

ASSEMBLY
Installingor removingthe saw blade
CAUTION:
*Always besurethat the tool is switchedoff and unpluggedbefore installingor removing
the blade.
*Always clean out
all chips or foreign matter adhering to the blade, blade clamp and/or
slider. Failureto do
so maycause insufficienttightening of the blade, resultingin a seri-
ous injury
For JR3030
To install the blade, loosen the screw on
the bladeclamp with the hexwrench
4 pro-
vided. Insert the blade between the blade
clamp and the slider
so that the pin on the
slider fits intothe hole in the bladeshank. If
the pin cannot easily fit into the hole,
remove the hex wrench from the screw
and thentry again. After the pinfits proper-
ly into the hole, tighten the screw securely
while makingsure that the blade cannot be
extractedeven thoughyou try to pull it out.
CAUTION:
If you tighten the screw without the pin on
the slider fitting properly in the hole in the
blade shank, the pin or the blade shank will
be damaged. This may cause the blade to
be ejected unexpectedlyduring operation.
This can be extremelydangerous.
Hexwrench 4
Loosen
I Pin Slider
To installthe blade, loosenthe screwon the blade clamp with the hex wrench 4.
7

For JR303OT
To installthe blade, pushthe push button inthe directionof thearrowand insertthe blade
betweenthe blade clamp and the slider as far as
it will go. Then release the push button
andmakesurethat the bladecannot beextractedeven though you try to pullitout.
CAUTION:
If you releasethe push buttonwithout insertingthe bladedeep enough, the blade may be
ejectedunexpectedlyduringoperation. This can be extremely dangerous.
To remove the blade, push the push button in the direction
of the arrow and pullout the
blade.
I Blade Push button
8

OPERATION
Press the shoe firmly against the work-
piece.
Do not allow the tool to bounce.
Bring the blade into light contact with the
workpiece. First, make
a pilotgroove, using
a slowerspeed. Then use a faster speedto
continuecutting.
CAUTION:
*Always use a suitablecoolant(cuttingoil)when cutting metal.Failure todo so will cause
*Alwayswear gloves to protectyour handsfrom hot flyingchipswhen cutting metal.
*Always pressthe shoe firmly against the workpiece duringoperation.
If the shoe isheld
away from the workpiece during operation, strong vibrationand/of twisting
will be pro-
duced, causingthe bladetosnap dangerously.
Be sure to always wear suitable eye protectionwhich conforms with current national
standards
prematurebladewear.
9

MAINTENANCE
CAUTIO N :
Always be sure that the tool is switched off and unpluggedbefore attempting to perform
inspection
or maintenance.
Replacingcarbon brushes
Remove and check the carbon brushes
regularly. Replacewhenthey wear down
to
the limit mark. Keep the carbon brushes
clean and free to slip in the holders. Both
carbon brushes should be replaced
at the
same time. Use only identical carbon
brushes.
Use
a screwdriver to remove the brush
holder caps. Take out the worn carbon
brushes, insert the new ones and secure
the brushholder caps.
L Limit mark
Brushholder
cao Screwdriver I
To maintainproduct SAFETY and RELIABILITY,repairs, any other maintenanceor adjust-
mentshouldbe performedby MakitaAuthorizedor Factory Service Centers, always using

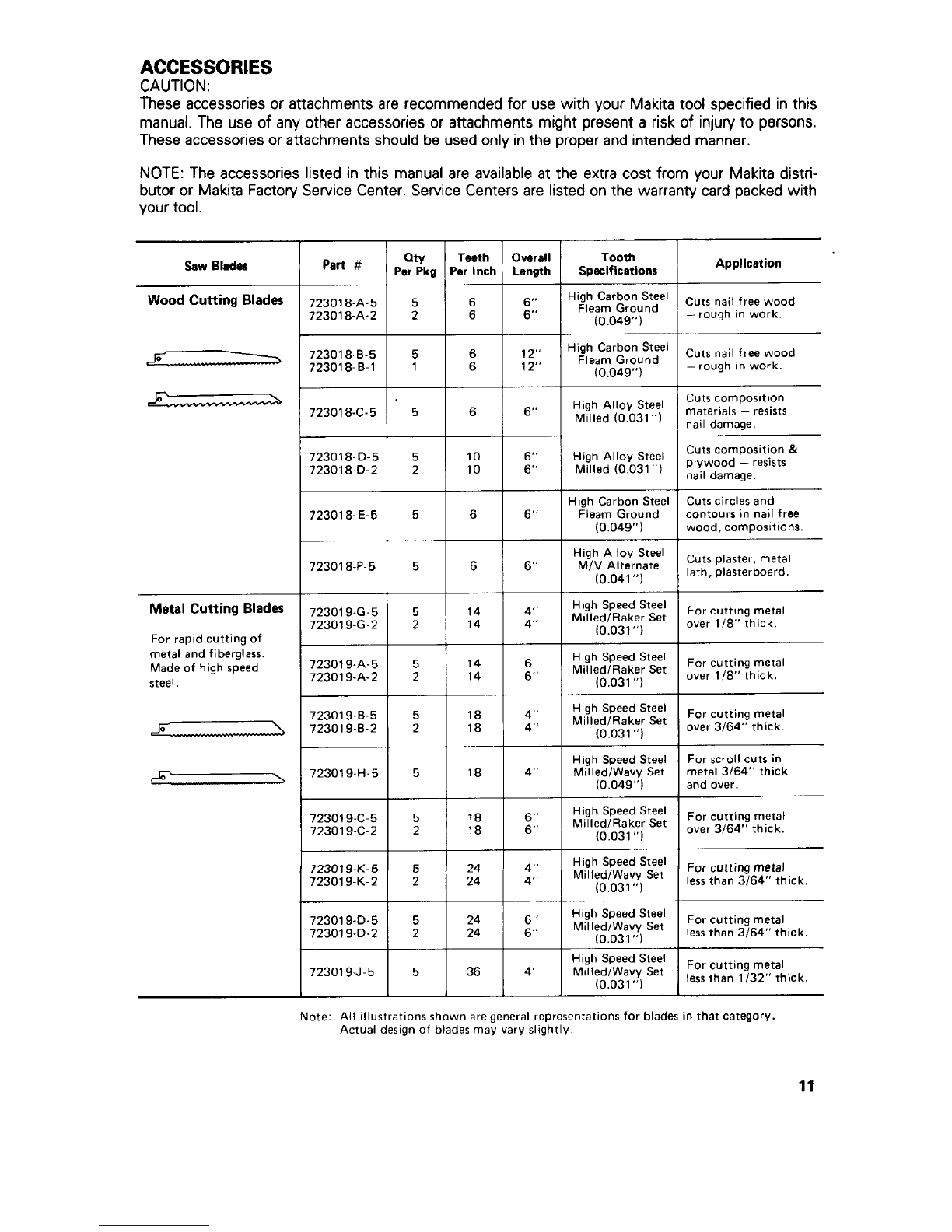

Makitareplacementparts.
10

ACCESSORIES
CAUTION:
These accessories or attachments are recommendedfor use with your Makita tool specified in this
manual. The use
of any other accessories or attachments might present a risk of injury to persons.
These accessories or attachmentsshould be used only inthe proper and intendedmanner.
NOTE: The accessories listed in this manual are available at the extra cost from your Makita distri-
butor
or Makita Factory Service Center. Service Centers are listedon the warranty card packed with
your tool.
#l
%w Blades
Application
Qty Teeth Overall Tooth
Per Pkg Per Inch Length Specifications
Wood Cutting Blades
723018-C-5
Metal Cutting Blades
For rapid cuttingof
metal and fiberglass.
Made of high speed
steel.
High Alloy Steel Cuts composition
5 6 6"
(o,031 ,,) materials - resists
nail damage.
723018-E-5
723018-A-5 High
Steel Cuts nail free wood
723018-A-2
I 2" 1 E I E" I Fieam (o.~4gfz) Ground -rough in work.
High Carbon
Steel
Cuts circlesand
5 6 6" Fleam Ground contours in nail free
(0.049") wood, compositions.
723018-8-5 5 6
12"
High Steel Cuts nail free wood
723018-8-1
I 1 I 6
I 12"
1 Fleam (o,0498e) Ground -rough inwork.
723019-H-5 High Speed Steel For scroll cuts in
5 18 4" Milled/Wavy Set metal 3/64" thick
(0.049") and over.
6,.
High Alloy Steel Cuts composition &
Milled (o,031 ,,)
plywood - resists
nail damage.
723018-D-5 5 10
723018-0-2
I
2 1
10 I 6" 1
723019-D-5
723019-D-2
5 24 6- High Speed Steel F~~ cuttingmetal
2 24 6" Mill~~(~l\l!) Set less than 3/64" thick.
High Alloy
Steel
(0.041 ")
Cuts plaster,metal
Alternate lath, plasterboard.
723018-P-5
I 5 I 6 1 6" I
723019-J-5
I I 1 I I
Speed Steel For cuttingmetal
5 36
"' Mlll$($l\l!, Set less than 1/32" thick.
I I I 1 I
723019-8-5 5 18 4t8 High Speed Steel For cutting metal
723019-6-2 1 2 I 18 1 4" I Mi"~~!~;~e;Set I over3/64"thick.
723019-C-5 5 18 6"
High Speed Steel For cuttingmetal
723019-C-2
I 2
1 18
I 6"
I Mill~~~~;,%;Set 1 over3/64"thick.
24
4t. HighSpeed Steel metal
723019-K-5 5
723019-K-2
1 2 1 24 1 4" 1 Mil'7z(gl\l: Set less than 3/64" thick.
Note: All illustrations shown are general representationsfor blades in that category.
Actual design
of blades may vary slightly.
11

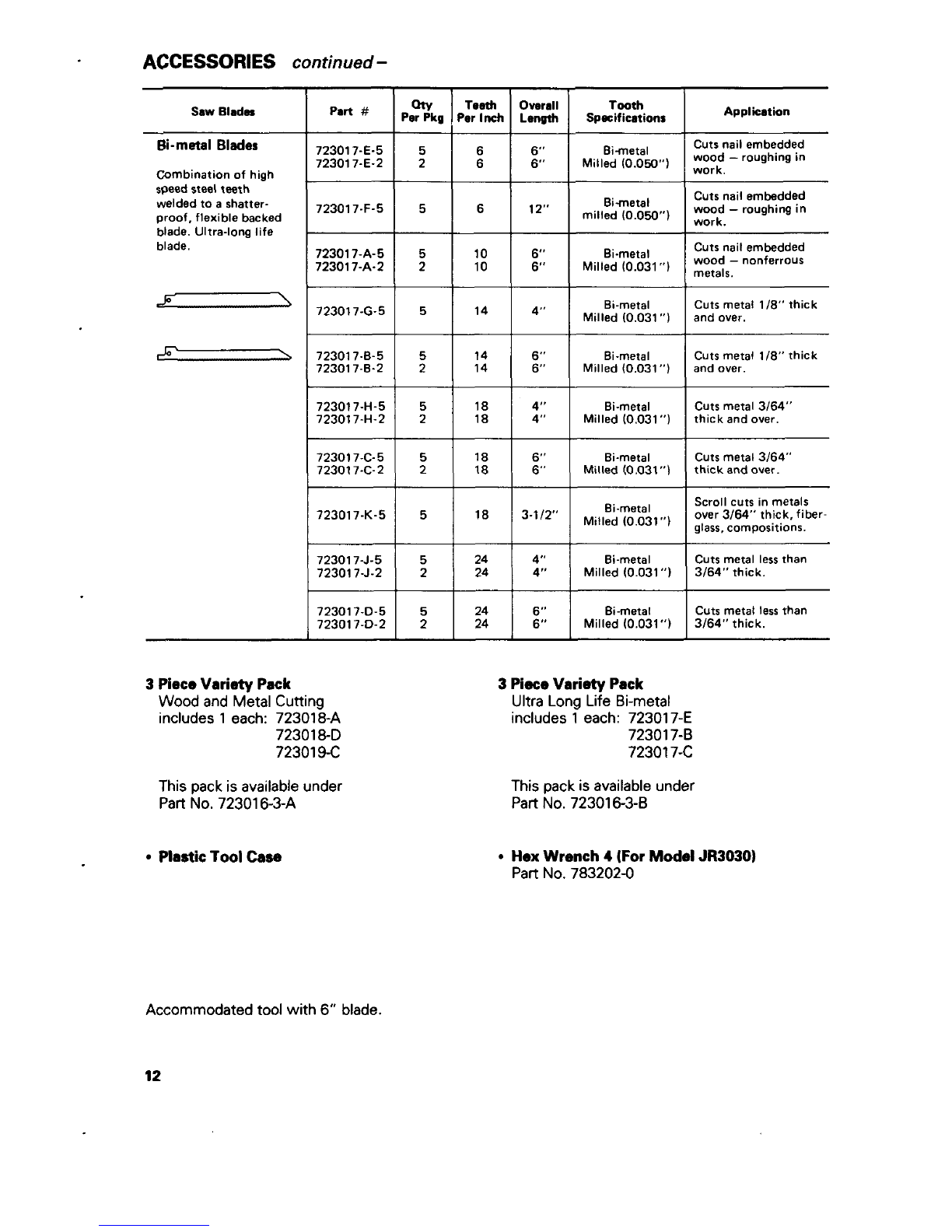

ACCESSORIES continued -
723017-J-5
723017-5-2
saw Blades
Si-metal Blader
Combination of high
speed steel teeth
weldedto
a shatter-
proof, flexible backed
blade. Ultra-long life
blade.
5 24 4" Bimetal
2 24 4" Milled (0.031
'9
3 PieceVarietv Pack
723017-D-5
723017-D-2
723017-E-5 Bimetal
723017-E-2 Milled
(0.050")
5 24 6" Bimetal
2 24 6" Milled (0.031")
723017-A-5 5 10 6" Bimetal
723017-A-2
I 2 I 10
I 6" I Milled (0.031")
Bi-metal
723017-G-5
I 5 I 14 I 4" I Milled (o,031,0)
723017-8-5 Bi-metal
723017-8-2
1 2" I :: 1 E'' I Milled(0.031")
I I I I
723017-H-5 1 i 1 li 1 ::: 1 Bimetal
723017-H-2 Milled (0.031")
723017-C-5 6" Bimetal
723017-C-2 2
18 6" Milled (0.031")
I I I I
Wood and MetalCutting
includes 1each: 723018-A
72301
8-D
72301 9-C
This pack is available under
Part
No. 723016-3-A
Plastic Tool Case
3 PieceVariety Pack
Ultra Long Life Bi-metal
includes 1each: 723017-E
723017-8
723017-C
This pack is available under
Part
No. 723016-3-8
Application
Cuts nail embedded
wood
- roughingin
work.
Cuts nail embedded
wood
- roughingin
work.
Cuts nail embedded
wood
- nonferrous
metals.
Cuts metal 118" thick
andover.
Cuts metal 118" thick
and over.
Cuts metal3/64"
thick and over.
Cuts metal3/64''
thick
and over.
Scroll cuts in metals
over 3/64" thick, fiber-
glass, compositions.
Cuts metal
less than
3/64" thick.
Cuts metal
less than
3/64" thick.
Hex Wrench 4 (For Model JR3030)
Part No. 783202-0
Accommodated tool with 6" blade.
12

Feb -18-'99 US

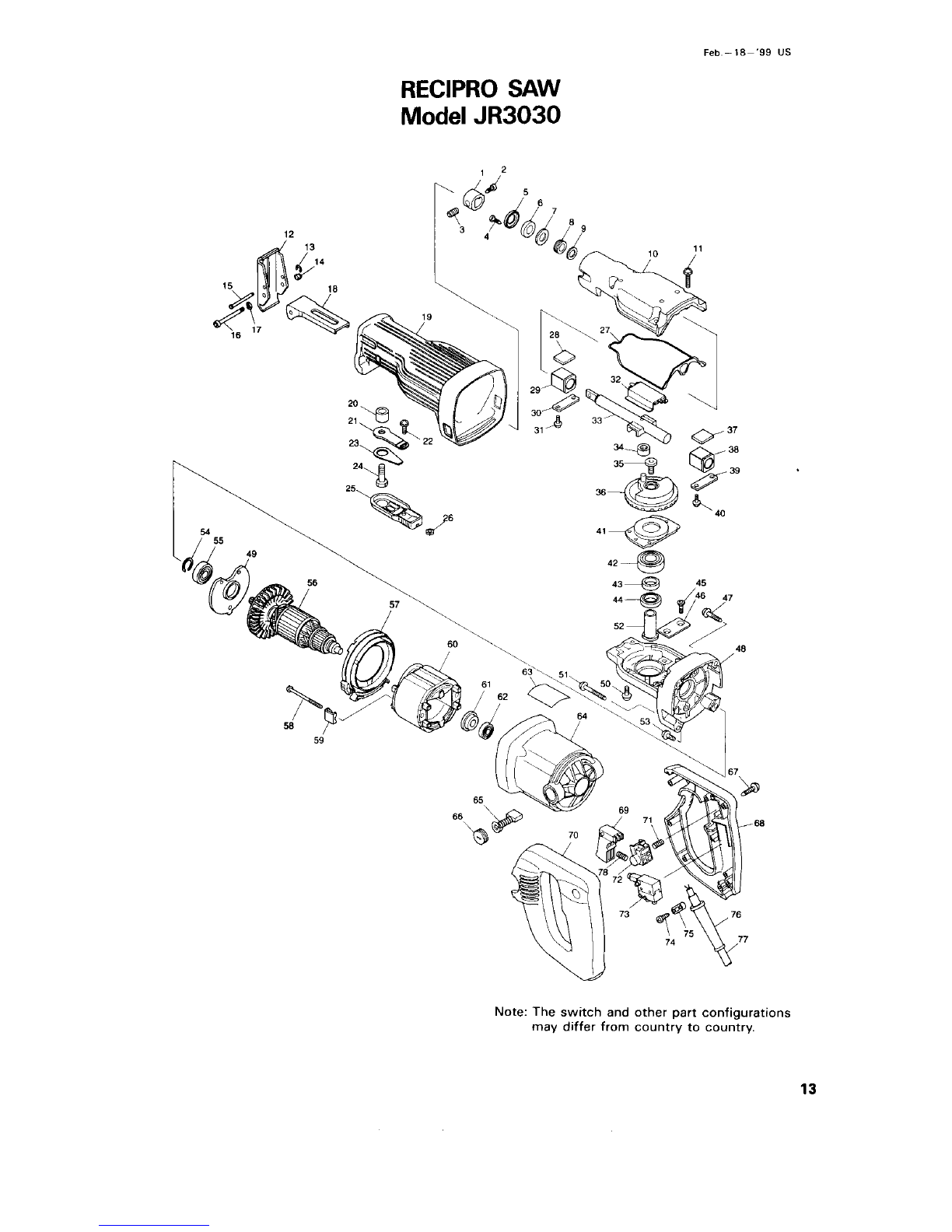

RECIPRO SAW
Model JR3030
1.2
Note: The switch and other part configurations
may differ from country to country.
13

MODEL JR3030 Feb.-18-'99 US
MACHINE
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
'LLM $& DESCRIPTION
11
21
31
42
51
61
71
81
91
1
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
,&, DESCRIPTION
MACHINE
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
56
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
2
1
1
1
1
2
1
2
1
1
3
2
1
3
1
1
1
1
2
2
1
1
1
1
1
2
2
5
1
1
1
1
1
1
2
1
1
1
1
Blade Clamp
Her Socket Head Bolt M5x15
Screw MBx10
Tapping
Screw Bind CT 5x12
Felt Retainer
Felt Ring 14
Flat Washer 14
X Ring 14
Flat Washer 16
Gear Housing Cover
Pan Head
Screw M5x30
Shoe Plate
Stop Ring E-3
Hex. Lock Nut M5-8
Pa"
4
Hex. Socket Bolt M5x45
Spring Washer 5
Shoe Supporter
lnSUlatlO" Cover
Sleeve 9
Inner Plate
Pan Head
Screw M4x10
Lock Plate
Hex. Bolt M8x25
Lever 60
Hex. Nut M4
Packing
Plate 12x16
Plane Bearing 14
Plats
Pan Head Screw M5x16
Slide Plate
Slider
Needle Bearing 708
Hex. Socket Head Bolt M10x16
Gear Complete
Plate 12x16
Plane
Bearing 14
Plate
Pan Head
Screw M5x16
Bearing Retainer
56
Ball Bearing 6202LLB
Ring 15
Ball Bearing 6902
Hex Socket Head
Bolt M5xl2
Plate IC1
Tapping Screw 5x30
Bearing Retainer
Pan Head Screw M5x8
Tapping Screw 5x45
Gear Shaft
Pan Head
Screw M5x8
Retsining Ring S-12
Ball Bearing 6001DDW
ARMATURE ASSEMBLY (With
Item 61 & 621
Baffle Plate
Tapping Screw
5x60
Retainer
FIELD ASSEMBLY
InsulatedWasher
Ball
Bearing 608DDW
Name
Plate
Motor Housing Complete
Carbon Brush
Brush Holder Cap
Tapping
Screw 4x20
Handle Set (With Item 701
Switch Lever
Handle Set IWith Item 681
Compression Spring
4
Lock-Off Button
Switch
Tapping Screw 4x18
Strain Relief
Cord Guard
Cord
Compression Spring 5
~ Gear Housing
Note:
The switch and other pari specifications may differ from country to country
14

MAKKA LIMED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspectedand tested before leaving the factory. It is warranted to
be free of defects from workmanshipand materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop duringthis one-year period, return the COMPLETE
tool, freight prepaid, to one of Makita’s Factory or Authorized ServiceCenters. If inspectionshows
the trouble is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
ThisWarranty does not apply where:
repairs have been made or attempted by others:
repairs are required because of normal wear and tear:
Thetool has been abused, misused or improperly maintained;
e alterations have been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALE
OR USE OFTHE PRODUCI’. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THE TERM OFTHIS WARRANTY.
MAKlTA DISCLAIMS LlABILlTY FOR ANY lMPLlED WARRANTIES, 1NCLUDlNG lMPLlED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THE ONE-YEAR TERM OFTHIS WARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state
to state. Some states do not allow the exclusion or limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation on
how long an implied warranty lasts, so the above Limitation may not apply to you.
__I_ -
Makita Corporation of America
2650 Buford Hwy., Buford, GA 30518
884230-061
PRINTED IN USA
