Makita LS1221 User manual

INSTRUCTION MANUAL
WARNING:
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
www.makitatools.com
Compound Miter Saw
Equipped with Electric Blade Brake
305 mm (12”)
MODEL LS1221
DOUBLE
INSULATION

2
SPECIFICATIONS
Blade diameter : ............................................................................................. 305 mm (12”)
Hole diameter : ................................................................................................ 25.4 mm (1”)
Max. Miter angle : ....................................................................................Left 48°, Right 48°
Max. Bevel angle : ....................................................................................................Left 45°
Max. Cutting capacities (H x W)
No load speed (RPM) : ........................................................................................ 4,000/min.
Dimensions (L x W x H) : ................674 mm x 610 mm x 607 mm (26-1/2” x 24” x 23-7/8”)
Net weight : ............................................................................................... 16.5 kg (36.4 lbs)
• Manufacturer reserves the right to change specifications without notice.
• Specifications may differ from country to country.
For Your Own Safety Read Instruction Manual
Before Operating Tool
Save it for future reference
GENERAL SAFETY PRECAUTIONS
USA007-1
(For All Tools)
1. KNOW YOUR POWER TOOL. Read the
owner’s manual carefully. Learn the tool’s
applications and limitations, as well as the
specific potential hazards peculiar to it.
2. KEEP GUARDS IN PLACE and in working
order.
3. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are
removed from tool before turning it on.
4. KEEP WORK AREA CLEAN. Cluttered
areas and benches invite accidents.
Bevel angle Miter angle
0°45°(left and right)
0°
98 mm x 153 mm
(3-7/8” x 6”)
63.5 mm x 203 mm
(2-1/2” x 8”)
98 mm x 107 mm
(3-7/8” x 4-1/4”)
63.5 mm x 143 mm
(2-1/2” x 5-5/8”)
45°(left)
70 mm x 149 mm
(2-3/4” x 5-7/8”)
44.5 mm x 200 mm
(1-3/4” x 7-7/8”)
44.5 mm x 130 mm (*Left)
(1-3/4” x 5-1/8”)
44.5 mm x 140 mm (*Right)
(1-3/4” x 5-1/2”)

3
5. DON’T USE IN DANGEROUS ENVIRON-
MENT. Don’t use power tools in damp or
wet locations, or expose them to rain.
Keep work area well lighted. Don’t use
tool in presence of flammable liquids or
gases.
6. KEEP CHILDREN AWAY. All visitors
should be kept safe distance from work
area.
7. MAKE WORKSHOP KID PROOF with pad-
locks, master switches, or by removing
starter keys.
8. DON’T FORCE TOOL. It will do the job bet-
ter and safer at the rate for which it was
designed.
9. USE RIGHT TOOL. Don’t force tool or
attachment to do a job for which it was not
designed.
10. WEAR PROPER APPAREL. Do not wear
loose clothing, gloves, neckties, rings,
bracelets, or other jewelry which may get
caught in moving parts. Nonslip footwear
is recommended. Wear protective hair
covering to contain long hair.
11. ALWAYS USE SAFETY GLASSES. Also
use face or dust mask if cutting operation
is dusty. Everyday eyeglasses only have
impact resistant lenses, they are NOT
safety glasses.
12. SECURE WORK. Use clamps or a vise to
hold work when practical. It’s safer than
using your hand and it frees both hands
to operate tool.
13. DON’T OVERREACH. Keep proper footing
and balance at all times.
14. MAINTAIN TOOLS WITH CARE. Keep tools
sharp and clean for best and safest perfor-
mance. Follow instructions for lubricating
and changing accessories.
15. DISCONNECT TOOLS before servicing;
when changing accessories such as
blades, bits, cutters, and the like.
16. REDUCE THE RISK OF UNINTENTIONAL
STARTING. Make sure switch is in off
position before plugging in.
17. USE RECOMMENDED ACCESSORIES.
Consult the owner’s manual for recom-
mended accessories. The use of improper
accessories may cause risk of injury to
persons.
18. NEVER STAND ON TOOL. Serious injury
could occur if the tool is tipped or if the
cutting tool is unintentionally contacted.
19. CHECK DAMAGED PARTS. Before further
use of the tool, a guard or other part that
is damaged should be carefully checked
to determine that it will operate properly
and perform its intended function - check
for alignment of moving parts, binding of
moving parts, breakage of parts, mount-
ing, and any other conditions that may
affect its operation. A guard or other part
that is damaged should be properly
repaired or replaced.
20. DIRECTION OF FEED. Feed work into a
blade or cutter against the direction of
rotation of the blade or cutter only.
21. NEVER LEAVE TOOL RUNNING UNAT-
TENDED. TURN POWER OFF. Don’t leave
tool until it comes to a complete stop.
22. REPLACEMENT PARTS. When servicing
use only identical replacement parts.
23. POLARIZED PLUGS. To reduce the risk of
electric shock, this equipment has a
polarized plug (one blade is wider than
the other). This plug will fit in a polarized
outlet only one way. If the plug does not fit
fully in the outlet, reverse the plug. If it
still does not fit, contact a qualified elec-
trician to install the proper outlet. Do not
change the plug in any way.

4
VOLTAGE WARNING: Before connecting the tool to a power source (receptacle, outlet,
etc.) be sure the voltage supplied is the same as that specified on the nameplate of the tool.
A power source with voltage greater than that specified for the tool can result in SERIOUS
INJURY to the user - as well as damage to the tool. If in doubt, DO NOT PLUG IN THE
TOOL. Using a power source with voltage less than the nameplate rating is harmful to the
motor.
USE PROPER EXTENSION CORD. Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy enough to carry the current your
product will draw. An undersized cord will cause a drop in line voltage resulting in loss of
power and overheating. Table 1 shows the correct size to use depending on cord length and
nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage num-
ber, the heavier the cord.
ADDITIONAL SAFETY RULES USB037-2
DO NOT let comfort or familiarity with product (gained from
repeated use) replace strict adherence to miter saw safety rules.
If you use this tool unsafely or incorrectly, you can suffer seri-
ous personal injury.
1. Wear eye protection.
2. Keep hands out of path of saw blade.
Avoid contact with any coasting blade. It
can still cause severe injury.
3. Do not operate saw without guards in
place. Check blade guard for proper clos-
ing before each use. Do not operate saw if
blade guard does not move freely and
close instantly. Never clamp or tie the
blade guard into the open position.
4. Do not perform any operation freehand.
The workpiece must be secured firmly
against the turn base and guide fence with
a vise during all operations. Never use
your hand to secure the workpiece.
5. Never reach around saw blade.
6. Turn off tool and wait for saw blade to
stop before moving workpiece or chang-
ing settings.
7. Unplug tool before changing blade or ser-
vicing.
8. Always secure all moving portions before
carrying the tool.
Table 1: Minimum gage for cord
Ampere Rating Volts Total length of cord in feet
120 V 25 ft. 50 ft. 100 ft. 150 ft.
More Than Not More Than AWG
0 6 18 16 16 14
6 10 18161412
10 12 16 16 14 12
12 16 14 12 Not Recommended

5
9. Do not use the tool in the presence of
flammable liquids or gases.
10. Check the blade carefully for cracks or
damage before operation. Replace
cracked or damaged blade immediately.
Gum and wood pitch hardened on blades
slows saw and increases potential for
kickback. Keep blade clean by first remov-
ing it from tool, then cleaning it with gum
and pitch remover, hot water or kerosene.
Never use gasoline to clean blade.
11. Use only flanges specified for this tool.
12. Be careful not to damage the arbor,
flanges (especially the installing surface)
or bolt. Damage to these parts could
result in blade breakage.
13. Make sure that the turn base is properly
secured so it will not move during opera-
tion. Use the holes in the base to fasten
the saw to a stable work platform or
bench. NEVER use tool where operator
positioning would be awkward.
14. For your safety, remove the chips, small
pieces, etc. from the table top before oper-
ation.
15. Avoid cutting nails. Inspect for and
remove all nails from the workpiece
before operation.
16. Make sure the shaft lock is released
before the switch is turned on.
17. Be sure that the blade does not contact
the turn base in the lowest position.
18. Hold the handle firmly. Be aware that the
saw moves up or down slightly during
start-up and stopping.
19. Make sure the blade is not contacting the
workpiece before the switch is turned on.
20. Before using the tool on an actual work-
piece, let it run for a while. Watch for
vibration or wobbling that could indicate
poor installation or a poorly balanced
blade.
21. Wait until the blade attains full speed
before cutting.
22. Stop operation immediately if you notice
anything abnormal.
23. Do not attempt to lock the trigger in the on
position.
24. Be alert at all times, especially during
repetitive, monotonous operations. Do
not be lulled into a false sense of security.
Blades are extremely unforgiving.
25. Always use accessories recommended in
this manual. Use of improper accessories
such as abrasive wheels may cause an
injury.
26. NEVER hold workpiece on right side of
blade with left hand or vice versa. This is
called cross-armed cutting and exposes
user to risk of SERIOUS PERSONAL
INJURY as shown in the figure. ALWAYS
use vise to secure workpiece.
27. Do not abuse cord. Never yank cord to
disconnect it from the receptacle. Keep
cord away from heat, oil, water and sharp
objects.
28. NEVER stack workpieces on the table top
to speed cutting operations. Cut only one
piece at a time.
29. Some material contains chemicals which
may be toxic. Take caution to prevent dust
inhalation and skin contact. Follow mate-
rial supplier safety data.

6
SAVE THESE INSTRUCTIONS
WARNING:
MISUSE or failure to follow the safety rules stated in this
instruction manual may cause serious personal injury.

7
INSTALLATION Bench mounting
When the tool is shipped, the handle is locked in the lowered
position by the stopper pin. Release the stopper pin by lower-
ing the handle slightly and pulling the stopper pin.
This tool should be bolted with four bolts to a level and stable
surface using the bolt holes provided in the tool’s base. This
will help prevent tipping and possible injury.
FUNCTIONAL
DESCRIPTION CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on the
tool.
Blade guard
When lowering the handle, the blade guard rises automati-
cally. The guard is spring loaded so it returns to its original
position when the cut is completed and the handle is raised.
NEVER DEFEAT OR REMOVE THE BLADE GUARD OR
THE SPRING WHICH ATTACHES TO THE GUARD.
In the interest of your personal safety, always maintain the
blade guard in good condition. Any irregular operation of the
blade guard should be corrected immediately. Check to
assure spring loaded return action of guard. NEVER USE
THE TOOL IF THE BLADE GUARD OR SPRING ARE DAM-
AGED, FAULTY OR REMOVED. DOING SO IS HIGHLY
DANGEROUS AND CAN CAUSE SERIOUS PERSONAL
INJURY.
1. Stopper pin
1
001794
1. Bolt
1
001827
1. Blade guard
1
001830

8

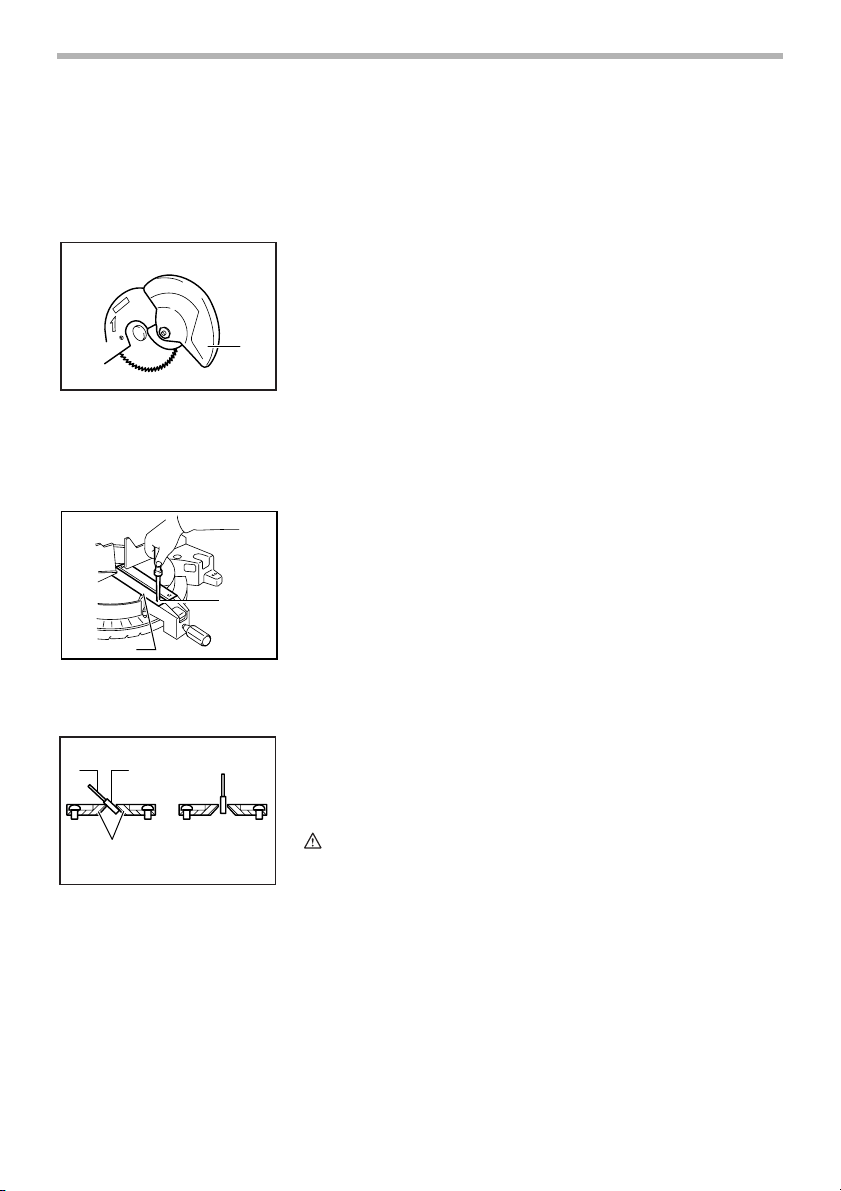

If the see-through blade guard becomes dirty, or sawdust
adheres to it in such a way that the blade is no longer easily
visible, unplug the saw and clean the guard carefully with a
damp cloth. Do not use solvents or any petroleum-based
cleaners on the plastic guard.
If the blade guard is especially dirty and vision through the
guard is impaired, use the supplied socket wrench to loosen
the hex bolt holding the center cover. Loosen the hex bolt by
turning it counterclockwise and raise the blade guard and
center cover. With the blade guard so positioned, cleaning
can be more completely and efficiently accomplished. When
cleaning is complete, reverse procedure above and secure
bolt. Do not remove spring holding blade guard. If guard
becomes discolored through age or UV light exposure, con-
tact a Makita service center for a new guard. DO NOT
DEFEAT OR REMOVE GUARD.
Positioning kerf board
This tool is provided with the kerf boards in the turn base to
minimize tearing on the exit side of a cut. The kerf boards are
factory adjusted so that the saw blade does not contact the
kerf boards. Before use, adjust the kerf boards as follows:
First, unplug the tool. Loosen all the screws (2 each on left
and right) securing the kerf boards. Re-tighten them only to
the extent that the kerf boards can still be easily moved by
hand. Lower the handle fully and push in the stopper pin to
lock the handle in the lowered position. Adjust the kerf
boards so that the kerf boards just contact the sides of the
blade teeth. Tighten all the screws (do not tighten firmly).
After adjusting the kerf boards, release the stopper pin and
raise the handle. Then tighten all the screws securely.
CAUTION:
•Before and after changing the bevel angle, always adjust
the kerf boards as described above.
1. Blade guard
1
001782
1. Kerf board
2. Screw
1. Saw blade
2. Blade teeth
3. Kerf board
4. Left bevel cut
5. Straight cut
1
2
001834
12
3
45
001800

9
Maintaining maximum cutting capacity
This tool is factory adjusted to provide the maximum cutting
capacity for a 305 mm (12”) saw blade.
When installing a new blade, always check the lower limit
position of the blade and if necessary, adjust it as follows:
First, unplug the tool. Lower the handle completely. Use the
socket wrench to turn the adjusting bolt until the periphery of
the blade extends slightly below the top surface of the turn
base at the point where the front face of the guide fence
meets the top surface of the turn base.
With the tool unplugged, rotate the blade by hand while hold-
ing the handle all the way down to be sure that the blade
does not contact any part of the lower base. Re-adjust
slightly, if necessary.
CAUTION:
•After installing a new blade, always be sure that the
blade does not contact any part of the lower base when
the handle is lowered completely. Always do this with the
tool unplugged.
Adjusting the miter angle
Loosen the grip by turning counterclockwise. Turn the turn
base while pressing down the lock lever. When you have
moved the grip to the position where the pointer points to the
desired angle on the miter scale, securely tighten the grip
clockwise.
CAUTION:
•When turning the turn base, be sure to raise the handle
fully.
•After changing the miter angle, always secure the turn
base by tightening the grip firmly.
1. Adjusting bolt
1. Top surface ot turn base
2. Periphery of blade
3. Guide fence
1
001835
2
1
3
001540
1. Miter scale
2. Pointer
3. Grip
4. Lock lever
123
4
001836

10

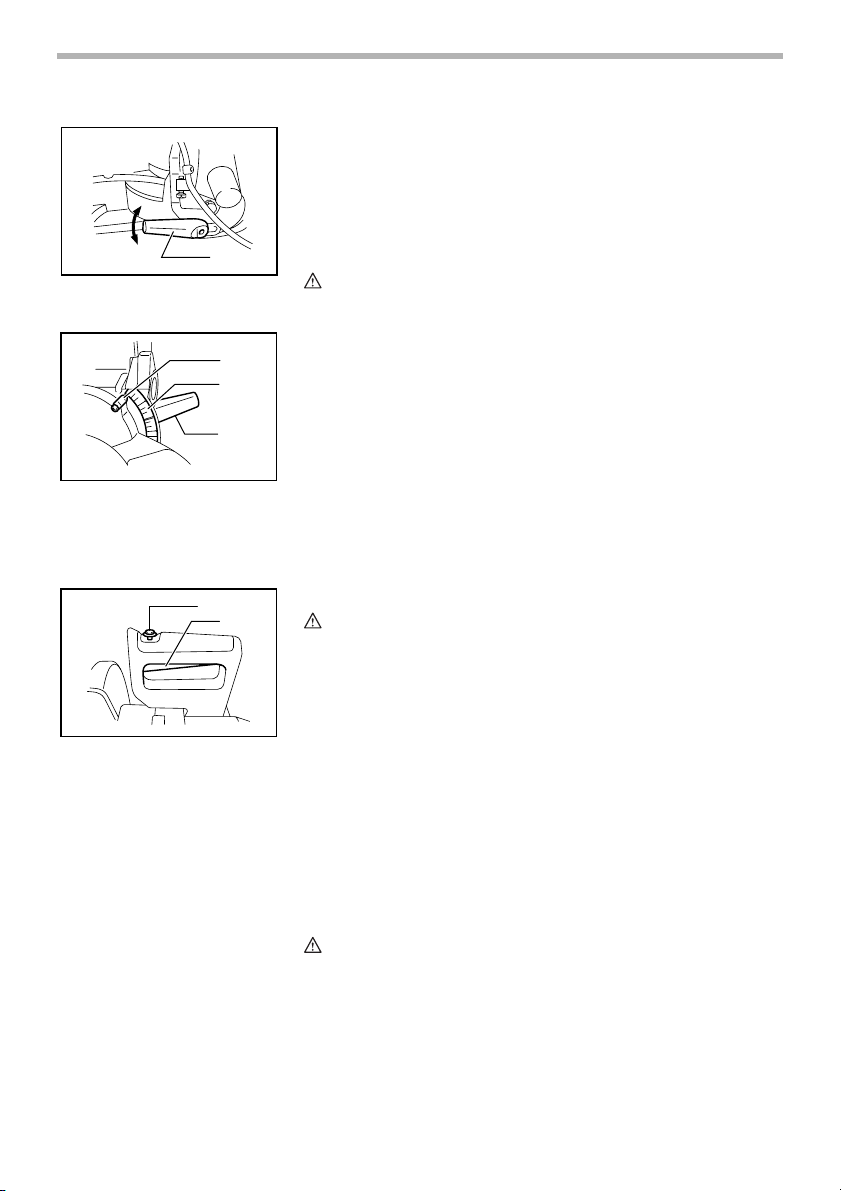

Adjusting the bevel angle
To adjust the bevel angle, loosen the lever at the rear of the
tool counterclockwise.
Push the handle to the left to tilt the saw blade until the
pointer points to the desired angle on the bevel scale. Then
tighten the lever clockwise firmly to secure the arm.
CAUTION:
•When tilting the saw blade, be sure to raise the handle
fully.
•After changing the bevel angle, always secure the arm
by tightening the lever clockwise.
•When changing bevel angles, be sure to position the kerf
boards appropriately as explained in the “Positioning kerf
boards”section.
Switch action
CAUTION:
•Before plugging in the tool, always check to see that the
switch trigger actuates properly and returns to the “OFF”
position when released.
•When not using the tool, remove the lock-off button and
store it in a secure place. This prevents unauthorized
operation.
•Do not pull the switch trigger hard without pressing in the
lock-off button. This can cause switch breakage.
To prevent the switch trigger from being accidentally pulled, a
lock-off button is provided. To start the tool, press in the lock-
off button and pull the switch trigger. Release the switch trig-
ger to stop.
WARNING:
•NEVER use tool without a fully operative switch trigger.
Any tool with an inoperative switch is HIGHLY
DANGEROUS and must be repaired before further
usage.
1. Lever
1. Pointer
2. Bevel scale
3. Lever
1
001837
1
2
3
001838
1. Lock-off button
2. Switch trigger
1
2
001833

11
•For your safety, this tool is equipped with a lock-off
button which prevents the tool from unintended starting.
NEVER use the tool if it runs when you simply pull the
switch trigger without pressing the lock-off button.
Return tool to a Makita service center for proper repairs
BEFORE further usage.
•NEVER tape down or defeat purpose and function of
lock-off button.
Electric brake
This tool is equipped with an electric blade brake. If the tool
consistently fails to quickly stop blade after switch trigger
release, have tool serviced at a Makita service center.
The blade brake system is not a substitute for blade guard.
NEVER USE TOOL WITHOUT A FUNCTIONING BLADE
GUARD. SERIOUS PERSONAL INJURY CAN RESULT.
ASSEMBLY CAUTION:
•Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.
Socket wrench storage
The socket wrench is stored as shown in the figure. When
using the socket wrench, pull it out of the wrench holder.
After using the socket wrench, return it to the wrench holder.
Installing or removing saw blade
CAUTION:
•Always be sure that the tool is switched off and
unplugged before installing or removing the blade.
•Use only the Makita socket wrench provided to install or
remove the blade. Failure to do so may result in
overtightening or insufficient tightening of the hex bolt.
This could cause an injury.
1. Socket wrench
2. Wrench holder
1
2
001826

12
Lock the handle in the raised position by pushing in the stop-
per pin.
To remove the blade, use the socket wrench to loosen the
hex bolt holding the center cover by turning it counterclock-
wise. Raise the blade guard and center cover.
Press the shaft lock to lock the spindle and use the socket
wrench to loosen the hex bolt clockwise. Then remove the
hex bolt, outer flange and blade.
To install the blade, mount it carefully onto the spindle, mak-
ing sure that the direction of the arrow on the surface of the
blade matches the direction of the arrow on the blade case.
Install the outer flange and hex bolt, and then use the socket
wrench to tighten the hex bolt (left-handed) securely counter-
clockwise while pressing the shaft lock.
1. Center cover
2. Socket wrench
1
2
001828
1. Shaft lock
2. Socket wrench
1
2
001829
1. Hex bolt
2. Outer flange
3. Saw blade
4. Ring
5. Inner flange
6. Spindle
12
3
45 6
001791

13

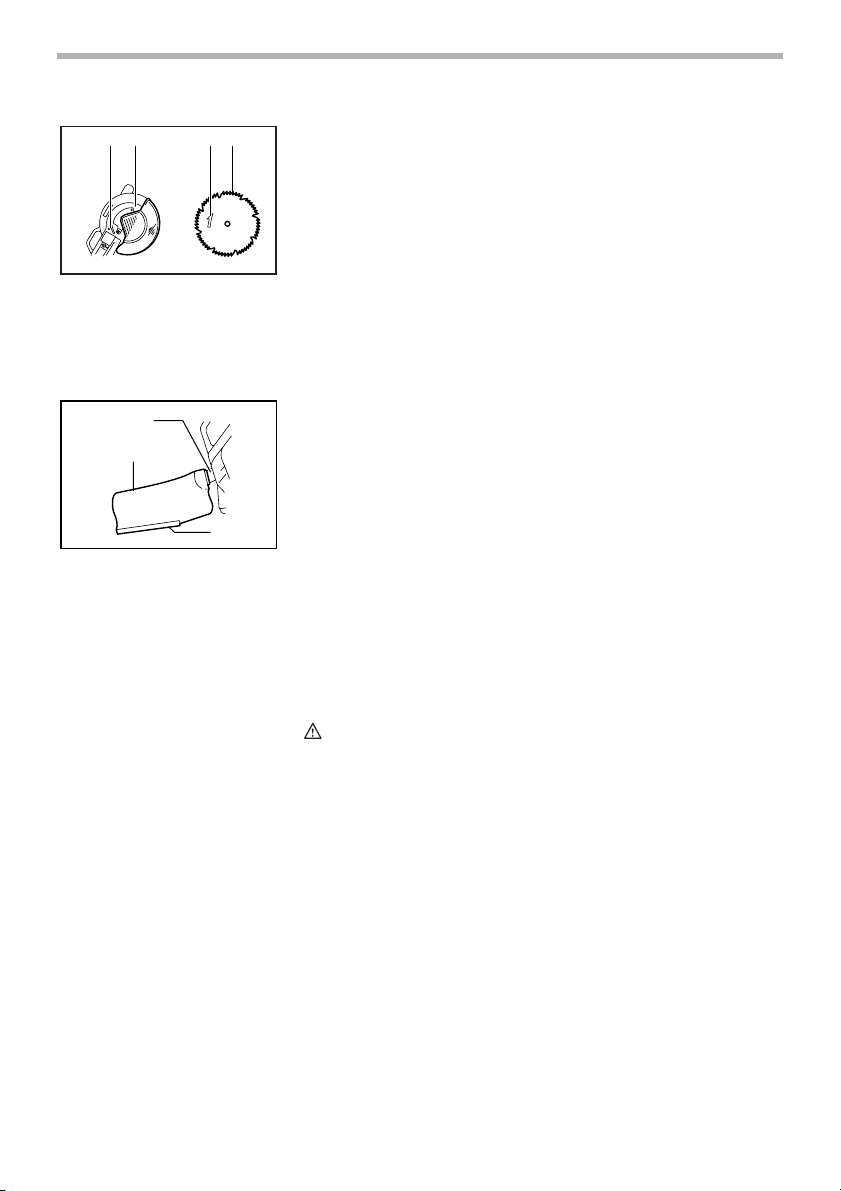

Return the blade guard and center cover to its original posi-
tion. Then tighten the hex bolt clockwise to secure the center
cover. Release the handle from the raised position by pulling
the stopper pin. Lower the handle to make sure that the
blade guard moves properly. Make sure shaft lock has
released spindle before making cut.
Dust bag
The use of the dust bag makes cutting operations clean and
dust collection easy. To attach the dust bag, fit it onto the
dust nozzle.
When the dust bag is about half full, remove the dust bag
from the tool and pull the fastener out. Empty the dust bag of
its contents, tapping it lightly so as to remove particles adher-
ing to the insides which might hamper further collection.
NOTE:
If you connect a Makita vacuum cleaner to your saw, more
efficient and cleaner operations can be performed.
Securing workpiece
WARNING:
•It is extremely important to always secure the workpiece
properly and tightly with the vise. Failure to do so can
cause the tool to be damaged and/or the workpiece to
be destroyed. PERSONAL INJURY MAY ALSO
RESULT. Also, after a cutting operation, DO NOT raise
the blade until the blade has come to a complete stop.
1. Blade case
2. Arrow
3. Saw balde
4. Arrow
2 1 4 3
001785
1. Dust nozzle
2. Dust bag
3. Fastener
1
2
3
001831

14

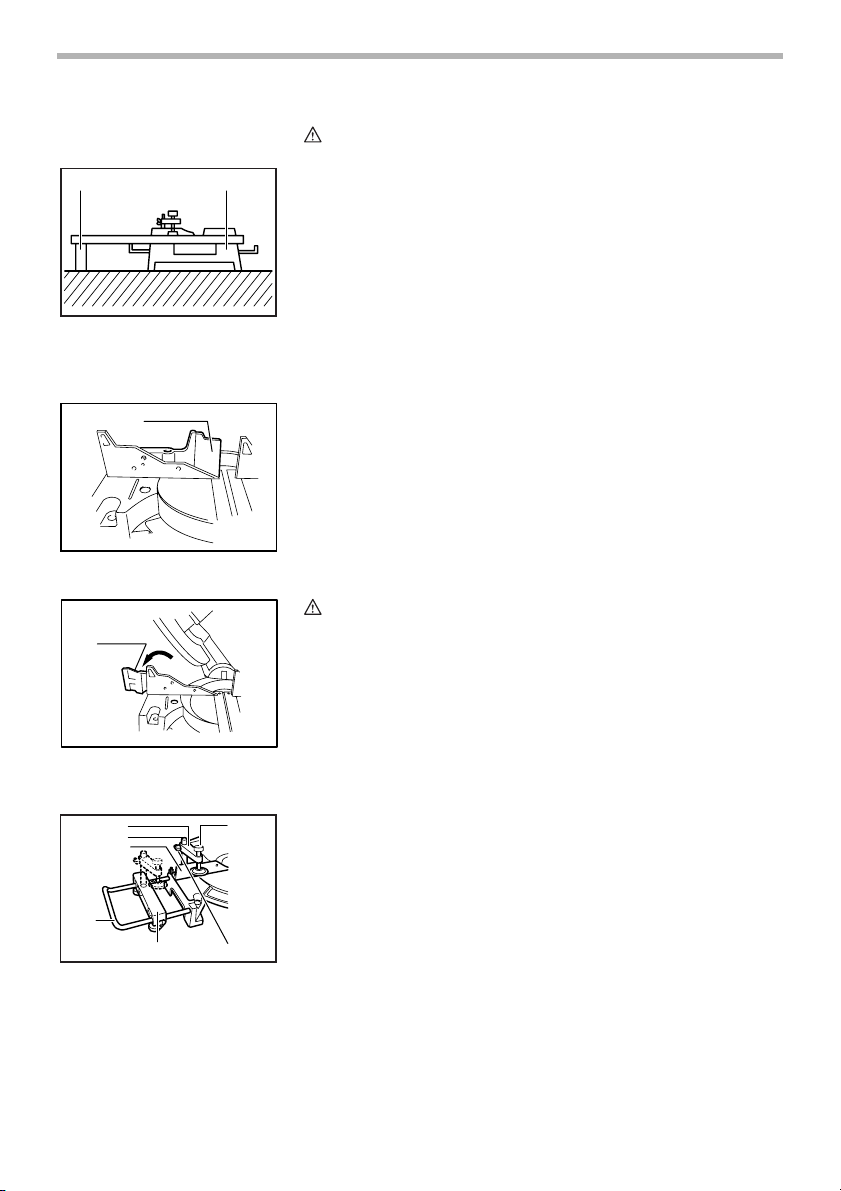

CAUTION:
•When cutting long workpieces, use supports that are as
high as the top surface level of the turn base. Do not rely
solely on the vertical vise and/or horizontal vise to
secure the workpiece.
Thin material tends to sag. Support workpiece over its
entire length to avoid blade pinch and possible
KICKBACK.
Sub-fence
This tool is equipped with the sub-fence. It should be posi-
tioned as shown in the figure.
CAUTION:
•When performing left bevel cuts, flip the fence over to the
left position as shown in the figure. Otherwise, it will
contact the blade or a part of the tool, causing possible
serious injury to the operator.
Vertical vise
The vertical vise can be installed in two positions on either
the left or right side of the guide fence or the holder assembly
(optional accessory). Insert the vise rod into the hole in the
guide fence or the holder assembly and tighten the screw to
secure the vise rod.
Position the vise arm according to the thickness and shape
of the workpiece and secure the vise arm by tightening the
screw. If the screw to secure the vise arm contacts the guide
fence, install the screw on the opposite side of vise arm.
Make sure that no part of the tool contacts the vise when
lowering the handle all the way. If some part contacts the
vise, re-position the vise.
1. Support
2. Turn base
1 2
001549
1. Sub-fence
1
001842
1. Sub-fence
1
001843
1. Vise arm
2. Vise rod
3. Guide fence
4. Holder
5. Holder assembly
6. Vise knob
7. Screw
1
2
3
6
4
57
001796

15
Press the workpiece flat against the guide fence and the turn
base. Position the workpiece at the desired cutting position
and secure it firmly by tightening the vise knob.
CAUTION:
•The workpiece must be secured firmly against the turn
base and guide fence with the vise during all operations.
Horizontal vise (optional accessory)
The horizontal vise can be installed in two positions on either
the left or right side of the base. When performing 15°or
greater miter cuts, install the horizontal vise on the side
opposite the direction in which the turn base is to be turned.
By flipping the vise nut to the left, the vise is released, and
rapidly moves in and out. To grip the workpiece, push the
vise knob forward until the vise plate contacts the workpiece
and flip the vise nut to the right. Then turn the vise knob
clockwise to secure the workpiece.
The maximum width of workpiece which can be secured by
the horizontal vise is 200 mm (7 - 7/8”).
CAUTION:
•Always rotate the vise nut to the right fully when securing
the workpiece. Failure to do so may result in insufficient
securing of the workpiece. This could cause the
workpiece to be thrown, cause damage to the blade or
cause the loss of control, which can result in
PERSONAL INJURY.
Holders and holder assembly
(optional accessories)
The holders and the holder assembly can be installed on
either side as a convenient means of supporting workpieces
horizontally. Install them as shown in the figure. Then tighten
the screws firmly to secure the holders and the holder
assembly.
1. Vise plate
2. Vise nut
3. Vise knob
1
23
001839
1. Holder
2. Holder assembly
12
001809

16

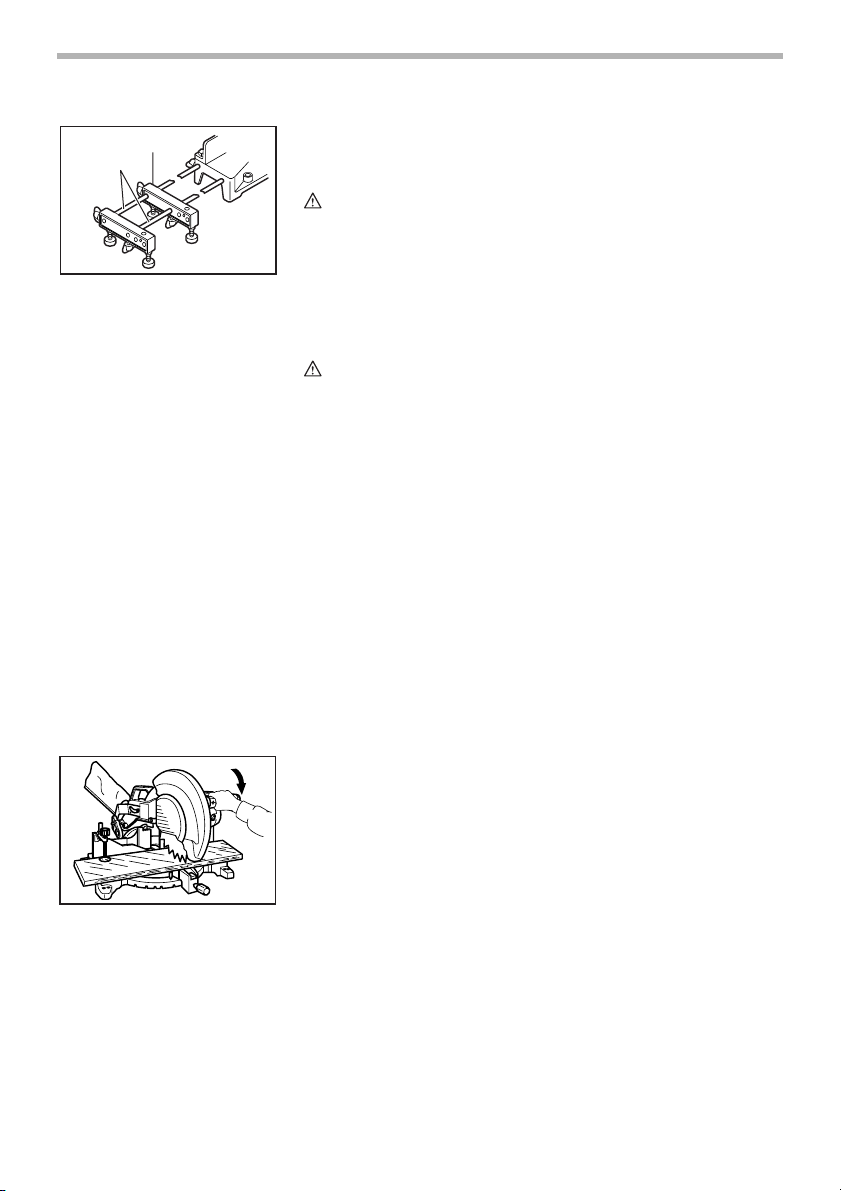

When cutting long workpieces, use the holder-rod assembly
(optional accessory). It consists of two holder assemblies
and two rods 12.
CAUTION:
•Always support long workpieces level with the top
surface of the turn base for accurate cuts and to prevent
dangerous loss of control of the tool.
OPERATION CAUTION:
•Before use, be sure to release the handle from the
lowered position by pulling the stopper pin.
•Make sure the blade is not contacting the workpiece, etc.
before the switch is turned on.
•Do not apply excessive pressure on the handle when
cutting. Too much force may result in overload of the
motor and/or decreased cutting efficiency. Push down
handle with only as much force as is necessary for
smooth cutting and without significant decrease in blade
speed.
•Gently press down the handle to perform the cut. If the
handle is pressed down with force or if lateral force is
applied, the blade will vibrate and leave a mark (saw
mark) in the workpiece and the precision of the cut will
be impaired.
1. Press cutting
Secure the workpiece with the vise. Switch on the tool
without the blade making any contact and wait until the
blade attains full speed before lowering. Then gently
lower the handle to the fully lowered position to cut the
workpiece. When the cut is completed, switch off the tool
and WAIT UNTIL THE BLADE HAS COME TO A COM-
PLETE STOP before returning the blade to its fully ele-
vated position.
2. Miter cutting
Refer to the previously covered “Adjusting the miter
angle”.
1. Holder assembly
2. Rod 12
1
2
001810
001793

17
3. Bevel cut
Loosen the lever and tilt the saw blade to set the bevel
angle (Refer to the previously covered “Adjusting the
bevel angle”). Be sure to retighten the lever firmly to
secure the selected bevel angle safely. Secure the work-
piece with a vise. Switch on the tool without the blade
making any contact and wait until the blade attains full
speed. Then gently lower the handle to the fully lowered
position while applying pressure in parallel with the
blade. When the cut is completed, switch off the tool and
WAIT UNTIL THE BLADE HAS COME TO A COM-
PLETE STOP before returning the blade to its fully ele-
vated position.
CAUTION:
•Always be sure that the blade will move down to bevel
direction during a bevel cut. Keep hands out of path of
saw blade.
•During a bevel cut, it may create a condition whereby the
piece cut off will come to rest against the side of the
blade. If the blade is raised while the blade is still
rotating, this piece may be caught by the blade, causing
fragments to be scattered which is dangerous. The blade
should be raised ONLY after the blade has come to a
complete stop.
•When pressing the handle down, apply pressure parallel
to the blade. If the pressure is not parallel to the blade
during a cut, the angle of the blade might be shifted and
the precision of the cut will be impaired.
•Always set the sub-fence to the left position when
performing left bevel cuts.
4. Compound cutting
Compound cutting is the process in which a bevel angle
is made at the same time in which a miter angle is being
cut on a workpiece. Compound cutting can be performed
at angle shown in the table.
When performing compound cutting, refer to “Press cut-
ting”, “Miter cutting”and “Bevel cut”explanations.
001841
Bevel angle
45˚
Miter angle
Left and Right 0 - 45˚

18

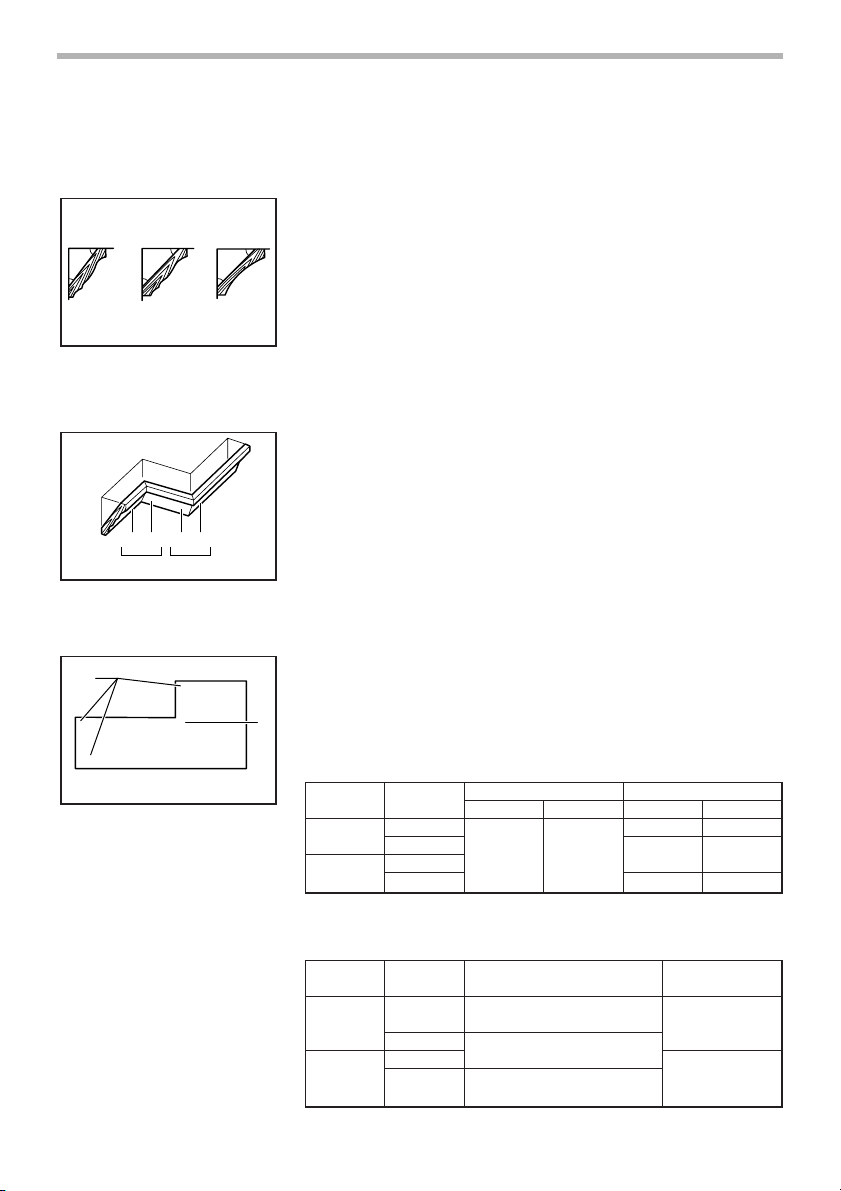

5. Cutting crown and cove moldings
Crown and cove moldings can be cut on a compound
miter saw with the moldings laid flat on the turn base.
There are two common types of crown moldings and one
type of cove moldings; 52/38°wall angle crown molding,
45°wall angle crown molding and 45°wall angle cove
molding. See illustrations.
There are crown and cove molding joints which are
made to fit “Inside” 90°corners ((1) and (2) in Fig. A) and
“Outside” 90°corners ((3) and (4) in Fig. A).
Measuring
Measure the wall length and adjust workpiece on table to
cut wall contact edge to desired length. Always make
sure that cut workpiece length at the back of the work-
piece is the same as wall length. Adjust cut length for
angle of cut. Always use several pieces for test cuts to
check the saw angles.
When cutting crown and cove moldings, set the bevel
angle and miter angle as indicated in the table (A) and
position the moldings on the top surface of the saw base
as indicated in the table (B).
1. 52/38°type crown molding
2. 45°type crown molding
3. 45°type cove molding
52∞
38∞
45∞
45∞
45∞
45∞
123
001555
1. Inside corner
2. Outside corner
1. Inside corner
2. Outside corner
(1) (2) (3) (4)
1 2
Fig.A
001556
2
(1)
(2)
(1)
(2)
(2)
(1)
(2)
(1)
(1)
(2)
(3)
(4)
1
001557
For inside
corner
For outside
corner
Molding
position in Fig. A
(1)
(2)
(3)
(4)
52/38˚type
Left 33.9˚
45˚type
Left 30˚
52/38˚type
Right 31.6˚
Left 31.6˚
Right 31.6˚
45˚type
Right 35.3˚
Left 35.3˚
Right 35.3˚
Bevel angle Miter angle
Table (A)
For inside
corner
For outside
corner
Molding
position in Fig. A
(1)
(2)
(3)
(4)
Molding edge against
guide fence
Ceiling contact edge should
be against guide fence.
Wall contact edge should be
against guide fence.
Ceiling contact edge should be
against guide fence.
Finished piece
Finished piece will
be on the Left side
of blade.
Finished piece will
be on the Right side
of blade.
Table (B)

19
Example:
In the case of cutting 52/38°type crown molding for
position (1) in Fig. A:
•Tilt and secure bevel angle setting to 33.9°
LEFT.
•Adjust and secure miter angle setting to 31.6°
RIGHT.
•Lay crown molding with its broad back (hidden)
surface down on the turn base with its CEILING
CONTACT EDGE against the guide fence on
the saw.
•The finished piece to be used will always be on
the LEFT side of the blade after the cut has
been made.

20
EN0002-1
Compound Miter Saw
Miter and Bevel Angle Settings
000031
52˚
38˚
Ceiling
Wall
Wall to Crown Molding Angle: 52/38 degrees
Wall Angle
(deg.)
Bevel Angle
(deg.)
Miter Angle
(deg.)
Wall Angle
(deg.)
Bevel Angle
(deg.)
Miter Angle
(deg.)
Wall Angle
(deg.)
Bevel Angle
(deg.)
Miter Angle
(deg.)
60 43.0 46.8 101 30.1 26.9 141 15.3 12.3
61 42.8 46.3 102 29.7 26.5 142 14.9 12.0
62 42.5 45.7 103 29.4 26.1 143 14.5 11.6
63 42.2 45.1 104 29.0 25.7 144 14.1 11.3
64 41.9 44.6 105 28.7 25.3 145 13.7 11.0
65 41.7 44.0 106 28.3 24.9 146 13.3 10.7
66 41.4 43.5 107 28.0 24.5 147 12.9 10.3
67 41.1 42.9 108 27.6 24.1 148 12.5 10.0
68 40.8 42.4 109 27.2 23.7 149 12.2 9.7
69 40.5 41.9 110 26.9 23.3 150 11.8 9.4
70 40.2 41.3 111 26.5 22.9 151 11.4 9.0
71 39.9 40.8 112 26.1 22.6 152 11.0 8.7
72 39.6 40.3 113 25.8 22.2 153 10.8 8.4
73 39.3 39.8 114 25.4 21.8 154 10.2 8.1
74 39.0 39.2 115 25.0 21.4 155 9.8 7.8
75 38.7 38.7 116 24.7 21.0 156 9.4 7.5
76 38.4 38.2 117 24.3 20.7 157 9.0 7.1
77 38.1 37.7 118 23.9 20.3 158 8.6 6.8
78 37.8 37.2 119 23.6 19.9 159 8.3 6.5
79 37.4 36.8 120 23.2 19.6 160 7.9 6.2
80 37.1 36.3 121 22.8 19.2 161 7.5 5.9
81 36.8 35.8 122 22.5 18.8 162 7.1 5.6
82 36.5 35.3 123 22.1 18.5 163 6.7 5.3
83 36.2 34.8 124 21.7 18.1 164 6.3 4.9
84 35.8 34.4 125 21.3 17.8 165 5.9 4.6
85 35.5 33.9 126 21.0 17.4 166 5.5 4.3
86 35.2 33.4 127 20.6 17.1 167 5.1 4.0
87 34.9 33.0 128 20.2 16.7 168 4.7 3.7
88 34.5 32.5 129 19.8 16.4 169 4.3 3.4
89 34.2 32.1 130 19.5 16.0 170 3.9 3.1
90 33.9 31.6 131 19.1 15.7 171 3.5 2.8
91 33.5 31.2 132 18.7 15.3 172 3.2 2.5
92 33.2 30.7 133 18.3 15.0 173 2.8 2.2
93 32.8 30.3 134 17.9 14.6 174 2.4 1.8
94 32.5 29.9 135 17.6 14.3 175 2.0 1.5
95 32.2 29.4 136 17.2 14.0 176 1.6 1.2
96 31.8 29.0 137 16.8 13.6 177 1.2 0.9
97 31.5 28.6 138 16.4 13.3 178 0.8 0.6
98 31.1 28.2 139 16.0 13.0 179 0.4 0.3
99 30.8 27.7 140 15.8 12.8 180 0.0 0.0
100 30.4 27.3
