Makita 3705 User manual

Trimmer
14'
1/4" MODEL 3705
23,000 215 mm (8 7/16") 1 8 kg (4 Ibs)
INSTRUCTION MANUAL
DOUBLE
INSULATION
SPEC IF I CAT IONS
Overall length Net weight
Collet chuck
No load speed
capacity
1 (RPM)

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING: WHEN USING ELECTRIC TOOLS, BASIC SAFE-
REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PER-
TY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO
SONAL INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools
in damp
or wet locations. Keep work area well lit. Don't expose power tools torain.
Don't use tool in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. When not
in use, tools should be stored in dry, and high
or locked-up place
- out of reach of children.
DON'T FORCETOOL.
It will dothejob better and safer at the ratefor which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do the job of a
heavy-dutytool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear looseclothingorjewelry. They canbecaught
in moving parts. Rubber gloves and nonskid footwear are recommended
when working outdoors. Wear protectivehair covering to containlonghair.
USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
DON'T ABUSE CORD. Never carry toolby cordor yank
it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
11. DON'T OVERREACH. Keep proper footing and balance at all times.
12. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructionsfor lubricating and changing acces-
sories. Inspecttoolcords periodically and ifdamaged, have repairedby autho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil and grease.
13. DISCONNECT TOOLS. When not inuse, before servicing, and whenchang-
ing accessories, such as blades, bits, cutters.

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keysand adjusting wrenches are removedfromtool before turning
it on.
15. AVOID UNINTENTIONALSTARTING.Don't carry plugged-intool with finger
on switch. Be sure switch is OFF when plugging in.
16. OUTDOOR USEEXTENSION CORDS. Whentoolis usedoutdoors, use only
extension cords intended for use outdoors and so marked.
17. STAY ALERT. Watchwhat you are doing, use common sense. Don't operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that it will
operate properly and performits intended function. Check for alignment of
moving parts, binding of moving parts, breakage of parts, mounting, and
any other conditions that may affect its operation. A guard or other part
that is damaged should be properly repaired or replaced by an authorized
service center unless otherwise indicated elsewhere in this instruction
manual. Havedefective switches replaced
by authorizedservice center. Don't
use tool if switch does not turn it on and off.
19. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENTPARTS. Whenservicing, use only identicalreplacementparts.
21. POLARIZEDPLUGS. To reduce the risk of electric shock, this equipment has
a polarized plug (one blade is wider than the other). This plug
will fit in a
polarized outlet only one way. If the plug does not fit fully in the outlet,
reversethe plug. If it stilldoes notfit, contacta qualified electriciantoinstall
the proper outlet. Do not change the plug in any way.
VOLTAGE WARNING: Beforeconnectingthe tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result
in SERIOUS INJURY to the user - as well as damage to
the tool. If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
.

ADDITIONAL SAFETY RULES
1. Wear hearing protection during extended periods of operation.
2. Handle the bits very carefully.
3. Check the bit carefully for cracks or damage before operation.
Replace cracked or damaged bit immediately.
4. Avoid cutting nails. Inspect for and remove all nails from the workpiece
before operation.
5. Hold the tool firmly.
6. Keep hands away from rotating parts.
7. Makesure the bit is not contacting the workpiece before the switchisturned
8. Before using the tool on an actual workpiece, let it run for a while.
9. Be careful of the bit rotating direction and the feed direction.
On.
Watch for vibration or wobblingthat could indicate improperly installed bit.
IO. Do not leave the tool running. Operate the tool only when hand-held.
11. Always switch off and wait for the bit to come to a complete stop before
12. Do not touch the bit immediately after operation; it may be extremely hot
13. Don’t smear the tool base carelessly with thinner, gasoline, oil or the like.
removing the tool from workpiece.
and could burn your skin.
They may cause cracks in the tool base.
SAVE THESE INSTRUCTIONS.
A

Installing or removing trimmer bit
CAUTION :
Always be sure that the tool is switched off and unplugged before installing or removing
the bit.
Use the hex wrench to loosen the clamp
bolt and lower the
tool base. lnser the bit
all the way intothe collet cone and tighten
the collet nut securely with the two
wrenches.
To remove the bit, follow the installation
procedurein reverse.
CAUTION
:
Do not tighten the collet nut without inserting a bit, or the collet cone will break.
Adjusting depth of cut
Place the tool on a fiat surface. Loosenthe
clamp bolt and move the tool body until
the bitjust touchesthe flat surface.Tighten
the clamp bolt slightly. Place the tool on
its side and loosen the clamp bolt. Move
the tool base untilthe desired depth of cut
is obtained. Depth of cut can be checked
with the scale label
(1 mm or about 3/64"
per graduation) on the tool. Then tighten
the clamp bolt securely.
Bit protrusion
2
Clamp bolt
CAUTION :
Since excessive cutting may cause overload of the motor or difficulty in controlling the
tool, the depth of cut should not be more than 3 mm (1/8") at a pass when cutting
grooves. When you wish tocut grooves more than 3 mm (1/8") deep, make several passes
with progressively deeper bitsettings.

Switch action
To start the tool, move the switch lever
to the
“ON” position. To stop, move the
switch lever to the
“OFF” position.
Operation
*Set the tool base on the workpiece tobe cut without the bitmaking any contact. Then
turn the tool on and wait until the bitattains full speed. Move the tool forward over the
workpiece surface, keeping the tool base flush and advancing smoothly until the cutting
is complete.
0 When doing edge cutting, the workpiece surface should be on the left side of the bit in
the feed direction.
(See the figure below)
” :;;eB:w
Feed direction
,//,/ /////////I/ ,‘
(View fromthe tip ofthetool)
I
Correct bitfeed direction
NOTE :
0 Moving the tool forward too fast may cause a poor quality of cut, or damage tothe bit
or motor. Moving the tool forward too slowly may burn and mar the cut. The proper
feed rate will depend on the bit
size, the kind of workpiece and depth of cut. Before
beginning the cut on the actual workpiece,
it is advisable to make a sample cut on a
piece of scrap lumber. This will show exactly howthe cut will look as well as enable you
to check dimensions.
When using the straight guide or the trimmer guide, be sure to install it on the right side
inthe feed direction. This will help to keep itflush with the side of the workpiece.
6

Straight guide (Optional accessory)
The straight guide is effectively used for
straight cuts when chamfering or grooving.
Install the straight guide on the guide
holder with the wing bolt. Then use the
hex wrench
to loosen the bolts on the tool
base and insert the guide holder into the
grooves in the tool base. Adjust the dis-
tance between the
bit and the straight
guide and tighten the bolts securely. When
adjusting the straight guide up or down,
loosen the wing bolt. After adjusting
it,
tighten the wing bolt securely.
I Guide holder \
When cutting, move the tool with the straight guide flush with the side of the workpiece.
Wider straight guide of desired dimensions
may be made by using the convenient holes
in the guide to bolt on extra pieces of
wood.
7

Trimmer guide (Optionalaccessory)
Trimming, curved cuts in veneers for fur-
niture and the like can be done easily with
the trimmer guide. The guide roller rides
the curve and assures
a fine cut.
Install the trimmer guide on the guide
holder with the wing bolt. Then use the
hex wrench to loosen the bolts on the tool
base and insert the guide holder into the
grooves in the tool base. Adjust the dis-
tance between the bit and the trimmer
guide and tighten the bolts securely.
When adjusting the trimmer guide up or
down, loosen the wing bolt. After adjusting
it, tighten the wing bolt securely.
Trimmer guide /
When cutting, move the tool with the guide
roller riding the side
of the workpiece.
I kBit
roller
x

Templet guide
The templet guideprovides a sleeve through
which the bit passes, allowing use of the
trimmer with templet patterns.
I
To install the templet guide, loosen the
screws on the tool base, insert the templet
guide and then tighten the screws.
Templet guide
7
Fix the templet to the workpiece. Move
the tool with the templet guide sliding
along the side
of the templet.
Bitk ytnplet guide

MAINTENANCE
CAUTION :
Always be sure that the tool is switched off and unpluggedbefore attempting to perform
inspection or maintenance.
Replacingcarbon brushes
Remove and check the carbon brushes
regularly. Replace when they wear down
to the limit mark. Keepthe carbon brushes
clean and free to
slip in the holders. Both
carbon brushes should be replaced
at the
same time. Use only identical carbon
brushes.
Use
a screwdriver to remove the brush
holder caps. Take out the worn carbon
brushes, insert the
brushholder caps. new ones and secure the
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or
adjustment should be performed by Makita Authorized or Factory Service Centers,
always using Makita replacementparts.
IO

ACCESSORIES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use
of any other accessories or attachments might present a risk of injury to persons.
The accessoriesor attachments should
be used only in the proper and intended manner.
0 Templet guide
Part No.321912-7
0 Straight guide
Part No. 341947-2
Guide holder
Part No. 122281-7
0 Trimmer guide
Part No. 163162-6
0 Hex wrench 6
Part No. 783204-6
0 Wrench holder
Part No. 410047-0
Wrench 10
Part No. 781003-0
Wrench 17
Part No. 781008-0
0 Collet cone 1/4"
Part No. 763608-8

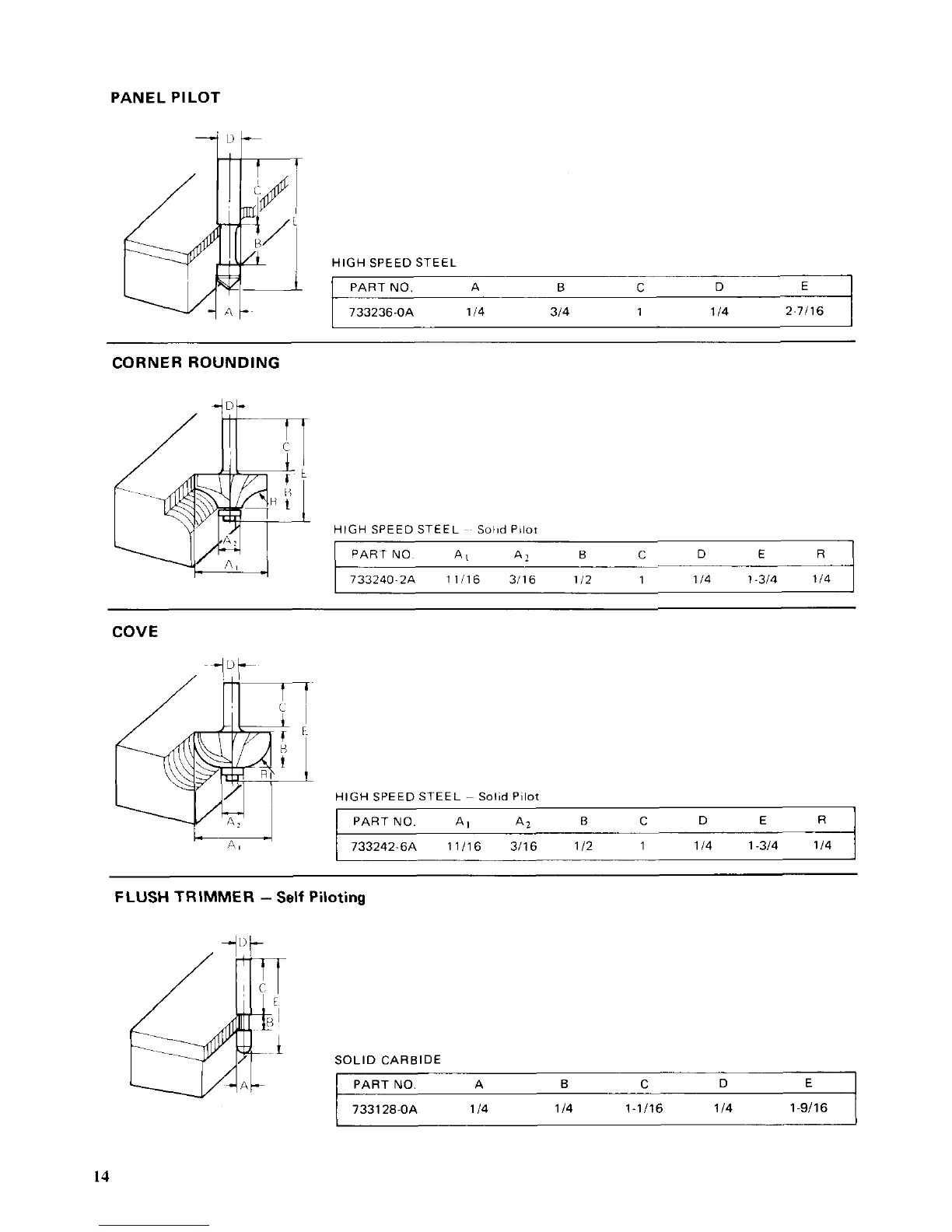

Bits
STRAIGHT - Single Flute
HIGH SPEED STEEL
PART
NO.
A B
C D E
733232-6A 118 5/16 1.118 1/4 1-518
STRAIGHT - 2 Flute
iDi-
CARBIDE TIPPED
PART
NO.
A
B
C D E
733003-2A 3/16 7116 1-318 114 2
HINGE MORTISING
CARBIDETIPPED
I PARTNO. A B C D E
733006-9A 112 112 1-1116 114 1-1311
6
VEINING - Single Flute
SOLID CARBIDE
PART
NO.
A
B
C D E
733007-8A 3116 7/32 1-1I4 114 1-1
12
I2

ROUND NOSE
CARBIDE TIPPED
PART
NO. A B C D E
733008-2A 114 15132 1~1I4 114 1-718
733008-4A 318 9116 1-114 114 2
CORE BOX
HIGH SPEED STEEL
PART
NO. A 8 C
D E
733238-2A 1
I4 114 1-3116 1I4 1-1
/2
VEE GROOVING
-pr
CARBIDE TIPPED
I PARTNO A 8 C D E 01
733009-2A 318 112 1.3116 114
2 9 0"
733009~4A 518 314 15/16 114
2 90"
14" DOVETAIL
4Dk-
CARBIDETIPPED
PART
NO. A B C D E
733009-6A 112 1
/2 1-114 114 1~718
13

PANEL PILOT
HIGHSPEED STEEL
PART
NO
A B
C D E
733236
OA
114 314 1 114 2 7116
CORNER ROUNDING
HIGH SPEED STEEL Solid Pilof
PARTNO A, AI
B
C D E R
733240 2A 11/16 3/16 112
1 114 1 314 114
COVE
HIGHSPEED STEEL - Solid Pilot
PARTNO. A) A2
6
C D
E R
733242-6A 11116 3/16 112 1 114 1-314 114
FLUSH TRIMMER - Self Piloting
SOLID CARBIDE
PART
NO A B
C D E
733128
OA 114 114 1 1116 1I4 19/16
14

7" BEVEL TRIMMER - Self-Piloting
PARTNO A
B C D E
733128 2A 3116 114 11/16 114 19/16
2 FLUTE FLUSHTRIMMER
CARBIDE TIPPED
PART NO A
B C D E
733128-9A 1
/2 112 1114 114 2-1/16
REPLACEMENT BEARING
~ NO 733132-4A
COMBINATION FLUSH/22" BEVEL TRIMMER
ilJk
CARBIDE TIPPED
PART NO A BI 82 C D E
733128 6A 7/16 112 3/16
1 114 1/4 1 314
3 FLUTE FLUSHTRIMMER ASSEMBLY -Self Piloting
-!lb
SOLID CARBIDE CUTTER
-______. .
PART NO A B C 0 E
I
733129 2A 5/8 3i8 1114 1/4 2318 1
REPLACEMENTBEARING ~ NO 7331326A
15

FLUTE FLUSH REPLACEMENT CUTTER
SOLID CARBIDE
PART
NO. A B D
733129-6A 5/8 318 114
FOR FLUSH TRIMMER ASSEMBLY NO. 733129-2A
I
114" REPLACEMENT ARBOR
I PARTNO A B C D El
I 733131-2A 518 318 1-114 114 2-318 I
I FOR FLUSH TRIMMER ASSEMBLY NO 733129-2A I
BALL BEARING PILOT
I PARTNO D, D7 I
733132-4A 112 OD 3/16 I D
733132 6A 518 0 D 114 ID
16

oct 09 87 us
114"
TRIMMER
Model 3705
Note The switch, noise suppressor and other part configurations
may differ from country
to country
17

MODEL 3705
I;"," DESCRIPTION
Mar 31 86 US
,,!& DESCRIPTION
MACE
1
2
4
5
6
7
8
9
10
11
12
13
14
15
16
I7
18
19
11
22
23
24
25
1
1
1
2
1
1
1
1
1
1
1
1
2
1
1
1
2
2
1
3
1
2
1
-
Clirrl
Redr Cover
Curd
Guard
Pan Head Srrew M4x14 IWifh WazhPrl
Strain Relipf
Mom Redr tlowng
FIELD ASSEMBLY
Drsvr Shall
Ball Bearing 6000LB
Ring 10
Ball Bedrinq 6000LB
v Pulley 3 19
Hex Bolt M4x10IWtfh Wdahcrl
Mom
Houz~nq
Ball
Bearing 6200LLB
Rubber Pin 4
Carbon 8r"all
Brush Holder Cali
sw,,,.t,
Pdn Head S~ruw M4x40 lWirh Washril
Name Pial?
Rivet 0 5
Rubber Pin 4
MACHINE
26
27
28
29
30
31
32
33
34
35
36
31
38
39
40
41
42
43
44
45
46
-
1
1
1
1
1
1
1
1
1
4
2
2
1
2
2
1
1
1
2
1
1
-
Ball Bearinq 627L8
ln~ulation Washer
ARMATURE ASSEMBLY
IWith
Item 16 26 291
Fdn 52
Torsmn Bar
Belt Cover
Hex
Socket Head Boll Max1 1
Pan Head Screw M4x14 lWilh WarhPrl
Base Protector
Binding Head Screw M4x 12
Binding Head Screw Mar16
Hex Nul M8
Base
Flat Washer 8
Hex Socket Head Boll Max12
Collel Nul
Collel cone
POI" v Bell 3 170
Pan Head Screw M4r18 IWilh Wdsherl
V Pulley 3 23
Bearing Box
Note The switch and other part specIfIca1~onsmay differ from country to (ounlry

MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to
be free of defects from workmanship and materials for the period
of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid, toone of Makita’s Factory or Authorized Service Centers. If inspection shows
the trouble is caused by defective workmanship or material, Makita
will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
repairs have been made or attempted by others:
repairs are required because of normal wear and tear:
The tool has been abused, misused or improperly maintained;
alterations have been made tothe tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USE OFTHE PRODUCT. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THE TERM OFTHIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THE ONE-YEAR TERM OFTHISWARRANTY.
This Warranty gives you specific legal nghts, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion or limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation on how long an implied warranty lasts,
so the above Limitation may not apply to you.
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi
446 Japan
883497D068
PRINTED IN JAPAN
1992 - 8 - N
