ENGLISH (Original instructions)
Explanation of general view
1-1. Switch trigger B
1-2. Switch trigger A
1-3. Switch trigger C
4-1. Hook complete
4-2. Tool's cord
4-3. Extension cord
5-1. Holder
5-2. Cord
6-1. Holder
6-2. Arm cord hook band

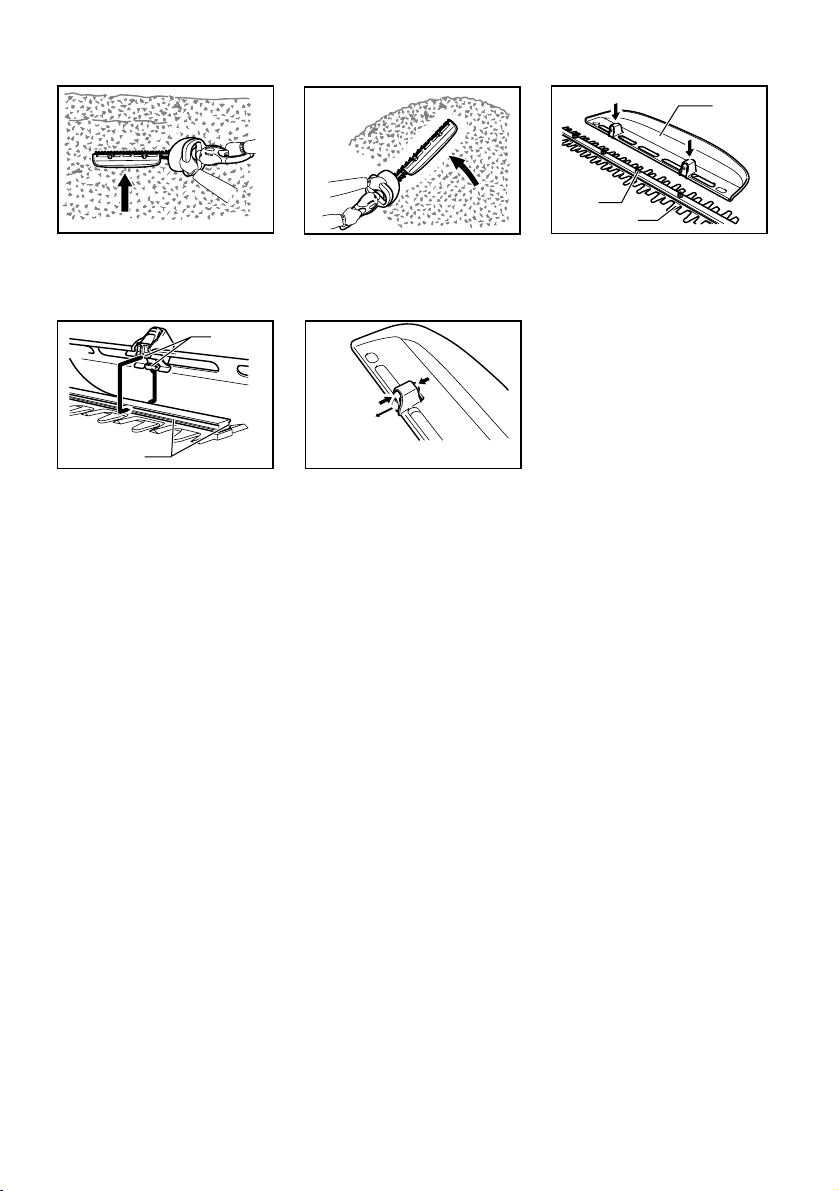

10-1. Trimming direction
10-2. Tilt the blades
10-3. Hedge surface to be trimmed
11-1. String
15-1. Press
15-2. Chip receiver
15-3. Nut
15-4. Shear blade
16-1. Hooks
16-2. Fit the hooks into groove
16-3. Grooves
17-1. Press the levers on both sides
17-2. Unlock the hooks
SPECIFICATIONS
Model UH4261 UH4861 UH5261
Blade length 420 mm 480 mm 520 mm
Strokes per minute (min-1) 1,600 1,600 1,600
Overall length 821 mm 871 mm 921 mm
Net weight 2.9 kg 3.0 kg 3.0 kg
Safety class /II
• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications may differ from country to country.
• Weight according to EPTA-Procedure 01/2003
END220-5
Symbol
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
･Read instruction manual.
･DOUBLE INSULATION
･Do not expose to rain.
･Remove plug from the mains
immediately if the cable is damaged or
cut.
･Only for EU countries
Do not dispose of electric equipment
together with household waste material!
In observance of European Directive
2012/19/EU on waste electric and
electronic equipment and its
implementation in accordance with
national law, electric equipment that
have reached the end of their life must
be collected separately and returned to
an environmentally compatible
recycling facility.
ENE014-1
Intended use
The tool is intended for trimming hedges.
ENF002-2
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated and can, therefore, also be used
from sockets without earth wire.
ENG905-1
Noise
The typical A-weighted noise level determined
according to EN60745:
Sound pressure level (LpA) : 82 dB(A)
Sound power level (LWA) : 93 dB(A)
Uncertainty (K) : 2.1 dB(A)
Wear ear protection
ENG900-1
Vibration
The vibration total value (tri-axial vector sum)
determined according to EN60745:
Work mode : hedge trimming
Vibration emission (ah) : 6.7 m/s2
Uncertainty (K) : 1.5 m/s2
ENG901-1
• The declared vibration emission value has been
measured in accordance with the standard test
method and may be used for comparing one tool
with another.
• The declared vibration emission value may also be
used in a preliminary assessment of exposure.
WARNING:
• The vibration emission during actual use of the
power tool can differ from the declared emission
value depending on the ways in which the tool is
used.

5
• Be sure to identify safety measures to protect the
operator that are based on an estimation of
exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it
is running idle in addition to the trigger time).
ENH021-7
For European countries only
EC Declaration of Conformity
We Makita Corporation as the responsible
manufacturer declare that the following Makita
machine(s):
Designation of Machine:
Hedge Trimmer
Model No./ Type: UH4261, UH4861, UH5261
Specifications: see "SPECIFICATIONS" table.
are of series production and
Conforms to the following European Directives:
2000/14/EC, 2006/42/EC
And are manufactured in accordance with the following
standards or standardised documents:
EN60745
The technical documentation is kept by:
Makita International Europe Ltd.
Technical Department,
Michigan Drive, Tongwell,
Milton Keynes, Bucks MK15 8JD, England
The conformity assessment procedure required by
Directive 2000/14/EC was in Accordance with annex V.
Measured Sound Power Level: 93dB (A)
Guaranteed Sound Power Level: 96dB (A)
23.07.2010
000230
Tomoyasu Kato
Director
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi, 446-8502, JAPAN
GEA010-1
General Power Tool Safety
Warnings
WARNING Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for
future reference.
GEB041-9
HEDGE TRIMMER SAFETY
WARNINGS
1. Keep all parts of the body away from the
cutter blade. Do not remove cut material or
hold material to be cut when blades are
moving. Make sure the switch is off when
clearing jammed material. A moment of
inattention while operating the hedge trimmer
may result in serious personal injury.
2. Carry the hedge trimmer by the handle with
the cutter blade stopped. When transporting
or storing the hedge trimmer always fit the
cutting device cover. Proper handling of the
hedge trimmer will reduce possible personal
injury from the cutter blades.
3. Hold the power tool by insulated gripping
surfaces only, because the cutter blade may
contact hidden wiring or its own cord. Cutter
blades contacting a "live" wire may make
exposed metal parts of the power tool "live" and
could give the operator an electric shock.
4. Keep cable away from cutting area. During
operation the cable may be hidden in shrubs and
can be accidentally cut by the blade.
5. Do not use the hedge trimmer in the rain or in wet
or very damp conditions. The electric motor is not
waterproof.
6. First-time users should have an experienced
hedge trimmer user show them how to use the
trimmer.
7. The hedge trimmer must not be used by children
or young persons under 18 years of age. Young
persons over 16 years of age may be exempted
from this restriction if they are undergoing training
under the supervision of an expert.
8. Use the hedge trimmer only if you are in good
physical condition. If you are tired, your attention
will be reduced. Be especially careful at the end
of a working day. Perform all work calmly and
carefully. The user is responsible for all damages
to third parties.
9. Never use the trimmer when under the influence
of alcohol, drugs or medication.
10. Check to make sure that the voltage and
frequency of the power supply correspond to the
specifications given on the identification plate. We
recommend the use of a residual-current-
operated circuit breaker (ground-fault circuit
interrupter) with a tripping current of 30 mA or
less, or an earth leakage current protector.
11. Work gloves of stout leather are part of the basic
equipment of the hedge trimmer and must always
be worn when working with it. Also wear sturdy
shoes with anti-skid soles.

6
12. Before starting work check to make sure that the
trimmer is in good and safe working order. Ensure
guards are fitted properly. Check cable for
damage before starting work and replace if
necessary. The hedge trimmer must not be used
unless fully assembled.
13. Keep cable away from the cutting area. Always
work in such a way that the extension power cord
is behind you.
14. Remove plug from the mains immediately if cable
is damaged or cut.
15. Make sure you have a secure footing before
starting operation.
16. Hold the tool firmly when using the tool.
17. Do not operate the tool at no-load unnecessarily.
18. Immediately switch off the motor and unplug the
mains plug if the cutter should come into contact
with a fence or other hard object. Check the
cutter for damage, and if damaged repair
immediately.
19. Before checking the cutter, taking care of faults,
or removing material caught in the cutter, always
switch off the trimmer and unplug the mains plug.
20. Switch off the trimmer and disconnect and secure
the mains plug before doing any maintenance
work.
21. When moving the hedge trimmer to another
location, including during work, always unplug the
mains plug and put the blade cover on the cutter
blades. Never carry or transport the trimmer with
the cutter running. Never grasp the cutter with
your hands.
22. Clean the hedge trimmer and especially the cutter
after use, and before putting the trimmer into
storage for extended periods. Lightly oil the cutter
and put on the cover. The cover supplied with the
unit can be hung on the wall, providing a safe and
practical way to store the hedge trimmer.
23. Store the hedge trimmer with the cover on, in a
dry room. Keep it out of reach of children. Never
store the trimmer outdoors.
24. Do not operate the tool at no-load
unnecessarily.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to safety rules for the subject product. MISUSE or
failure to follow the safety rules stated in this
instruction manual may cause serious personal
injury.
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function
on the tool.
• Put the blade cover on the shear blades before
adjusting or checking function on the tool.
Switch action
Fig.1
For your safety, this tool is equipped with a triple
switching system. To turn on the tool, press switch
trigger B and press switch trigger A or C at the same
time. Release either one of the two pressed switch
triggers to turn off. The sequence of switching is
unimportant as the tool only starts when both switches
are activated.
Straight cut
Fig.2
To trim the hedge straight, pull switch triggers A and B.
Vertical cut
Fig.3
Cut upwards with both hands pull the switch triggers B
and C and move it in front of your body.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the
tool.
Engage the extension cord
CAUTION:
• Make sure that the extension cord is unplugged to
the mains outlet.
Fig.4
When engaging the extension cord, secure it to the
tool's cord with the hook complete. Attach the hook
about 100 - 200 mm from the extension cord connector.
This will help prevent unintentional disconnection.
Waist cord hook
CAUTION:
• Do not attach the holder of waist cord hook to
other than the extension cord. Do not attach it in a
position closer to the tool beyond the hook
complete. Failure to do so may cause an accident
or personal injury.
• Attach firmly one hook of the hook complete to the
tool's cord and the other hook of hook complete to
the extension cord. Working with the tool with a
sole hook only attached may cause an accident
and injury.

7
Using the waist cord hook helps to minimizing a risk of
cutting off the extension cord unexpectedly caused by
the loose extension cord.
12
3
4
5
6
7
009401
Fig.5
Press in or pull out the cord through the opening of the
holder.
CAUTION:
• Do not force the opening of the holder. Failure to
do so may cause deflection and damage to it.
Arm cord hook (Accessory)
CAUTION:
• Do not attach the holder of arm cord hook to other
than the extension cord. Do not attach it in a
position closer to the tool beyond the hook
complete hooks. Failure to do so may cause an
accident or personal injury.
• Attach firmly one hook of the hook complete to the
tool's cord and the other hook of hook complete to
the extension cord. Working with the tool with a
sole hook only attached may cause an accident
and injury.
Using the arm cord hook helps to minimize a risk of
cutting off the extension cord unexpectedly caused by
the loose extension cord.
Fig.6
Attach firmly the arm cord hook band placing around
your arm and pass the extension cord through the
holder. The length of the arm cord hook band is
adjustable.
NOTE:
• Do not pass the extension cord through the band.
• Do not force the opening of the holder. Failure to
do so may cause deflection and damage to it.
• Using the arm cord hook together with the waist
cord hook is more helpful.
OPERATION
CAUTION:
• Be careful not to accidentally contact a metal
fence or other hard objects while trimming. The
blade will break and may cause serious injury.
• Overreaching with a hedge trimmer, particularly
from a ladder, is extremely dangerous. Do not
work from anything wobbly or infirm.
Fig.7
Do not attempt to cut branches thicker than 10 mm
diameter with this trimmer. These should first be cut with
shears down to the hedge trimming level.
CAUTION:
• Do not cut off dead trees or similar hard objects.
Failure to do so may damage the tool.
Fig.8
Hold the trimmer with both hands pull the switch trigger
A or B and move it in front of your body.
Fig.9
Fig.10
As a basic operation, tilt the blades towards the
trimming direction and move it calmly and slowly at the
speed rate of 3 - 4 seconds per meter.
Fig.11
To cut a hedge top evenly, it helps to tie a string at the
desired hedge height and to trim along it, using it as a
reference line.
Fig.12
Attaching the chip receiver (accessory) on the tool when
trimming the hedge straight can avoid cut off leaves’
being thrown away.
Fig.13
To cut a hedge side evenly, it helps to cut from the
bottom upwards.
Fig.14
Trim boxwood or rhododendron from the base toward
the top for a nice appearance and good job.
1. Hook
2. Tool
3. Tool's cord
4. Hook complete
5. Extension cord
6. Holder
7. Waist cord hook

8
Installing or removing chip receiver
(accessory)
CAUTION:
• Always be sure that the tool is switched off and
unplugged before installing or removing chip
receiver.
NOTE:
• When replacing the chip receiver, always wear
gloves so that hands and face does not directly
contact the blade. Failure to do so may cause
personal injury.
• Always be sure to remove the blade cover before
installing the chip receiver.
• The chip receiver receives cut-off leaves and
alleviates collecting thrown-away leaves. This can
be installed on either side of the tool.
Fig.15
Fig.16
At this time, the chip receiver needs to be installed so
that its hooks fit into grooves in the shear blade unit.
Fig.17
To remove the chip receiver, press its lever on both
sides so that the hooks are unlocked.
CAUTION:
• The blade cover (standard equipment) cannot be
installed on the tool with the chip receiver being
installed. Before carrying or storing, uninstall the
chip receiver and then install the blade cover to
avoid blade exposure.
NOTE:
• Check the chip receiver for secure installment
before use.
• Never try to uninstall the chip receiver by an
excessive force with its hooks locked in the blade
unit grooves. Using the excessive force may
damage it.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection
or maintenance.
Cleaning the tool
Clean out the tool by wiping off dust with a dry or soap-
dipped rag.
CAUTION:
• Never use gasoline, benzine, thinner, alcohol or
the like. Discoloration, deformation or cracks may
result.
Blade maintenance
Smear the blade before and once per half an hour
during operation using machine oil or similars.
After operation, remove dust from both sides of the
blade with wired brush, wipe off it with a rag and then
apply enough low-viscosity oil, such as machine oil etc.
and spray-type lubricating oil.
CAUTION:
• Do not wash the blades in water. Failure to do so
may cause rust or damage on the tool.
• Wear gloves when performing the blade
maintenance.
Storage
Put the blade cover on the shear blades so that the
blades are not exposed. Store the tool out of the reach
of children carefully.
Store the tool in the place not exposed to water and rain.
To maintain product SAFETY and RELIABILITY, repairs,
carbon brush inspection and replacement, any other
maintenance or adjustment should be performed by
Makita Authorized Service Centers, always using Makita
replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Blade cover
• Hook complete
• Waist cord hook
• Arm cord hook
• Chip receiver
NOTE:
• Some items in the list may be included in the tool
package as standard accessories. They may differ
from country to country.
