Makita DVC260 User manual
INSTRUCTION MANUAL
Cordless Backpack Vacuum
Cleaner
DVC260
ENGLISH: Original instructions
Read before use.
2ENGLISH
SPECIFICATIONS
Model: DVC260
Capacity Filter bag 2.0 L
Dust bag 1.5 L
Maximum air volume With hose ø28 mm 1.5 m3/min
With hose ø38 mm 1.8 m3/min
Dimensions (L x W x H)
(excluding the harness)
230 mm x 152 mm x 373 mm
Rated voltage D.C. 36 V
Standard battery cartridge BL1815N, BL1820, BL1820B BL1830, BL1830B, BL1840,
BL1840B, BL1850, BL1850B,
BL1860B
Net weight
(Vacuum cleaner type)
3.8 kg 4.3 kg
without notice.
Symbols
Be sure that you understand their meaning before use.
Read instruction manual.
Ni-MH
Li-ion
pack together with household waste material!
mentation in accordance with national laws,
pack(s) that have reached the end of their life
must be collected separately and returned to an
environmentally compatible recycling facility.
Intended use
able for commercial use, for example in hotels, schools,
Noise
Sound pressure level (L
WARNING: Wear ear protection.
Vibration
Vibration emission (ah2or less
2
NOTE:
been measured in accordance with the standard test
method and may be used for comparing one tool with
another.
NOTE:
may also be used in a preliminary assessment of
exposure.
WARNING:
use of the power tool can differ from the declared
emission value depending on the ways in which the
tool is used.
WARNING: Be sure to identify safety measures
to protect the operator that are based on an estima
tion of exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it is
running idle in addition to the trigger time).
EC Declaration of Conformity
For European countries only
Cleaner
Yasushi Fukaya
Director
3ENGLISH
SAFETY WARNINGS
Cordless vacuum cleaner safety
warnings
WARNING: IMPORTANT! READ CAREFULLY
all safety warnings and all instructions BEFORE
USE . Failure to follow the warnings and instructions
1. Before use, make sure that this cleaner must
be used by people who have been adequately
instructed on the use of this cleaner.
2.
3.
metal chips, sharp materials such as razors,
needles, broken glass or the like.
4. NEVER USE THE CLEANER IN THE VICINITY
OF GASOLINE, GAS, PAINT, ADHESIVES OR
OTHER HIGHLY EXPLOSIVE SUBSTANCES.
5.
Never vacuum up toxic, carcinogenic, com-
bustible or other hazardous materials such as
asbestos, arsenic, barium, beryllium, lead, pes-
ticides, or other health endangering materials.
6. Never use the cleaner outdoors in the rain.
7. Do not use close to heat sources (stoves, etc.).
8. Do not block cooling vents. These vents per-
mit cooling of the motor. Blockage should be
carefully avoided otherwise the motor will burn
out from lack of ventilation.
Keep proper footing and balance at all times.
10. Do not fold, tug or step on the hose.
11. Stop the cleaner immediately if you notice
poor performance or anything abnormal
during operation.
12.
DISCONNECT THE BATTERIES. When not in use,
before servicing, and when changing accessories.
13.
Clean and service the cleaner immediately after
each use to keep it in tiptop operating condition.
14.
MAINTAIN THE CLEANER WITH CARE. Keep the
cleaner clean for better and safer performance.
Follow instructions for changing accessories. Keep
handles dry, clean, and free from oil and grease.
15. CHECK DAMAGED PARTS. Before further use
of the cleaner, a guard or other part that is
damaged should be carefully checked to deter-
mine that it will operate properly and perform
its intended function. Check for alignment of
moving parts, binding of moving parts, break-
age of parts, mounting, and any other condi-
tions that may affect its operation. A guard or
other part that is damaged should be properly
repaired or replaced by an authorized service
center unless otherwise indicated elsewhere
in this instruction manual. Have defective
switches replaced by authorized service cen-
ter. Don’t use the cleaner if switch does not
turn it on and off.
16. REPLACEMENT PARTS. When servicing, use
only identical replacement parts.
17. STORE IDLE CLEANER. When not in use, the
cleaner should be stored indoors.
18. Be kind to your cleaner. Rough handling can
cause breakage of even the most sturdily built
cleaner.
Do not attempt to clean the exterior or interior
with benzine, thinner or cleaning chemicals.
Cracks and discoloration may be caused.
20. Do not use cleaner in an enclosed space where
off by oil-base paint, paint-thinner, gasoline,
21. Do not operate the cleaner while under the
22. As a basic rule of safety, use safety goggles or
safety glasses with side shields.
23. Use a dust mask in dusty work conditions.
24. This machine is not intended for use by per-
sons including children with reduced physical,
sensory or mental capabilities, or lack of expe-
rience and knowledge.
25. Young children should be supervised to
ensure that they do not play with the cleaner.
26. Never handle batteries and cleaner with wet
hands.
27. Use extreme caution when cleaning on stairs.
28. Do not use the cleaner as a stool or work
bench. The machine may fall down and may
result in personal injury.
Service
1.
repair person using only identical replacement
parts.
tool is maintained.
2. Follow instruction for lubricating and chang-
ing accessories.
3. Keep handles dry, clean and free from oil and
grease.
Important safety instructions for
battery cartridge
1.
Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
4ENGLISH
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
8. Be careful not to drop or strike battery.
Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
aging and labeling must be observed.
For preparation of the item being shipped, consult
national regulations.
battery in such a manner that it cannot move
around in the packaging.
11. Follow your local regulations relating to dis-
posal of battery.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
have been altered, may result in the battery bursting
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before adjusting or checking function on the tool.
Installing or removing battery
cartridge
CAUTION: Always switch off the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
cartridge. Failure to hold the tool and the battery
and result in damage to the tool and battery cartridge
1
2
3
1. Red indicator 2. Button 3. Battery cartridge
while sliding the button on the front of the cartridge.
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
upper side of the button, it is not locked completely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
Tool / battery protection system
matically stop during operation if the tool or battery is
placed under one of the following conditions.
5ENGLISH
Overload protection
When the tool is operated in a manner that causes it to
draw an abnormally high current, the tool automatically
stops without any indication. In this situation, turn the
tool off and stop the application that caused the tool to
Overheat protection
When the tool is overheated, the tool stops automati
cally. Let the tool cool down before turning the tool on
again.
Overdischarge protection
When the battery capacity becomes low, the tool stops
automatically. If the product does not operate even
when the switches are operated, remove the batteries
from the tool and charge the batteries.
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
1
2
1. Indicator lamps 2. Check button
light up for few seconds.
Indicator lamps Remaining
capacity
Lighted Off Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may differ slightly
from the actual capacity.
Switch box position
being damaged, pass the cord through the hook as
illustrated.
12
1
2
1. Hook 2. Cord

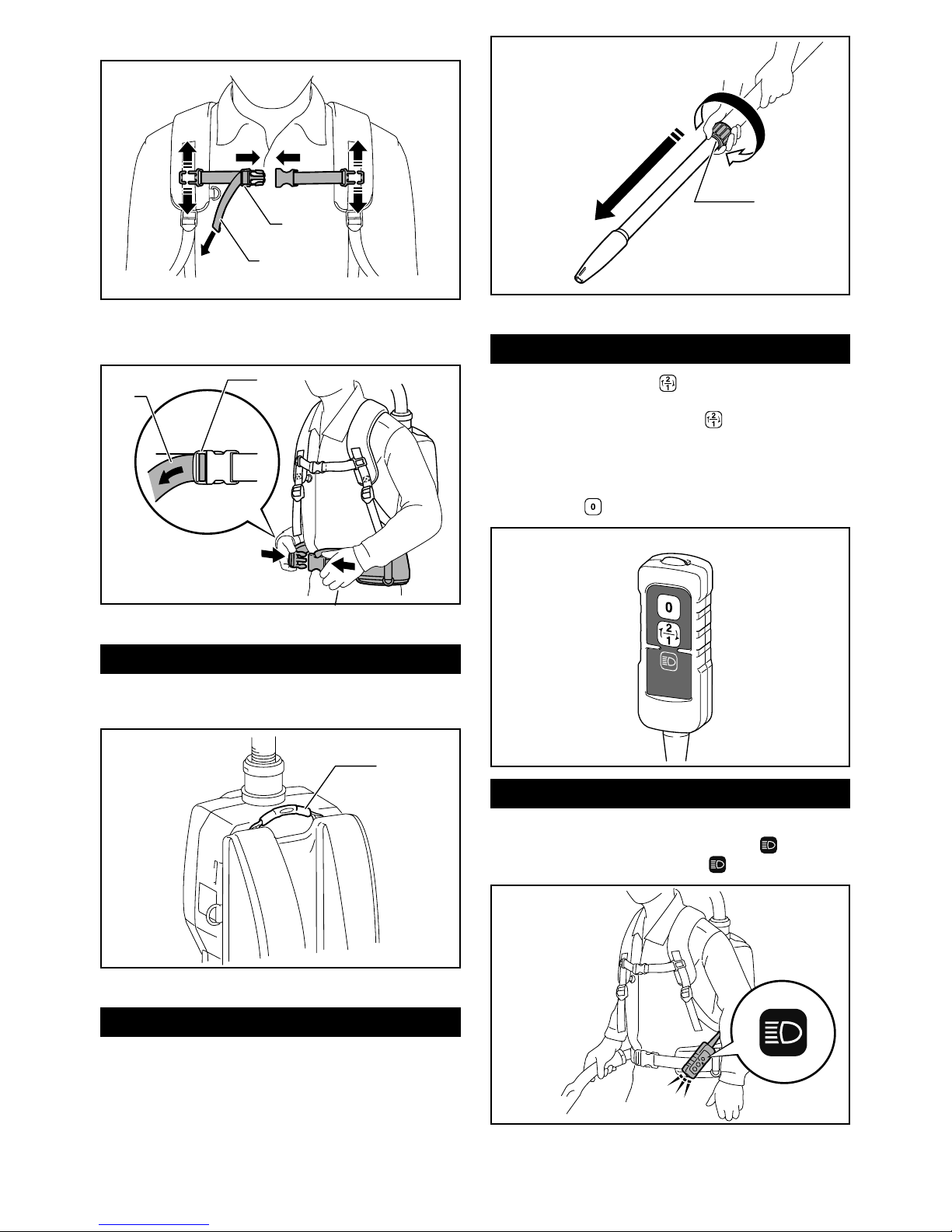

Adjusting belts
loosen, pull up the end of the fastener.
Shoulder belts
2
1
1. Strap 2. Fastener
6ENGLISH
Upper belt
1
2
1. Strap 2. Fastener
Lower belt
1
2
1. Strap 2. Fastener
Carrying hook
uum cleaner body.
1
1. Carrying hook
Extension wand
For vacuum cleaner type only
the ring at your desired length.
1
1. Ring
Switch action
cleaner will start in higher suction power (2). If you want
to lower the suction power, press button one more
power (1). When you press the button while the vacuum
cleaner is running, the suction power switches between
cleaner, press button.
LED light
button to
button again.
7ENGLISH
CAUTION: Do not look in the light or see the
source of light directly. Never aim the light to
other people's eyes.
NOTE:
the vacuum cleaner is not operated for more than 10
minutes.
NOTE:
or other reasons.

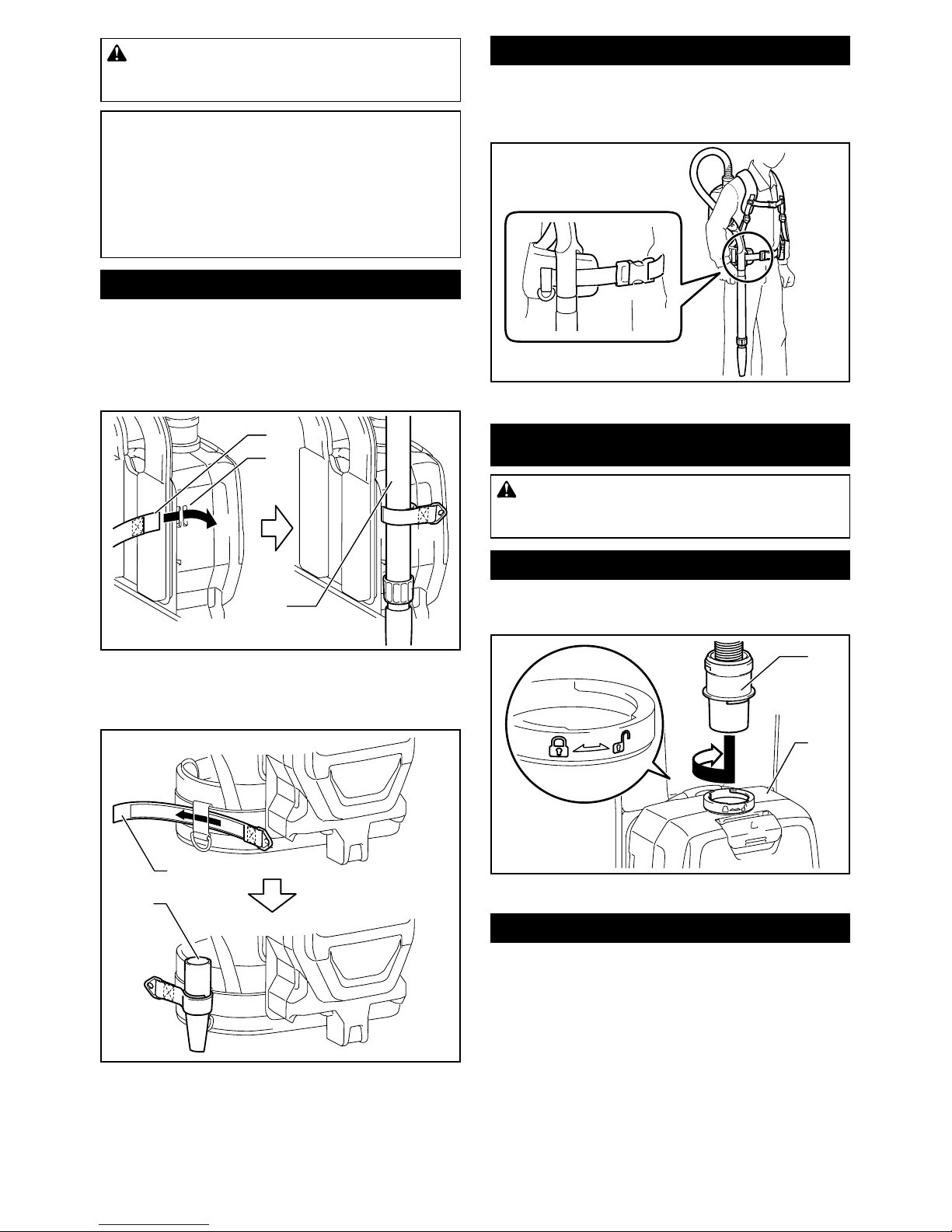

Hose band
Hose band can be used for holding the wand or free
nozzle.
the hose band through the slot on the body. You can
attach the hose band on either side.
1
2
3
1. Hose band 2. Slot 3.
band through the loop on the lower belt.
1
2
1. Hose band 2. Free nozzle
Hose hook
For vacuum cleaner type only
When you suspend the operation, the hook on the hose
can be used for hanging the wand on the lower belt.
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before carrying out any work on the tool.
Assembling hose
Insert the hose cuff into the vacuum cleaner body and
turn it clockwise.
1
2
1. Hose cuff 2. Vacuum cleaner body
Assembling wand and nozzle
For vacuum cleaner type only
shoulder the vacuum cleaner body then connect the
hose with the extension wand.
8ENGLISH
Connecting extension wand and nozzle
1
23
1.2. Free nozzle 3.
Connecting hose and extension wand
1
2
3
1. Hose 2.3. Free nozzle
NOTE:
directly.
Connecting the tool
For dust extraction type only
Connect the front cuff on the hose with the tool's
extraction outlet.
2
1
1. Front cuff 2.
detached by turning it counterclockwise while holding
the hose. When connecting, make sure that the front
cuff is securely screwed in the hose.
1
2
1. Hose 2. Front cuff
When using the front cuff 24, insert it to the front cuff 22
that is connected to the hose.
1
2
1. Front cuff 22 2. Front cuff 24
Attaching bent pipe assembly
For dust extraction type, use the optional bent pipe
assembly, unscrew the front cuff from the hose and
fasten the sleeve of bent pipe assembly onto the hose.
1
2
3
1. Hose 2. Bent pipe assembly 3. Sleeve
CAUTION:
properly installed. Otherwise the vacuumed dust or
particles may be exhausted from the cleaner and
they may cause respiratory disease to the operator.
9ENGLISH
NOTICE:
results in reduced suction power.

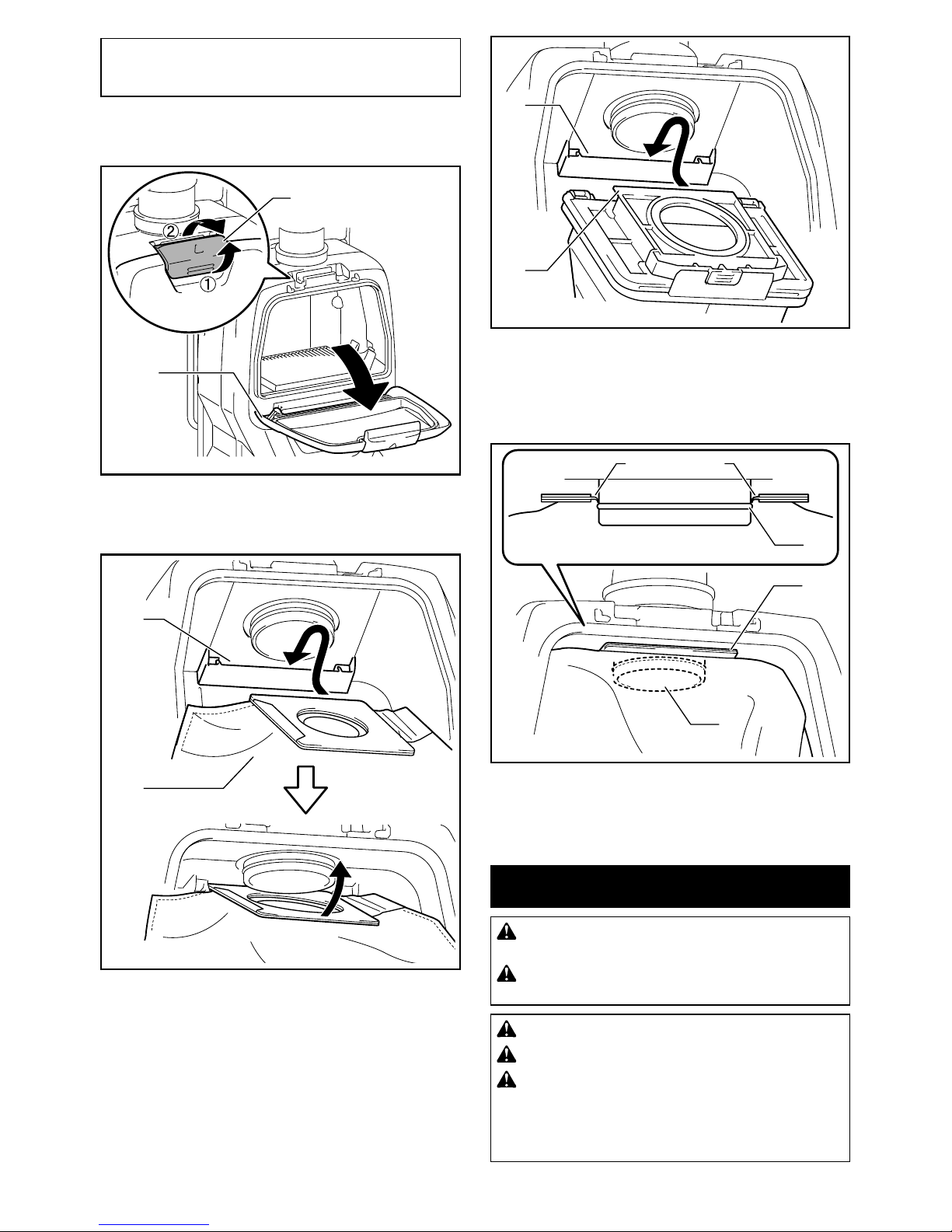

1.
latch to open the lid.
1
2
1. Hook 2. Lid
2.
the room as illustrated.
1
2
1. Slit 2. Filter bag / Dust bag
When using the dust bag (optional accessory), insert
the brim of the dust bag into the slit.
2
1
1. Slit 2. Brim
3.
and push the cardboard portion to the end. Make sure
on the hose cuff.
3
2
1
4
1
1.2. Rim on the hose
cuff 3.4. Hose
cuff
OPERATION
WARNING: Operators shall be adequately
instructed on the use of the vacuum cleaner.
WARNING: This vacuum cleaner is not suit-
able for picking up hazardous dust.
CAUTION: This cleaner is for dry use only.
CAUTION: This cleaner is for indoor use only.
CAUTION:
Always insert the battery cartridge all the
way until it locks in place. If you can see the red indicator on the
upper side of the button, it is not locked completely. Insert it fully
until the red indicator cannot be seen. If not, it may accidentally fall
10 ENGLISH

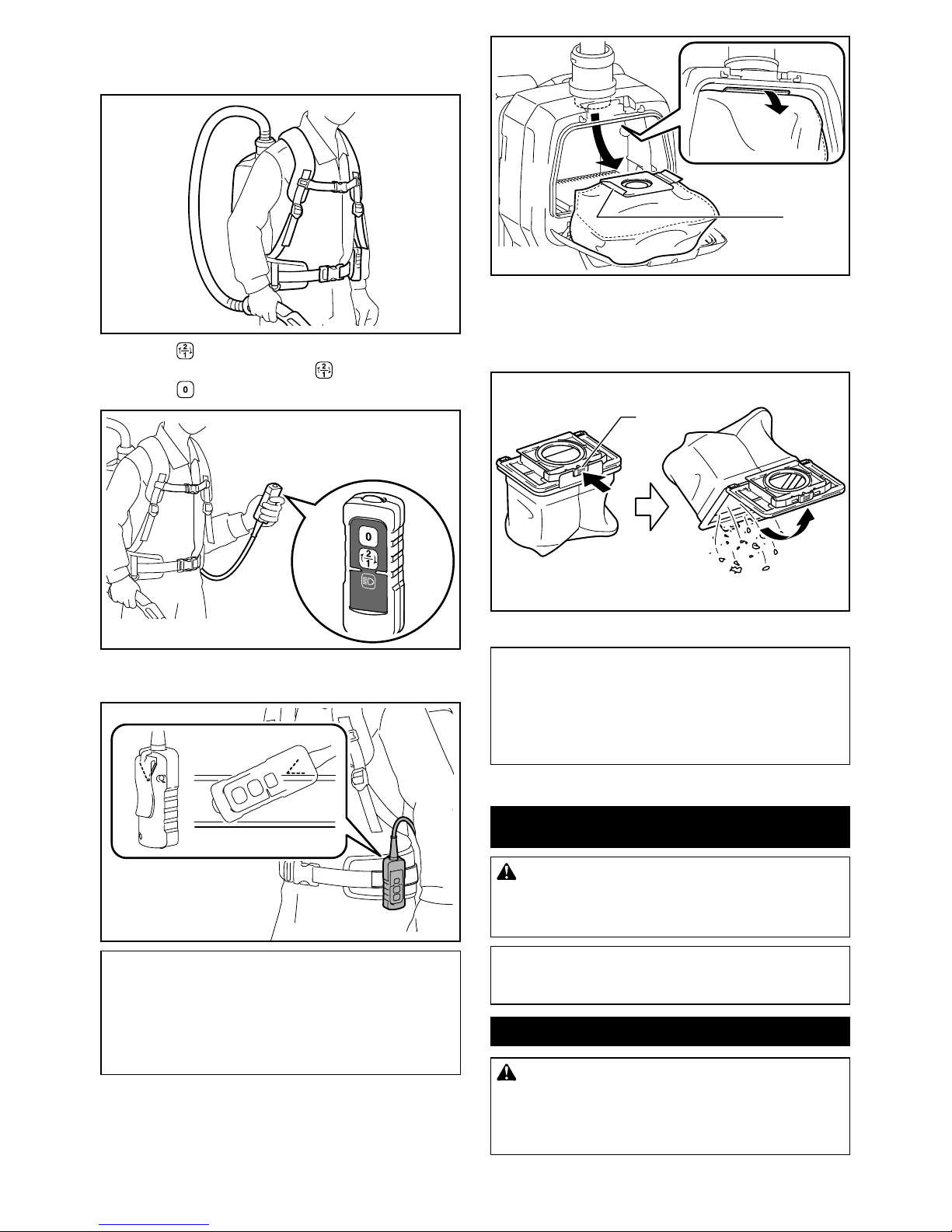

1. Shoulder the vacuum cleaner body and fas
necessary.
2. button to start vacuuming. If you want
to lower the suction power, press button one more
button to stop.
During the operation, hook the switch box on the lower
NOTE:
of the problem and cool the vacuum cleaner before
restarting.
3.
1
1. Strip
When using a dust bag (optional accessory), take out
the dust bag and dispose of the dust by releasing the
latch.
1
1. Latch
NOTICE:
reduced suction power.
NOTICE:
bag is designed for single use. If you want to use the
bag repeatedly, use a dust bag (optional accessory).
MAINTENANCE
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before attempting to perform inspection or
maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
CAUTION: Do not use the vacuum cleaner
-
exhausted from the cleaner and they may cause
respiratory disease to the operator.
11 ENGLISH
NOTICE: To keep optimum suction power and
enough suction power is not obtained even after
NOTICE: -
aged, do not use an air duster and/or high pres-
sure washer for cleaning.

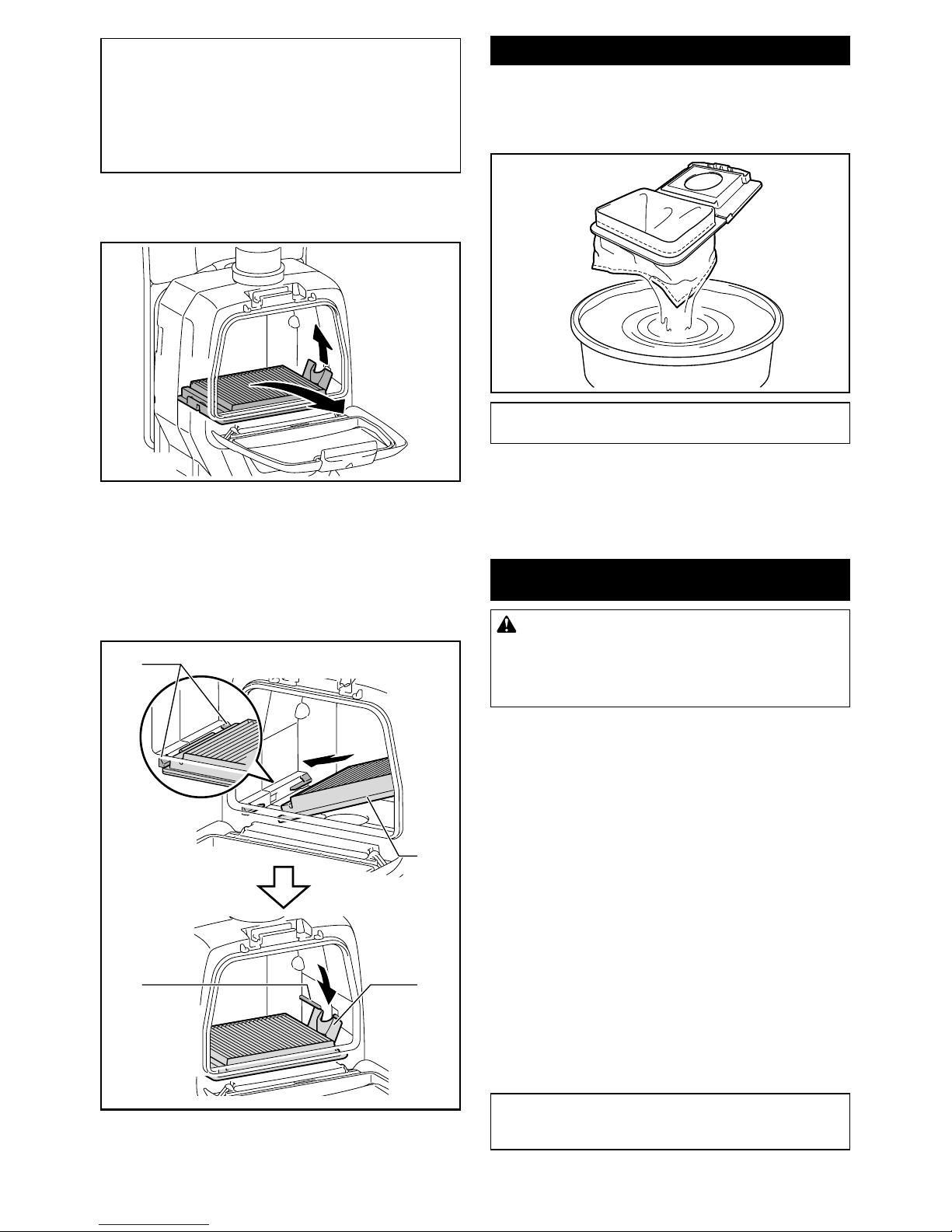

1.
cleaner body.
2.
washed with water. Rinse away the dust and particles
prevent unpleasant odor or malfunctions.
3.
1
2
3 4
1. Holder 2.3. Rib 4. Flap
Cleaning the dust bag
the dust bag inside out and remove the sticky dust.
Wash lightly by hand and rinse well with water. Dry
completely before installing to the vacuum cleaner.
NOTICE: Wet dust bag lowers the vacuuming per
formance as well as the life of the motor.
Centers, always using Makita replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
These accessories or attachments
are recommended for use with your Makita tool spec-
Only use accessory or attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
NOTE: Some items in the list may be included in the
differ from country to country.
www.makita.com
Makita Eur ope N . V.
Makita Corporation
3-11- 8, S um i y os hi - c ho,
Anjo, Aichi 446- 8502 J apa
n
Jan-Baptist Vinkstraat 2,
3070 Kortenberg, B el gi um
20161117
Other manuals for DVC260
13
Table of contents
Other Makita Vacuum Cleaner manuals
Makita
Makita CL121DWA User manual
Makita
Makita 447 M User manual
Makita
Makita DVC260 User manual
Makita
Makita VC001GL User manual
Makita
Makita DVC350 User manual
Makita
Makita CL107FD User manual
Makita
Makita DVC750L User manual
Makita
Makita DRC300 User manual
Makita
Makita 447 M User manual
Makita
Makita CL114FDWI User manual
Makita
Makita VC3211H User manual
Makita
Makita CL002G User manual
Makita
Makita DVC260 User manual
Makita
Makita DRC200Z User manual
Makita
Makita DVC261 User manual
Makita
Makita VC006GML21 User manual
Makita
Makita DVC860L User manual
Makita
Makita DVC860L User manual
Makita
Makita VC1310L User manual
Makita
Makita VC2211M Manual
