Makita VC008G User manual

VC008G
EN Cordless Backpack Vacuum
Cleaner INSTRUCTION MANUAL 9
ZHCN 充电背负式工业吸尘机 使用说明书 19
ID Penyedot Debu Ransel
Nirkabel PETUNJUK PENGGUNAAN 29
MS Pembersih Vakum Beg Galas
Tanpa Kord MANUAL ARAHAN 40
VI Máy Hút Bụi Đeo Vai Hoạt
Động Bằng Pin TÀI LIỆU HƯỚNG DẪN 51
TH   61

2
3
2
1
Fig.1
1
2
Fig.2
1
2
Fig.3
21
Fig.4
1
2
Fig.5
1
2
Fig.6
1
Fig.7

3
1
2
Fig.8
Fig.9
2 3
1
Fig.10
1 1
2
2
Fig.11
2
1
Fig.12
1
2
Fig.13
1
2
3
Fig.14
1
234
Fig.15

4
2
1
3
Fig.16
1
Fig.17
1
2
3
3
Fig.18
1
Fig.19
1
4
2
3
Fig.20
1
2 3
Fig.21

5
1
2
Fig.22
1
3
2
Fig.23
1
2
4
3
Fig.24
Fig.25
1
2
Fig.26

6
1
2
Fig.27
1
3
2
Fig.28
1
3
4
2
Fig.29
Fig.30
Fig.31
2
1
Fig.32
1
Fig.33

7
1
Fig.34
Fig.35
2
4
3
1
Fig.36
Fig.37
4
3
21
Fig.38
1
2
3
Fig.39
1
Fig.40

8
2
3
1
4
Fig.41
2
1
Fig.42
1
2
Fig.43
1
2
Fig.44
2
1
3
Fig.45

9ENGLISH
ENGLISH (Original instructions)
WARNING
• This machine is not intended for use by persons including children with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge.
• Children should be supervised to ensure that they do not play with the cleaner.
• See the chapter “SPECIFICATIONS” for the type reference of the battery.
• See the section “Installing or removing battery cartridge” for how to remove or install the battery.
• When disposing the battery cartridge, remove it from the tool and dispose of it in a safe place. Follow your local
regulations relating to disposal of battery.
• If the tool is not used for a long period of time, the battery must be removed from the tool.
• Do not short the battery cartridge.
• See the chapter “MAINTENANCE” for the appropriate details of precautions during user maintenance.
SPECIFICATIONS
Model: VC008G
Capacity Filter bag 2.0 L
Dust bag 1.5 L
Maximum air
volume
With hose ø28 mm x 1.0 m 1.9 m3/min
With hose ø32 mm x 1.0 m 2.4 m3/min
Vacuum 18 kPa
Dimensions (L x W x H)
(excluding the harness, with BL4040)
233 mm x 150 mm x 375 mm
Rated voltage D.C. 36 V - 40 V max
Net weight 4.1 - 5.3 kg
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsmaydi󰀨erfromcountrytocountry.
• The weight does not include accessories but battery cartridge(s). The lightest and heaviest combination weight
of the appliance and battery cartridge(s) are shown in the table.
• The length of supplied hose varies depending on the countries.
Applicable battery cartridge and charger
Battery cartridge BL4020 / BL4025 / BL4040 / BL4050F / BL4080F
Charger DC40RA / DC40RB / DC40RC
• Some of the battery cartridges and chargers listed above may not be available depending on your region of
residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
andchargersmaycauseinjuryand/orre.
WARNING: Do not use a corded power supply such as battery adapter or portable power pack with
this appliance.Thecableofsuchpowersupplymayhindertheoperationandresultinpersonalinjury.
Symbols
The followings show the symbols which may be used
for the equipment. Be sure that you understand their
meaning before use.
Read instruction manual.
Take particular care and attention.
A representative battery applicable to this
product.

10 ENGLISH
Ni-MH
Li-ion
Only for EU countries
Due to the presence of hazardous com-
ponents in the equipment, waste electrical
and electronic equipment, accumulators
and batteries may have a negative impact
on the environment and human health.
Do not dispose of electrical and electronic
appliances or batteries with household
waste!
In accordance with the European Directive
on waste electrical and electronic equip-
ment and on accumulators and batteries
and waste accumulators and batteries,
as well as their adaptation to national law,
waste electrical equipment, batteries and
accumulators should be stored separately
and delivered to a separate collection point
for municipal waste, operating in accor-
dance with the regulations on environmen-
tal protection.
This is indicated by the symbol of the
crossed-out wheeled bin placed on the
equipment.
Intended use
The tool is intended for collecting dry dust. The tool
is suitable for commercial use, for example in hotels,
schools,hospitals,factories,shops,o󰀩cesandrental
businesses.
SAFETY WARNINGS
Cordless vacuum cleaner safety
warnings
WARNING: IMPORTANT! READ CAREFULLY
all safety warnings and all instructions BEFORE
USE. Failure to follow the warnings and instructions
mayresultinelectricshock,reand/orseriousinjury.
1. Before use, make sure that this cleaner must
be used by people who have been adequately
instructed on the use of this cleaner.
2. Do not use the cleaner without the lter.
Replace a damaged lter immediately.
3. Do not attempt to pick up ammable materials,
re works, lighted cigarettes, hot ashes, hot
metal chips, sharp materials such as razors,
needles, broken glass or the like.
4. NEVER USE THE CLEANER IN THE VICINITY
OF GASOLINE, GAS, PAINT, ADHESIVES OR
OTHER HIGHLY EXPLOSIVE SUBSTANCES.
The switch emits sparks when turned ON
and OFF. And so does the motor commutator
during operation. A dangerous explosion may
result.
5. This cleaner is not suitable for picking up
hazardous dust.
6. Never vacuum up toxic, carcinogenic, com-
bustible or other hazardous materials such
as asbestos, arsenic, barium, beryllium,
lead, pesticides, or other health endangering
materials.
7. Never use the cleaner outdoors in the rain.
8. For Finland, this machine is not to be used
outdoors at low temperature.
9. Do not use close to heat sources (stoves, etc.).
10. Do not block cooling vents. These vents per-
mit cooling of the motor. Blockage should be
carefully avoided otherwise the motor will burn
out from lack of ventilation.
11. Keep proper footing and balance at all times.
12. Do not fold, tug or step on the hose.
13. Stop the cleaner immediately if you notice
poor performance or anything abnormal
during operation.
14. DISCONNECT THE BATTERIES. When not in
use, before servicing, and when changing
accessories.
15. Clean and service the cleaner immediately
after each use to keep it in tiptop operating
condition.
16. MAINTAIN THE CLEANER WITH CARE. Keep
the cleaner clean for better and safer per-
formance. Follow instructions for changing
accessories. Keep handles dry, clean, and free
from oil and grease.
17. CHECK DAMAGED PARTS. Before further use
of the cleaner, a guard or other part that is
damaged should be carefully checked to deter-
mine that it will operate properly and perform
its intended function. Check for alignment of
moving parts, binding of moving parts, break-
age of parts, mounting, and any other condi-
tions that may a󰀨ect its operation. A guard or
other part that is damaged should be properly
repaired or replaced by an authorized service
center unless otherwise indicated elsewhere
in this instruction manual. Have defective
switches replaced by authorized service cen-
ter. Don’t use the cleaner if switch does not
turn it on and o󰀨.
18. REPLACEMENT PARTS. When servicing, use
only identical replacement parts.
19. When not in use, always store the cleaner
indoors.
20. Be kind to your cleaner. Rough handling can
cause breakage of even the most sturdily built
cleaner.
21. Do not attempt to clean the exterior or interior
with benzine, thinner or cleaning chemicals.
Cracks and discoloration may be caused.
22. Do not use cleaner in an enclosed space where
ammable, explosive or toxic vapors are given
o󰀨 by oil-base paint, paint-thinner, gasoline,
some mothproong substances, etc., or in
areas where ammable dust is present.
23. Do not operate the cleaner while under the
inuence of drugs or alcohol.
24. As a basic rule of safety, use safety goggles or
safety glasses with side shields.
25. Use a dust mask in dusty work conditions.
26. This machine is not intended for use by per-
sons including children with reduced physical,
sensory or mental capabilities, or lack of expe-
rience and knowledge.
27. Children should be supervised to ensure that
they do not play with the cleaner.

11 ENGLISH
28. Never handle battery(ies) and cleaner with wet
hands.
29. Use extreme caution when cleaning on stairs.
30. Do not use the cleaner as a stool or work
bench. The machine may fall down and may
result in personal injury.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
onetypeofbatterypackmaycreateariskofre
when used with another battery pack.
2. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packsmaycreateariskofinjuryandre.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nalstogethermaycauseburnsorare.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help.Liquidejectedfromthebatterymaycause
irritation or burns.
5. Do not use a battery pack or tool that is dam-
aged or modied.Damagedormodiedbatteries
may exhibit unpredictable behaviour resulting in
re,explosionorriskofinjury.
6. Do not expose a battery pack or tool to re or
excessive temperature.Exposuretoreortem-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outsidethespeciedrangemaydamagethe
batteryandincreasetheriskofre.
8. Do not use a corded power supply such as bat-
tery adapter or portable power pack with this
tool. The cable of such power supply may hinder
theoperationandresultinpersonalinjury.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Follow instruction for lubricating and chang-
ing accessories.
3. Keep handles dry, clean and free from oil and
grease.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble or tamper with the battery
cartridge.Itmayresultinare,excessiveheat,
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge. Such conduct may result in a
re,excessiveheat,orexplosion.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tapeormasko󰀨opencontactsandpackupthe
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliantproductsmayresultinare,exces-
sive heat, explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.

12 ENGLISH
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge.Itmaycauseheating,catchingre,
burst and malfunction of the tool or battery car-
tridge,resultinginburnsorpersonalinjury.
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near a high-voltage elec-
trical power lines. It may result in a malfunction
or breakdown of the tool or battery cartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causingres,personalinjuryanddamage.Itwill
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the appli-
ance is switched o󰀨 and the battery cartridge is
removed before adjusting or checking function on
the appliance.
Installing or removing battery
cartridge
CAUTION: Always switch o󰀨 the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge. Failure to hold the tool and the battery
cartridgermlymaycausethemtoslipo󰀨yourhands
and result in damage to the tool and battery cartridge
andapersonalinjury.
►Fig.1: 1. Red indicator 2. Button 3. Battery cartridge
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator as
showninthegure,itisnotlockedcompletely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
itmayaccidentallyfalloutofthetool,causinginjuryto
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
Indicating the remaining battery
capacity
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
►Fig.2: 1. Indicator lamps 2. Check button
Indicator lamps Remaining
capacity
Lighted O󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambienttemperature,theindicationmaydi󰀨erslightly
from the actual capacity.
NOTE:Therst(farleft)indicatorlampwillblinkwhen
the battery protection system works.
Indicating the remaining battery
capacity
►Fig.3: 1. Battery indicator 2. button
Press the button to indicate the remaining battery
capacities.

13 ENGLISH
Battery indicator status Remaining
battery
capacity
On O󰀨 Blinking
50% to 100%
20% to 50%
0% to 20%
Charge the
battery
Appliance / battery protection
system
The appliance is equipped with appliance / battery
protectionsystem.Thissystemautomaticallycutso󰀨
power to the motor to extend appliance and battery
life. In this situation, the battery indicator lights up as
following table.
Battery indicator status Status
On O󰀨 Blinking
Overload
protection
(battery) /
Overheat pro-
tection
(battery) /
Overdischarge
protection
Overheat
protection
(appliance)
The appliance and the LED light will automatically stop
during operation if the appliance or battery is placed
under one of the following conditions:
Overload protection
When the appliance / battery is operated in a manner
that causes it to draw an abnormally high current, the
appliance automatically stops. In this situation, turn the
applianceo󰀨andstoptheapplicationthatcausedthe
appliance to become overloaded. Then turn the appli-
ance on to restart.
Overheat protection
When the appliance / battery is overheated, the appli-
ance stops automatically. In this situation, let the appli-
ance / battery cool down before turning the appliance
on again.
Overdischarge protection
When the battery capacity becomes low, the appliance
stops automatically. If the product does not operate
even when the switches are operated, remove the bat-
teries from the appliance and charge the batteries.
Protections against other causes
Protection system is also designed for other causes that
could damage the appliance and allows the appliance to
stop automatically. Take all the following steps to clear
the causes, when the appliance has been brought to a
temporary halt or stop in operation.
1. Turntheapplianceo󰀨,andthenturnitonagainto
restart.
2. Charge the battery(ies) or replace it/them with
recharged battery(ies).
3. Let the appliance and battery(ies) cool down.
If no improvement can be found by restoring protection
system, then contact your local Makita Service Center.
Adjusting belts

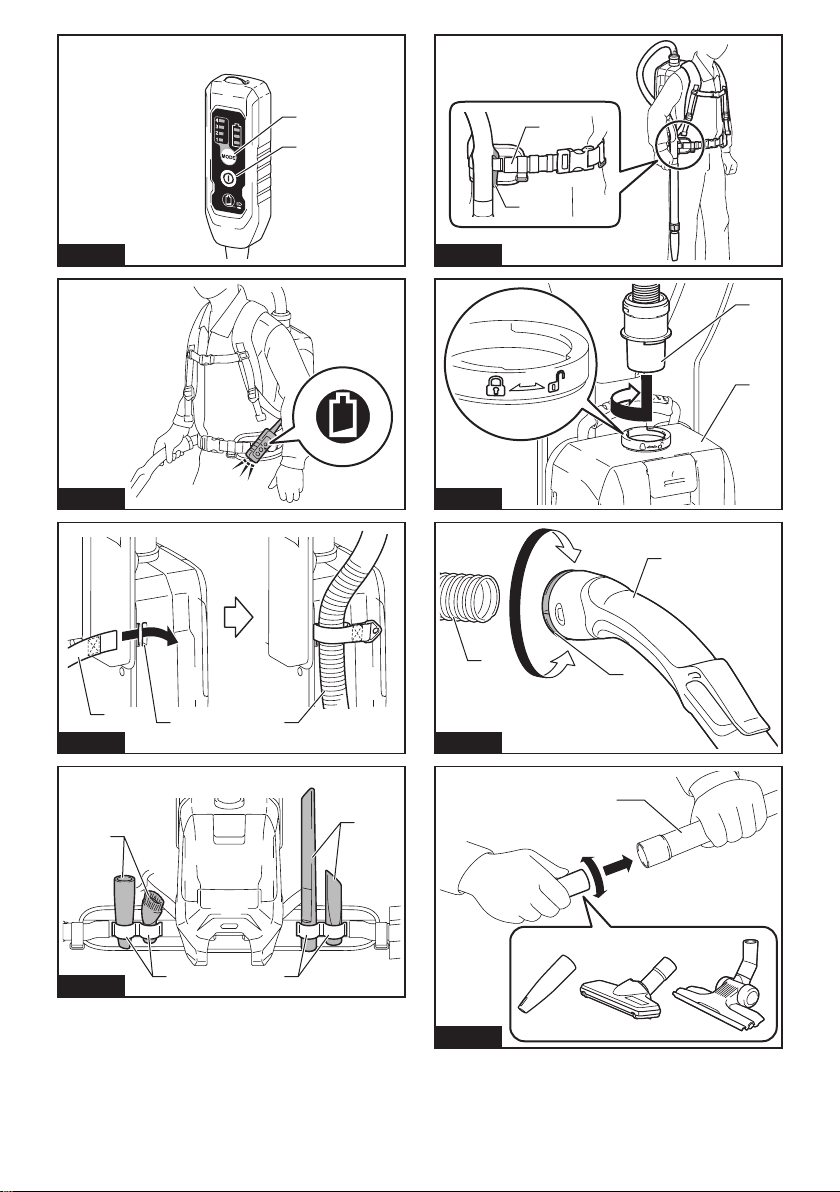

The tightness of the shoulder belts, upper and lower
beltscanbeadjusted.Putyourarmsthroughtheshoul-
derbeltsrstthenfastenthelowerandupperbelts.
To tighten, pull the end of the strap as illustrated. To
loosen, pull up the end of the fastener.
Lower belt
►Fig.4: 1. Strap 2. Fastener
Shoulder belts
►Fig.5: 1. Strap 2. Fastener
Upper belt
►Fig.6: 1. Strap 2. Fastener
Carrying hook
CAUTION: Use the hanging/mounting parts
for their intended purposes only. Using for unin-
tended purpose may cause accident or personal
injury.
Always grab the carrying hook when handling the vac-
uum cleaner body.
►Fig.7: 1. Carrying hook
Switch action
►Fig.8: 1. Suction power change button 2. ON/OFF
button
To start the cleaner, simply push the ON/OFF button. To
switcho󰀨,pushtheON/OFFbuttonagain.
You can change the suction power of the cleaner in
four steps by pushing the suction power change button.
Each push on this button repeats the 1 to 4 mode in a
cycle.

14 ENGLISH
Level Indication Mode
1Quiet mode
2Normal speed
mode
3High speed mode
4Max speed mode
NOTE: You can change the suction power before
turning on the cleaner.
NOTE: The cleaner starts the operation with the
same suction power as the last operation.
NOTE: If you remove the battery immediately after
turningo󰀨theappliance,whilethemotorisrotating,
the cleaner may not start the operation with the same
suction power as the last operation.
LED light
LED light is installed in the head of the switch box
to ease the operations in dark places. Press and
hold buttontoturnthelighton.Toturno󰀨,pressand
hold button again.
►Fig.9
CAUTION: Do not look in the light or see the
source of light directly. Never aim the light to
other people's eyes.
NOTE:TheLEDlightisautomaticallyturnedo󰀨when
the vacuum cleaner is not operated for more than
10 minutes.
Hose band
Hose band can be used for holding the hose or free
nozzle.
To secure the hose to the vacuum cleaner body, pass
the hose band through the slot on the body. You can
attach the hose band on either side.
►Fig.10: 1. Hose band 2. Slot 3. Hose
The loop on the lower belt can be used for carrying
nozzles as illustrated.
►Fig.11: 1. Loop 2. Nozzles
Hose hook
When you suspend the operation, the hook on the bent
pipe assembly can be used for hanging the wand on the
lower belt.
►Fig.12: 1. Hook 2. Lower belt
ASSEMBLY
CAUTION: Always be sure that the appli-
ance is switched o󰀨 and the battery cartridge
is removed before carrying out any work on the
appliance.
Assembling hose

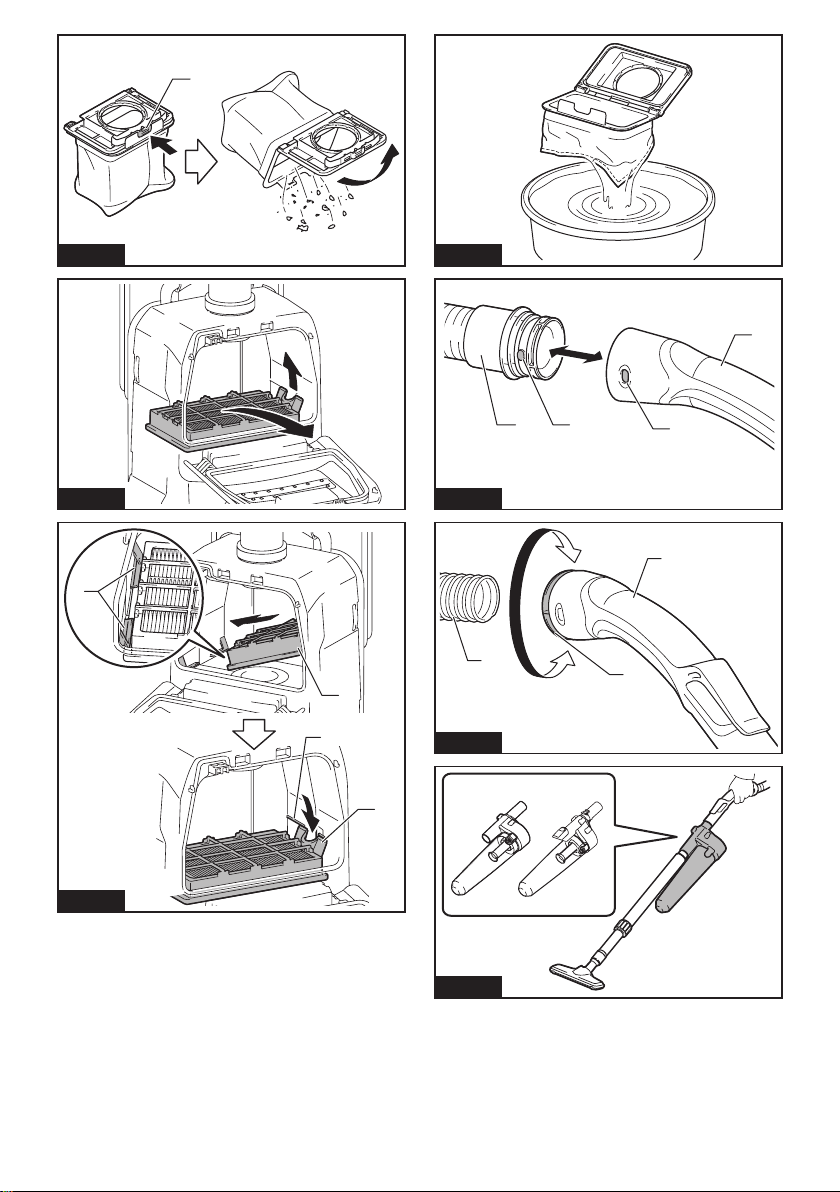

Insertthehosecu󰀨intothevacuumcleanerbodyand
turn it clockwise.
►Fig.13: 1.Hosecu󰀨2. Vacuum cleaner body
Using as a cleaner
Attaching bent pipe assembly
Optional accessory
NOTE: You don't need to perform this procedure
if your model comes with the bent pipe assembly
attached to the hose.
NOTE: There are two types of bent pipe assembly;
the one for slide-type extension wand and the one for
ring-type extension wand. If you prepare the bent pipe
assembly, choose the one for your desired extension
wand type.
The bent pipe assembly is used for connecting the
extension wand or nozzle for vacuum cleaning to this
product.
If you want to use this product as the vacuum cleaner,
attach the bent pipe assembly to the hose.
Toattach,unscrewthefrontcu󰀨fromthehoseand
fasten the sleeve of bent pipe assembly onto the hose.
To remove, loosen the sleeve of bent pipe assembly
from the hose.
►Fig.14: 1. Hose 2. Bent pipe assembly 3. Sleeve
Assembling nozzle and wand
Optional accessory
NOTE: The type of the nozzle and wand included in
the product varies depending on countries. In some
countries, the nozzle and wand are not included.
1. Twist and insert the nozzle to the extension wand.
►Fig.15: 1. Extension wand 2. Free nozzle
3. T-shape nozzle 4. T-shape nozzle (slim)
NOTE: By twisting the nozzle while inserting, the noz-
zle can be attached to the extension wand securely.
NOTE: For the model with ø38 mm hose and front
cu󰀨38,attachthesuppliednozzletothealuminum
bending pipe / aluminum straight pipe.
2. Follow the procedures below, depending on the
type of the extension wand :
NOTE: The slide-type extension wand and the ring-
type extension wand are not compatible with each
other. If you want to change the slide-type extension
wand to the ring-type extension wand or vice versa,
change the bent pipe assembly also.

15 ENGLISH
For the slide-type extension wand
Shoulder the vacuum cleaner body then insert the
extension wand into the bent pipe assembly until it
clicks. To disconnect, extract the extension wand with
pressing the button.
►Fig.16: 1. Bent pipe assembly 2. Button 3. Slide-
type extension wand
Thelengthofthewandcanbeadjusted.
Withpressingtheslidebutton,adjustthewandlength.
The length is locked when releasing the slide button.
►Fig.17: 1. Slide button
For the ring-type extension wand
Shoulder the vacuum cleaner body then twist and insert
the extension wand into the bent pipe assembly. To
disconnect, twist and extract it.
►Fig.18: 1. Bent pipe assembly 2. Ring-type exten-
sion wand 3. Free nozzle
NOTE: The free nozzle can be attached to the bent
pipe assembly without pipe lock directly.
Thelengthofthewandcanbeadjusted.
Loosentheringonthewandandadjustthewand
length. Tighten the ring at your desired length.
►Fig.19: 1. Ring
For the aluminum bending pipe / aluminum straight
pipe
(Onlyforthemodelwithø38mmhoseandfrontcu󰀨38)
Shoulder the vacuum cleaner body then twist and insert
thepipeintothefrontcu󰀨.Todisconnect,twistand
extract it.
►Fig.20: 1.Frontcu󰀨382. Aluminum bending pipe
3. Aluminum straight pipe 4. Nozzle
For the two aluminum straight pipes
Shoulder the vacuum cleaner body then twist and insert
the pipes. To disconnect, twist and extract it.
►Fig.21: 1. Bent pipe assembly 2. Aluminum straight
pipe 1 3. Aluminum straight pipe 2
Connecting the tool
NOTE: If the bent pipe assembly is attached to the
hose, remove it beforehand.
To connect a tool to the cleaner, the dedicated hose
and/or additional parts are required. Depending on your
cleaner model, you need to replace the hose and/or
prepare additional parts.
Refer to the following table for details.
Supplied
hose
diameter
Hose end type Action
ø28 mm
without part
Attachthefrontcu󰀨.
with snap-on part
Replace the hose end
(snap-on part) with the front
cu󰀨.
The hose end can be removed
by turning it counterclockwise.
ø32 mm
with snap-on part
Replace the hose with the one
for dust extraction (ø28 mm,
withfrontcu󰀨).
ø38 mm
with snap-on part
Replace the hose with the one
for dust extraction (ø28 mm,
withfrontcu󰀨).
withfrontcu󰀨38
Attachthejoint22-38orthe
frontcu󰀨24.
NOTE:Alwaysuseasuitablefrontcu󰀨.Whenusing
thefrontcu󰀨24,attachittothefrontcu󰀨22thatis
connected to the hose.
►Fig.22: 1.Frontcu󰀨222.Frontcu󰀨24
When using ø28 mm dust extraction
hose
1. Attachthefrontcu󰀨tothehosefordustextraction.
Whenconnectingthefrontcu󰀨,makesurethatitis
securely screwed on the hose.
2. Connectthefrontcu󰀨tothetool'sextraction
outlet.
►Fig.23: 1.Frontcu󰀨2. Extraction outlet 3. Hose
Thefrontcu󰀨canbedetachedbyturningitcounter-
clockwise while holding the hose.
When using ø38 mm hose with front
cu󰀨 38
1. Twistandinsertthejointorthefrontcu󰀨tothe
inlet part on the hose, depending on the tool that you
are going to connect.

16 ENGLISH
2. Connectthefrontcu󰀨tothetool'sextraction
outlet.
►Fig.24: 1. Joint 2.Frontcu󰀨3. Extraction outlet
4. Hose
Toremovethejointandthefrontcu󰀨,followtheinstalla-
tion procedures in reverse.
Installing lter bag / dust bag
Optional accessory
CAUTION: Do not use a damaged lter bag.
Always use the vacuum cleaner with the lter bag
properly installed. Otherwise the vacuumed dust
or particles may be exhausted from the cleaner
and they may cause respiratory disease to the
operator.
NOTICE: When the lter bag is already full,
replace with new one. When the dust bag is
already full, empty it.Continuoususewiththelter
bag/dust bag full results in reduced suction power.
NOTICE: To prevent dust from getting into the
motor:
— Make sure that the lter bag/dust bag is
installed before use.
— Do not use a broken or ripped bag.
Otherwise the motor may be broken.
NOTICE: Do not fold the cardboard at its open-
ing when installing the lter bag/dust bag.
NOTICE: The lter bag/dust bag for the cleaner
is an important component for maintaining the
appliance performance. Using non-genuine lter
bag/dust bag may cause smoke or ignition.
NOTE:Whenthelterbag/dustbagisnotinstalledin
the cleaner, the front cover does not close completely.
►Fig.25
1. Unlock the lever and open the dust box cover.
►Fig.26: 1. Lever 2. Dust box cover
2. Insertthelterbagintotheslitontheuppersideof
the room as illustrated.
►Fig.27: 1. Slit 2. Filter bag
When using the dust bag, insert the brim of the dust bag
into the slit.
►Fig.28: 1. Slit 2. Brim 3. Dust bag
3. Aligntheholeofthelterbagwiththehosecu󰀨
and push the cardboard portion to the end. Make sure
thattherubberringonthelterbaggoesovertherim
onthehosecu󰀨.
►Fig.29: 1.Rubberringonthelterbag2. Rim on
thehosecu󰀨3. Cardboard portion of the
lterbag4.Hosecu󰀨
4. Lock the dust box cover certainly.
CAUTION: Be careful not to pinch your n-
gers when hooking the latch, and when closing
the dust box cover.
OPERATION
WARNING: Operators shall be adequately
instructed on the use of the vacuum cleaner.
WARNING: This vacuum cleaner is not suit-
able for picking up hazardous dust.
CAUTION: This cleaner is for dry use only.
CAUTION: Always insert the battery cartridge
all the way until it locks in place. If you can see the
red indicator on the upper side of the button, it is not
locked completely. Insert it fully until the red indicator
cannot be seen. If not, it may accidentally fall out of
thetool,causinginjurytoyouorsomeonearound
you.
CAUTION: During operation, be conscious
of the vacuum cleaner on your back. You may
lose your balance if the vacuum cleaner body bumps
against a wall or the hose is hooked by an obstacle.
1. Shoulder the vacuum cleaner body and fas-
tenlowerandupperbelts.Adjustthetightnessas
necessary.
►Fig.30
2. Press
button to start vacuuming. If you want
to change the suction power, press button until the
desired suction power is selected. Press button to
stop.
►Fig.31
During the operation, hook the switch box on the D-ring
or the loop on the lower belt. The hook can be slanted
for lighting forward when hooked on the loop.
►Fig.32: 1. D-ring 2. Loop
NOTE: The vacuum cleaner and the LED light will
automaticallyswitcheso󰀨whentheappliance/bat-
tery protection system works due to the overheat of
theappliance/battery,orthereducedair-owintothe
machinecausedbycloggedhose,pipe,lterorother
reasons. In this case, remove the cause of the prob-
lem before restarting. For more information, refer to
the section “Appliance / battery protection system”.
3. Replacethelterbagwhenitbecomesfull.Open
thelidandtakeoutthelterbag.Pullthestriponthe
sideoftheopeningtoshutthelterbaganddisposeof
thelterbaginwhole.
►Fig.33: 1. Strip
When using a dust bag, take out the dust bag and dis-
pose of the dust by releasing the latch.
►Fig.34: 1. Latch
NOTICE: Periodically check the lter bag if it is
full.Continuoususewiththelterbagfullresultsin
reduced suction power.
NOTICE: Do not use an used lter bag.Thelter
bagisdesignedforsingleuse.Usinglterbagrepeat-
edlymaycausecloggingofthelterandresultsin
damage to the cleaner. If you want to use the bag
repeatedly, use a dust bag.

17 ENGLISH
MAINTENANCE
CAUTION: Always be sure that the appli-
ance is switched o󰀨 and the battery cartridge is
removed before attempting to perform inspection
or maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY,
repairs,anyothermaintenanceoradjustmentshould
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
Cleaning the HEPA lter
CAUTION: Do not use the vacuum cleaner
without a HEPA lter or continue to use dirty or
damaged HEPA lter. Vacuumed dust or particles
may be exhausted from the cleaner and they may
cause respiratory disease to the operator.
NOTICE: To keep optimum suction power and
clean exhaust, clean the HEPA lter periodically. If
enough suction power is not obtained even after
the cleaning, replace the HEPA lter with new one.
NOTICE: To prevent the HEPA lter from being
damaged, do not use following tools and similar
items for cleaning :
— Air duster
— High pressure washer
— Tools made of hard materials such as a
metallic brush
1. Openthelidandtakeoutthelterbag.Release
thehookontheHEPAlterandremoveitfromthe
vacuum cleaner body.
►Fig.35
2. Beatthedusto󰀨fromtheHEPAlter.TheHEPA
ltercanbewashedwithwater.Rinseawaythedust
andparticlesontheHEPAlterevery1or2month.
Afterthat,drytheHEPAltercompletelyinashaded
and well-ventilated place to prevent unpleasant odor or
malfunctions.
3. ToinstalltheHEPAlter,insertthesidewithoutthe
apintotheholderthenpushtheHEPAlterdownward
untiltheapissecuredbytherib.
►Fig.36: 1. Holder 2.HEPAlter3. Rib 4. Flap
Cleaning the dust bag
Regularly clean the dust bag with soap and water. Turn
the dust bag inside out and remove the sticky dust.
Wash lightly by hand and rinse well with water. Dry
completely before installing to the vacuum cleaner.
►Fig.37
NOTICE: Wet dust bag lowers the vacuuming per-
formance as well as the life of the motor.
Clearing the clog
When clearing the clog, remove the hose or the exten-
sion wand, or the bent pipe assembly to check inside.
Removing/attaching the snap-on type bent pipe
assembly
To remove, pull the bent pipe assembly while pressing
both of the tab on the hose end.
To attach, insert the hose end into the bent pipe assem-
bly. Make sure that the tabs on the hose end snap into
the holes on the bent pipe assembly.
►Fig.38: 1. Hose end 2. Tab 3. Hole 4. Bent pipe
assembly
Removing/attaching the screw-in type bent pipe
assembly
To remove, loosen the sleeve of bent pipe assembly
from the hose.
To attach, fasten the sleeve of bent pipe assembly onto
the hose.
►Fig.39: 1. Hose 2. Bent pipe assembly 3. Sleeve
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
specied in this manual. The use of any other
accessories or attachments might present a risk of
injurytopersons.Onlyuseaccessoryorattachment
for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Hose (for vacuum cleaner type)
• Hose (for dust extraction type)
• Extension wand
• Free nozzle
• T-shape nozzle
• Seat nozzle
• Corner nozzle
• Shelf brush
• Round brush
• Bent pipe assembly
• Filter bag
• Dust bag
• Frontcu󰀨
• HEPAlter
• Pipe
• Harness cover
• Cyclone attachment
• Makita genuine battery and charger
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
di󰀨erfromcountrytocountry.

18 ENGLISH
Cyclone attachment
NOTE: When using the cyclone attachment with this
appliance, the bent pipe is also required.
►Fig.40: 1. Cyclone attachment
About the cyclone attachment
Using the cleaner with the cyclone attachment installed
reduces the amount of dust that enters the dust bag,
which helps to prevent the suction force from weaken-
ing. In addition, cleaning after use is also simple.
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before carrying out any work on the tool. If the
battery cartridge is left inserted, the cleaner may start
unexpectedlyandresultininjury.
CAUTION: Clean the mesh lter of the
cyclone attachment and the dust bag of the
cleaner unit when they become clogged.
Continued use in the clogged condition may result in
heating or smoke.
NOTICE: When the cyclone attachment is
attached, do not use the cyclone attachment in
the horizontal or upward facing condition. Doing
somaycausethemeshltertobecomeclogged.
NOTICE: Always use the cleaner with the dust
bag installed, even when using the cyclone
attachment. Using the cleaner without the dust bag
installed may result in a motor malfunction.
NOTE: Check that the cyclone attachment, cleaner,
and straight pipe are locked properly before use.
NOTE: Empty the dust case of the cyclone attach-
ment and the dust bag of the cleaner when dust has
accumulated. Continued use will result in weakened
suction force.
NOTE: You can use the cyclone attachment with or
without lock function.
NOTE: To install or remove the cyclone attachment,
refer to the section “Using as a cleaner”.
Disposing of dust
When dust has accumulated up to the full line of the
dust case, follow the procedure below and dispose of
the dust.
1. Holdthedustcasermly,pressandholdthetwo
buttons, and remove the dust case.
►Fig.41: 1. Full line 2. Dust case 3. Button (two
locations) 4.Meshlter
2. Dispose of the dust inside the dust case and
remove any dust and powder adhered to the surface of
themeshlter.
3. Insert the dust case all the way until the two but-
tons lock with a click.
►Fig.42: 1. Dust case 2. Button (two locations)
NOTE: Check that the cyclone attachment, cleaner,
and straight pipe are locked properly before restarting
operation.
NOTE: If the suction force does not recover even
after disposing of the dust and cleaning the mesh
lter,checkwhetherdusthasaccumulatedinthedust
bag of the cleaner or clogging has occurred.
Cleaning
Whenthedustcasebecomesdirtyorthemeshlteris
clogged, remove and wash them with water. (Refer to
“Disposing of dust” for the removal procedure.)
Dry the parts thoroughly before reinstallation and use.
►Fig.43: 1. Dust case 2.Meshlter
Whenthemeshltergetsdirtybadly,cleanitinthe
following procedures.
1. Turnthemeshltercounterclockwiseandremove
it while the hooks are unlocked.
►Fig.44: 1.Meshlter2. Hook
2. Removethedustonthemeshlterandthenwash
it with water. After that, dry it thoroughly.
3. Insertthemeshlterintothebasewhilethehooks
arealignedwiththeport.Turnthemeshlterclockwise
until the hooks are locked with a click. Make sure that
themeshlterisinstalledsecurely.
►Fig.45: 1.Meshlter2. Hook 3. Port

19
中文简体
中文简体 (原本)
警告
• 本设备不得由不熟悉操作说明的人员（包括小孩）和体力、感觉及心智不健全或缺乏经
验和知识的人员使用。
• 应看管好儿童，勿让其玩耍本吸尘机。
• 有关电池的类型信息，请参阅“规格”章节。
• 有关如何拆卸或安装电池的信息，请参阅“安装或拆卸电池组”部分。
• 丢弃电池组时，需将其从工具上卸下并在安全地带进行处理。关于如何处理废弃的电池，
请遵循当地法规。
• 如长时间不使用工具，必须将电池从工具内取出。
• 请勿使电池组短路。
• 有关用户维护期间的注意事项的详情，请参阅“维护”章节。
规格
型号： VC008G
集尘能力 过滤袋 2.0 L
集尘袋 1.5 L
最大风量 使用ø28 mm x 1.0 m软管 1.9 m3/min
使用ø32 mm x 1.0 m软管 2.4 m3/min
真空 18 kPa
尺寸（长 ×宽×高）
（不含肩带，含BL4040）
233 mm ×150 mm ×375 mm
额定电压 D.C. 36 V - 40 V（最大）
净重 4.1 - 5.3 kg
• 生产者保留变更规格不另行通知之权利。
• 规格可能因销往国家之不同而异。
• 重量不含附件，但包含电池组。设备和电池组的最轻和最重组合重量见表格。
• 附带软管的长度因国家不同而异。
适用电池组和充电器
电池组 BL4020 / BL4025 / BL4040 / BL4050F /
BL4080F
充电器 DC40RA / DC40RB / DC40RC
• 部分以上所列电池组和充电器是否适用视用户所在地区而异。
警告： 请仅使用以上所列电池组和充电器。使用其他类型的电池组或充电器可能会导
致人身伤害和/或失火。
警告： 请勿对本工具使用带线电源，例如电池连接转换器或便携电源装置。此类电源
的电缆可能会阻碍操作，进而导致人员受伤。

20
中文简体
符号
以下显示本设备可能会使用的符号。在使用
工具之前，请务必理解其含义。
阅读使用说明书。
特别小心和注意。
适用于本产品的代表性电池。
Ni-MH
Li-ion 仅限于欧盟国家
由于本设备中包含有害成分，
因此废弃的电气和电子设备、
蓄电池和普通电池可能会对环
境和人体健康产生负面影响。
请勿将电气和电子工具或电池
与家庭普通废弃物放在一起处
置！
根据欧洲关于废弃电气电子设
备、蓄电池和普通电池、废弃
的蓄电池和普通电池的指令及
其国家层面的修订法案，废弃
的电气设备、普通电池和蓄电
池应当单独存放并递送至城市
垃圾收集点，根据环保法规进
行处置。
此规定由标有叉形标志的带轮
垃圾桶符号表示。
用途
本工具用于收集干尘。本工具适用于商业用
途，例如，用于酒店、学校、医院、工厂、
商店、办公室和租借的办公场所。
安全警告
充电式吸尘器安全警告
警告： 重要事项 使用前请仔细通读所
有的安全警告和所有的说明事项。若不遵循
警告和说明事项，可能导致触电、起火和／
或严重的人身伤害。
1. 使用前，请确保本吸尘器必须由经过培
训的合格人员使用。
2. 请勿在没有过滤器的情况下使用吸尘器。
如果过滤器受损，请立即更换。
3. 请勿试图吸取可燃物、鞭炮、点燃的香
烟、热灰、热金属片、以及剃刀、针、
碎玻璃等尖锐物体。
4. 切勿在附近有汽油、煤气、油漆、粘合
剂或其他易爆物质的环境下使用吸尘器。
开启和关闭时开关会发出火花。操作期
间电机整流器也会发出火花。可能会导
致爆炸。
5. 该集尘器不适合吸取有毒灰尘。
6. 切勿吸取有毒物质、致癌物质、易燃物
质或石棉、砷、钡、铍、铅、杀虫剂等
有害物质或其他危及健康的物质。
7. 下雨时切勿在室外使用吸尘器。
8. 芬兰地区用户不得在低温户外使用本机。
9. 请勿在热源（火炉等）附近使用。
10. 请勿堵塞冷却通风口。这些通风口可冷
却电机。应小心避免堵塞，否则电机会
因为通风不足而被烧坏。
11. 操作时请双脚站稳，始终保持平衡。
12. 请勿折叠、拉拽或踩踏软管。
13. 如果您在操作期间发现性能下降或任何
异常，请立即停止工具。
14. 断开电池组与工具的连接。不使用时，
维修前或更换附件时请断开吸尘器电源。
15. 每次使用后请立即清洁和维护吸尘器，
使其处于最佳的工作状态。
16. 小心保养吸尘器。保持吸尘器的清洁，
以提高产品的性能和安全性。根据说明
更换附件。保持把手干燥、清洁，无油
污和润滑油。
17. 检查有无部件损坏。在进一步使用吸尘
器之前，应仔细检查保护罩或其他部件
有无损坏，以确定工具是否可以正常运
转。检查运动部件是否有偏差或粘连、
部件是否破损、安装是否妥当以及其他
可能会影响工具运行的情况。除非本手
册另有声明，否则应由授权维修中心对
受损保护罩或其他部件进行修复或更换。
失灵的开关由授权的维修中心进行更换。
如果开关不能开启和关闭吸尘器，请勿
使用。
18. 更换部件。进行维修时，请仅使用与原
来相同的更换部件。
19. 存放闲置的吸尘器。不使用时，应将吸
尘器存放在室内。
20. 善待吸尘器。即便吸尘器再结实，野蛮
操作也会将其损坏。
21. 请勿试图用苯、稀释剂或清洁用化学品
清洁工具的外部或内部。否则可能会导
致工具破裂和褪色。
