Makita VC012G User manual

VC012G
EN Cordless Backpack Vacuum
Cleaner INSTRUCTION MANUAL 12
FR Aspirateur Dorsal Sans Fil MANUEL D’INSTRUCTIONS 28
DE Akku-Rucksackstaubsauger BETRIEBSANLEITUNG 45
IT Aspirapolvere spalleggiato a
batteria ISTRUZIONI PER L’USO 62
NL Ruggedragen accustofzuiger GEBRUIKSAANWIJZING 79
ES Aspiradora de mochila a
batería
MANUAL DE
INSTRUCCIONES 96
PT Aspirador Costal a Bateria MANUAL DE INSTRUÇÕES 113
DA Akku rygstøvsuger BRUGSANVISNING 130
EL 
  146
TR  KULLANMA KILAVUZU 164

2
2
3
4
11

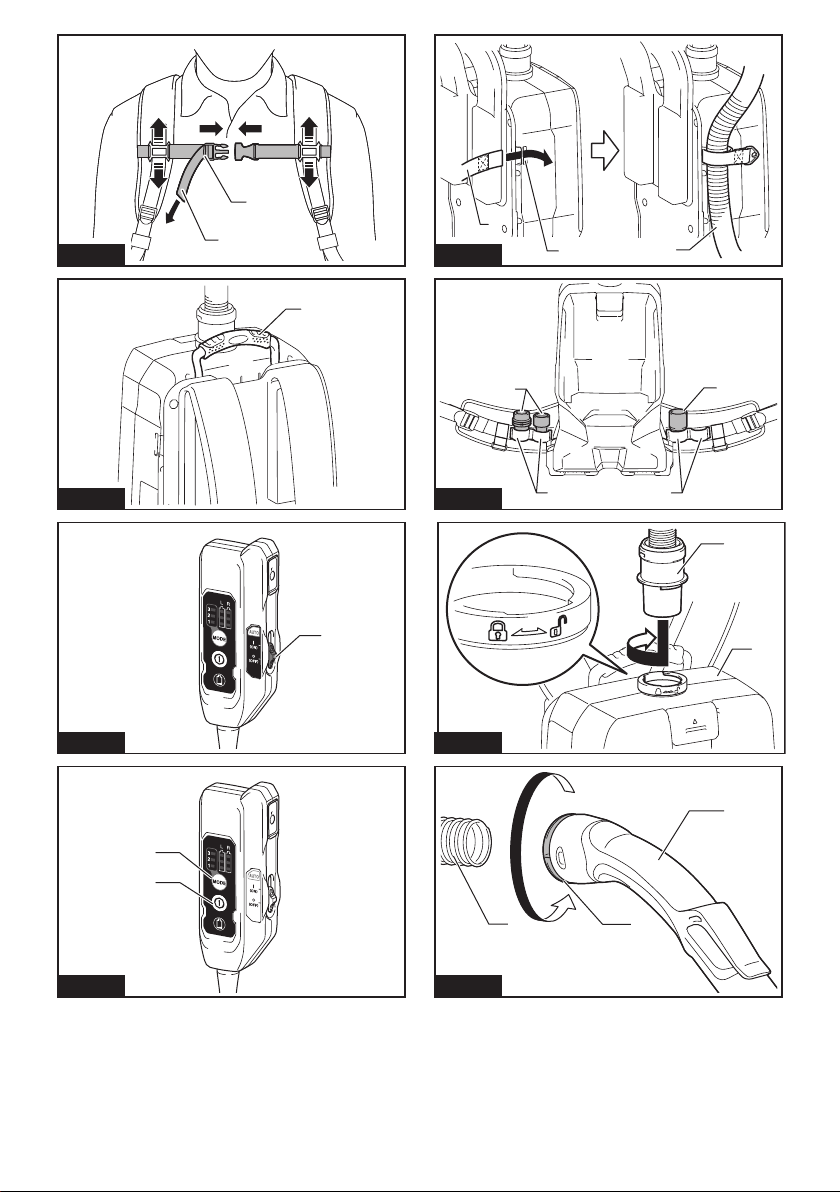

Fig.1
1
2
Fig.2
1
2
Fig.3
1
1
2
2
Fig.4
1
2
Fig.5
1
2
Fig.6

3
2
1
Fig.7
1
Fig.8
1
Fig.9
1
2
Fig.10
1
23
Fig.11
11
22
Fig.12
Fig.13
1
2
Fig.13
1
2
3
Fig.14

4
1
2
3
Fig.15
1
2
Fig.16
1
2
3
Fig.17
1
234
Fig.18
1
2
34
Fig.19
1
Fig.20
1
23
3
Fig.21

5
1
Fig.22
2
3
1
Fig.23
Fig.24
2
1
Fig.25
1
2
Fig.26
2
3
1
Fig.27

6
11
2
3
4
Fig.28
Fig.29
Fig.30
Fig.31
Fig.32
Fig.33
1
2
Fig.34
1
Fig.35

7
1
Fig.36
Fig.37
1
Fig.38
1
2
3
4
Fig.39
1
2
3
Fig.40
1
Fig.41
1
1
2
2
Fig.42

8
Fig.43
1
Fig.44
2
1
Fig.45
1
Fig.46
1
1
2
2
Fig.47
1
2
3
Fig.48
1
2
Fig.49

9
1
2
Fig.50
1
2
3
Fig.51
1
Fig.52
Fig.53
Fig.54

10
1
Fig.55
1
Fig.56
2
3
1
Fig.57
2
1
3
Fig.58
1
Fig.59

11
2
3
1
4
Fig.60
2
1
Fig.61
1
2
Fig.62
1
2
Fig.63
2
1
3
Fig.64

12 ENGLISH
ENGLISH (Original instructions)
WARNING
• For users in Europe: This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children with-
out supervision.
• For users in areas other than Europe: This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person responsible for your safety.
• Children must be supervised to ensure that they do not play with the appliance.
• CAUTION: Before carrying out any maintenance operation, disconnect the appliance from the power supply.
Perform maintenance on the appliance periodically.
• Rechargeable batteries must be removed from the device before charging.
• To remove or install the battery, slide the cartridge out of the tool while pressing the button on the front of the
cartridge.
• Exhausted batteries must be removed from the device and disposed of safely. Follow local regulations regard-
ing battery disposal.
• If the device is to be stored unused for a long period, the batteries should be removed.
• The power terminals must not be short-circuited.
Applicable battery cartridge and charger
Battery cartridge BL4020 / BL4025 / BL4040 / BL4040F / BL4050F / BL4080F
Charger DC40RA / DC40RB / DC40RC
• Some of the battery cartridges and chargers listed above may not be available depending on your region of
residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges

SPECIFICATIONS
Model: VC012G
Capacity Filter bag 6.0 L
Dust bag 5.5 L
Maximum air volume
(With hose ø28 mm x 1.5 m)
2.1 m3/min
Vacuum 20 kPa
Dimensions (L x W x H)
(excluding the harness, with BL4050F)
336 mm x 185 mm x 543 mm
Rated voltage D.C. 36 V - 40 V max
Net weight 6.4 - 9.5 kg
 
without notice.
 󰀨
• The weight does not include accessories but battery cartridge(s). The lightest and heaviest combination weight
of the appliance and battery cartridge(s) are shown in the table.
WARNING: Do not use a corded power supply such as battery adapter or portable power pack with
this appliance. The cable of such power supply may hinder the operation and result in personal injury.

13 ENGLISH
Symbols
The followings show the symbols which may be used
for the equipment. Be sure that you understand their
meaning before use.
Read instruction manual.
Take particular care and attention.
A representative battery applicable to this
product.
Ni-MH
Li-ion
Only for EU countries
Due to the presence of hazardous com-
ponents in the equipment, waste electrical
and electronic equipment, accumulators
and batteries may have a negative impact
on the environment and human health.
Do not dispose of electrical and electronic
appliances or batteries with household
waste!
In accordance with the European Directive
on waste electrical and electronic equip-
ment and on accumulators and batteries
and waste accumulators and batteries,
as well as their adaptation to national law,
waste electrical equipment, batteries and
accumulators should be stored separately
and delivered to a separate collection point
for municipal waste, operating in accor-
dance with the regulations on environmen-
tal protection.
This is indicated by the symbol of the
crossed-out wheeled bin placed on the
equipment.
Intended use
The appliance is intended for collecting dry dust. The
appliance is suitable for commercial use, for example in
󰀩
rental businesses.
Noise
The typical A-weighted noise level determined accord-
ing to EN60335-2-69:
Sound pressure level (LpA) : 70 dB(A) or less
Uncertainty (K) : 2.5 dB (A)
The noise level under working may exceed 80 dB (A).
NOTE: The declared noise emission value(s) has
been measured in accordance with a standard test
method and may be used for comparing one tool with
another.
NOTE: The declared noise emission value(s)
may also be used in a preliminary assessment of
exposure.
WARNING: Wear ear protection.
WARNING: The noise emission during actual
󰀨
value(s) depending on the ways in which the
tool is used especially what kind of workpiece is
processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
󰀨
trigger time).
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according to EN60335-2-69:
Work mode: operation without load
Vibration emission (ah,D) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
NOTE: The declared vibration total value(s) has been
measured in accordance with a standard test method
and may be used for comparing one tool with another.
NOTE: The declared vibration total value(s) may also
be used in a preliminary assessment of exposure.
WARNING: The vibration emission during
󰀨
declared value(s) depending on the ways in which
the tool is used especially what kind of workpiece
is processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
󰀨
trigger time).
Declarations of Conformity
For European countries only
The Declarations of conformity are included in Annex A
to this instruction manual.
SAFETY WARNINGS
Cordless vacuum cleaner safety
warnings
WARNING: IMPORTANT! READ CAREFULLY
all safety warnings and all instructions BEFORE
USE. Failure to follow the warnings and instructions

1. Before use, make sure that this cleaner must
be used by people who have been adequately
instructed on the use of this cleaner.

14 ENGLISH
2. 

3. 

metal chips, sharp materials such as razors,
needles, broken glass or the like.
4.
NEVER USE THE CLEANER IN THE VICINITY
OF GASOLINE, GAS, PAINT, ADHESIVES OR
OTHER HIGHLY EXPLOSIVE SUBSTANCES.
The switch emits sparks when turned ON and
OFF. And so does the motor commutator during
operation. A dangerous explosion may result.
5. This cleaner is not suitable for picking up
hazardous dust.
6. Never vacuum up toxic, carcinogenic, com-
bustible or other hazardous materials such
as asbestos, arsenic, barium, beryllium,
lead, pesticides, or other health endangering
materials.
7. Never use the cleaner outdoors in the rain.
8. For Finland, this machine is not to be used
outdoors at low temperature.
9. Do not use close to heat sources (stoves, etc.).
10. Do not block cooling vents. These vents per-
mit cooling of the motor. Blockage should be
carefully avoided otherwise the motor will burn
out from lack of ventilation.
11. Keep proper footing and balance at all times.
12. Do not fold, tug or step on the hose.
13. Stop the cleaner immediately if you notice
poor performance or anything abnormal
during operation.
14. DISCONNECT THE BATTERIES. When not in
use, before servicing, and when changing
accessories.
15. Clean and service the cleaner immediately
after each use to keep it in tiptop operating
condition.
16. MAINTAIN THE CLEANER WITH CARE. Keep
the cleaner clean for better and safer per-
formance. Follow instructions for changing
accessories. Keep handles dry, clean, and free
from oil and grease.
17. CHECK DAMAGED PARTS. Before further use
of the cleaner, a guard or other part that is
damaged should be carefully checked to deter-
mine that it will operate properly and perform
its intended function. Check for alignment of
moving parts, binding of moving parts, break-
age of parts, mounting, and any other condi-
󰀨
other part that is damaged should be properly
repaired or replaced by an authorized service
center unless otherwise indicated elsewhere
in this instruction manual. Have defective
switches replaced by authorized service cen-
ter. Don’t use the cleaner if switch does not
󰀨
18. REPLACEMENT PARTS. When servicing, use
only identical replacement parts.
19.
When not in use, always store the cleaner indoors.
20. Be kind to your cleaner. Rough handling can
cause breakage of even the most sturdily built
cleaner.
21. Do not attempt to clean the exterior or interior
with benzine, thinner or cleaning chemicals.
Cracks and discoloration may be caused.
22. Do not use cleaner in an enclosed space where

󰀨


23. Do not operate the cleaner while under the

24. As a basic rule of safety, use safety goggles or
safety glasses with side shields.
25. Use a dust mask in dusty work conditions.
26.
Never handle battery(ies) and cleaner with wet hands.
27. Use extreme caution when cleaning on stairs.
28. Do not use the cleaner as a stool or work
bench. The machine may fall down and may
result in personal injury.
Battery tool use and care
1. 
the manufacturer. A charger that is suitable for

when used with another battery pack.
2. -
nated battery packs. Use of any other battery

3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-

4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-

liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause
irritation or burns.
5. Do not use a battery pack or tool that is dam-

may exhibit unpredictable behaviour resulting in

6. 
excessive temperature.-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
-
tions. Charging improperly or at temperatures


Service
1. 
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
3. Follow instruction for lubricating and chang-
ing accessories.
4. Keep handles dry, clean and free from oil and
grease.

15 ENGLISH
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble or tamper with the battery
cartridge.
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current

breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn

8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge. Such conduct may result in a

9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
󰀨
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
 Installing the batteries to
-
sive heat, explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge.
burst and malfunction of the tool or battery car-
tridge, resulting in burns or personal injury.
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near high-voltage electri-
cal power lines. It may result in a malfunction or
breakdown of the tool or battery cartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting

also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
Important safety instructions for
wireless unit
1. Do not disassemble or tamper with the wire-
less unit.
2. Keep the wireless unit away from young chil-
dren. If accidentally swallowed, seek medical
attention immediately.
3. Use the wireless unit only with Makita tools.
4. Do not expose the wireless unit to rain or wet
conditions.
5. Do not use the wireless unit in places where
the temperature exceeds 50 °C (122 °F).
6. Do not operate the wireless unit in places
where medical instruments, such as heart
pace makers are nearby.

16 ENGLISH
7. Do not operate the wireless unit in places
where automated devices are nearby. If oper-
ated, automated devices may develop malfunction
or error.
8. Do not operate the wireless unit in places
under high temperature or places where
static electricity or electrical noise could be
generated.
9. The wireless unit can produce electromagnetic

user.
10. The wireless unit is an accurate instrument. Be
careful not to drop or strike the wireless unit.
11. Avoid touching the terminal of the wireless
unit with bare hands or metallic materials.
12. Always remove the battery on the product
when installing the wireless unit into it.
13. When opening the lid of the slot, avoid the
place where dust and water may come into the
slot. Always keep the inlet of the slot clean.
14. Always insert the wireless unit in the correct
direction.
15. Do not press the wireless activation button
on the wireless unit too hard and/or press the
button with an object with a sharp edge.
16. Always close the lid of the slot when
operating.
17. Do not remove the wireless unit from the slot
while the power is being supplied to the tool.
Doing so may cause a malfunction of the wireless
unit.
18. Do not remove the sticker on the wireless unit.
19. Do not put any sticker on the wireless unit.
20. Do not leave the wireless unit in a place where
static electricity or electrical noise could be
generated.
21. Do not leave the wireless unit in a place sub-
ject to high heat, such as a car sitting in the
sun.
22. Do not leave the wireless unit in a dusty or
powdery place or in a place corrosive gas
could be generated.
23. Sudden change of the temperature may bedew
the wireless unit. Do not use the wireless unit
until the dew is completely dried.
24. When cleaning the wireless unit, gently wipe
with a dry soft cloth. Do not use benzine, thin-
ner, conductive grease or the like.
25. When storing the wireless unit, keep it in the
supplied case or a static-free container.
26. Do not insert any devices other than Makita
wireless unit into the slot on the tool.
27. Do not use the tool with the lid of the slot dam-
aged. Water, dust, and dirt come into the slot may
cause malfunction.
28. Do not pull and/or twist the lid of the slot more
than necessary.󰀨
from the tool.
29. Replace the lid of the slot if it is lost or
damaged.
SAVE THESE INSTRUCTIONS.
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the appliance
󰀨
removed before adjusting or checking function on
the appliance.
Installing or removing battery
cartridge
CAUTION: 󰀨
before installing or removing of the battery
cartridge.
CAUTION: Hold the appliance and the bat-

battery cartridge. Failure to hold the appliance and
󰀨
your hands and result in damage to the appliance and
battery cartridge and a personal injury.
To install the battery cartridges, align the tongues on the
battery cartridges with the grooves in the housing and
slip them into place. Insert them all the way until they
lock in place with a little click. If you can see the red

completely.
To remove the battery cartridges, slide them out of the
battery housing while pressing and holding the buttons
in front of the cartridges.
Fig.1: 1. Red indicator 2. Button 3. Right battery
cartridge 4. Left battery cartridge
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
it may accidentally fall out of the appliance, causing
injury to you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
The cleaner has double battery slots. You can choose
with either double batteries or single battery according
to your needs.
With double batteries
Continuous drive with two batteries allows longer run-
󰀩
is becoming empty, the cleaner automatically switches
a power source, so it continues working with the second
battery.

17 ENGLISH
NOTE: The right battery slot (when facing the front
of the cleaner) has priority over the left battery slot.

source, either when no battery is installed in the right
battery slot or the battery in the right battery slot
becomes empty.
NOTE: You can remove the battery from the right
battery slot and recharge it after the cleaner has
switched its power source from the right battery
slot to the left without ceasing operation. To give
priority back to the right battery slot after installing a
recharged battery, restart the cleaner.
NOTE: When the cleaner switches the power source

temporary halt in operations, causing a slight loss
of suction. This is not malfunction so the cleaner
recovers and resumes operations immediately after
the pause.
With a single battery
Only one battery is required as a power source in either
the right or left battery slot. The cleaner automatically
determines which battery slot is available.

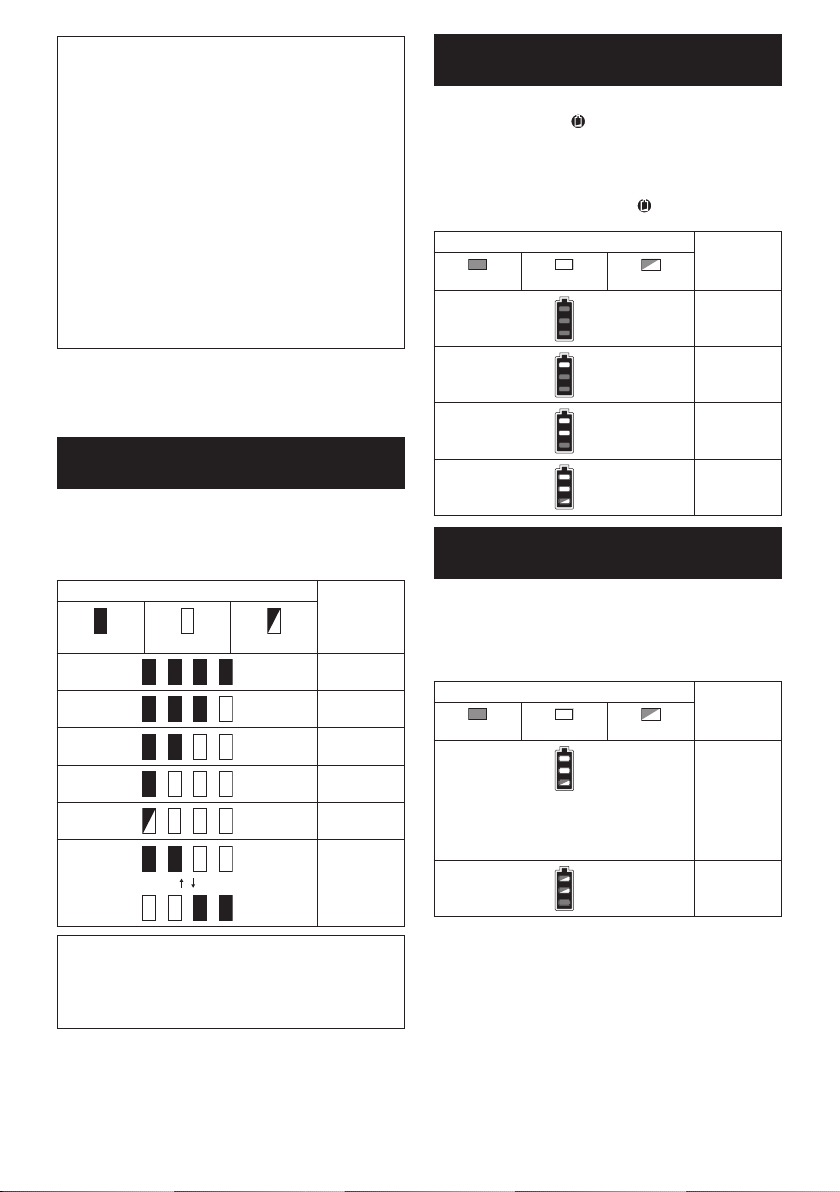

Indicating the remaining battery
capacity
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
Fig.2: 1. Indicator lamps 2. Check button
Indicator lamps Remaining
capacity
Lighted 󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
󰀨
from the actual capacity.
NOTE:
the battery protection system works.
Indicating the remaining battery
capacity on the switch box
The remaining battery capacity can be checked on the
switch box. Press the button to indicate the remain-
ing battery capacities.
"L" and "R" on the switch box correspond to the left and
right battery cartridges, respectively. Follow the indica-
tion when you replace the battery cartridge.
Fig.3: 1. Battery indicator 2. button
Battery indicator status Remaining
battery
capacity
On 󰀨 Blinking
50% to 100%
20% to 50%
0% to 20%
Charge the
battery
Appliance / battery protection
system
The appliance is equipped with appliance / battery
󰀨
power to the motor to extend appliance and battery
life. In this situation, the battery indicator lights up as
following table.
Battery indicator status Status
On 󰀨 Blinking
Overload
protection
(battery) /
Overheat
protection
(battery) /
Overdischarge
protection
Overheat
protection
(appliance)
The appliance will automatically stop during operation
if the appliance or battery is placed under one of the
following conditions:
Overload protection
When the appliance / battery is operated in a manner
that causes it to draw an abnormally high current, the
appliance automatically stops. In this situation, turn the
󰀨
appliance to become overloaded. Then turn the appli-
ance on to restart.

18 ENGLISH
Overheat protection
When the appliance / battery is overheated, the appli-
ance stops automatically. In this situation, let the appli-
ance / battery cool down before turning the appliance
on again.
Overdischarge protection
When the battery capacity becomes low, the appliance
stops automatically. If the product does not operate
even when the switches are operated, remove the bat-
teries from the appliance and charge the batteries.
Protections against other causes
Protection system is also designed for other causes that
could damage the appliance and allows the appliance to
stop automatically. Take all the following steps to clear
the causes, when the appliance has been brought to a
temporary halt or stop in operation.
 󰀨
restart.
2. Charge the battery(ies) or replace it/them with
recharged battery(ies).
3. Let the appliance and battery(ies) cool down.
If no improvement can be found by restoring protection
system, then contact your local Makita Service Center.
Switch box position
The switch box can be hooked on either side of the
lower belt. Arrange the cord so that the switch box
comes to your desired side. To prevent the cord from
being damaged, pass the cord through the groove as
illustrated.
Fig.4: 1. Groove 2. Cord
Adjusting belts
The tightness of the shoulder belts, upper and lower
belts can be adjusted. Put your arms through the shoul-

To tighten, pull the end of the strap as illustrated. To
loosen, pull up the end of the fastener.
Lower belt
Fig.5: 1. Strap 2. Fastener
Shoulder belts
Fig.6: 1. Strap 2. Fastener
Upper belt
Fig.7: 1. Strap 2. Fastener
Carrying hook
Always grab the carrying hook when handling the vac-
uum cleaner body.
Fig.8: 1. Carrying hook

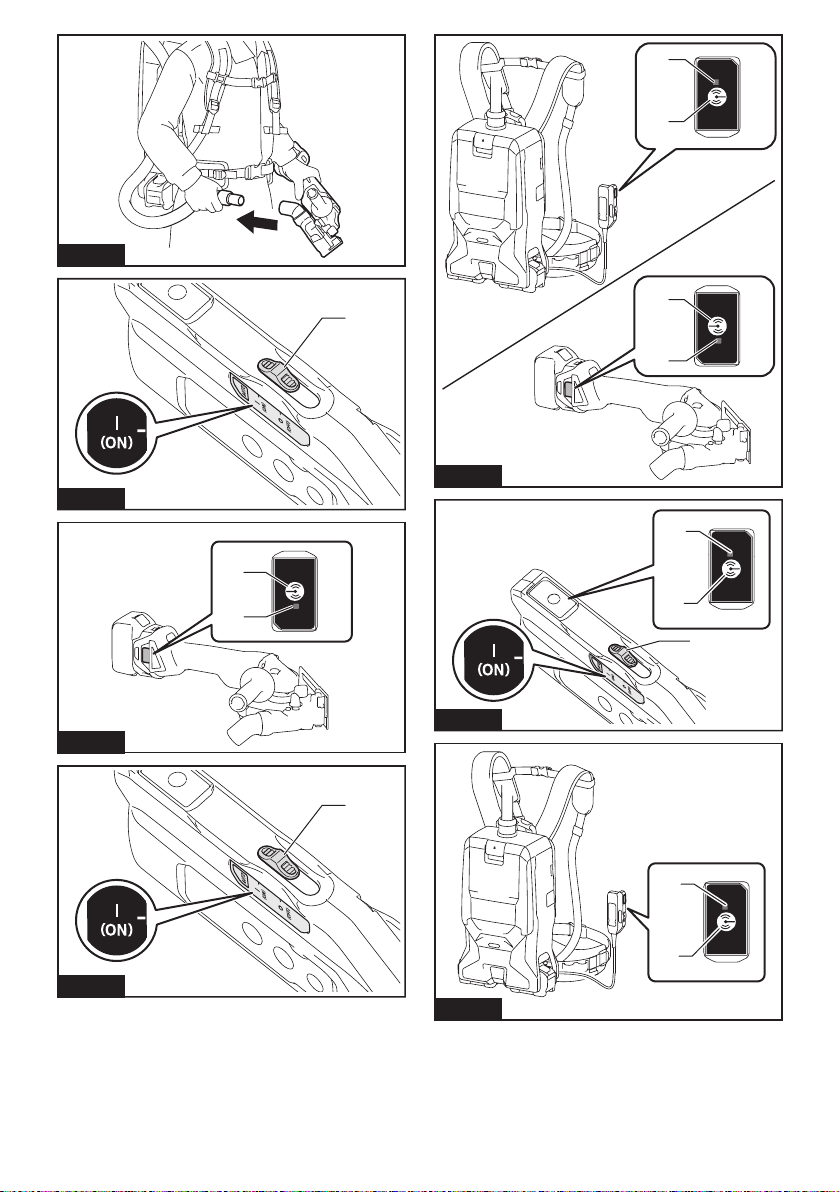

Stand-by switch
󰀨
wireless activation function. The vacuum cleaner is in
the stand-by state regardless of the switch position and
it runs when the ON/OFF button is pressed.
Fig.9: 1. Stand-by switch
Switch position Status
AUTO I
(ON)
The vacuum cleaner is in the stand-by
state and the wireless activation function
is available.
O
(OFF)
The vacuum cleaner is in the stand-by
state however the wireless activation
function is not available.
Switch action
To start the cleaner, simply press button. To switch
󰀨 button again.
You can change the suction power of the cleaner in
three steps by press button. Each press on this
button repeats the 1 to 3 mode in a cycle.
Fig.10: 1. Suction power change button 2. ON/
OFF button
Level Indication Mode
1Normal speed
mode
2High speed mode
3Max speed mode
NOTE: You can change the suction power before
turning on the cleaner.
NOTE: The cleaner starts the operation with the
same suction power as the last operation.
NOTE: If you remove the battery immediately after
󰀨
the cleaner may not start the operation with the same
suction power as the last operation.
Hose band

rubber nozzle.
To secure the hose to the vacuum cleaner body, pass
the hose band through the slot on the body. You can
attach the hose band on either side.
Fig.11: 1. Hose band 2. Slot 3. Hose
The loops on the lower belt can be used for carrying
󰀨
Fig.12: 1. Loop 2.󰀨

19 ENGLISH
ASSEMBLY
CAUTION: Always be sure that the appli-
󰀨
is removed before carrying out any work on the
appliance.

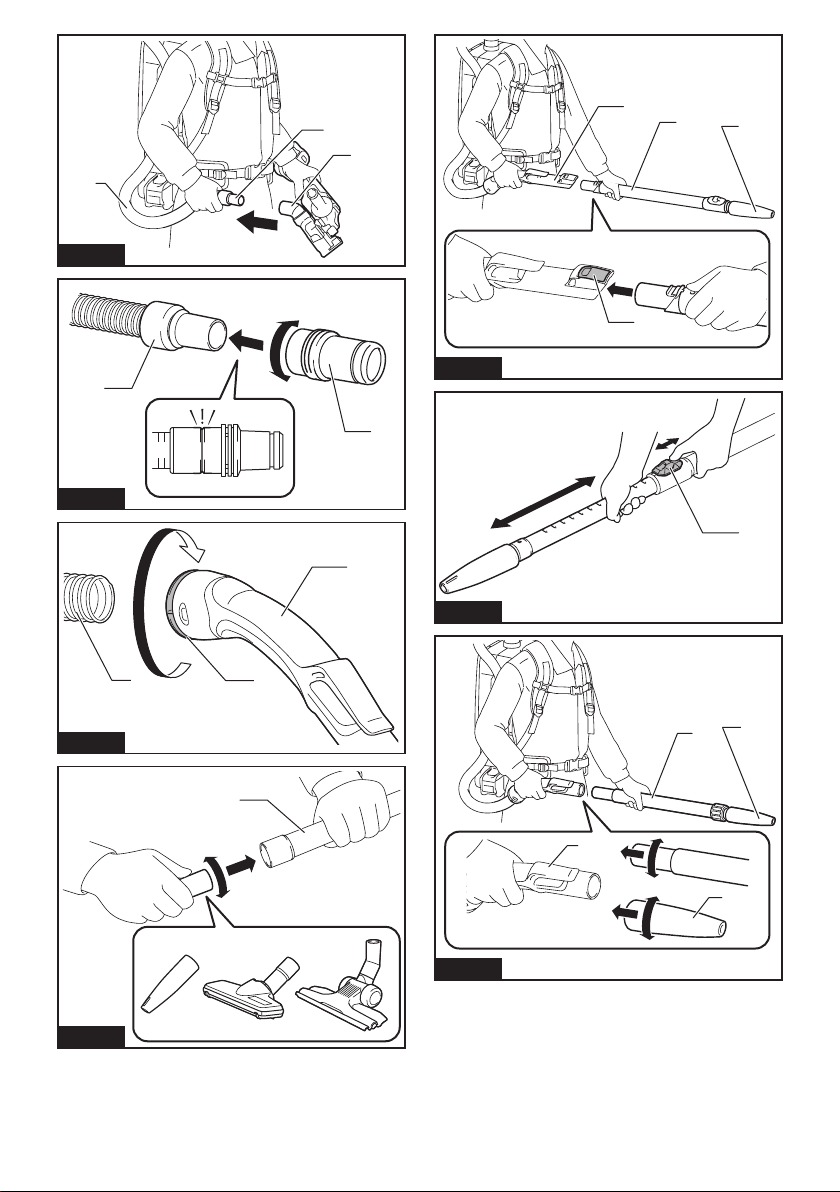

Assembling hose
󰀨
turn it clockwise.
Fig.13: 1.󰀨2. Vacuum cleaner body
Connecting the tool
If the bent pipe assembly is attached to the hose,
loosen the sleeve of bent pipe assembly and remove it.
Fig.14: 1. Hose 2. Bent pipe assembly 3. Sleeve
1. 󰀨
󰀨
securely screwed on the hose.
2. 󰀨
outlet.
Fig.15: 1.󰀨2. Extraction outlet 3. Hose
󰀨-
clockwise while holding the hose.
NOTE:󰀨
󰀨󰀨
connected to the hose.
Fig.16: 1.󰀨2.󰀨
Using as a cleaner
If you want to use this product as a cleaner, follow the
below procedures.
NOTICE: 󰀨
remove it beforehand.
NOTE: The bent pipe assembly, extension wand, and
nozzles are supplied as optional accessories in some
countries.
NOTE: There are two types of bent pipe assembly;
the one for slide-type extension wand and the one for
ring-type extension wand. If you prepare the bent pipe
assembly, choose the one for your desired extension
wand type.
1. Fasten the sleeve of bent pipe assembly onto the
hose.
Fig.17: 1. Hose 2. Bent pipe assembly 3. Sleeve
To remove the bent pipe assembly, loosen the sleeve of
bent pipe assembly from the hose.
2. Twist and insert the nozzle to the extension wand.
Fig.18: 1. Extension wand 2. Flexible rubber nozzle
3. T-shape nozzle 4. T-shape nozzle (slim)
NOTE: By twisting the nozzle while inserting, the noz-
zle can be attached to the extension wand securely.
3. Follow the procedures below, depending on the
type of the extension wand:
NOTE: The slide-type extension wand and the ring-
type extension wand are not compatible with each
other. If you want to change the slide-type extension
wand to the ring-type extension wand or vice versa,
change the bent pipe assembly also.
For the slide-type extension wand
Shoulder the vacuum cleaner body then insert the
extension wand into the bent pipe assembly until it
clicks. To disconnect, extract the extension wand with
pressing the button.
Fig.19: 1. Bent pipe assembly 2. Button 3. Slide-
type extension wand 4. Flexible rubber
nozzle
The length of the wand can be adjusted.
With pressing the slide button, adjust the wand length.
The length is locked when releasing the slide button.
Fig.20: 1. Slide button
For the ring-type extension wand
Shoulder the vacuum cleaner body then twist and insert
the extension wand into the bent pipe assembly. To
disconnect, twist and extract it.
Fig.21: 1. Bent pipe assembly 2. Ring-type exten-
sion wand 3. Flexible rubber nozzle
NOTE:
the bent pipe assembly without pipe lock directly.
The length of the wand can be adjusted.
Loosen the ring on the wand and adjust the wand
length. Tighten the ring at your desired length.
Fig.22: 1. Ring
Hose hook
When you suspend the operation, the hook on the bent
pipe assembly can be used for hanging the wand on the
hanging part of the lower belt.
Fig.23: 1. Hook 2. Lower belt 3. Hanging part

Optional accessory
CAUTION: 

properly installed. Otherwise the vacuumed dust
or particles may be exhausted from the cleaner
and they may cause respiratory disease to the
operator.

— Dust bag is usable many times repeatedly by
cleaning it out.
— Filter bag is a throw-away type. Throw away the

become full.

20 ENGLISH
NOTICE: 
replace with new one. When the dust bag is
already full, empty it.
bag/dust bag full results in reduced suction power.
NOTICE: To prevent dust from getting into the
motor:
— 
installed before use.
— Do not use a broken or ripped bag.
Otherwise the motor may be broken.
NOTICE: Do not fold the cardboard at its open-

NOTICE: 
is an important component for maintaining the

bag/dust bag may cause smoke or ignition.
NOTE:
the cleaner, the front cover does not close completely.
Fig.24
1. Unlock the lever and open the front cover.
Fig.25: 1. Lever 2. Front cover
2. 
the room as illustrated.
Fig.26: 1. Slit 2. Filter bag
When using the dust bag, insert the brim of the dust bag
into the slit.
Fig.27: 1. Slit 2. Brim 3. Dust bag
3. 󰀨
and push the cardboard portion to the end. Make sure

󰀨
Fig.28: 1.2. Rim on
󰀨3. Cardboard portion of the
4.󰀨
4. Lock the front cover certainly.
CAUTION: -
gers when hooking the latch, and when closing
the front cover.
Harness cover
Optional accessory
When using the harness cover, follow the procedure
below to attach it.
NOTE: When installing the harness cover, do not
mistake the front and back of the harness cover.
NOTE: The harness cover is washable. Follow the
washing instructions on the tag.
Fig.29
1. Spread the harness cover on the harness.
Fig.30
2. Secure the harness shoulder straps with the hook
and loop fasteners of the harness cover. Hook the band
of the harness cover on the harness.
Fig.31
OPERATION
WARNING: Operators shall be adequately
instructed on the use of the vacuum cleaner.
WARNING: This vacuum cleaner is not suit-
able for picking up hazardous dust.
CAUTION: This cleaner is for dry use only.
CAUTION: During operation, be conscious
of the vacuum cleaner on your back. You may
lose your balance if the vacuum cleaner body bumps
against a wall or the hose is hooked by an obstacle.
1. Shoulder the vacuum cleaner body and fas-
ten upper and lower belts. Adjust the tightness as
necessary.
Fig.32
2. Press
button to start vacuuming. If you want
to change the suction power, press button until the
desired suction power is selected. Press button to
stop.
Fig.33
During the operation, hook the switch box on the lower
belt or the D-ring.
Fig.34: 1. D-ring 2. Lower belt
3. 



Fig.35: 1. Strip

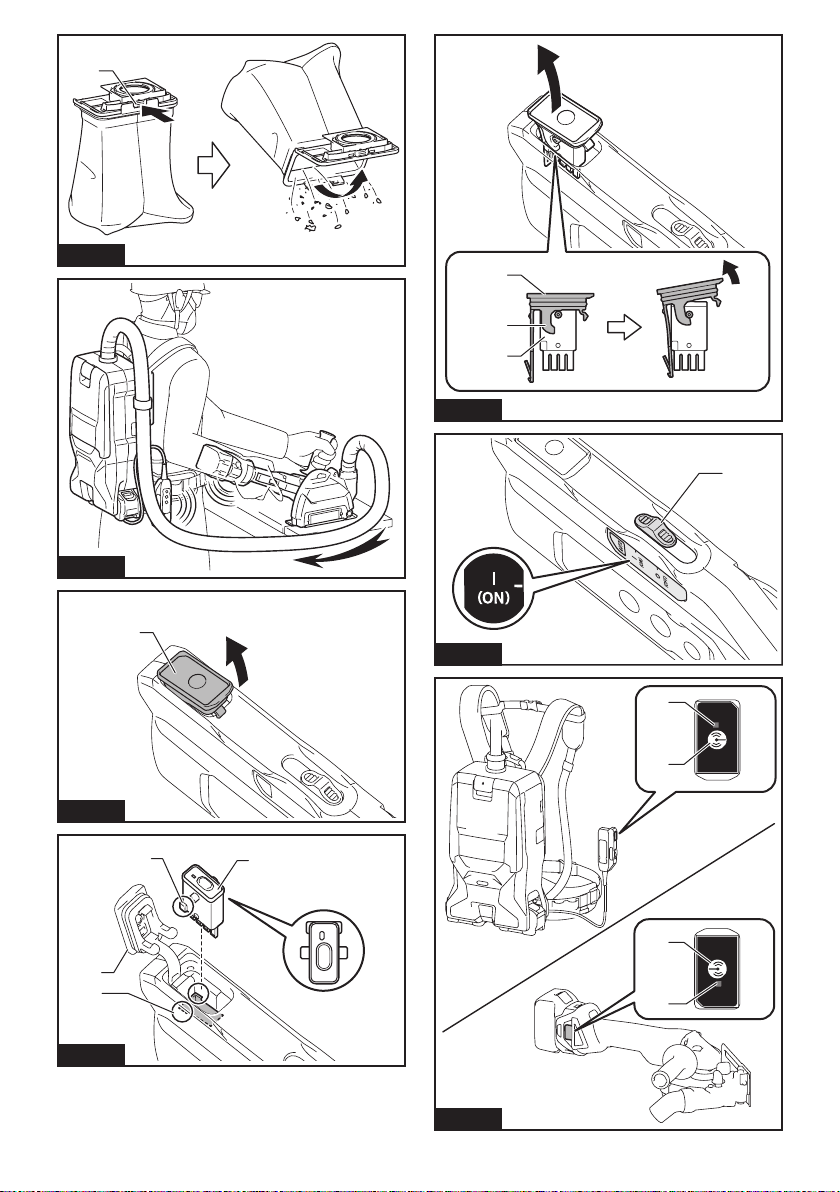

When using a dust bag, take out the dust bag and dis-
pose of the dust by releasing the latch.
Fig.36: 1. Latch
NOTICE: 
heavy objects on the front cover. The appliance
may fall down.
NOTICE: 
 Continuous use with

NOTICE: 
-

damage to the cleaner. If you want to use the bag
repeatedly, use a dust bag.
