Makita 4093D User manual

Cleaner
Rated voltage
D.C. 9.6 V
MODEL 40931)
Capacity Dimensions (L x W x H) Net weight
1.3 kg (2.9
Ibsl
484mmx112mmx143mm
(19-1116''
x 4-13/32" x 5-518")
500 mY
INSTRUCTION MANUAL

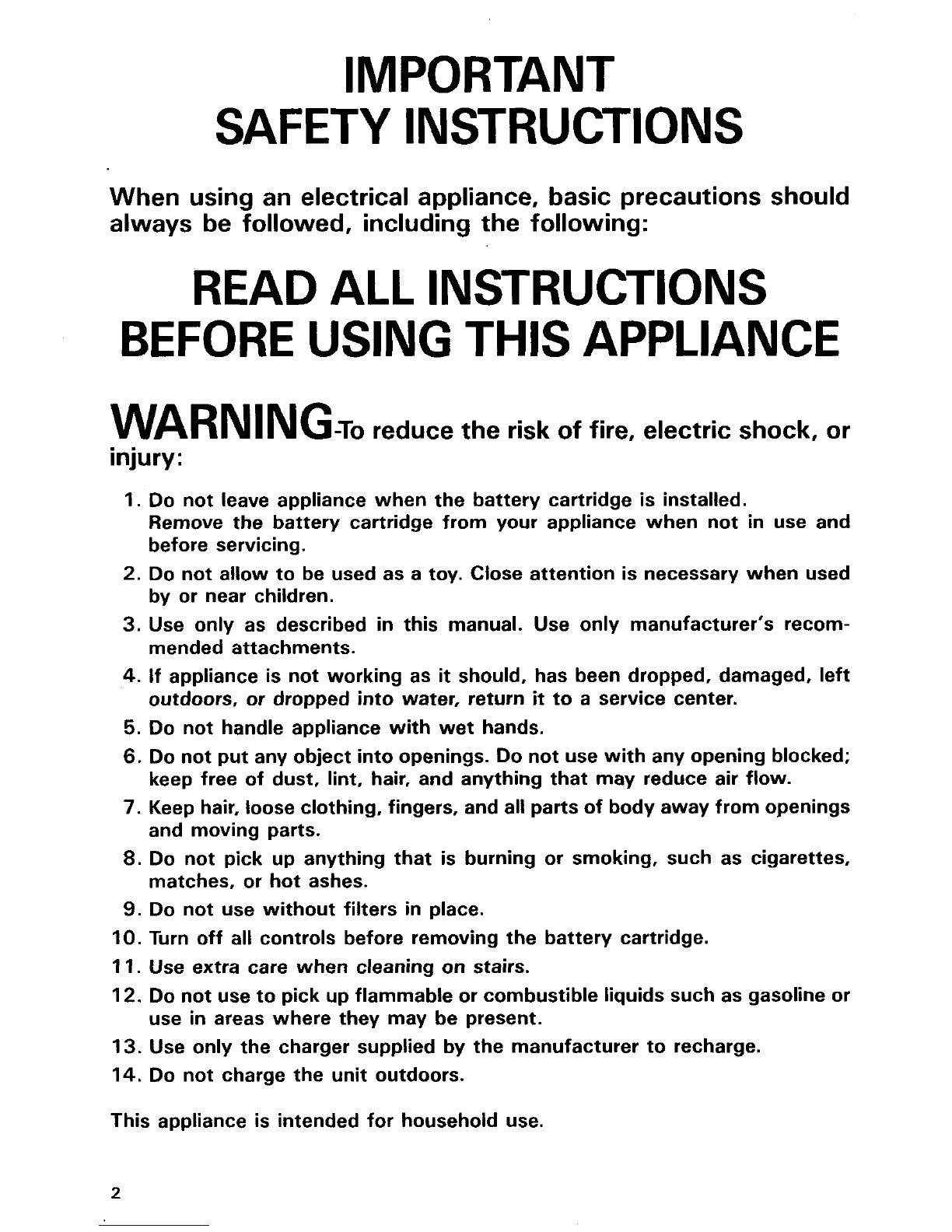

IMPORTANT
SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should
always be followed, including the following:
READALL INSTRUCTIONS
BEFORE USING THIS APPLIANCE
WARNINGTO
reducethe risk of fire, electric shock, or
injury:
1. Do not leave appliance when the battery cartridge is installed.
Remove the battery cartridge from your appliance when not in use and
before servicing.
2. Do not allow to be used as a toy. Close attention is necessary when used
by or near children.
3. Use only as described in this manual. Use only manufacturer's recom-
mended attachments.
4. If appliance is not working as it should, has been dropped, damaged, left
outdoors, or dropped into water, return
it to a service center.
5. Do not handle appliance with wet hands.
6. Do not put any object intoopenings. Do not use with any opening blocked;
7. Keep hair, loose clothing, fingers, and all parts of body away from openings
8. Do not pick up anything that is burning or smoking, such as cigarettes,
9. Do not use without filters in place.
keep free of dust,
lint, hair, and anything that may reduce air flow.
and moving parts.
matches, or hot ashes.
IO. Turn off all controls before removing the battery cartridge.
11. Use extra care when cleaning on stairs.
12. Do not use topick up flammable or combustibleliquids such as gasoline or
13. Use only the charger supplied by the manufacturer to recharge.
14. Do not charge the unit outdoors.
use
in areas where they may be present.
This appliance is intended for household use.
2

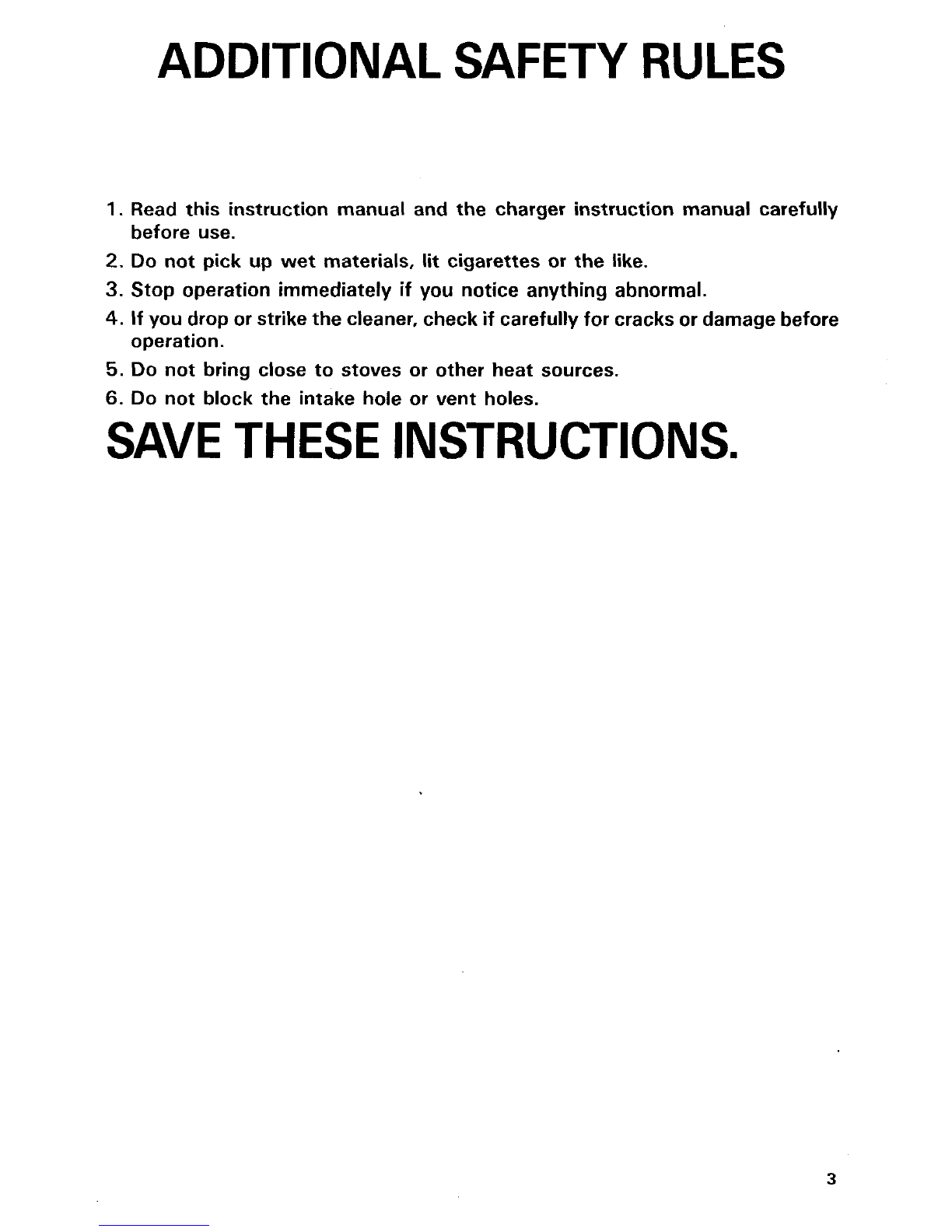

ADDITIONAL SAFETY RULES
1. Read this instruction manual and the charger instruction manual carefully
2. Do not pick up wet materials, lit cigarettes or the like.
3. Stop operation immediately if you notice anything abnormal.
4. Ifyou drop or strike the cleaner, check if carefullyfor cracks or damagebefore
5. Do not bring close to stoves or other heat sources.
6. Do not block the intake hole or vent holes.
before use.
operation.
SAVE THESE INSTRUCTIONS.
3

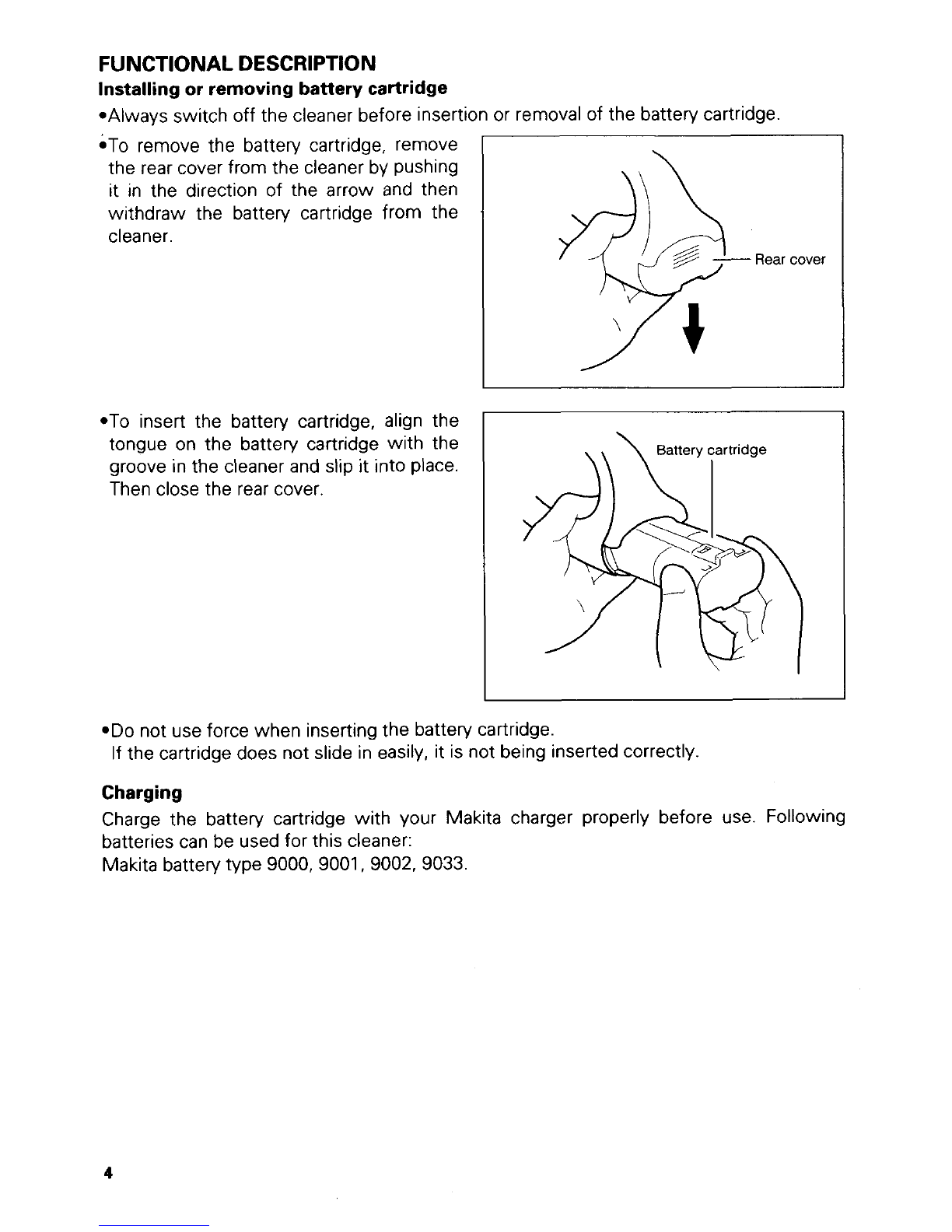

FUNCTIONAL DESCRIPTION
Installingor removingbattery cartridge
*Always switch off the cleaner before insertion or removal of the batterycartridge.
.To remove the battery cartridge, remove
the rear coverfrom the cleaner by pushing
it in the direction of the arrow and then
withdraw the battery cartridge from the
cleaner.
9- Rear cover
.To insert the battery cartridge, align the
tongue on the battery cartridge with the
groove inthe cleanerand slip
it into place.
Then close the rear cover.
Battery cartridge
*Do not useforce when inserting the battery cartridge.
Charging
Charge the battery cartridge with your Makita charger properly before use. Following
batteries can be usedfor this cleaner:
Makitabatterytype 9000, 9001, 9002, 9033.
If the cartridge does not slide in easily, it is not being insertedcorrectly
4

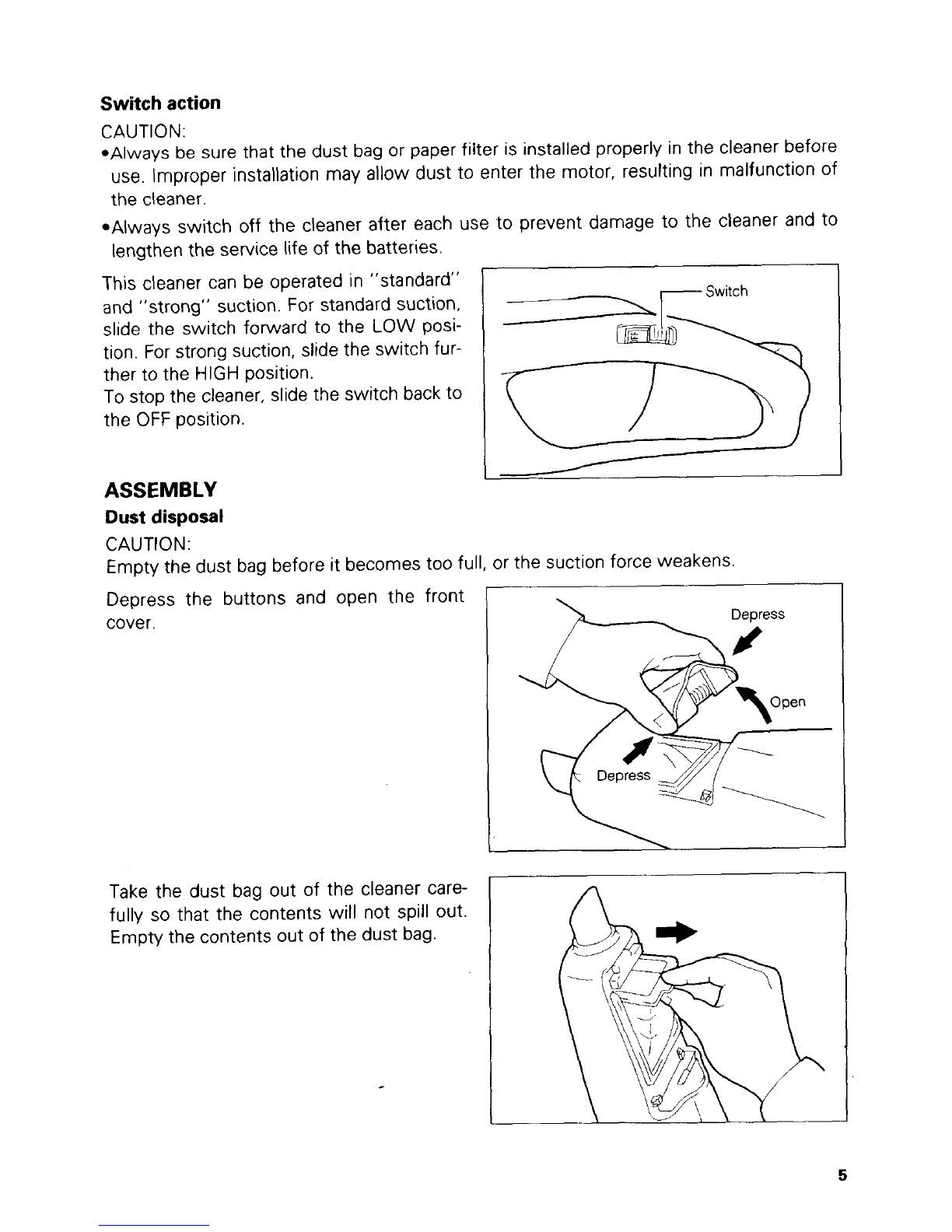

Switch action
CAUTION:
*Always be sure that the dust bag or paper filter is installed properly in the cleaner before
use. Improper installation may allow dust to enter the motor, resulting in malfunction of
the cleaner.
*Always switch off the cleaner after each use
to prevent damage to the cleaner and to
lengthenthe service life of the batteries.
This cleaner can be operated in "standard"
and "strong" suction.
For standardsuction,
slide the switch forward
to the LOW posi-
tion. For strong suction, slidethe switchfur-
ther to the
HIGH position.
To stop the cleaner, slide the switchback to
the
OFF position.
Switch
ASSEMBLY
Dustdisposal
CAUTION :
Empty the dust bag before
Depress the buttons and
cover.
it becomes
oDen the
too full, or the suction force weakens.
front
Take the dust bag out of the cleaner care-
fully
so that the contents will not spill out.
Emptythe contents out
of the dust bag.
5

Also empty out the dust inside the cleaner
I
..
itself. Failure to do so may cause the
sponge filter to
be clogged or the motor to
be damaged.
Installing dust bag
Placethe dust bag into the cleanercavity.
Insert the holder of the dust bag
all theway
into the slots inthe cleanercavitv.
CAUTION:
Forgetting
to installthe dust bag, failure to insert the holderof the dust bag all theway into
the slots or using a broken or ripped bag, may allow dust to get into the motor. This may
result in motor failure.
6

Hook the front cover onto the front lip of I .
the cleaner.Then close the front cover.
NOTE:
*When installing the paper filter, follow the
*Always unfold
a new paper filter before
same proceduresfor the dust bag.
installingiton the cleaner.
OPERATION
Cleaning(Suction)
Nozzle
Attach the nozzle to cleanoff tables, desks,
furniture, etc. Nozzleslips on easily.
Nozzle + Extensionwand (Straightpipe)
The extension wand fits in between the
nozzle and the cleaner itself. This arrange-
ment is convenient for cleaning
a floor
while standing erect.
Cleaner body
Extension wand
Nozzle
f/
7

Corner nozzle
Fiton the corner nozzlefor cleaningcorners
and crevices of the car or furniture.
Corner nozzle + Extension
wand(straightPipe)
In tight quarters where the cleaner itself
cannot squeezein, or in high placeshard to
reach, use this arrangement.
Possibleto suck dust without nozzle, too
Cleaner body
I
I Cleanernozzle
Extensionwand
Corner nozzle
8

MAINTENANCE
CAUTl ON :
Always be sure that the cleaner is switched off and the battery cartridge is removed
beforecarryingout any work on the cleaner.
After use
When storing the cleaner, hang it from a
nail usingthe convenient hanger in back.
Cleaning
From time to time wipe off the outside
(cleaner body) of the cleaner using
a cloth
dampened in soapy water. Never use gaso-
line, thinner or the like. Discoloration
or
cracks may result.
Wash the dust bag in soapy water occasion-
ally. Dry it out thoroughly before use. An
insufficiently driedbagmay causepoor
suc-
tion and shorten the service life of the
motor.
I\ ,-
To maintainproduct SAFETY and RELIABILITY,repairs.maintenanceor adjustment should
be performed by Makita Authorized or Factory Service Centers, always using Makita
replacement parts.
9

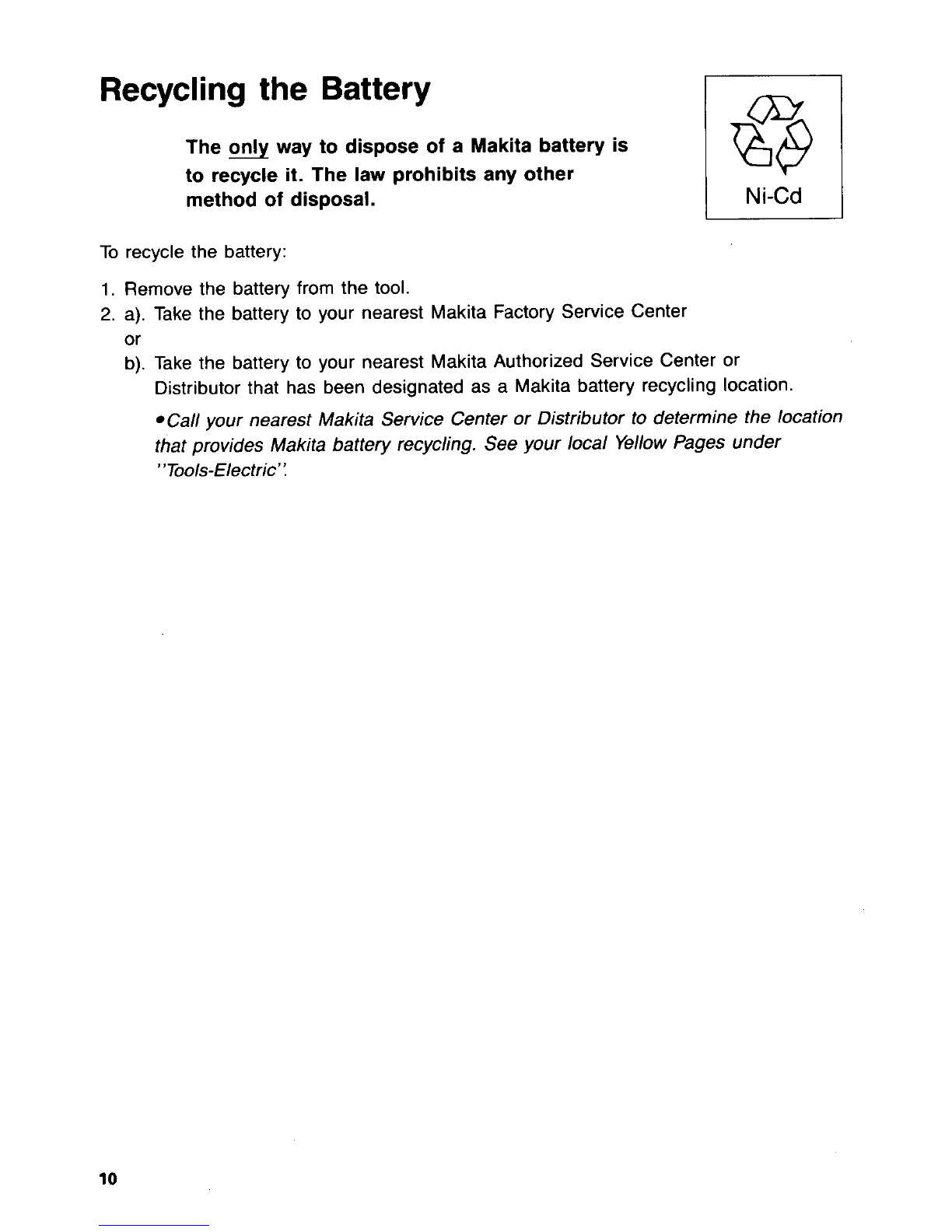

Recycling the Battery
The only way to dispose of a Makita battery is
to recycle it. The law prohibits any other
method
of disposal.
I Ni-Cd I
To recycle the battery:
1. Remove the battery from the tool.
2. a). Take the battery to your nearest Makita Factory Service Center
or
b). Take the battery
to your nearest Makita Authorized Service Center or
Distributor that has been designated as a Makita battery recycling location.
Call your nearest Makita Service Center or Distributor to determine the location
that provides Makita battery recycling. See your local Yellow Pages under
’ ’Tools-Electric’
10

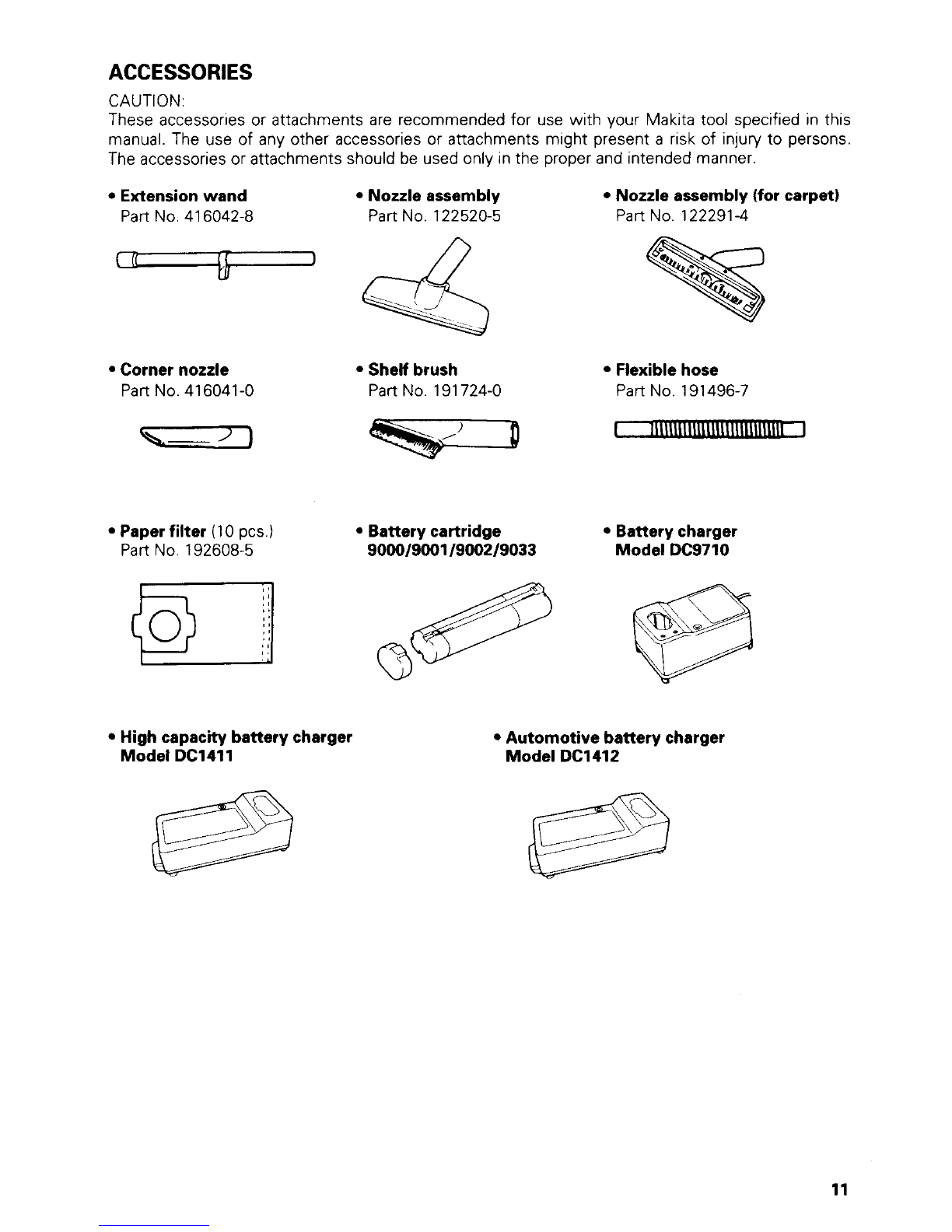

ACCESSORIES
CAUTION
These accessories or attachments are recommendedfor use with your Makita tool specified in this
manual The use of any other accessories or attachments might present a risk of injury to persons
The accessoriesor attachments should be used only inthe proper and intendedmanner
Extensionwand Nozzle assembly
Part No. 122520-5
Part No. 416042-8
..
Corner nozzle
Part No. 416041-0
Paper filter (10 pcs.)
Part No. 192608-5
Shelf brush
Part No. 191724-0
Nozzleassembly (for carpet)
Part No. 122291-4
Flexiblehose
Part No. 191496-7
Battery cartridge Battery charger
9000/900119002/9033 ModelDC9710
High capacitybatterycharger
ModelDC1411 Automotive battery charger
ModelDC1412
11

Dec-09-'99 us

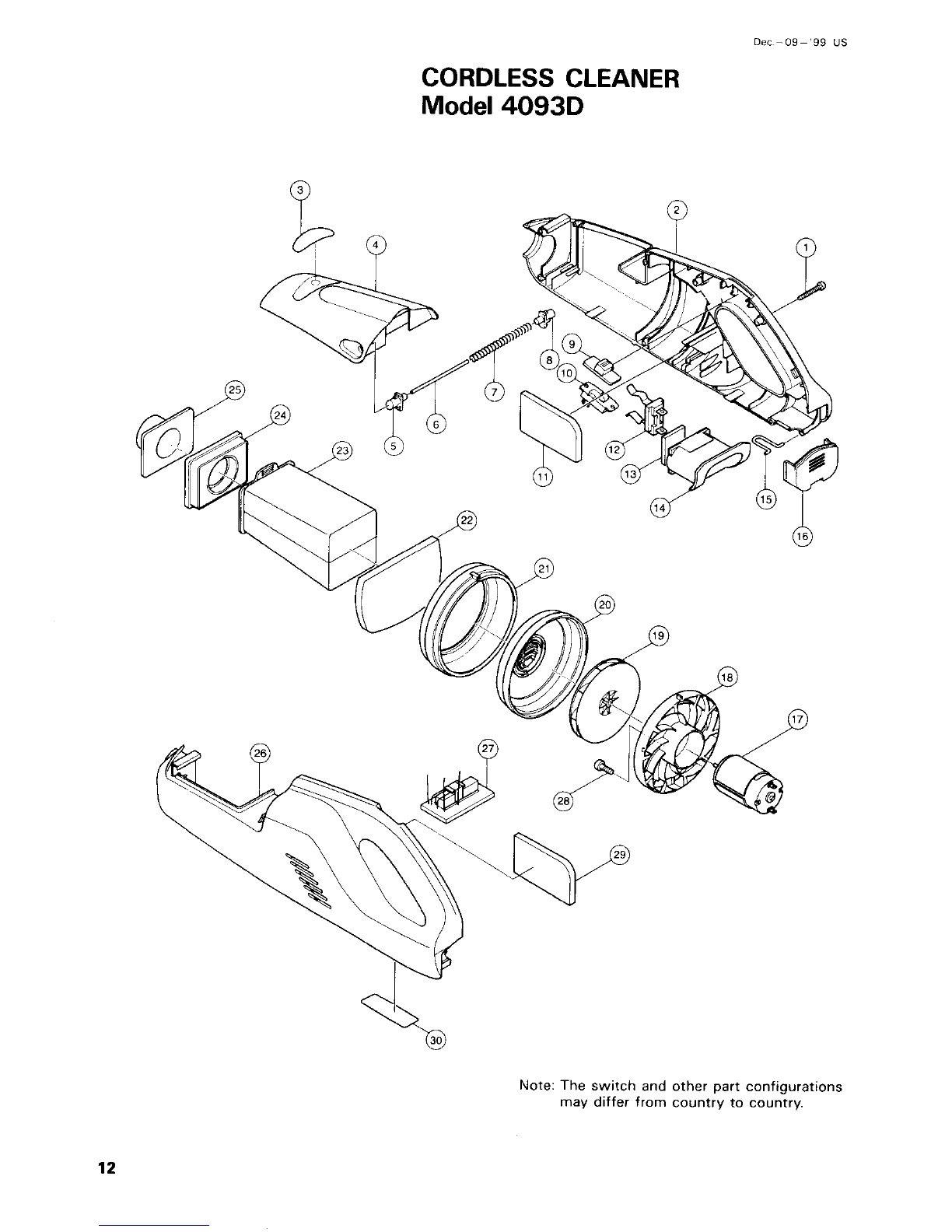

CORDLESS CLEANER
Model 4093D
Note: The switch and other part configurations
may differ from country
to country.
12

MODFL 40930
IF,'," $:D DESCRIPTION
Dec-09- 99 US
'zM & DESCRIPTION
MACHINE
- __
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
1
1
1
1
1
1
I
1
1
1
1
1
Tdpping Screw Pi 3x20
Houslnq Set IWiIh Item 261
Makila Label
Front Cover Complete
Hook
Rod
2 5
Compression Spring 6
Honk
Switch
Lever
Switch
Sponge Sheet 43~ 15
Battery Holder
Sponge 20 ~ 34
Dust
Cover Complete
Hanger
16
11
18
19
20
21
22
23
24
25
26
27
28
29
30
__
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
-
COW,
DC Motor
Baie
Fan 82
Fan Cover
Rubber Ring
Sponge Sheet 70 106
Dusf Bag
Packing
Inlet
Housing Sei [With Item 21
Resistance Circuit
Pan Head
Screw M3x8
Sponge Sheet 43 15
Name Plat?
Note The switch and other part specil$catioris may dtffer from country to country
13

IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USE
OF THE PRODUCT. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THETERM OFTHIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR
A SPECIFIC PURPOSE,”
AFTER THEONE-YEAR TERM OFTHIS WARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state
to state. Some states do not allow theexclusion or limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation
on how long an implied warranty lasts, so the above limitation may not apply to you.

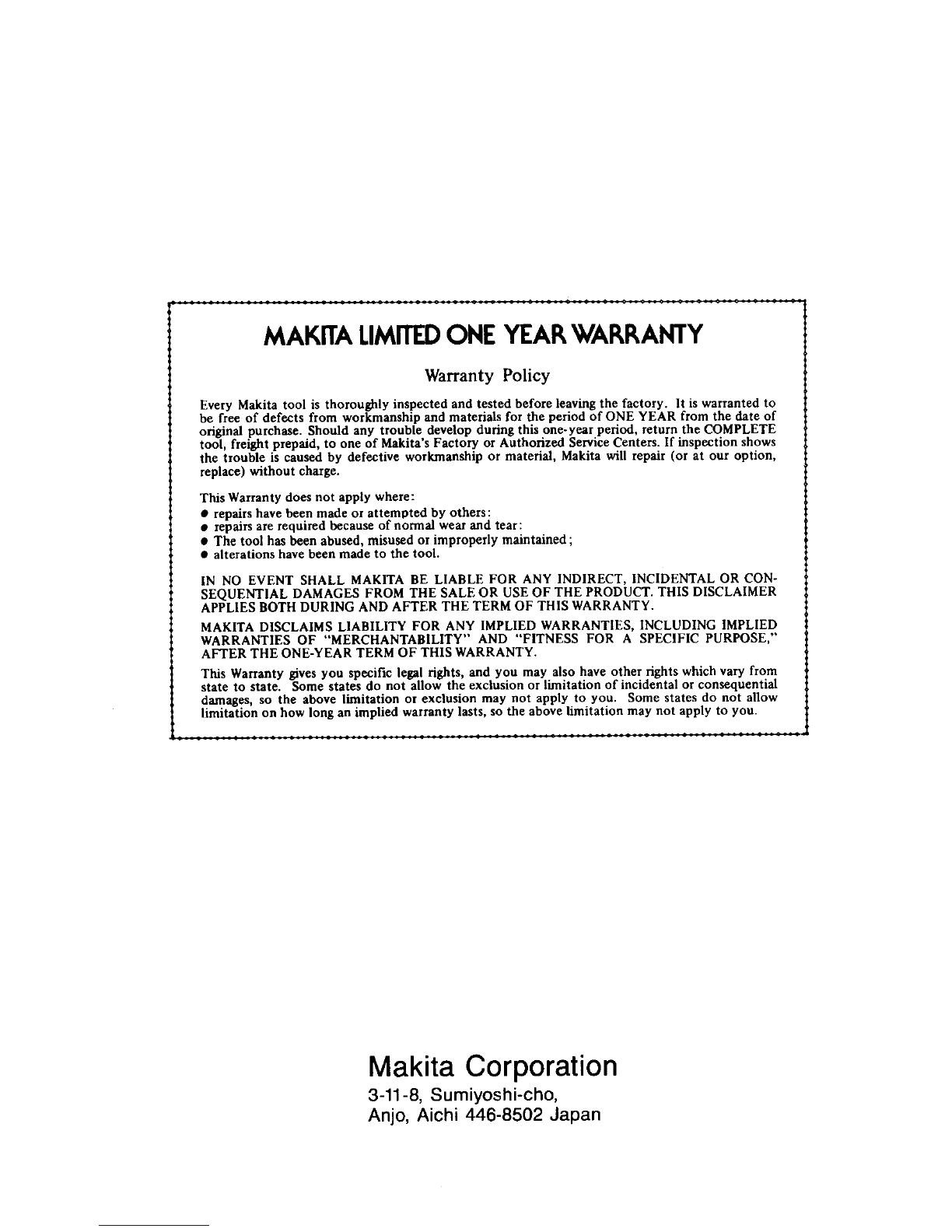

MAKITA LIMrIED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid, to one of Makita’s Factory or Authorized Service Centers. If inspection shows
the trouble is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
ThisWarranty does not apply where:
repairs have been made or attempted by others:
repairs are required because of normal wear and tear:
The tool has been abused, misused or improperly maintained;
alterations have been made to the tool.
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi
446-8502 Japan
