W120-T
USER MANUAL
V.20181010
EN
DE
ES
IT
FR

Contents
1. Important Safety Instructions and Warning...................................................................... 3
1.1 Note.................................................................................................................................3
1.2 Safety Information..........................................................................................................3
1.3 Risk of Electric Shock......................................................................................................4
1.4 Warning ...........................................................................................................................4
2. Product Description & Parameters.................................................................................... 5
2.1 Product Diagram ...........................................................................................................5
2.2 Product Parameters.......................................................................................................6
2.3 What’s in the Package..................................................................................................6
2.4 Remote Control..............................................................................................................6
3. Installation........................................................................................................................... 7
3.1 Assemble the Adapter ..................................................................................................7
3.2 Fix the Safety Rope ........................................................................................................7
3.3 Attach Cleaning Pad ....................................................................................................7
3.4 Connect to Power Supply.............................................................................................8
4. Operate W120-T...................................................................................................................8
4.1 On/Off Button.................................................................................................................8
4.2 Start Your W120-T.............................................................................................................8
4.3 Stop/Pause......................................................................................................................8
4.4 Use of Remote Control ..................................................................................................8
4.5 Take off W120-T after Cleaning.....................................................................................9
4.6 Use APP on Your Smartphone.......................................................................................9
5. Maintenance ...................................................................................................................... 9
5.1 Cleaning Pad Maintenance.........................................................................................9
5.2 Fan Maintenance ..........................................................................................................9
5.3 Edge Sensors Maintenance..........................................................................................9
5.4 Driving Treads Maintenance.........................................................................................9
6. Troubleshooting ................................................................................................................ 10
7. Disclaimer ......................................................................................................................... 11
8. Product Warranty.............................................................................................................. 11
9. Exclusions.......................................................................................................................... 11
10. The Environment ............................................................................................................... 11
Thanks for purchasing Mamibot W120-T iGLASSBOT robot window cleaner. We wish it brings
you easier and more comfortable experience of home cleaning.

3
1. Important Safety Instructions and Warning
1.1 Note! - Read all documents before using
The appliance is not to be used by children. Persons with reduced physical, sensory or mental capabi-
lities, or lack of experience and knowledge may only use this appliance if they are supervised or have
been given instruction about how to use it safely and understand what risks are involved.
Children should be supervised to ensure they do not play with the robot.
!!! The appliance is for window cleaning with frames (frameless glass / window cleaning is not applica-
ble). Users should judge and use it safely on proper operation sites, and be responsible for all possible
consequences.
1.2 Safety Information
Application of Power Adatper and Batteries
 Use only the power adapter supplied with this device. Use of other type of power adapter will result
in malfunction and / or danger.
 Please use the proper electric outlet and make sure no heavy objects are placed on the power
adapter or power cord.
 Allow adequate ventilation around the adapter when using it to operate the device. Do not cover
the power adapter with objects that will reduce cooling.
Do not use the adapter in a high moisture environment. Never handle the adapter with wet hands.
 Connect the adapter to a proper power source. The voltage requirements are found on the adapter.
 Do not use broken adapter, power cord or plug. The plug must be removed from the receptacle be-
fore cleaning or maintaining the appliance. Do not unplug the power adapter by pulling on the power
cord.
 Do not attempt to service the adapter. There are no service parts inside. Replace the whole unit if it
is damaged or exposed to high moisture. Consult your Mamibot dealer for help and maintenance.
 The battery used in this device may present a risk of re or chemical burn if mistreated. Do not disas-
semble, short contact, heat above 60 °C (140 °F), or incinerate.
 If you have to dispose of this old equipment, please take it to the local recycling center for recycling
electrical and electronic parts.
 Retain the safety and operating instructions for future reference.
 Follow all operating and use instructions.
 Do not expose your device to rain or excess humidity, and keep it away from liquids (such as bevera-
ges, faucets, and so on).
 Avoid exposing your device to direct sunlight or intense light source, and keep it away from heat
source (such as radiators, space heaters, stoves, and so on).
 Do not place the device in the vicinity of strong magnetic elds.
 Keep the device and accessories away from children.
 Product operating temperature: 0 °C ~ 40 °C (32 °F ~ 104 °F).
 Don’t use it on cracked glass or to clean other surface with uneven area as it may fall off due to
insufcient suction power.
 The back-up battery must be replaced by the manufacturer or its service agent in order to avoid a
hazard. The back-up battery must be removed and discarded according to local laws and regulations
before disposal of the appliance. Please dispose of used batteries according to local laws and regula-
tions.
 The appliance must be disconnected from the receptacle before removing the battery for disposal
of the appliance.
 The appliance must be used in accordance with the directions in this instruction manual. Product
manufacturer cannot be held liable or responsible for any damages or injuries caused by improper use.

4
1. Important Safety Instructions and Warning
1.3 Risk of Electric Shock!
Always switch the device off before carrying out any cleaning or maintenance work.
Never pull the power plug out of the socket by the power cord; instead, pull it out by the power
plug itself.
Never perform repairs on your device yourself. Repairs to electric devices may only be carried out by
authorized customer service center.
Do not insert any pointed objects into the electric contacts.
Do not change the contacts.
Do not continue to operate the robot if the device itself or the power cord is damaged.
Contact your local customer service in the event of damage.
Do not clean the robot, the power cable in water or other liquids.
Do not use the robot on damp ground or in places in which it can get into contact with liquids or be
immersed in water.
Make sure that you do not damage, bend or twist the power cord. Do not place any heavy
1.4 Warning
1.
2. Check if the safety rope is broken or the knot is loose before operating the device.
3. Set danger-warning area downstairs for no-balcony window and door.
4. Battery shall be full-charged (Orange lamp ON) before using.
5. Do not use it on rainy or moist days.
6. Turn power on before you put device onto glass.
7. Make sure the device can stick and stand on glass surface while put onto glass.
8. Before turn power off, please hold the device.
9. Do not use it on frameless glass.
10. Make sure to put the cleaning pad on the bottom of the device correctly for no leakage.
11. Do not spray or pour water onto the device.
12. Prohibit children from using this device.
13.
slightly scratched due to dirt on the glass while operating.
14.
15.
Scan QR Code for APP downloading from here
iOS System:
Requires iOS 7.0 or later. Compatible with iPhone
iPad, and iPod touch.
Android System:
Requires Android 4.3 or later, blueteeth 4.0 or later.
Notes:
Make sure the W120-T is switched on before connecting;
If it is not connected succesful, turn off the APP from
device background, try again later.
Android System iOS System

5
2. Product Description & Parameters
2.1 Product Diagram
Edge Detection
Sensor Driving Treads
Bottom Status
Indicator Light Fan
Velcro
W120-T
iGLASSBOT ROBOT WINDOW CLEANER
Buzzer
Indicator Light
Power Cord
On/Off Button
Start/Pause Button
Red: Alarm
Blue: Normal
Orange: Charing
Green: Fully charged
Safety Lock Hole
Indicator Light of Safety Lock Hole
Red: Safety Lock not in function
Green: Safety Lock in function, ready for using

6
2. Product Description & Parameters
2.2 Product Parameters
About The Robot
Model No. W120-T Rated Voltage 24 V DC
Rated Power 75 W Noise Level About 65 dB
Battery Capacity 600 mAh Charging Time About 1 h
Dimension 25 x 25 x 10 cm Net Weight 1.35 kgs
Cleaning Speed About 2.5 min / m²
Adapter
Input AC 100-240 V
50 / 60Hz 2.0 A Output 24 V / 3.75 A
2.3 What‘s in the Package?
User
Manual
2.4 Remote Control
ZAutomatically “Z”
Type Cleaning Manual Move UP
NAutomatically “N”
Type Cleaning Manual Move Down
Z|N From “Z” to “N” Cleaning Manual Move Right
ANo Use Yet Manual Move Left
BNo Use Yet Start Cleaning
Choose “Z” or “N” type automatically
STOP Stop Cleaning Stop / Restart
It is 2.4 G wireless remote control, which can control your robot within maximum 15 meters away from
any direction.
W120-T
Extension Cable
Adapter
Cleaning Pads
User Manual
Cleaning Solution
Remote Control
Safety Rope
W120-T
iGLASSBOTROBOT WINDOW CLEANER

7

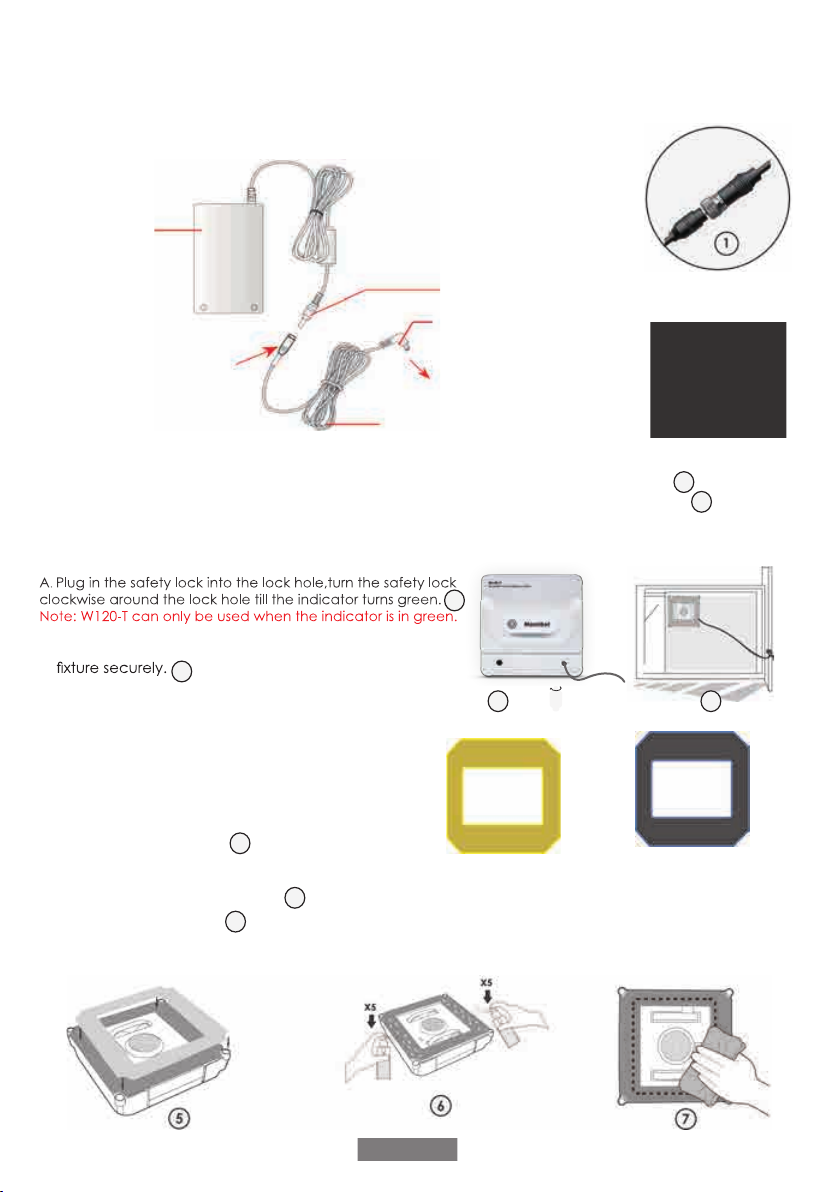

3. Installation
3.1 Assemble the Adapter
Power Adapter
L-shape connector (End C)
DC plug (End A)
extension cable
connector (End B)Plug into DC power jack
DE extension cable
Yellow Cleaning
Pad for glass with
heavy dirt / dry
cleaning
Gray Cleaning
Pad for glass with
light dirt / wet
cleaning
A. Connect DC plug (End A) of Power Adapter with extension cable (End B), as above. 1
B. Connect End C to the robot power socket, screw the connector until it’s tightly locked. 2
3.2 Fix the Safety Rope
3
B. Tie the other end of the rope to indoor
4
3.3 Attach Cleaning Pad
A. Choose the proper cleaning pad for your
window.
B. Attach the cleaning pad to W120-T bottom
properly,the pad should not cover driving
treads or edge sensors. 5
C. Spray 5 times of cleaning solution to the
upper and lower side of W120-T, 6wipe the
bottom after spraying. 7
3 4
Safety Lock

8
3. Installation

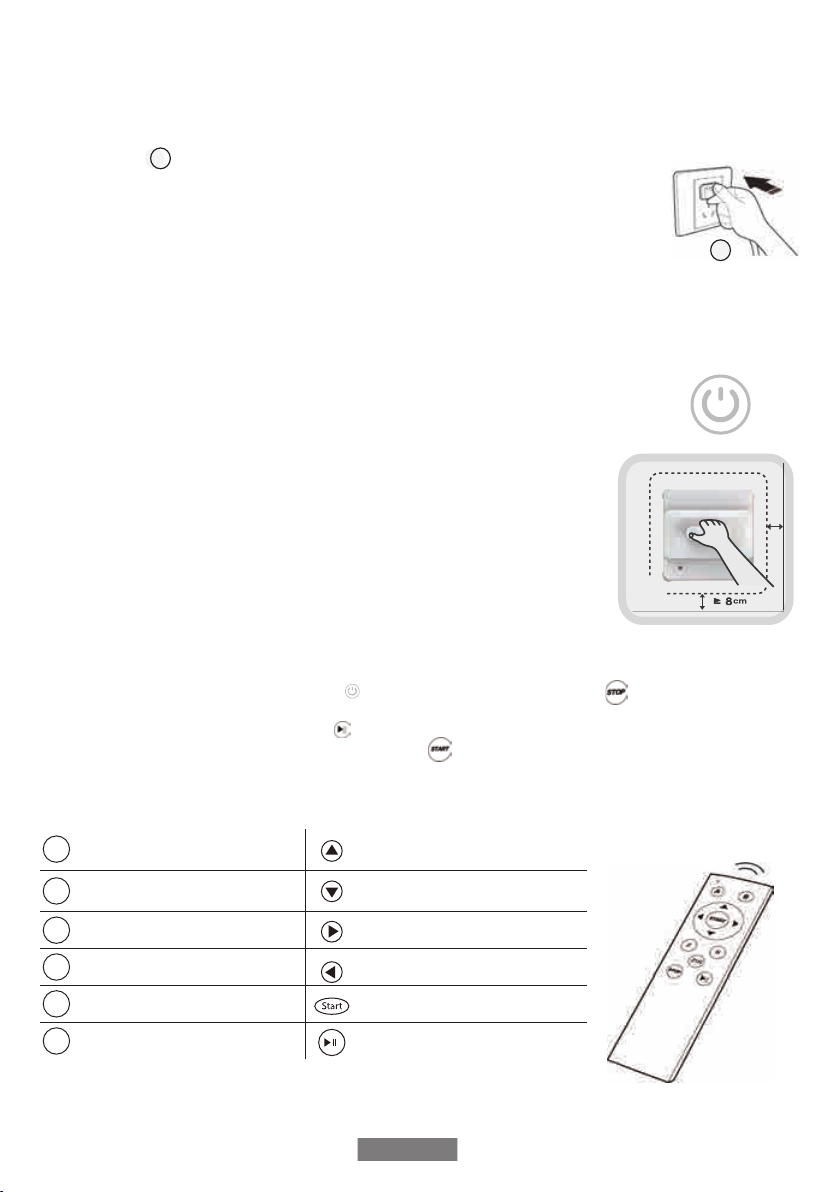

3.4 Connect to Power Supply
Plug in W120-T.
Important Notes:
Be sure your W120-T is always connected to AC power supply while working. Don’t
use it if the backup battery is lack of power, use it after full charging. Take off your
W120-T asap, if the power supply is cut or unplugged accidently.
4. Operate W120-T
4.1 On/Off Button
A. Power On/Off button - Press for 2 seconds to turn on/off your W120-T.
B. Press the On/Off button once to start or stop the W120-T when it is placed on
window.
4.2 Start Your W120-T
A. Press the On/Off button for 2 secondes to turn on your W120.
B. Place your W120-T on glass, press again the On/Off button to start.
C. You can also start it from your remote control “START” button.
Caution: Before starting, make sure the edge of W120-T is 8 cm or more away
from window frames or corners.
4.3 Stop/Pause
A. When W120-T is cleaning, press On/Off button on the device or the Stop button on
remote control to stop it.
B. When W120-T is cleaning, press Pause button on remote control to pause/restart it.
C. You can also start it from your remote control Start button.
4.4 Use of Remote Control
ZAutomatically “Z”
Type Cleaning Manual Move UP
NAutomatically “N”
Type Cleaning Manual Move Down
Z|N From “Z” to “N” Cleaning Manual Move Right
ANo Use Yet Manual Move Left
BNo Use Yet Start Cleaning
Choose “Z” or “N” type automatically
STOP Stop Cleaning Stop / Restart
8
8

9
4. Operate W120-T

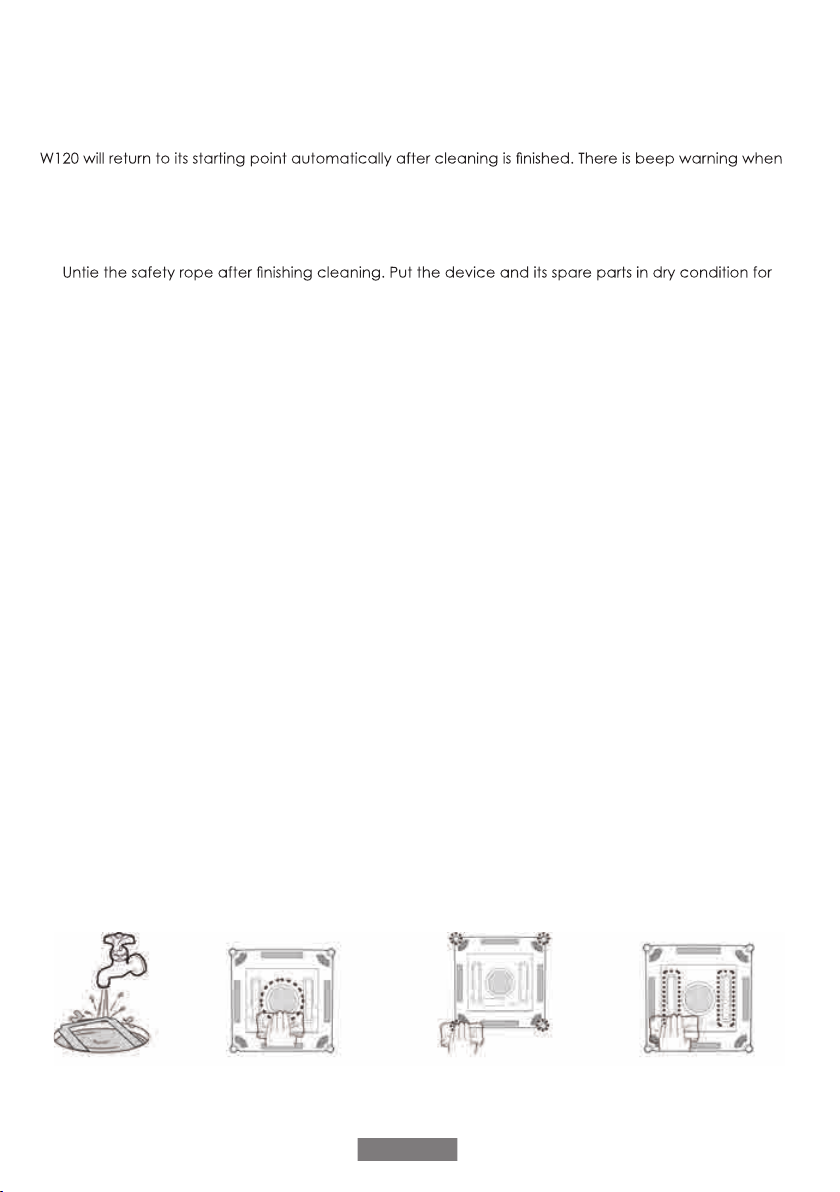

4.5 Take off W120-T after cleaning
cleaning is completed.
A. Use remote control to move your W120-T to a reachable location;
B. Press On/Off Button for 2 seconds to switch it off;
C. Grasp the handle and take it off from the window;
D.
future use.
4.6 Use APP on Your Smartphone
A. Download App for your iOS/Android device (refer to page 2 to scan and download, or search for
“iGlassbot” in your Appstore or googleplay).
B. Turn on BLUETOOTH on your cellphone, and open iGLASSBOT APP on your phone.
C. Click the BLUETOOTH ICON on your iGLASSBOT interface to search device, and connect your W120-T
with your phone, you can control it through cellphone now.
5. Maintenance
5.1 Cleaning Pad Maintenance
Put your W120-T up-side-down, take off the cleaning pad and put it into cold water, wash the
cleaning pad with detergent and dry it for reuse.
Note: wet cleaning pad is not suggested to be used as it may get your robot stuck when
cleaning glass with heavy dirt.
5.2. Fan Maintenance
Put your W120-T up side-down, use a clean and dry cloth to wipe out dirt/debris on the fan.
5.3 Edge Sensors Maintenance
Put your W120-T up side-down, use a clean and dry cloth to wipe out dirt/debris of the sensors.
5.4 Driving Treads Maintenance
Put your W120-T up side-down, use a clean and dry cloth to wipe out dirt/debris on it.
Wash
Cleaning Pad
Clean Fan Clean Edge
Sensors
Clean Driving
Treads

10
6. Troubleshooting
Malfunction Possible Causes Solutions
The device gets
slippery or works in
irregular patterns.
A. Glass is too dirty or
too wet.
B. Cleaning pad is too
dirty or too wet.
A. Change cleaning pad.
B. Clean the driving treads.
C. Use remote control to manually restart it.
power. power.
A. Check if the cleaning pad is attached properly,
replace it correctly.
B. Check if there is any crack on the glass.
C. Check if the glass frames are with uneven area/
rubber part. If there is uneven area or uneven
rubber part on the glass, use remote control
to operate the device manually and keep the
W120-T away from the uneven area / uneven
rubber part when cleaning.
The devices can’t be
started after switched
on, or works in irregular
patterns.
Edge detection sensor
abnormal.
A. Remove the cleaning pad and reattach it ma-
king sure it is placed exactly within its velcro area
and does not cover the edge detection sensors.
B. Open APP on your phone, connect it with the
corners of APP interface (Red indications on the
APP interface means the edge sensor is malfunc-
tioned).
C. Edge detection sensors failure, contact after-sa-
les service.
Red indicator light
once/second
Improper connection of
Power Supply.
Check if the plug is connected well, or the screws of
the extension cables are placed tight.
Both Red and Blue Hardware failure. Contact after-sales service.
Remote control does
not work.
A. No battery inside
or battery has low
power.
B. Remote control is
broken.
A. Change the battery.
B. Replace the remote control with new one.
The device got stuck
on glass frames.
Edge-detection misjud-
gement.
A. Press STOP on remote control, move the device
B. Pull the robot lightly to reachable location if you
can’t remote control it.
Both Red and Blue
Light on, no beeps.
The device is not sucking
properly on window.
Put the device on window surface manually, make
sure it sucks on the window properly.
Buzzer beeps twice
when it’s in use.
Edge sensor detects
frameless glass.
It’s normal, if it is cleaning frameless glass.
Squeaky sound when
it’s in use.
Glass is too dry or edge
detection sensors are
too dirty.
A. Spray a little bit of water on the cleaning cloth.
B. Clean the edge detection sensors and operate
again.
The device doesn’t
return to Starting Point
after cleaning.
The glass surface’s fricti-
on index is different.
Use remote control to direct the device return to
reachable location.

11
7. Disclaimer
The manufacturer makes no representations or warranties, either expressed or implied, with respect to
-
lar purpose.
Further, the manufacturer reserves the right to revise this publication and to make changes from time to
time in the contents hereof without obligation of this company to notify and person of such revision or
changes.
The place and safety of this glass cleaning tool usage must be judged and responsible by user. But also
need to follow the instructions in this user manual.
8. Product Warranty
If there are defects in your W120-T glass-cleaning robot due to faulty materials, workmanship or function
within warranty period from the date of purchase or delivery, please contact your local retailers or local
authorized dealers for repair or replacement.
9. Exclusions
This warranty will automatically become null and void and shall not be applicable to any purchased
products if:
Normal wear and tear (e.g. cleaning cloth, safety rope, etc).
Reduction in battery discharge time due to battery age or use.
Damage caused by assembling or installing that not in accordance with the instructions of
manufacturer.
Damage caused by using the glass-cleaning robot for any other purposes than normal domestic
household.
Damage caused by accident, abuse or misuse.
10. The Environment
The symbol on this appliance indicates that this appliance may not be treated as household waste.
Instead it must be handed over to the applicable collection point for the recycling of electrical and
electronic equipment. Disposal must be carried out in accordance with local environmental regula-
tions for waste disposal. For more detailed information about treatment, recovery and recycling of this
where you purchased the appliance.
This appliance complies with the European Directives 2014/30/EU, 2014/35/EU, and 2014/53/EU.
Subject to change without notice.
Mamibot Manufacturing USA Inc.
Orange Street #600, New Castle, Wilmington, Delaware, USA 19899
www.mamibot.com, [email protected], 001 302 428 9888
Manufacturer: Mamibot Manufacturing (Shanghai) Co.Ltd
North 21th, No.1 Building, LN1040 Caoyang Rd, Shanghai, P.R.C.
