1D Mini Ring Barcode Scanner
User Manual
Model 178938
manhattanproducts.com

1D Mini Ring Barcode Scanner—178938 User Manual
2
Before You Begin
Read through this manual carefully before using the product and operate it according to the manual.
Keep it in an easily accessible location for future reference.
Do not disassemble the device or remove the seal label from the device. Doing so will void the
Manhattan product warranty.
All pictures in this manual are for reference only. The actual product may differ. Manhattan reserves the
right to make changes to any software or hardware to improve reliability, function, or design at any time
without notice. The information contained herein is subject to change without prior notice.
No user, corporation or individual, shall duplicate, in whole or in part, distribute, modify, decompile,
disassemble, decode, reverse engineer, rent, transfer or sublicense such software without prior written
consent from the copyright holders.
This manual is copyrighted. No part of this publication may be reproduced, distributed or used in any
form without written permission from Manhattan Products.
Version History
Version Description Date
V1.0 Initial Release June 18, 2016

1D Mini Ring Barcode Scanner—178938 User Manual
3
TABLE OF CONTENTS
CHAPTER 1: GETTING STARTED.............................................................................................................................4
INTRODUCTION ................................................................................................................................................................. 4
FEATURES ........................................................................................................................................................................ 4
BARCODE OVERVIEW AND SCANNING PROCEDURE ................................................................................................................. 4
CHAPTER 2: SCANNER PARAMETERS.....................................................................................................................5
PHYSICAL PARAMETERS ...................................................................................................................................................... 5
PERFORMANCE PARAMETERS .............................................................................................................................................. 5
DEPTH OF FIELD ................................................................................................................................................................ 6
USER ENVIRONMENT ......................................................................................................................................................... 6
SERIAL PARAMETERS (FOR SERIAL CONNECTION).................................................................................................................... 6
Baud Rate ................................................................................................................................................................. 6
CHAPTER 3: WIRELESS SETTINGS ..........................................................................................................................7
BLUETOOTH BARCODE SCANNER PAIRING ............................................................................................................................. 7
BLUETOOTH MODES .......................................................................................................................................................... 7
FUNCTIONAL MODES ......................................................................................................................................................... 8
Normal Mode ........................................................................................................................................................... 8
Offline Mode............................................................................................................................................................. 8
Inventory Mode ........................................................................................................................................................ 8
Power Off.................................................................................................................................................................. 9
STAND-BY TIME ................................................................................................................................................................ 9
CHAPTER 4: SYMBOLOGIES................................................................................................................................. 10
SET DEFAULT PARAMETER ................................................................................................................................................ 10
UPC/EAN.................................................................................................................................................................10
Code 128.................................................................................................................................................................12
Code 39................................................................................................................................................................... 13
Code 32 Prefix......................................................................................................................................................... 13
Code 93................................................................................................................................................................... 14
Code 11................................................................................................................................................................... 14
Interleaved 2 of 5.................................................................................................................................................... 14
Discrete 2 of 5......................................................................................................................................................... 14
Codabar .................................................................................................................................................................. 15
MSI..........................................................................................................................................................................15
RSS .......................................................................................................................................................................... 15
CHAPTER 5: CUSTOMIZED DATA INCLUSION ....................................................................................................... 16
INTRODUCTION ...............................................................................................................................................................16
Prefix/Suffix Values ................................................................................................................................................16
NUMERIC BAR CODES ......................................................................................................................................................17
APPENDIX.......................................................................................................................................................... 19
CHARACTER EQUIVALENTS ................................................................................................................................................ 19
ADDITIONAL INFORMATION............................................................................................................................... 24

1D Mini Ring Barcode Scanner—178938 User Manual
4
Chapter 1: Getting Started
Introduction
The Manhattan 1D Mini Ring Barcode Scanner is a productivity tool that is easy to wear and use. It
combines Bluetooth wireless connectivity with hands-free usability and a range of scanning options. This
wearable tech barcode scanner can read almost all 1D barcodes and features enhanced, efficient LED
illumination.
Reading paper and commodity codes, the Bluetooth ring scanner reliably transmits barcode data from
up to 60 feet away. Operators can efficiently, safely and comfortably complete barcode-reading tasks —
all while keeping both hands free. The scanner can be connected with nearly all smart phones, PCs,
tablets, laptops and computers.
Features
•Wireless Bluetooth communication: supports mainstream Android and IOS systems, PCs, tablets,
laptops, and computers
•Automatic reconnection when offline
•Low physical volume for easy carrying or wearing
•Stable and safe data reservation, supporting HID and SPP mode
•Low power consumption
Applications
•Manufacture
•Health-care
•Supermarket
•Retail
•Industrial and logistics
Barcode Overview and Scanning Procedure
Manual Introduction
Manual scanning mode:
1. Press and hold the trigger button; the red light activates.
2. Position the center of the codes under the light, and move the scanner between the codes to find
the best scanning distance.
3. Decoding (reading) is complete when the buzzer sounds and the lights turn off. Codes are
transmitted to the host.
Note: Increase scanning success by finding and maintaining the right reading distance from the same
types of barcodes.

1D Mini Ring Barcode Scanner User Manual
5
Chapter 2: Scanner Parameters
Physical Parameters
Physical Parameter
Value
Device weight < 35 g / 1.2 oz.
Device Size 52.8 (L) x 36 (W) x 28.6 (H) mm / 2.1 (L) x 1.4 (W) x 1.1 (H) in.
Material ABS
Color Black
Cable length 0.8 m / 2.6 ft. (for charging)
Power Adapter Output: 5 VDC, 1A; Input: 100 ~ 240 VAC, 50 ~ 60 Hz
Performance Parameters
Performance Parameter Value
Light Source Visible 650 nm laser light
Laser Level National Class II
Resolution ≥ 0.076 mm (0.003 in.) at PCS 90%
Depth of Field 2 – 50 cm (0.8 – 19.7 in.)
Scan Speed 270 times/sec
Scanning Mode Trigger button
Promote Mode Buzzer, LED indicator
Scan Angle Roll: ± 30°, Pitch: ± 65°, Yaw: ± 60°
Transmission Distance 30 m (98 ft.)
Battery Capacity 400 mA
Current 75 mA (Work)
Transmission Type Bluetooth 3.0
Print Contrast ≥ 25%
Ambient illumination 5000 Lux max.
Decode Capability
UPC/EAN/JAN, UPC/EAN with Supplementals, UCC/EAN 128, Code
39, MSI, Code 11, Code 39 Full ASCII, Code 39, Code 128, Codabar,
Code 93, RSS, Codabar, Chinese 2 of 5, Inteleaved 2 of 5,
Interleaved 2 of 5, etc.

1D Mini Ring Barcode Scanner User Manual
6
Depth of Field
Range of decoding
Type of Code
Code Dimension
Nearest
Farthest
Code 39 0.076 mm (0.003 in.) 40 mm (1.6 in.) 90 mm (3.5 in.)
Code 39 0.1 mm (0.004 in.) 30 mm (1.2 in.) 120 mm (4.7 in.)
Code 39 0.127 mm (0.005 in.) 30 mm (1.2 in.) 150 mm (5.9 in.)
Code 39 0.5 mm (0.2 in.) 20 mm (0.8 in.) 400 mm (15.7 in.)
Code 39 1 mm (0.04 in.) 100 mm (3.9 in.) 500 mm (19.7 in.)
EAN/UPC 0.33 mm (0.013 in.) 20 mm (0.8 in.) 300 mm (11.8 in.)
Test condition: 25°C (77°F) indoor; ambient illumination: 200 Lux, PCS = 0.9
User Environment
User Environment Value
Operating Temperature 0 to 50°C (32 – 122°F)
Storage Temperature -40 to 60°C (-40 – 140°F)
Relative Humidity 5% to 95% (non-condensing)
IP Level IP42
Temperature Test 1.5 m (4.9 ft.)
Highest Temp 30 minutes for high temp., 30 minutes for low temp.
Lowest Temp 60°C (140°F)
Drop Test -20°C (-4°F)
Shock Resistance 10 H at 125 RPM
Serial Parameters (for Serial Connection)
Baud Rate
Baud rate is the number of bits of data transmitted per second. The scanner's baud rate setting should
match the data rate setting of the host device. If not, data may not reach the host device or may reach
it in distorted form.
Baud Rate 4800* Baud Rate 9600
Baud Rate 19200 Baud Rate 38400

1D Mini Ring Barcode Scanner User Manual
7
Chapter 3: Wireless Settings
Bluetooth Barcode Scanner Pairing
The Manhattan Wireless 1D Mini Ring Barcode Scanner can be connected to PCs, mobile phones and
other devices according to the user's needs. Scan the programming barcodes on the next page to
configure the scanner.

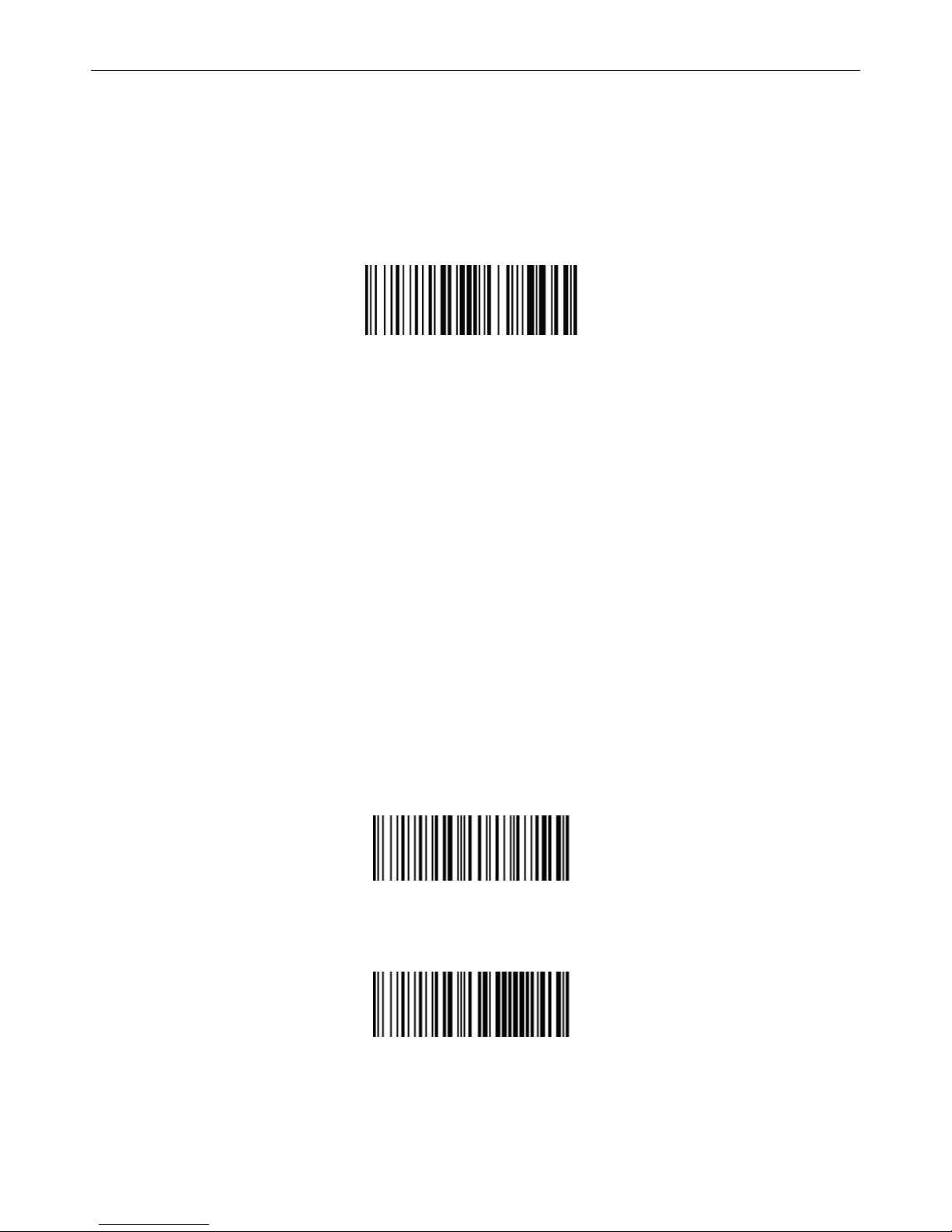

EZ Pair
One-key pairing
Pairing the Barcode Scanner
1. Push the trigger on the scanner for at least eight seconds to turn it on and enter Pairing Mode. Scan the above
code for easy pairing. The blue indicator LED flashes.
♣If your computer or device does not support Bluetooth technology, insert the Bluetooth USB dongle
into an available port on that device.
2. Open the Bluetooth app on your computer or device; begin the process to Add a Device by searching for
devices.
3. Find "General Bluetooth HID Barcode Scanner" from the available devices list. Double- or single-click the link to
install the driver.
4. A short beep will sound to confirm the device is paired.
5. The blue LED will remain lit to confirm that pairing is complete.
Bluetooth Modes
The Manhattan Wireless 1D Mini Ring Barcode Scanner allows users to choose from two different modes.
HID mode outputs text directly into receptive fields on a computer or mobile device. SPP mode outputs
data through serial port simulation mode (requires serial software tools to receive data).
%%BT_HID
HID MODE*
%%BT_SPP
SPP MODE

1D Mini Ring Barcode Scanner User Manual
8
Functional Modes
Normal Mode
Transmits barcode data to the computer/device in real time.
%%ALLPT-SET
Normal Mode
Offline Mode
Uploads data normally if user is in range of computer/device; stores data if out of range for upload
once back in range.
%%ALLAEM-SET
Offline Mode
Inventory Mode
Retains all scanned barcode data for later upload to a host computer/device.
%%ALLMEM-SET
Inventory Mode
Data Upload
Uploads scanned and retained data to the computer/device.
%%ALLMEM-SC
Data Upload
Total Quantity of Data
Reports the number of barcode data stored in the scanner.
%%ALLMEM-ZS
Total Quantity of Data
Data Elimination
Clears all scanned data from the scanner.
%%ALLMEM-QC
Data Elimination

1D Mini Ring Barcode Scanner User Manual
9
Power Off
Turns off the scanner immediately.
%%POWEROFF
Power Off
Stand-by Time
The default standby time for this wireless scanner is 20 seconds. Use the programming codes below to
set a different standby time. Begin by scanning the "Start Setting" code. Then, scan the corresponding
time-programming code.
%%ALLTIMSET %%ALLTIM00
Start Setting 20s*
%%ALLTIM01
30s
%%ALLTIM02
60s
%%ALLTIM03
2mins
%%ALLTIM04
5mins
ALLTIM05
10mins %%ALLTIM06
20mins

1D Mini Ring Barcode Scanner User Manual
10
Chapter 4: Symbologies
Set Default Parameter
The Ring Barcode Scanner can be reset to two types of defaults: factory defaults or custom defaults. Scan the
appropriate barcode below to reset the scanner to its default settings and/or set the scanner’s current settings as
the custom default.
Restore Defaults — Scan this bar code to reset all default parameters.
*Restore Defaults
UPC/EAN
Enable/Disable UPC-A
To enable or disable UPC-A, scan the appropriate bar code below.
*Enable UPC-A Disable UPC-A
Transmit UPC-A Check Digit
Scan the appropriate bar code below to transmit the symbol with or without the UPC-A check digit.
*Transmit UPC-A Check Digit Do Not Transmit UPC-A Check Digit
UPC-A Preamble
Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-A symbol.
Select one of the following options for transmitting UPC-A preamble to the host device: transmit system
character only, transmit system character and country code (“0” for USA), or transmit no preamble.
No Preamble *System Character
(<DATA>) (<SYSTEM CHARACTER> <DATA>)
System Character & Country Code
(< COUNTRY CODE> <SYSTEM CHARACTER> <DATA>)
