Mantis MR991 Operation instructions

Via Artigianale Croce n.13 - 42035 Castelnovo ne’ Monti (RE) - ITALY
Tel. [phone] - Tel./Fax [phone]
www.mantisitalia.it - Resp.Tecnico: [email protected]
Integrated treatment system with endodermic massage
and application of pulsed magnetic fields with stochastic resonance
MR991
Use and Maintenance Instructions
The manual must be kept in a safe place for the entire life of the machine. Please read carefully the
manual before operating any part of the equipment
Includes CE Certificate of Conformity

INDEX
DECLARATION OF CONFORMITY CE ........................................................................ 4
1 GENERAL INFORMATION ................................................................................. 5
1.1 Equipment description.................................................................................... 5
1.2 Definitions and symbols used in the manual ................................................ 5
2 SCOPE.................................................................................................................. 6
2.1 Intended use................................................................................................... 6
2.2 Reasonably foreseeable misuse .................................................................. 6
3 TECHNICAL DATA ................................................................................................ 8
4 EQUIPMENT DESCRIPTION .............................................................................. 9
4.1 Equipment ...................................................................................................... 9
4.2 Handpieces ...................................................................................................11
5 GENERAL SAFETY PRECAUTIONS ............................................................... 12
5.1 Instructions ................................................................................................ 12
5.2 Safety devices ............................................................................................. 13
5.3 Pictograms ................................................................................................ 14
6 TRANSPORT AND INSTALLATION .................................................................. 15
6.1 Description of the package and storage...................................................... 15
6.2 Removal of package and content check ................................................... 14
6.3 Transport ................................................................................................... 15
6.4 Installation ................................................................................................... 15
6.4.1 Positioning................................................................................................ 15
6.4.2 Assembly ................................................................................................ 16
6.4.3 Power connection .................................................................................... 17
6.4.4 Connection for telecare (if available) ...................................................... 18
7 COMMISSIONING ............................................................................................. 19
7.1 Equipment functions.................................................................................... 19
7.1.1 Maxi DES handpiece................................................................................. 19
7.1.2 Mini DES handpiece ................................................................................. 19
7.1.3 Maxenergy handpiece .............................................................................. 19
7.1.4 Vixo handpiece.......................................................................................... 19
7.2 Switching on and preparation of the equipment .......................................... 19
7.3 Start a treatment cycle .............................................................................. 22
7.3.1 Background information ........................................................................... 22
7.3.2 First treatment cycle ................................................................................. 22
7.3.3 Function control buttons on the handpieces (see 4.2 Handpieces) ......... 25
7.4 Repeat a treatment cycle ........................................................................... 25
7.5 Interruption of the ongoing treatment ......................................................... 27
7.6 Equipment emergency stop ........................................................................ 27
7.7 Equipment recovery in case of emergency ................................................ 27
7.8 Recovery from power failure ..................................................................... 27
8 EQUIPMENT MAINTENANCE........................................................................... 28
8.1 Routine maintenance .............................................................................. 28
8.1.1 Cleaning and disinfection of the handpieces .......................................... 28
8.1.2 Equipment cleaning ................................................................................. 28
8.1.3 Vacuum filters cleaning and cartridge replacement ................................. 29
2

3
9 ACCESSORIES AND OPTIONAL ITEMS ......................................................... 30
9.1 Accessories ............................................................................................. 30
9.2 Installation of accessories ........................................................................ 30
9.2.1 Handpiece without PMF system – Code MN50043 ................................. 30
10 EQUIPMENT DECOMISSIONING ..................................................................... 31
11 PROBLEMS AND SOLUTIONS ........................................................................ 31
12 SPARE PARTS................................................................................................... 32
13 GENERAL WARRANTY TERMS AND CONDITIONS ....................................... 33

DECLARATION OF CONFORMITY
MANTIS S.R.L.
Via Artigianale Croce n.13 - 42035 Castelnovo ne’ Monti (RE) - ITALY
Tel. [phone] - Tel./Fax [phone]
www.mantisitalia.it - Resp.Tecnico: [email protected]
declares under its sole responsibility that the equipment
Type: Integrated treatment system with endodermic massage and application
of pulsed magnetic fields with stochastic resonance
Model: MR991
Serial number: ................................
Year of manufacture: ................
complies with all relevant provisions of:
Directive 2001/95/EC and subsequent amendments and additions;
Legislative Decree no. 110 of 12 May 2011 and subsequent amendments;
also complies with the following directives:
- 2004/108/CE Electromagnetic compatibility
- 2006/95/CE Low voltage
complies with the following regulations:
- CEI 62-39 Electrical equipment for the beauty industry - General safety guide
- CEI EN 60601-1 third edition and subsequent amendments
Electromedical equipment Part 1: General requirements for basic safety
and essential performance
The manufacturer also declares that the technical construction file is kept at: MANTIS S.R.L. Via
Artigianale Croce 13 - 42035 Castelnovo ne’ Monti (RE) - Italy
Castelnovo ne’ Monti (RE), ........
Cristian Rossi
Technical Manager
Mantis S.r.l.
4

5
1 GENERAL INFORMATION
1.1 Equipment description
MR991 is a machine intended for beauty operators and designed to improve body and face
appearance.
The MR991 system combines two technologies which can be easily programmed by the operator:
- the MRM (mechanical manipulation with motorised rollers) which carries out an endodermic
massage thanks to the mechanical movement of rollers and the microsuction.
- the CMPS SYSTEM (pulsed magnetic fields with stochastic resonance). Tests show that parts
treated with CMPS have a greater blood supply than usual, thus leading to a greater oxygen
exchange to the tissue and at the same time draining all toxic and unwanted substances
towards the organs of detoxification and excretion. Thanks to its detoxifying action, which drains
the stagnant liquid in the tissue, the CMPS system is ideal to treat lymphoedema and cellulite.
1.2 Definitions and symbols used in the manual
The manual includes some pictures which have been defined and authorised for use on the
equipment according to different purposes:
Manufacturer: the equipment producer who affixes his own distinctive brand on the equipment
(MANTIS s.r.l.).
Operator: the personnel who operate the equipment and have practical knowledge of its
functioning following a training course providing the relevant qualification issued by the
manufacturer. The operator is also in charge of the cleaning and routine maintenance of the
equipment.
Customer: the person being treated or asking for a treatment.
Technical Assistance: the personnel specifically assigned by the manufacturer for emergency
maintenance and repair services on the equipment.
The following symbols are used in the manual:
Safety requirements
Use and maintenance requirements

2 SCOPE
2.1 Intended use
MR991 is designed for face and body beauty treatment which is carried out with special
handpieces driven by a software that also guides the operator throughout the entire treatment.
A “checkup” form on the Customer’s general state of health is previously filled in to evaluate any
risk factors which could lead to the exclusion of some treatment phases.
Each handpiece is intended for a specific type of treatment, namely:
- MAXI DES (MRM + programmable CMPS SYSTEM): suitable for body treatment on the
recommended areas and following the specified procedure;
- MINI DES (MRM + programmable CMPS SYSTEM): suitable for body treatment on the
recommended areas and following the specified procedure;
- MAXENERGY (CMPS SYSTEM for application of cream treatment): suitable for body treatment
on the recommended areas and following the specified procedure;
- VIXO (programmable CMPS SYSTEM + microsuction): suitable for face treatment on the
recommended areas and following the specified procedure.
2.2 Reasonably foreseeable misuse
MR991 (in any of its functions) should not be used in the following cases:
- People with implantable devices (heart stimulators, internal defibrillators, etc.)
- Treatment on open wounds, eyes, body cavities, nipples and testicles.
MR991 in MRM mode (mechanical manipulation with motorised rollers) should not be used
in the following cases:
- Thrombophlebitis
- Cardiocirculatory insufficiency
- Phlebitis
- Dermatological infections
- Hypertension
- Varicose veins
- Skin cancers (neoplasias)
- Tuberculosis
MR991 in CMPS SYSTEM mode (pulsed magnetic fields with stochastic resonance) should
not be used in the following cases:
- Presence of metal prostheses such as implant screws, staples, nails, clips, etc.
- Heart rhythm disorders
- Dermatitis
- Epilepsy
- Disorders of the autonomic nervous system
- Nervous disorders
- Pregnancy
- Menstrual cycle with heavy bleeding
- Open haemorrhoids and vascular lesions in general
- People with intrauterine devices such as catheter, coil, etc.
- Localised fungal infections
- Fever or disorders of thermoregulation
6

With the exception of the above-mentioned cases, in the following cases MR991 (in any of
its functions) must be used carefully and only with the doctor’s approval:
- Pregnancy
- Asthma
- Tumours (neoplasias)
- Scleropathy
- Lymphopathy
- Mesotherapy
- Psoriasis
- Multiple sclerosis
- Scleroderma
Before starting the treatment, the Customer should be thoroughly informed
about all the treatment contraindications. All fields in the “checkup” form
must be filled in, including date and signature. Make sure that during the
treatment cycle the Customer’s health conditions do not undergo any change,
which could be a contraindication for the treatment.
Under no circumstances should MR991 be used to treat people with
implantable devices (heart stimulators, internal defibrillators, etc.).
Under no circumstances should MR991 be used to treat open wounds, eyes,
body cavities, nipples and testicles.
The Manufacturer will assume no responsibility if maintenance is not carried
out in the manner and within the time prescribed (see par. 8 EQUIPMENT
MAINTENANCE).
The Manufacturer will assume no responsibility in the event of any tampering
or modification to the equipment carried out without the manufacturer’s prior
approval.
7

3 TECHNICAL DATA
8
H
P
L
MR 991
Width (W)
600 mm (23.62 in)
Depth (D)
600 mm (23.62 in)
Height (H)
1,950 mm (76.77 in)
Weight
110 Kg (242 lbs)
Minimum working space required around the
equipment
900 mm (35.43 in)
Power cable length
2.5 m (8.2 ft)
Working length of handpiece tubes
2 m (6.5 ft)
Degree of protection
IP20
Degree of protection against direct and indirect
contact
BF type
Insulation class
1
Power supply
230 V - 2P+E
Frequency
50÷60 Hz
Circuit breaker
10 A
Maximum power consumption
1200 W

4 EQUIPMENT DESCRIPTION

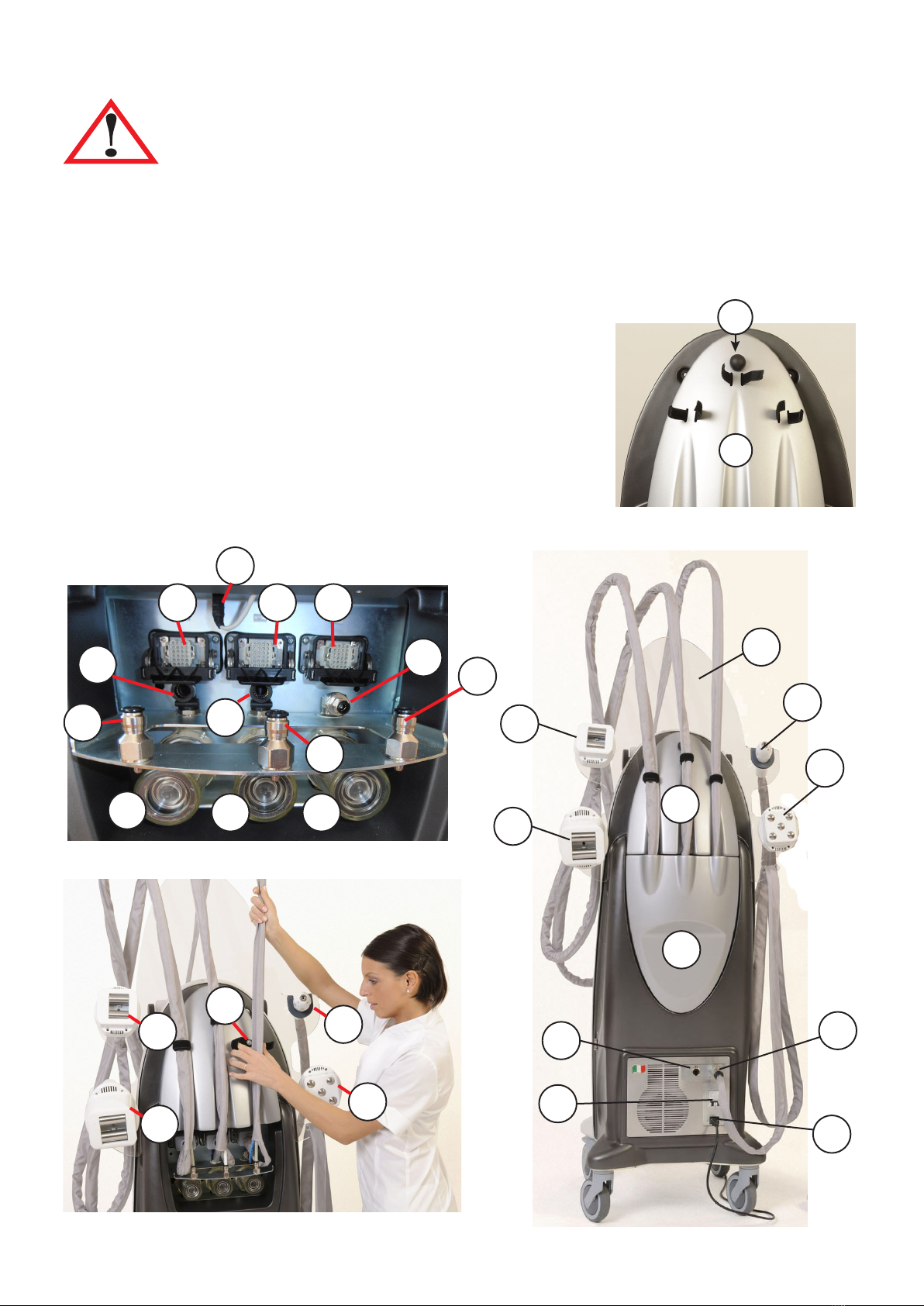

4.1 Equipment
1 Touch-screen control panel
2 Vixo handpiece
3 Maxi DES handpiece
4 Mini DES handpiece
5 Maxenergy handpiece
6 Key switch
7 Emergency stop
8 USB port
9 Wheels
10 Wheels with brake system
11 Carrying handles
9
2
3
1
4
5
67
10
9
9
8
11 11

2 Vixo handpiece
3 Maxi DES handpiece
4 Mini DES handpiece
5 Maxenergy handpiece
21 Transparent handpiece holder
22 Cable conduit cover
23 Handpiece connector cover

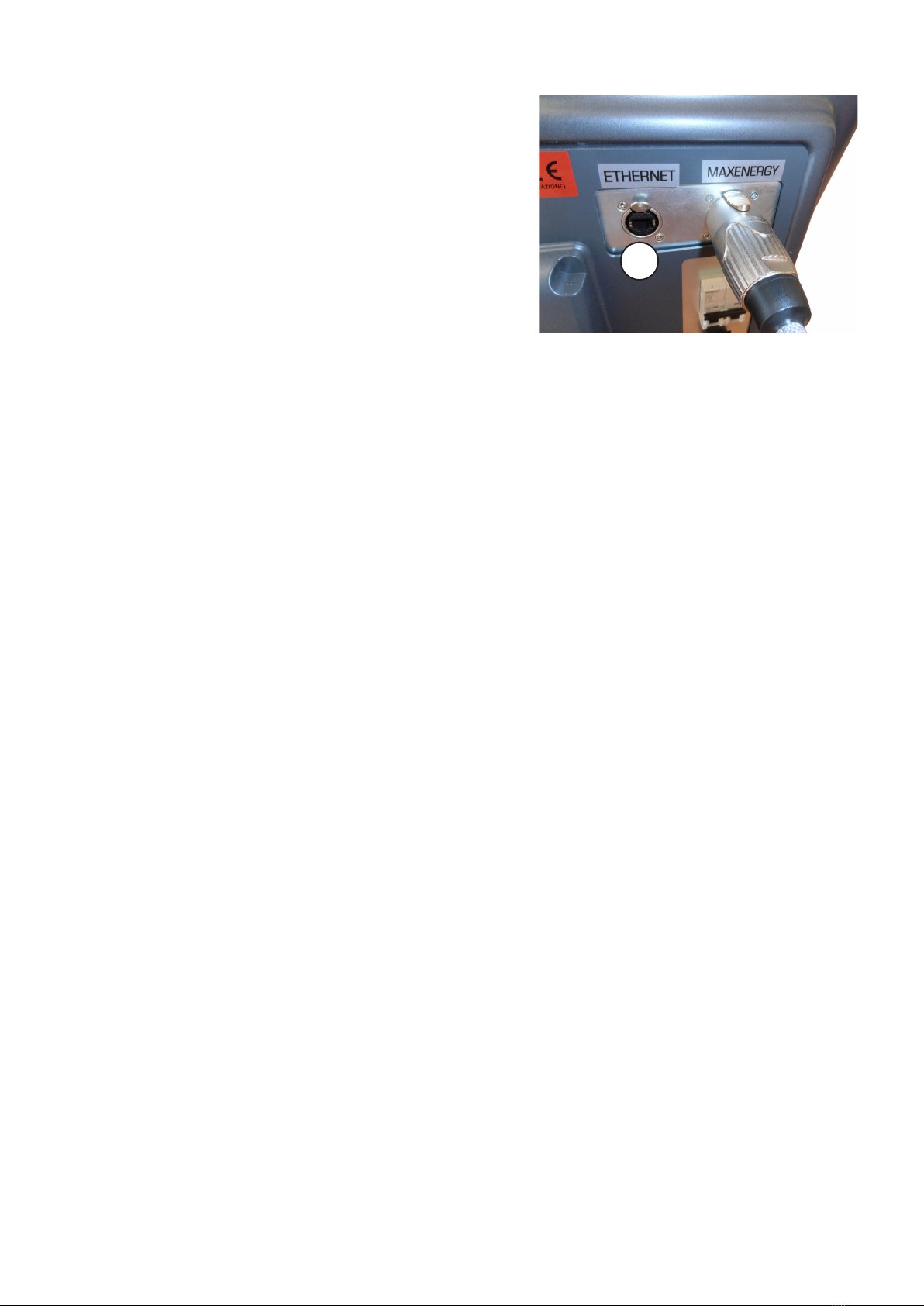

24 Ethernet connection
25 Main switch
26 Maxenergy connection
27 Electric power supply
28 Mini DES / Maxi DES connections
29 Mini DES / Maxi DES connections
30 Vixo connections
31 Filters
10
21
22
23
24 26
25
27
4
3
2
5
30
28 29
31
23

4.2 Handpieces
A Mini DES handpiece
A1 Start / Pause
B Maxi DES handpiece
B1 Start / Pause
B2 Higher function level
B3 Backwards movement of rollers
B4 Scrolling menu functions
B5 Lower function level
B6 Function display
C Vixo handpiece
C1 Start / Pause
D Maxenergy handpiece
D1 Start / Pause
11
AB
C
D
A1 A1
B1
B2
B3
B4
B5
B3
C1
D1 D1
B6

5 GENERAL SAFETY PRECAUTIONS
5.1 Instructions
Before carrying out any operation on the equipment, please read this
instruction manual carefully in all its parts.
The operator must be able to use the equipment in safety, have a suitable
psychological and physical profile, not be under the effect of drugs or alcohol and be
fully instructed on how the machine works.
The equipment must be kept out of the reach of children.
The equipment is designed to be used as described in paragraph “2.1 Intended Use”, according
to the instructions contained in the chapters "Commissioning" and "Maintenance". Any other use
is strictly forbidden.
Before connecting the machine to the electric power system, make sure that the latter is protected
by a residual-current device, according to the laws in force.
Do not leave the equipment unattended during operation, turn it off and remove the key from the
switch.
When the equipment is not going to be used, even if only for a short period of time, it is advisable
to disconnect the power supply by unplugging the machine.
In case of maintenance, disconnect the power supply by unplugging the machine at the rear.
Before carrying out any maintenance or cleaning operations, such as the connection of
handpieces, the cleaning of filters, etc., always remember to disconnect the power supply, by
unplugging the machine.
Do not alter or tamper with the equipment's safety systems.
Do not install the machine near magnetic devices (cash cards, credit cards, badges, mobile
phones).
Only use original spare parts supplied by the manufacturer.
Do not introduce any objects in the suction grilles. Do not obstruct the suction grilles under any
circumstances.
Do not use corrosive chemicals to clean the equipment.
Do not use any pointed or abrasive objects on the touch-screen control panel.
Do not use the equipment near spraying devices or sources of humidity, such as saunas,
showers, hydromassage tubs, etc.
Do not expose the equipment to direct sunlight or major sources of heat.
The machine is designed to operate in safety and is equipped with safety devices which must not
be tampered with under any circumstances.
Emergency maintenance and repair operations must be carried out
exclusively by specialised staff (technical assistance).
12

5.2 Safety devices
The equipment is provided with several protective and safety devices which must not be
tampered with under any circumstances.
In the event of failure or malfunctions, please contact the Technical Assistance.
- Key selector switch against unauthorised operations
- Emergency stop button (red mushroom)
- Circuit breaker for the protection of the electric system
- PMF thermal control device
- Equipment compartment overtemperature control device
- Handpiece overtemperature control device
- Automatic recognition of connected handpieces
- Shielding device for PMFs with stochastic resonance
- Electronic vacuum sensors
- Temperature control with forced ventilation grilles
- Audible and visual alarms for the detection of malfunctions
- Roller anti-lock device
- Handpiece connector mechanical locking device
- Equipment front-wheel brake system
5.3 Pictograms
On the equipment, near the main switch and on the handpiece holder, you will find some
pictograms displaying the safety requirements, as well as the CE marking. If the stickers become
illegible they must be replaced.
CE marking and plate data (2)
Danger of Do not use on
electrocution people with
(2) implantable devices
(heart stimulators,
internal defibrillators,
ecc…) (1)
Before performing any
operation on the equipment,
read the instruction
manual carefully (1)
BF type equipment (2)
13
s.r.l. Via Artigianale Croce n.13
42035 Castelnovo ne’ Monti (RE)
Tel. [phone]
www.mantisitalia.it
Apparecchio per trattamenti estetici
modello: MR991
matricola ____________________
anno di produzione ____________
Classe: 1
Tipo: BF
230 Volt ~
1200 W
50/60 Hz
1
2

14
6 TRANSPORT AND INSTALLATION
6.1 Description of the package and storage
MR991 and its accessories are supplied in one single
package on a pallet.
Store in a dry place, protected from atmospheric agents
and direct sunlight.
Upon delivery, check that the package is not damaged,
including the equipment and the accessories inside the
package.
In case of damage immediately contact the manufacturer
or the distributor.
6.2 Removal of package and content check
1) Remove the protective strips which hold the first package
together, being careful not to damage the outside wrapping.
2) Remove the tape on the upper part of the package.
3) Remove the whole wrapping by sliding it upwards.
4) Check that all three parts (A, B, C) are inside the package, and
that they are not damaged.
5) Take out packages Aand B.
6) Remove protecting film Cwithout using any sharp objects.
7) Unscrew the two blocking knobs Dat the base of MR991.
8) Check packages Aand B, which must contain:
E
1 transparent handpiece holder
4 fixing screws
F
4 handpieces
1 power cable
G
3 handpiece support battens
H
1 tab removal tool
8 handpiece tabs
2 switch keys
L
3 filters
M
10 personal body stockings
N
1 USB stick
The packaging materials
must be disposed of
separately, in compliance
with the laws in force.
A
B
C
D
D
E
F
G
HLM N

6.3 Transport
Before moving the equipment, always
check that it is stable and that the working
area is free from obstacles, such as
objects, animals or people.
The equipment must be carried by two
people having a suitable physical profile
to be able to lift it (see TECHNICAL DATA).

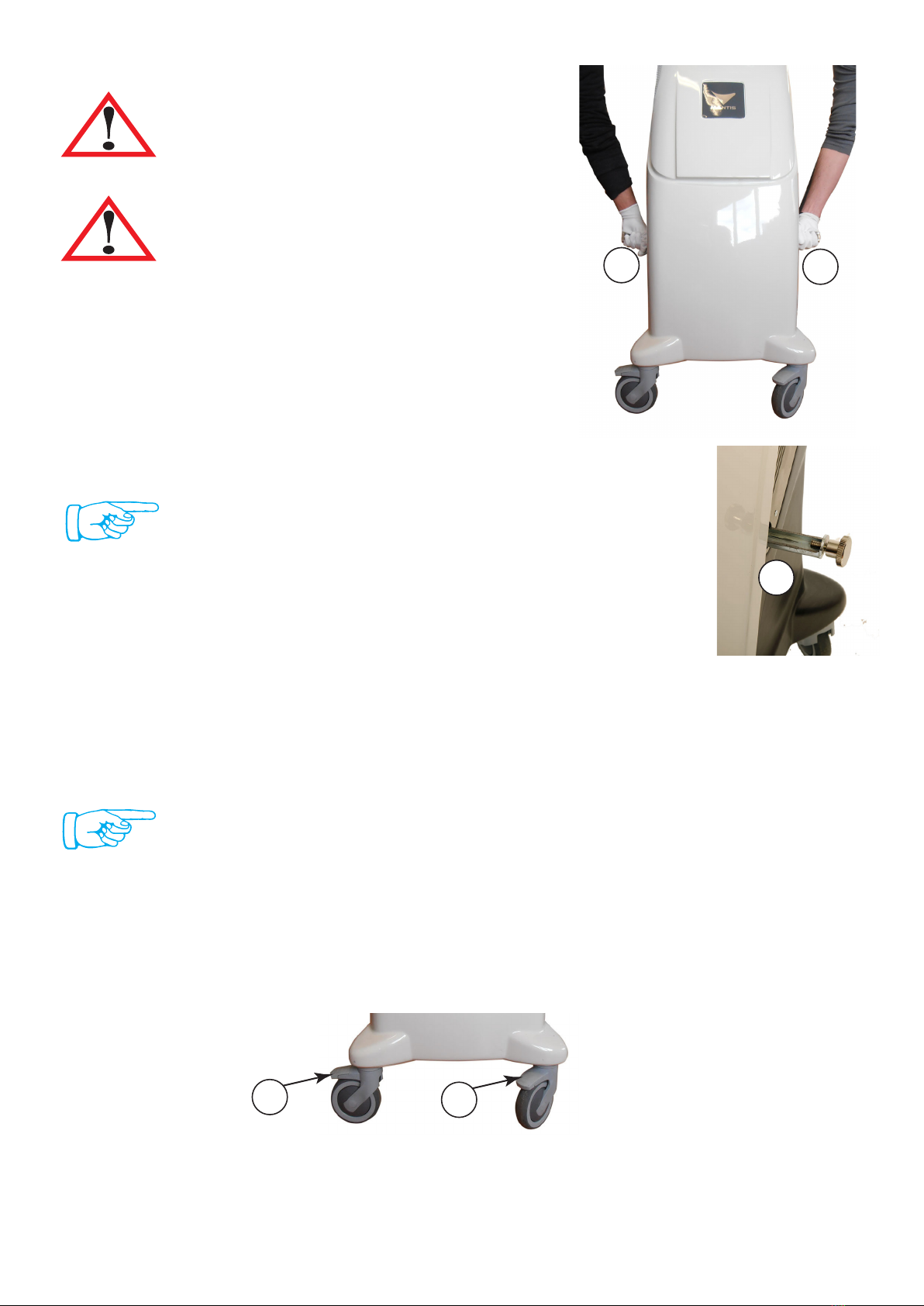

During transport use protective gloves, pull out both side
handles (11), get hold of them firmly and lift the equipment
being careful to keep it balanced all the time.
6.4 Installation
6.4.1 Positioning
The equipment must be installed in premises classified under
group no. 1, pursuant to CEI 64-8 standards, section 710.
It must be positioned on a level ground, with no inclination.
Your working area must be wide enough to be able to carry out all the
necessary manoeuvres both while working and while carrying out routine
maintenance and cleaning (see technical data).
The wheels make small movements easy. However, for the positioning of the
equipment, the surrounding area must have a diameter of at least 0.9 m (2,95
ft).
Do not forget to take into account the length of the power cable (2.5 m/8.19 ft) and of the
handpiece cables (2 m/6.5 ft).
Do not place the equipment near spraying devices or sources of humidity,
such as saunas, showers, hydromassage tubs, etc.
Do not expose the equipment to direct sunlight or major sources of heat.
Do not place the machine near magnetic devices (cash cards, credit cards,
badges, mobile phones).
Once the equipment is in place, lock the front wheels by using the relevant brake system.
11 11
11
10 10
15

22
22P
6.4.2 Assembly
Carry out all assembly operations before connecting the equipment to the
power supply.
1) Remove the cable conduit cover (22) by unscrewing the knob screw (22P).
2) Unscrew the four screws on the frame underneath the cable conduit cover which was
previously disassembled.
3) Place the transparent handpiece holder (21) by centering it using the pivot to which the fixing
knob of the cable conduit cover was fixed (22P).
4) Reinsert and tighten the screws which were previously
removed in order to assemble the transparent handpiece
holder (21).
5) Reassemble the cable conduit cover by fixing it with the knob
again (22P).
6) Disassemble the lower cover (23) by pulling gently and insert
the LED power connector into the socket (31).
7) Insert the Vixo connector case into the supplied rod.
8) Put the handpiece in place on the handpiece holder (2),
making sure that it is properly positioned.
16
21
22
23
24 26
25
27
4
3
2
5
31
32 33 34
35
36
37 38
39
40
41 42 43
2
44
5
3
4

26
25
27
9) Insert the end of the rod in the appropriate place (38).
10) Fix the case by using the clamp on the cable conduit cover (44).
11) Mount the connector and the suction hose in the appropriate places (34) and (37). Insert the
hose by applying some pressure in order to ensure that it works properly. Insert the connector
and lock it by pulling the lower lever.
12) Insert the Maxi DES connector case into the supplied rod.
13) Put the handpiece in place on the handpiece holder (3).
14) Insert the end of the rod in the appropriate place (39).
15) Fix the case by using the clamp on the cable conduit cover.
16) Insert the connector and the suction hose in the appropriate places (33) and (36). Insert the
hose by applying some pressure in order to ensure that it works properly. Insert the connector
and lock it by pulling the lower lever.
17) Insert the Mini DES connector case into the supplied rod.
18) Put the handpiece in place on the handpiece holder (4).
19) Insert the end of the rod in the appropriate place (40).
20) Fix the case by using the clamp on the cable conduit cover.
21) Insert the connector and the suction hose in the appropriate places (32) and (35). Insert the
hose by applying some pressure in order to ensure that it works properly. Insert the connector
and lock it by pulling the lower lever.
IThe Maxi DES and Mini DES handpiece connections are interchangeable. If
needed, it is possible to invert the connections without altering the equipment's
functioning.
22) Make sure that the filter caps are inserted and
tightened properly (41)(42)(43).
23) Reassemble the lower cover (23).
24) Put the Maxenergy handpiece in place on the
handpiece holder (5).

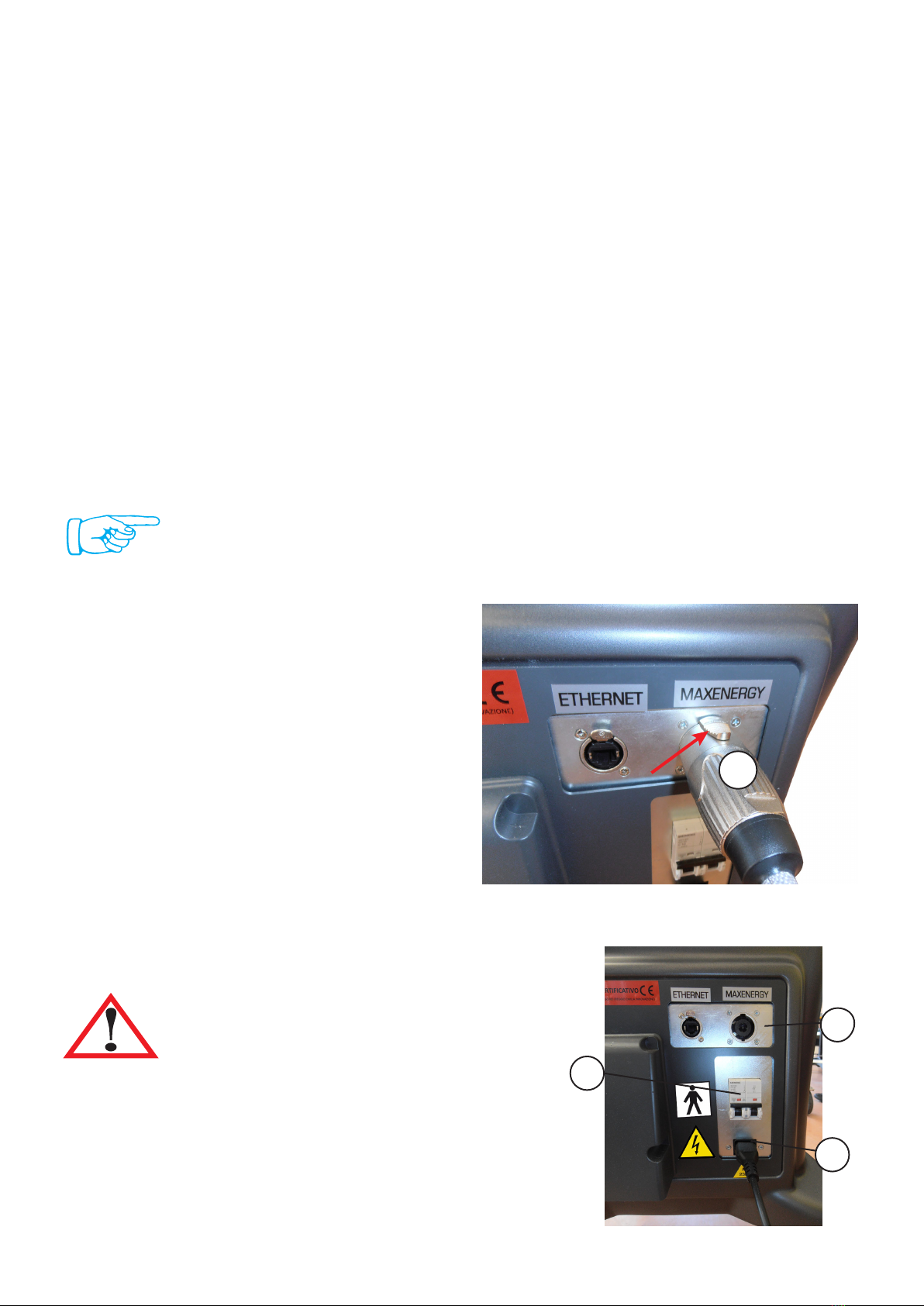

25) Connect the connector to the relevant socket
(26) near the main switch of the equipment. For
the connection, insert the connector with the
clip (indicated by the arrow) placed upwards
and then turn it clockwise until the clip is
completely inserted, as shown in the picture.
6.4.3 Power connection
The equipment is provided with a power cable for the connection to the power supply system (see
TECHNICAL DATA).
The connection to the electric system
involves the risk of electrocution. Be
very careful of potential risk situations,
such as sockets with scorch marks, etc.
The electric system must be protected
by a residual-current device, in
accordance with the laws in force.
Connect the supplied cable to the socket (27) and then to
the power socket.
17
26

6.4.4 Connection for telecare (if available)
MR991 is provided with a telecare system which
enables, in case of problems or malfunctions, to get a
quick answer from the Technical Assistance Staff,
thereby considerably reducing any "downtime"
periods of the equipment.
In order to be able to take advantage of the telecare,
you need to have a DSL line, a modem and a socket
for the connection of the Ethernet cable (optional).
Connect the Ethernet cable to the appropriate socket
(24) near the main switch.
24
18

7 COMMISSIONING
7.1 Equipment functions
MR991 is equipped with four handpieces (see also 4.2 Handpieces) to treat different body areas
using various techniques.
7.1.1 Maxi DES handpiece
The biggest handpiece is made up of rollers moving in two directions, a
pulsed suction system and a CMPS system. This handpiece is designed to
treat the larger body areas such as buttocks and thighs.
7.1.2 Mini DES handpiece
With the same features as Maxi DES but in a smaller size, this handpiece
is designed to treat smaller body areas such as the knee pit and the
calves.
7.1.3 Maxenergy handpiece
Maxenergy is completely based on a powerful CMPS system which is able
to carry out a shock therapy on the layers of subcutaneous fat. It can also
be used to apply the special magneto-catalysed “Mantis Magnetic Cream”
which has a deeper penetration effect thanks to the ionic channels created
on the skin by CMPS.
7.1.4 Vixo handpiece
The Vixo handpiece consists of a microsuction system combined with a
specially calibrated CMPS system and it is designed to improve face
blemishes such as wrinkles and sagging tissue.
7.2 Switching on and preparation of the equipment
Before performing any operation on the
equipment, read the whole manual
carefully, paying particular attention to the
safety instructions.
1) Turn on the equipment main switch (25).
19
25

2) Adjust the angle of the touch-screen control panel (1) and
secure it using the side knobs.
3) Switch on the control panel using the key switch (6). There
are two keys included. Keep the spare key in a safe place (in
case of loss you can request a new copy by quoting the code
written under chapter 12 - Spare Parts). The LEDs on the
transparent handpiece holder will turn on.

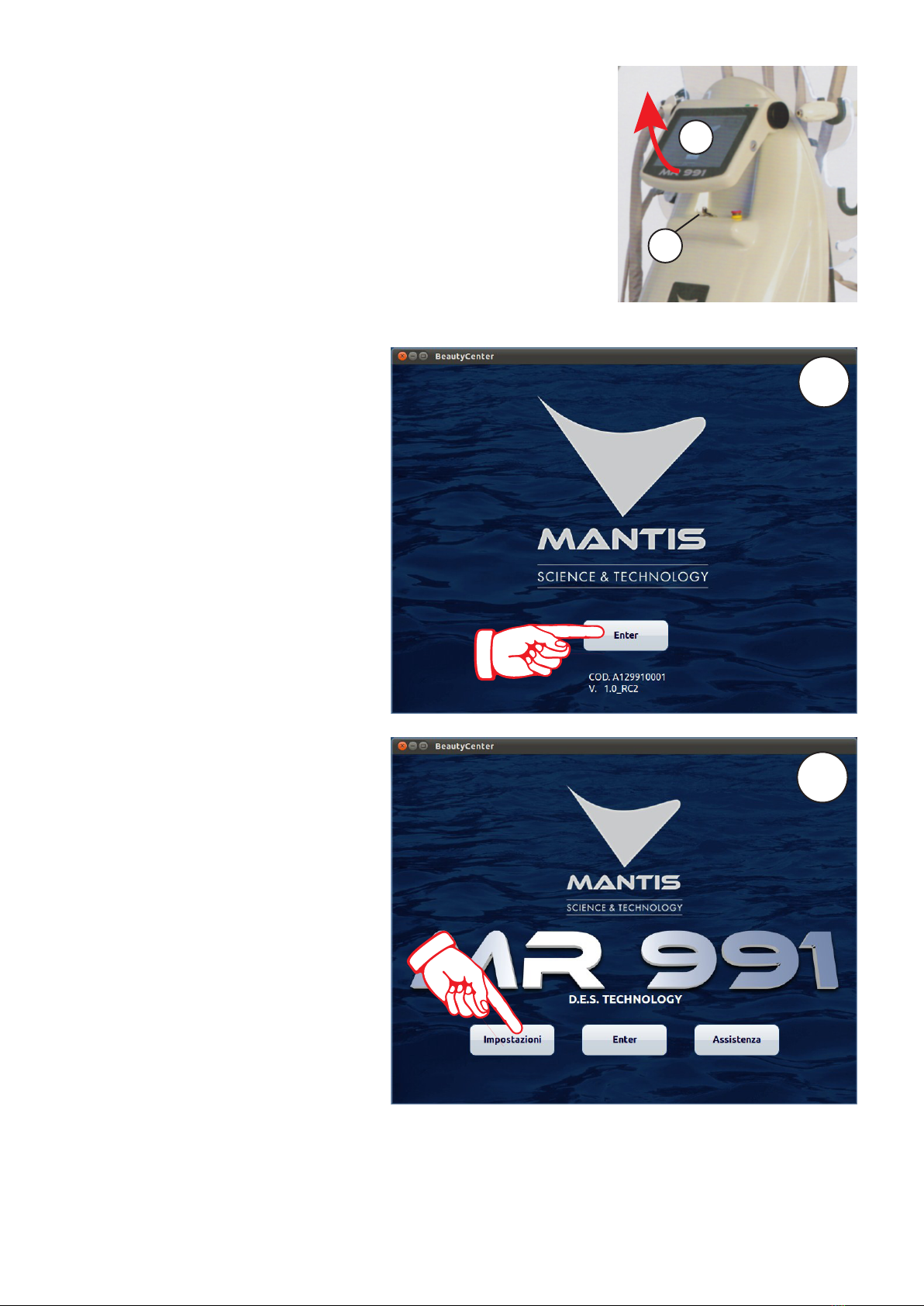

4) After a short self-test, during
which the equipment monitors the
proper functioning of the
handpieces, the touch-screen
control panel displays menu (A).
Press "Enter" to access the
following menu (B).
5) From menu (B), select "Settings"
to enter the next menu and set the
necessary parameters to
guarantee the proper operation of
the equipment.
1
6
A
B
20
