Marantz NA6005 User manual

.
Network Audio Player
NA6005
Owner’s Manual
You can print more than one page of a PDF onto a single sheet of paper.
Contents Connections Playback Settings Tips Appendix
1
Front panel Rear panel Remote control
unit Index

Accessories 6
About the remote control 7
Inserting the batteries 7
Operating range of the remote control unit 8
Marantz “Hi-Fi Remote” app 8
Main features 9
High quality sound 9
High performance 10
Part names and functions 12
Front panel 12
Rear panel 14
Remote control unit 16
Connections
Connecting an amplifier 21
Connecting to a device with digital audio input connectors 22
Connecting to a device with digital audio output connectors 23
Connecting an iPod or USB memory device to the USB port 24
Connecting an FM/AM antenna 26
Connecting to a home network (LAN) 28
Wired LAN 28
Wireless LAN 29
FLASHER IN jack 31
REMOTE CONTROL jack 32
Connection 32
Setting 32
Connecting the power cord 33
Contents Connections Playback Settings Tips Appendix
Contents
2
Front panel Rear panel Remote control
unit Index

Playback
Basic operation 35
Turning the power on 35
Selecting the input source 36
Switching the display’s brightness 37
Stopping digital outputs 37
Sleep timer function 37
Listening to Internet Radio 38
Listening to Internet Radio 39
Using vTuner to add Internet Radio stations to favorites 41
Playing back files stored on a PC and NAS 42
Applying media sharing settings 43
Playing back files stored on a PC and NAS 44
Performing repeat playback 45
Performing random playback 46
Listening to FM/AM broadcasts 47
Listening to FM/AM broadcasts 47
Changing the FM tuning mode (Tune Mode) 48
Automatically presetting FM stations (Auto Preset) 48
Favorite function 49
Registering stations or files to the favorites list 50
Calling stations or files from the favorites list 50
To switch between registered stations and files during playback 50
Deleting stations or files from the favorite list 50
Contents Connections Playback Settings Tips Appendix
3
Front panel Rear panel Remote control
unit Index

Playing an iPod 51
Listening to music on an iPod 52
Setting operation mode (Remote iPod mode) 53
Charging the iPod/iPhone 54
Playing a USB memory device 55
Playing files stored on USB memory devices 56
Listening to music on a Bluetooth device 57
Pairing with a Bluetooth device 58
Playing a Bluetooth device 59
Pairing with the Pairing Mode 60
AirPlay function 61
Playing songs from your iPhone, iPod touch or iPad 61
Playing iTunes music with this unit 62
Selecting multiple speakers (devices) 62
Listening to Pandora®63
Connecting to Pandora 64
Creating a new station 65
Listening to an existing station 66
Listening to created radio stations at random 66
Giving feedback and managing stations 67
Sign Out 67
Listening to SiriusXM Internet Radio 68
Listening to SiriusXM Internet Radio 69
Sign Out 70
Spotify Connect function 71
Playing Spotify music with this unit 71
Remote play function 72
Settings required for each device 73
Web control function 75
Controlling the unit from a web control 75
Using as a D/A converter 81
Connect and playback from a digital device (Optical) 81
Contents Connections Playback Settings Tips Appendix
4
Front panel Rear panel Remote control
unit Index

Settings
Menu map 82
Menu operation 84
Inputting characters 85
General 87
Audio Out 87
Volume Limit 87
Language 88
Auto-Standby 88
Usage Data 89
Firmware 89
Network 92
Network Information 92
Network Control 92
Friendly Name 93
Pandora Display 93
SiriusXM Display 93
Settings 94
Switching the function of the volume buttons on the remote
control 100
Set the function of the volume buttons on the remote control to
“Variable” 100
Set the function of the volume buttons on the remote control to
“AMP” 100
Tips
Contents 101
Tips 102
Troubleshooting 103
Resetting factory settings 113
Appendix
Playing back a USB memory devices 114
D/A converter 115
Playing back Internet Radio 116
Playing back files stored on a PC and NAS 117
Playing back Bluetooth devices 118
Bluetooth communications 118
Last function memory 118
Explanation of terms 119
Trademark information 125
Specifications 126
Index 130
License 132
Contents Connections Playback Settings Tips Appendix
5
Front panel Rear panel Remote control
unit Index

Thank you for purchasing this Marantz product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
.
.
.
.
Quick Start Guide Owner’s Manual (CD-ROM) Safety Instructions Notes on radio Warranty
(for USA/for CANADA)
.
.
.
.
.
Power cord FM indoor antenna AM loop antenna Remote control unit
(RC004NA)
R03/AAA batteries
.
.
.
Audio cable Remote connector cable External antennas for
Bluetooth/wireless
connectivity
Contents Connections Playback Settings Tips Appendix
6
Front panel Rear panel Remote control
unit Index

About the remote control

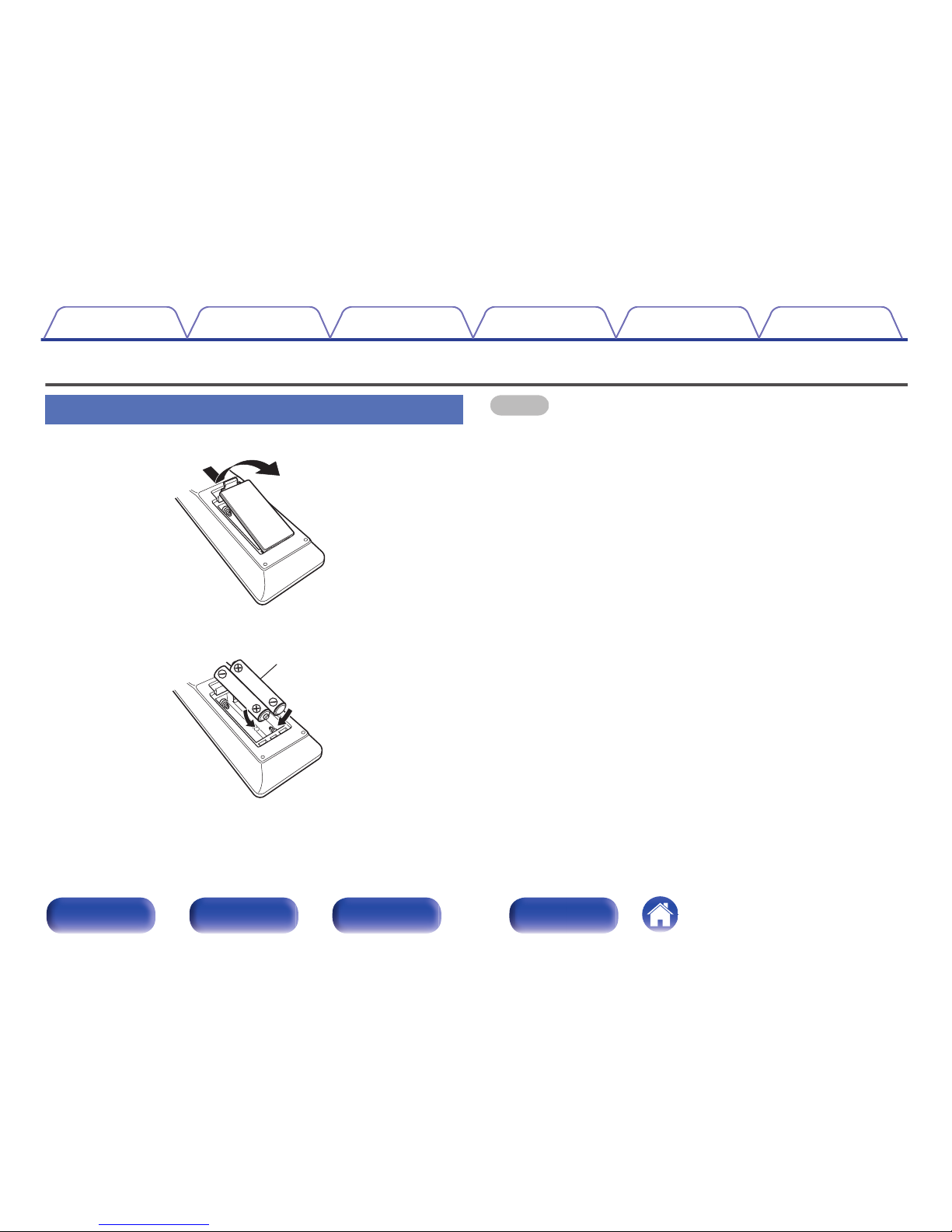

Inserting the batteries
ARemove the rear lid in the direction of the arrow and remove it.
.
BInsert two batteries correctly into the battery compartment as indicated.
.
R03/AAA batteries
CPut the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Contents Connections Playback Settings Tips Appendix
7
Front panel Rear panel Remote control
unit Index

Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
30°30°
Approx. 23 ft/7 m
Marantz “Hi-Fi Remote” app
Marantz “Hi-Fi Remote” app is a unique application developed for the
iPad, iPhone, iPod touch and Android smartphone.
This application enables you to control Marantz network devices that are
connected to your home network.
Install the App onto your iPad, iPhone, iPod touch or Android smartphone
to control this device.
0Bidirectional communication is performed.
0The Marantz “Hi-Fi Remote” app can be downloaded for free from the Apple App
Store or Google Play store.
Contents Connections Playback Settings Tips Appendix
8
Front panel Rear panel Remote control
unit Index

Main features
High quality sound
0Using Marantz original HDAM® SA2 circuit
The unit uses an HDAM® SA2 circuit, whose quality has been proved in
Super Audio CD players and high-end amplifiers, as a high-speed
buffer amplifier.
You can enjoy the high speed and high-quality sound like that produced
by high-end equipment.
0Incorporates a Cirrus Logic advanced D/A converter, CS4398
A D/A converter is an essential element for the audio quality of a CD
player. The CS4398 Cirrus Logic D/A Converter, which has a reputation
for high precision and has been adopted for other Marantz Super Audio
CD players, is adopted for this unit.
0Equipped with jitter-reducing circuit
This unit is equipped with a jitter reducing circuit to achieve even higher
definition playback. This enables you to enjoy outstanding S/N with
playback that gives you an even more live-sounding listening
experience.
0Double-layered chassis
0High grade headphone circuit
The high-grade headphone circuit incorporates a high-speed buffer
amplifier to enable headphone listening of high quality sound
reproduction, late at night or in other such situations.
Contents Connections Playback Settings Tips Appendix
9
Front panel Rear panel Remote control
unit Index

High performance
0Playback of DSD and FLAC files via USB and networks
This unit supports the playback of high resolution audio formats such as
DSD and FLAC 192 kHz files. It provides high quality playback of high
resolution files.
0Support for High Quality Audio playback
WAV/FLAC/ALAC (Apple Lossless Audio Codec)/AIFF/DSD
0Supports Internet Radio and music streaming Supports
AirPlay® (v p. 61)
0Plays USB memory devices (MP3/WMA/AAC/WAV/FLAC/ALAC/
AIFF/DSD) and iPod®/iPhone®
0Wi-Fi network capability with diversity antenna, and is certified
under WMM (Wi-Fi Multi Media) for efficient wireless connectivity
0Easy wireless connection is possible by pressing the Wi-Fi
CONNECT button (WPS and Wi-Fi Sharing)
See the separate “Quick Start Guide”.
0Wireless connection with Bluetooth devices can be carried out
easily
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.
0DLNA ver. 1.5 support for audio networks
0Support for Gapless playback
Playback with no gap between music files. (for WAV/FLAC/ALAC/
AIFF/DSD only)
0Smart recharge control starts recharging the iPod® when it is
connected, and after recharging optimizes power consumption in
accordance with the status of this unit (v p. 24)
Contents Connections Playback Settings Tips Appendix
10
Front panel Rear panel Remote control
unit Index

0Compatible with Marantz “Hi-Fi Remote” app for performing basic
operations of the unit with an iPad®, iPhone® or Android
smartphone
0OLED (Organic Light Emitting Diode) display that can display 3
lines
0Equipped with auto standby mode function that reduces power
consumption
Contents Connections Playback Settings Tips Appendix
11
Front panel Rear panel Remote control
unit Index

Part names and functions
Front panel
.
twqer
APower operation button (X)
This turns the power on/off (standby). (v p. 35)
BStandby indicator
The standby indicator changes as shown below according to the status
of the unit.
0Power on : Off
0Normal standby : Red
0When “Network Control” is set to “On” : Orange
0iPod charge standby : Orange
CUSB port
Used to connect iPod or USB memory devices. (v p. 24)
DInput source select button (INPUT)
These select the input source. (v p. 36)
ECursor buttons (uio p)
These select items.
Contents Connections Playback Settings Tips Appendix
12
Front panel Rear panel Remote control
unit Index

.
y Q4Q0i Q3 Q5 Q6Q2u o Q1 Q7
FENTER button
This determines the selection.
GDigital output off indicator (DIG. OUT OFF)
This indicator lights up when the digital output setting is set to off.
(v p. 37)
HDISPLAY OFF indicator
This indicator lights up when the display is off. (v p. 37)
IRemote control sensor
This receives signals from the remote control unit.
JDisplay
Various information is displayed here.
KHeadphones jack (PHONES)
Used to connect headphones.
NOTE
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
LFast-reverse/Reverse-skip button (8)
Returns to the start of the currently playing track. Press and hold to fast-
reverse the track. (v p. 44)
MPause button (3)
Pauses playback. (v p. 44)
NPlay button (1)
Playback starts. (v p. 44)
OFast-forward/Forward-skip button (9)
Plays the next track. Press and hold to fast-forward the track.
(v p. 44)
PStop button (2)
Stops playback. (v p. 44)
QHeadphone volume control knob (LEVEL)
Adjusts the headphone volume.
Contents Connections Playback Settings Tips Appendix
13
Front panel Rear panel Remote control
unit Index

Rear panel
.
we tryuq
AAUDIO OUT connectors
Used to connect devices equipped with analog audio inputs connectors
or an external amplifier. (v p. 21)
BDIGITAL AUDIO OUT connector
Used to connect an AV receiver or D/A converter that has a digital input
connectors. (v p. 22)
CDIGITAL AUDIO IN connector
Used to connect a computer or devices equipped with digital audio
output connectors. (v p. 23)
DAntenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 26)
EWi-Fi CONNECT WPS button
Connects to a wireless LAN.
(See the separate “Quick Start Guide”.)
FNETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network. (v p. 28)
GFLASHER IN jack
Used to connect a control box, etc. “FLASHER IN jack” (v p. 31)
Contents Connections Playback Settings Tips Appendix
14
Front panel Rear panel Remote control
unit Index

.
Q0 Q1Q2
Q
2
oi
HREMOTE CONTROL IN/OUT connectors
Used to connect to a Marantz amplifier that is compatible with the
remote control function. (v p. 32)
IEXTERNAL/INTERNAL switch
Turn this switch to “EXTERNAL” to operate the unit by pointing the
remote control at the amplifier connected to this unit using the remote
control connection. (v p. 32)
JWi-Fi CONNECT iOS button
Connects to iOS.
(See the separate “Quick Start Guide”.)
KAC inlet (AC IN)
Used to connect the power cord. (v p. 33)
LBluetooth/wireless LAN antenna connectors
Used to connect the included external antennas for Bluetooth/wireless
connectivity when connecting to a network via wireless LAN, or when
connecting to a handheld device via Bluetooth. (v p. 29)
APlace the external antennas for Bluetooth/wireless connectivity
evenly over the screw terminal of rear.
BTurn clockwise until the antennas is fully connected.
CRotate the antenna upwards for best reception.
.
qwe
Contents Connections Playback Settings Tips Appendix
15
Front panel Rear panel Remote control
unit Index

Remote control unit
.
q
e
r
w
t
oOperating this unit
APOWER button (X)
This turns the power on/off (standby). (v p. 35)
BSLEEP button
This sets the sleep timer. (v p. 37)
CInput source select buttons
These select the input source. (v p. 36)
DFAVORITES ADD / CALL buttons
0To add radio stations or files to the favorite list, press ADD button.
0To call up a radio station or file registered in the favorite list, press
CALL button. (v p. 50)
ESystem buttons
These perform playback related operations.
0Skip buttons (8, 9)
0Play/pause button (1/3)
0Fast-reverse / Fast-forward buttons (6, 7)
0Stop button (2)
0Channel buttons (CH +, –)
These operate the Favorite function.
0Tuning buttons (TUNE +, –)
These operate the tuner.
Contents Connections Playback Settings Tips Appendix
16
Front panel Rear panel Remote control
unit Index

.
Q0
o
u
Q1
Q2
i
y
FInformation button (INFO)
This switches display items such as the album name and title name in
the playback screen. (v p. 42)
GTOP MENU button
To back to the top of the menu.
HENTER button
This determines the selection. (v p. 38)
ICursor buttons (uio p)
These select items. (v p. 38)
JSearch button (SRCH)
This displays the search menu. (v p. 38)
KNumber buttons (0 – 9, +10)
These enter letters or numbers into the unit. (v p. 49)
LDIMMER button
Adjust the display brightness of this unit. (v p. 37)
Contents Connections Playback Settings Tips Appendix
17
Front panel Rear panel Remote control
unit Index

.
Q3
Q6
Q7
Q8
Q4
Q5
Q9
MRemote control signal transmitter
This transmits signals from the remote control unit. (v p. 8)
NMODE button
This switches the playback mode. (v p. 51)
This switches the tuning mode. (v p. 48)
OSETUP button
The setting menu is displayed on the display. (v p. 38)
PCLEAR button
This cancels the settings. (v p. 49)
QDigital audio output switch button (DIG. OUT)
This switches the digital audio output on/off.
(v p. 37)
RREPEAT button (L)
Switches to the repeat playback. (v p. 42)
SRANDOM button (P)
Switches the random playback. (v p. 42)
Contents Connections Playback Settings Tips Appendix
18
Front panel Rear panel Remote control
unit Index

.
e
w
r
q
oAmplifier operations
AAMP POWER button (X)
This turns the power of the amp connected to this unit on or off.
BInput source select buttons (INPUT df)
This switches the input source of the amp connected to this unit.
(v p. 36)
CVOLUME buttons (df)
This adjusts the volume of the amp connected to this unit.
DMUTE button (:)
This mutes the sound of the amp connected to this unit.
Contents Connections Playback Settings Tips Appendix
19
Front panel Rear panel Remote control
unit Index

oContents
Connecting an amplifier 21
Connecting to a device with digital audio input connectors 22
Connecting to a device with digital audio output connectors 23
Connecting an iPod or USB memory device to the USB port 24
Connecting an FM/AM antenna 26
Connecting to a home network (LAN) 28
FLASHER IN jack 31
REMOTE CONTROL jack 32
Connecting the power cord 33
NOTE
0Do not plug in the power cord until all connections have been completed.
0Do not bundle power cords with connection cables. Doing so can result in
humming or noise.
oCables used for connections
Provide necessary cables according to the devices you want to connect.
Audio cable (supplied)
.
R
L
R
L
Remote connector cable
(supplied) .
Optical cable
(Sold separately) .
LAN cable (Sold separately)
.
Monaural mini-plug cable
(Sold separately) .
Contents Connections Playback Settings Tips Appendix
Connections
20
Front panel Rear panel Remote control
unit Index
