Marantz Nr1604 User manual

MODEL: NR1604

Model Information

INTEGRATED AV RECEIVER

MI120116E3-1

I/R Codes

Product Specifications

Upgrades/Updates

Accessories

Reset Procedure

Warranty

Remote Control

Rear Panel

Front Panel

NOTE:

This edition is missing the link to the IR codes…………………………………………………………………….. 12/01/2016

Model Information

Index

Protection History

Display Mode

Note: Wi-Fi and Bluetooth functions are not available on this model.

Ethernet cable connection is needed for Network use.

Power indicator

This is lit as follows according to the power status:

• Power on : Off

• Normal standby : Red

• When “HDMI Pass Through” or “HDMI Control”

is set to “On” : Orange

• When “IP Control” is set to “Always On” : Orange

Power operation button (X)

This turns the power of MAIN ZONE on/off (standby).

Headphones jack (PHONES)

Used to connect headphones.

When the headphones are plugged into this jack,

audio will no longer be output from the connected

speakers or from the PRE OUT connectors.

NOTE:

• To prevent hearing loss, do not raise the volume

level excessively when using headphones.

SETUP MIC jack

Used to connect the supplied Setup and

measurement microphone

HOME Front Panel Open (2 of 2) 2

M-DAX button

This enables the M-DAX mode.

ZONE2 ON/OFF button

This turns the power of ZONE2 on/off.

ZONE2 SOURCE button

This selects the input source for ZONE2.

INTERNET RADIO button

This switches the input source to “INTERNET RADIO”.

DISPLAY button

This displays various pieces of information.

STATUS button

Each press of this switches the status information that is shown on the

display.

SOUND MODE button

This switches the sound mode.

PURE DIRECT button

This switches the sound mode between DIRECT, PURE DIRECT and

AUTO

Front Panel (1 of 2)

Display

This displays various pieces of information.

Remote control sensor

This receives signals from the remote control unit.

M-DAX indicator

This lights when the M-DAX mode is selected.

INPUT SELECTOR knob

This selects the input source

Front Panel (2 of 2)

HOME

FRONT PANEL (1 of 2) DISPLAY (1 Of 2) 3

USB port

Used to connect USB storages (such as USB memory

devices) and the USB cable supplied with iPod.

Q4 AUX-HDMI connector

Used to connect devices such as video camcorders and

game consoles.

Q5 VOLUME knob

This adjusts the volume level

PURE DIRECT indicator

This lights when the PURE DIRECT mode is selected as

the sound mode.

Main Display (1 of 2)

HOME REAR PANELFRONT PANEL (2 of 2) 4

Information display

The input source name, sound mode, setting values and other

information are displayed here.

Input signal indicators

MULTI ZONE indicators

This lights up when ZONE2 (separate room) power is turned on.

MUTE indicator

This blinks while the sound is muted.

Master volume indicator

Circle indicator

Circle indicator is displayed when the input source is “NETWORK”

or “iPod/USB” when you are playing back music.

Sleep timer indicator

This lights when the sleep mode is selected.

Tuner reception mode indicators

These light according to the reception conditions when the

input source is set to “TUNER”.

STEREO : In FM mode, this lights up when receiving stereo

broadcasts.

TUNED : Lights up when the broadcast is properly tuned in.

Audyssey® indicator

This indicator lights when the “MultEQ®”, “Dynamic EQ” or

“Dynamic Volume” setting is set to other than “Off”.

Decoder indicator

These light when Dolby or DTS signals are input or when the

Dolby or DTS decoder is running.

Surround back indicator

This lights when audio signals are being output from the

surround back speakers.

Input mode indicators

Set the audio input modes for the different input sources

Rear Panel

HOME

FM/AM antenna terminals (ANTENNA)

Used to connect FM and AM antennas.

Analog audio connectors (AUDIO)

Used to connect devices equipped with analog audio

connectors.

PRE OUT connectors

Used to connect a subwoofer with a built-in amplifier or an

external power amplifier.

Video connectors (VIDEO)

Used to connect devices equipped with video connectors.

Component video connectors (COMPONENT VIDEO)

Used to connect devices equipped with component video

connectors.

Speaker terminals (SPEAKERS)

Used to connect speakers

AC inlet (AC IN)

Used to connect the power cord.

HDMI connectors

Used to connect devices equipped with HDMI connectors

REMOTE CONTROL (1 of 2)

MAIN DISPLAY 5

Digital audio connectors (DIGITAL AUDIO)

Used to connect devices equipped with digital audio connectors.

Network connector (NETWORK)

Used to connect this unit to the network.

FLASHER IN jack

Used when using a control BOX or other such control devices to

control this unit.

REMOTE CONTROL connectors

Used to connect infrared receivers/transmitters in order to operate

this unit and external devices from a different room.

M-XPort connector

Used to connect to a wireless receiver (RX101, sold separately).

DC OUT jack

Used to connect devices equipped with the trigger function.

NOTE:

• Do not touch the inner pins of the connectors on the rear panel.

Electrostatic discharge may cause permanent damage to the unit.

HOME

Remote Control (1 of 2)

REMOTE CONTROL (2 of 2)REAR PANEL 6

ZONE SELECT buttons (MAIN, ZONE2)

These switch the zone (MAIN ZONE, ZONE2) that is operated through

the remote control unit.

Input source select buttons

These select the input source.

Channel/page search buttons (CH/PAGE )

These select preset radio stations or switch pages.

Information button (INFO)

This displays the status information on the TV screen.

BACK button

This returns to the previous screen.

System buttons

These perform playback related operations.

• Skip buttons ( )

• Play/pause button (II)

Tuning up / Tuning down buttons (TUNE +, –)

These operate the tuner.

SOUND MODE buttons

These select the sound mode.

• MOVIE button

• MUSIC button

• GAME button

• PURE button

HOME

Remote Control (2 of 2)

Warranty (1 of 2)REMOTE CONTROL (1 of 2) 7

Remote control signal transmitter

This transmits signals from the remote control unit.

POWER button

This turns the power on/off.

SLEEP button

This sets the sleep timer.

MUTE button

This mutes the output audio.

VOLUME buttons ()

These adjust the volume level.

OPTION button

This displays the option menu on the TV screen.

ENTER button

This determines the selection.

Q5 Cursor buttons ()

These select items.

SETUP button

This displays the menu on the TV screen.

FAVORITE STATION buttons (1 –3)

With a single press of these, you can call up registered radio stations

and contents

MARANTZ USA LIMITED WARRANTY (1 of 2)

This warranty will be honored only in the U.S.A.

Length of Non-Transferable Warranty

This warranty on your Marantz product which is distributed and warranted by Marantz America Inc. remains in effect for the

following periods from the date of the original consumer purchase from an AUTHORIZED DENON ELECTRONICS (USA), LLC

DEALER.

MARANTZ AMERICA, Inc.

(a D&M Holdings Company)

100 Corporate Drive

Mahwah, NJ 07430-2041

(201) 762-6666

www.usa.Marantz.com

MARANTZ FACTORY SERVICE by PANURGY OEM

701 Ford Road (South Dock)

Rockaway, NJ 07866-2053

(973) 625-4056

(973) 625-9489 Fax

http://www.panurgyoem.com/Denon/Denonrepair.html

See the next page for more information about the Marantz limited warranty

HOME

3 year warranty for both Parts & Labor, from the original purchase date

1 year for refurbished (B-Stock) units

WARRANTY (2 of 2)REMOTE CONTROL (3 of 3) 8

Warranty (2 of 2)

What is covered and what is not covered

Except as specified below, this warranty covers parts and labor to correct all defects in materials and workmanship. The following are not covered by the

warranty.

1. Damage, deterioration, malfunction or failure to meet performance specifications resulting from:

Accident, acts of nature, misuse, abuse, neglect or unauthorized product modification.

Improper installation, removal or maintenance, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by Marantz to repair the product.

Any shipment of the product (claims must be presented to the carrier).

Any cause other than a product defect.

2. Cleaning, initial set-up, check-ups with no defects found, or charges incurred for installation, removal or reinstallation of the product.

3. Any product on which the serial number has been defaced, modified or removed.

4. Batteries.

5. Accessories, including but not limited to, batteries, cables, mounting hardware and brackets, cleaning accessories, antenna and detachable power cords.

6. Warranty is void if purchase was made from anyone other than an authorized Marantz dealer.

Who may enforce the warranty?

This warranty may be enforced only by the original purchaser.

What we will pay for

We will pay for all labor and material expenses for items covered by the warranty. Payment of shipping charges is discussed in the next section of this

warranty.

How you can get service

If your unit needs service, contact Marantz customer service by calling 201-762-6666. We will advise you of the name and location of one or more

authorized Marantz service stations from which service can be obtained. Please do not return your unit to the factory without prior authorization.

You must pay any shipping charges if it is necessary to ship the product for service. However, if the necessary repairs are covered under warranty, we

will pay the return shipping charges to any destination within the United States, its possessions or territories.

Whenever warranty service is required, you must present the original dated sales receipt or other proof of date of purchase.

Limitations of implied warranties

All implied warranties, including warranties of merchantability and fitness for a particular purchase, are limited in duration to the length of this warranty.

Exclusion of damages

Marantz liability for any defective product is limited to repair or replacement of the product at Marantz’s option. Marantz shall not be liable for damage to

other products caused by any defects in Marantz products, damages based upon inconvenience or loss of use of the product, or any other damages,

whether incidental, consequential, or otherwise.

How the law relates to the warranty

Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential

damages, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

HOME RESETWarranty (1 of 2) 9

Reset

HOME

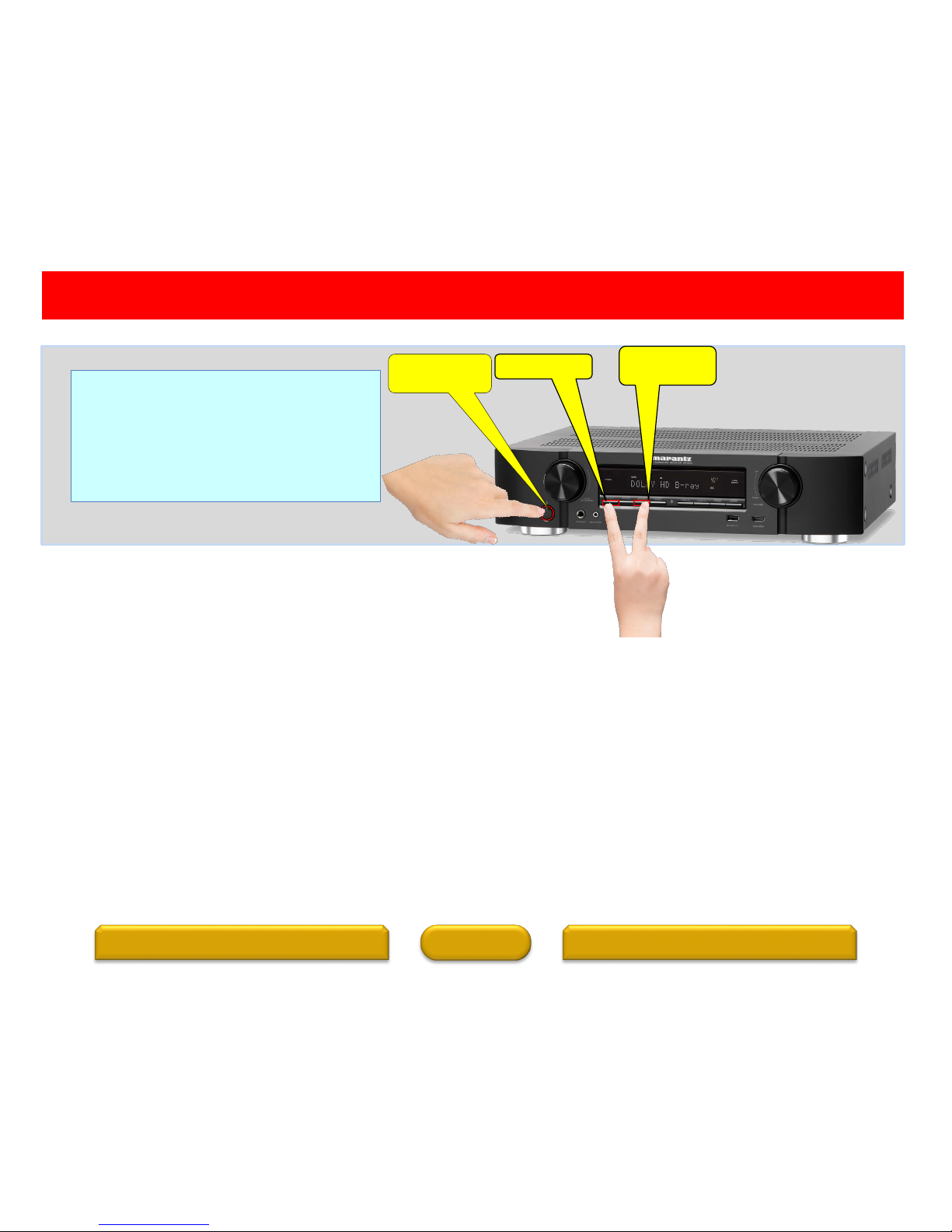

Reset procedure:

With the power off, press and hold the “M-DAX”

button, “ZONE 2 SOURCE” button, and “POWER”

button simultaneously on the AVR for a few

seconds until “INITIALIZED” appears on the

AVR’s display

•A jolt of static electricity

•Current surge through an input

Before resetting the microprocessor;

•Check all connections carefully

•Check for setup errors

•Back up your settings. You may also want to write down your preferred settings for easier task of setting up the AVR after reset.

Note: The Web (Browser) Control feature can be used to back up your settings by saving a configuration file on your hard drive. For this

feature, we recommend using one of the following web browsers: Internet Explorer 10 and above, Mozilla Firefox 24 and above, Google

Chrome 29 and above, and Safari 5.x and above.

Note: If you had an installer setup your system, please first contact your installer to see if they can reset and then setup your system again

as there may be specific EQ calibrations (Audyssey) that the installer will need to perform.

ACCESSORIESWARRANTY 2 10

Resetting the micro is a procedure used to "reboot" the microprocessor to restore its

normal operation when it temporarily freezes, locks up, or behaves erratically. Resetting

the microprocessor, erases any saved settings you may have previously programmed

into the unit Issues that can affect the performance of the microprocessor:

Power/Standby

button

“M-DAX” button “ZONE2

SOURCE” button

Important: Back up the settings before resetting the microprocessor. Most settings are reset to the factory default values after

performing this procedure. This means that all the settings data will be completely lost if it’s not previously saved.

Accessories

HOME FAQ’sRESET

30701014400AM $32401000800AD $31.99 963549101000D $16.82

963116100070S $8.99 963116100080S $3.27 90M-ZC000470R $30.64

Remote Control

(RC021SR)

Power Cord)

Sound

Calibration

Microphone

(ACM1HB)

Sound

Calibration

Microphone

Stand

AM Loop

Antenna

FM Indoor

Antenna

CD ROM

Owner’s

Manual

Notes on Radio Quick Start

Guide

Safety

Instructions

Warranty

(For North

America Only)

FAQ’s ( 1 of 2)

HOME FAQ’s 2ACCESSORIES 12

FAQ’s (2 of 2)

HOME UPGRADEFAQ’s 1 13

Upgrades/Updates (1 of 2)

HOME

Dolby Atmos, DTS:X and Auro-3D Upgradeable

Dolby Atmos and DTS:X surround sound technologies dispense with channel-based coding in favor of object-based coding, giving the sound designer the

ability to precisely place sounds anywhere in the 3-dimensional space. The NR1604, features the ability to connect a 5.1 surround sound speaker system

and 4 additional overhead speakers (or 4 additional Dolby Atmos elevation speakers) for the ultimate home cinema experience. Thanks to the 11ch

processing capability, you can just add an external 2-channel amplifier and even enjoy a thrilling 7.1.4 channel Dolby Atmos or DTS:X experience. Dolby

Surround Upmixer and DTS Neural:X Upmixer are also in place to simulate 3D sound from standard formats.

Auro-3D Upgrade

By fully immersing the listener in a cocoon of life-like sound, Auro-3D puts you right in the middle of the action. Auro-3D provides an immersive surround

sound experience thanks to dedicated height and overhead channels, in addition to the regular channels. The height information, captured in recording or

created during the mixing process, is mixed into a standard 5.1 PCM stream that comes with a regular Blu-ray. Moreover, the Auro-3D engine recognizes

mono, stereo, 5.1 surround or an Auro-encoded signal and transforms them into 3D audio. Once upgraded with the Auro-Codec decoder, the NR1604 is

capable of decoding the original Auro-3D mix and playing back an Auro-3D 10.1 channel configuration (with external amplifier). Auro-3D upgrade

availability and pricing to be announced.

Visit http://upgrade.Marantz.com for upgrade information.

Upgrades/Updates (2 of 2)FAQ’s 2 14

Upgrades/Updates (2 of 2)

HOME Specifications –Audio SectionUpgrades/Updates (1 of 2)

Firmware:

This unit has the ability to update its firmware over the internet if so is selected by the user. When connected to a network via Wi-Fi or Ethernet, the AVR

searches automatically for new updates and if any is found, a message appears on the screen for approx. 40 seconds with the options of updating the

firmware: “NOW”, “LATER”, or “IGNORE”. Note: This feature of displaying the update message, can be disable from the “Setup” menu

(Setup/General/Firmware/Notifications/Update or Upgrade/Off).

If the update process is interrupted, “Update retry” appears on the display and the unit tries repeatedly to continue the update until it either reconnects and

picks up where it left off and continue the update process or times itself out after trying several times. When the latter occurs, one of the following messages

will appear on the screen.

To Check for Firmware Update from the Marantz server when the unit is connected to the internet via the Ethernet port (When Firmware Notification is

turned off).

Press “SETUP” and select “GENERAL” and then select “FIRMWARE” followed by “UPDATE” and finally, select “CHECK FOR UPDATE”.

Note: This will also check the time it will approximately take to complete the update.

To check to see if an update or upgrade is available for your NR1604 and also to download the latest version of firmware, click on the following link:

http://www.us.marantz.com/us/support/pages/productupdates.aspx

Note: A list of “Recent Updates/Upgrades is also available at this link”

Connection fail Download fail Updating fail Server is busy Login failed

Specifications –Audio Section

HOME

Audio section

Power amplifier Rated output

Front

50 W + 50 W (8 Ω/ohms, 20 Hz –20 kHz with 0.08 % T.H.D.)

70 W + 70 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)

Center 50 W (8 Ω/ohms, 20 Hz –20 kHz with 0.08 % T.H.D.)

70 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)

Surround

50 W + 50 W (8 Ω/ohms, 20 Hz –20 kHz with 0.08 % T.H.D.)

70 W + 70 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)

Surround back

50 W + 50 W (8 Ω/ohms, 20 Hz –20 kHz with 0.08 % T.H.D.)

70 W + 70 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)

Output connector 4 –16 Ω/ohms

Analog

Input sensitivity/Input impedance 130 mV/47 kΩ/kohms

Frequency response 10 Hz –100 kHz —+1, –3 dB (Direct mode)

S/N 98 dB (IHF–A weighted, Direct mode)

SPECIFICATIONS -VIDEO –

TUNER –GENERAL

Upgrades/Updates 2 SPECIFICATIONS -

DIMENSIONS -WEIGHT 16

Specifications -Video Section,Tuner Section, General Section

HOME

Video section

Standard video connectors Input/output level and impedance 1 Vp-p, 75 Ω/ohms

Frequency response 5 Hz -10MHz, 0, -3dB

Color component video connector Input/output level and impedance

Y signal 1 Vp-p, 75 Ω/ohms

PB/CB signal 0.7 Vp-p, 75 Ω/ohms

PR/CR signal 0.7 Vp-p, 75 Ω/ohms

Frequency response 5 Hz -60MHz –0, -3dB

Tuner section

FM AM

Note: µV at 75 Ω/ohms, 0 dBf = 1x10-15 W

Reception frequency range 87.50 MHz -107.90 MHz 520 KHz -1710 KHz

Effective sensitivity 1.2 µV (12.8 dBf)18µV

50 dB sensitivity Mono –2.8 µV (20.2 dBf)

S/N ratio Mono 70 dB

Stereo 67 dB

Distortion Mono 0.7 % (1KHz)

Stereo 1.0 % (1KHz)

SPECIFICATIONS -

AUDIO

SPECIFICATIONS -

DIMENSIONS -WEIGHT 17

General section

Power supply AC 120V, 60Hz

Power consumption 220W

Power consumption in standby mode 0.2W

Power consumption in CEC standby mode 0.5W

Power consumption in network standby mode: 2.7W

For purpose of improvement, specifications and design are subject to change without notice.

Specifications –Dimensions, Weight

HOME

Dimensions section (Unit : inch/mm)

Weight: 18 lbs 8 oz (8.4 kg)

SPECIFICATIONS -VIDEO –

TUNER –GENERAL

SPECIFICATIONS -

AUDIO

Protection History Display

Mode (Front Panel Buttons) 18

NR1604 -Protection History Display Mode (1 of 3)

STATUSZONE2 SOURCEPOWER

Protection History Mode records and displays an event in which the THERMAL, CURRENT, ASO or DC protection was activated.

Procedure to enter the “Protection History Display Mode”.

1. Press and hold the “ZONE 2 SOURCE” and the “STATUS” buttons at the same time and press the “POWER” button to turn on

the power.

2. The unit enters the “Diagnostic Mode/Service Related Selection Mode” (Protection History Display, OP Info or Tuner Freq. Set)

and “SERVICE CHECK” is first displayed.

3. Press the “INTERNET RADIO” button to switch modes and press the “STATUS" button when “Protection History Display

Mode” is displayed.

4. Press the “STATUS” button to display Protection History.

HOME Protection History Display Mode ProcedureSpecs –Dimensions/Weight

Model Information

Index

INTERNET RADIO

1. If no protections have occurred, “No Protect” is

displayed

3. If the last protection was ASO, “ASO” is displayed.

Cause: A short circuit occurred between the speaker terminals, or speakers with an impedance outside the rating were connected. If the power is turned on

during this abnormality, protection is activated after around 5 seconds and the power is turned off.

4. If the last protection incident was DC protection

Cause: DC output of the power amplifier is abnormal.

If the power is turned on without correcting the abnormality, the protection function will work about 5 seconds later and the power supply will be shut off.

5. When the last protection incident was THERMAL(A) or

THERMAL(B) protection, THERMAL A or B is displayed

Cause: The temperature of the heat sink is excessive.

If the power is turned on without correcting the abnormality, the protection function will work about 5 seconds later and the power supply will be shut off.

NO PROTECT

PRT:ASO

PRT:DC
