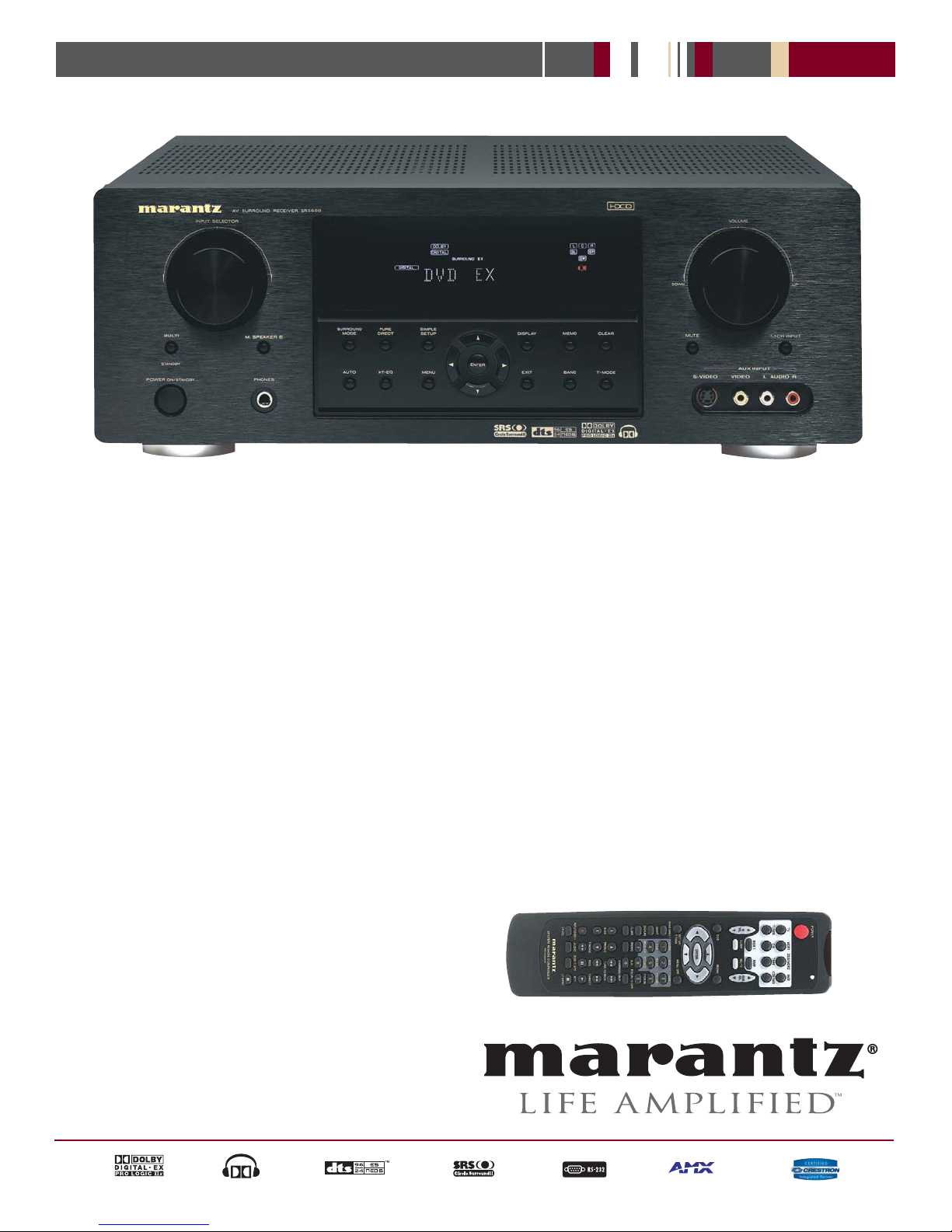

Marantz SR5600 User manual

The SR5600 is an embarrassment of riches. Each “current feedback” amplifier produces 90 Watts RMS, sufficient for all
but the largest rooms or most inefficient speakers. The 32-Bit microprocessor decodes all Dolby, DTS surround sound
formats, and SRS’ Circle Surround 6.1. Consider the SR5600’s multi-source/multi-room capabilities. Look no further than
the front panel inputs to conveniently plug in a camcorder, portable DVD player and/or game console. You’ll appreciate the
SR5600’s enhanced video conversion capabilities as you watch a full complement of sources through your monitor’s high
quality component video input. Want a customized system? The RS232 port allows total control for external sources. The
on-screen display quickly guides you through setup. The SR5600’s “Lip Sync” circuit assures you that sounds reach your
ears at exactly the moment your eyes say they should. And its all covered by a three-year warranty.
SR5600
DOLBY DIGITAL EX®/DTS ES®SURROUND RECEIVER
• 90 Watts (into 8 ohms) x 7 ch Amps
• Dolby Digital EX®, Pro Logic IIx®(Movie/Music/Game)
• DTS 96/24, ES®(Discrete 6.1/Matrix 6.1), Neo:6
(Cinema/Music)
• SRS Circle Surround II®
• All Discrete “Current Feedback” Amplifier Stages
• 32-Bit DSP
• 192kHz/24-Bit D/A Converters for all Channels
• Dolby Headphone
• Video Up-conversion: Composite/ S-Video to Component
• Multi-room/Multi-source Capability with Discrete Commands
• Multi Speaker “B” Output
• Lip Sync Control
• On Screen Display
• Pure Direct Mode
• Video Off Mode
• Variable Cross-over
• Assignable HD Compatible Component Video Switching
(2 in/1 out)
• 4 Assignable Digital Inputs (2 optical/2 coaxial)
• 2 Digital Outputs (1 optical/1 coaxial)
• Front Panel A/V Inputs
• 50 Station Presets
• Manual Station Naming
• RS232C Terminal for System Control
• 1 Switched and 1 Un-switched AC Convenience Outlets
• D-BUS (RC-5 in/out) Remote Connection
• HDCD™ Decoder
• Detachable AC Cord
• Pre-programme System Remote
Compatible ®

FEATURED OPTICS
MULTICHANNEL/SURROUND
Number of Channels
THX
DTS (ES, Discrete 6.1/ Matrix 6,1, Neo-6)
Dolby Digital EX
Dolby Pro Logic IIx
Circle Surround II
SOUND ENHANCEMENTS
HDCD Decoder
Current Feedback Topology
Discrete Amplification
Power Transformer
D/A Conversion
Digital Signal Processing
Video Off
Source Direct
Chassis
Variable X-over
Display Off
Video Up-conversion
M.R.A.C. (Marantz Room Acoustic Calibration)
XM-Ready
Dual AM/FM Tuner
Bass Management
Lip-sync (digital Audio Delay)
Software Upgradeable (RS232)
IN/OUTPUTS
VIDEO
HDMI In
Component In
S-Video In
Composite In
HDMI Out
Component Out
S-Video Out
Composite Out
AUDIO
Analog L&R In
Analog L&R Out
Digital Optical In
Digital Coaxial In
Digital Optical Out
Digital Coaxial Out
IEEE1394 Connection
7
-
•(+ 96/24)
•
•
•
•
•
•(All 7ch)
EI
192kHz/24-Bit
Cirrus Logic®32-Bit
•
•
Metal
•
•
Up to Component
-
-
-
-
•
-
-
2 (Assignable Inputs)
5
5
-
1
3
3
8
5
2
2
1
1
-
*All specifications, dimensions and weights are subject to change without notice. D&M Holdings, Marantz, Marantz America, Inc. or any of its subsidiaries will not assume any liability for errors in this spec
sheet which may result in consequential errors being made by retail dealers, designers, custom installers, cabinet makers or end users, etc based upon information contained within this document.
©2006 Marantz America, Inc. • www.marantz.com
SR5600
IN/OUTPUTS Continued
OTHER
Pre-Amplifier Out
Main Amplifier In
Multi-Channel In
Multi-Room Audio Out
Multi-Room Video Out
Multi-Room Speaker Out
Speaker A/B
DAvED Technology
External Control (RS232C)
DC Triggers
D-Bus Remote (RC-5) In/Out
External IR In/Out
Front Panel A/V Inputs
Headphone Out
AC Outlets (Switched/Unswitched)
-
8ch
-
8ch
1 (L&R)
-
• (Surround Back Channels)
-
-
•
-
2/2
-
•
•(Dolby Headphone)
1/1
SPECIFICATIONS
AUDIO SECTION
Power Output (8 Ohm)
S/N Ratio
Freq. Response (Analog In)
Freq. Response (Dig In)
TUNER SECTION FM
Frequency Range
S/N Ratio (Mono/Stereo)
TUNER SECTION AM
Frequency Range
S/N Ratio
VIDEO SECTION
Video Freq. Response (Component)
Video Freq. Response (Composite, S-Video)
Signal to Noise
GENERAL
Color
Front Panel
Remote Control
Power Requirement
Power Consumption
Dimensions W x H x D (Inches)
Weight (lbs.)
90W x 7 (<0.08%, 20Hz -
20kHz/THD)
105dB
8Hz - 100kHz (+/- 3 dB)
8Hz - 45kHz (+/- 3 dB)
87.5 - 108.0MHz
Mono/Stereo 75/70 dB
520 - 1710kHz
50dB
5Hz - 80MHz (- 1 dB)
5Hz - 8MHz (- 1 dB)
60dB
Black
Aluminum
Pre-Coded System Remote RC5500SR
AC 120V/60Hz
450W
175/16" x 67/16" x 181/4"
30
