Welcome to the Next Generation of Radio!
America's most popular satellite radio service, XM™ features over 160 digital channels – the most commercial-free music available in Satellite Radio. With over
30 channels of news, sports, talk and entertainment, over 20 dedicated channels of XM Instant Traffic & Weather, and the deepest playlist in the industry you can
choose what you want to hear whenever you want.
The SR9600XM features two tuners, one of which is dedicated to XM! Simply attach an XM Connect&Play™ antenna (available separately), activate your
subscription and you are ready to enjoy everything the world of satellite radio can deliver. With the multi-room capacity of the SR9600XM, you can enjoy any of
those stations in remote locations as well.
The SR9600XM is simply the best surround receiver we’ve ever offered. It surpasses the performance levels of even separate components in both sheer brawn and
subtle sophistication. THX Ultra2®certification - and power output of 140 Watts RMS from each of its seven current-feedback amplifiers - means the SR9600 will
recreate the sonic impact of dynamic movie soundtracks in the largest rooms. Intelligent cooling assures long term stability, even under the most demanding
conditions. Analog preamp circuitry features wideband HDAM-SA2 modules. The oversized power supply includes a toroidal transformer and Marantz-designed
storage capacitors for quick response to rapidly varying sources. Dual 32-Bit microprocessors handle surround decoding and 9-band equalization M.R.A.C.
(Marantz Room Acoustic Calibration) adjustments with outstanding speed and accuracy. Connectivity includes IEEE-1394 and HDMI for accurate data transfer.
The high resolution display makes control and adjustment easy. Dolby Headphone produces a private, natural, non-fatiguing surround experience. An RS232 port
(for both control and upgrade) and 4 programmable 12 volt “triggers” let the SR9600 function in virtually any custom-designed home theater system.

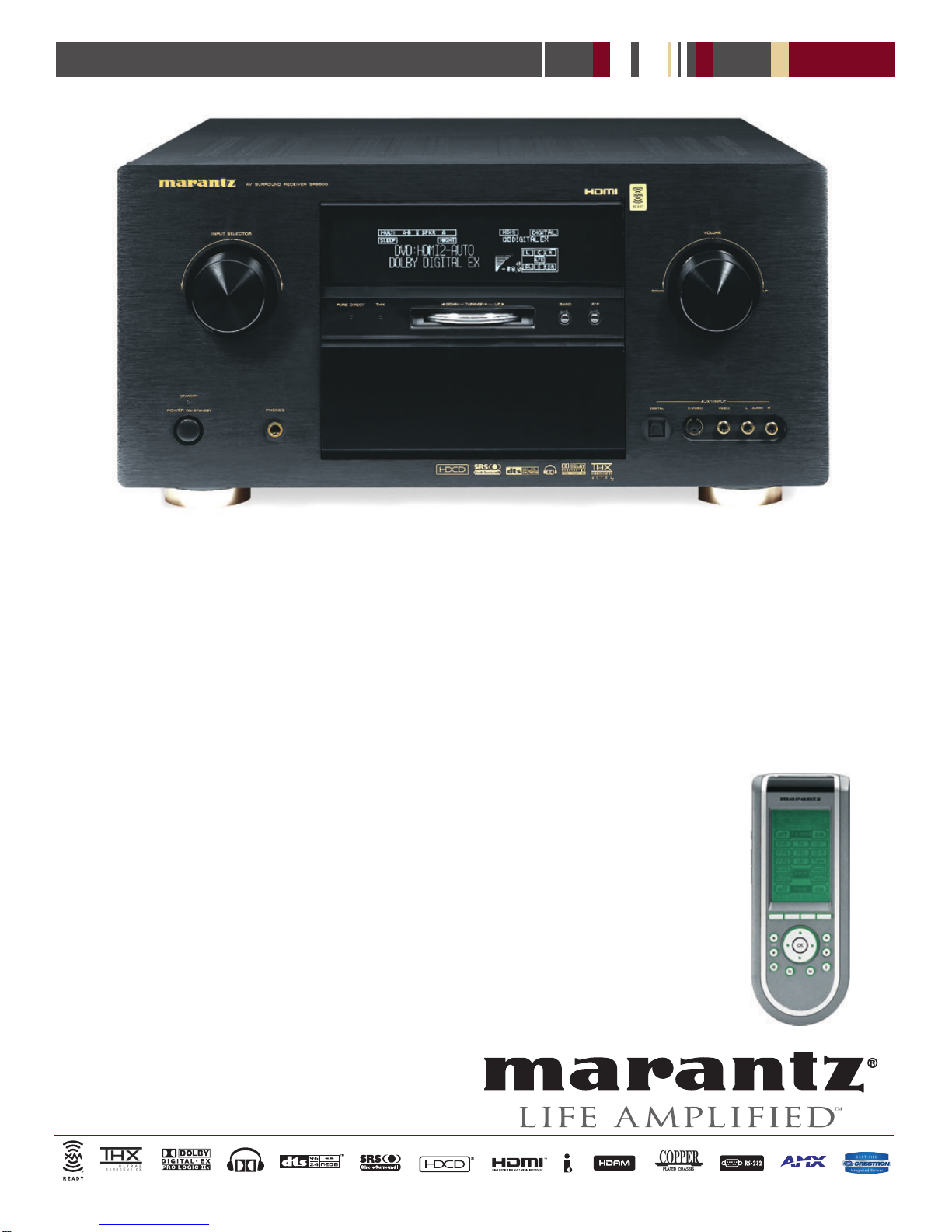

SR9600XM
THX ULTRA2®DIGITAL SURROUND RECEIVER
• XM™ Ready
• THX Ultra2®Certified
• 140 Watts x 7 - All Discrete Amplifier Stages
• THX Surround EX®Processing
• Dolby Digital EX®, Pro Logic IIx®(Movie/Music/Game)
• DTS 96/24, ES®(Discrete6.1/Matrix 6.1),
Neo:6 (Cinema/Music)
• SRS Circle Surround II®(Cinema/Music/Mono)
• IEEE-1394 (i.LINK) Connection with
“Flow Rate” Control
• All Discrete/SA Ready “Current Feedback”
Amplifier Stages
• Dual 32-Bit DSP
• 192kHz/24-Bit Cirrus Logic®DACs for all 7 Channels
• HDAM-SA2 Modules
• 9-Band Equalization M.R.A.C. (Marantz Room Acoustic
Calibration) System
• Massive, High Energy Power Supply, Huge Toroidal
Transformer
• Copper Plated Chassis
• HDMI Switching (2 in/1 out)
• Video Up-conversion: Composite/S-Video to Component with TBC
• Dual Multi-room/Multi-source Capabilities with Discrete
Commands
• Speaker A/B Switching
• Multi Speaker “C” Output
• RS232C Connection for System Control and Future Upgrades
• Lip Sync Control
• HD Compatible Component Video Switching (4 in/2 out)
• 8 Assignable Digital Inputs (9 in Total)
• 1 IR Flasher Input and1 IR Receiver Input
• 4 IR Emitter Outputs
• 4 Assignable DC Trigger Outputs
• Gyro-Touch Tuning
• HDCDTM Decoder
•Touch Screen Programmable Remote
Compatible
®

FEATURED OPTICS
MULTICHANNEL/SURROUND
Number of Channels
THX
DTS (ES, Discrete 6.1/ Matrix 6,1, Neo-6)
Dolby Digital EX
Dolby Pro Logic IIx
Circle Surround II
SOUND ENHANCEMENTS
HDCD Decoder
Current Feedback Topology
Discrete Amplification
Power Transformer
D/A Conversion
Digital Signal Processing
Video Off
Source Direct
Chassis
Variable X-over
Display Off
Video Up-conversion
M.R.A.C. (Marantz Room Acoustic Calibration)
XM-Ready
Dual AM/FM Tuner
Bass Management
Lip-sync (digital Audio Delay)
Software Upgradeable (RS232)
IN/OUTPUTS
VIDEO
HDMI In
Component In
S-Video In
Composite In
HDMI Out
Component Out
S-Video Out
Composite Out
AUDIO
Analog L&R In
Analog L&R Out
Digital Optical In
Digital Coaxial In
Digital Optical Out
Digital Coaxial Out
IEEE1394 Connection
7
Ultra 2
•(+ 96/24)
•
•
•
•
•
•(All 7ch)
Toroidal
192kHz/24-Bit
Cirrus Logic®Dual 32-Bit
•
•
Copper Plated w/Double Bottom Plate
•
•
Up to Component with TBC
• (with EQ)
•
-
•
•
•
2
4 (Assignable Inputs)
7
7
1
2
4
6
10
6
5
4
1
1
2
*All specifications, dimensions and weights are subject to change without notice. D&M Holdings, Marantz, Marantz America, Inc. or any of its subsidiaries will not assume any liability for errors in this spec
sheet which may result in consequential errors being made by retail dealers, designers, custom installers, cabinet makers or end users, etc based upon information contained within this document.
©2006 Marantz America, Inc. • Marantz America, Inc. • 1100 Maplewood Drive • Itasca, IL 60143 • Phone [phone] • www.marantz.com
SR9600XM
IN/OUTPUTS Continued
OTHER
Pre-Amplifier Out
Main Amplifier In
Multi-Channel In
Multi-Room Audio Out
Multi-Room Video Out
Multi-Room Speaker Out
Speaker A/B
DAvED (Transmitter
External Control (RS232C)
DC Triggers
D-Bus Remote (RC-5) In/Out
External IR In/Out
Front Panel A/V Inputs
Headphone Out
AC Outlets (Switched/Unswitched)
8ch
8ch
8ch
2 (L&R)
2 (Composite)
•
•
-
•
4
2 / 2
2 / 4 (Flasher & Emitter In/Emitter Out)
•(+ Digital Opt.)
•(Dolby Headphone)
1/1
SPECIFICATIONS
AUDIO SECTION
Power Output (8 Ohm)
(<0.08%, 20Hz - 20kHz/THD)
S/N Ratio
Freq. Response (Analog In)
Freq. Response (Dig In)
TUNER SECTION FM
Frequency Range
S/N Ratio (Mono/Stereo)
TUNER SECTION AM
Frequency Range
S/N Ratio
VIDEO SECTION
Video Freq. Response (Component)
Video Freq. Response (Composite, S-Video)
Signal to Noise
GENERAL
Color
Front Panel
Remote Control
Power Requirement
Power Consumption
Dimensions W x H x D (Inches)
Weight (lbs.)
140W x 7
105dB
8Hz - 100kHz (+/- 3 dB)
8Hz - 45kHz (+/- 3 dB)
87.5 - 108.0MHz
Mono/Stereo: 75/70 dB
520 - 1710kHz
50 dB
5Hz - 80MHz (- 1 dB)
5Hz - 8MHz (- 1 dB)
60dB
Black
Aluminum
Programmable Touch Screen LCD RC3200B
AC 120V/60Hz
780W
17
5/16
" x 8
5/8
" x 19
3/16
"
57.3
