Marantz 4D Audio Dub Stations User manual

Revised 8/19/02
1
4D Audio Dub Stations

Revised 8/19/02
2
There are three Audio Dub Stations available to students. Use these stations to
transfer and burnto Cds audio recorded on cassettesand/or mini-disc.
CD tracks burned at the dub stationscan be played in a standard Cd player
or imported into iMovie or GarageBand using your Mac’s internal CD player.
The FYP Audio Dub Stations are compatible with two types of CD’s:
• CD-R • Compact Disc Recordable. A blank, single-use, recordable CD. Recordable CDs are neither data, nor
audio CDs. CD-Rs are simply media. The format in which you record the disc will determine where it can be
played and what types of files it can hold.
• CD-RW • Compact Disc ReWritable. Same as a CD-R except CD-RWs can be erased and used more than once.
Some CD-RW manufacturers suggest that you do not reuse the same disc more than five times.
Introduction
Recording a Single Mini-Disc Track to CD
Reccording an Entire Mini-Disc to CD
Recording a Cassette Tape to CD
Finalizing a CD
Unfinalizing a CD-RW
Erasing Individual Tracks from a CD-RW
Erasing All Tracks from a CD-RW
Table of Contents
3
4
5
6
6
7
7
○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○
CD-R’s and CD-RW’s are available in the Media Center Vending Machines located on the eighth
floor of Michigan and third floor of the Sharp.

Revised 8/19/02
3
4 Input
5 Record Mode
Stop button
7headphones 6 Rec Level/Select knob
Eject
1 • Plug your head phones into the mini-disc player on the dub station.
2 • Play your mini-disc and cue up the track you wish to record to CD.
3 • Rotate the lower right hand knob on the Mini-Disc player until you see your chosen track
number (for example, “3Tr”) appear in the window • Insert your CD in the Marantz CD-R recorder
4 • Press the INPUT button until “Digital 1” appears on the LCD screen.
5 • Press the RECORD MODE button until “Record Track” appears in the window (you will see
SYNC flashing in the window) • Note: The recorded sound might be distorted when you adjust the
recording level above 0db for digital recording. The default record level for digital audio is 0db. You
should verify this by following the steps below:
6 • Rotate the REC LEVEL/SELECT knob on the Marantz CD Recorder until you see 0db in the
window.. Now you are ready to record.
7 • Plug your headphones into the Marantz CD recorder.
8 • Press the PLAY button on the mini-disc player, recording will automatically start on the CD
recorder • This process will record one track only. You can repeat this process one track at a time until you have
what you need.
9• When finished, Eject your discs and turn the power off on all of the decks • If you
want to STOP the recording at any time Press STOP on the Marantz CD Recorder.
On the Mini-disc Player:
On the Marantz CD Recorder:
Recording a Single Mini-Disc Track to CD
4
5
6
7
Marantz CD Recorder
On the Mini-disc Player:
You will need to FINALIZE the recorded CD when you are finished so the computer will recog-
nize it • Once a CD-R is FINALIZED nothing else can be recorded to it. (For information on finalizing
see page 6 of this guide)
NOTE
8
8

Revised 8/19/02
4
4 Input
5 Record Mode
8 STOP button
7headphones 6 Rec Level/Select knob
1 • Plug your head phones into the Marantz CD Recorder.
2 • Press the INPUT button until “Digital 1” appears on the LCD screen.
3 • Press the RECORD MODE button until “Record Disk” appears in the LCD screen.
4 • Rotate the REC LEVEL/SELECT knob on the Marantz CD Recorder until you see 0db in the
window. Now you are ready to record.
8 • Press the PLAY button on the mini-disc player, recording will automatically start on the CD
recorder • This process will record all tracks all audio on your mini-disc.
10 • When finished, eject your discs and turn the power off on all of the decks • If you
want to STOP the recording at any time Press STOP on the Marantz CD Recorder.
On the Mini-disc Player:
On the Marantz CD Recorder:
7
Recording An Entire Mini-Disc to CD
5
7
4
On the Mini-disc Player:
6
Eject
8
• You will need to FINALIZE the recorded CD when you are finished so the computer will recog-
nize it
• Once a CD-R is FINALIZED nothing else can be recorded to it. (For information on finalizing see page
6 of this guide)
• If you choose “Make Disc” instead of “Record Disc” when selecting the RECORD MODE, the
entire mini disc will be recorded to CD and the CD will Finalize automatically.
NOTE

Revised 8/19/02
5
On the Audio Cassette Player
1 • Plug your head phones into the tape player on the dub station.
2 • Cue your tape to the beginning of the selection you want to record to CD.
3 • Zero-out the counter so it will be easy for you to find this spot again • Insert your tape and CD
8 • Plug your head phones into the Marantz CD Recorder.
4 • Press the INPUT button until “ANALOG” appears in the LCD screen.
5 • Press the RECORD MODE button until “REC MANUAL” appears in window.
6 • Play your tape and rotate the REC LEVEL/SELECT knob on the Marantz CD Recorder to
adjust levels • Levels should never go into the red (above 0 db) this will sound like a horrid beep.
7 • Stop your tape and re-cue it to the beginning of the selection you want to record to CD • rewind
back to 0 on your counter
9 • Press the RECORD button on Marantz CD Recorder.
10 • Press PLAY on the tape player.
11 • Press STOP on the Marantz CD Recorder.
12 • Press STOP on the tape player • Once you press stop, a track will be created on your CD (you can
repeat this process if you want to create multiple tracks).
14 • Eject your discs and turn the power off on all of the decks when you are finished.
On the Marantz CD-R Recorder
When you are sure your levels are correct
When you have recorded enough for the first track:
Recording A Cassette Tape to CD
7headphones Eject 4 Input
9
5
6
7
9
8 STOP button
8
You will need to FINALIZE the recorded CD when you are finished so the computer will recog-
nize it • Once a CD-R is FINALIZED nothing else can be recorded to it. (For information on finalizing
see page 6 of this guide)
NOTE
9 Record button
5 Record Mode
6 Rec Level/Select knob

Revised 8/19/02
6

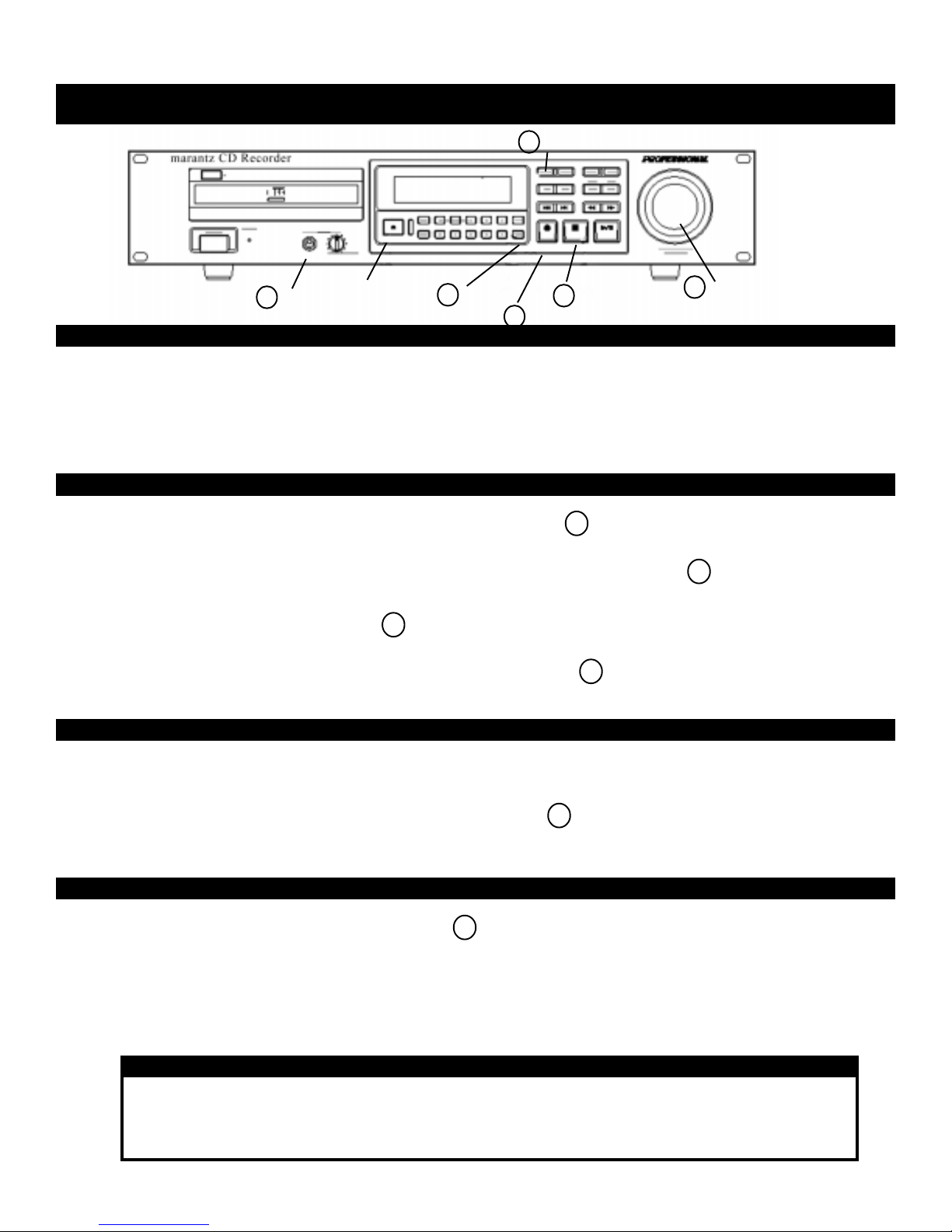

1 • On the Marantz CD Recorder press FINAL • The display shows “FINALIZE CD and PRESS
RECORD”.
2 • Press the RECORD button • The word “FINAL” and the approximate finalization time appear on the
display. Finalizing will take at least 2-4 minutes. The display counts down through the finalization.
3 • Eject your discs and turn the power off on all of the decks.
Can I ever record onto a CD again if I finalize?
• A finalized CD-R disc cannot be recorded onto again.
• A finalized CD-RWdisc can be recorded onto again if it is
unfinalized (see above)
• Finalization is the process of writing the TOC (Table of Contents)
onto the disc so that a CD player or computer can recognize the
contents of the disc.
Finalizing a CD or CD-RW
Important Information on Finalizing
For CD-RW discs only:
If you want to make more recordings on a finalized disc you must unfinalize it first.
1 • With the CD-Recorder stopped, press REC MODE • “UNFINALIZE and PRESS ENTER”
will appear on the display.
2 • Press the REC LEVEL/SELECT knob • The disc will now be unfinalized and can be recorded on again.
Unfinalizing a CD-RW
Why do I need to finalize?
• to import the CD sound into iMovie or SoundEdit
• to play the recorded disc on a CD player
• to avoid further unwanted recordings on a disc.
• to avoid erasure of tracks on a CD-RW.
• During finalization, the CD-Recorder does not accept operating commands.
• A finalized CD-R disc cannot be recorded onto again.
NOTE
Eject
3 Final 9 Record button
5 Record Mode
6 Rec Level/Select knob
3
9
5
6
Unfinalizing takes aproximately 1.5 minutes
NOTE

Revised 8/19/02
7
Erasing Individual Tracks from a CD-RW
For CD-RW discs only:
1 • Press ERASE once • The display shows the number of tracks and their total playing time. “ERASE TRACK” and
“PRESS RECORD” lights up.
2• If the disc is finalized, The recorder will ask you to confirm unfinalizing. Confirm by press-
ing the REC LEVEL/SELECT knob.
3 • Select the tracks you wish to erase by turning the REC LEVEL/SELECT knob to the left
and confirm by pushing the knob • The selected track numbers start blinking on the track bar. The
display shows the remaining tracks and their and their total playing time.
4 • Press the RECORD button • The display shows the total countdown time and “ERASE” on
the display. After the selected track(s) have been erased, the display shows the remaining tracks and
their and their total playing time.
Eject
3 Final 9 Record button 6 Rec Level/Select knob
6
6
9
Erasing All Tracks from a CD-RW
For CD-RW discs only:
1 • Press ERASE twice • The display shows the number of tracks and their total playing time. “ERASE DISC”
and “PRESS RECORD” lights up.
2• If the disc is finalized, The recorder will ask you to confirm unfinalizing first. Confirm by
pressing the REC LEVEL/SELECT knob .
3) Press the RECORD button • The display shows the total countdown time and “ERASE” ap-
pears. The complete disc will be erased.
2 Erase button
2
6
9 .
Erasure of a complete disc may take up to 15 seconds.
NOTE
